IPC Accessories Installation Guide Box camera mount Indoor

IPC Accessories Installation Guide 浙江宇视科技有限公司

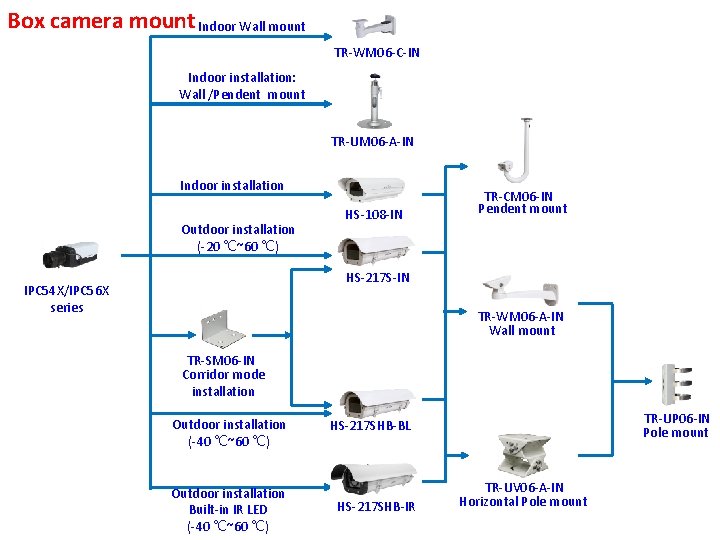

Box camera mount Indoor Wall mount TR-WM 06 -C-IN Indoor installation: Wall /Pendent mount TR-UM 06 -A-IN Indoor installation Outdoor installation (-20 ℃~60 ℃) HS-108 -IN TR-CM 06 -IN Pendent mount HS-217 S-IN IPC 54 X/IPC 56 X series TR-WM 06 -A-IN Wall mount TR-SM 06 -IN Corridor mode installation Outdoor installation (-40 ℃~60 ℃) Outdoor installation Built-in IR LED (-40 ℃~60 ℃) TR-UP 06 -IN Pole mount HS-217 SHB-BL HS-217 SHB-IR TR-UV 06 -A-IN Horizontal Pole mount

NPT ¾”Plastic Waterproof joint Dome camera mount Junction box Optional Outdoor mount: Including junction box TR-A 01 -IN TR-JB 04 -IN IPC 323 X series Outdoor Wall mount TR-JB 07/WM 04 -IN TR-JB 07/WM 04 -A-IN Extra back outlet for cable (Covered with black foam) Indoor mount: Excluding junction box Pole mount Indoor Wall mount TR-WM 04 -IN TR-UP 06 -IN In-ceiling mount TR-FM 152 -A-IN Indoor pendent mount TR-UF 45 -E-IN TR-CE 45 -IN Electric box adaptor TR-SM 04 -IN

Fixed dome camera mount NPT ¾”Plastic Waterproof joint Junction box IPC 32 XS/E series TR-JB 03 -D-IN TR-A 01 -IN Outdoor Wall mount Outdoor mount: Including junction box TR-JB 07/WM 03 -C-IN Outdoor Wall mount TR-JB 07/WM 03 -D-IN Extra back outlet for cable (Covered with black foam) Indoor mount: Excluding junction box Pole mount Indoor Wall mount TR-WM 03 -B-IN TR-UP 06 -IN Indoor pendent mount TR-UF 45 -J-IN Tilted mounting TR-UM 06 -E-IN TR-CE 45 -IN

Fixed dome camera mount NPT ¾”Plastic Waterproof joint Junction box IPC 32 XL series TR-JB 03 -D-IN Optional TR-A 01 -IN Indoor Wall mount TR-WM 03 -B-IN Outdoor Wall mount Outdoor mount: Including junction box Indoor mount: Excluding junction box TR-JB 07/WM 03 -C-IN Outdoor Wall mount TR-JB 07/WM 03 -D-IN Pole mount Extra back outlet for cable TR-UP 06 -IN (Covered with black foam) Indoor pendent mount TR-UF 45 -J-IN Tilted mounting TR-UM 06 -E-IN TR-CE 45 -IN

Fixed dome camera mount NPT ¾”Plastic Waterproof joint Junction box IPC 363 X series IPC 36 XXS/E series Outdoor mount: Including junction box Optional TR-JB 03 -E-IN TR-A 01 -IN Outdoor Wall mount TR-JB 07/WM 03 -A-IN Outdoor Wall mount TR-JB 07/WM 03 -B-IN Extra back outlet for cable (Covered with black foam) Indoor mount: Excluding junction box Pole mount Indoor Wall mount TR-WM 03 -A-IN TR-UP 06 -IN

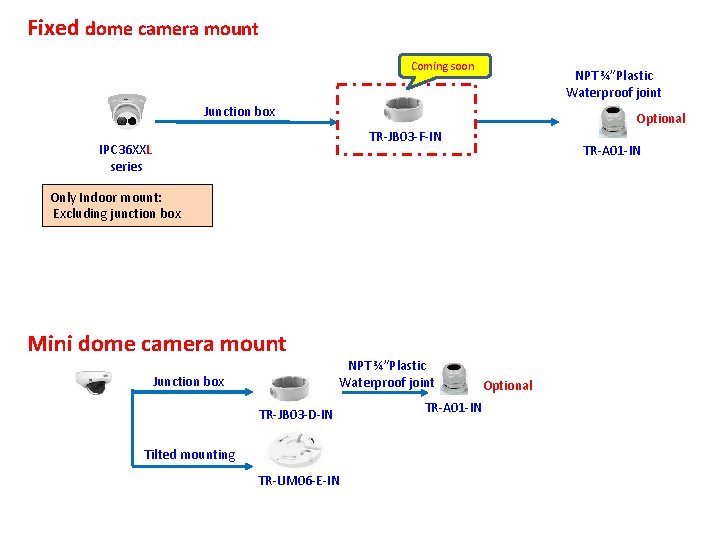

Fixed dome camera mount Coming soon NPT ¾”Plastic Waterproof joint Junction box Optional TR-JB 03 -F-IN IPC 36 XXL series TR-A 01 -IN Only Indoor mount: Excluding junction box Mini dome camera mount Junction box NPT ¾”Plastic Waterproof joint TR-JB 03 -D-IN Tilted mounting TR-UM 06 -E-IN TR-A 01 -IN Optional

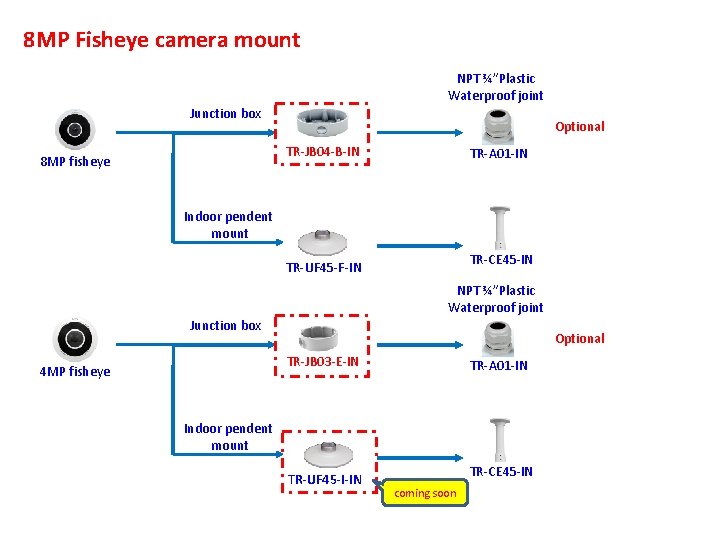

8 MP Fisheye camera mount NPT ¾”Plastic Waterproof joint Junction box Optional TR-JB 04 -B-IN 8 MP fisheye TR-A 01 -IN Indoor pendent mount TR-CE 45 -IN TR-UF 45 -F-IN NPT ¾”Plastic Waterproof joint Junction box Optional TR-JB 03 -E-IN 4 MP fisheye TR-A 01 -IN Indoor pendent mount TR-UF 45 -I-IN TR-CE 45 -IN coming soon

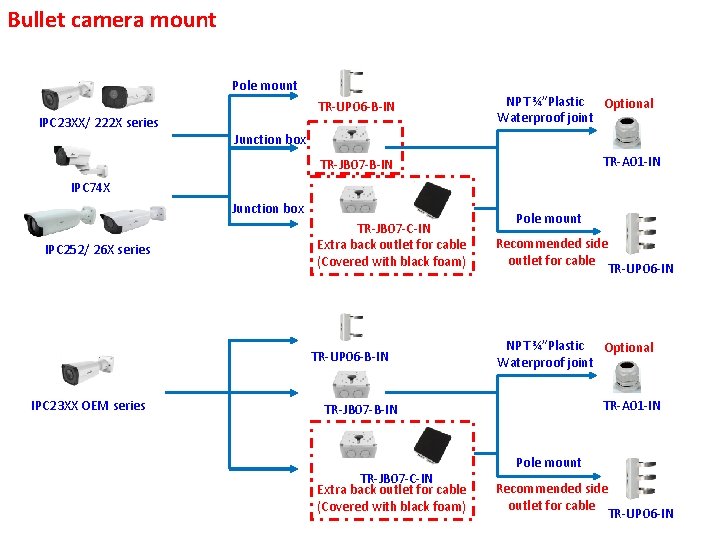

Bullet camera mount Pole mount IPC 23 XX/ 222 X series TR-UP 06 -B-IN NPT ¾”Plastic Optional Waterproof joint Junction box TR-A 01 -IN TR-JB 07 -B-IN IPC 74 X Junction box IPC 252/ 26 X series TR-JB 07 -C-IN Extra back outlet for cable (Covered with black foam) TR-UP 06 -B-IN IPC 23 XX OEM series Pole mount Recommended side outlet for cable TR-UP 06 -IN NPT ¾”Plastic Optional Waterproof joint TR-A 01 -IN TR-JB 07 -B-IN TR-JB 07 -C-IN Extra back outlet for cable (Covered with black foam) Pole mount Recommended side outlet for cable TR-UP 06 -IN

Bullet camera mount Pole mount Recommended side TR-UP 06 -A-IN outlet for cable IPC 21 XX Junction box TR-JB 05 -IN Extra back outlet for cable (Covered with black foam) Optional NPT ¾”Plastic Waterproof joint. TR-A 01 -IN Junction box IPC 21 XX TR-JB 06 -IN

Outdoor PTZ camera mount Pendent mount adaptor (support side cabling) TR-UF 45 -A-IN Pendent mount (500 mm) Pendent mount adaptor (support side cabling) TR-SE 45 -A-IN TR-UF 45 -A-IN Pendent mount (200 mm) TR-SE 45 -IN Pendent mount (200 mm) (support side cabling) TR-CE 45 -IN Pendent mount adaptor is for indoor. Outdoor installation should take care of waterproof. Wall mount (Shorter bracket) Pole mount Steel：TR-UP 08 -A-IN Al Alloy：TR-UP 08 -B-IN TR-WE 45 -IN IPC 62 xx Series IPC 63 xx Series TR-JB 12 -IN Wall mount (Longer bracket) TR-WE 45 -A-IN Wall mount (Swan neck bracket) TR-WE 45 -B-IN Corner mount Steel ：TR-UC 08 -A-IN Al Alloy ： TR-UC 08 -B-IN

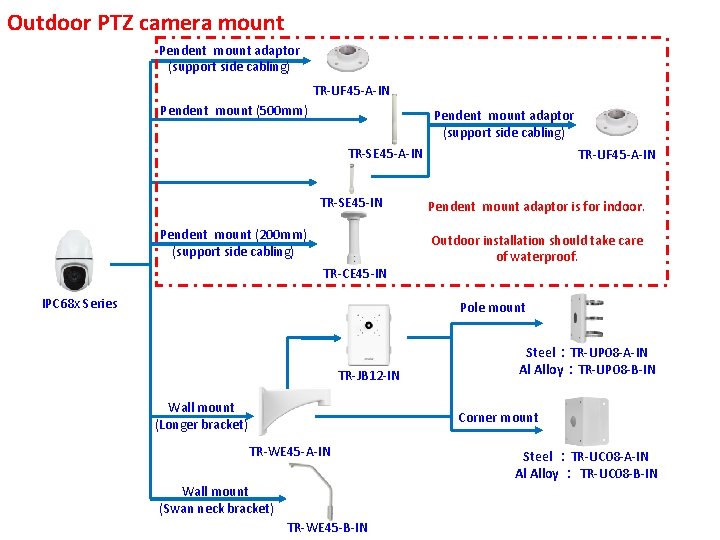

Outdoor PTZ camera mount Pendent mount adaptor (support side cabling) TR-UF 45 -A-IN Pendent mount (500 mm) Pendent mount adaptor (support side cabling) TR-SE 45 -A-IN TR-SE 45 -IN Pendent mount (200 mm) (support side cabling) TR-CE 45 -IN IPC 68 x Series TR-UF 45 -A-IN Pendent mount adaptor is for indoor. Outdoor installation should take care of waterproof. Pole mount TR-JB 12 -IN Wall mount (Longer bracket) Steel：TR-UP 08 -A-IN Al Alloy：TR-UP 08 -B-IN Corner mount TR-WE 45 -A-IN Wall mount (Swan neck bracket) TR-WE 45 -B-IN Steel ：TR-UC 08 -A-IN Al Alloy ： TR-UC 08 -B-IN

Indoor PTZ camera mount In-ceiling mount TR-FM 200 -IN IPC 6222 EI-X 22 UP-C Indoor pendent mount TR-CE 45 -IN Adaptor TR-UF 45 -H-IN Shorter bracket TR-WE 45 -IN Indoor wall mount Longer bracket TR-WE 45 -A-IN Swan neck bracket TR-WE 45 -B-IN
