IPC Accessories Installation Guide 2019 08 28 Box

IPC Accessories Installation Guide 2019 -08 -28

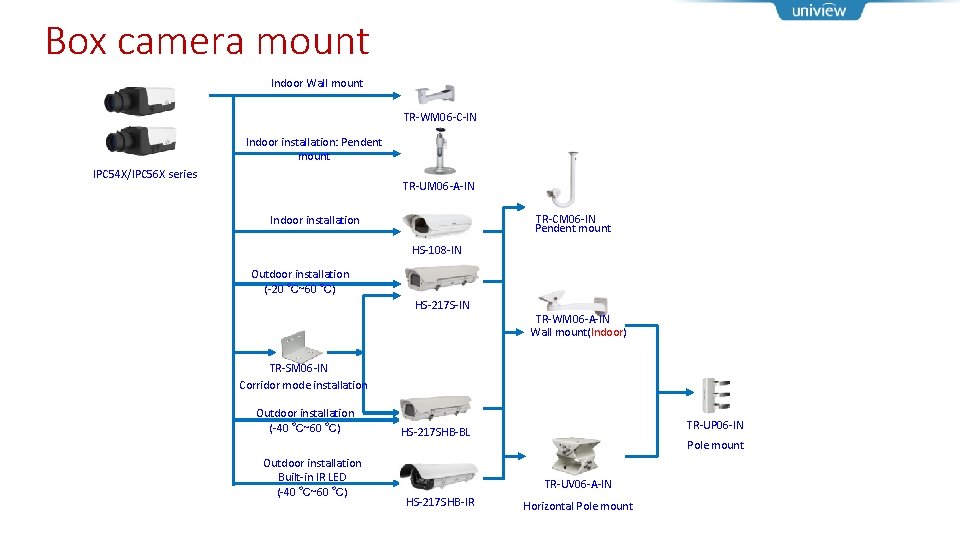

Box camera mount Indoor Wall mount TR-WM 06 -C-IN Indoor installation: Pendent mount IPC 54 X/IPC 56 X series TR-UM 06 -A-IN TR-CM 06 -IN Pendent mount Indoor installation HS-108 -IN Outdoor installation (-20 ℃~60 ℃) HS-217 S-IN TR-WM 06 -A-IN Wall mount(Indoor) TR-SM 06 -IN Corridor mode installation Outdoor installation (-40 ℃~60 ℃) Outdoor installation Built-in IR LED (-40 ℃~60 ℃) TR-UP 06 -IN HS-217 SHB-BL Pole mount TR-UV 06 -A-IN HS-217 SHB-IR Horizontal Pole mount

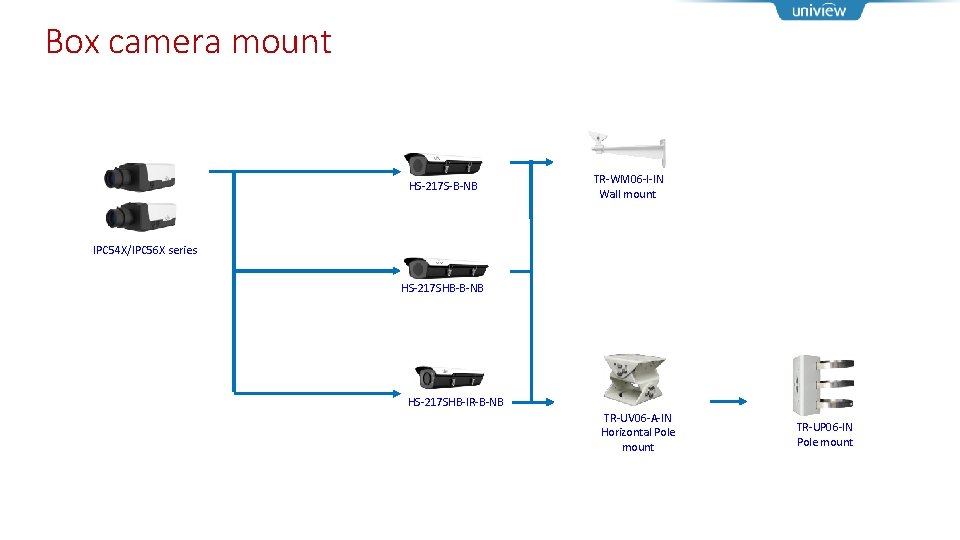

Box camera mount HS-217 S-B-NB TR-WM 06 -I-IN Wall mount IPC 54 X/IPC 56 X series HS-217 SHB-B-NB HS-217 SHB-IR-B-NB TR-UV 06 -A-IN Horizontal Pole mount TR-UP 06 -IN Pole mount

Dome camera mount NPT ¾”Plastic Waterproof joint IPC 323 X series Junction box Optional TR-A 01 -IN TR-JB 04 -C-IN Wall mount (Junction box) TR-JB 07/WM 04 -B-IN Pole mount Wall mount TR-WM 04 -IN In-ceiling mount TR-FM 152 -A-IN Electric box adaptor TR-SM 04 -IN (NEMA-WD 6) TR-UP 06 -IN

Dome camera mount NPT ¾”Plastic Waterproof joint Junction box Optional TR-JB 03 -H-IN PRIME series IPC 363 X IPC 361 X S/E TR-A 01 -IN Wall mount (Junction box) TR-JB 07/WM 03 -F-IN Mini PTZ IPC 6412 LR-X 5 P Mini PTZ IPC 6415 SR-X 5 UPW Pole mount Wall mount TR-UP 06 -IN TR-WM 03 -B-IN NPT ¾”Plastic Waterproof joint EASY series IPC 361 XL Junction box Optional TR-JB 03 -I-IN TR-A 01 -IN Wall mount (Junction box) TR-JB 07/WM 03 -G-IN Pole mount Wall mount TR-WM 03 -D-IN TR-UP 06 -IN

Dome camera mount NPT ¾”Plastic Waterproof joint Junction box TR-JB 03 -G-IN IPC 32 X S/E/L series IPC 31 X Optional TR-A 01 -IN Wall mount (Junction box) TR-JB 07/WM 03 -G-IN Pole mount Wall mount TR-WM 03 -D-IN Tilted mounting TR-UM 06 -E-IN TR-UP 06 -IN

Fisheye camera mount Optional Junction box TR-JB 04 -D-IN 868 fisheye NPT ¾”Plastic Waterproof joint Junction box 814 fisheye 815 fisheye TR-A 01 -IN Optional TR-JB 03 -H-IN TR-A 01 -IN NPT ¾”Plastic Waterproof joint

Dome camera Indoor pendent mount *Release: 2019 Q 1 Junction box IPC 323 X series + Indoor pendent mount TR-JB 04 -C-IN PRIME series IPC 363 X PRIME series IPC 361 X S/E + TR-JB 03 -H-IN EASY series IPC 361 XL + TR-JB 03 -I-IN IPC 32 X S/E/L series IPC 31 X + TR-JB 03 -G-IN 868 fisheye + TR-JB 04 -D-IN 814 fisheye + TR-JB 03 -H-IN Pendent mount adaptor is for indoor. TR-SE 24 -IN (NPT ¾ 200 mm lengthen) Outdoor installation should take care of waterproof. TR-CM 24 -IN (NPT ¾ 200 mm) TR-SE 24 -A-IN (NPT ¾ 500 mm lengthen)

Bullet camera mount Junction box TR-JB 07 -D-IN NPT ¾”Plastic Waterproof joint Optional IPC 232 X/ 222 X series TR-JB 06 -A-IN IPC 74 X series TR-A 01 -IN Pole mount Recommended side outlet for cable 26 X series Pole mount TR-UP 06 -C-IN TR-UP 06 -B-IN Junction box NPT ¾”Plastic Waterproof joint Optional TR-JB 07 -D-IN IPC 252 series TR-A 01 -IN Pole mount Recommended side outlet for cable Pole mount TR-UP 06 -C-IN TR-UP 06 -B-IN

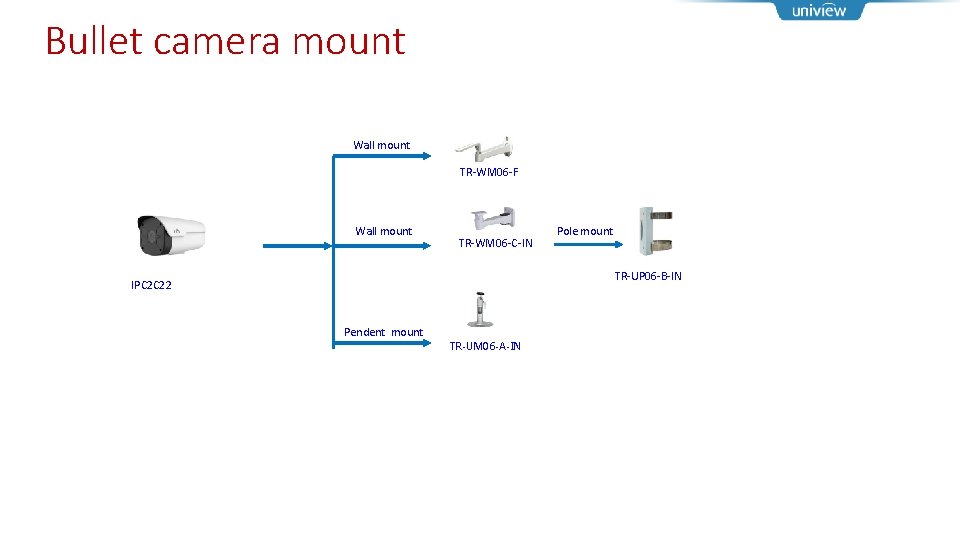

Bullet camera mount Wall mount TR-WM 06 -F Wall mount TR-WM 06 -C-IN Pole mount TR-UP 06 -B-IN IPC 2 C 22 Pendent mount TR-UM 06 -A-IN

Mini Bullet camera mount Pole mount TR-UP 06 -B-IN IPC 212 X Pole mount Junction box TR-JB 05 -A-IN TR-UP 06 -C-IN NPT ¾”Plastic Waterproof joint IPC 212 X (Round mount) Junction box TR-JB 06 -IN TR-A 01 -IN Optional TR-JB 05 -B-IN (Round)

PTZ camera mount Pendent mount adaptor (support side cabling) Pendent mount (500 mm) Pendent mount adaptor is for indoor. TR-UF 45 -A-IN TR-SE 45 -A-IN Pendent mount (200 mm) Pendent mount adaptor (support side cabling) TR-UF 45 -A-IN Outdoor installation should take care of waterproof. TR-SE 45 -IN Pendent mount (200 mm) (support side cabling) IPC 62 xx Series IPC 63 xx Series Pole mount Wall mount (Shorter bracket) Wall mount (Longer bracket) TR-CE 45 -IN Steel：TR-UP 08 -A-IN Al Alloy：TR-UP 08 -B-IN TR-WE 45 -IN TR-JB 12 -IN TR-WE 45 -A-IN Wall mount (Swan neck bracket) TR-WE 45 -B-IN Corner mount Steel ：TR-UC 08 -A-IN Al Alloy ： TR-UC 08 -B-IN

PTZ camera mount Pendent mount adaptor (support side cabling) Pendent mount (500 mm) Pendent mount adaptor is for indoor. TR-UF 45 -A-IN IPC 68 x Series TR-SE 45 -A-IN Pendent mount adaptor (support side cabling) TR-UF 45 -A-IN TR-SE 45 -IN Pendent mount (200 mm) (support side cabling) TR-CE 45 -IN Pole mount TR-JB 12 -IN Wall mount (Longer bracket) Steel：TR-UP 08 -A-IN Al Alloy：TR-UP 08 -B-IN Corner mount TR-WE 45 -A-IN Wall mount (Swan neck bracket) TR-WE 45 -B-IN Steel ：TR-UC 08 -A-IN Al Alloy ： TR-UC 08 -B-IN Outdoor installation should take care of waterproof.

Indoor PTZ camera mount Shorter bracket TR-WE 45 -IN Indoor wall mount In-ceiling mount Longer bracket TR-FM 200 -IN TR-WE 45 -A-IN IPC 6222 EI-X 22 UP-C Adaptor Swan neck bracket TR-UF 45 -H-IN TR-WE 45 -B-IN Indoor pendent mount TR-CE 45 -IN 500 mm Indoor pendent mount TR-CE 45 -IN TR-SE 45 -A-IN 200 mm TR-SE 45 -IN

Pendent mount TR-CM 06 -C-IN 2 D Bracket Mount Pole mount IPC 8542 ER 5 -DUG TR-UV 06 -C-IN Wall Mount TR-UP 06 -IN Pole mount Adapter TR-WE 45 -D-IN TR-UP 06 -B-IN
