IPB 101 PV Plus Update Bhupesh Das Operator

IPB 101 PV Plus Update Bhupesh Das

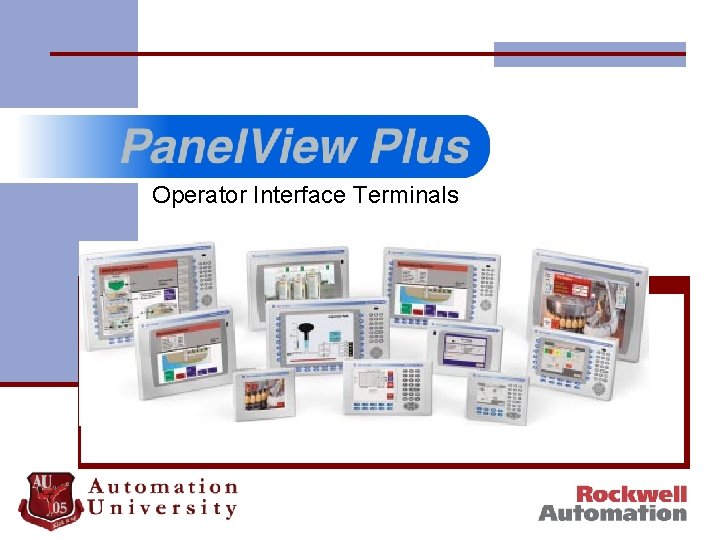

Operator Interface Terminals

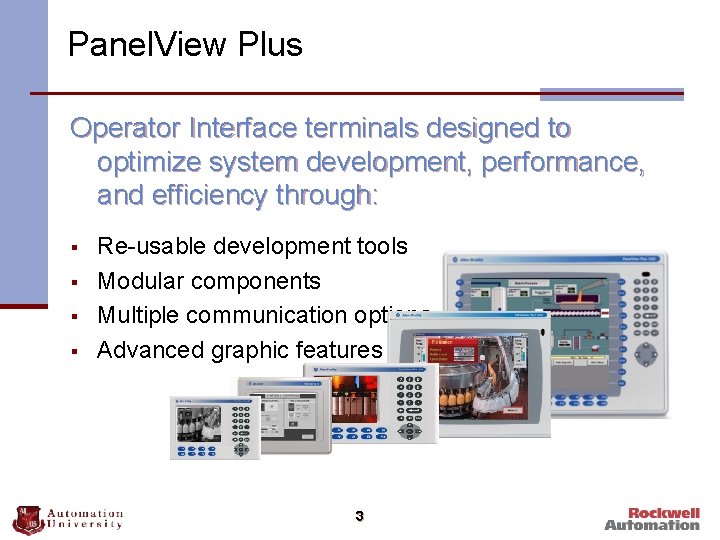

Panel. View Plus Operator Interface terminals designed to optimize system development, performance, and efficiency through: § § Re-usable development tools Modular components Multiple communication options Advanced graphic features 3

Optimizing System Development § View. Any. Ware § § Innovative Design § § § Common development software Small package Modular components Protecting Past Investments § § Panel. View Standard and Panel. View ‘e’ file conversion Common cutouts with Panel. View Standard, 4 Panel. View ‘e’, and RAC 6182

View. Any. Ware Machine Level Platforms RSView Studio V 3. 10 Configuration Runtimes Panel. View Plus* Panel. View Plus 400/600 Dedicated Versa. View CE Computers* Versa. View Computers Windows 2000/XP Runtimes MV w/ME Open - Windows CE Open - Windows 2000/XP *Note: RSView ME runtime included with Panel. View Plus and Versa. View CE 5

Re-usable Development Tools Common Look & Feel § § Scalability § § § Data & application migration – reuse of project components Legacy migration Interoperability § 6 Global Namespace via Factory. Talk Portability Interoperability § Cross platform support - Machine & Supervisory Level HMI Cross OS support - Dedicated, CE, Win 2000/XP Scalability § Single development environment “RSView Studio” – reduces training Best in Class graphical editor – common objects, navigation and behaviors Common Look & Feel §

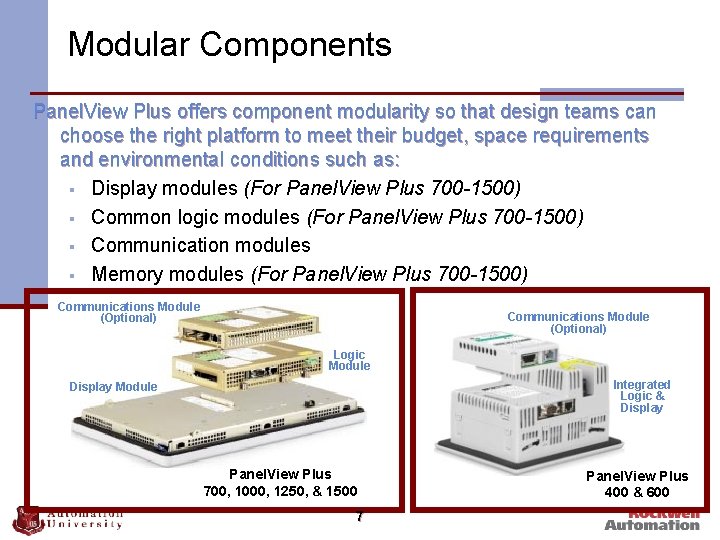

Modular Components Panel. View Plus offers component modularity so that design teams can choose the right platform to meet their budget, space requirements and environmental conditions such as: § Display modules (For Panel. View Plus 700 -1500) § Common logic modules (For Panel. View Plus 700 -1500) § Communication modules § Memory modules (For Panel. View Plus 700 -1500) Communications Module (Optional) Logic Module Integrated Logic & Display Module Panel. View Plus 700, 1000, 1250, & 1500 7 Panel. View Plus 400 & 600

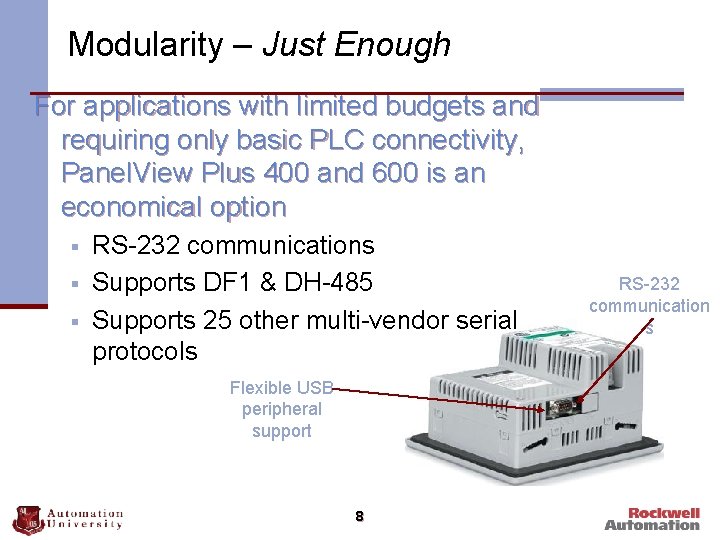

Modularity – Just Enough For applications with limited budgets and requiring only basic PLC connectivity, Panel. View Plus 400 and 600 is an economical option § § § RS-232 communications Supports DF 1 & DH-485 Supports 25 other multi-vendor serial protocols Flexible USB peripheral support 8 RS-232 communication s

Modularity – Affordable but Flexible For more distributed or complex applications with networked PLC connectivity, Panel. View Plus 400 and 600 offer: § § § RS-232 communications Optional Communication Ethernet communications Modules Ethernet Optional communication modules communication § § DH+ Remote I/O (Single Rack) Flexible USB DH-485 peripheral Isolated RS-232 support 9 s RS-232 communication

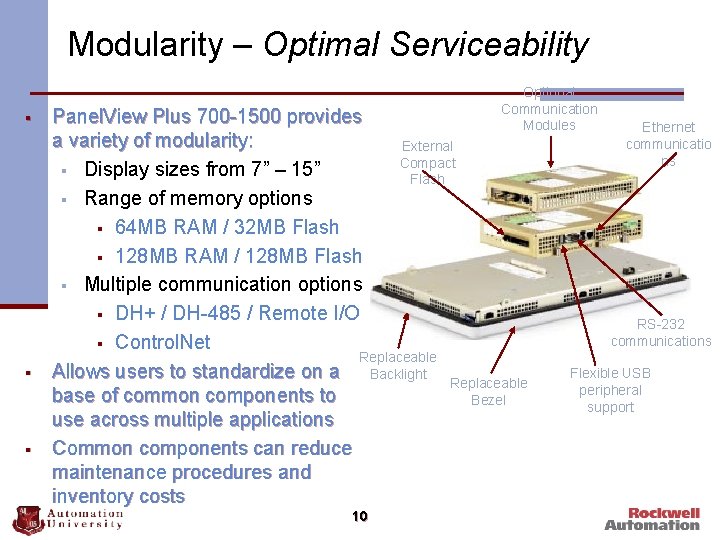

Modularity – Optimal Serviceability § § § Optional Communication Modules Panel. View Plus 700 -1500 provides a variety of modularity: External Compact § Display sizes from 7” – 15” Flash § Range of memory options § 64 MB RAM / 32 MB Flash § 128 MB RAM / 128 MB Flash § Multiple communication options § DH+ / DH-485 / Remote I/O § Control. Net Replaceable Allows users to standardize on a Backlight Replaceable base of common components to Bezel use across multiple applications Common components can reduce maintenance procedures and inventory costs 10 Ethernet communicatio ns RS-232 communications Flexible USB peripheral support

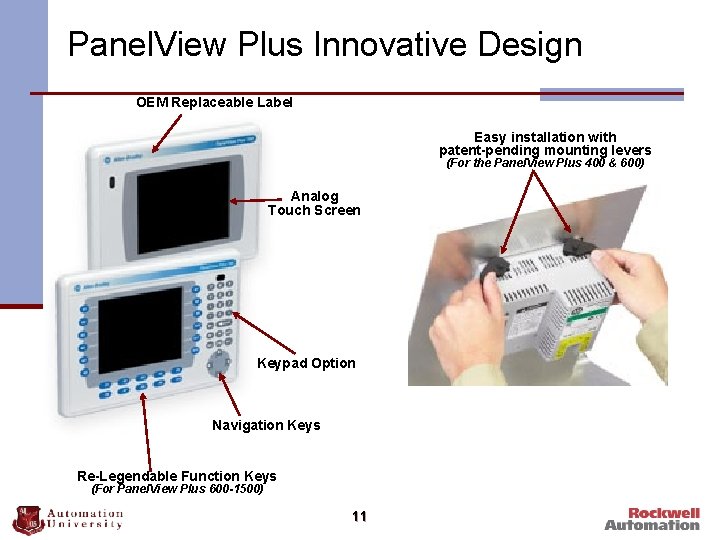

Panel. View Plus Innovative Design OEM Replaceable Label Easy installation with patent-pending mounting levers (For the Panel. View Plus 400 & 600) Analog Touch Screen Keypad Option Navigation Keys Re-Legendable Function Keys (For Panel. View Plus 600 -1500) 11

Protecting Past Investments § RSView Studio imports the majority of Panel. View Standard and Panel. View ‘e’ tags and screens § Physical migration by retaining common cutouts § § Panel. View Plus with a larger display drops into the same cutout as smaller Panel. View Standard and Panel. View ‘e’ Adapter plates when maintaining the display size is preferred 12

Multiple Communication Options § § Preferred HMI for Rockwell Automation Controllers with RSLinx Enterprise and Factory. Talk Allows simultaneous communications Supports these Rockwell Automation networks: § § § DF 1 DH-485 Remote I/O DH+ Ethernet/IP Control. Net (For Panel. View Plus 700 -1500) § 13 Kep. Server drivers are available for serial and Ethernet protocols for many PLC vendors at no additional charge Supports the following protocols:

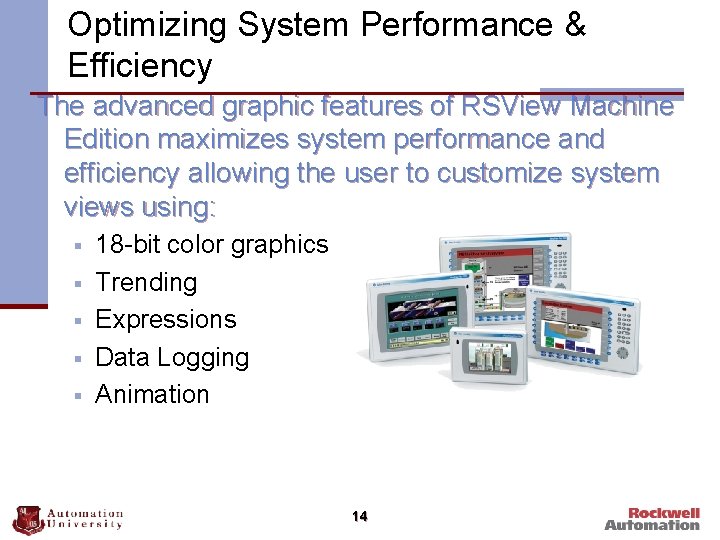

Optimizing System Performance & Efficiency The advanced graphic features of RSView Machine Edition maximizes system performance and efficiency allowing the user to customize system views using: § § § 18 -bit color graphics Trending Expressions Data Logging Animation 14

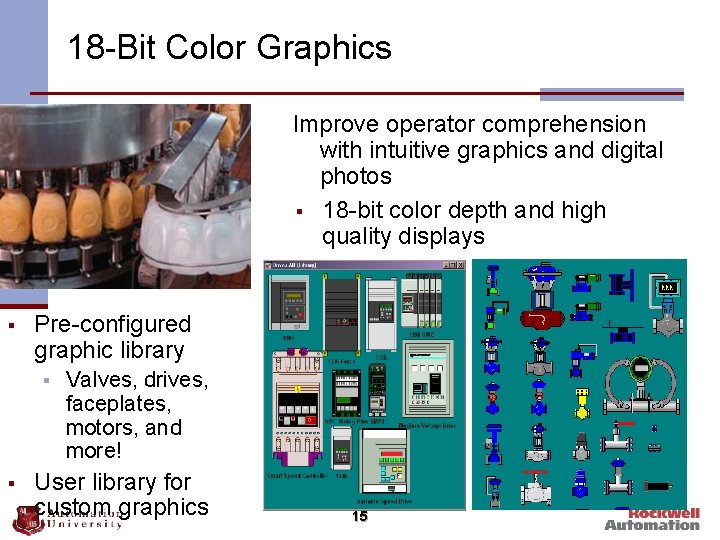

18 -Bit Color Graphics Improve operator comprehension with intuitive graphics and digital photos § 18 -bit color depth and high quality displays § Pre-configured graphic library § § Valves, drives, faceplates, motors, and more! User library for custom graphics 15

RSView Machine Edition Features § Trending to monitor real time and historical data § Data Logging to log tag values that can be displayed in the historical trend object § § Flexible logging options include: § Compact Flash Card § Remote PC § Local Drive Convert datalog file to DBF for use with Excel § Security to restrict operator access to specific displays § Expressions to perform mathematical or logical calculations § Parameter Files & Pop-up displays 16

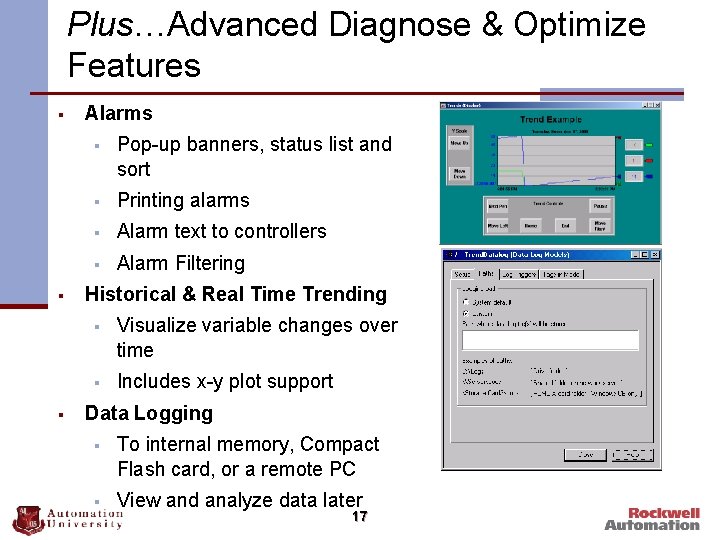

Plus…Advanced Diagnose & Optimize Features § § § Alarms § Pop-up banners, status list and sort § Printing alarms § Alarm text to controllers § Alarm Filtering Historical & Real Time Trending § Visualize variable changes over time § Includes x-y plot support Data Logging § To internal memory, Compact Flash card, or a remote PC § View and analyze data later 17

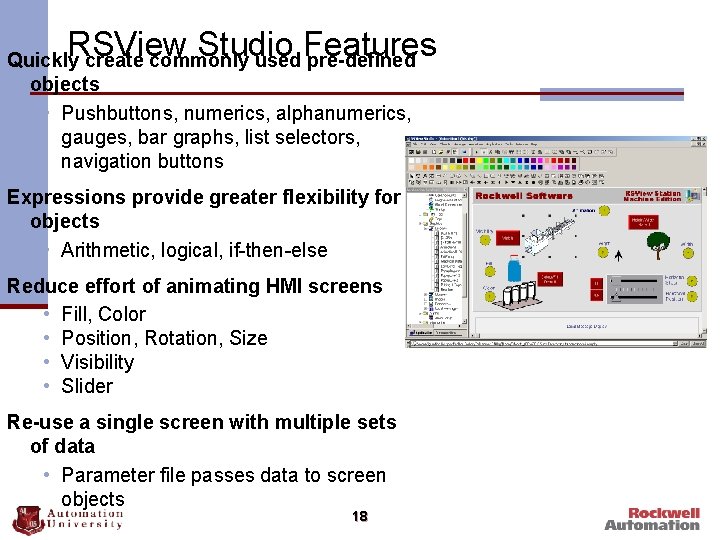

RSView Studio Features Quickly create commonly used pre-defined objects • Pushbuttons, numerics, alphanumerics, gauges, bar graphs, list selectors, navigation buttons Expressions provide greater flexibility for objects • Arithmetic, logical, if-then-else Reduce effort of animating HMI screens • Fill, Color • Position, Rotation, Size • Visibility • Slider Re-use a single screen with multiple sets of data • Parameter file passes data to screen objects 18

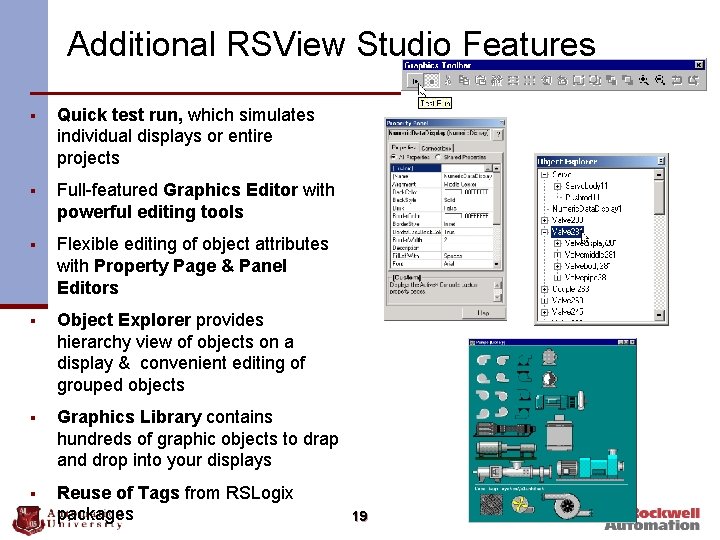

Additional RSView Studio Features § Quick test run, which simulates individual displays or entire projects § Full-featured Graphics Editor with powerful editing tools § Flexible editing of object attributes with Property Page & Panel Editors § Object Explorer provides hierarchy view of objects on a display & convenient editing of grouped objects § Graphics Library contains hundreds of graphic objects to drap and drop into your displays § Reuse of Tags from RSLogix packages 19

Panel. View Plus - Flexible, Powerful, Robust 20

Thank-you Questions?
