IPAK 2 Access Control Solution IPAK 2 Web

IP-AK 2 Access Control Solution

IP-AK 2 Web Features • Configuring - Complete system programming from Web Interface • Monitoring - Live event viewing - Real-time manual system control • Reporting - Card Report - Alarm & Event Report • Others - High-Security with SSL Level Encryption - Alarm and Event database auto backup - Manual download of database to local PC - Global languages supported 2 Honeywell Confidential File Number- 2

IP-AK 2 Control Panel Key Features: • Embedded Web Server • 2 Reader Control Panel, expandable to 10 panels over RS 485 network • Support readers compliant with Wiegand format • Onboard I/O - Two readers, 8 supervised inputs, and 4 relay outputs • • • Card capacity up to 10 K card holders Support a maximum of 25 K events Flash Upgradeable Firmware Real Time Clock Multiple communications - 10/100 onboard Ethernet - RS 485 multi-drop communications 3 Honeywell Confidential File Number- 3

Honeywell IP-AK 2 Access Control • New generation Access Controller combining the features of web server and access control functionalities into one complete unit. - A solution that allows users to administrate and manage the access - control system from Web Browser, regardless of operating system and hardware platform. Ideal for meeting the requirements of entry-level applications from 2 -doors up to 20 -doors. Why Web-Based Access Control? • NO dedicated PC or server required • NO software required • NO particular operating system required • NO software upgrades required • NO virus checking required 4 Honeywell Confidential File Number- 4

How IP-AK 2 Web-Based solution works? Web Browser Configuring Monitoring Reader 1 Reporting Reader 2 Ethernet 10/100 IP-AK 2 8 Inputs 4 Outputs RS-485 Multidrop Line Up to 9 Downstream Control Panels Reader 1 Reader 2 IP-AK 2 5 IP-AK 2 8 Inputs 4 Outputs Honeywell Confidential File Number- 5

IP-AK 2 Web Features – Configuring • Time Configurations - Time zones – up to 127 - Holidays – 255 • Panel Configurations - Panel Attributes w w Local/Global Anti-passback enable Two-door interlock supported Duress detect enable Continuous card read supported - Interlocks – up to 256 - Data Management w Auto backup of Alarm & Event Database w Manual backup of other databases • Door Configurations - Input/Output - Readers - Card only/PIN only/Card & PIN/Card or PIN • Access Level Configurations - Site Codes – a maximum of 8 - Access Level – up to 128 - Card formats– 128 Wiegand format - Card Management 6 Honeywell Confidential File Number- 6

IP-AK 2 Kit Connection Diagram 7 Honeywell Confidential File Number- 7

IP-AK 2 Panel Wiring 8 Honeywell Confidential File Number- 8

DIP Switch Settings DIP Switches State Definition Panel Address (0 x 01 ~ 0 x 31) 1 -5 6 ON/OFF Master/Slave ON OFF Default IP and User OFF ON Factory Default ON ON Reserved OFF Normal Operation 7 -8 9 -10 9 Host 485 EOL Honeywell Confidential File Number- 9

Connecting Panel to Computer • IP-AK 2 Web Server Hub Connection • IP-AK 2 Web Server Direct Connection 10 Honeywell Confidential File Number- 10

Connecting to IP-AK 2 Access Control System 11 Honeywell Confidential File Number- 11

IP-AK 2 LED Indicators Apply power to the panel, and then POWER LED will turn green meanwhile Each relay also has a green indicator LED, which indicates the relay state. If the relay is triggered, the LED will be on. Reader Status LED System Status LED Ethernet Status LED 12 Honeywell Confidential File Number- 12

Configuring Network Connection On the computer Desktop, click Start Control Panel Network Connections 13 Honeywell Confidential File Number- 13

Login to IP-AK 2 Web Server • Launch the Internet Explorer browser and enter https: //192. 168. 1. 150 in the address bar • IP-AK 2 supports two kinds of web browsers: 1. Internet Explore 6. 0 or above 2. Firefox 3. 0 or above • 14 Click【Yes】and then enter to IP-AK 2 Web Server login page. Honeywell Confidential File Number- 14

Login to IP-AK 2 Web Server • • 15 Up to 6 users are allowed to login simultaneously, including 1 administrator and 5 operators. Simplified Chinese, English, Traditional Chinese and Korean are supported by the server. Select them form the drop-down list on the top right corner Honeywell Confidential File Number- 15

Main Page 16 Honeywell Confidential File Number- 16

Door View and System Status 17 Honeywell Confidential File Number- 17

System Configuration Flow Chart 18 Honeywell Confidential File Number- 18

Time Zones Synchronize with PC provides an easy way to update loop time the same as the PC time. Click the hyperlink in the Current Loop Time field to popup a time editing window, on which the loop time can be updated 19 Honeywell Confidential File Number- 19

Panel Configuration Current Panel Make sure you are configuring the correct panel. The horizontal bar shown on the top of Panel Attributes page, Interlocks page, and Data Management page shows the panel number that you are configuring currently. 20 Honeywell Confidential File Number- 20

Panel Attributes 21 Honeywell Confidential File Number- 21

Interlocks An interlock is a programmed connection between two points. An action on one point will cause a reaction from the other point on the same panel 22 Honeywell Confidential File Number- 22

Data Management All configurations will be saved in panel’s database. On this page, you can download database from a panel or upload database to a panel overwriting existing data. The page is especially useful when changing a panel already been configured successfully. 23 Honeywell Confidential File Number- 23

Auto-Backup 24 • When auto-backup function is enabled, event and alarm will be transferred to remote ftp server automatically • When threshold value user defined is reached. For enabling auto-backup function successfully, user should provide ftp server address and authority information Honeywell Confidential File Number- 24

Door Configuration Make sure you are configuring the correct door. The horizontal bar shown on the top of Input Settings page, Output Settings page, and Reader Settings page shows the door number that you are configuring currently 25 Honeywell Confidential File Number- 25

Input Settings 26 Honeywell Confidential File Number- 26

Output Settings 27 Honeywell Confidential File Number- 27

Reader Settings 28 Honeywell Confidential File Number- 28

Site Codes 29 Honeywell Confidential File Number- 29

Access Levels The access level specifies the time zone, or time schedule, during which the card holder can be granted access at specific doors 30 Honeywell Confidential File Number- 30

Card Formats 31 Honeywell Confidential File Number- 31

Card Management Card is encoded with a unique number. When swiping a card with valid card number, the card holder would be granted access to certain doors during a certain time. 32 Honeywell Confidential File Number- 32

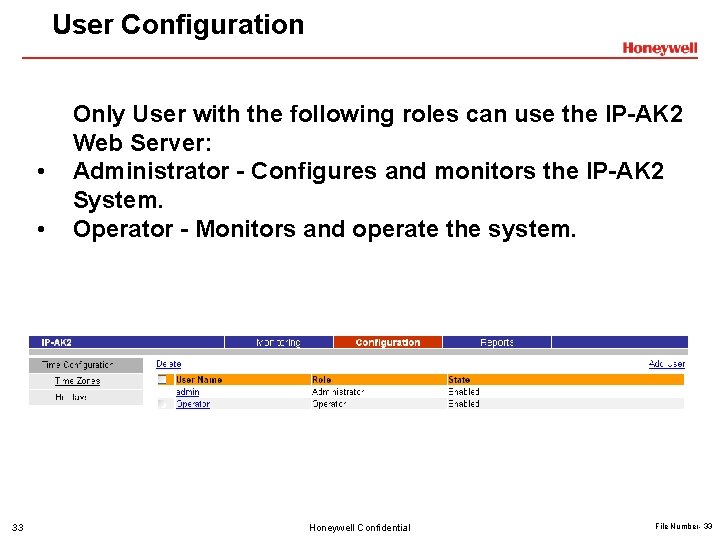

User Configuration • • 33 Only User with the following roles can use the IP-AK 2 Web Server: Administrator - Configures and monitors the IP-AK 2 System. Operator - Monitors and operate the system. Honeywell Confidential File Number- 33

Network Settings 34 Honeywell Confidential File Number- 34

Report The IP-AK 2 system can generate the following reports: • Alarms & Events Report • Event Definition • Cards Report 35 Honeywell Confidential File Number- 35

Time and Attendance Report A software which can show records of employee working time, over time, late arrival, early departure on every day and every month. All record can be exported to CSV file. 36 Honeywell Confidential File Number- 36

Download data from IP-AK 2 37 Honeywell Confidential File Number- 37

IP-AK 2 User Benefits Features Benefits v Embedded Web-Server v No Software Required v Flash Memory Upgradeable v Internet Connection v Encrypted Communications v Intuitive Interface v Visualized Door Status Viewing v Real-time Manual Control v Full Reporting Capability 38 üReduce Costs for PC üReduce Costs of Maintenance üEliminated Upgrading Fees üEnabled Remote Management üIncreased Security üReduced Learning Curve üEasy to Monitor üEasy to Operate üEasy to Manage Honeywell Confidential Affordable Security File Number- 38

IP-AK 2 Dealer Benefits Features v Simple Web. Pages allowing fast programming v No software needed v Intuitive Interface v Simple Installation with Enclosure v Manage system from any internet connection v Flash memory upgradeable 39 Benefits üReduced Installation Time üEliminated Software Trouble Shooting üReduced overall learning curve and customer training üReduced Installation Time üReduced Services Cost thru remote diagnostics üReduced Time on Support Confidential Generating Honeywell Recurring Business File Number- 39

Selling Points Simple Easy-to-Install Easy-to-Operate • No software to install. • Simply connect a TCP/IP network cable from IP-AK 2 control panel to a computer and then use standard web browser for access control. • Built-in web server allows system control from anywhere an Internet connection is available. • Intuitive interfaces of web browser minimize training requirements and learning curves for configuration and operation. • Visualized door status viewing provides operator a complete picture of each devices and easy real-time manual control. Easy-to-Maintain • No software-related issues to troubleshoot. • Internet connection allows remote diagnostics from installers for easy maintenance. • Flash memory allows convenient upgrades from website. Reliable • State-of-the-art technology from an industrial leader in Security industry. • Powerful 32 -bit processor and built-in SQL Lite database ensure fast and reliable processing not usually found in an entry-level product. • 128 -bit SSL browser log in encryption. • Database and configuration archiving support. Cost - Effective • No need to purchase additional IT infrastructures • No need to purchase software upgrade fee, leading to long-term cost saving. • The nature of simplicity reduces overall cost of ownership 40 Honeywell Confidential File Number- 40
