Introduction l Advantage of PLANET’s Solution l Product Overview l Product Features l Comparison l Solutions l Roadmap www. planet. com. tw 2 / 87
PLANET Advantages n High Quality and Reliable Voice communications Ø n Cost-effectiveness Ø n PLANET provides the real lower-cost solution to save the telecommunication cost of long-distance calls, or international calls. Ease of use and Ease of Integration Ø n PLANET provides toll quality voice communications by leveraging existing network architectures. PLANET provides easy integration with customer’s existing communication requirements. Easy Configuration and Management Ø PLANET provides a gradual, scalable implementation and easy management with SOHO and enterprise environment. www. planet. com. tw 3 / 87
Product Overview www. planet. com. tw
Product Overview Model IP PBX SIP IP PBX IPX-300 IP Phones IPX-300 W IPX-1800 N Wi-Fi / DECT Phone ATA IPX-1900 IPX-2000 SIP-50 H. 323 / SIP Voice Gateways Description MCU-1400 MCU-1900 Smart IP PBX System (100 extension. 30 concurrent calls) 802. 11 b/g Wi-Fi IP PBX System (100 extension, 30 concurrent calls) 4 -Port ISDN IP PBX System (30 extension. 10 concurrent calls) Internet Telephony PBX System (2 -Slot, Max. 4 FXO, 300 extension, 60 concurrent calls) IP Stackable PBX System (2 -Slot, Max 8 FXO, 200 extension, 50 concurrent calls, 4 units stackable) SIP Proxy Server (200 extension, 50 concurrent calls) Multipoint Conferencing Unit (up to 4/9 screen) H. 323 IP PBX Unified Office Gateway H. 323 IP PBX System IPX-1000 (8 Extensions, 2 CO lines, 4 RJ-11 & 4 IP ext. 8 concurrent calls) www. planet. com. tw 5 / 87
Product Overview Model IP PBX Description VIP-254 T SIP IP Phone VIP-254 PT Po. E SIP IP Phone Wi-Fi / DECT Phone VIP-255 PT Multi-Language Po. E SIP IP Phone ATA VIP-351 PT IP Phones H. 323 / SIP Voice Gateways ICF-1600 Enterprise Po. E desktop Phone (6 text lines LCD display, 4 SIP lines) Internet Video Conferencing Phone (7” color TFT, H. 263/MPEG 4) Unified Office Gateway www. planet. com. tw 6 / 87
Product Overview IP PBX Model IP Phones Wi-Fi / DECT Phones ATA H. 323 / SIP Voice Gateways Unified Office Gateway VIP-191 VIP-193 VIP-321 VIP-462 DG DCT-101 Description Smart Wi-Fi SIP Phone (2. 2” LCD, Win CE, Net. Meeting, 300 k CMOS) Functional Wi-Fi Phone (2. 2” LCD, Web management) DECT Vo. IP Phone (5 DECT registrations, 2 concurrent calls) Wi-Fi DECT Vo. IP Router (5 DECT registrations, PSTN lifeline) DECT Handsets with Color Display (For VIP-321, VIP-462 DG) www. planet. com. tw 7 / 87
Product Overview Model IP PBX IP Phones Wi-Fi / DECT Phone ATA H. 323 / SIP Voice Gateways Unified Office Gateway Description ATA-150 1 -Port FXS SIP ATA (1 LAN, TR 069) ATA-150 S 2 -Port FXS SIP ATA (1 LAN, TR 069) VIP-156 1 -Port FXS SIP ATA (2 LAN, NAT) VIP-156 PE 1 -Port FXS SIP ATA (2 LAN, NAT, 802. 3 af Po. E) VIP-157 2 -Port SIP ATA (1 FXO, 1 FXS, 2 LAN, NAT, PSTN lifeline) VIP-157 S 2 -Port FXS ATA (2 LAN, NAT) VIP-158 1 -Port FXS SIP ATA (Palm, 1 LAN) VIP-161 W 2 -Port Wireless ATA (1 FXS, 1 PSTN, LAN/WAN, NAT, lifeline, WISP supports) www. planet. com. tw 8 / 87
Product Overview IP PBX Model VIP-281 GS Description Internet Telephony GSM Gateway (1 -FXS, 1 -GSM, 1 -PSTN) IP Phones VIP-281/FS/FO 2 -Port Internet Telephony Gateway VIP-480/FS/FO 4 -Port Internet Telephony Gateway VIP-880/FS/FO/882 8 -Port Internet Telephony Gateway VIP-1680/FS/FO 16 -Port Internet Telephony Gateway VIP-2480/FS/FO 24 -Port Internet Telephony Gateway VIP-2100 / 2400 1/4 -Port T 1 / E 1 Vo. IP Trunk Gateway Wi-Fi / DECT Phone ATA H. 323 / SIP Voice Gateways Unified Office Gateway www. planet. com. tw 9 / 87
Product Overview IP PBX IP Phones Model Wi-Fi / DECT Phone UMG-2000 ATA Description Unified Office Gateway (IP PBX / Storage / Email / Security / Wi. Fi / L 2 Switch) H. 323 / SIP Voice Gateways Unified Office Gateway www. planet. com. tw 10 / 87
Features IP PBX System www. planet. com. tw
Benefits of the PLANET IP PBX Products The feature-rich PLANET IP PBX Solution supports the following value-added business benefits: n n Benefits of IP PBX Applications Ø Lower Telecommunication Costs Ø Reduce Operation Expenses Ø Simplify working Procedure Ø Enhance Business Efficiency Ø Improve Customer Satisfaction Customer Benefits Ø Mobility of Workforce Ø Contact Center Solutions Ø Consolidate IT Resources Ø Unified Communication Platform www. planet. com. tw 12 / 87
IP PBX Product Overview SIP IP PBX Model IPX-300 W IPX-1800 N IPX-1900 IPX-2000 - - Up to 4 ISDN lines Up to 4 PSTN lines Up to 8 PSTN lines Up to 100 IP EXT Up to 300 IP EXT Up to 200 IP EXT LAN 1 1 1 1 1 Wireless - V - - - NAT IP Sharing V V V IP Stack - - V(4) Item Voice Interface Vo. IP voice Channel Ethernet Model H. 323 IP PBX SIP MCU IPX-1000 MCU-1400 / 1900 CO x 2, EXT x 4 IP EXT x 4 - Vo. IP voice Channel 2 4~9 -channel multi-video conference LAN 4 1 WAN 1 1 V - Item Voice Interface Ethernet NAT IP Sharing www. planet. com. tw 13 / 87
Features IPX-300 100 -User IP PBX System Ø SIP 2. 0 (RFC 3261) compliant Ø Asterisk compatible IP PBX system Ø 100 registration / 30 concurrent calls Ø Auto-attendant (AA) / Interactive voice response (IVR) Ø Call detail record (CDR) / Voicemail (VM) Ø Built-in SIP proxy / Router / Qo. S Factions Ø STUN for NAT traversal Ø 3 -Way Conference / Meet-me conferencing Ø Call Hold / Forward / Transfer / Caller ID Ø T. 38 Fax relay & G. 711 pass-through Ø Interoperable External Trunk Gateways to use CO-Line IPX-300 www. planet. com. tw 14 / 87
Features IPX-300 W Wi-Fi SIP IP PBX System Ø IEEE 802. 11 b/g wireless compliant Ø SIP 2. 0 (RFC 3261) compliant Ø Asterisk compatible IP PBX system Ø 100 registration / 30 concurrent calls Ø Auto-attendant (AA) / Interactive voice response (IVR) Ø Call detail record (CDR) / Voicemail (VM) Ø Built-in SIP proxy / Router / Qo. S Factions Ø STUN for NAT traversal Ø 3 -Way Conference / Meet-me conferencing Ø Call Hold / Forward / Transfer / Caller ID Ø T. 38 Fax relay & G. 711 pass-through Ø Interoperable External Trunk Gateways to use CO-Line IPX-300 W www. planet. com. tw 15 / 87
Features IPX-1800 N 4 -Port ISDN 30 -User IP PBX Ø SIP 2. 0 (RFC 3261) compliant Ø 4 ISDN (BRI) connections Ø 30 IP extensions / 10 concurrent calls Ø 30 Voice-mail accounts / 5 SIP trunks Ø Auto-attendant (AA) / Interactive voice response (IVR) Ø Call detail record (CDR) / Voicemail (VM) Ø On / Off-net ISDN call capability, call restriction, call access control Ø Built-in SIP proxy / Router / Qo. S Functions Ø STUN for NAT traversal Ø 3 -Way Conference / Meet-me conferencing Ø Call Hold / Forward / Transfer / Caller ID Ø T. 38 Fax relay & G. 711 pass-through IPX-1800 N Rear Panel WAN LAN USB ISDN Power www. planet. com. tw 16 / 87
Features IPX-1900 Internet Telephony PBX System Ø SIP 2. 0 (RFC 3261) compliant Ø Asterisk compatible IP PBX system Ø 300 registration / 60 concurrent calls Ø 2 -Slots for 2 -Port FXO / FSL Module Ø Auto-attendant (AA) / Interactive voice response (IVR) Ø Call detail record (CDR) / Voicemail (VM) Ø Built-in SIP proxy / Router / Qo. S Factions Ø STUN for NAT traversal Ø 3 -Way Conference / Meet-me conferencing Ø Call Hold / Forward / Transfer / Caller ID Ø T. 30 / T. 38 Fax relay & G. 711 pass-through IPX-1900 Module IPX-19 SL IPX-19 FO www. planet. com. tw 17 / 87
Features IPX-2000 Stackable IP PBX System Ø SIP 2. 0 (RFC 3261) compliant Ø 200 registration / 50 concurrent calls Ø Up to 4 IP Stack capability Ø 2 -Slots for 4 -Port FXO / FSL Module Ø Auto-attendant (AA) / Interactive voice response (IVR) Ø Call detail record (CDR) / Voicemail (VM) Ø Built-in SIP proxy / Router / Qo. S Factions Ø STUN for NAT traversal Ø 3 -Way Conference / Meet-me conferencing Ø Call Hold / Forward / Transfer / Caller ID Ø T. 30 / T. 38 Fax relay & G. 711 pass-through IPX-2000 (FXO x 8) Module IPX-FSL IPX-FXO www. planet. com. tw 18 / 87
SIP IP Telephony Solution ─ Po. E (Data +Power) ─ Data ─ Voice Up to 8 PSTN IPX-2000 SGSW-2840 P (Po. E Switch) VIP-156 PE FAX VIP-351 PT VIP-480 FAX VIP-255 PT www. planet. com. tw 19 / 87
Features IPX-1000 IP PBX System (H. 323) Ø Distributed Vo. IP network infrastructure, with 2 CO lines and 4 extension/4 IP extension lines Ø Built-in 2 ports Vo. IP Gateway Ø IP sharing capability, policy based Firewall protection Ø Built-in Qo. S/ bandwidth control mechanism Ø PPPo. E/ DHCP/ Fixed IP allocation Ø Off-net calling capability, call restriction, call access control Ø G. 723. 1/ G. 729 a voice codec Ø VPN tunneling, policy based Firewall protection Ø CNG/ Echo Cancellation IPX-1000 Rear Panel ─ Voice ─ Data www. planet. com. tw 20 / 87
H. 323 IP Telephony Solution Headquarter Branch Office A Branch Office B www. planet. com. tw 21 / 87
Features MCU-1000 Series Multipoint Conferencing Unit Ø Built-in SIP Proxy Server Following RFC-3261 & Asterisk Compatible Ø Multi-Codec for H. 263 / H. 263 p / MPEG-4 compression Ø Supports Video / Voice Conferencing service Ø Supports IP-Surveillance Hosting service Ø Call Detailed Record (CDR) Ø User Management via Web Browsers Ø Recording MCU room's Video / Voice to File Ø Video MCU screen format : 1: 1, 1: 4, 1: 6, 1: 7, 1: 8, 1: 9 Ø Call Transfer / Call Hold / Call Park MCU-1400/1900 Video Conferencing Server Functionality Web configure MCU Support SIP protocol SIP IP PBX MCU-1400 / 1900 SIP Registered HDD MCU’s configuration via Brower include party number, password, recorder, schedule, …etc. PC Soft Video Phone www. planet. com. tw 22 / 87
Features IP Phones www. planet. com. tw
Benefits of the PLANET IP Phone Products The feature-rich PLANET IP Phones Solution supports the following value-added business benefits: n n Benefits of IP Phone Applications Ø Full feature IP Phone support Power over Ethernet 802. 3 af (PT model) Ø Easy installation and deployment Ø Web-based and LCD menu management for system configuration Ø Standard-compliant register to an Internet Telephone Service Provider or connect to an IP PBX Customer Benefits Ø Excellent Sound Quality Ø Efficient Installation and Provisioning Ø Compatible with Vo. IP and PSTN transmission (NT model) Ø Complete standards-based offering for Vo. IP collaborative communications www. planet. com. tw 24 / 87
IP Phones Product Overview Model SIP IP Phones VIP-254 T VIP-254 PT VIP-255 PT VIP-351 PT Handset 1 1 4 LAN 1 2 (Po. E*1) WAN 1 ( Po. E for PT mode) - - V V - Item Voice Interface Vo. IP voice Channel Ethernet NAT IP Sharing www. planet. com. tw 25 / 87
Features VIP-254 Series SIP IP Phone Ø SIP 2. 0 (RFC 3261) compliant Ø IEEE 802. 3 af Po. E compliant (VIP-254 PT) Ø STUN / Outbound Proxy Server Ø PPPo. E/ DHCP/ Fixed IP allocation Ø G. 723. 1 / G. 729 ab / G. 711 voice codec Ø LCD menu display and incoming call indication Ø Proxy/ Peer-to-Peer voice communications Ø IP PBX system integration Ø Call Hold / Forward / Transfer / Waiting Ø 3 -way Conference calls Ø Hands-free speakerphone, direct-dial hotkeys and one-touch function keys VIP-254 T (LAN x 2) VIP-254 PT (LAN [Po. E] x 1 + PC x 1 ) Adjust the stand angle www. planet. com. tw 26 / 87
Features VIP-255 PT Multi-Language Po. E IP Phone Ø SIP 2. 0 (FRC 3261) compliant Ø IEEE 802. 3 af Po. E compliant Ø Graphic LCD Display Ø Multi–Language Function Ø Online Advertisement, and SMS Function Ø Graphic LCD with blue backlight Ø 3 -Way Conference, Caller ID Ø Call Hold, Waiting, Transfer and Forward Ø Auto-Provisioning / Firmware upgrade VIP-255 PT (LAN [Po. E] x 1 + PC x 1 ) Adjust the stand angle www. planet. com. tw 27 / 87
VIP-255 PT Solution www. planet. com. tw 28 / 87
VIP-255 PT Solution www. planet. com. tw 29 / 87
Features VIP-351 PT Enterprise Po. E IP Phone Ø Full Featured Enterprise Desktop Phone Ø SIP 2. 0 (RFC 3261) compliant Ø IEEE 802. 3 af Po. E compliant Ø Four-line desktop SIP Phone Ø Easy-to-read 128 x 64 -pixel graphical LCD display (LCD with 6 text lines) Ø Up to 4 service domains Ø Voice Mail Integration Ø VLAN / IP-TOS / Diff. Serv / Qo. S Ø Three-way Conference / Caller ID / Speed Dial / Shared Line Appearance Ø Call Hold / Mute / Pickup / Forward / Transfer / Waiting / Rejection / Screening VIP-351 PT (LAN [Po. E] x 1 + PC x 1 ) Rear Panel Handset Po. E Switch www. planet. com. tw 30 / 87
Features Brief IP Phone Item Model Hardware LAN Ports (RJ-45) VIP-254 Series VIP-255 PT 2 2 VIP-351 PT 2 802. 3 af Po. E V (PT mode) V V LCD Display 2 lines 6 lines Back lighted Screen V V V Headset Jack - - V Microphone & Speaker V V V Soft Key Buttons - - V Dedicated keys V V V Navigation keys - - V Indicator Light - V V V 3 V 2 V 4 Voice Features SIP v 2 (RFC 3261) SIP Account Voice Lines VAD / CNG / AEC G. 168 Echo Cancellation CODEC 1 1 4 VAD / CNG / AEC V G. 711 u/a, G. 723. 1, G. 729 a/b, G. 726, GSM V V G. 711 u/a, G. 723. 1, G. 729 DTMF STUN Outbound Proxy UPn. P To. S/ Diffserv VLAN SNMP DHCP Server PPPo. E/DHCP/Fixed IP www. planet. com. tw In-Band, Out-of-Band (RFC 2833), SIP INFO V V V V V Fixed IP, PPPo. E, DHCP client V V V - 31 / 87

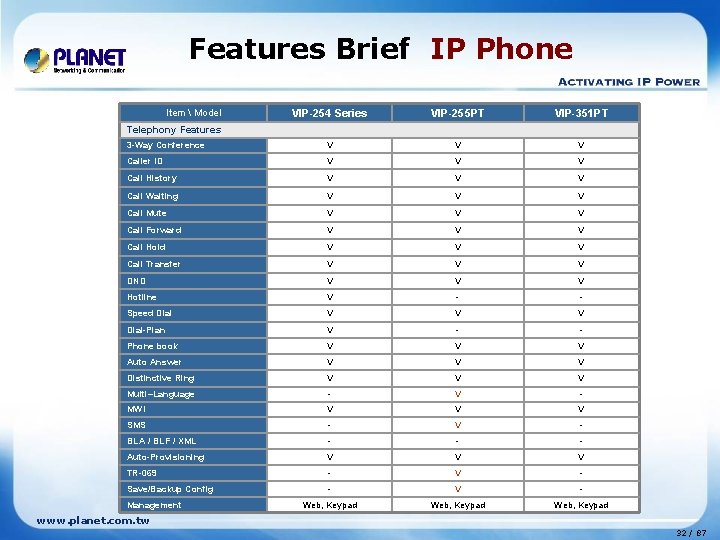

Features Brief IP Phone VIP-254 Series VIP-255 PT VIP-351 PT 3 -Way Conference V V V Caller ID V V V Call History V V V Call Waiting V V V Call Mute V V V Call Forward V V V Call Hold V V V Call Transfer V V V DND V V V Hotline V - - Speed Dial V V V Dial-Plan V - - Phone book V V V Auto Answer V V V Distinctive Ring V V V Multi–Language - V - MWI V V V SMS - V - BLA / BLF / XML - - - Auto-Provisioning V V V TR-069 - V - Save/Backup Config - V - Web, Keypad Item Model Telephony Features Management www. planet. com. tw 32 / 87
Features ICF-1600 Internet Video Conferencing Phone Ø SIP version 2 (RFC 3261) compliant Ø 7" Color TFT-LCD display with video / audio output function Ø Built-in Web Browser for Internet navigation Ø Personalize phone ring tone and screensaver Ø Max. 30 Frames per Second Ø User-friendly GUI / Web-based Management Ø Support H. 263 / MPEG 4 Video Codec and G. 711, G. 723. 1, G. 729 A/B Audio Codec Ø Compatible with SIP 2. 0 Proxy server and P 2 P mode Ø Built-in high quality CMOS camera Ø Full-duplex Voice Conversation ICF-1600 www. planet. com. tw 33 / 87
ICF-1600 Solution n Reliable high-quality 3 -Way visual communication MCU-1400 / 1900 www. planet. com. tw 34 / 87
Features Wi-Fi / DECT Phones www. planet. com. tw
Benefits of the PLANET Wi-Fi Phone Products The feature-rich PLANET Wi-Fi / DECT Phone Solution supports the following value-added customer benefits: n Benefits of Wi-Fi / DECT Phone Applications Ø Listen to music or watch movies with Microsoft® Media Player. (VIP -191) Ø Integrated Microsoft® Internet Explorer Browser (VIP-191) Ø Integrated Microsoft® Windows Messenger (VIP-191) Ø Easy installation and configuration with web browser (VIP-193) www. planet. com. tw 36 / 87
Wi-Fi Phones Product Overview Model Smart Wi-Fi Phone Functional Wi-Fi Phone VIP-191 VIP-193 802. 11 b/g 2. 2 inch SIP (RFC 2361) V V Camera support V (0. 3 M) - Expansion slot Mini-SD - V MSN / IE Browser E-mail Both - V Item Wi-Fi Support LCD Display MSN/ IE Browser/ Media Player E-mail / SMS Web Management www. planet. com. tw 37 / 87
DECT Phones Product Overview DECT Voice AP Router DECT Phone VIP-462 DG VIP-321 1 FXS, 1 PSTN, 1 DECT 2 2 LAN 4 1 WAN 1 1 V (IEEE 802. 11 b/g) - V V Model Item Voice Interface Vo. IP voice Channel Ethernet Wireless NAT IP Sharing www. planet. com. tw 38 / 87
Features VIP-191 Smart Wi-Fi Phone Ø IEEE 802. 11 b/ g compliant Ø SIP 2. 0 (RFC 3261) compliance Ø 2. 2 inch graphical display backlight LCD Ø Up to 300 K Pixels Camera Ø Internet Explorer 6. 0 Ø Windows Messenger / E-Mail Ø Video conference for H. 323 Ø Caller ID / Scheduler Ø Phonebook / Speed dial Ø Call Hold / Transfer / Forward / Waiting Ø Mini-SD expansion slot Ø Standby time 50 hours; talking time 3. 5 hours Camera Mini SD VIP-191 www. planet. com. tw 39 / 87
Smart Phone Application www. planet. com. tw 40 / 87
Features VIP-193 Functional Wi-Fi Phone Ø IEEE 802. 11 b/g compliant Ø WEP / WPA-PSK Encryption Ø SIP 2. 0 (RFC 3261) compliance; Peer-to-Peer / SIP proxy calls Ø 2. 2 inch graphical display backlight LCD Ø Web based and LCD menu machine configure Ø 3 Languages support: English / Spanish / German Ø MSN / Skype installed Ø IE Browser supported Ø SIP Outbound Proxy / STUN Server support Ø G. 711 a/u-law, G. 729 a/b voice codec support Ø Caller ID Display / Redial / Built-in phone book Ø Call Hold / Mute / Transfer / 3 -Way Conference Ø VAD (Voice Activity Detection) / G. 168 / Jitter Buffer Ø Standby time 60 hours in power save mode; talking time 3 hours VIP-193 www. planet. com. tw 41 / 87
VIP-193 Applications www. planet. com. tw 42 / 87
Features Brief Wi-Fi Phone Item Model VIP-191 VIP-193 WLAN (802. 11 b and g) WPA, SSL WLAN (802. 11 b and g) WEP, WPA-PSK 2. 2” TFT LCD / 262 K 2. 2“ LCD, 240 x 320 pixels, 65 K colors CMOS, 0. 3 M Pixels Mini-SD 64 MB Flash / 32 MB SRAM Windows CE 5. 0 32 MB Flash / 64 MB SDRAM Windows CE. NET 4. 2 Pro SIP v 2 (RFC 3261) V V SIP Account 6 1 Voice Codec G. 711 u/a G. 711 a/u, G. 729 a/b Audio Codec H. 261, H. 263 - V (H. 323, P 2 P) - UPn. P V - Infrared V - IE Browser (WWW) V V MSN (voice, chats) V V SKYPE (voice, chats) - V Media Player (MPEG 4, MP 3) V - E-mail / SMS 3 -Way Conference Caller ID E-mail V V Call Hold /Record V V Call Transfer / Forward Call Waiting / Screening Phonebook /Speed Dial DHCP/Fixed IP Web Management V V - V V V (250) V V Hardware WAN Interface Security Display size / Color Camera Expansion Slot Memory Operating system Telephony Features Video Conference www. planet. com. tw 43 / 87
Features VIP-462 DG 802. 11 g SIP DECT Vo. IP Router Ø SIP 2. 0 (RFC 3261) compliant Ø DECT and GAP compatible Ø Base can register up to 5 DECT handsets Ø 802. 11 g 54 Mbps WLAN AP support Ø NAT firewall, SPI, Qo. S, DMZ/Virtual server Ø DECT Intercom call during external call , call transfer and three-way telephone meeting between handsets Ø 100 hours standby time, 10 hours talking time Ø DECT transmission up to 50 m indoor / 300 m outdoor VIP-462 DG, DCT-100 (FXS x 1, PSTN x 1, DECT x 1) www. planet. com. tw 44 / 87
Features VIP-321 DECT Vo. IP Phone Ø SIP 2. 0 (RFC 3261) compliant Ø Graphical display backlight LCD for DECT handsets Ø Base can register up to 5 DECT handsets Ø Up to 2 concurrent Vo. IP calls Ø G. 723. 1 / G. 729 ab / G. 711 voice codec Ø PPPo. E/ DHCP/ Fixed IP allocation Ø DECT Intercom call during external call, call transfer, call waiting, call forward and threeway telephone meeting between handsets Ø 100 hours standby time, 10 hours talking time Ø DECT transmission up to 50 m indoor / 300 m outdoor VIP-321 (PSTN x 1, DECT x 1) www. planet. com. tw 45 / 87
Features DCT-101 DECT Handsets Ø 1. 8 G DECT technology with GAP Ø 1. 5” TFT, 128 x 128 and 65 K color LCD display Ø 7 languages selectable Ø Phonebook with up to 250 entries Ø Outgoing calls list with up to 20 entries Ø Up to 4 bases for one handset Ø 12 Polyphonic ring tones and 3 ring melodies Ø 4 ringer volume levels selectable Ø Alarm, Calculator, Illuminated keypad Ø Internal call and three-way conference calls DCT-101 www. planet. com. tw 46 / 87

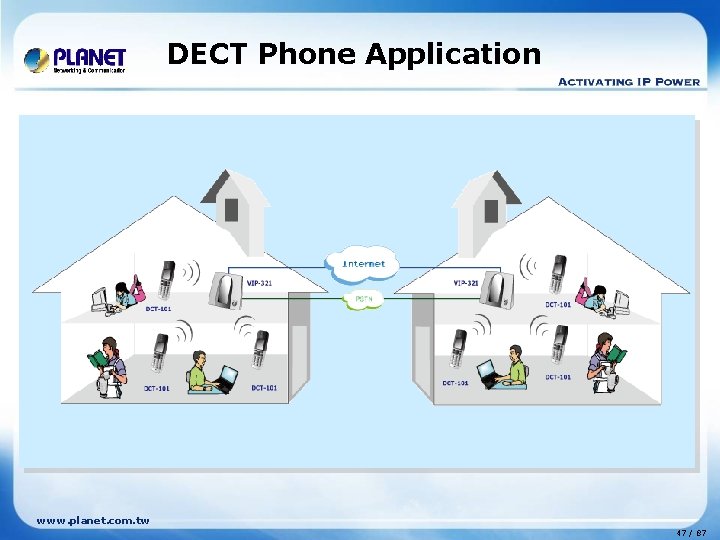

DECT Phone Application www. planet. com. tw 47 / 87
Features Analog Telephony Adapter www. planet. com. tw

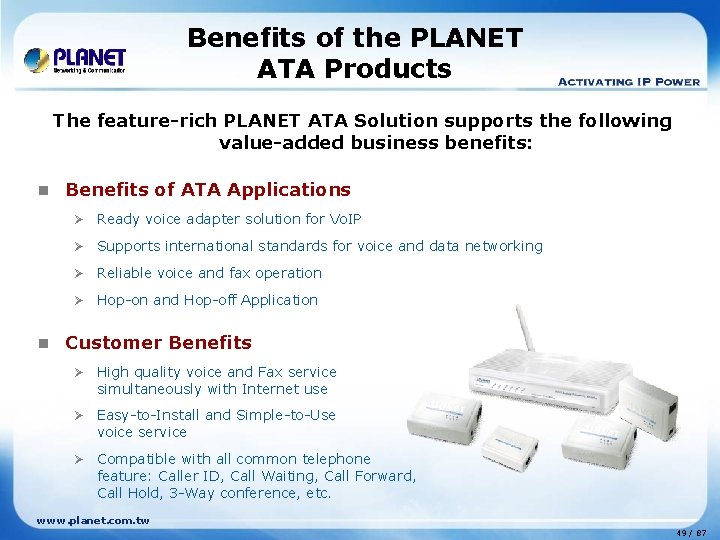

Benefits of the PLANET ATA Products The feature-rich PLANET ATA Solution supports the following value-added business benefits: n n Benefits of ATA Applications Ø Ready voice adapter solution for Vo. IP Ø Supports international standards for voice and data networking Ø Reliable voice and fax operation Ø Hop-on and Hop-off Application Customer Benefits Ø High quality voice and Fax service simultaneously with Internet use Ø Easy-to-Install and Simple-to-Use voice service Ø Compatible with all common telephone feature: Caller ID, Call Waiting, Call Forward, Call Hold, 3 -Way conference, etc. www. planet. com. tw 49 / 87
ATA Product Overview ATA Model Item ATA-150 S Voice Interface Wireless ATA VIP-156 PE VIP-157 S VIP-158 VIP-161 W Adapter Wi-Fi Adapter 1 / 2 1 1 LAN 1 2 / 2 (Po. E*1) 2 1 1 WAN - - 1 Wireless - - 802. 11 b/g WISP - - V T. 38 Fo. IP V V V - V Auto Provision V V V NAT IP Sharing - V V - V TR-069 V - - Vo. IP voice Channel Ethernet www. planet. com. tw 50 / 87
Features ATA-150/ 150 S SIP Analog Telephone Adapter Ø SIP 2. 0 (RFC 3261) compliant Ø Direct Analog Telephone Connection Ø G. 723. 1 / G. 729 ab / G. 711 voice codec Ø T. 38 FAX over IP (Fo. IP) Ø 3 -way Conference calls Ø TR-069 and Auto Provision Ø Voice Prompt for device setting Ø Call transfer, call forward, call waiting, call hold and three-way conference calls Ø PPPo. E/ DHCP/ Fixed IP allocation Ø Easy Web configuration and Utility management ATA-150 / ATA-150 S (2 FXS) ATA-150 S Interface 1 -Port RJ-45 FXS Switch Router FAX www. planet. com. tw 51 / 87
Features VIP-156/ 156 PE SIP Analog Telephone Adapter Ø SIP 2. 0 (RFC 3261) compliant Ø IEEE 802. 3 af Po. E compliant (VIP 156 PE) Ø Direct Analog Telephone Connection Ø G. 723. 1 / G. 729 ab / G. 711 voice codec Ø T. 38 FAX over IP (Fo. IP) Ø 3 -way Conference calls Ø Auto-Configure for IP PBX, IPX-2000 and IPX-1800 series Ø Voice Prompt for device setting Ø Call transfer, call forward, call waiting, call hold and three-way conference calls Ø PPPo. E/ DHCP/ Fixed IP allocation VIP-156 (std. model) VIP-156 PE (with Po. E) ─ Po. E ─ Data ─ PSTN www. planet. com. tw 52 / 87
Features VIP-157 SIP Analog Telephone Adapter Ø SIP 2. 0 (RFC 3261) compliant Ø Direct Analog Telephone Connection Ø G. 723. 1 / G. 729 ab / G. 711 voice codec Ø T. 38 FAX over IP (Fo. IP) FXO Ø PSTN life-line FXS Ø Auto-Configure support for IP PBX, IPX-2000 and IPX-1800 series Ø Voice Prompt for device setting Ø Call transfer, call forward, call waiting, call hold and three-way conference calls Ø On-net/off-net call capability VIP-157 (1 FXS + 1 FXO) VIP-157 Interface RJ-45 Switch Router www. planet. com. tw 53 / 87
Features VIP-157 S SIP Analog Telephone Adapter Ø SIP 2. 0 (RFC 3261) compliant Ø Direct Analog Telephone Connection Ø G. 723. 1 / G. 729 ab / G. 711 voice codec Ø T. 38 FAX over IP (Fo. IP) Ø Up to 2 concurrent Vo. IP calls Ø Auto-Configure support for IP PBX, IPX-2000 and IPX-1800 series Ø Voice Prompt for device setting Ø Call transfer, call forward, call waiting, call hold and three-way conference calls Ø PPPo. E/ DHCP/ Fixed IP allocation VIP-157 S (2 FXS) VIP-157 S Interface RJ-45 FXS Switch Router FAX www. planet. com. tw 54 / 87
Features VIP-158 SIP Analog Telephone Adapter Ø SIP 2. 0 (RFC 3261) compliant Ø Direct Analog Telephone Connection VIP-158 Interface VIP-158 FXS Ø G. 711/ G. 729 a voice codec Switch Ø STUN Server for NAT traversal Router Ø Caller ID Display Ø Call hold, call transfer, and call waiting Ø PPPo. E/ DHCP/ Fixed IP allocation Ø Easy Web configuration and Utility management Ø Cost-effective, easy-to-use solution for Analog Telephone Adapter www. planet. com. tw 55 / 87
Features VIP-161 W Wireless Analog Telephone Adapter Ø IEEE 802. 11 b/g compliant Ø Multi-mode: AP, AP-Client and WISP Mode Ø SIP 2. 0 (RFC 3261) compliant Ø T. 38 FAX transmission over IP network (G. 711 Fax pass-through) Ø PSTN life-line Ø Three-way conference calls Ø NAT Router, Static Routing, Virtual Server, DMZ Ø Smart Qo. S mechanism to ensure the voice quality Ø IP To. S (IP Precedence) / Diff. Serv Ø Call Waiting / Forward / Transfer / Hold / Resume / Screen VIP-161 W PSTN Internet Rear Panel 12 V DC www. planet. com. tw 56 / 87
Wireless ATA Solution www. planet. com. tw 57 / 87
Features Brief ATA Item Model ATA-150/150 S VIP-156/156 PE VIP-157/157 S VIP-158 VIP-161 W - - V Hardware WLAN (802. 11 b/g) WAN Ports (RJ-45) - - 1 LAN Ports (RJ-45) 1 2 2 1 1 802. 3 af Po. E - V (VIP-156 PE) - - - FXS 1 / 2 1 1 FXO - - 1 / - - - PSTN - - 1 Life-line - - V (VIP-157) - V SIP v 2 (RFC 3261) V V V SIP Account 2 3 3 1 1 Voice Lines 1 / 2 1 1 V V V - V VAD / CNG VAD / CNG V V V G. 711 u/a, G. 729 a G. 711 u/a, G. 723. 1, G. 729 a/b, G. 726, i. LBC Voice Features T. 38 Fo. IP VAD / CNG G. 168 Echo Cancellation CODEC G. 711 u/a, G. 723. 1, G. 729 a/b, G. 726, GSM DTMF In-Band, Out-of-Band (RFC 2833), SIP INFO STUN V V V Outbound Proxy V V V - V UPn. P - - V To. S/ Diffserv V V V - V VLAN V V V - V SNMP V - - - V DHCP Server - V V - V PPPo. E/DHCP/ Fixed IP V V V www. planet. com. tw 58 / 87
Features Brief ATA Item Model ATA-150 / 150 S VIP-156/156 PE VIP-157/157 S VIP-158 VIP-161 W NAT Router - V V - V Static Router - - V Packet Filter - - V URL Filter - - V Virtual Server - V V - V DMZ - V V - V Wizard Setup - - V Telephony Features 3 -Way conf. Caller ID V V V V V Call Waiting V V V Call Mute V V V Call Forward V V V - V Call Hold V V V Call Transfer V V V Call Resume Call Screen - - V V DND V V V - V Hotline V V V - V Speed Dial V V V - V Dial-Plan V V V - V Phone book V V V keypad Locked V V V - - MWI V V V - V Save / Backup V - - - V Auto-provision V V V TR-069 V - - Web, Keypad Web, Utility Web Management Web, Keypad, Utility www. planet. com. tw 59 / 87
Features Voice Gateways www. planet. com. tw
Benefits of the PLANET Voice Gateway Products The feature-rich PLANET Voice Gateway Solution supports the following value-added business benefits: n n Benefits of Voice Gateway Applications Ø Easy to Deploy Ø Intelligent Call Routing and Switching Ø Survivable and Reliable Ø Quality of Service (Qo. S) Customer Benefits Ø Remote Management for anywhere, anytime remote management Ø Universal Dial Plan that provides a programmable dial plan into any network environment www. planet. com. tw 61 / 87
Voice Gateways Product Overview Model Item Voice Interface Vo. IP voice Channel Ethernet Fo. IP H. 323 Voice Gateway SIP Voice Gateway VIP-400 VIP-450 2 FXO + 2 FXS + 2 FXO 4 4 1 * LAN V - www. planet. com. tw 62 / 87
Voice Gateways Product Overview n H. 323/ SIP Dual Mode Vo. IP Solution Voice Gateway Model VIP-281 FS VIP-281 FO VIP-281 GS Item Standard VIP-880 VIP-882 VIP-880 FS VIP-880 FO VIP-1680 FS VIP-1680 FO VIP-2480 FS VIP-2480 FO VIP-2100 VIP-2400 H. 323 V V V SIP V V V - - - 2 FXS + 2 FXO 4 FXS 4 FXO 4 FXS + 4 FXO 6 FXS + 2 FXO 8 FXS 8 FXO 8 FXS + 8 FXO 16 FXS 16 FXO 12 FXS + 12 FXO 24 FXS 24 FXO T 1/E 1 Trunk x 1 / 4 GSM Voice Interface Ethernet VIP-480 FS VIP-480 FO Vo. IP Trunk Gateway V (VIP-281 GS) 1 FXS + 1 FXO 2 FXS 2 FXO 1 FXS +1 PTSN WAN x 1, LAN x 4 WAN x 1, LAN x 1 WAN/LAN x 1 (VIP-281 GS) Voice port 2 4 8 16 LAN x 2 24 24, 30 / 96, 120 www. planet. com. tw 63 / 87
Features VIP-400 Standard H. 323 Voice Gateway Ø Standard compliant Surpassing voice quality Ø G. 723. 1 / G. 729 ab / G. 711 voice codec Ø T. 30 / T. 38 FAX over IP Ø Peer to Peer call, Gatekeeper support Ø Built-in PPPo. E / DHCP client Ø Domain name call & DDNS VIP-400 (FXO x 2, FXS x 2) www. planet. com. tw 64 / 87
Features VIP-450 Standard SIP Voice Gateway Ø SIP 2. 0 (RFC 3261) compliant Ø Peer-to-Peer and SIP proxy communications Ø G. 723. 1 / G. 729 ab / G. 711 voice codec Ø Built-in PPPo. E / DHCP client Ø Domain name call & Dynamic DNS VIP-450 (FXO x 2, FXS x 2) www. planet. com. tw 65 / 87
Features VIP-281 GS Vo. IP GSM Gateway for HOME USE Ø Dual (H. 323/SIP) protocol Ø Peer-to-Peer / H. 323 GK / SIP proxy calls Ø Real time voice channels status display Ø PSTN life-line Ø G. 723. 1 / G. 729 a / G. 711 voice codec Ø T. 38 FAX over IP / G. 711 Fax pass-through Ø IP sharing / NAT Internet access Ø Smart Qo. S / Dynamic DNS Ø Built-in PPPo. E/ DHCP client Ø Voice Active Detection, DTMF detection, G. 165/G. 168 compliant echo canceller, silence detection VIP-281 GS (GSM x 1, FXS x 1 , PSTN x 1) www. planet. com. tw 66 / 87

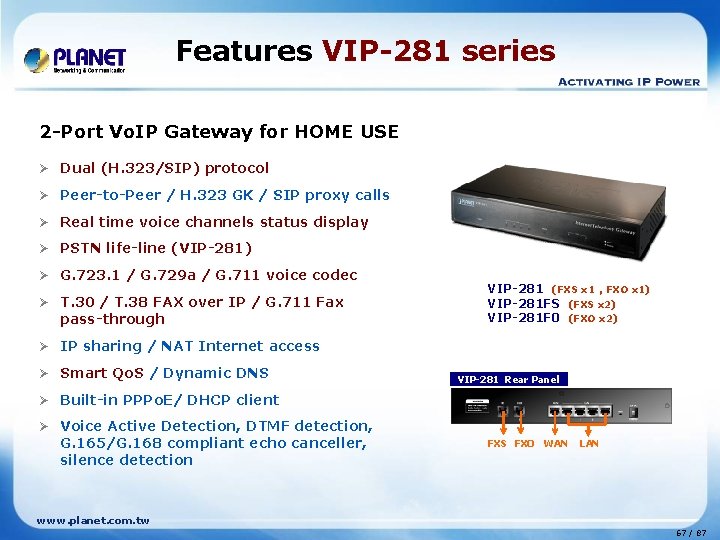

Features VIP-281 series 2 -Port Vo. IP Gateway for HOME USE Ø Dual (H. 323/SIP) protocol Ø Peer-to-Peer / H. 323 GK / SIP proxy calls Ø Real time voice channels status display Ø PSTN life-line (VIP-281) Ø G. 723. 1 / G. 729 a / G. 711 voice codec Ø T. 30 / T. 38 FAX over IP / G. 711 Fax pass-through Ø IP sharing / NAT Internet access Ø Smart Qo. S / Dynamic DNS Ø Built-in PPPo. E/ DHCP client Ø Voice Active Detection, DTMF detection, G. 165/G. 168 compliant echo canceller, silence detection VIP-281 (FXS x 1 , FXO x 1) VIP-281 FS (FXS x 2) VIP-281 F 0 (FXO x 2) VIP-281 Rear Panel FXS FXO WAN LAN www. planet. com. tw 67 / 87
Features VIP-480 series 4 -Port Vo. IP Gateway for SOHO Ø Dual (H. 323/SIP) protocol Ø Peer-to-Peer / H. 323 GK / SIP proxy calls Ø Real time voice channels status display Ø PSTN life-line (VIP-480) Ø G. 723. 1 / G. 729 a / G. 711 voice codec Ø T. 30 / T. 38 FAX over IP / G. 711 Fax pass-through Ø IP sharing / NAT Internet access Ø Smart Qo. S / Dynamic DNS Ø Built-in PPPo. E/ DHCP client Ø Voice Active Detection, DTMF detection, G. 165/G. 168 compliant echo canceller, silence detection VIP-480 (FXS x 2, FXO x 2) VIP-480 FS (FXS x 4) VIP-480 FO (FXO x 4) VIP-480 Rear Panel 2 groups of FXS, FXO WAN LAN www. planet. com. tw 68 / 87
Features VIP-880 series 8 -Port Vo. IP Gateway For SMB Ø Dual (H. 323/SIP) protocol Ø Peer-to-Peer / H. 323 GK / SIP proxy calls Ø Real time voice channels status display Ø PSTN life-line (VIP-880/ VIP-882) Ø G. 723. 1 / G. 729 a / G. 711 voice codec Ø T. 30 / T. 38 FAX over IP / G. 711 Fax pass-through Ø IP sharing / NAT Internet access Ø Smart Qo. S / Dynamic DNS Ø Built-in PPPo. E/ DHCP client Ø Voice Active Detection, DTMF detection, G. 165/G. 168 compliant echo canceller, silence detection VIP-880 (FXS x 4 , FXO x 4) VIP-882 (FXS x 6 + FXO x 2) VIP-880 FS (FXS x 8) VIP-880 FO (FXO x 8) VIP-880 Rear Panel 4 groups of FXS, FXO WAN LAN www. planet. com. tw 69 / 87

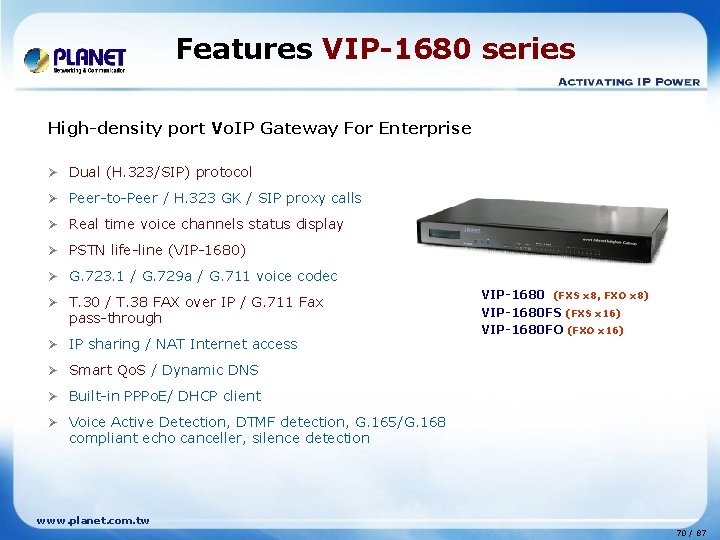

Features VIP-1680 series High-density port Vo. IP Gateway For Enterprise Ø Dual (H. 323/SIP) protocol Ø Peer-to-Peer / H. 323 GK / SIP proxy calls Ø Real time voice channels status display Ø PSTN life-line (VIP-1680) Ø G. 723. 1 / G. 729 a / G. 711 voice codec Ø T. 30 / T. 38 FAX over IP / G. 711 Fax pass-through Ø IP sharing / NAT Internet access Ø Smart Qo. S / Dynamic DNS Ø Built-in PPPo. E/ DHCP client Ø Voice Active Detection, DTMF detection, G. 165/G. 168 compliant echo canceller, silence detection VIP-1680 (FXS x 8, FXO x 8) VIP-1680 FS (FXS x 16) VIP-1680 FO (FXO x 16) www. planet. com. tw 70 / 87
Features VIP-2480 series High-density port Vo. IP Gateway For Service Provider Ø Dual (H. 323/SIP) protocol Ø Peer-to-Peer / H. 323 GK / SIP proxy calls Ø Real time voice channels status display Ø PSTN life-line (VIP-2480) Ø G. 723. 1 / G. 729 a / G. 711 voice codec Ø T. 30 / T. 38 FAX over IP / G. 711 Fax pass-through Ø IP sharing / NAT Internet access Ø Smart Qo. S / Dynamic DNS Ø Built-in PPPo. E / DHCP client Ø Voice Active Detection, DTMF detection, G. 165/G. 168 compliant echo canceller, silence detection VIP-2480 (FXS x 12, FXO x 12) VIP-2480 FS (FXS x 24) VIP-2480 FO (FXO x 24) www. planet. com. tw 71 / 87

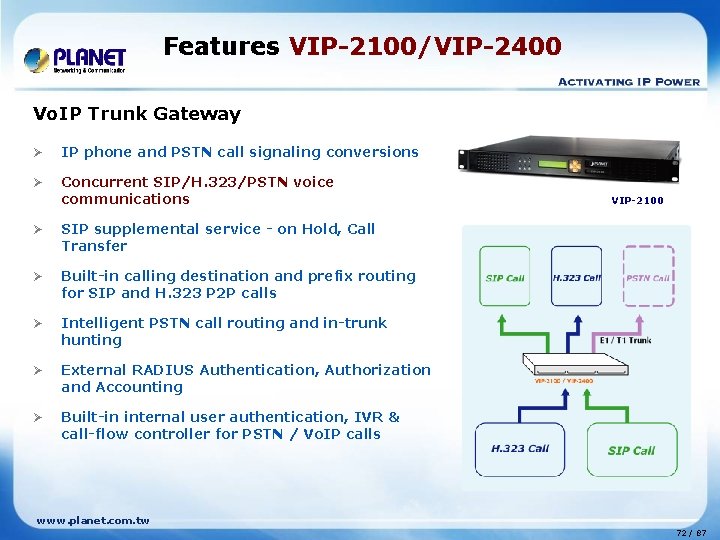

Features VIP-2100/VIP-2400 Vo. IP Trunk Gateway Ø IP phone and PSTN call signaling conversions Ø Concurrent SIP/H. 323/PSTN voice communications Ø SIP supplemental service - on Hold, Call Transfer Ø Built-in calling destination and prefix routing for SIP and H. 323 P 2 P calls Ø Intelligent PSTN call routing and in-trunk hunting Ø External RADIUS Authentication, Authorization and Accounting Ø Built-in internal user authentication, IVR & call-flow controller for PSTN / Vo. IP calls VIP-2100 www. planet. com. tw 72 / 87
Features Unified Office Gateway www. planet. com. tw
Applications Unified office network management at single point www. planet. com. tw 74 / 87
Features UMG-2000 Unified Office Gateway ü IP PBX / Vo. IP Service ü E-mail Service ü Internet Security Service UMG-2000 ü Network Storage Service ü Wi. Fi Service ü 24+2 G Switch Service www. planet. com. tw 75 / 87
Features UMG-2000 Front Panel Network Storage Service • RAID 0, 0/1, 5, and JBOD • Up to 4 TB Hot-swap Disk Array • User Network Storage Quota • Scheduled Auto Backup, Auto Snapshot • User/Group Privilege ACL E-mail Service Internet Security Service • Supports POP 3, SMTP, IMAP • Access Control List (ACL) • Secured Socket Layer (SSL) • URL / IM / P 2 P Blocking • Junk Mail Filtering • Firewall / NAT • Anti-Virus and Anti-Spam • Do. S Attack Protection • Auto Backup, Auto Reply • Site-to-Site SSL VPN • Web Mail • PPTP VPN Remote Access www. planet. com. tw 76 / 87
Features UMG-2000 Rear Panel Wi. Fi Service • 802. 11 b/g/n Wireless Access Point • 3 RP-SMA Detachable Antennas • Security: WEP / WPA 2 24+2 G Switch Service • IEEE 802. 1 d Spanning Tree • IGMP Snooping IP PBX / Vo. IP Service • SIP 2. 0 (RFC 3261) compliant • Up to 250 Registrations • Call-Parking, Echo Cancellation • Qo. S Support • Telephone Conference, 3 -Way Calling • Call Hold, Call Waiting • Fax Server Support www. planet. com. tw 77 / 87
Comparison www. planet. com. tw
Comparison IP PBX PLANET IPX-2000 PLANET IPX-1900 PLANET IPX-1800 N Anta System Simplicity SME IP-PBX Zultys MX-250 Polylink Sys. Master SM 700 PBX Solution System Software/ System - -- V - V SIP SIP/ H. 323 SIP/ Skiny Enterprise SMB / SOHO SMB SMB Enterprise SMB/ Enterprise NAT Transversal V V V V V User Supported 200 30 100 250 100 24 72 IP Stacking V (up to 4 units) - - - - ISDN Ports - - Max. 4 - - - FXO Ports Max. 8 Max. 4 - Max. 4 Max. 24 - Max. 16 - Max. 8 FXS Ports Max. 2 - - Max. 16 - Max. 8 Platform Embedded System IPC IPC Embedded System Voice Mail V V V V Optional Meet-me Conference V V V Optional Auto Attendant V V V V V T. 38/T. 30 V V V - - - ITSP Service V V V V - V Item Model Product IP Phone Bundle Protocol Target Market Sphere VG 3 Phone. Hub Cisco www. planet. com. tw 79 / 87
Comparison IP PBX PLANET IPX-300/300 W Linksys SPA 9000 D-Link DVX 1000 Welltech e. PBX 100 A WLAN (802. 11 b/g) V (IPX-300 W) - - - WAN ports (RJ-45) 1 1 100 30 1 2 4 (Upgradeable to 16) 25 25 1 100 13 V, 20 Minutes V V V 10 4 25 13 Item Model Hardware Features LAN ports (RJ-45) Phone ports (FXS) Max. Registration Max. Concurrent calls Software Features Voice Mail SIP Trunk Voice Codec G. 711/ G. 723/ G. 726/ G. 729/ GSM/ i. LBC FAX Support T. 38 / G. 711 Pass-Through - - Auto Attendant V V IVR V V Record IVR via Phone V - - - Detailed Call Record (CDR) V V Call Status V - - - Caller ID V V Call Transfer/ Hold V V V V Call Hold/ Music On Hold V V Call Pick up/ Park V V Call Routing V V Hunt Group V V Call Forward (Always/ Busy/ No Answer) G. 711/ G. 723/ G. 726/ G. 729 G. 711/ G. 729 / G. 723 G. 711/ G. 729 www. planet. com. tw 80 / 87
Comparison Smart Phone Item Brand PLANET VIP-191 Linksys WIP 300 Wi-Fi Support Operating System Memory Display Camera Linksys WIP 330 IEEE 802. 11 b/g Windows CE 5. 0 64 MB Flash, 32 MB SDRAM Windows CE 4. 2 16 MB Flash, 12 MB SRAM 2. 2 -inch 240 x 320 LCD with 1. 8 -inch 128 x 160 LCD 65 K colors with 65 K colors 32 MB Flash, 64 MB SDRAM 2. 2 -inch 240 x 320 LCD with 65 K colors CMOS, 300 K Pixels - - Expansion slot Mini SD - - SIP (RFC 2361) V V V Audio Codec G. 711 / G. 729 A/B G. 711 / G. 729 A Video Codec H. 261 / H. 263 - - H. 323 (P 2 P) V (video conference) - - MSN support V (text, voice) - - Microsoft IE Browser V - V Email Support V - V Media Player Support V - V Calendar V - - Advanced Features I/O ports Estimated Battery Life Caller ID, Call Hold/ Transfer/ Waiting/ Forward/ Logging, Phonebook, Speed dial, Microphone Mute Mini-USB for power adapter, built-in speaker and microphone, stereo earphone jack 3 hours talking time / 50 hours standby time www. planet. com. tw 81 / 87
Solutions www. planet. com. tw

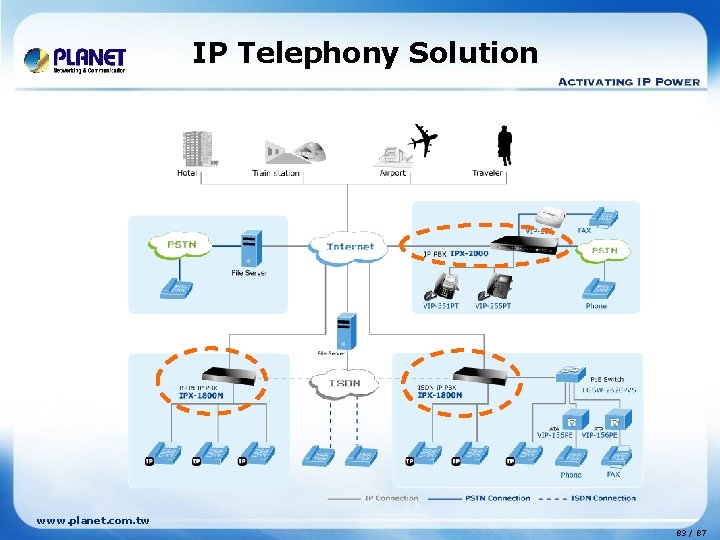

IP Telephony Solution www. planet. com. tw 83 / 87
Smart IP PBX / Gateway Solution www. planet. com. tw 84 / 87
Vo. IP GSM Gateway Solution www. planet. com. tw 85 / 87
Roadmap 1 FXS ATA with 2 RJ-45 1 voice-channel, T. 38, TR-069, Auto-provisioning ATA-151 1 FXS Po. E ATA with 2 RJ-45 SMB 1 voice-channel, IEEE 802. af Po. E, T. 38, TR-069, Auto -provisioning ATA-151 PE 1 S 1 O ATA with 2 RJ-45 1 voice-channel, On/Off-Net Call, Life-line, T. 38, TR 069, Auto-provisioning ATA-152 Professional Po. E IP Phone 320*160 LCD, 6 voice-channel, multi-language, BLF/BLA, TR-069, Auto-provisioning VIP-551 PT Business Po. E IP Phone 132*64 LCD, 3 voice-channel, multi-language, TR-069, Auto-provisioning VIP-352 PT 2 FXS ATA with 2 RJ-45 2 voice-channel, T. 38, TR-069, Auto-provisioning ATA-152 S SIP/ H. 323 Vo. IP GSM Gateway SOHO 11 N Wi-Fi Router Gateway 1 WAN, 4 LAN, 2 FXS with PSTN life-line, 802. 11 b/g/n AP, T. 38, TR-069, Auto-provisioning VIP-281 SW 2~4 Voice- channels VIP-282 GS or VIP-480 GS 2 -Port SIP IP PBX 2 FXO or 1 FXS + 1 FXO, 100 Ext. / 30 calls IPX-320 or IPX-321 www. planet. com. tw 2010/Q 1 2010/Q 2 86 / 87
www. planet. com. tw
