IP Telephony Solution IP Telephony Total Solution VideoConference
- Slides: 39
IP Telephony Solution
IP Telephony Total Solution Video/Conference Phone ICF-1800 HTS-700 P IP Intercoms/Door Phone HDP-1100 PT HDP-5260 PT HDP-5240 PT IP Phone VIP-6040 PT IP PBX VIP-5060 PT VIP-8030 NT IPX-330 Public Announcement (30 registrations) IPX-2200 (200 registrations, Maxi. 8 calls with module support) VIP-2140 PT VPA-100 Wireless Voice DECT Router IPX-2100 IPX-2500 (100 registrations, Maxi. 8 calls with module support) (500 registrations, Maxi. 8 calls with module support) Voice Gateway VIP-1120 PT ATA VIP-1000 T VIP-1000 PT VIP-462 DG VGW-400 (2 FXO, 2 FXS) VGW-880 (4 FXO, 4 FXS) VIP-156 (1 FXS) VIP-156 PE (1 FXS, 1 Po. E) 2
Fully Interoperable Design u Asterisk and IETF SIP based u Secure transmission ü ü u TLS (RFC 2246, Transport Layer Security) SRTP (RFC 3711, Secure Real-time Transport Protocol) Po. E for flexible deployment PLANET Voice Gateways Asterisk partner ITSP-solution partner PLANET ATA / Public Announcement PLANET IP PBX PLANET Vo. IP phones PLANET HA Intercom 3
Key Features of IP PBX Auto Attendant Voicemail System Stack Trunk Access Call Transfer Auto Provisioning Administration PBX Features IP PBX Dial Plan Call Forward CDR Conference SIP Server (3 -Way, Meet-me) (Proxy, Register) Call Pick-up Call Park 4

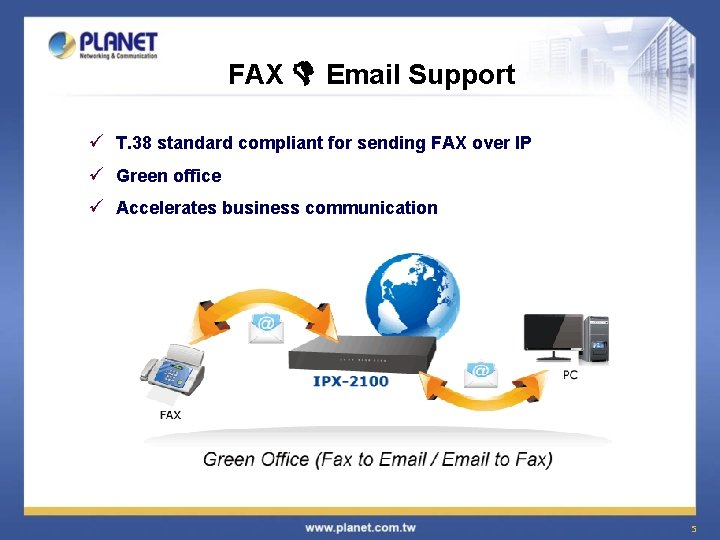

FAX Email Support ü T. 38 standard compliant for sending FAX over IP ü Green office ü Accelerates business communication 5
Product Features IP PBX

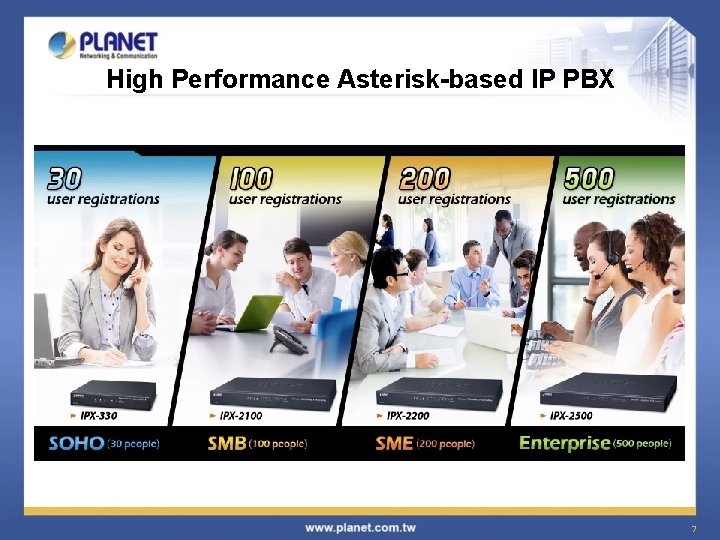

High Performance Asterisk-based IP PBX 7
Features IPX-330 Target: SOHO / SMB u IETF SIP (RFC 3261) and Asterisk compliant u 15 concurrent calls and up to 30 registers u HD voice codec G. 722 for perfect voice quality u Fax to Email / Email to Fax for Green Office u Voicemail to Email for not missing any important message u Paging and intercom function strengthens work efficiency u Multiple Language of GUI for international business u Supports 2 port FXO u Supports IPv 6, IPv 4 and IEEE 802. 1 Q of VLAN u VPN Client – supports N 2 N / L 2 TP / PPTP / Open. VPN u VPN Server – supports PPTP / L 2 TP / Open. VPN Server IPX-330 8
Features IPX-2100 Target: SMB u IETF SIP (RFC 3261) and Asterisk compliant u 30 concurrent calls and up to 100 registers IPX-2100 u HD voice codec G. 722 for perfect voice quality u Fax to Email / Email to Fax for Green Office Rear Panel u Voicemail to Email for not missing any important message u Paging and intercom function strengthens work efficiency u Multiple Language of GUI for international business u Supports FXO / FXS / GSM / ISDN (on 2 slots) u Supports IPv 6, IPv 4 and IEEE 802. 1 Q of VLAN u VPN Client - supports N 2 N / L 2 TP / PPTP / Open. VPN u VPN Server - supports PPTP / L 2 TP / Open. VPN Server IPX-21 FO (4 x FXO) IPX-21 SL (2 x FXO, 2 x FXS) IPX-21 GS (4 x GSM) 9
Features IPX-2200 Target: SMB / Enterprise u IETF SIP (RFC 3261) and Asterisk compliant u 60 concurrent calls and up to 200 registers u HD voice codec G. 722 for perfect voice quality u Fax to Email / Email to Fax for Green Office IPX-2200 Rear Panel u Voicemail to Email for not missing any important message u Paging and intercom function strengthens work efficiency u Supports FXO / FXS / GSM / ISDN (on 2 slots) u Supports IPv 6, IPv 4 and IEEE 802. 1 Q of VLAN u VPN Client - supports N 2 N / L 2 TP / PPTP / Open. VPN u VPN Server - supports PPTP / L 2 TP / Open. VPN Server IPX-21 FO (4 x FXO) IPX-21 SL (2 x FXO, 2 x FXS) IPX-21 GS (4 x GSM) 10
Features IPX-2500 Target: SMB / Enterprise u IETF SIP (RFC 3261) and Asterisk compliant u 100 concurrent calls and up to 500 registers u HD voice codec G. 722 for perfect voice quality u Fax to Email / Email to Fax for Green Office IPX-2500 Rear Panel u Voicemail to Email for not missing any important message u Paging and intercom function strengthens work efficiency u Supports FXO / FXS / GSM (on 2 slots) u Supports IPv 6, IPv 4 and IEEE 802. 1 Q of VLAN u VPN Client - supports N 2 N / L 2 TP / PPTP / Open. VPN u VPN Server - supports PPTP / L 2 TP / Open. VPN Server IPX-21 FO (4 x FXO) IPX-21 SL (2 x FXO, 2 x FXS) IPX-21 GS (4 x GSM) 11
IPX-2500 Application ü An easy-to-manage solution to simplify business communications. 12
IPX Series Comparisons Model IPX-330 IPX-2100 IPX-2200 IPX-2500 Dual core A 7 1 GHz X 86 Dual core 2. 4 GHz Storage 8 G 8 G 16 G + HDD 500 G SDRAM 512 MB 1 GB 4 GB Extension User 30 100 200 500 Concurrent Call 15 30 60 100 Conference Room 3 12 36 36 Room Concurrent Call 10 20 40 80 600 hrs (. gsm) 66 hrs (. wav) 1, 500 hrs (. gsm) 150 hrs (. wav) 75, 000 hrs. (. gsm) 7, 500 hrs. (. wav) Asterisk 13 SIP (RFC 3261) V V IAX 2 V V IPv 6 V V Features Hardware CPU/DSP System Capacity Recording/Voicemail Protocol Software Version 13
Product Features Internet Telephony Gateway
Features VGW-400 / 800 series u IETF SIP (RFC 3261 compliant) 4/8 -Port voice gateway u IPv 6, IPv 4 supported u IPv 6 Auto Configuration (RFC 4862) u Outgoing SIP Caller ID Selection u Caller ID detection mode by Country selection u Up to 4 SIP service domains and Caller ID u Supports Auto HTTP Provision and FAX feature u Flexible Routes Plan, Dial Plan and SIP Trunk VGW-800 series u Life-line for emergency calls (VGW-402 / VGW-804) u Firewall / Port Forwarding (TCP, UDP or both) VGW-804 VGW-800 FO VGW-800 FS u URL / IP / Port Filter / DDNS (PLANETDDNS, Easy DDNS, Dyn. DNS) VGW-400 series VGW-402 VGW-400 FO VGW-400 FS 15

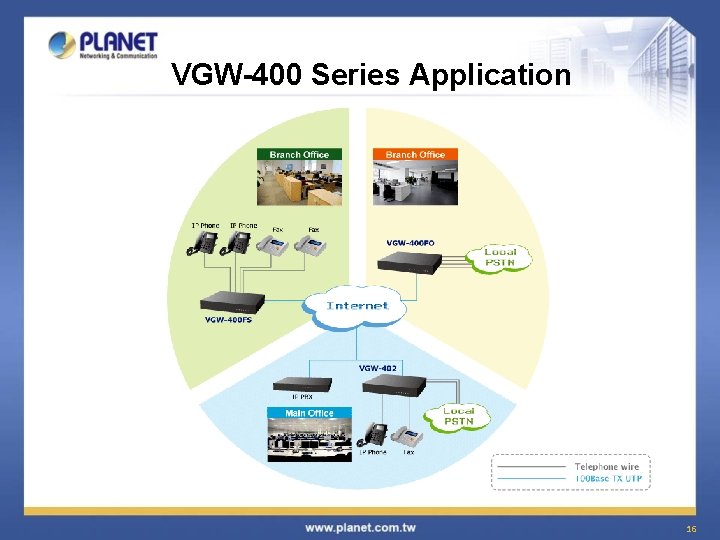

VGW-400 Series Application 16
Product Features IP Phone
Features VIP-1000 T / VIP-1000 PT Entry Level HD IP Phone u IETF SIP (RFC 3261) compliant u IEEE 802. 3 af Po. E compliant (VIP-1000 PT) u HD codec G. 722 for perfect voice quality u 20 multi-functional keys u 3 -Way conference / Call park / Call pickup u TR 069 and Auto Provisioning: TFTP, HTTP and HTTPS VIP-1000 T VIP-1000 PT 18
Features VIP-1120 PT High Definition Po. E IP Phone u 2. 4 -inch color LCD monitor u 2 -line key with color LED u IETE SIP compliant with 2 SIP identities/accounts u Wideband G. 722 HD audio with Handset and Hands-free function u Multi-language support in screen and web UI u IEEE 802. 3 af/at Po. E compliant u VPN, VLAN Qo. S, TR 069, and auto-provisioning VIP-1120 PT Color LED Display 19
Features VIP-2140 PT High Definition Po. E IP Phone u 2. 8 -inch (main) and 2. 4 -inch (DSS) key-mapping color LCD monitor u 12 configurable, 6 multicolored LED keys, 2 -line key with color LED u IETE SIP compliant with 4 SIP identities/accounts u Wideband G. 722 HD audio with Handset and Hands-free function u Multi-language support in screen and web UI u Gigabit switch and IEEE 802. 3 af/at Po. E compliant u VPN, VLAN Qo. S, TR 069, and auto-provisioning VIP-2140 PT 20
Features VIP-5060 PT Enterprise HD Po. E IP Phone u IETF SIP (RFC 3261) compliant u HD voice codec G. 722 for perfect voice quality u Supports TR-069 and auto-provision u Supports VLAN (vocie VLAN / Data VLAN) u Supports SRTP and Busy Lamp Field (BLF) u SMS / Speed Dial / DND / VPN (L 2 TP) u Supports Phonebook with 500 records u 3 -Way conference / Call park / Call pickup / Join call u Dual Gigabit Ethernet ports (1 WAN, 1 LAN) u IEEE 802. 3 af Po. E compliant u TR 069 and Auto Provisioning: TFTP, HTTP and HTTPS VIP-5060 PT 21

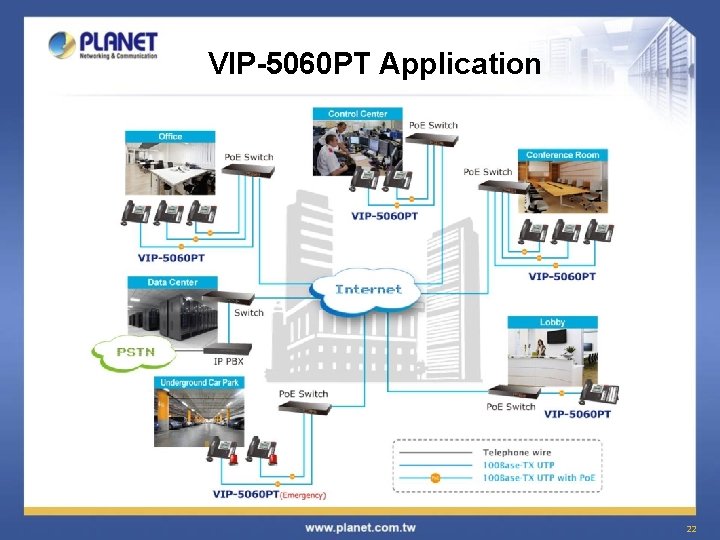

VIP-5060 PT Application 22
Features VIP-6040 PT Gigabit Color LCD HD Po. E IP Phone u 3. 5 inch color screen u Photo caller ID / photo frame u IETF SIP (RFC 3261) compliant u HD Codec, HD speaker, HD handset u Supports Busy Lamp Field (BLF) and Bridged Line Appearance (BLA) u 5 -Way conference / 14 programmable keys u Black list, XML/LDAP phonebook u Dual Gigabit Ethernet ports (1 WAN, 1 LAN) u IEEE 802. 3 af Po. E compliant u TR 069 and Auto Provisioning: TFTP, HTTP and HTTPS VIP-6040 PT 23

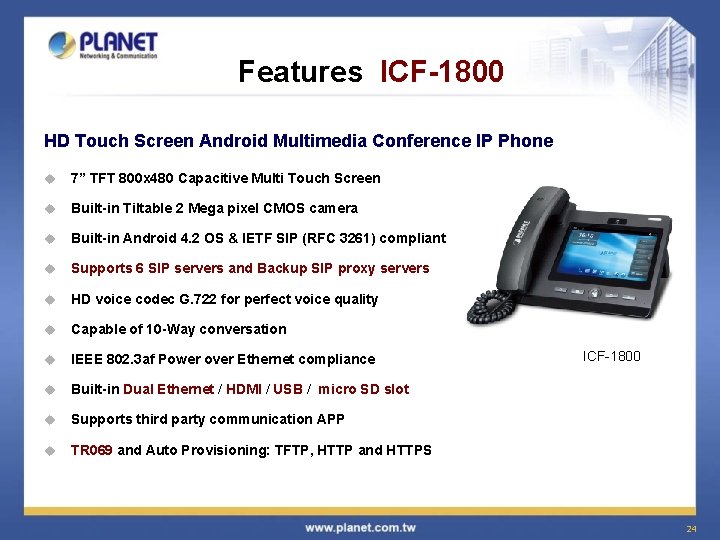

Features ICF-1800 HD Touch Screen Android Multimedia Conference IP Phone u 7” TFT 800 x 480 Capacitive Multi Touch Screen u Built-in Tiltable 2 Mega pixel CMOS camera u Built-in Android 4. 2 OS & IETF SIP (RFC 3261) compliant u Supports 6 SIP servers and Backup SIP proxy servers u HD voice codec G. 722 for perfect voice quality u Capable of 10 -Way conversation u IEEE 802. 3 af Power over Ethernet compliance u Built-in Dual Ethernet / HDMI / USB / micro SD slot u Supports third party communication APP u TR 069 and Auto Provisioning: TFTP, HTTP and HTTPS ICF-1800 24

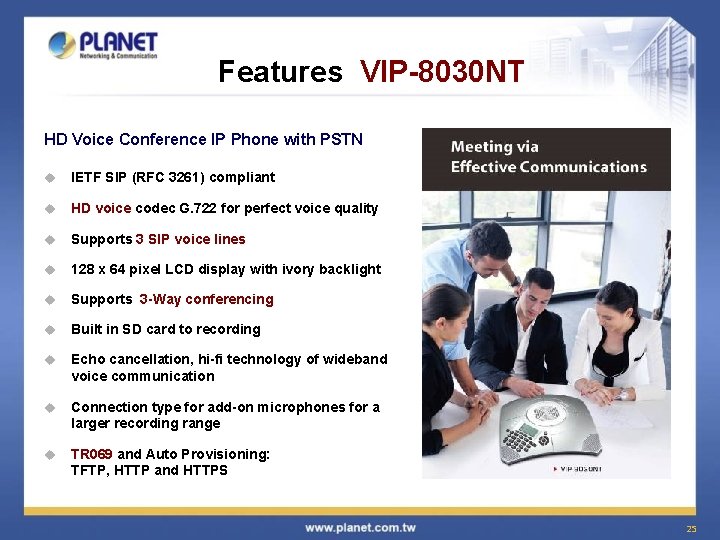

Features VIP-8030 NT HD Voice Conference IP Phone with PSTN u IETF SIP (RFC 3261) compliant u HD voice codec G. 722 for perfect voice quality u Supports 3 SIP voice lines u 128 x 64 pixel LCD display with ivory backlight u Supports 3 -Way conferencing u Built in SD card to recording u Echo cancellation, hi-fi technology of wideband voice communication u Connection type for add-on microphones for a larger recording range u TR 069 and Auto Provisioning: TFTP, HTTP and HTTPS 25
Features Control Pad 7 -inch Touch Screen Home Automation Controller u SIP 2. 0 (RFC 3261) compliant u Android 7” touch panel control of your entire system u View all your cameras and control all your devices from Home Automation Control Gateway u IEEE 802. 3 af/at Po. E / 802. 11 n Wireless communications makes installation a breeze in any home u Easy, intuitive setup with wall-mounted u Hands-free two-way video Intercom; unlock door from the intercom u Up to 3 scenes managed via PLANET Z-Wave Plus™ Gateway u 8 -zone alarm interface available for security control (DI x 6, DO x 2) HTS-700 P 26
Features IP Intercoms SIP Single-unit Apartment Door Phone with Po. E u SIP 2. 0 (RFC 3261) compliant u HD camera with 112 degrees Wide Range Video View angle u H. 264 / MJPEG Video codec and SIP / RTSP protocol u IEEE 802. 3 af Po. E compliant HDP-1100 PT u Built-in one Call Button & Hardware Acoustic Echo Cancellation u Built-in One Relay output for door lock or lighting control u Built-in One DI port for Door sensor, PIR, Emergency button 27
Features IP Intercoms SIP Multi-unit Video Door Phone with Po. E u SIP 2. 0 (RFC 3261) compliant u HD camera with infrared light and night vision u HD voice using wideband G. 722 coding produces clearer sound u IP 65 classification with vandal and weather proof u Access Management via RF card and DTMF code and Password u Compliant with IEEE 802. 3 af Po. E, Acoustic Echo Cancellation u -20 to 60 degrees C operating temperature HDP-5240 PT 28
Features IP Intercoms SIP Multi-unit Apartment Door Phone with Po. E u SIP 2. 0 (RFC 3261) compliant u HD camera with infrared light and night vision u HD voice using wideband G. 722 coding produces clearer sound u Tamperproof protection for unauthorized changes u Access Management via RF card and DTMF code and Password u Compliant with IEEE 802. 3 af Po. E, Acoustic Echo Cancellation HDP-5260 PT 29
Features VPA-100 SIP Public Announcement Adapter with Po. E u IETF SIP (RFC 3261 compliant) u Paging and intercom u Echo cancellation and Noise suppression u Full duplex and speaker mode u IEEE 802. 3 af Power over Ethernet compliant u Dual power supply (DC 5 V/DC 3. 3 V) u Four programmable output ports u Audio output for position: 3. 5 mm and loud speaker u Extra LAN port connect other devices for network expanding VPA-100 30
VPA-100 Application 31
Product Features ATA (Analog Telephone Adapter)

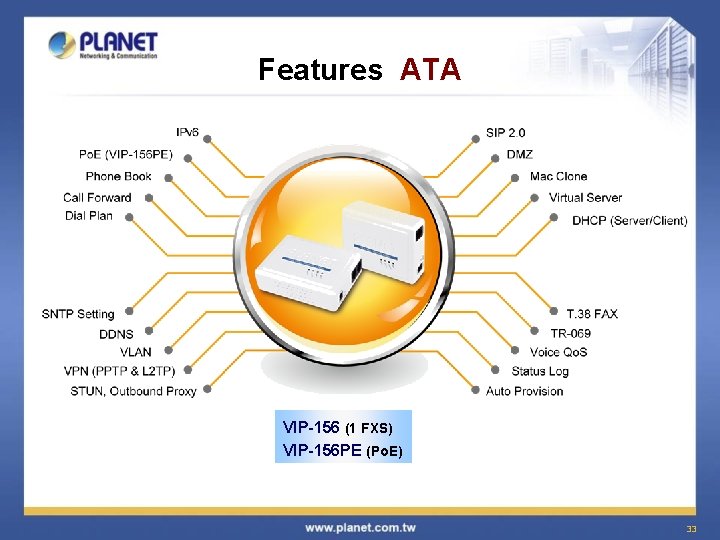

Features ATA VIP-156 (1 FXS) VIP-156 PE (Po. E) 33
ATA Application 34
Product Features SIP IP Camera
SIP IP Camera u SIP 2. 0 (RFC 3261 compliant) u 1/2. 5” Progressive Scan CMOS u HD Real-time 720 P@30 fps u ONVIF compliant for interoperability changes u Micro SD card local video recording supported u H. 264, MPEG-4 and M-JPEG video compression simultaneously u Easily-recessed mount design u Convenient nano-design blends in nicely with any surrounding u Compliant with IEEE 802. 3 af Po. E interface for flexible deployment ICA-4130 S 36

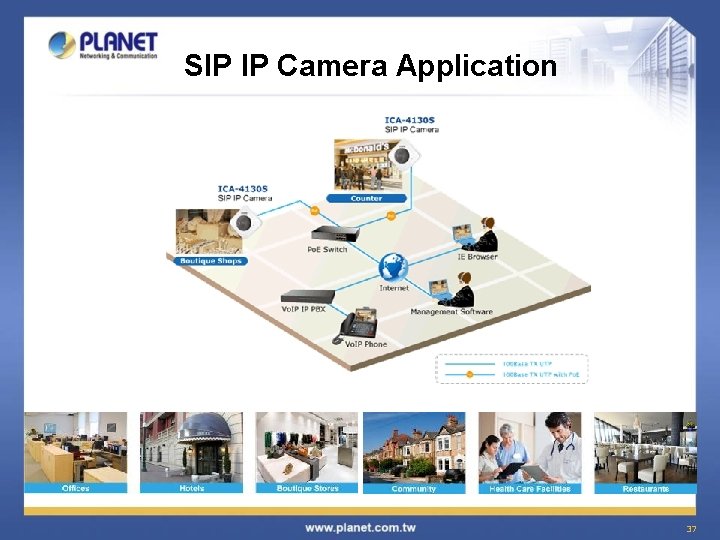

SIP IP Camera Application 37
u View PLANET IP Telephony solution online 38
