IP Surveillance Solution Excellence in Surveillance 2 IP
- Slides: 35
IP Surveillance Solution
Excellence in Surveillance 2

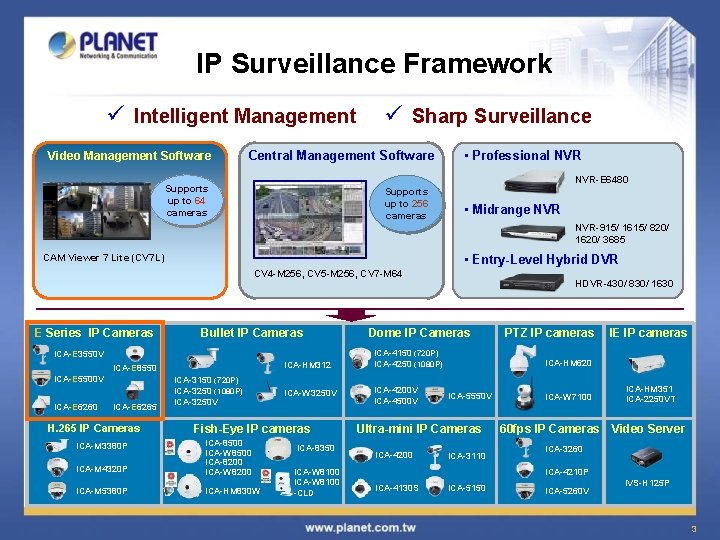

IP Surveillance Framework ü Intelligent Management ü Sharp Surveillance Video Management Software Central Management Software Supports up to 64 cameras Supports up to 256 cameras • Professional NVR-E 6480 • Midrange NVR-915/ 1615/ 820/ 1620/ 3685 CAM Viewer 7 Lite (CV 7 L) • Entry-Level Hybrid DVR CV 4 -M 256, CV 5 -M 256, CV 7 -M 64 E Series IP Cameras Bullet IP Cameras ICA-E 3550 V ICA-HM 312 ICA-E 8550 ICA-E 5500 V ICA-E 6260 ICA-E 6265 H. 265 IP Cameras ICA-3150 (720 P) ICA-3250 (1080 P) ICA-3250 V Fish-Eye IP cameras ICA-M 4320 P ICA-8500 ICA-W 8500 ICA-8200 ICA-W 8200 ICA-M 5380 P ICA-HM 830 W ICA-M 3380 P ICA-W 3250 V ICA-8350 ICA-W 8100 -CLD HDVR-430/ 830/ 1630 Dome IP Cameras ICA-4150 (720 P) ICA-4250 (1080 P) ICA-4200 V ICA-4500 V IE IP cameras ICA-HM 620 ICA-5550 V Ultra-mini IP Cameras ICA-4200 PTZ IP cameras ICA-3110 ICA-W 7100 ICA-HM 351 ICA-2250 VT 60 fps IP Cameras Video Server ICA-3260 ICA-4210 P ICA-4130 S ICA-5150 ICA-5260 V IVS-H 125 P 3

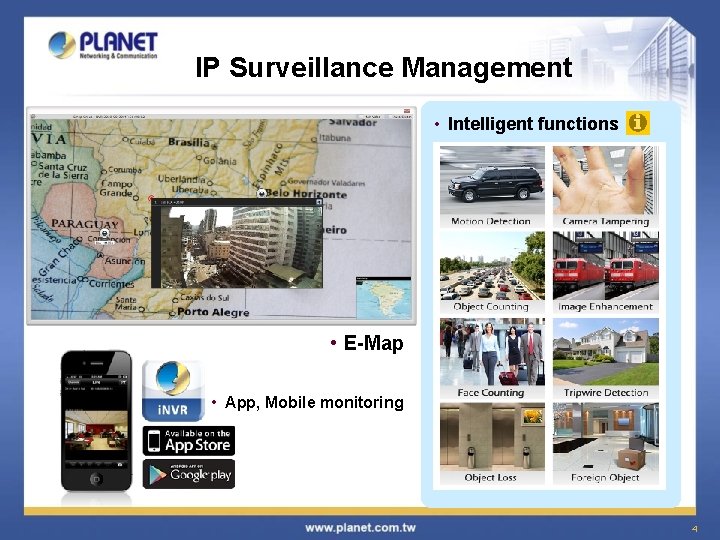

IP Surveillance Management • Intelligent functions • E-Map • App, Mobile monitoring 4
Easy access through PLANET DDNS u Access to IP camera/NVR/HDVR anytime & anywhere ü Register a simple domain name in PLANET DDNS to access home devices anytime, anywhere ü PLANET easy DDNS helps you use PLANET DDNS function easily without manually adding new account Already a planetddns user ? Log in now 5
Product Features E-series Solution

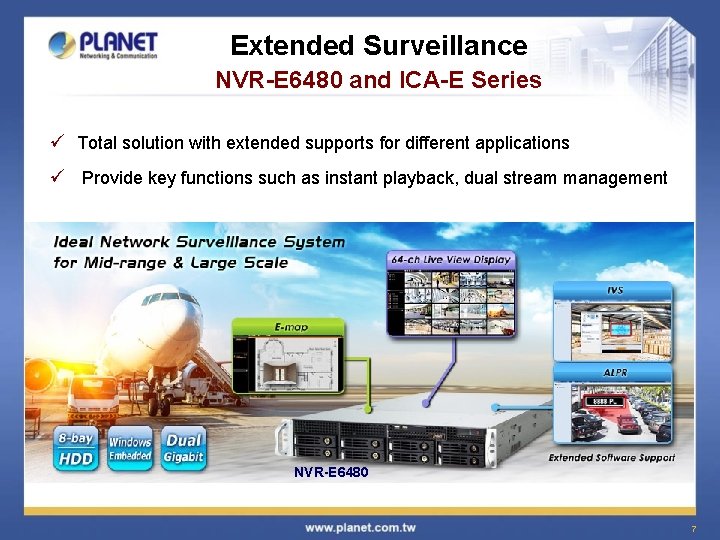

Extended Surveillance NVR-E 6480 and ICA-E Series ü Total solution with extended supports for different applications ü Provide key functions such as instant playback, dual stream management NVR-E 6480 7
E-series IP Cameras ICA-E 3550 V ICA-E 5550 V ICA-E 6260 ICA-E 6265 ICA-E 8550 Bullet Dome Speed Dome Fisheye Optical Zoom - - 33 x - Po. E Standard IEEE 802. 3 af IEEE 802. 3 at IEEE 802. 3 af 5 MP (15 fps) Full HD (30 fps) Full HD (60 fps) 720 P (60 fps) 5 MP (15 fps) 1. 3 MP (15 fps) 30 meters N/A 150 meters 15 meters ICR WDR V V V V V 3 DNR V V N/A 2 -Way Audio V V Audio Input 1/1 4 / 2 IP 68, IK 10 IP 66, IK 10 IP 67, IK 09 IP 66, IK 10 -40 ~ 50 o. C -40 ~ 55 o. C N/A IP 68, IK 10, EN 50155 -20 ~ 50 o. C V V V Model Features Type Max. Resolution / (Frame Rate) IR Distance DI / DO Outdoor capability Operating Temp. On. VIF Environment Enterprise / Large scale network (ex. Airport, Government) 8
Extended Surveillance Applications 9
Extended Features ALPR u Automatic License Plate Recognition (ALPR) ü Provides efficiency in parking, traffic control, law enforcement, etc. ü Cam viewer E-series software: CV 7 -LP Projected-base Integration Video Analysis Advanced Search & Filter Management Up to 2 / 4 CH 10
Extended Features IVS u Intelligent Video analysis System (IVS) ü Supports Line Crossing, Enter Area, Missing Object, Unattended Object, Tamper, Object Counting and People Counting algorithms ü Cam viewer E-series software: CV 7 -VA Intelligent Management Video Analysis Advanced Search & Filter Management Up to 4 / 9 CH 11
Product Features H. 265 Solution
Features H. 265 u H. 265:High Efficiency Video Coding (HEVC) u At the same quality of coding, compared to H. 264 standard, H. 265 can: ü Save 30~50% of bandwidth source ü Double the coding efficiency 13
H. 265 36 -Ch NVR u Supports H. 265 / H. 264 compressions u Video resolution up to 5 Mega-Pixel u 8 x SATA II HDD bay (Max. 48 TB) u Dual Gigabit Ethernet ports u Max. 256 channels with the central management software u Dual local display (HDMI / VGA) u RAID 0/1/5 u Location management with E-map u Mobile app viewer (a. CV 5 & i. CV 5) u ONVIF compliant for interoperability NVR-3685 50% savings in bit rate for H. 265 compared to H. 264 14
H. 265 NVR Applications u Reliable and flexible solution for SMB / Enterprise surveillance service Remote access via mobile device. Central manage up to 256 channels with bundle utility. Remote live view and playback on IE. Save recorded video files without PC. Distributed System with reliability. 15
H. 265 IP Cameras Model ICA-M 3380 P ICA-M 4320 P ICA-M 5380 P Type Outdoor 3 mega-pixel Bullet Indoor 3 mega-pixel Dome Outdoor 3 mega-pixel Vandal Dome Lens Motorized with P-iris Lens Po. E Standard IEEE 802. 3 af, 10 W Max. IEEE 802. 3 af, 9 W Max. 3 MP (30 fps) Full HD (30 fps) 22 pcs 12 pcs V V 1/0 IP 66 -20 ~ 50 o. C V V V V 1/0 IP 66, IK 10 -20 ~ 50 o. C V V V Features Max. Resolution / (Frame Rate) IR LED ICR WDR 3 DNR 2 -Way Audio DI / DO Outdoor capability Operating Temp. On. VIF Environment Enterprise / Large scale network (ex. Transportation, Retail) 16

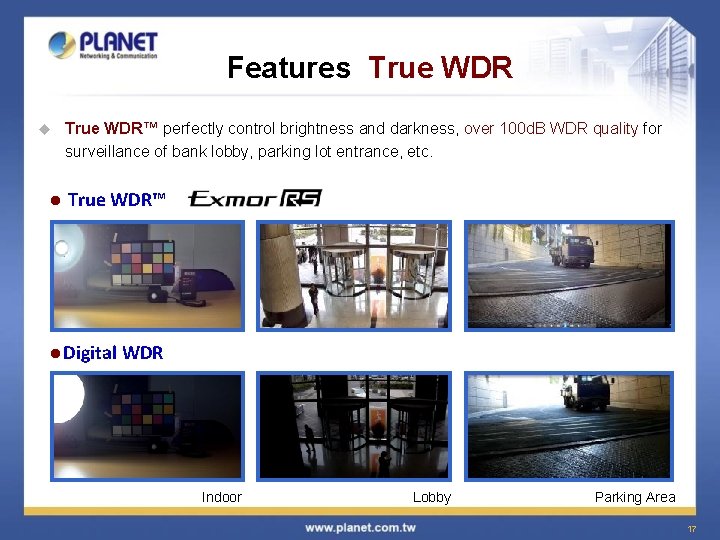

Features True WDR u l True WDR™ perfectly control brightness and darkness, over 100 d. B WDR quality for surveillance of bank lobby, parking lot entrance, etc. True WDR™ l Digital WDR Indoor Lobby Parking Area 17

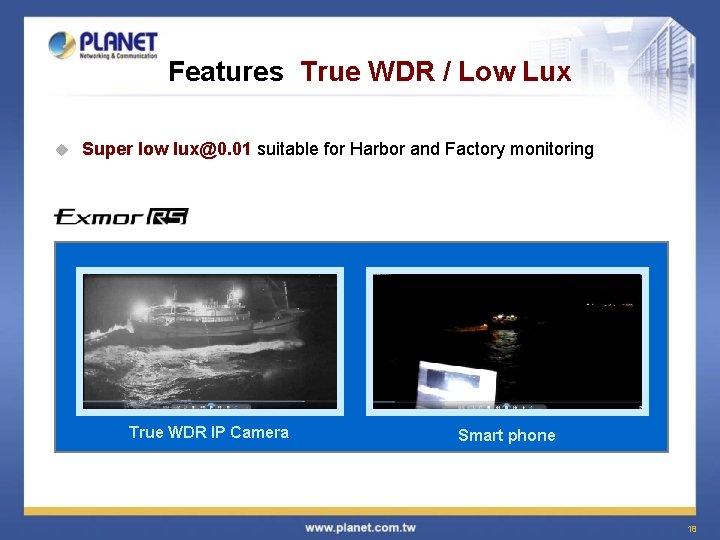

Features True WDR / Low Lux u Super low lux@0. 01 suitable for Harbor and Factory monitoring True WDR IP Camera Smart phone 18

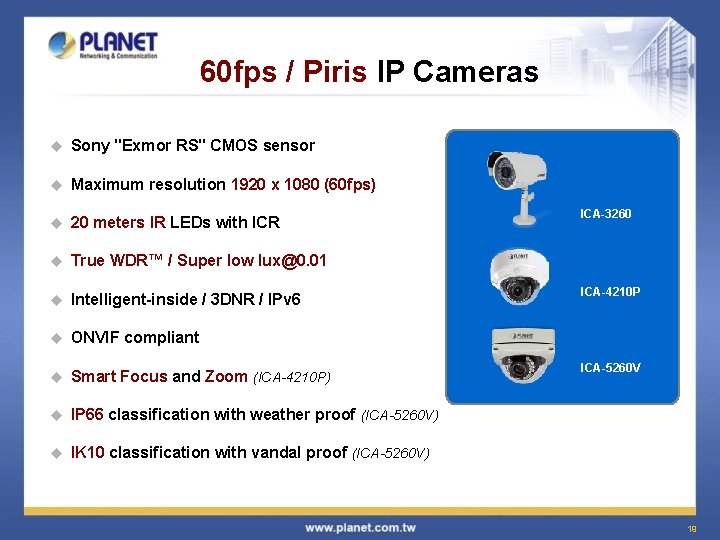

60 fps / Piris IP Cameras u Sony "Exmor RS" CMOS sensor u Maximum resolution 1920 x 1080 (60 fps) u 20 meters IR LEDs with ICR u True WDR™ / Super low lux@0. 01 u Intelligent-inside / 3 DNR / IPv 6 u ONVIF compliant u Smart Focus and Zoom (ICA-4210 P) u IP 66 classification with weather proof (ICA-5260 V) u IK 10 classification with vandal proof (ICA-5260 V) ICA-3260 ICA-4210 P ICA-5260 V 19
Product Features AHD Hybrid DVR Solution

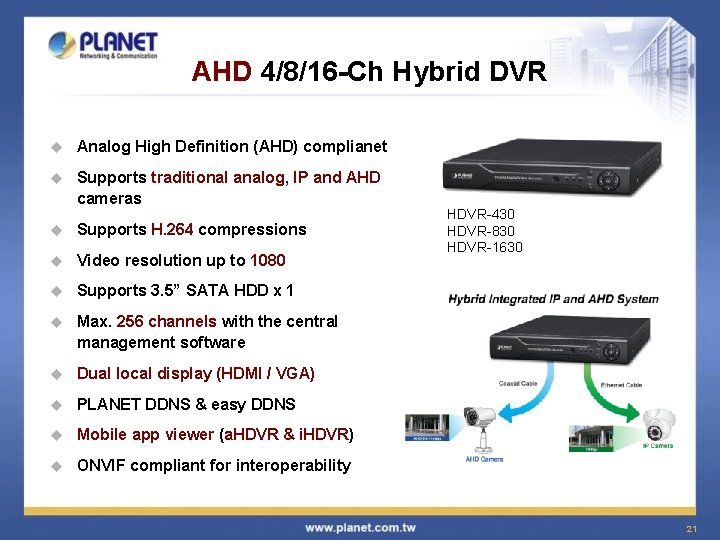

AHD 4/8/16 -Ch Hybrid DVR u Analog High Definition (AHD) complianet u Supports traditional analog, IP and AHD cameras u Supports H. 264 compressions u Video resolution up to 1080 u Supports 3. 5” SATA HDD x 1 u Max. 256 channels with the central management software u Dual local display (HDMI / VGA) u PLANET DDNS & easy DDNS u Mobile app viewer (a. HDVR & i. HDVR) u ONVIF compliant for interoperability HDVR-430 HDVR-830 HDVR-1630 21
Entry-level IP Cameras ICA-3150 ICA-4150 ICA-W 7100 ICA-3250 ICA-4250 Bullet Dome P/T Dome Bullet Dome 1/4” CMOS Power Supply IEEE 802. 3 af DC 5 V IEEE 802. 3 af Max. Resolution / (Frame Rate) 720 P (30 fps) VGA (30 fps) Full HD (30 fps) 720 P (30 fps) 25 meters 20 meters 10 meters 25 meters 20 meters ICR WDR V V V V V DNR 2 DNR 2 -Way Audio N/A V V Wireless N/A V 802. 11 n (2. 4 GHz) N/A IP 66 -20 ~ 50 o. C -10 ~ 50 o. C V V V Model Features Type Sensor IR Distance Outdoor capability Operating Temp. On. VIF Environment 1/2. 8” Sony CMOS SOHO / SMB network (ex. Chain Store, Community) 22
4 -in-1 AHD Analog Cameras CAM-AHD 325 CAM-AHD 425 Bullet Dome 1/2. 8” Sony CMOS Board lens 3. 6 mm/F 1. 2 Signal Output AHD/TVI/CVI/CVBS Max. Resolution 1920 x 1080 (30 fps) Min. Illumination 0. 01 lux @ F 1. 2, 0 lux with built-in IR LED 30 meters 25 meters ICR V V WDR V V DNR 2 DNR IP 66 IP 65 Power Supply 12 V DC/1 A Operating Temp. -30 ~ 50 o. C Model Features Type Sensor Lens IR Distance Outdoor capability Transmission over common coaxial 75 -3 cable up to 300 -500 meters Environment SOHO / SMB network (ex. Chain Store, Community) 23

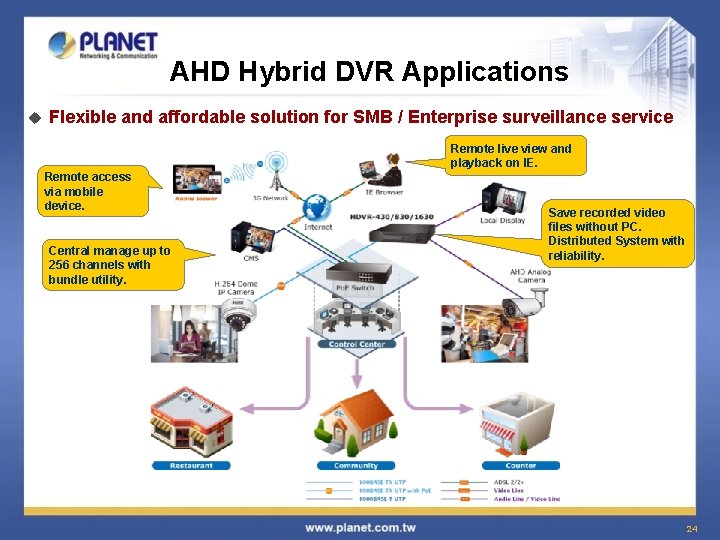

AHD Hybrid DVR Applications u Flexible and affordable solution for SMB / Enterprise surveillance service Remote live view and playback on IE. Remote access via mobile device. Central manage up to 256 channels with bundle utility. Save recorded video files without PC. Distributed System with reliability. 24
Product Features Cam Viewer 7 (CV 7)
Surveillance Management Solution Network Video Recorder (NVR) • CV 7 L (Software-based NVR) • NVR-E 6480 (Hardware-based NVR) NVR manages up to 64 channels of cameras Central Management Software CV 7 -M 64 Manages total up to 64 channels of cameras under the NVR ( *Channels can be extended via license) 26
CV 7 Management Software ü 64 -CH video management software is included for ease of maintenance and remote monitoring 27
CV 7 Feature Live Monitor Top Menu bar Event Status Side Menu Live Video 28
CV 7 Feature Instant Playback u Switching to the Playback page is not necessary, you can still have full live views of other channels simultaneously. 29
CV 7 Feature Dual Stream Management u Improves Performance ü Monitor or record stream 1 or stream 2 of dual stream devices ü Reduces the CPU and memory loading 30
CV 7 Feature e-Map u Location Management with e-Map ü Visualizes the layout of IP cameras and identify the location of each camera quickly ü Provides instant alert by flashing camera icons and real time video Double Click! 31
CV 7 Application Nationwide transportation status monitoring u Real-time and high quality image delivered without delay u 32
Management Software Comparison CV 7 L (bundle kit) CV 7 -M 64 (bundle kit) Software Type VMS CMS Max. Channels 64 64 (scalable) H. 264 / MPEG 4 / MJPEG 5 Mega-pixel V - 1 -layer Remote Monitor V V Multi-monitor - TV wall support by additional software license Model Features Compression Max. Resolution Record E-Map Intelligent Functions • Motion Detection • Camera Tampering 33

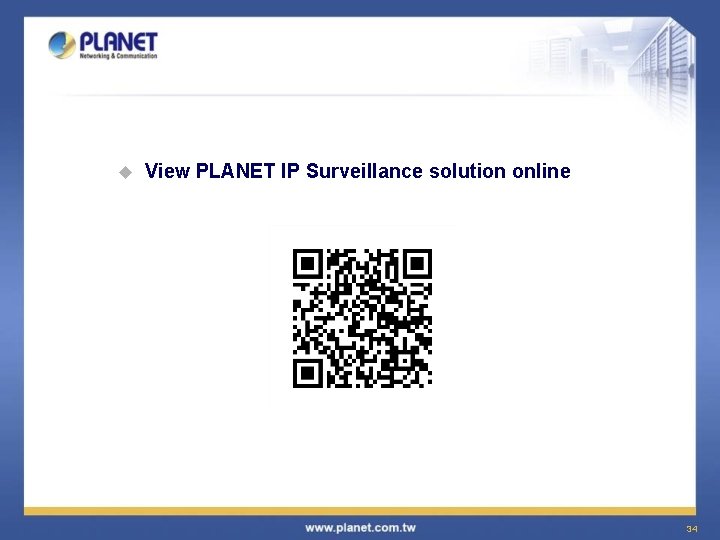

u View PLANET IP Surveillance solution online 34
