IP Surveillance Solution Excellence in Surveillance 2 IP

IP Surveillance Solution

Excellence in Surveillance 2

IP Surveillance Framework ü Intelligent Management ü Sharp Surveillance 1024 -Ch Central Management Software CV 3 -M 1024 Network Video Recorder NVR-3250 NVR-3210 NVR-1620 / 820 NVR-1610 / 810 NVR-420 Supports up to 256 cameras Cube / Box IP Cameras ICA-W 1200 ICA-HM 101 W ICA-HM 101 ICA-2200 ICA-2500 ICA-HM 351 ICA-2250 VT Central Management Software Supports up to 64 cameras CAM Viewer 3 Pro (CV 3 P) Bullet IP Cameras ICA-3250 V ICA-3350 V ICA-3550 V ICA-HM 312 ICA-HM 316 W Ultra-mini / SIP IP Cameras Fish-Eye IP cameras ICA-HM 131 ICA-8500 ICA-W 8500 ICA-8350 ICA-HM 830 W ICA-W 8100 -CLD ICA-3200 ICA-5250 ICA-4130 S ICA-4230 S Fixed Dome IP Cameras ICA-HM 132 ICA-4200 V ICA-4500 V ICA-HM 136 ICA-5250 V ICA-5350 V ICA-5550 V P/T/Z IP cameras / Video Server ICA-H 652 ICA-HM 620 IVS-H 125 P 3

IP Surveillance Management • Intelligent functions • E-Map • App, Mobile monitoring 4

Product Features IP Camera

IP Camera Features 6

Features Vari-Focal u Vari-Focal Offers the Best Recording Flexibility ü A high millimeter setting for narrow viewing fields ü A low millimeter setting for wider viewing fields 7

Full HD Vari-Focal IP Cameras Model ICA-2250 VT ICA-3250 V ICA-4200 V ICA-5250 V Box V Bullet V Dome V Vandal Dome V IEEE 802. 3 at IEEE 802. 3 af 1920 x 1080 (30 fps) 1280 x 720 (30 fps) 30 meter 25 meter 20 meter V V (built-in mic) 1/1 IP 66 V V V (built-in mic) 1/1 Indoor V V V 1/1 IP 66, Vandal Proof V Features Type IPv 6 Po. E Standard Max. Resolution / (Frame Rate) Day & Night ICR WDR 3 DNR PIR 2 -Way Audio DI / DO Outdoor capability On. VIF Environment Industrial, Enterprise Large scale network (ex. Airport, Government) 8

Features Panoramic ü Monitor all angles of a location using just one camera ü Save lots of traditional mechanical Pan/Tilt/Zoom maintenance cost 9

Fish-Eye IP Camera u 360 o Fish-Eye Lens u Unique Fish-Eye hardware correction technology u Equipped 2659 x 1944 Pixels COMS Sensor u H. 264, MPEG-4 and M-JPEG video compressions u WDR Enhancement function strengthens visibility u 2 -Way audio support u IEEE 802. 3 af Po. E connectivity u Supports IPv 6 and IPv 4 u PLANET Easy DDNS and UPn. P® support u ONVIF compliant for interoperability u Advanced e-PTZ, including electronic Pan/Tilt/Zoom u Micro SD/SDHC card local video recording u Digital Input/Output for integration with sensors and alarms u Cam Viewer 3 central management software supported ICA-8500 10

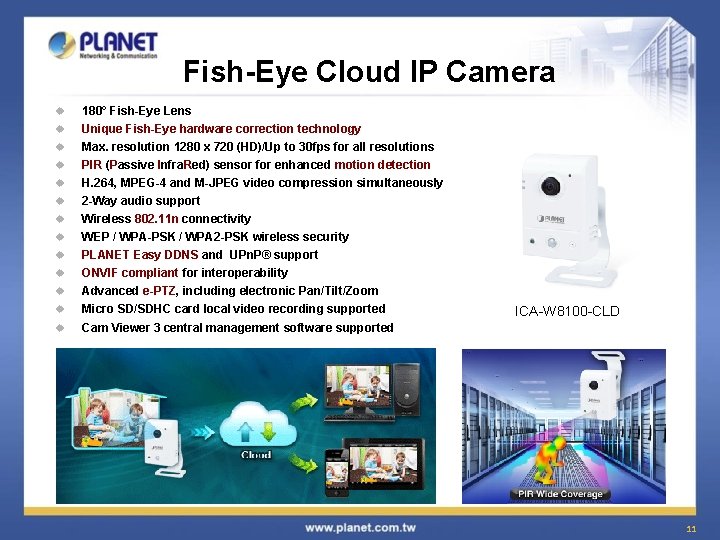

Fish-Eye Cloud IP Camera u u 180° Fish-Eye Lens Unique Fish-Eye hardware correction technology u Max. resolution 1280 x 720 (HD)/Up to 30 fps for all resolutions PIR (Passive Infra. Red) sensor for enhanced motion detection H. 264, MPEG-4 and M-JPEG video compression simultaneously 2 -Way audio support Wireless 802. 11 n connectivity WEP / WPA-PSK / WPA 2 -PSK wireless security u PLANET Easy DDNS and UPn. P® support u ONVIF compliant for interoperability u Advanced e-PTZ, including electronic Pan/Tilt/Zoom u Micro SD/SDHC card local video recording supported u Cam Viewer 3 central management software supported u u u ICA-W 8100 -CLD 11

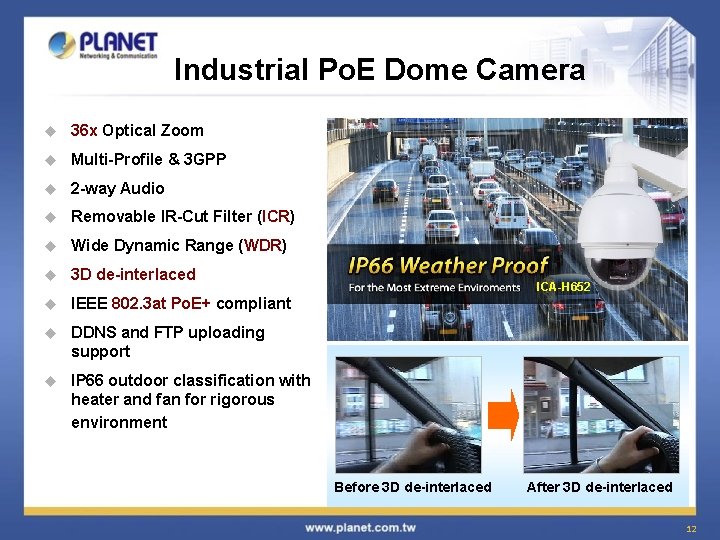

Industrial Po. E Dome Camera u 36 x Optical Zoom u Multi-Profile & 3 GPP u 2 -way Audio u Removable IR-Cut Filter (ICR) u Wide Dynamic Range (WDR) u 3 D de-interlaced u IEEE 802. 3 at Po. E+ compliant u DDNS and FTP uploading support u IP 66 outdoor classification with heater and fan for rigorous environment ICA-H 652 Before 3 D de-interlaced After 3 D de-interlaced 12

SIP IP Camera u SIP 2. 0 (RFC 3261 compliant) u 1/2. 5” Progressive Scan CMOS u HD Real-time 720 P@30 fps (ICA-4130 S) u Full HD Real-time 1080 P@30 fps (ICA-4230 S) u ONVIF compliant for interoperability changes u Micro SD card local video recording supported u H. 264, MPEG-4 and M-JPEG video compression simultaneously u Easily-recessed mount design u Convenient nano-design blends in nicely with any surrounding u Compliant with IEEE 802. 3 af Po. E interface for flexible deployment u Built-in IR illuminators, effective up to 10 meters (ICA-4230 S) ICA-4130 S ICA-4230 S 13

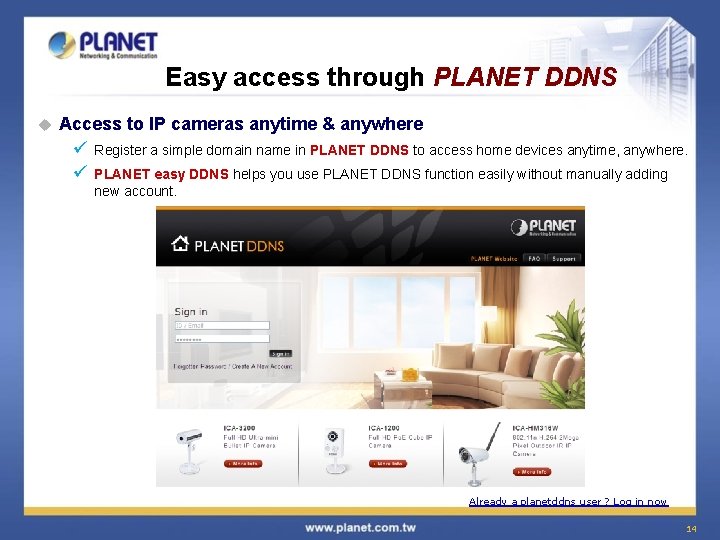

Easy access through PLANET DDNS u Access to IP cameras anytime & anywhere ü Register a simple domain name in PLANET DDNS to access home devices anytime, anywhere. ü PLANET easy DDNS helps you use PLANET DDNS function easily without manually adding new account. Already a planetddns user ? Log in now 14

Product Features Network Video Recorder (NVR)

Network Video Recorder (NVR) u Plug and play, easy to install and use u High performance real-time HD live monitoring u High compatibility, ease of integration 16

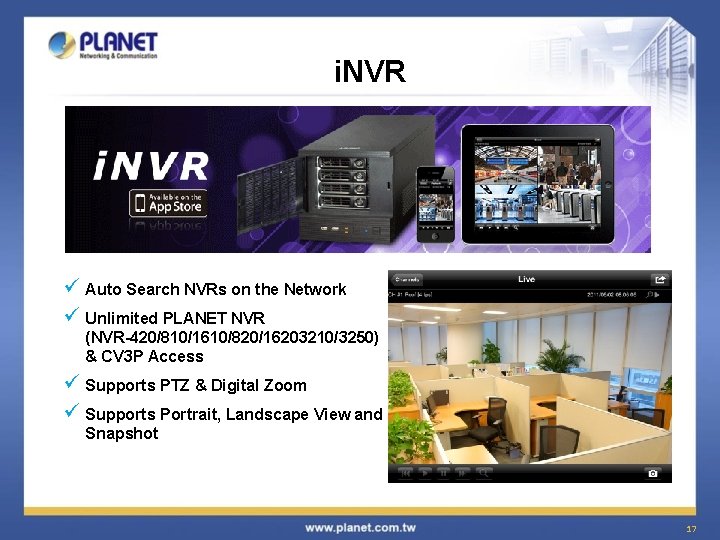

i. NVR ü Auto Search NVRs on the Network ü Unlimited PLANET NVR (NVR-420/810/1610/820/16203210/3250) & CV 3 P Access ü Supports PTZ & Digital Zoom ü Supports Portrait, Landscape View and Snapshot 17

16 -Ch NVR u 2 x SATA II HDD bay (Max. 6 TB) u Auto Configuration for PLANET IP Camera u Max. 256 channels with the management software Video resolution up to 5 Mega-Pixel (2560 x 1920) Up to 480 fps @ Mega-Pixel (H. 264) Local display, Web-based management E-Map interface in web and utility configuration Supports M-JPEG / MPEG-4 / H. 264 compressions Supports Real Time Clock (RTC) Mobile Devices Remote Monitoring (i. NVR Viewer) Easy access with PLANTE DDNS ONVIF compliant for interoperability u u u u u NVR-1620 NVR- HDMI Full HD Local Display 1620 18

NVR Applications u Reliable and affordable solution for SMB / Enterprise surveillance service. NVR-1620 Save recorded video files without PC. Distributed System with reliability. Remote access via mobile phone. Central manage up to 16 NVR with bundle utility. Remote live view and playback on IE. 19

Product Features Cam Viewer 3 (CV 3)

Surveillance Management Solution Central Management Software CV 3 -M 1024 Manages total up to 1024 channels of cameras under the NVR and CV 3 P monitoring Network Video Recorder (NVR) NVR-420, NVR-820, NVR-1620, NVR-3210 Hardware-Based NVR manages up to 256 channels of cameras with embedded CMS Cam Viewer Three (CV 3) CV 3 Pro (CV 3 P), CV 3 -Lite (CV 3 L) PC-Based NVR manages up to 64 channels of cameras 21

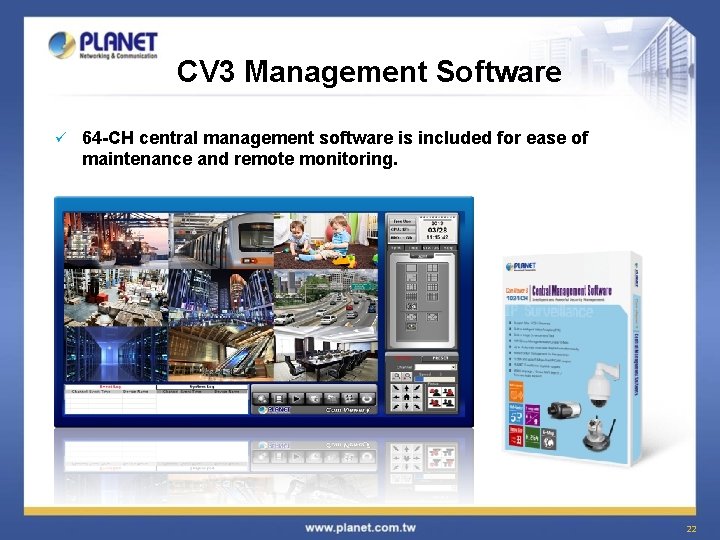

CV 3 Management Software ü 64 -CH central management software is included for ease of maintenance and remote monitoring. 22

CV 3 Feature – Live Monitor Top Menu bar Live Video Side Menu 23

CV 3 Feature – Playback u 4 channels playback simultaneously NVR list Playback View Channel list Date Time Playing Time Recorded Event Thumbnails Playback controller Playback Slider 24

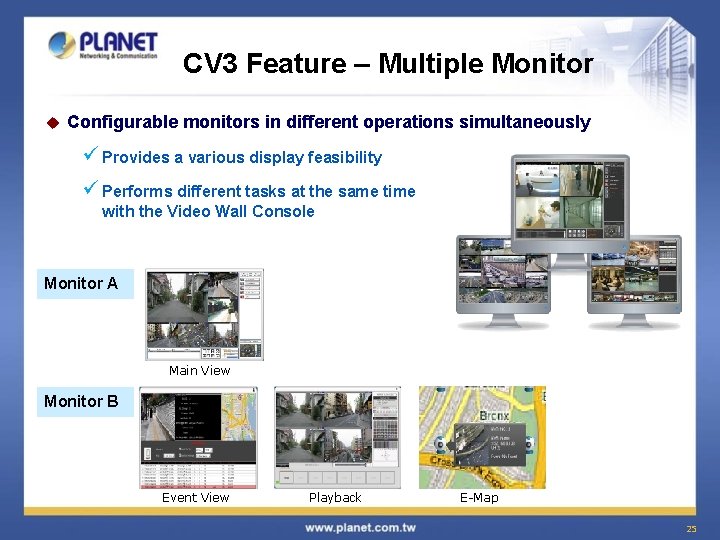

CV 3 Feature – Multiple Monitor u Configurable monitors in different operations simultaneously ü Provides a various display feasibility ü Performs different tasks at the same time with the Video Wall Console Monitor A Main View Monitor B Event View Playback E-Map 25

CV 3 Feature – Instant Event Notification u Providing a live video from the channel with event trigger, its channel detail information and its geographic information with a embedded mini E-Map u A list of log of previously triggered events for playback at anytime 26

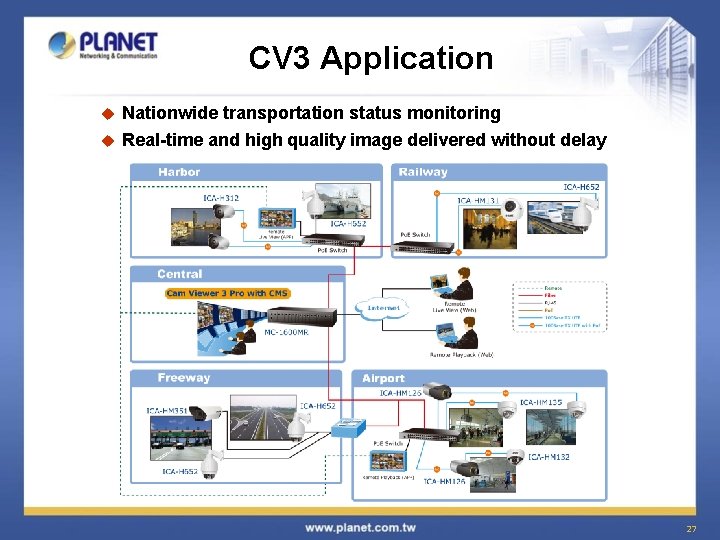

CV 3 Application Nationwide transportation status monitoring u Real-time and high quality image delivered without delay u 27

Central Management Software Model CV 3 -M 256 (bundle kit) CV 3 -M 1024 Max. Channels 256 1024 Max. NVRs 16 1024 Max. Resolution HD (1280 x 720) 5 MP (2560 x 1720) NVR Status Grid 4 x 4→ 8 x 8→ 8 x. N 2 -layer 3 -layer Video wall - V Keypro Protect - V Multi-Language V V Features E-Map Intelligent Functions • • • Motion Detection Camera Tampering Object Loss Tripwire Image Enhancement 28

u View PLANET IP surveillance solution online 29
