IP Surveillance Solution 1 Excellence in Surveillance 2

IP Surveillance Solution 1

Excellence in Surveillance 2

IP Surveillance Framework ü Intelligent Management ü Sharp Surveillance 1024 -Ch Central Management Software CV 3 -M 1024 Network Video Recorder NVR-3280 / 3250 / 3210 NVR-1620 / 820 NVR-1610 / 810 / 420 NVR-1615 / 915 HDVR-1630 / 830 / 430 Supports up to 256 cameras Cube / Box IP Cameras ICA-W 1200 ICA-HM 101 W ICA-HM 101 ICA-2200 ICA-2500 ICA-HM 351 ICA-2250 VT Ultra-mini / SIP IP Cameras ICA-3110 ICA-3200 ICA-5250 ICA-5150 ICA-4130 S ICA-4230 S Central Management Software Supports up to 64 cameras CAM Viewer 3 Pro (CV 3 P) Bullet IP Cameras ICA-3250 V ICA-3350 V ICA-3550 V ICA-3350 P ICA-HM 830 W ICA-3260 ICA-HM 312 ICA-HM 316 W ICA-W 3250 V Fish-Eye IP cameras ICA-8500 ICA-W 8500 ICA-8200 ICA-W 8200 Fixed Dome IP Cameras 60 fps IP camera ICA-8350 ICA-W 8100 -CLD ICA-HM 131 ICA-HM 132 ICA-4200 ICA-4500 V ICA-HM 136 ICA-5250 V ICA-5350 V ICA-5550 V P/T/Z IP cameras ICA-W 7100 ICA-H 652 ICA-HM 620 ICA-4210 P ICA-5260 V Video Server IVS-H 125 P IVS-2120 3

IP Surveillance Management • Intelligent functions • E-Map • App, Mobile monitoring 4

Product Features IP Camera 5

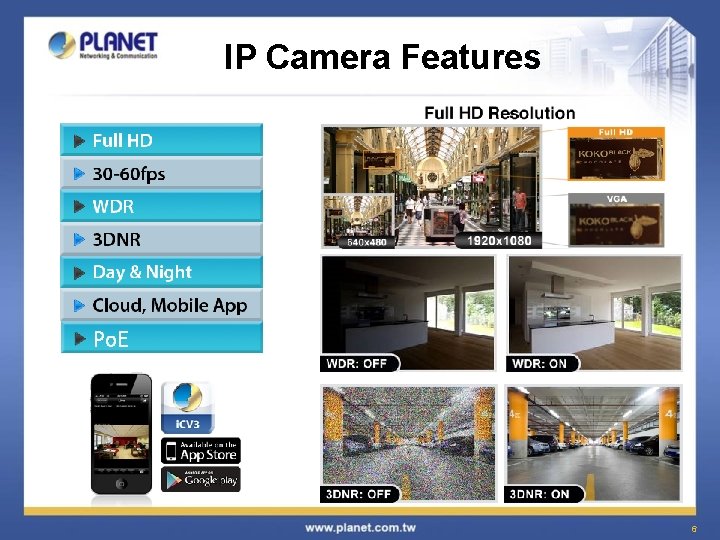

IP Camera Features 6

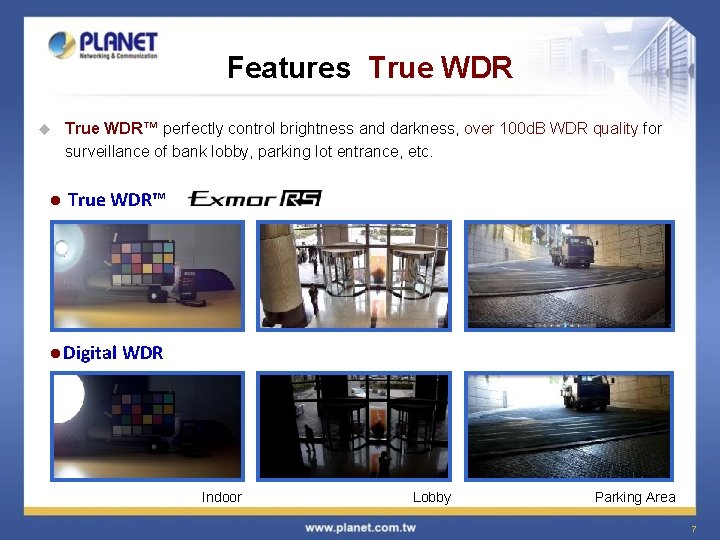

Features True WDR u l True WDR™ perfectly control brightness and darkness, over 100 d. B WDR quality for surveillance of bank lobby, parking lot entrance, etc. True WDR™ l Digital WDR Indoor Lobby Parking Area 7

Features True WDR / Low Lux u Super low lux@0. 01 suitable for Harbor and Factory monitoring True WDR IP Camera Smart phone 8

60 fps / Piris IP Cameras u Sony "Exmor RS" CMOS sensor u Maximum resolution 1920 x 1080 (60 fps) u 20 meters IR LEDs with ICR u True WDR™ / Super low lux@0. 01 u Intelligent-inside / 3 DNR / IPv 6 u ONVIF compliant u Smart Focus and Zoom (ICA-4210 P) u IP 66 classification with weather proof (ICA-5260 V) u IK-10 classification with vandal proof (ICA-5260 V) ICA-3260 ICA-4210 P ICA-5260 V 9

Features Vari-Focal u Vari-Focal Offers the Best Recording Flexibility ü A high millimeter setting for narrow viewing fields ü A low millimeter setting for wider viewing fields 10

High-megapixel Vari-Focal IP Cameras ICA-2500 ICA-3550 V ICA-4500 V ICA-5550 V IPv 6 Indoor 5 mega-pixel Box V Indoor / Outdoor 5 mega-pixel Bullet V Indoor 5 mega-pixel Dome V Indoor / Outdoor 5 mega-pixel Vandal Dome V Po. E Standard IEEE 802. 3 af 2592 x 1944 (15 fps) 1920 x 1080 (30 fps) Day & Night 20 meters ICR WDR 3 DNR PIR 2 -way Audio DI / DO Outdoor capability Operating Temp. On. VIF Environment V V V 1/1 Indoor 0 ~ 50 o. C V Model Features Type Max. Resolution / (Frame Rate) V V V V 1/1 1/1 IP 66 Indoor IP 66, Vandal Proof -20 ~ 50 o. C V V V Enterprise / Large scale network (ex. Airport, Government) 11

Full HD Vari-Focal IP Cameras Model ICA-2200 ICA-2250 VT ICA-3250 V ICA-4200 V ICA-5250 V Box V Bullet V Dome V Vandal Dome V IEEE 802. 3 af IEEE 802. 3 at IEEE 802. 3 af Features Type IPv 6 Po. E Standard Max. Resolution / (Frame Rate) Day & Night ICR WDR 3 DNR PIR 2 -Way Audio DI / DO Outdoor capability Operating Temp. On. VIF Environment 1920 x 1080 (30 fps) 1280 x 720 (30 fps) 1920 x 1080 (30 fps) 1280 x 720 (30 fps) ICR 30 meters 25 meters 20 meters V V V V (built-in mic) 1/1 V V 1/1 Indoor IP 66, Vandal Proof 0 ~ 50 o. C V -40 ~ 75 o. C V -20 ~ 50 o. C V Enterprise, Large scale network (ex. Airport, Government), Industrial (ICA-2250 VT) 12

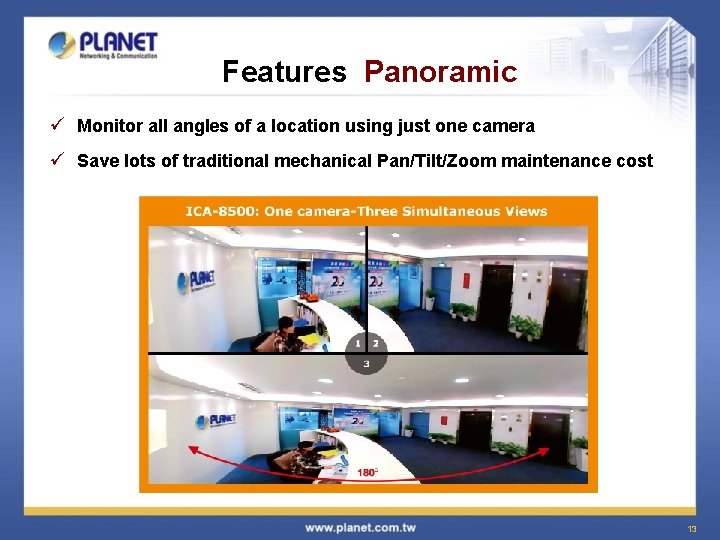

Features Panoramic ü Monitor all angles of a location using just one camera ü Save lots of traditional mechanical Pan/Tilt/Zoom maintenance cost 13

Fish-Eye IP Camera u 360 o Fish-Eye Lens u Unique Fish-Eye hardware correction technology u Up to 15 fps for 1920 x 1920 resolutions (ICA-8500 series) u Up to 15 fps for 1440 x 1440 resolutions (ICA-8200 series) u H. 264 and M-JPEG video compressions u WDR Enhancement function strengthens visibility u 2 -way audio support with enhanced audio quality u IEEE 802. 3 af Po. E and IEEE 802. 11 b/g/n wireless LAN connectivity u PLANET Easy DDNS and UPn. P® support u ONVIF compliant for interoperability u Advanced e-PTZ and 9 different video modes u Micro SD/SDHC card local video recording u Digital Input/Output for integration with sensors and alarms ICA-8500 / ICA-W 8500 ICA-8200 / ICA-W 8200 14

Fish-Eye Cloud IP Camera u u 180° Fish-Eye Lens Unique Fish-Eye hardware correction technology u Max. resolution 1280 x 720 (HD)/Up to 30 fps for all resolutions PIR (Passive Infra. Red) sensor for enhanced motion detection H. 264, MPEG-4 and M-JPEG video compression simultaneously 2 -way audio support Wireless 802. 11 n connectivity WEP / WPA-PSK / WPA 2 -PSK wireless security u PLANET Easy DDNS and UPn. P® support u ONVIF compliant for interoperability u Advanced e-PTZ, including electronic Pan/Tilt/Zoom u Micro SD/SDHC card local video recording supported u Cam Viewer 3 central management software supported u u u ICA-W 8100 -CLD 15

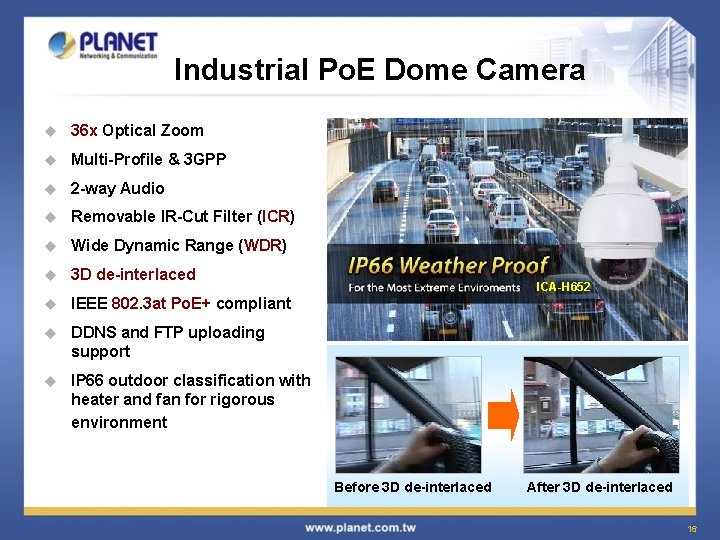

Industrial Po. E Dome Camera u 36 x Optical Zoom u Multi-Profile & 3 GPP u 2 -way Audio u Removable IR-Cut Filter (ICR) u Wide Dynamic Range (WDR) u 3 D de-interlaced u IEEE 802. 3 at Po. E+ compliant u DDNS and FTP uploading support u IP 66 outdoor classification with heater and fan for rigorous environment ICA-H 652 Before 3 D de-interlaced After 3 D de-interlaced 16

SIP IP Camera u SIP 2. 0 (RFC 3261 compliant) u 1/2. 5” Progressive Scan CMOS u HD Real-time 720 P@30 fps (ICA-4130 S) u Full HD Real-time 1080 P@30 fps (ICA-4230 S) u ONVIF compliant for interoperability changes u Micro SD card local video recording supported u H. 264, MPEG-4 and M-JPEG video compression simultaneously u Easily-recessed mount design u Convenient nano-design blends in nicely with any surrounding u Compliant with IEEE 802. 3 af Po. E interface for flexible deployment u Built-in IR illuminators, effective up to 10 meters (ICA-4230 S) ICA-4130 S ICA-4230 S 17

SIP IP Camera Applications 18

Easy access through PLANET DDNS u Access to IP cameras anytime & anywhere ü Register a simple domain name in PLANET DDNS to access home devices anytime, anywhere. ü PLANET easy DDNS helps you use PLANET DDNS function easily without manually adding new account. Already a planetddns user ? Log in now 19

Product Features Network Video Recorder (NVR) 20

Network Video Recorder (NVR) u Plug and play, easy to install and use u High performance real-time HD live monitoring u High compatibility, ease of integration 21

i. NVR ü Auto Search NVRs on the Network ü Unlimited PLANET NVR (NVR-420/ 810/ 1610/ 820/ 1620/ 3210/ 3250/ 3280) & CV 3 P Access ü Supports PTZ & Digital Zoom ü Supports Portrait, Landscape View and Snapshot 22

16 -Ch NVR u 2 x SATA II HDD bay (Max. 8 TB) u Auto Configuration for PLANET IP Camera u Max. 256 channels with the management software Video resolution up to 5 Mega-Pixel (2560 x 1920) Local display, Web-based management Google E-Map interface in web and utility configuration Supports M-JPEG / MPEG-4 / H. 264 compressions Mobile Devices Remote Monitoring (i. NVR Viewer) Easy access with PLANTE DDNS ONVIF compliant for interoperability Full Integration: Object Loss, Tripwire/Tampering/Motion Detection, Image Enhancement with CMS u u u u NVR-1620 NVR- HDMI Full HD Local Display 1620 23

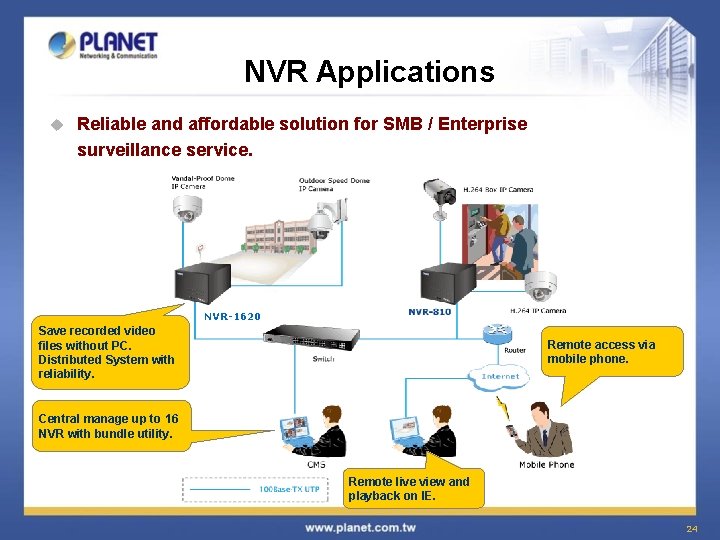

NVR Applications u Reliable and affordable solution for SMB / Enterprise surveillance service. NVR-1620 Save recorded video files without PC. Distributed System with reliability. Remote access via mobile phone. Central manage up to 16 NVR with bundle utility. Remote live view and playback on IE. 24

Product Features Cam Viewer 3 (CV 3) 25

Surveillance Management Solution Central Management Software CV 3 -M 1024 Manages total up to 1024 channels of cameras under the NVR and CV 3 P monitoring Network Video Recorder (NVR) NVR-420, NVR-820, NVR-1620, NVR-3210, NVR-3250, NVR-3280 Hardware-Based NVR manages up to 256 channels of cameras with embedded CMS Cam Viewer Three (CV 3) CV 3 Pro (CV 3 P), CV 3 -Lite (CV 3 L) PC-Based NVR manages up to 64 channels of cameras 26

CV 3 Management Software ü 64 -CH central management software is included for ease of maintenance and remote monitoring. 27

CV 3 Feature – POS Ethernet POS RS 232 switch CV 3 Pro NVR server POS printer Each NVR server supports 4 CH for a POS event IP cameras 28

CV 3 Feature – Live Monitor Top Menu bar Live Video Side Menu 29

CV 3 Feature – Playback u 4 channels playback simultaneously NVR list Playback View Channel list Date Time Playing Time Recorded Event Thumbnails Playback controller Playback Slider 30

CV 3 Feature – Multiple Monitor u Configurable monitors in different operations simultaneously ü Provides a various display feasibility ü Performs different tasks at the same time with the Video Wall Console Monitor A Main View Monitor B Event View Playback E-Map 31

CV 3 Feature – Instant Event Notification u Providing a live video from the channel with event trigger, its channel detail information and its geographic information with a embedded mini E-Map u A list of log of previously triggered events for playback at anytime 32

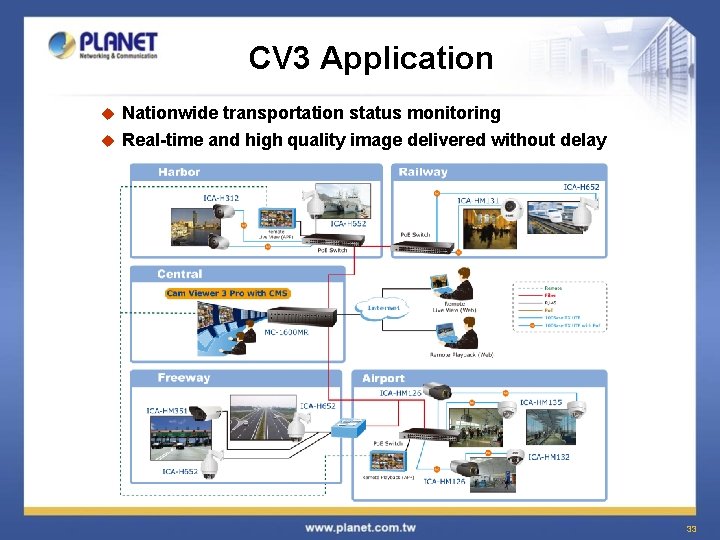

CV 3 Application Nationwide transportation status monitoring u Real-time and high quality image delivered without delay u 33

Central Management Software Model CV 3 -M 256 (bundle kit) CV 3 -M 1024 Max. Channels 256 1024 Max. NVRs 16 1024 Max. Resolution HD (1280 x 720) 5 MP (2560 x 1720) NVR Status Grid 4 x 4→ 8 x 8→ 8 x. N 2 -layer 3 -layer Video wall - V Keypro Protect - V Multi-Language V V Features E-Map Intelligent Functions • • • Motion Detection Camera Tampering Object Loss Tripwire Image Enhancement 34

u View PLANET IP Surveillance solution online 35
