IP Classless InterDomain Routing Classful addressing scheme wasteful

IP

Classless Inter-Domain Routing • Classful addressing scheme wasteful – IP address space exhaustion – A class B net allocated enough for 65 K hosts • Even if only 2 K hosts in that network • Solution: CIDR – Eliminate class distinction • No A, B, C – Keep multicast class D

Classless Addressing • Addresses allocated in blocks – Number of addresses assigned always power of 2, and always on the boundary. That is, if 2048 addresses, it will start with some address with all lower 11 bits being 0. • Network portion of address is of arbitrary length • Address format: a. b. c. d/x – x is number of bits in network portion of address network part 11001000 00010111 00010000 200. 23. 16. 0/23 host part

Allocating Addresses • Assume abundant addresses are available starting at 194. 24. 0. 0. • Cambridge university needs 2038 addresses, it is given 194. 24. 0. 0 to 194. 24. 7. 255. Mask 255. 248. 0. • Oxford need 4096 addresses. Because the requirement is that must be on the boundary, it is given 194. 24. 16. 0 to 194. 24. 31. 255. Mask 255. 240. 0. • Edinburg needs 1024 addresses, is given 194. 24. 8. 0 to 194. 24. 11. 255. Mask 255. 252. 0.

CIDR • A router keeps routing table with entries – IP address, 32 -bit mask, outgoing line • When an IP packet arrives, the router checks its routing table to find the longest match.

CIDR • Example. – – Cambridge 194. 24. 0. 0/21 Edinburgh 194. 24. 8. 0/22 (Available) 194. 24. 12. 0/22 Oxford 194. 24. 16. 0/20 194. 24. 0. 0 -- 194. 24. 7. 255 194. 24. 8. 0 -- 194. 24. 11. 255 194. 24. 12. 0 -- 194. 24. 15. 255 194. 24. 16. 0 -- 194. 24. 31. 255 • When a packet addressing to 194. 24. 17. 4 arrives, where should it be sent to? • And with all masks, find one that matches the longest.

CIDR – Entry aggregation • How does a router in Tallahassee route packet to C, E and O, assuming that he has only two outgoing links? • All to New York. • Can he reduce the size of his routing table? C E N O H T

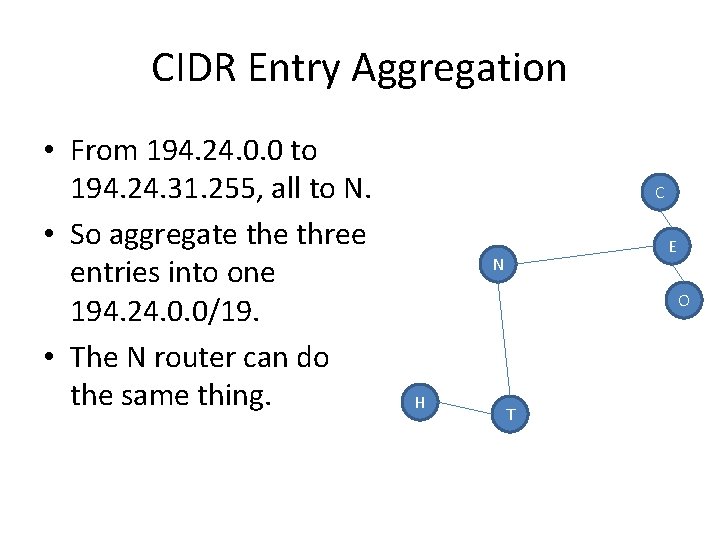

CIDR Entry Aggregation • From 194. 24. 0. 0 to 194. 24. 31. 255, all to N. • So aggregate three entries into one 194. 24. 0. 0/19. • The N router can do the same thing. C E N O H T

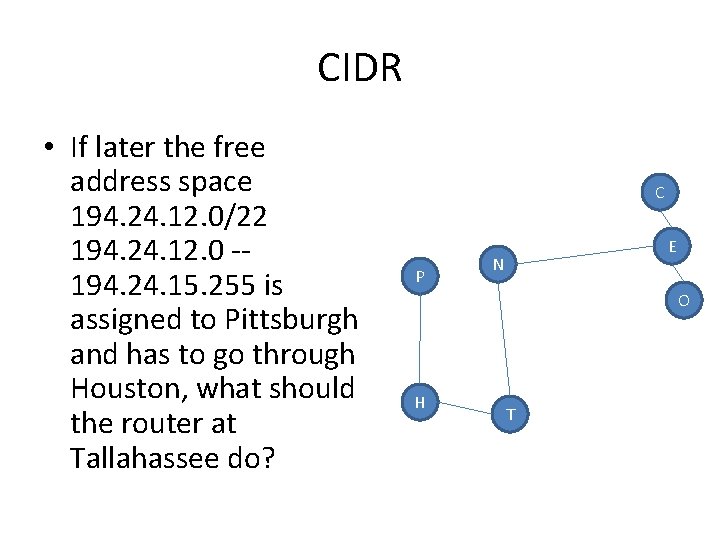

CIDR • If later the free address space 194. 24. 12. 0/22 194. 24. 12. 0 -194. 24. 15. 255 is assigned to Pittsburgh and has to go through Houston, what should the router at Tallahassee do? C P E N O H T

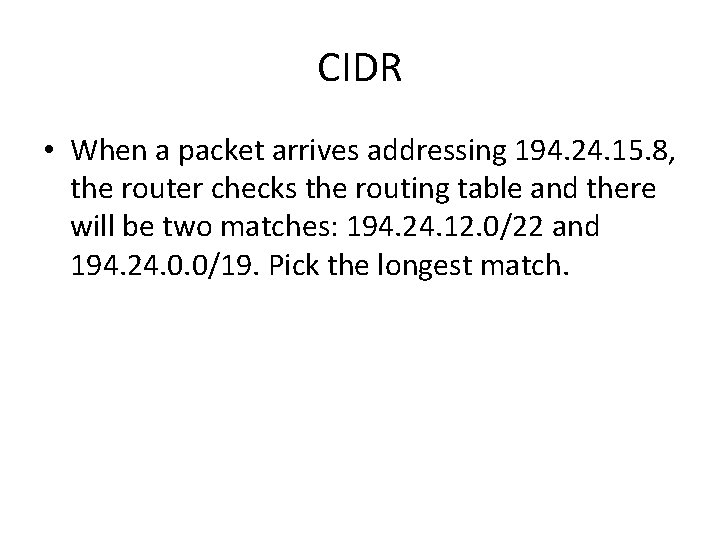

CIDR • When a packet arrives addressing 194. 24. 15. 8, the router checks the routing table and there will be two matches: 194. 24. 12. 0/22 and 194. 24. 0. 0/19. Pick the longest match.

NAT – Network Address Translation • IP address is a scarce resource. • So, give a company only one or a few IP addresses used by the gateway router. • Within the company, each machine has an unique IP address, chosen from – 10. 0/8 – 172. 16. 0. 0/12 – 192. 168. 0. 0/16 – These addresses can only appear within a company but never on the outside Internet

NAT • Whenever a machine wants to send a packet to the outside, the packet will be sent to the NAT box. • The NAT box will convert the internal IP address to the real IP address of the company, and pass the packet to the gateway router. • When there is a packet destined for an internal machine arrived at the router, what should the router and NAT box do? • For IP packets carrying TCP or UDP, use port number. Other protocols are much more complicated.

NAT • For IP packets carrying TCP or UDP, use port number. • When an outgoing packet arrives at the NAT box, – The IP address is replaced – The source port number is replaced – Header checksum is recomputed • When a reply came for this process, use the replaced source port number as index to find the correct IP address and original port number.

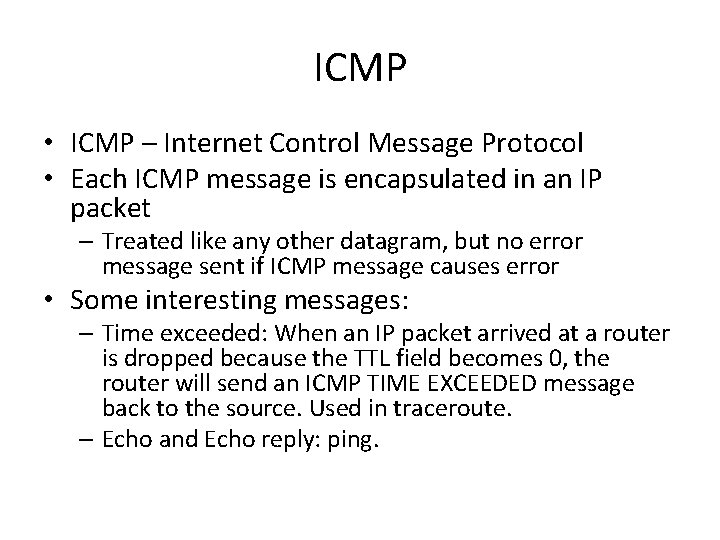

ICMP • ICMP – Internet Control Message Protocol • Each ICMP message is encapsulated in an IP packet – Treated like any other datagram, but no error message sent if ICMP message causes error • Some interesting messages: – Time exceeded: When an IP packet arrived at a router is dropped because the TTL field becomes 0, the router will send an ICMP TIME EXCEEDED message back to the source. Used in traceroute. – Echo and Echo reply: ping.

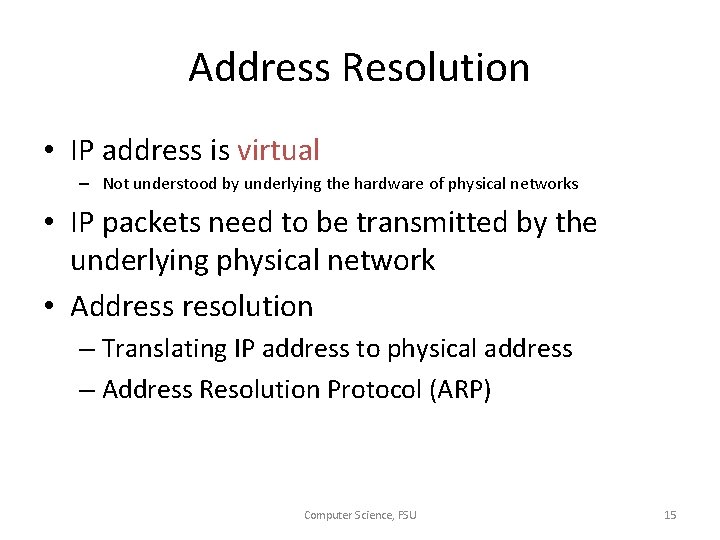

Address Resolution • IP address is virtual – Not understood by underlying the hardware of physical networks • IP packets need to be transmitted by the underlying physical network • Address resolution – Translating IP address to physical address – Address Resolution Protocol (ARP) Computer Science, FSU 15

ARP Example Computer Science, FSU 16

ARP Cache • Each computer maintains a cache table – IP address hardware address mapping – Only about computers on the same network • Exchanges ARP messages – To resolve IP addresses with unknown hardware addresses Computer Science, FSU 17

ARP Protocol • When a node sends an IP packet – To another node on the same physical network • Look up destination address in the ARP table • If not found – Broadcast a request to the local network – Whose IP address is this? Computer Science, FSU 18

ARP Response • The target node responds to sender (unicast? ) – With its physical address – Adds the requester into its ARP table (why? ) • On receiving the response – Requester updates its table • Other nodes upon receiving the request – Refresh the requester entry if already there – No action otherwise (why? ) • Table entries deleted if not refreshed for a while Computer Science, FSU 19

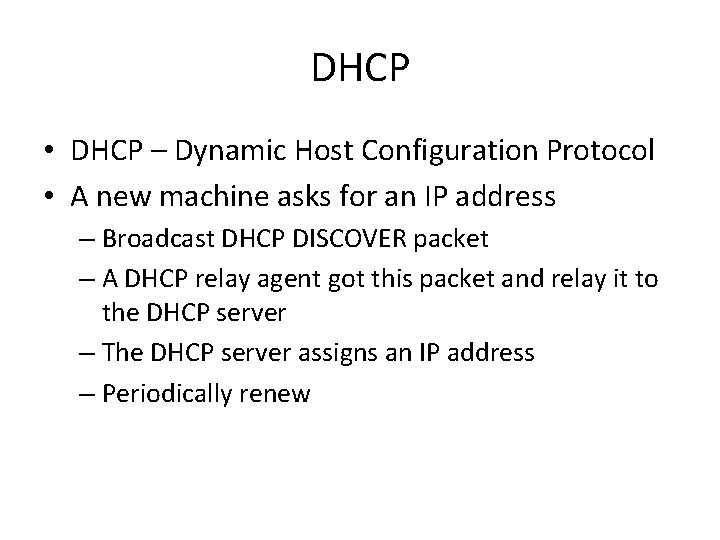

DHCP • DHCP – Dynamic Host Configuration Protocol • A new machine asks for an IP address – Broadcast DHCP DISCOVER packet – A DHCP relay agent got this packet and relay it to the DHCP server – The DHCP server assigns an IP address – Periodically renew

Hierarchical Routing • aggregate routers into regions, “autonomous systems” (AS) • routers in same AS run same routing protocol – “intra-AS” routing protocol – routers in different AS can run different intra-AS routing protocol gateway routers • special routers in AS • run intra-AS routing protocol with all other routers in AS • also responsible for routing to destinations outside AS – run inter-AS routing protocol with other gateway routers

Intra-AS and Inter-AS routing C. b a Gateways: B. a A. a b A. c C B a d A b c a c b • perform inter-AS routing amongst themselves • perform intra-AS routing with other routers in their AS network layer inter-AS, intra-AS routing in gateway A. c link layer

Intra-AS and Inter-AS routing C. b a Host h 1 A. a b C Inter-AS routing between A and B A. c c b A Intra-AS routing within AS A Host h 2 c a B a d B. a b Intra-AS routing within AS B

Why different Intra- and Inter-AS routing ? Policy: • Inter-AS: admin wants control over how its traffic routed, who routes through its net. • Intra-AS: single admin, so no policy decisions needed Scale: • hierarchical routing saves table size, reduced update traffic Performance: • Intra-AS: can focus on performance • Inter-AS: policy may dominate over performance

Intra-AS Routing • Also known as Interior Gateway Protocols (IGP) • Most common IGPs: – RIP: Routing Information Protocol – OSPF: Open Shortest Path First – IGRP: Interior Gateway Routing Protocol (Cisco proprietary)

OSPF • Represents the network as a graph, and runs the shortest path algorithm to find the path to any router. • Divide the network into areas for scalability. – The backbone area is called area 0 – Within one area, a router has the same link state database as all other routers. – Route: local area backbone local area

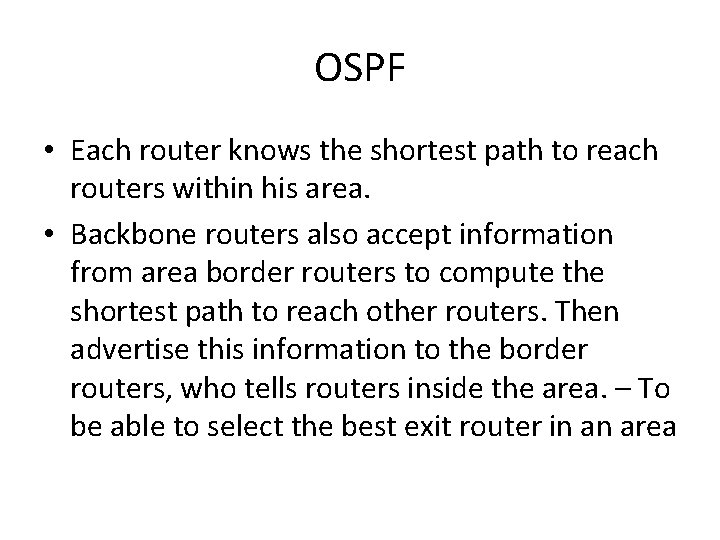

OSPF • Each router knows the shortest path to reach routers within his area. • Backbone routers also accept information from area border routers to compute the shortest path to reach other routers. Then advertise this information to the border routers, who tells routers inside the area. – To be able to select the best exit router in an area

OSPF • To learn the link state, use flooding – select a designated router and let it to be adjacent to all other routers in the same area. Only exchange link state between the adjacent routers • Messages include – HELLO, LINK STATE UPDATE, LINK STATE ACK, DATABASE DESCRIPTION, LINK STATE REQUEST

Inter-AS routing

Internet Inter-AS routing: BGP • BGP (Border Gateway Protocol): the de facto standard • Path Vector protocol: – similar to Distance Vector protocol – each Border Gateway broadcast to neighbors (peers) entire path (I. e, sequence of ASs) to destination – E. g. , Gateway X may send its path to dest. Z: Path (X, Z) = X, Y 1, Y 2, Y 3, …, Z

Internet Inter-AS routing: BGP • BGP messages exchanged using TCP. • BGP messages: – OPEN: opens TCP connection to peer and authenticates sender – UPDATE: advertises new path (or withdraws old) – KEEPALIVE keeps connection alive in absence of UPDATES; also ACKs OPEN request – NOTIFICATION: reports errors in previous msg; also used to close connection

Internet Inter-AS routing: BGP Suppose: gateway X send its path to peer gateway W • W may or may not select path offered by X • • – cost, policy (don’t route via competitors AS), loop prevention reasons. If W selects path advertised by X, then: Path (W, Z) = W, Path (X, Z) Note: X can control incoming traffic by controlling its route advertisements to peers: – e. g. , don’t want to route traffic to Z don’t advertise any routes to Z

BGP: an example NLRI=128. 186. 0. 0/16 ASPATH=[0] ASPATH=[10] 128. 186. 0. 0/16 NLRI=128. 186. 0. 0/16 ASPATH=[10] NLRI=128. 186. 0. 0/16 ASPATH=[210] NLRI=128. 186. 0. 0/16 ASPATH=[3210] NLRI=128. 186. 0. 0/16 ASPATH=[4210] ASPATH=[210] NLRI=128. 186. 0. 0/16 ASPATH=[7610] NLRI=128. 186. 0. 0/16 ASPATH=[610] [3210]* [4210] [7610]
