IP Camera and Doorbell Camera Techko V 12
IP Camera and Doorbell Camera
Techko V 12
Specifications 1. Resolution - 1280*720 2. Image Sensor - CMOS 3. Pixel - 1 MP 4. Compression - H. 264 5. Maximum Frame Rate - 30 fps 6. Audio Input & Output Support 7. View Angle 110 Degree 8. Motion Detection Support 9. IR Cut - Support, 10 PCs IR LED 9. Wi-Fi - Wi-Fi(IEEE 802. 11 b/g/n) 10. SD Card Storage – Up To 32 GB 12. Size 62*68*56 mm 13. Weight(g) 85 g(without package)
Techko V 15 most powerful smart camera
Function configuration 1. ) Powerful Double Alarm System: PIR + Motion Detection, Alarm Correction Rate up to 95%. 2. ) Unique Alarm Mode: Notification Push + Alarm Sound (camera rings) + Alarm Tone (calling users’ phone) + Video Push (30 s video push) 3. ) Clear Video at Night: 14 pcs Automatic LED Night Lamps. 4. ) Wide View Range: 100 Degree Field Angle, Whole Detection Area Coverage. 5. ) Offline Working Mode: Work as a Video Recorder without Wi-Fi. 6. ) Unique Password Protected Video Lock: Provides Security & Privacy. 7. ) Video Share: One Camera can Support up to 15 Accounts to Share the Video.

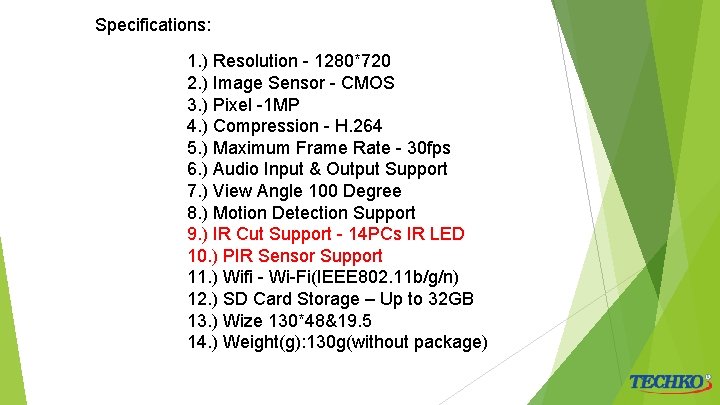

Specifications: 1. ) Resolution - 1280*720 2. ) Image Sensor - CMOS 3. ) Pixel -1 MP 4. ) Compression - H. 264 5. ) Maximum Frame Rate - 30 fps 6. ) Audio Input & Output Support 7. ) View Angle 100 Degree 8. ) Motion Detection Support 9. ) IR Cut Support - 14 PCs IR LED 10. ) PIR Sensor Support 11. ) Wifi - Wi-Fi(IEEE 802. 11 b/g/n) 12. ) SD Card Storage – Up to 32 GB 13. ) Wize 130*48&19. 5 14. ) Weight(g): 130 g(without package)
Techko camera advantages 1 2 3 4 User-Friendly, Simple to Set Up, One Key Sound Wave Syncing Wide Field of View Unique Alarm Mode: Alarm Sound + Alarm Tone with Notification + Alarm Video Smart Outlook
Techko camera advantages 5 Encryption Video Lock 6 Video Compression Technology 7 Offline Video Storage 8 Video Share
Unique Advantages 1. Video Compression Technology (H. 264 code) 1) Code Stream: The higher the code stream is, the larger the bandwith it will need to transfer the video. Traditional Camera Techko Camera 300 k/s 30 k/s The cost for Techko users is more than 10 times less!!
The code stream in Techko camera is low (can reach 7 kb/s) to watch the video. The comsuption is low, so even users with 2 G data smart phones can enjoy smooth streaming videos as well while saving money.
2) video storage
2. Alarm Mode: 1. Users can choose to have notifications sent to the phone whenever the camera detects motion within the detection range. An alarm will sound from the camera each time a notification is sent. 2. When camera is triggered, the device will ring and simultaneously a notification will be sent to the user’s phone with the alarm sound. 3. The home page of the app has a “Message” button to allow users to check playbacks of each video from each time the alarm is triggered. Users can check the “Alert” button to set this notification. (Note: A Micro-SD card is needed view playbacks of the alarm video). 4.

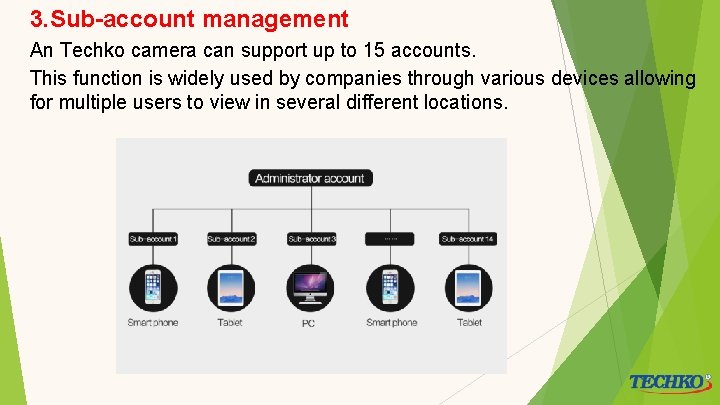

3. Sub-account management An Techko camera can support up to 15 accounts. This function is widely used by companies through various devices allowing for multiple users to view in several different locations.

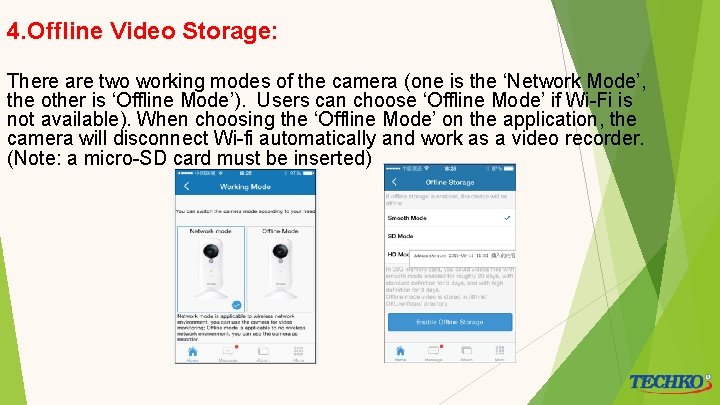

4. Offline Video Storage: There are two working modes of the camera (one is the ‘Network Mode’, the other is ‘Offline Mode’). Users can choose ‘Offline Mode’ if Wi-Fi is not available). When choosing the ‘Offline Mode’ on the application, the camera will disconnect Wi-fi automatically and work as a video recorder. (Note: a micro-SD card must be inserted)
5. Unique Sound Syncing Method The Techko camera sync method: The camera and phone sync directly by sound when user first sets up the camera allowing for easier installation and allows users to have privacy and security without having to rely on public QR code
Most IP camera binding method Most IP cameras on the market are bound with a QR code on the product (pictured below). The QR code is public which can lead to the camera being easily hacked, thus compromising user’s privacy.
6. Privacy & Security Communication Security Part: 1. All information request method is “post”, which improves the security of communication. 2. Token Authentication Mechanism: The server sends every a token, when phone/users interacts with server, the client platform must be with the token, otherwise, the request is invalid. This is to avoid malicious request. 3. Request timeout mechanism: The timeout mechanism will be added in all requests from phone client platform, server will not handle timeout request. This is to avoid malicious request. Data Security Part: 1. Symmetric & asymmetric encryption is utilized and designed to improve the security of data. 2. The encryption mechanism of the video data is asymmetric encryption.
WIFI VIDEO DOOR BELL • Techko V 31 is the smart doorbell that allows you to answer the call on your smartphone anytime and anywhere.
Techko V 31
MODEL NO. V 31 Panel ABS Requires an existing hardwired doorbell √ Connects to existing hardwired doorbell or DC adaptor √ Work with wireless receiver of doorbell √ Video 720 p HD Wi-Fi Connection 2. 4 GHz Motion Detection Within 3 meters Night Vision √ Two-way Audio, Full-duplex √ Operating system: IOS 7. 0+, Android: 4. 2+ √ Field of view 185 degrees Operation temp. from -5 ºF to 120 ºF Power supply DC 9 -36 V, AC 8 -24 V

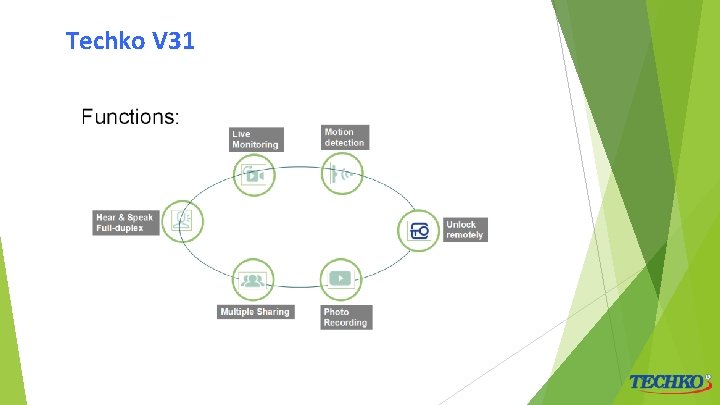

ØMotion Detection ØSend Notification Will be activated and have screenshots when an object moves or somebody breaks into your home after the function is turned on. Will NOT keep sending notifications when object continues to move, but will take screenshots. Will send notification and take screenshots again if object moves after staying static for 3 minutes.
ØVisitor Call Visitor presses button and Qkeeper sends live video feed. You receive an alert on your smart phone. And the wireless chime or indoor monitor will also ring. Even if the visitor doesn’t press the button, you will receive the alert.
ØHear & Speak ØLive Monitoring ØUnlock Remotely See, hear, and talk to your visitor with free app for select smart phone or the indoor monitor, and then unlock the door if safe. And you can check the situation of your home via your smart phones whenever and anywhere.
ØPhoto Recording and Playing Back Check the photos from screen shorts or dynamic cloud.
