IP and Telecoms Interworking Workshop Numbering Naming Addressing

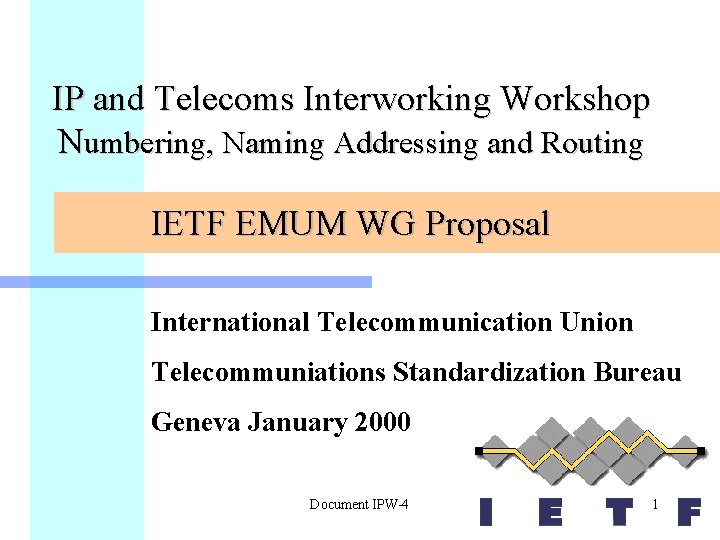

IP and Telecoms Interworking Workshop Numbering, Naming Addressing and Routing IETF EMUM WG Proposal International Telecommunication Union Telecommuniations Standardization Bureau Geneva January 2000 Document IPW-4 1

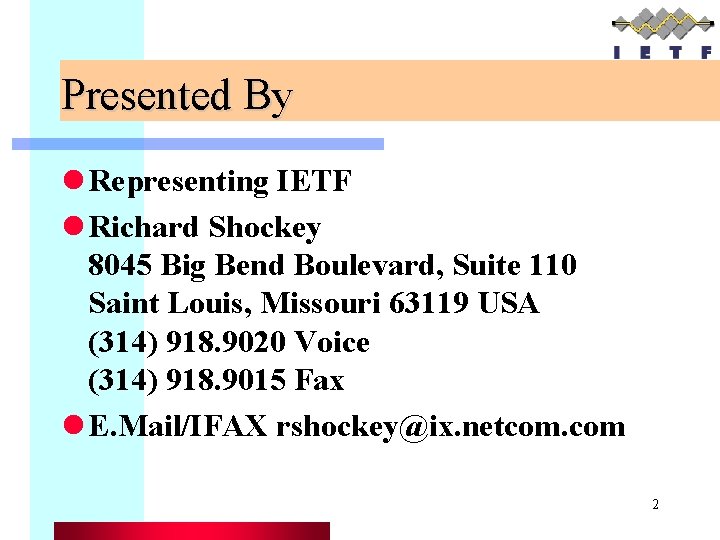

Presented By l Representing IETF l Richard Shockey 8045 Big Bend Boulevard, Suite 110 Saint Louis, Missouri 63119 USA (314) 918. 9020 Voice (314) 918. 9015 Fax l E. Mail/IFAX rshockey@ix. netcom. com 2

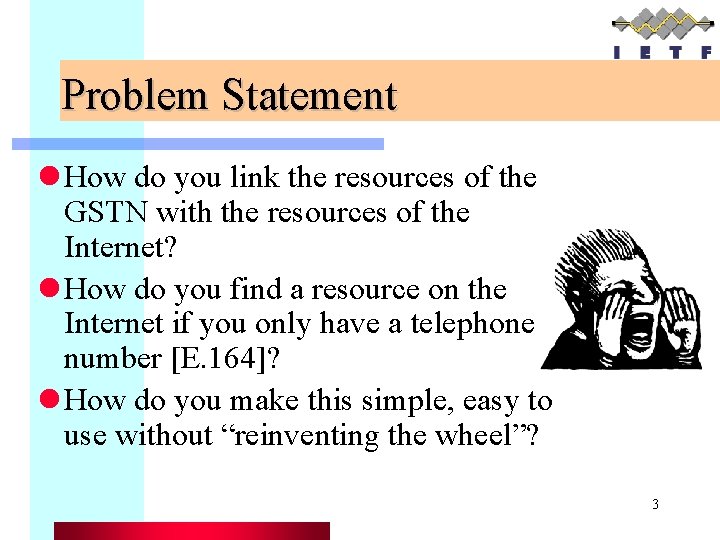

Problem Statement l How do you link the resources of the GSTN with the resources of the Internet? l How do you find a resource on the Internet if you only have a telephone number [E. 164]? l How do you make this simple, easy to use without “reinventing the wheel”? 3

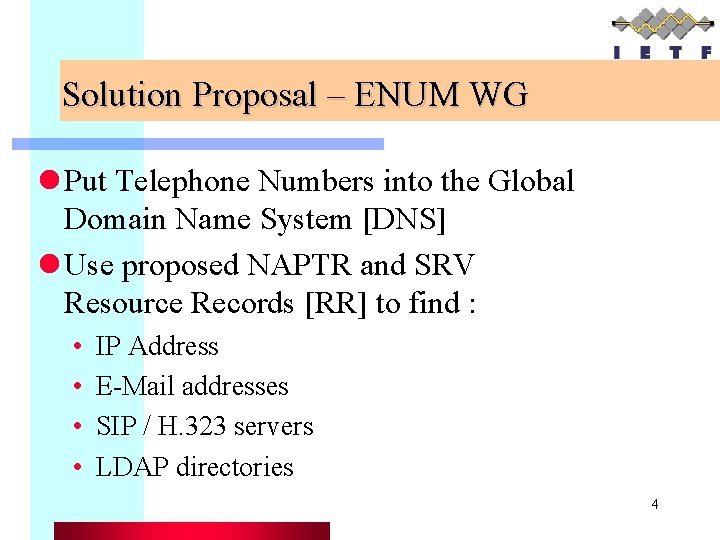

Solution Proposal – ENUM WG l Put Telephone Numbers into the Global Domain Name System [DNS] l Use proposed NAPTR and SRV Resource Records [RR] to find : • • IP Address E-Mail addresses SIP / H. 323 servers LDAP directories 4

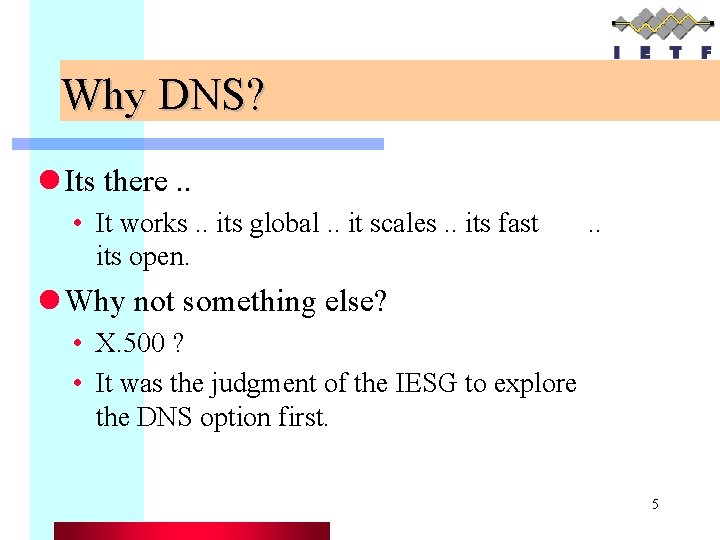

Why DNS? l Its there. . • It works. . its global. . it scales. . its fast its open. . . l Why not something else? • X. 500 ? • It was the judgment of the IESG to explore the DNS option first. 5

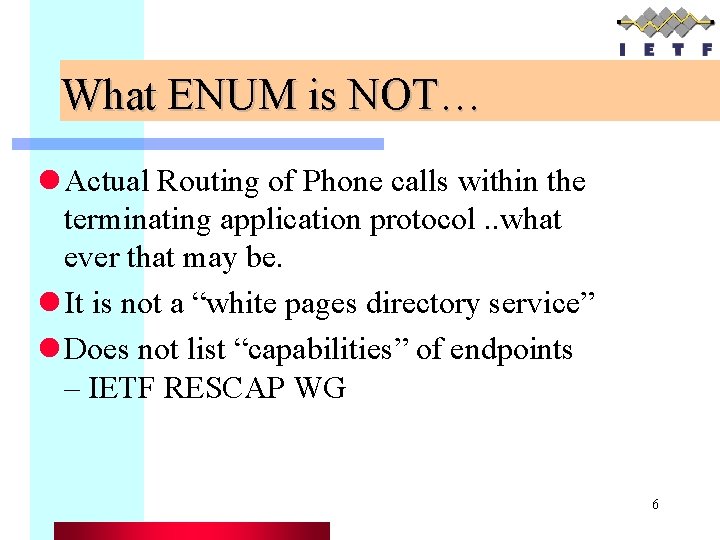

What ENUM is NOT… l Actual Routing of Phone calls within the terminating application protocol. . what ever that may be. l It is not a “white pages directory service” l Does not list “capabilities” of endpoints – IETF RESCAP WG 6

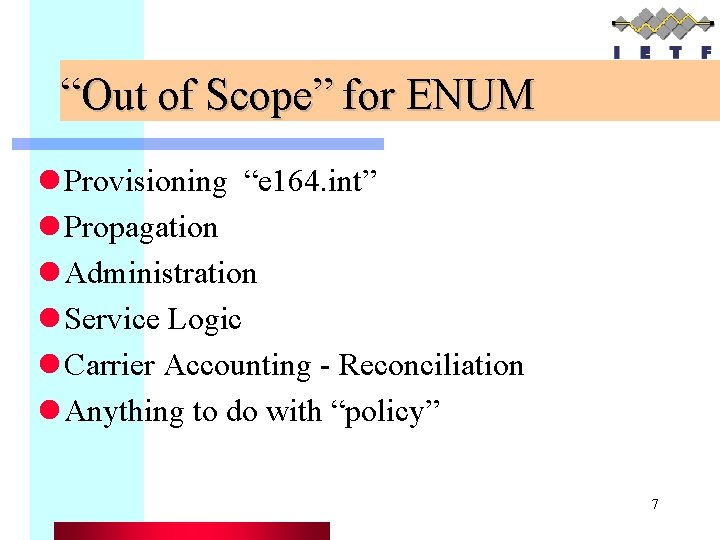

“Out of Scope” for ENUM l Provisioning “e 164. int” l Propagation l Administration l Service Logic l Carrier Accounting - Reconciliation l Anything to do with “policy” 7

How does ENUM Work? l Take a fully qualified E. 164 number and create a DNS entry in a highly defined and structured domain. l The search for resources associated with 1 314 918 -9020 becomes a look up to : 0. 2. 0. 9. 8. 1. 9. 4. 1. 3. 1. e 164. int l Each digit becomes a definable and distributed “zone” in DNS terms 8

How does ENUM Work? l Response to query for 2. 8. 0. 4. 6. 2. 6. 5. 8. 6. 4. e 164. int In this response the prefered contact method is SIP ord IN NAPTR 102 pr fl service re replacement 10 "a" "sip+N 2 R" "" "sip: paf@swip. net”. 10 "s" "potscall+N 2 R" "" _potscall. _tcp. paf. swip. net. 10 "a" "smtp+N 2 R" "" "mailto: paf@swip. net". In this response the prefered contact method is H. 323 IN NAPTR 10 10 "s" "sip+N 2 R" "" “h 323 gw. tele 3. se. IN NAPTR 102 10 "s" "potscall+N 2 R" "" _potscall. _tcp. paf. swip. net. IN NAPTR 102 10 "a" "smtp+N 2 R" "" "mailto: paf@swip. net". 9

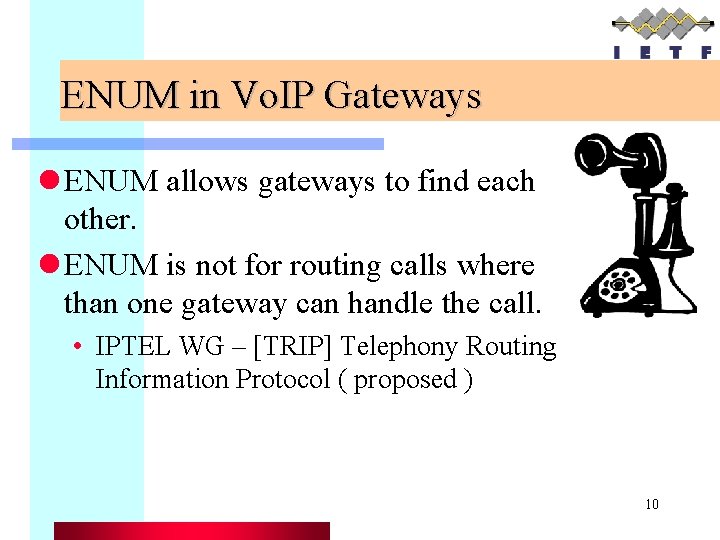

ENUM in Vo. IP Gateways l ENUM allows gateways to find each other. l ENUM is not for routing calls where than one gateway can handle the call. • IPTEL WG – [TRIP] Telephony Routing Information Protocol ( proposed ) 10

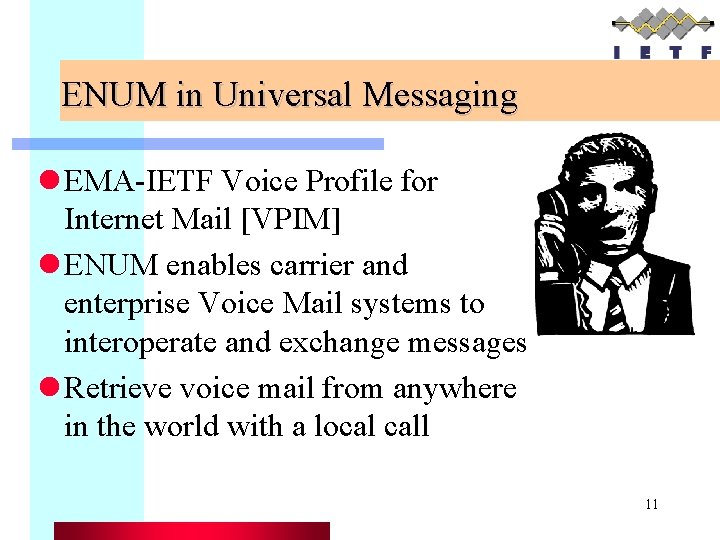

ENUM in Universal Messaging l EMA-IETF Voice Profile for Internet Mail [VPIM] l ENUM enables carrier and enterprise Voice Mail systems to interoperate and exchange messages l Retrieve voice mail from anywhere in the world with a local call 11

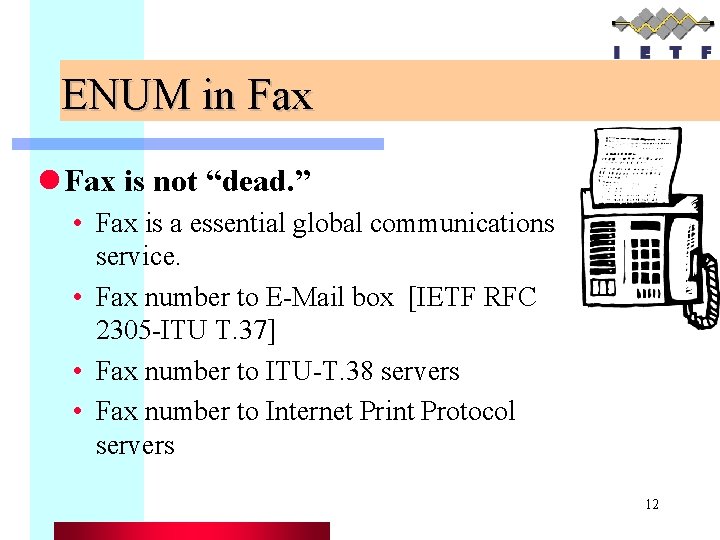

ENUM in Fax l Fax is not “dead. ” • Fax is a essential global communications service. • Fax number to E-Mail box [IETF RFC 2305 -ITU T. 37] • Fax number to ITU-T. 38 servers • Fax number to Internet Print Protocol servers 12

ENUM in Local Number Portability l ENUM could be used for Local Number Portability by carriers. l SCP servers could query DNS for available records. 13

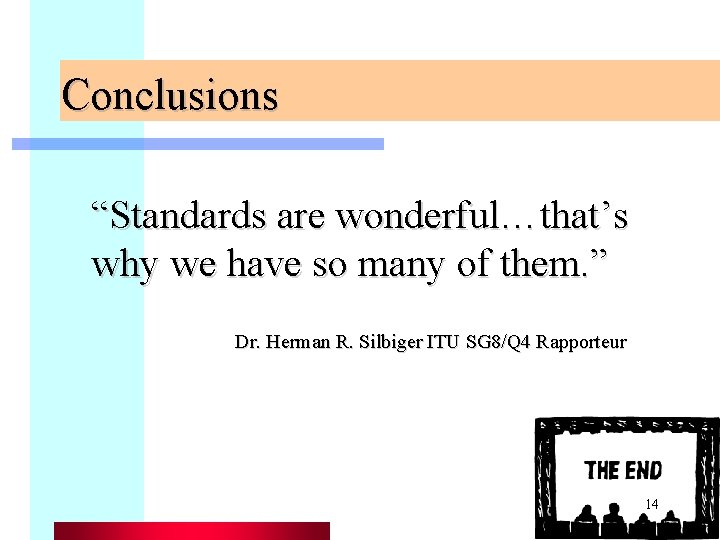

Conclusions “Standards are wonderful…that’s why we have so many of them. ” Dr. Herman R. Silbiger ITU SG 8/Q 4 Rapporteur 14

The Real OSI Model 9. Political < You are here 8. Financial 7. Application 6. Presentation 5. Session 4. Transport 3. Network Apologies to University of Colorado 2. Link Engineering Scholarship fund 15 1. Physical
