IP Addresses & Classes Presented By: M. Usman Khan Ghauri Nauman Aslam

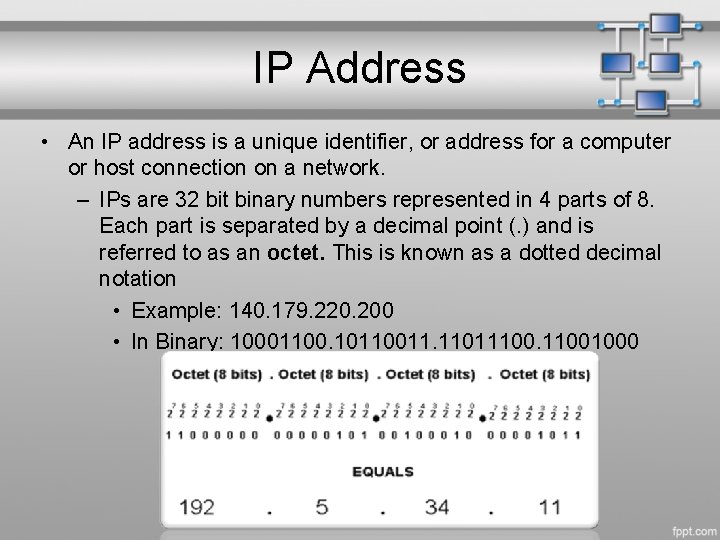

IP Address • An IP address is a unique identifier, or address for a computer or host connection on a network. – IPs are 32 bit binary numbers represented in 4 parts of 8. Each part is separated by a decimal point (. ) and is referred to as an octet. This is known as a dotted decimal notation • Example: 140. 179. 220. 200 • In Binary: 10001100. 10110011. 110111001000

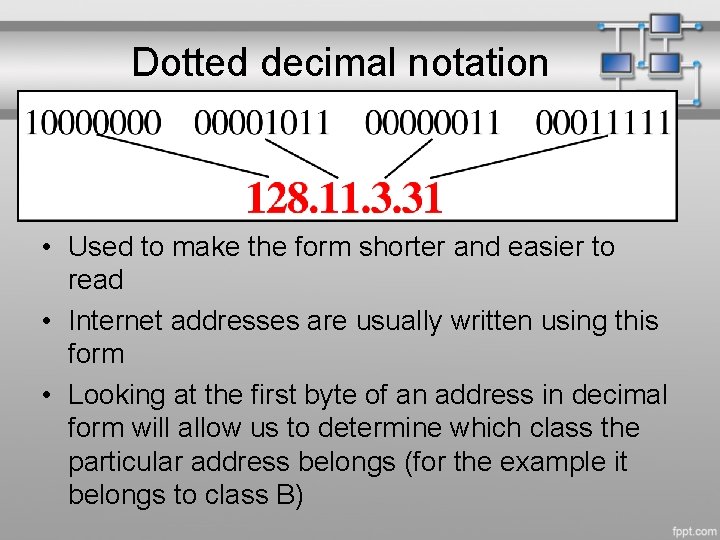

Dotted decimal notation • Used to make the form shorter and easier to read • Internet addresses are usually written using this form • Looking at the first byte of an address in decimal form will allow us to determine which class the particular address belongs (for the example it belongs to class B)

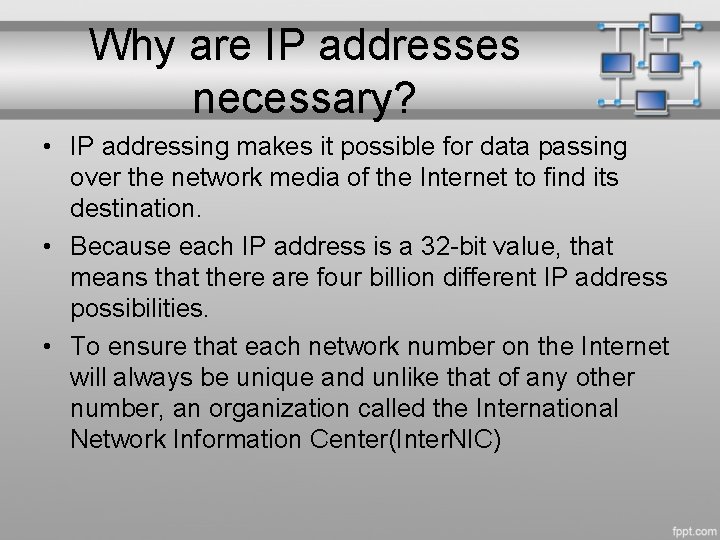

Why are IP addresses necessary? • IP addressing makes it possible for data passing over the network media of the Internet to find its destination. • Because each IP address is a 32 -bit value, that means that there are four billion different IP address possibilities. • To ensure that each network number on the Internet will always be unique and unlike that of any other number, an organization called the International Network Information Center(Inter. NIC)

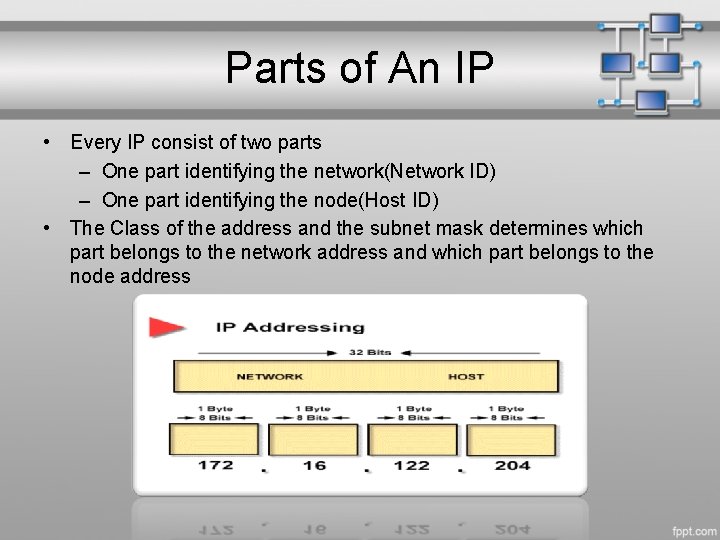

Parts of An IP • Every IP consist of two parts – One part identifying the network(Network ID) – One part identifying the node(Host ID) • The Class of the address and the subnet mask determines which part belongs to the network address and which part belongs to the node address

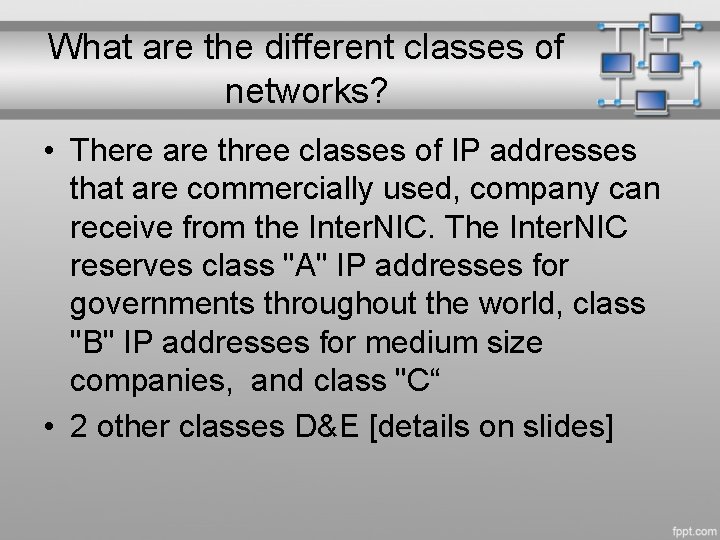

What are the different classes of networks? • There are three classes of IP addresses that are commercially used, company can receive from the Inter. NIC. The Inter. NIC reserves class "A" IP addresses for governments throughout the world, class "B" IP addresses for medium size companies, and class "C“ • 2 other classes D&E [details on slides]

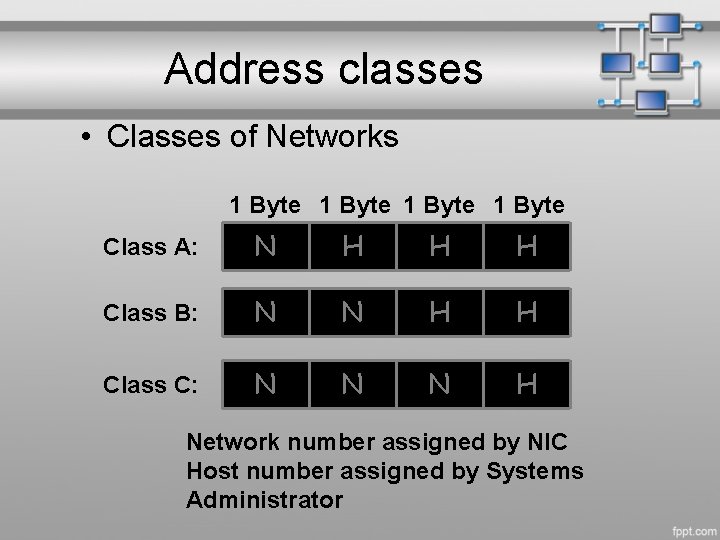

Address classes • Classes of Networks 1 Byte Class A: N H H H Class B: N N H H Class C: N N N H Network number assigned by NIC Host number assigned by Systems Administrator

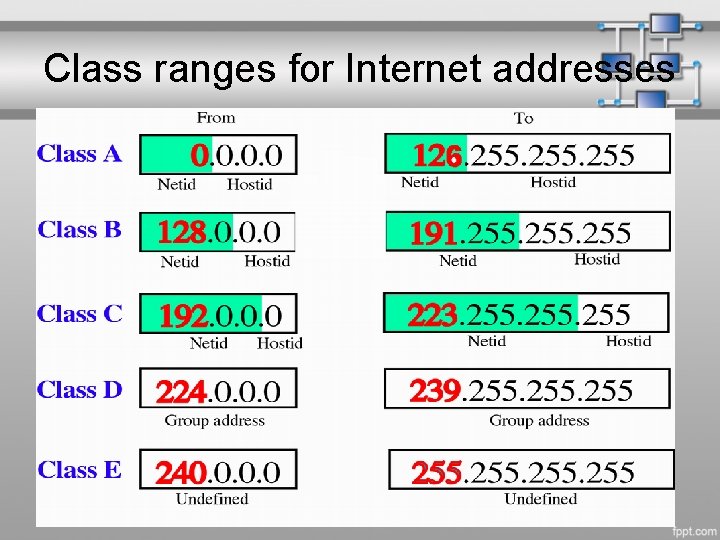

Class ranges for Internet addresses

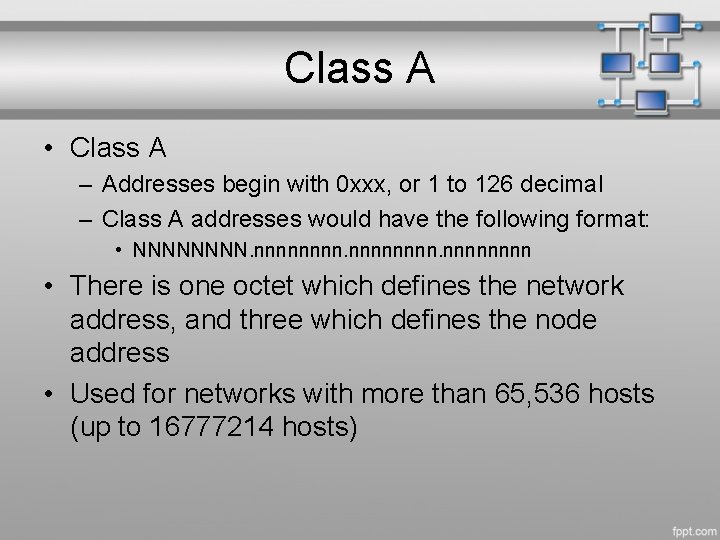

Class A • Class A – Addresses begin with 0 xxx, or 1 to 126 decimal – Class A addresses would have the following format: • NNNN. nnnnnnnn • There is one octet which defines the network address, and three which defines the node address • Used for networks with more than 65, 536 hosts (up to 16777214 hosts)

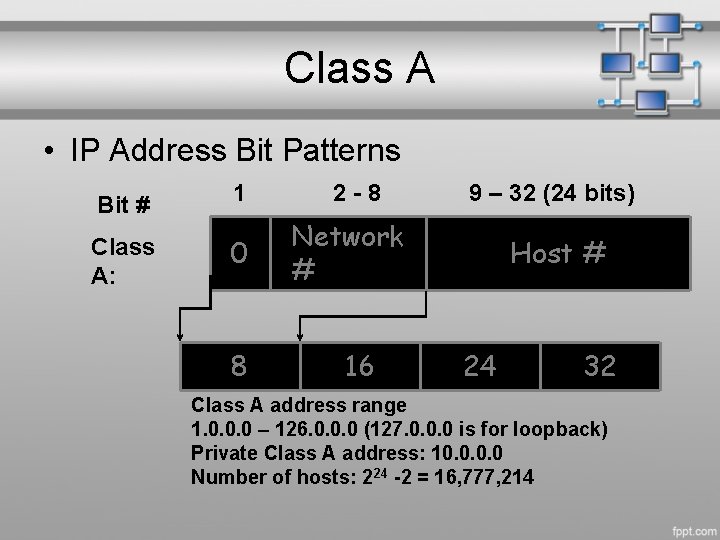

Class A • IP Address Bit Patterns Bit # 1 Class A: 0 8 2 -8 9 – 32 (24 bits) Network # 16 Host # 24 32 Class A address range 1. 0. 0. 0 – 126. 0. 0. 0 (127. 0. 0. 0 is for loopback) Private Class A address: 10. 0 Number of hosts: 224 -2 = 16, 777, 214

Loopback • Addresses beginning with: 01111111, or 127 decimal, are reserved for internal, or local machine use. For example if you ping using 127. 0. 0. 1, it should point to yourself.

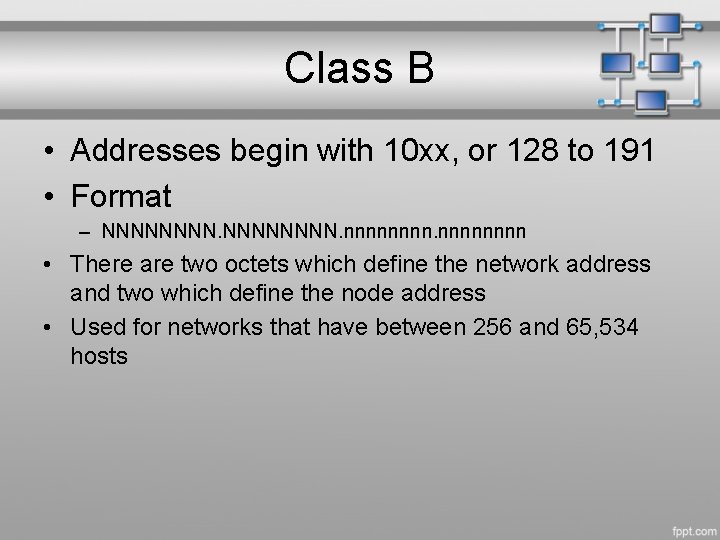

Class B • Addresses begin with 10 xx, or 128 to 191 • Format – NNNNNNNN. nnnn • There are two octets which define the network address and two which define the node address • Used for networks that have between 256 and 65, 534 hosts

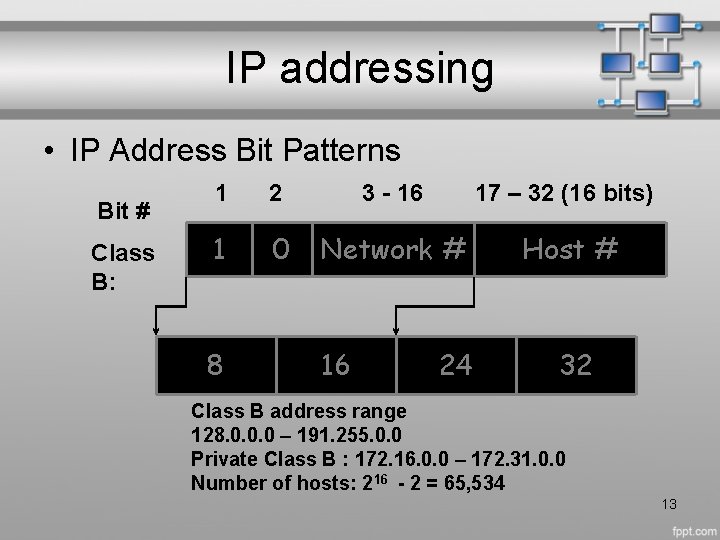

IP addressing • IP Address Bit Patterns Bit # Class B: 1 2 3 - 16 17 – 32 (16 bits) 1 0 Network # Host # 8 16 24 32 Class B address range 128. 0. 0. 0 – 191. 255. 0. 0 Private Class B : 172. 16. 0. 0 – 172. 31. 0. 0 Number of hosts: 216 - 2 = 65, 534 13

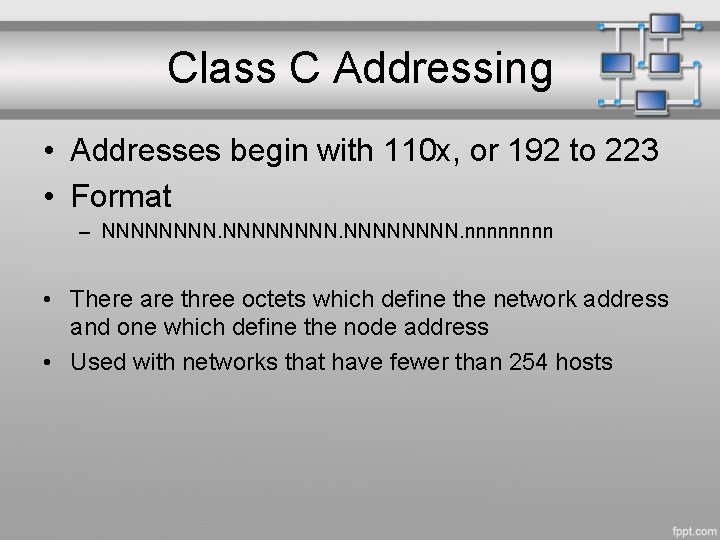

Class C Addressing • Addresses begin with 110 x, or 192 to 223 • Format – NNNNNNNN. nnnn • There are three octets which define the network address and one which define the node address • Used with networks that have fewer than 254 hosts

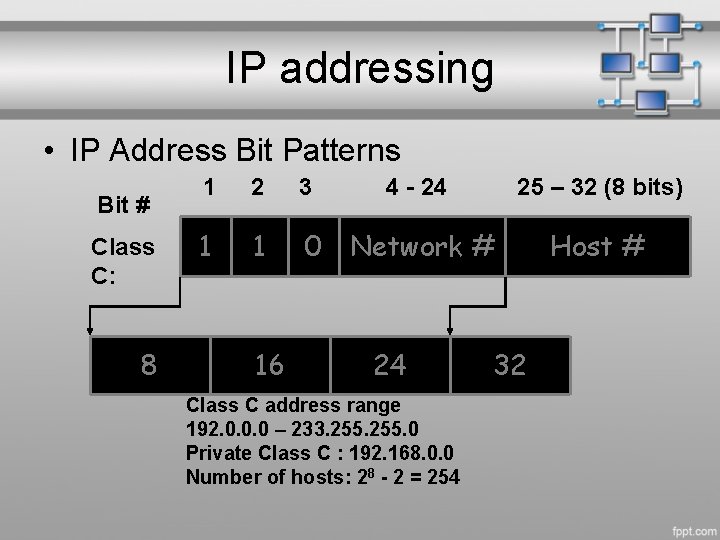

IP addressing • IP Address Bit Patterns Bit # Class C: 8 1 2 3 1 1 0 Network # 16 4 - 24 24 Class C address range 192. 0. 0. 0 – 233. 255. 0 Private Class C : 192. 168. 0. 0 Number of hosts: 28 - 2 = 254 25 – 32 (8 bits) 32 Host #

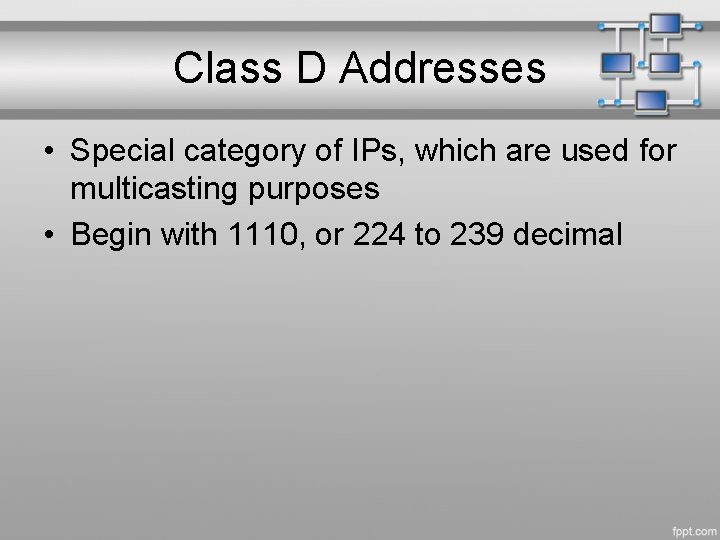

Class D Addresses • Special category of IPs, which are used for multicasting purposes • Begin with 1110, or 224 to 239 decimal

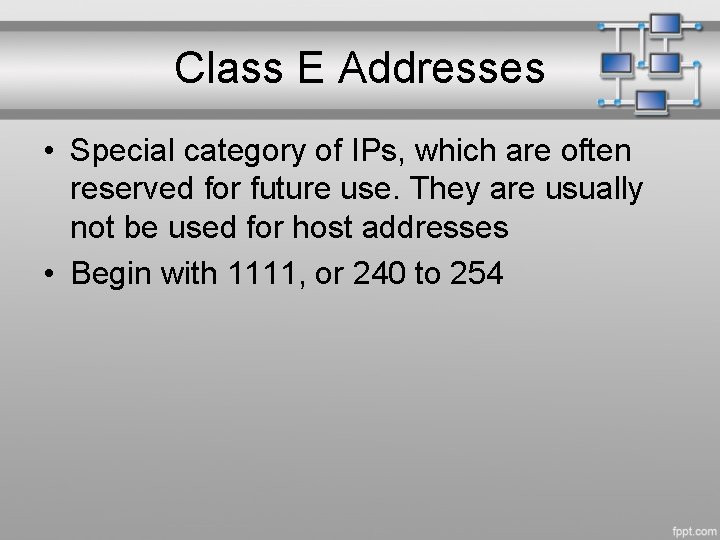

Class E Addresses • Special category of IPs, which are often reserved for future use. They are usually not be used for host addresses • Begin with 1111, or 240 to 254

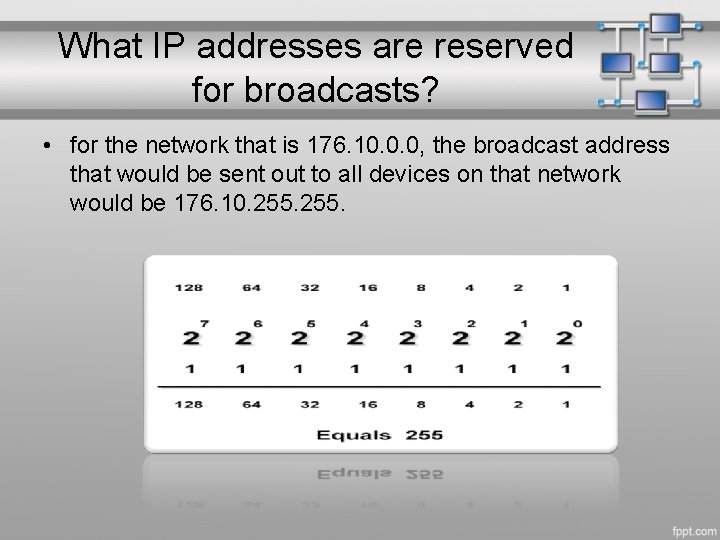

What IP addresses are reserved for broadcasts? • for the network that is 176. 10. 0. 0, the broadcast address that would be sent out to all devices on that network would be 176. 10. 255.

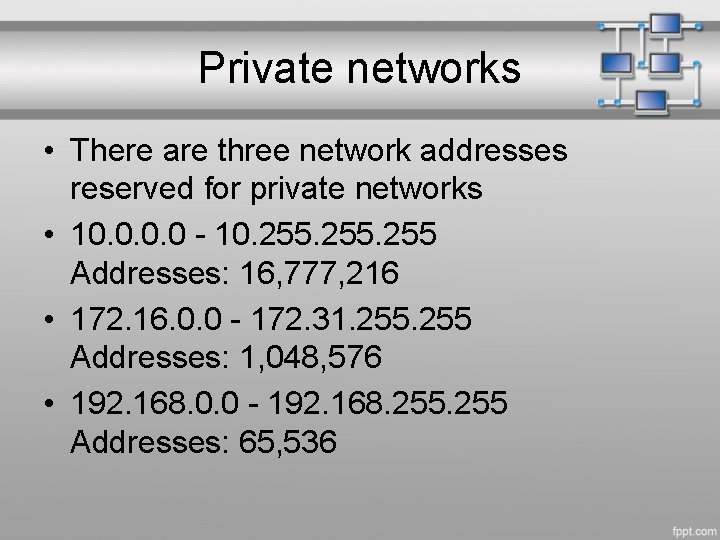

Private networks • There are three network addresses reserved for private networks • 10. 0 - 10. 255 Addresses: 16, 777, 216 • 172. 16. 0. 0 - 172. 31. 255 Addresses: 1, 048, 576 • 192. 168. 0. 0 - 192. 168. 255 Addresses: 65, 536

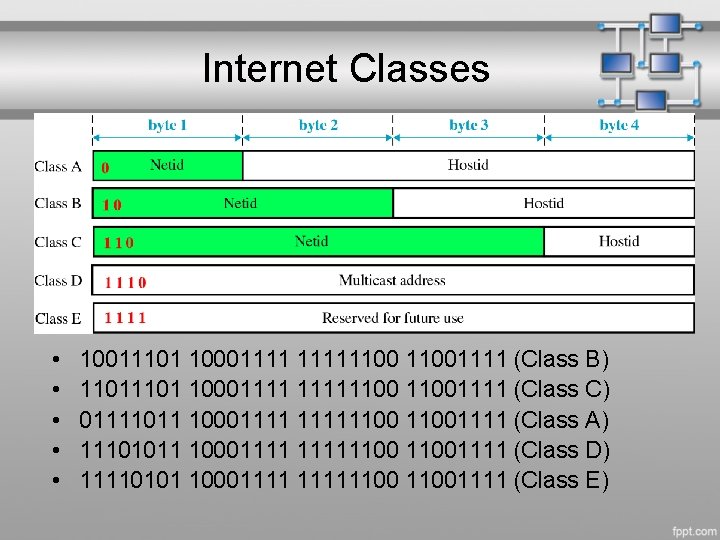

Internet Classes • • • 10011101 1000111111001111 (Class B) 1101 1000111111001111 (Class C) 01111011 1000111111001111 (Class A) 11101011 1000111111001111 (Class D) 11110101 1000111111001111 (Class E)

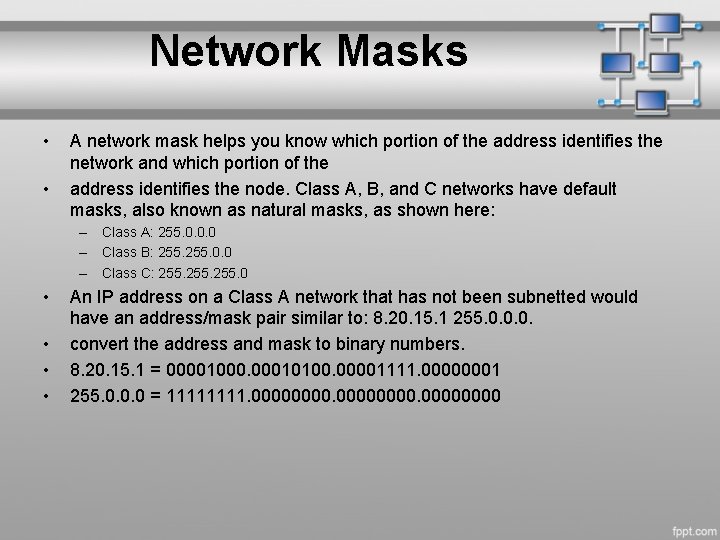

Network Masks • • A network mask helps you know which portion of the address identifies the network and which portion of the address identifies the node. Class A, B, and C networks have default masks, also known as natural masks, as shown here: – Class A: 255. 0. 0. 0 – Class B: 255. 0. 0 – Class C: 255. 0 • • An IP address on a Class A network that has not been subnetted would have an address/mask pair similar to: 8. 20. 15. 1 255. 0. 0. 0. convert the address and mask to binary numbers. 8. 20. 15. 1 = 00001000. 00010100. 00001111. 00000001 255. 0. 0. 0 = 1111. 00000000

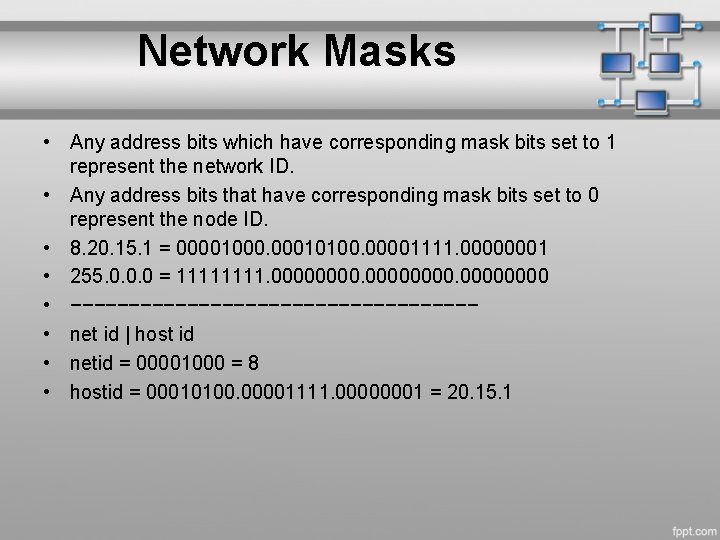

Network Masks • Any address bits which have corresponding mask bits set to 1 represent the network ID. • Any address bits that have corresponding mask bits set to 0 represent the node ID. • 8. 20. 15. 1 = 00001000. 00010100. 00001111. 00000001 • 255. 0. 0. 0 = 1111. 00000000 • −−−−−−−−−−−−−−−−−− • net id | host id • netid = 00001000 = 8 • hostid = 00010100. 00001111. 00000001 = 20. 15. 1

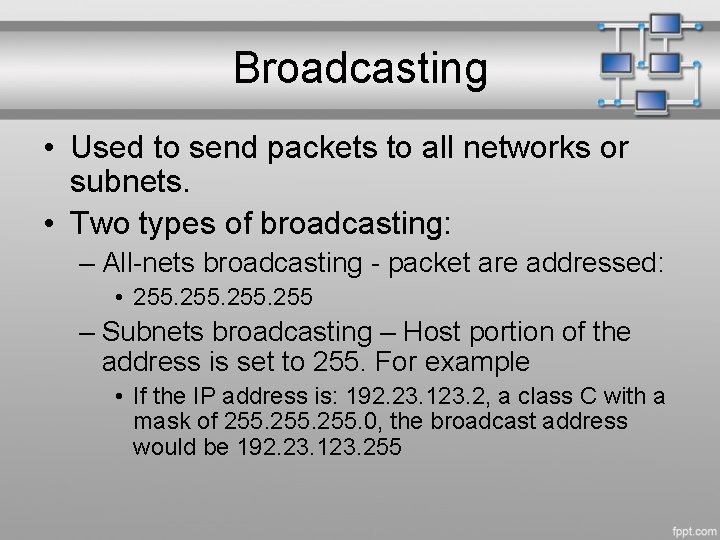

Broadcasting • Used to send packets to all networks or subnets. • Two types of broadcasting: – All-nets broadcasting - packet are addressed: • 255 – Subnets broadcasting – Host portion of the address is set to 255. For example • If the IP address is: 192. 23. 123. 2, a class C with a mask of 255. 0, the broadcast address would be 192. 23. 123. 255

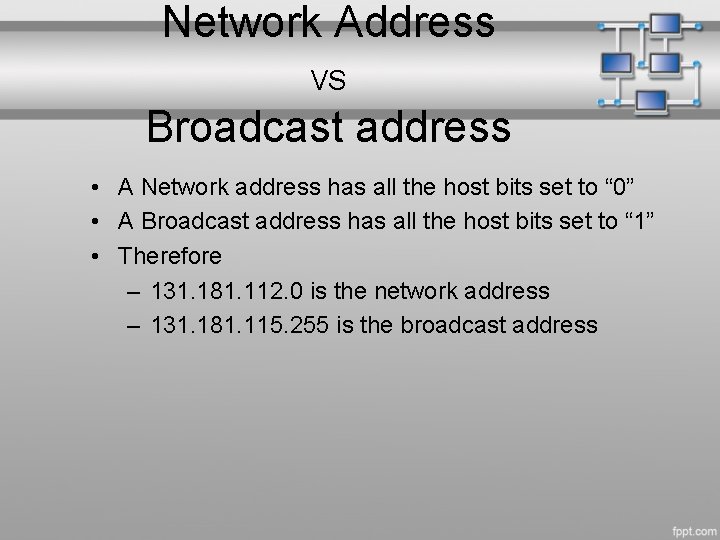

Network Address VS Broadcast address • A Network address has all the host bits set to “ 0” • A Broadcast address has all the host bits set to “ 1” • Therefore – 131. 181. 112. 0 is the network address – 131. 181. 115. 255 is the broadcast address

SUB-NETTING

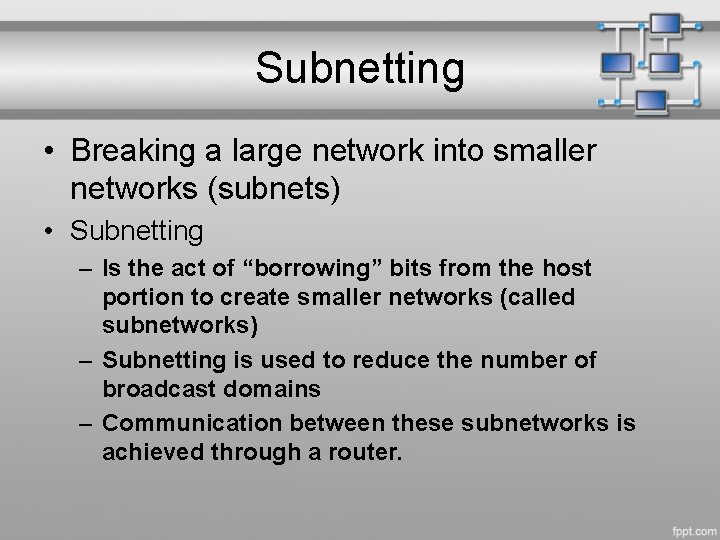

Subnetting • Breaking a large network into smaller networks (subnets) • Subnetting – Is the act of “borrowing” bits from the host portion to create smaller networks (called subnetworks) – Subnetting is used to reduce the number of broadcast domains – Communication between these subnetworks is achieved through a router.

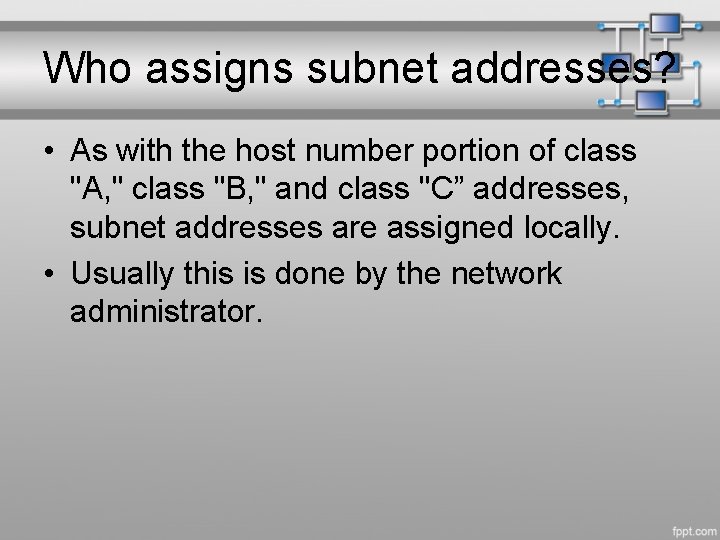

Who assigns subnet addresses? • As with the host number portion of class "A, " class "B, " and class "C” addresses, subnet addresses are assigned locally. • Usually this is done by the network administrator.

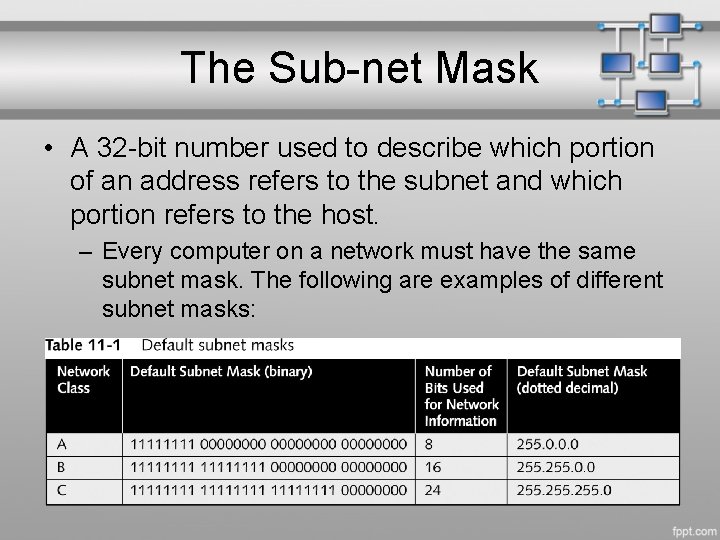

The Sub-net Mask • A 32 -bit number used to describe which portion of an address refers to the subnet and which portion refers to the host. – Every computer on a network must have the same subnet mask. The following are examples of different subnet masks:

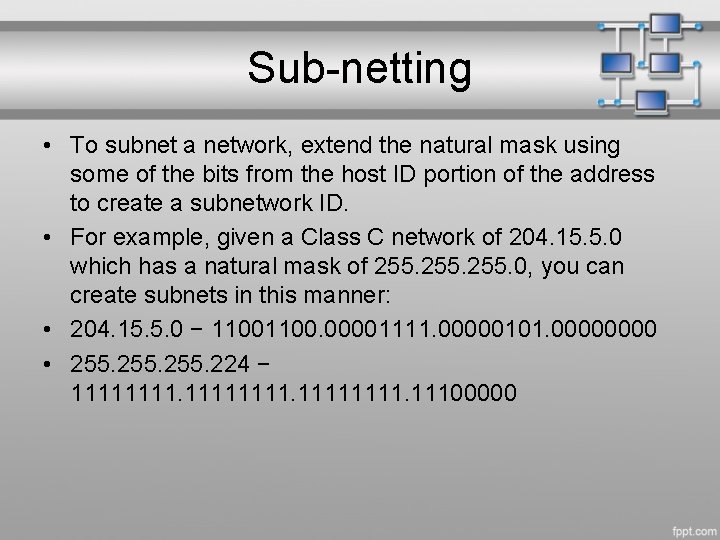

Sub-netting • To subnet a network, extend the natural mask using some of the bits from the host ID portion of the address to create a subnetwork ID. • For example, given a Class C network of 204. 15. 5. 0 which has a natural mask of 255. 0, you can create subnets in this manner: • 204. 15. 5. 0 − 1100. 00001111. 00000101. 0000 • 255. 224 − 11111111. 11100000

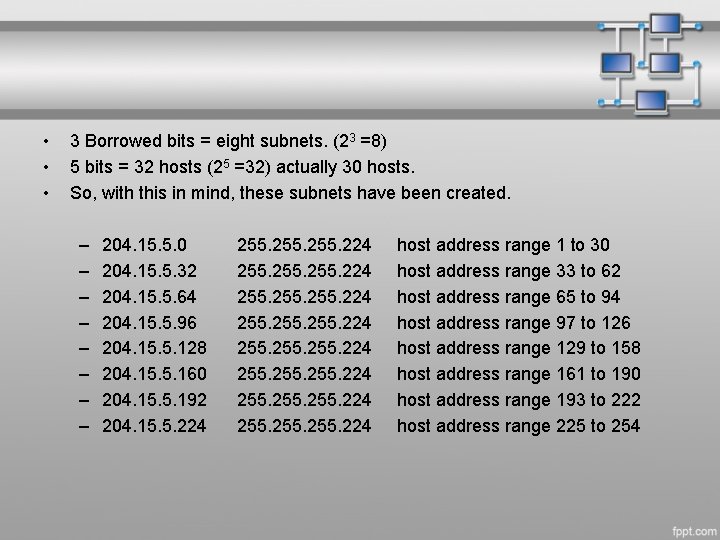

• • • 3 Borrowed bits = eight subnets. (23 =8) 5 bits = 32 hosts (25 =32) actually 30 hosts. So, with this in mind, these subnets have been created. – – – – 204. 15. 5. 0 204. 15. 5. 32 204. 15. 5. 64 204. 15. 5. 96 204. 15. 5. 128 204. 15. 5. 160 204. 15. 5. 192 204. 15. 5. 224 255. 255. 224 host address range 1 to 30 host address range 33 to 62 host address range 65 to 94 host address range 97 to 126 host address range 129 to 158 host address range 161 to 190 host address range 193 to 222 host address range 225 to 254

IP Addressing and Subnetting Quick Techniques

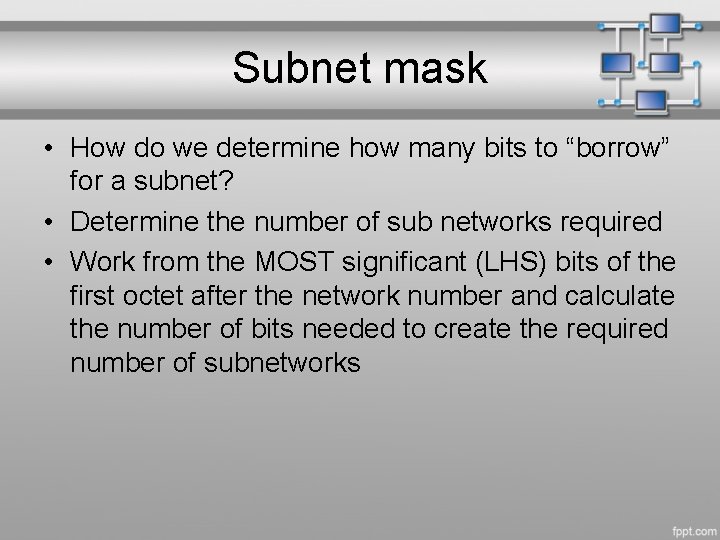

Subnet mask • How do we determine how many bits to “borrow” for a subnet? • Determine the number of sub networks required • Work from the MOST significant (LHS) bits of the first octet after the network number and calculate the number of bits needed to create the required number of subnetworks

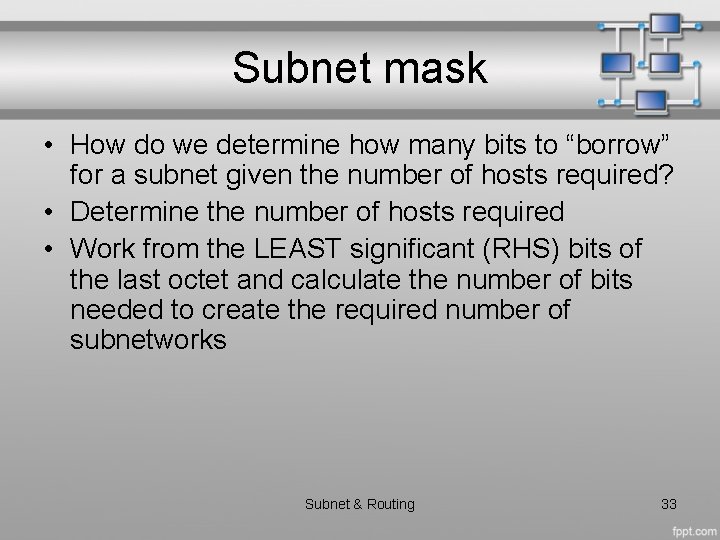

Subnet mask • How do we determine how many bits to “borrow” for a subnet given the number of hosts required? • Determine the number of hosts required • Work from the LEAST significant (RHS) bits of the last octet and calculate the number of bits needed to create the required number of subnetworks Subnet & Routing 33

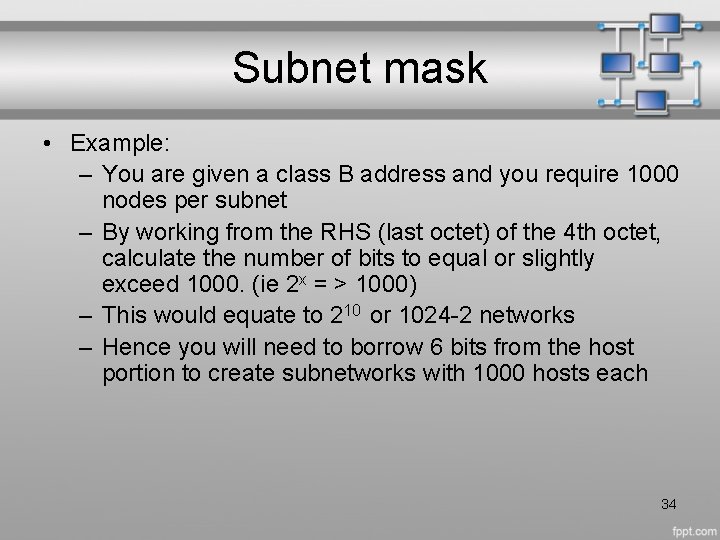

Subnet mask • Example: – You are given a class B address and you require 1000 nodes per subnet – By working from the RHS (last octet) of the 4 th octet, calculate the number of bits to equal or slightly exceed 1000. (ie 2 x = > 1000) – This would equate to 210 or 1024 -2 networks – Hence you will need to borrow 6 bits from the host portion to create subnetworks with 1000 hosts each 34

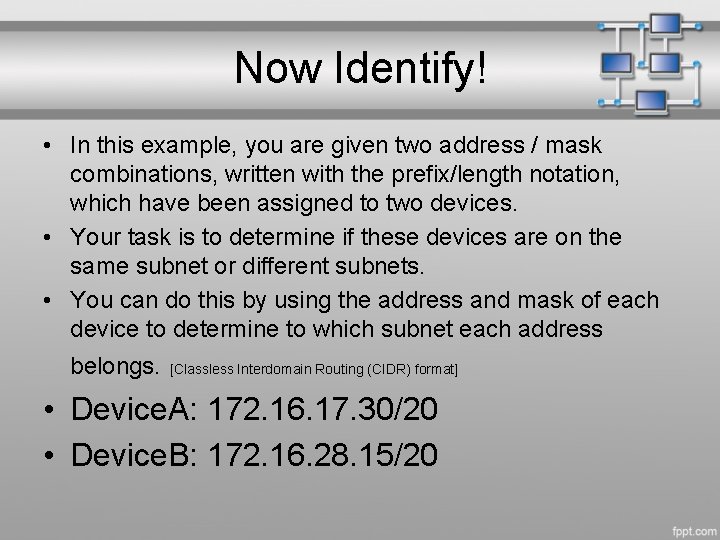

Now Identify! • In this example, you are given two address / mask combinations, written with the prefix/length notation, which have been assigned to two devices. • Your task is to determine if these devices are on the same subnet or different subnets. • You can do this by using the address and mask of each device to determine to which subnet each address belongs. [Classless Interdomain Routing (CIDR) format] • Device. A: 172. 16. 17. 30/20 • Device. B: 172. 16. 28. 15/20

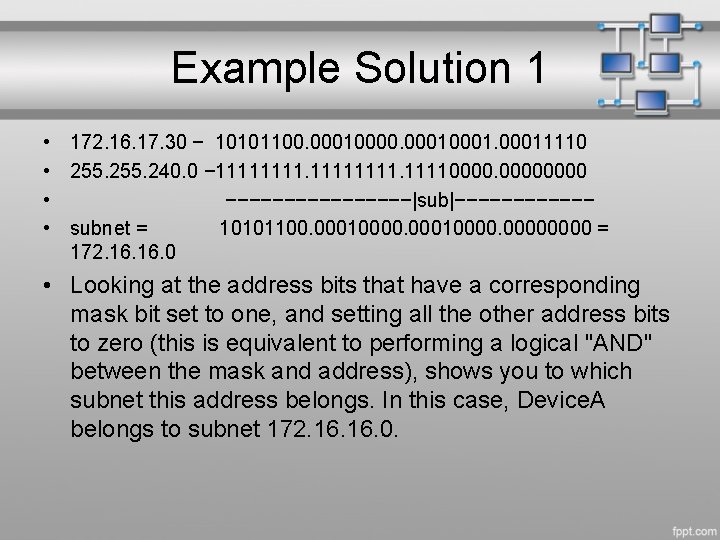

Example Solution 1 • 172. 16. 17. 30 − 10101100. 000100011110 • 255. 240. 0 − 111111110000 • −−−−−−−−|sub|−−−−−− • subnet = 10101100. 00010000 = 172. 16. 0 • Looking at the address bits that have a corresponding mask bit set to one, and setting all the other address bits to zero (this is equivalent to performing a logical "AND" between the mask and address), shows you to which subnet this address belongs. In this case, Device. A belongs to subnet 172. 16. 0.

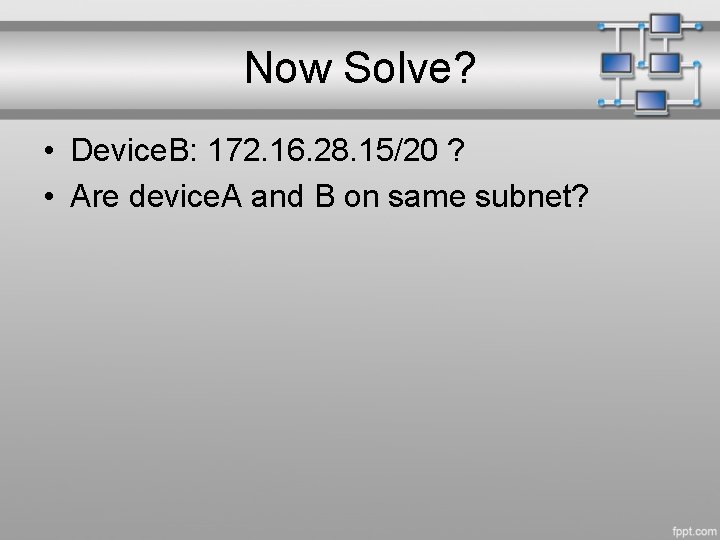

Now Solve? • Device. B: 172. 16. 28. 15/20 ? • Are device. A and B on same subnet?

SUPERNETTING

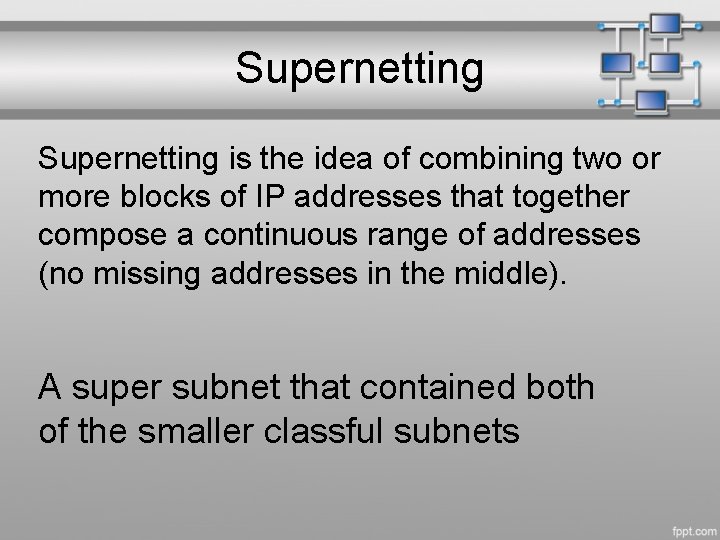

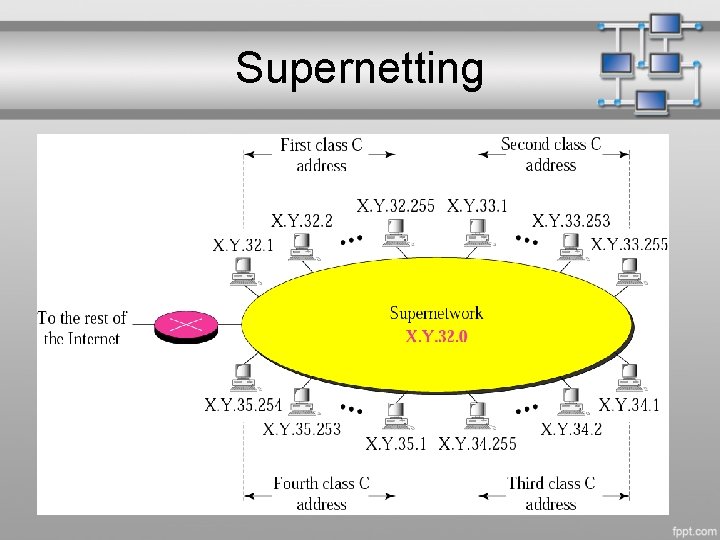

Supernetting is the idea of combining two or more blocks of IP addresses that together compose a continuous range of addresses (no missing addresses in the middle). A super subnet that contained both of the smaller classful subnets

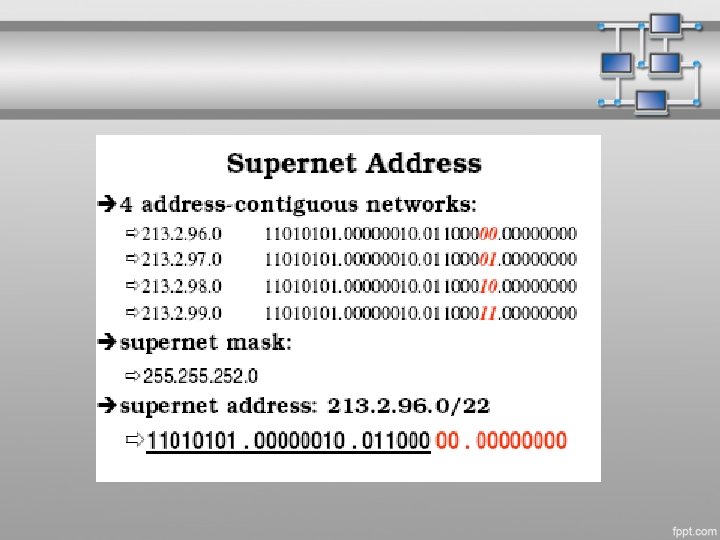

Supernetting

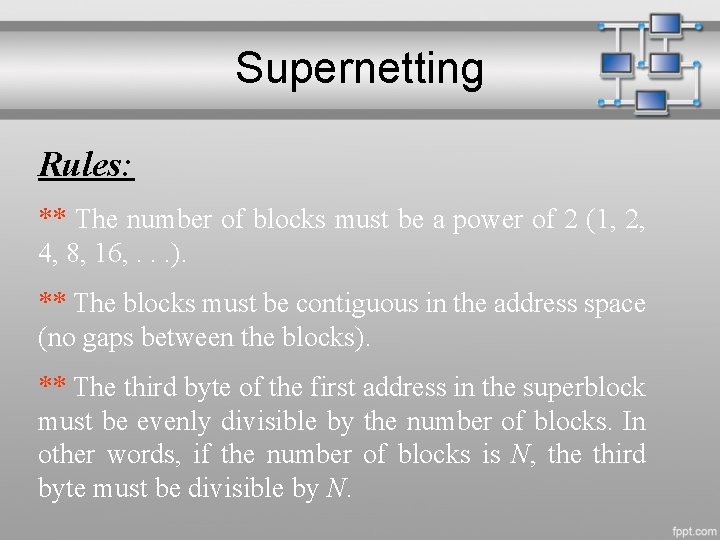

Supernetting Rules: ** The number of blocks must be a power of 2 (1, 2, 4, 8, 16, . . . ). ** The blocks must be contiguous in the address space (no gaps between the blocks). ** The third byte of the first address in the superblock must be evenly divisible by the number of blocks. In other words, if the number of blocks is N, the third byte must be divisible by N.

Did you get it enough?
