Ionotropic Receptors Postsynaptic potentials Depending on the type

Ionotropic Receptors

Postsynaptic potentials Depending on the type of ion channel which opens, the postsynaptic cell membrane becomes either depolarized or hyperpolarized. n Ions will tend to follow the concentration gradient from high to low concentration, and the electrostatic gradient towards the opposite charge. n

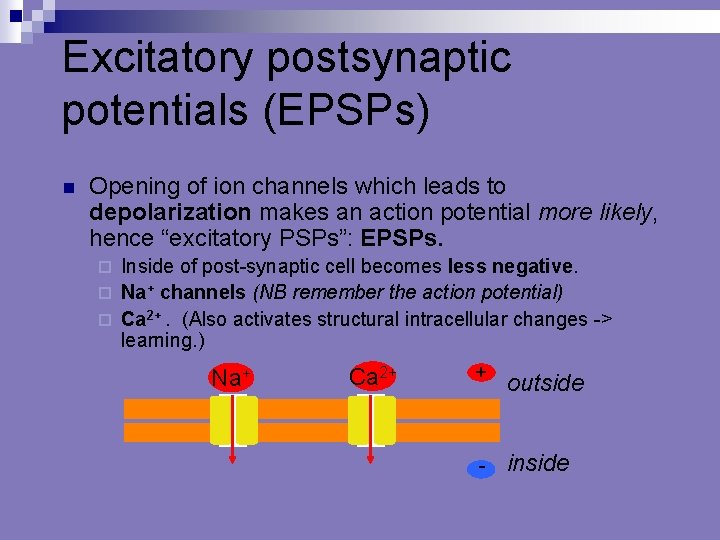

Excitatory postsynaptic potentials (EPSPs) Opening of ion channels which leads to depolarization makes an action potential more likely, hence “excitatory PSPs”: EPSPs. Inside of post-synaptic cell becomes less negative. ¨ Na+ channels (NB remember the action potential) ¨ Ca 2+. (Also activates structural intracellular changes -> learning. ) ¨ Ca 2+ outside - Na+ + n inside

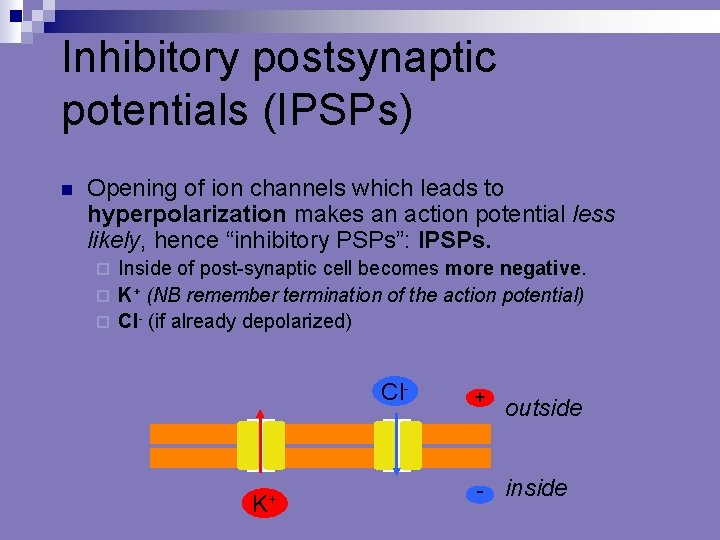

Inhibitory postsynaptic potentials (IPSPs) Opening of ion channels which leads to hyperpolarization makes an action potential less likely, hence “inhibitory PSPs”: IPSPs. Inside of post-synaptic cell becomes more negative. ¨ K+ (NB remember termination of the action potential) ¨ Cl- (if already depolarized) ¨ K+ outside - Cl- + n inside

Postsynaptic Ion motion

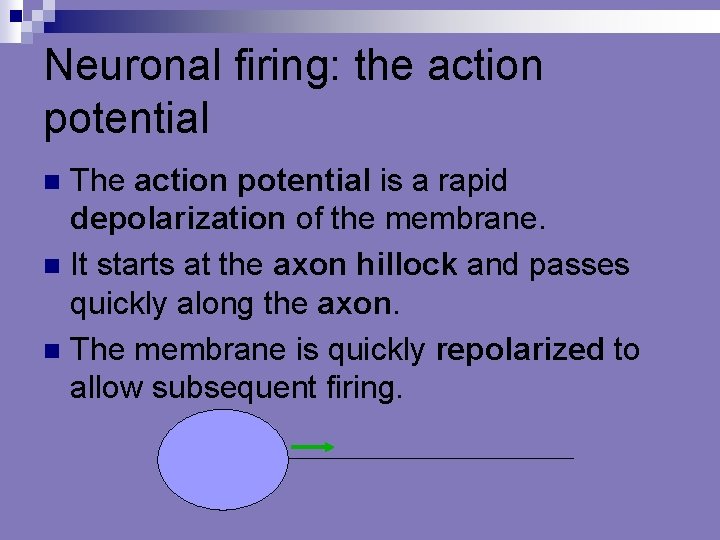

Neuronal firing: the action potential The action potential is a rapid depolarization of the membrane. n It starts at the axon hillock and passes quickly along the axon. n The membrane is quickly repolarized to allow subsequent firing. n

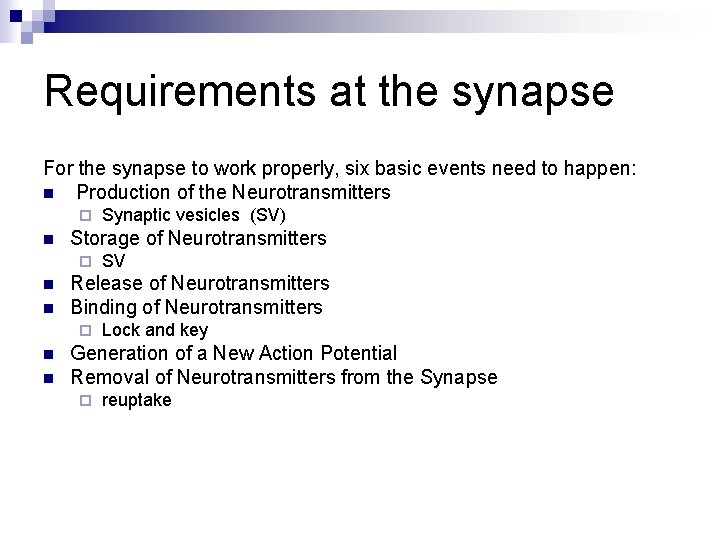

Requirements at the synapse For the synapse to work properly, six basic events need to happen: n Production of the Neurotransmitters ¨ n Storage of Neurotransmitters ¨ n n n SV Release of Neurotransmitters Binding of Neurotransmitters ¨ n Synaptic vesicles (SV) Lock and key Generation of a New Action Potential Removal of Neurotransmitters from the Synapse ¨ reuptake

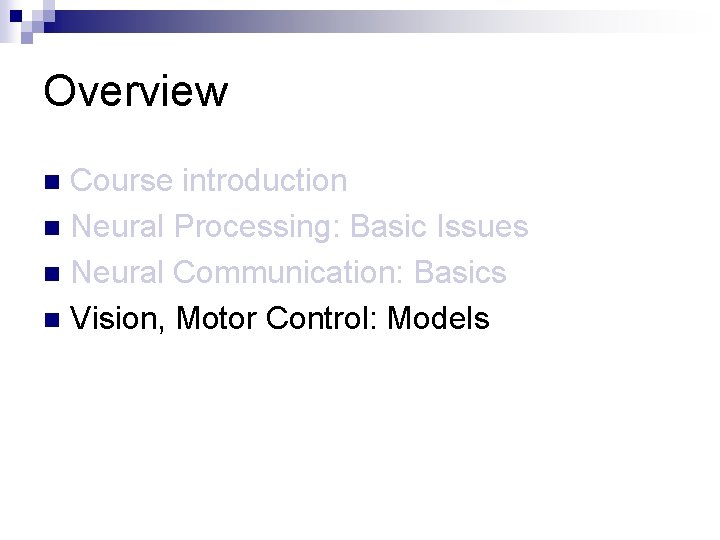

Overview Course introduction n Neural Processing: Basic Issues n Neural Communication: Basics n Vision, Motor Control: Models n

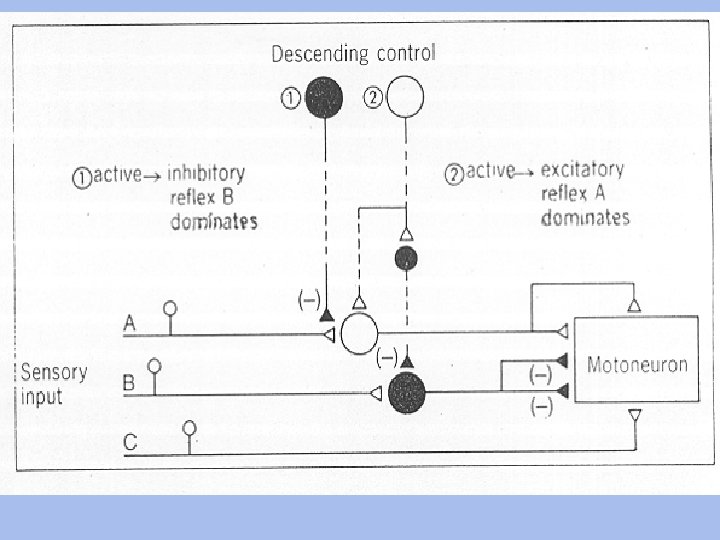

Motor Control Basics • Reflex Circuits – Usually Brain-stem, spinal cord based – Interneurons control reflex behavior – Central Pattern Generators • Cortical Control

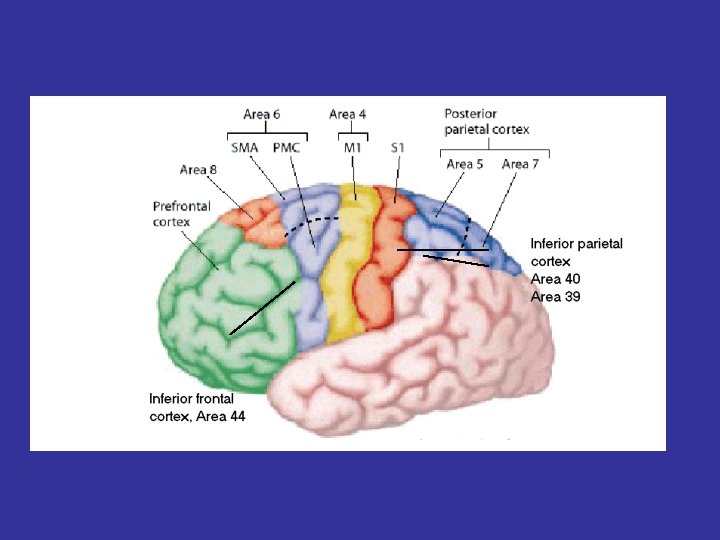

Hierarchical Organization of Motor System • Primary Motor Cortex and Premotor Areas

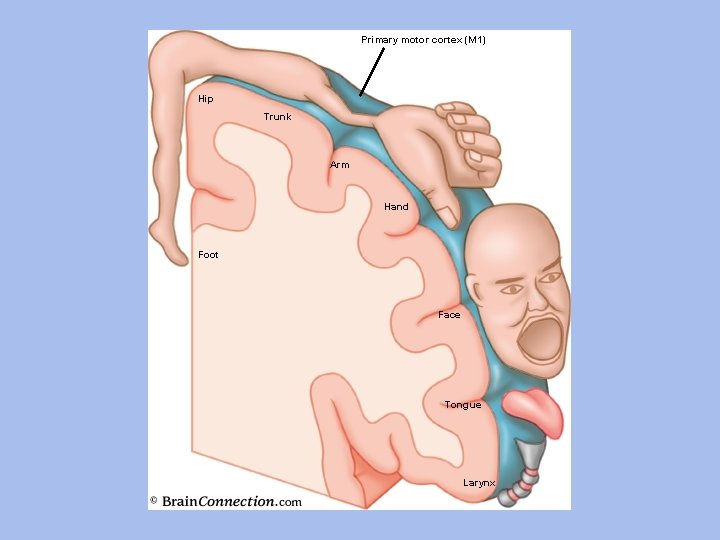

Primary motor cortex (M 1) Hip Trunk Arm Hand Foot Face Tongue Larynx

postsynaptic neuron science-education. nih. gov

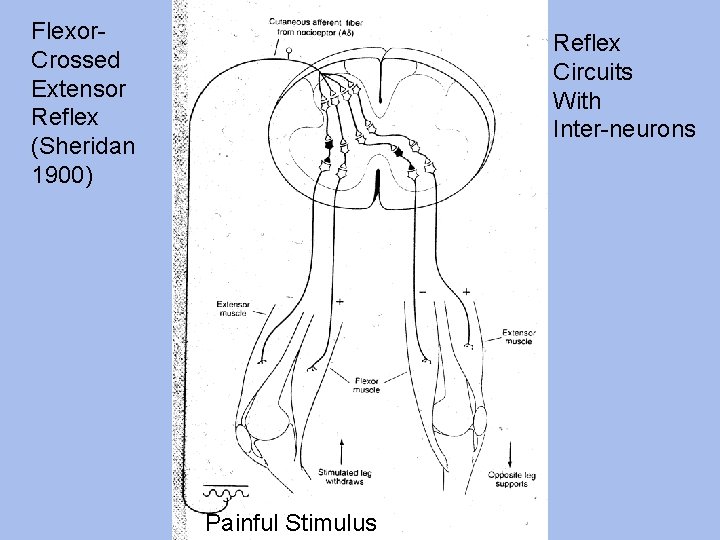

Flexor. Crossed Extensor Reflex (Sheridan 1900) Reflex Circuits With Inter-neurons Painful Stimulus

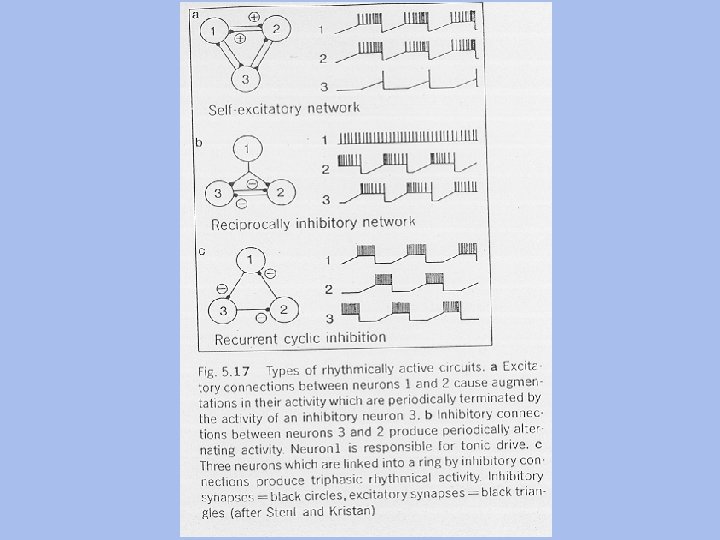

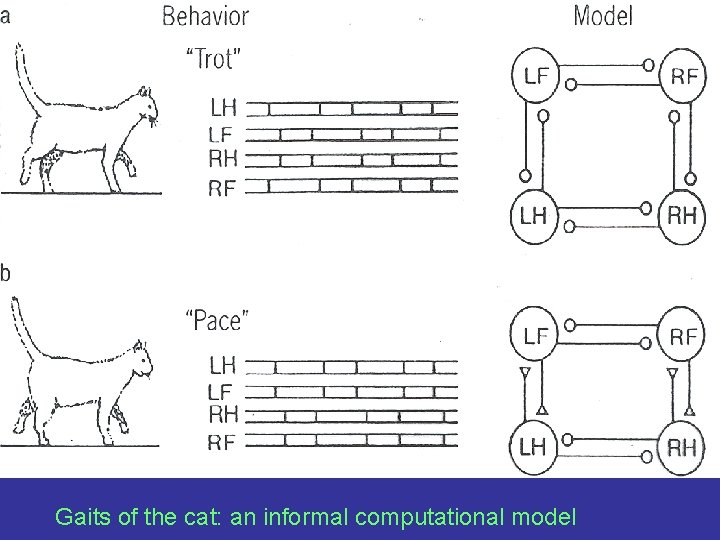

Gaits of the cat: an informal computational model

Vision and Action

The discovery of mirror neurons in the frontal lobes of monkeys, and their potential relevance to human brain evolution — which I speculate on in this essay — is the single most important "unreported" (or at least, unpublicized) story of the decade. I predict that mirror neurons will do for psychology what DNA did for biology: they will provide a unifying framework and help explain a host of mental abilities that have hitherto remained mysterious and inaccessible to experiments. Ramachandran, Reality Club Lecture 2001

1. What are mirror neurons? 2. What is the promise? Why the excitement? 3. What challenges are faced in fulfilling that promise?

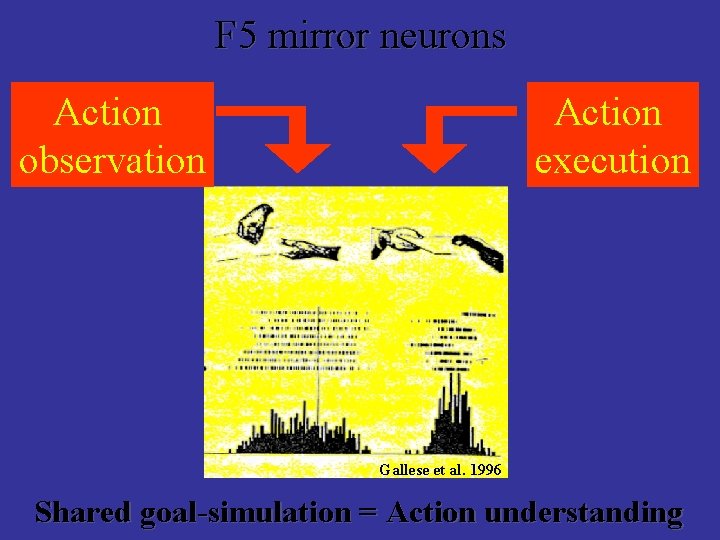

F 5 mirror neurons Action observation Action execution Gallese et al. 1996 Shared goal-simulation = Action understanding

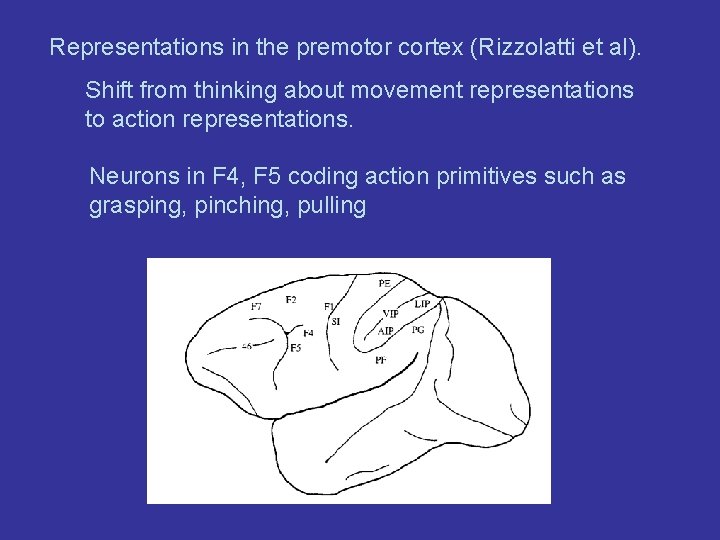

Representations in the premotor cortex (Rizzolatti et al). Shift from thinking about movement representations to action representations. Neurons in F 4, F 5 coding action primitives such as grasping, pinching, pulling

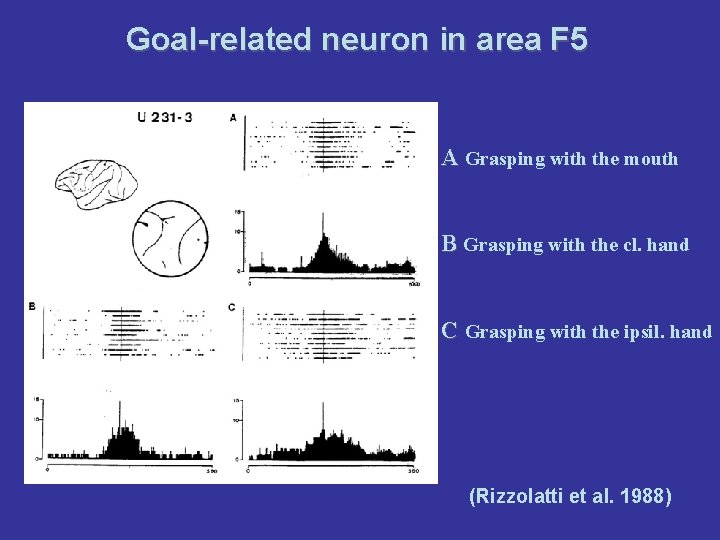

Goal-related neuron in area F 5 A Grasping with the mouth B Grasping with the cl. hand C Grasping with the ipsil. hand (Rizzolatti et al. 1988)

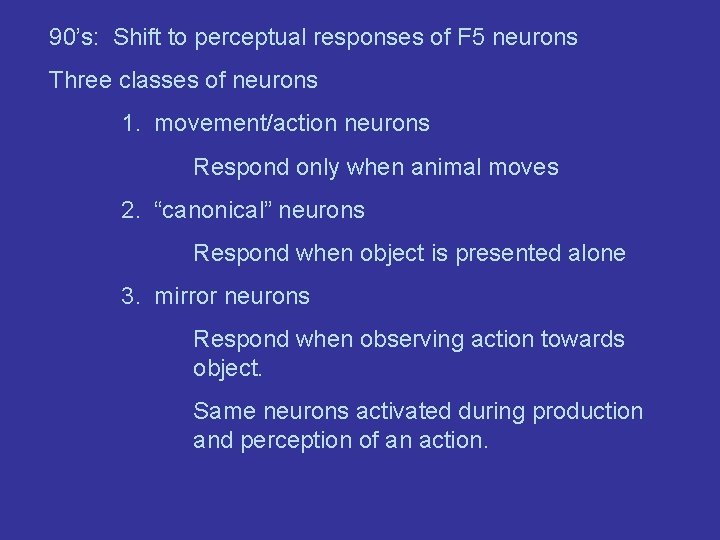

90’s: Shift to perceptual responses of F 5 neurons Three classes of neurons 1. movement/action neurons Respond only when animal moves 2. “canonical” neurons Respond when object is presented alone 3. mirror neurons Respond when observing action towards object. Same neurons activated during production and perception of an action.

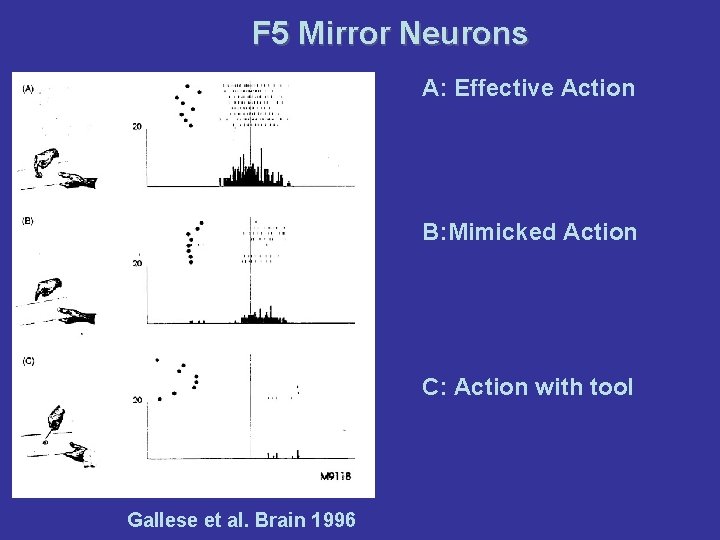

F 5 Mirror Neurons A: Effective Action B: Mimicked Action C: Action with tool Gallese et al. Brain 1996

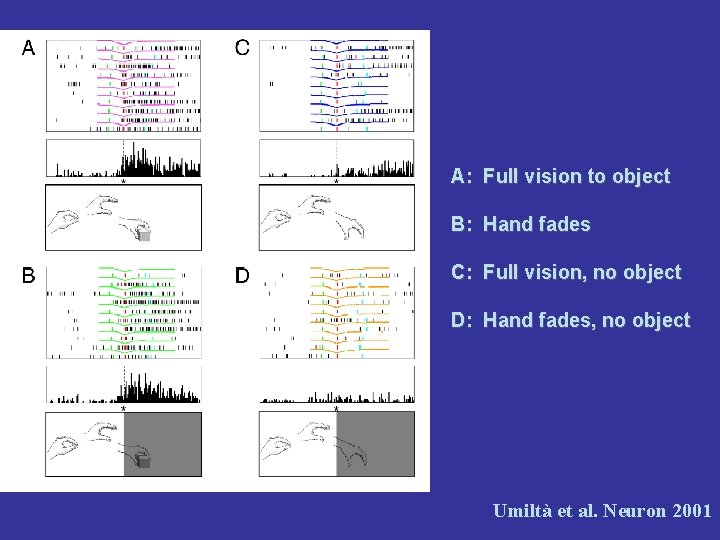

A: Full vision to object B: Hand fades C: Full vision, no object D: Hand fades, no object Umiltà et al. Neuron 2001

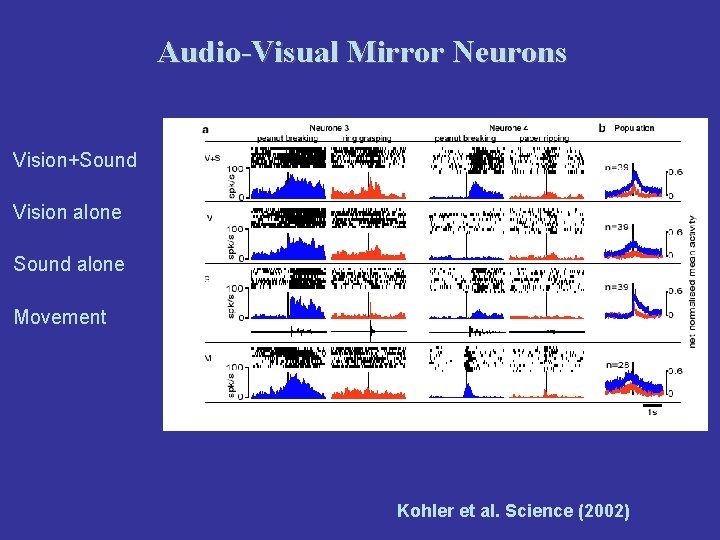

Audio-Visual Mirror Neurons Vision+Sound Vision alone Sound alone Movement Kohler et al. Science (2002)

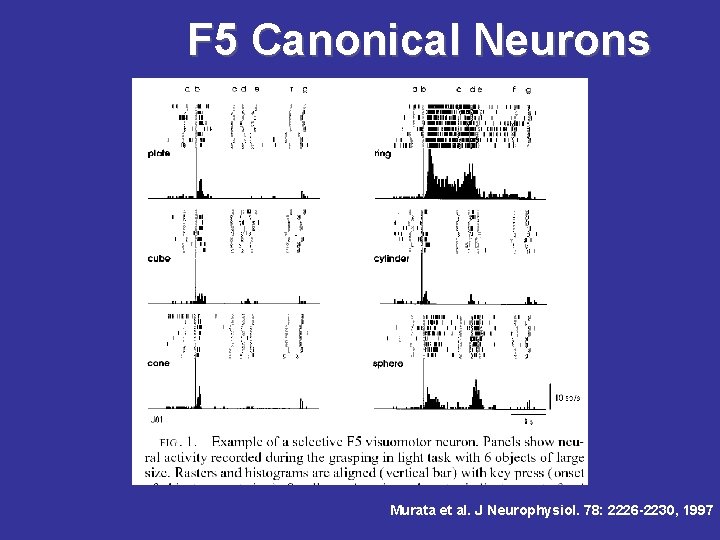

F 5 Canonical Neurons Murata et al. J Neurophysiol. 78: 2226 -2230, 1997

A New Picture Rizzolatti et al. 1998

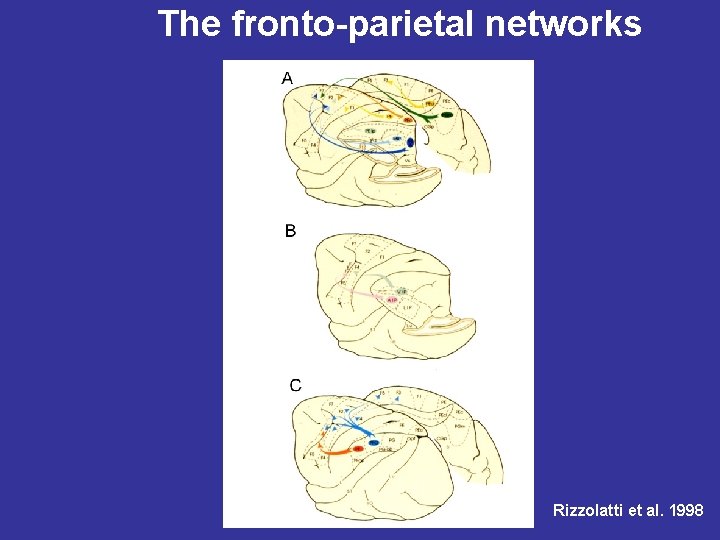

The fronto-parietal networks Rizzolatti et al. 1998

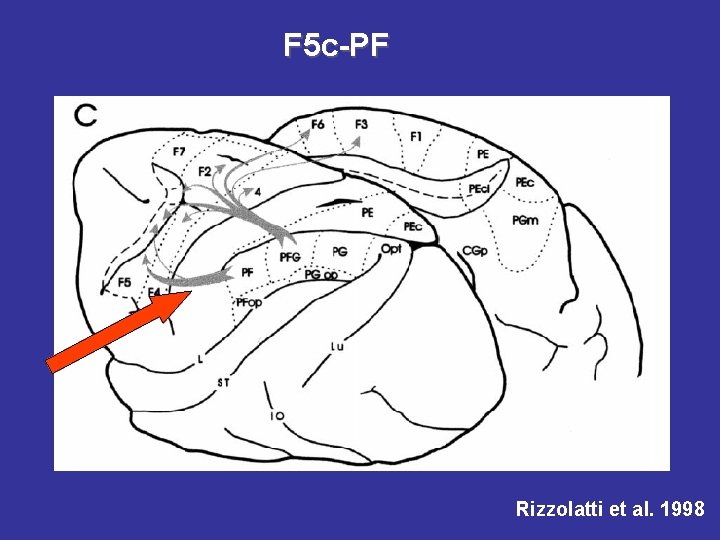

F 5 c-PF Rizzolatti et al. 1998

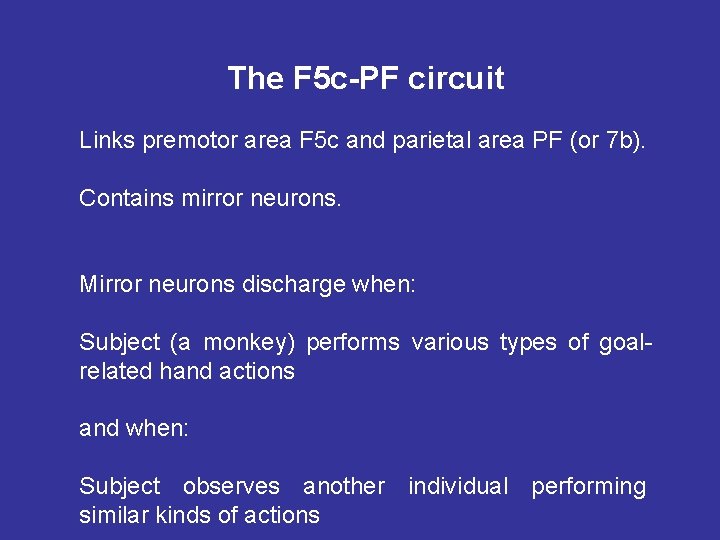

The F 5 c-PF circuit Links premotor area F 5 c and parietal area PF (or 7 b). Contains mirror neurons. Mirror neurons discharge when: Subject (a monkey) performs various types of goalrelated hand actions and when: Subject observes another individual performing similar kinds of actions

Somatotopy of Action Observation Foot Action Hand Action Mouth Action Buccino et al. Eur J Neurosci 2001

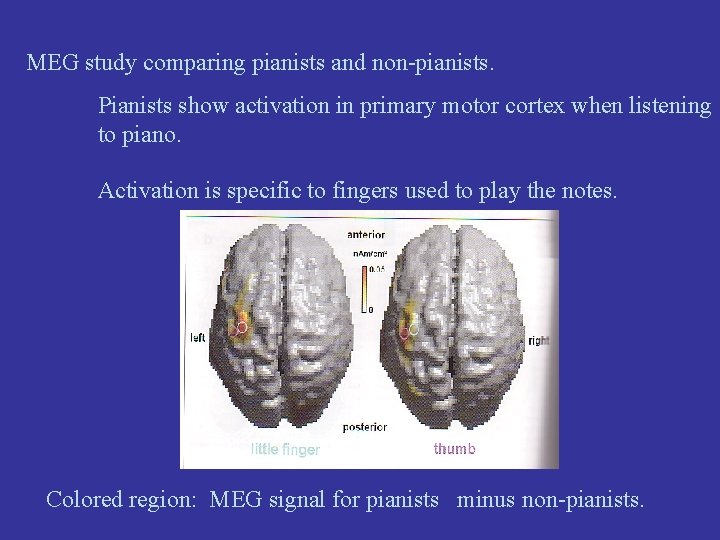

MEG study comparing pianists and non-pianists. Pianists show activation in primary motor cortex when listening to piano. Activation is specific to fingers used to play the notes. Colored region: MEG signal for pianists minus non-pianists.

Vision

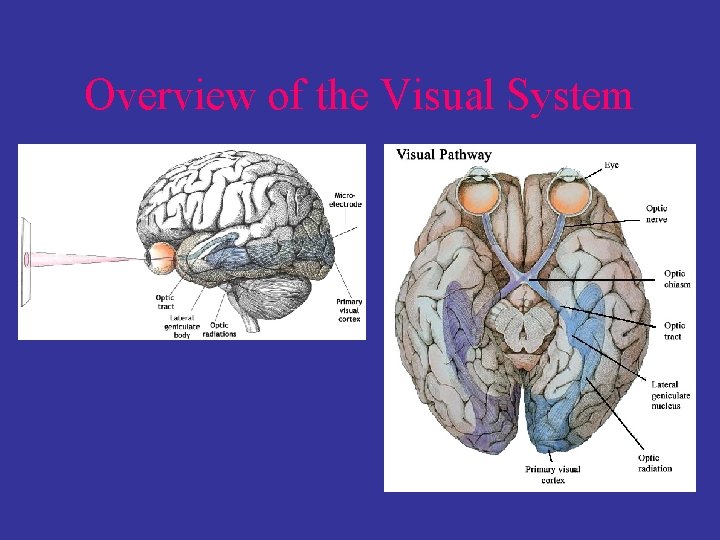

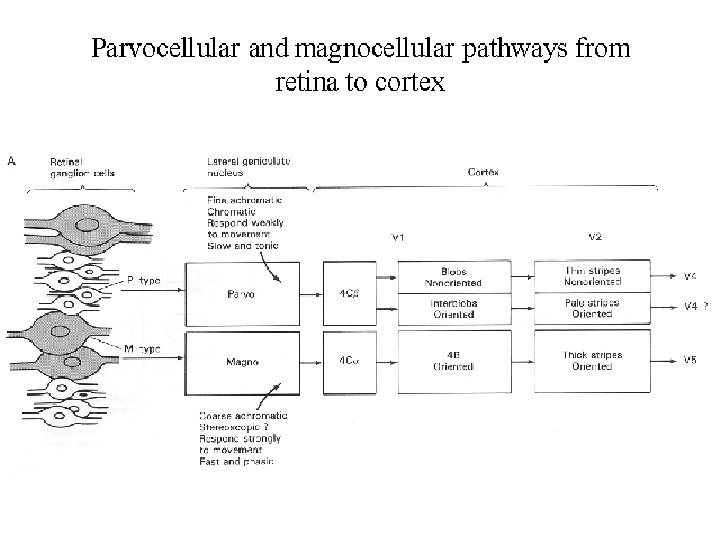

Overview of the Visual System

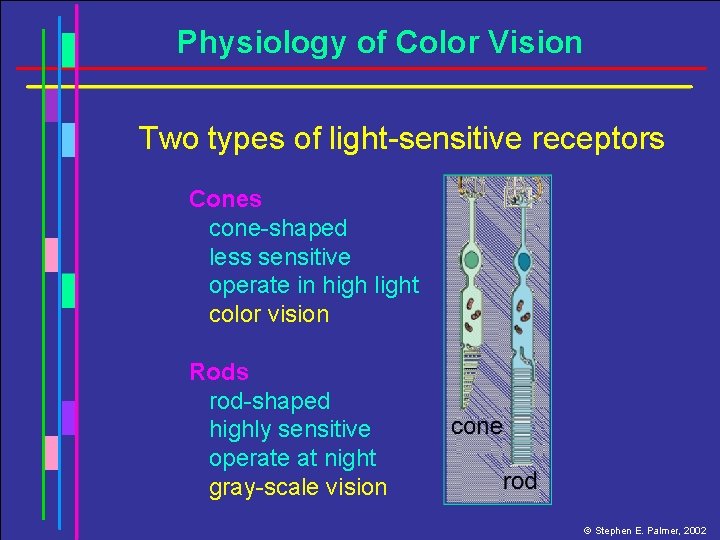

Physiology of Color Vision Two types of light-sensitive receptors Cones cone-shaped less sensitive operate in high light color vision Rods rod-shaped highly sensitive operate at night gray-scale vision © Stephen E. Palmer, 2002

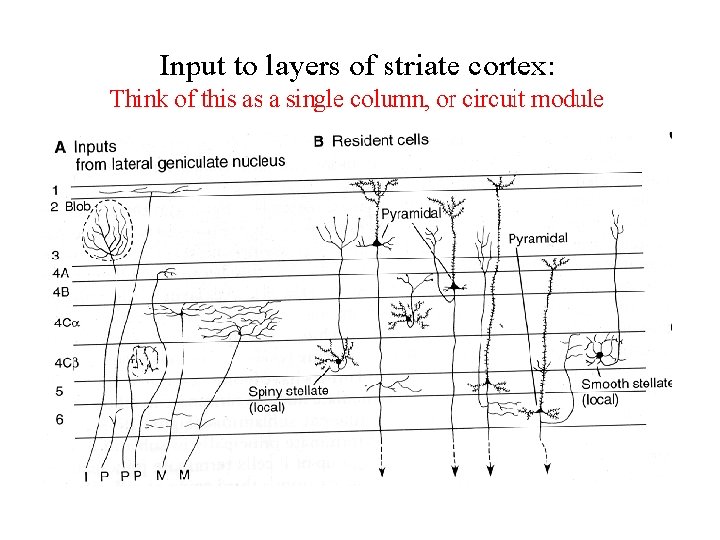

The Microscopic View

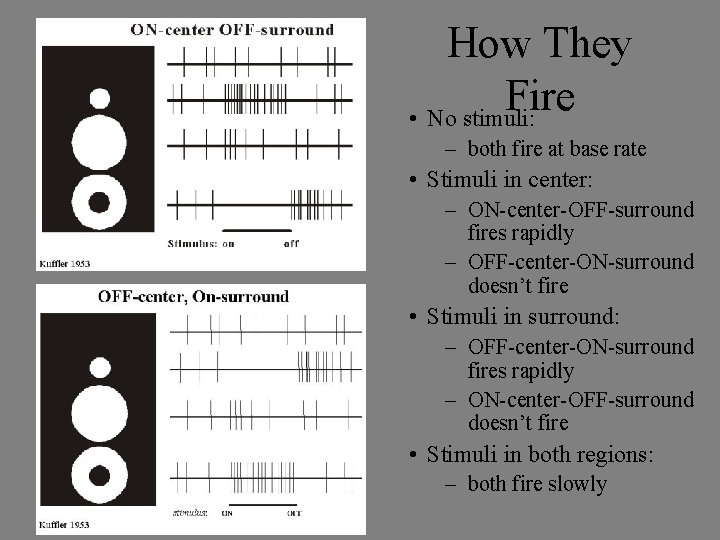

How They Fire • No stimuli: – both fire at base rate • Stimuli in center: – ON-center-OFF-surround fires rapidly – OFF-center-ON-surround doesn’t fire • Stimuli in surround: – OFF-center-ON-surround fires rapidly – ON-center-OFF-surround doesn’t fire • Stimuli in both regions: – both fire slowly
