Ionization energy Bohr model Ionization energy Bohr model
Ionization energy – Bohr model + -
Ionization energy – Bohr model
Ionization energy – Bohr model

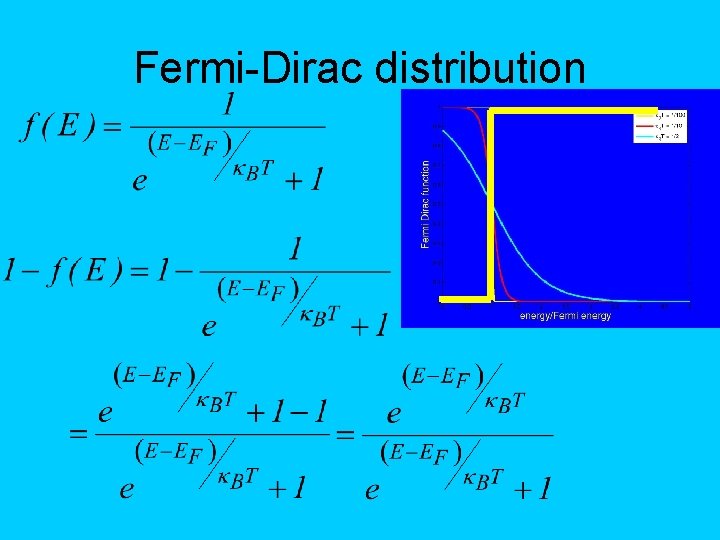

Fermi-Dirac distribution
Distribution of states & electrons Fermi function. .

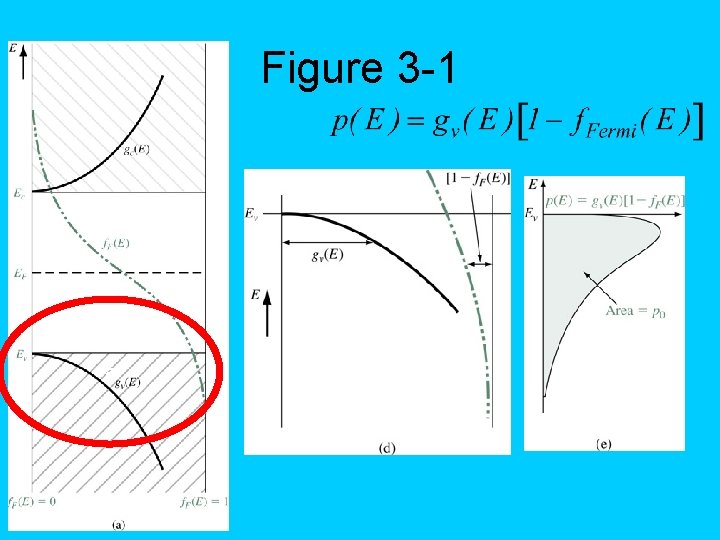

Figure 3 -1 a

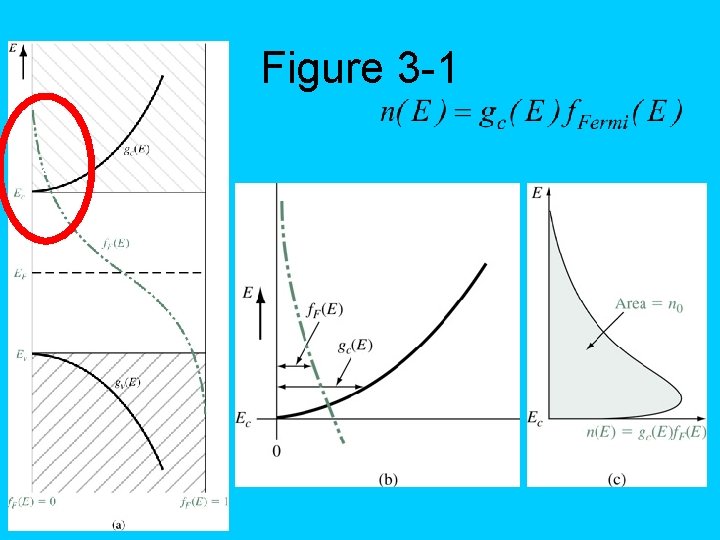

Figure 3 -1 a

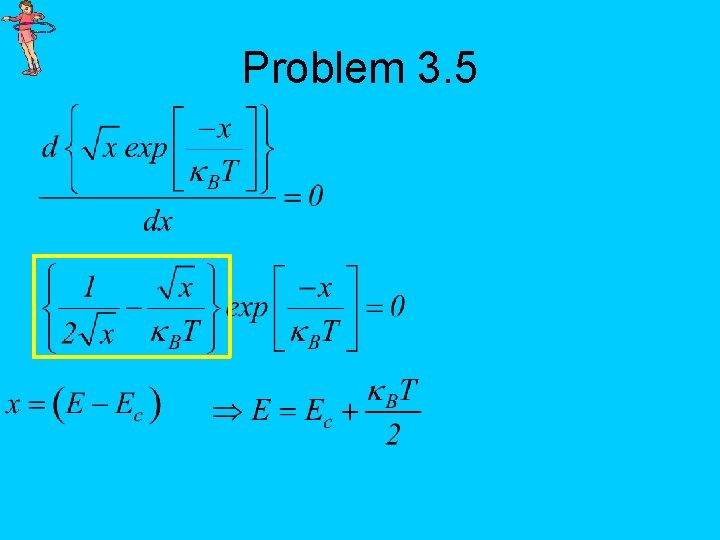

Problem 3. 5 The magnitude of the product g(E) & Fermi(E) in the conduction band is a function of energy as shown in Figure 3. 1. Assume the Boltzmann approximation is valid. Determine the energy with respect to Ec at which the maximum occurs.
Problem 3. 5
Problem 3. 5
Typical numbers Normalized electron Normalized hole effective mass Silicon 1. 08 0. 56 Gallium arsenide 0. 067 0. 48 Germanium 0. 55 0. 37 Normalized mass equals effective mass/rest mass of the electron

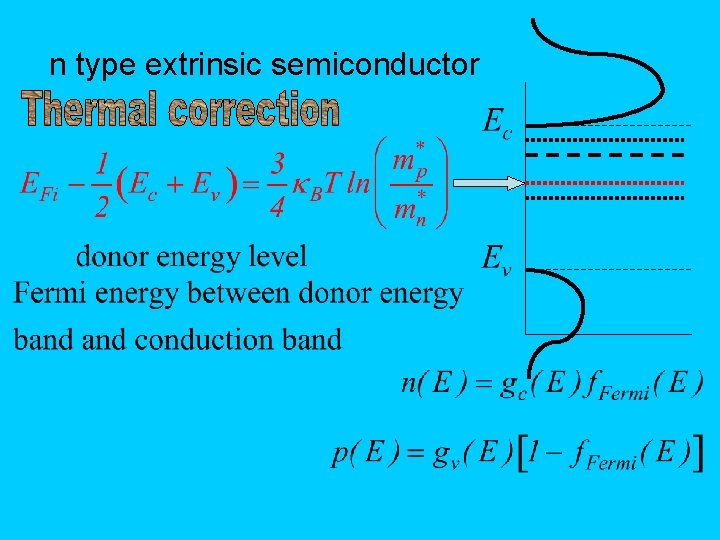

n type extrinsic semiconductor

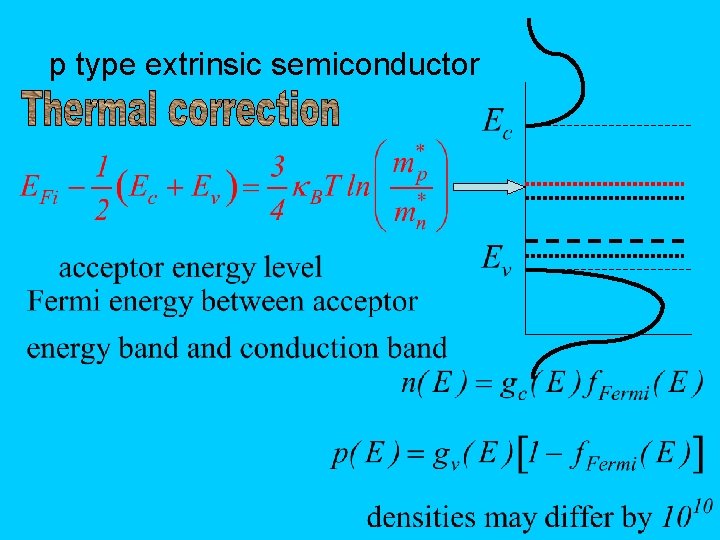

p type extrinsic semiconductor
Ionization energies in silicon and germanium in electron volts Impurity Donors Phosphorus Arsenic Si Ge 0. 045 0. 0127 0. 045 0. 06 0. 0104 0. 0102 Acceptors Boron Aluminum
Conduction band Valence band
Current density – charges in motion - +

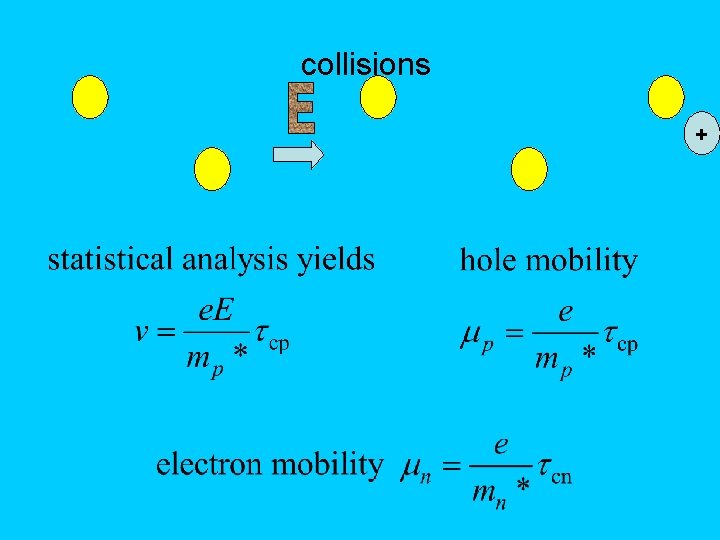

collisions +

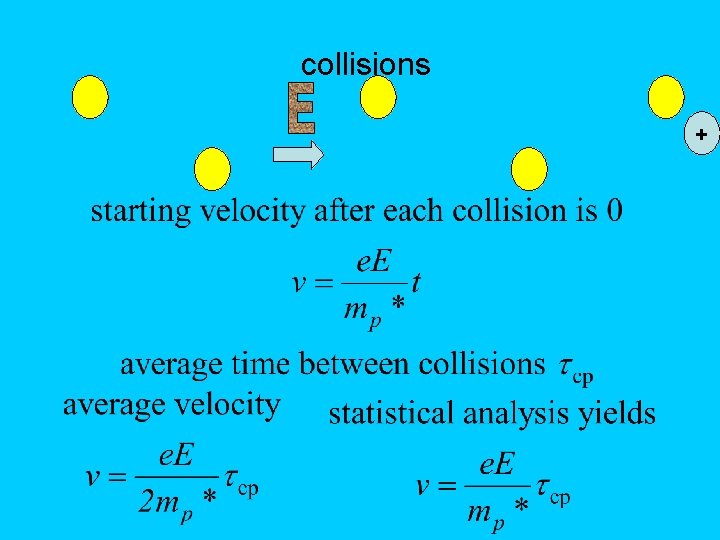

collisions +
collisions +

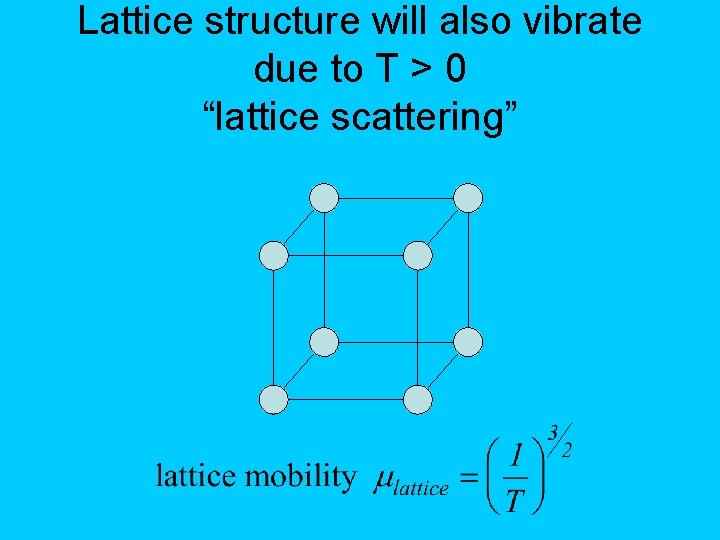

Lattice structure will also vibrate due to T > 0 “lattice scattering”
Conductivity and resistivity
Conductivity and resistivity V I
