IOA Distributed Algorithms Distributed Programs Nancy Lynch PODC
IOA: Distributed Algorithms Distributed Programs Nancy Lynch PODC 2000 Collaborators: Steve Garland, Josh Tauber, Anna Chefter, Antonio Ramirez, Michael Tsai, Mandana Vaziri, Tina Nolte I O A 1
What we want to do: See how abstract I/O automaton models of distributed algorithms and services could be used in producing and maintaining actual distributed programs. 2
Why use models in programming? • Models let you: – Build complex things and get them right – Change things and understand the consequences – Explain clearly how things work • Other engineering disciplines use them 3

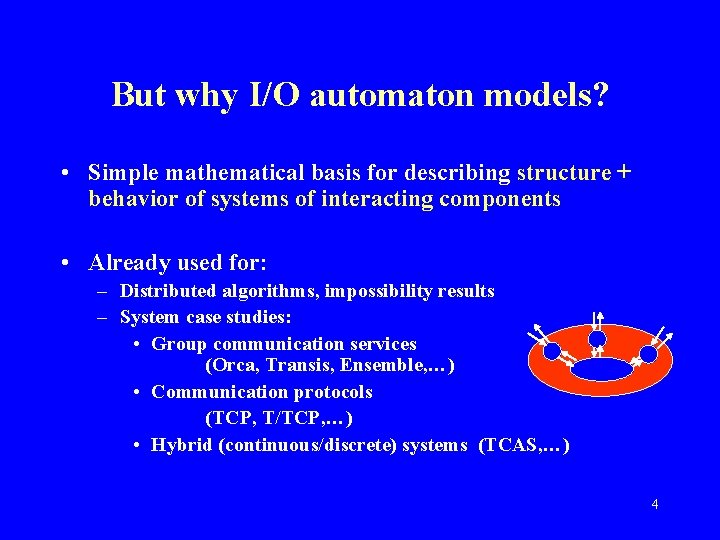

But why I/O automaton models? • Simple mathematical basis for describing structure + behavior of systems of interacting components • Already used for: – Distributed algorithms, impossibility results – System case studies: • Group communication services (Orca, Transis, Ensemble, …) • Communication protocols (TCP, T/TCP, …) • Hybrid (continuous/discrete) systems (TCAS, …) 4
I/O automata [Lynch, Tuttle 87] • • • Nondeterministic state machines Infinite state Input/output/internal actions Transitions, executions, traces Supports modularity: – Composition – Levels of abstraction • Mathematical model, language-independent 5
How I/O automata are used • Model service specs, distributed algorithms • Refine, from high level global service spec to detailed distributed algorithm: • Make models as nondeterministic as possible • Prove correctness, using invariants, simulation relations, composition 6

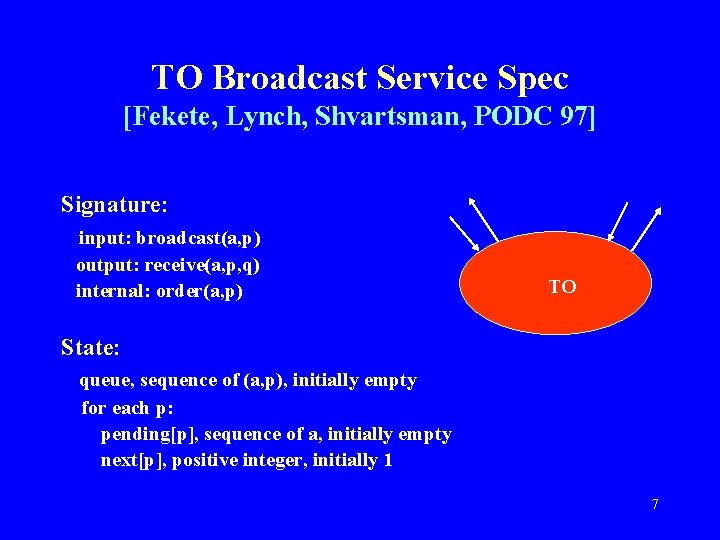

TO Broadcast Service Spec [Fekete, Lynch, Shvartsman, PODC 97] Signature: input: broadcast(a, p) output: receive(a, p, q) internal: order(a, p) TO State: queue, sequence of (a, p), initially empty for each p: pending[p], sequence of a, initially empty next[p], positive integer, initially 1 7
TO Broadcast Transitions: broadcast(a, p) Effect: append a to pending[p] order(a, p) Precondition: a is head of pending[p] Effect: remove head of pending[p]; append (a, p) to queue receive(a, p, q) Precondition: queue[next[q]] = (a, p) Effect: next[q] : = next[q] + 1 8
IOA Language [Garland, Lynch 97] I O A • Programming/specification language for defining I/O automata • Similar to pseudocode • Explicitly describes: – Signature, structured state, precondition/effects – Nondeterministic choice, composition, invariants, levels of abstraction • Declarative + imperative For proofs For simulation, code generation 9

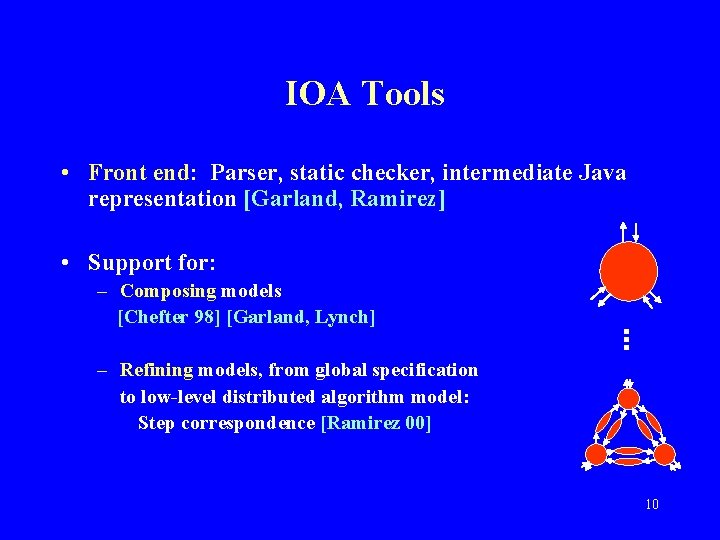

IOA Tools • Front end: Parser, static checker, intermediate Java representation [Garland, Ramirez] • Support for: – Composing models [Chefter 98] [Garland, Lynch] – Refining models, from global specification to low-level distributed algorithm model: Step correspondence [Ramirez 00] 10
IOA Tools • Prototype code generator, for generating distributed code from low-level distributed algorithm models [Tauber, Tsai] • Validation tools: – Simulator [Chefter 98] [Ramirez 00] Paired simulation: – Theorem-prover interfaces: PVS [Devillers], Isabelle? LP? Nu. PRL? [Nolte] – Automatic? 11
Modeling Projects • Distributed spanning tree algorithms [Luhrs, Nolte] • Distributed replicated data management algorithms: Lamport state machines; Attiya, Bar-Noy, Dolev, … [Dean, Karlovich, Rosen] • Future: – Practical communication protocols, services – Interacting Java objects 12
TLA and IOA • TLA and IOA both: – Use precondition/effect style – Support nondeterministic choice – Support similar kinds of assertional proofs • TLA: – Is typeless – Is declarative – Has good automatic tools • IOA: – Uses Larch Shared Language data types – Declarative + imperative – Emphasizes system decomposition 13
