Investigating the Transistor A hands on activity You

Investigating the Transistor: A hands on activity. You will be • assembling a one transistor amplifier circuit, • making it operational, then • taking measurements to determine the Current Gain and Voltage Gain and finally, if time, • Observing the operation with low frequency AC.

Brief Instructions

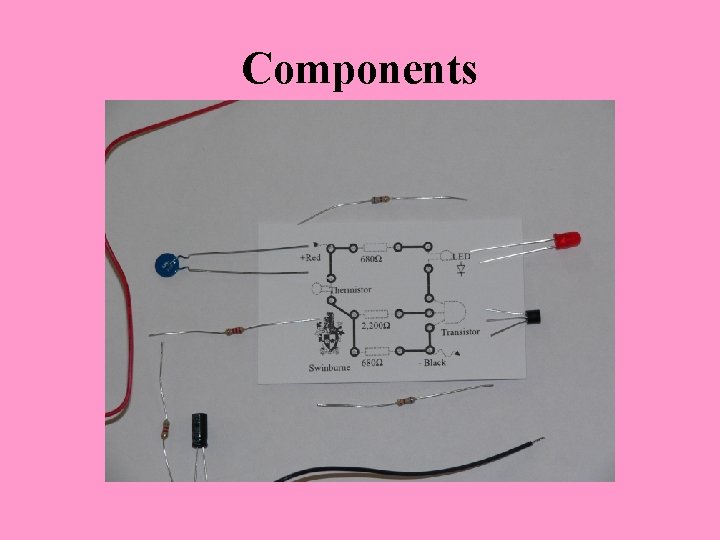

Components

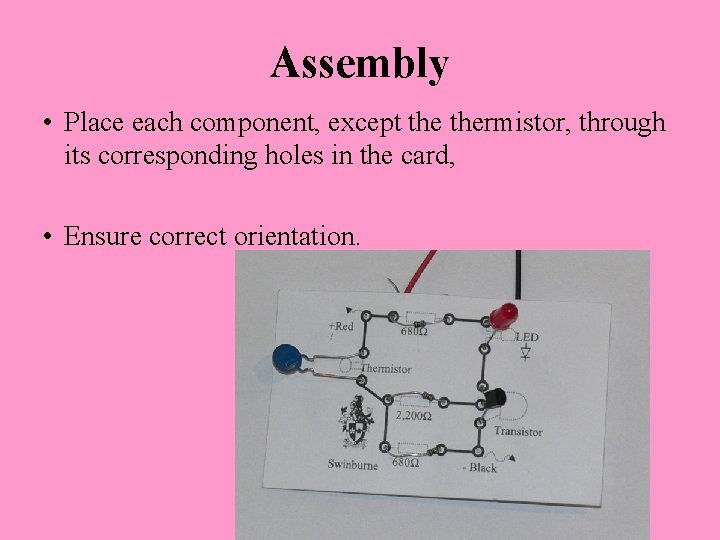

Assembly • Place each component, except thermistor, through its corresponding holes in the card, • Ensure correct orientation.

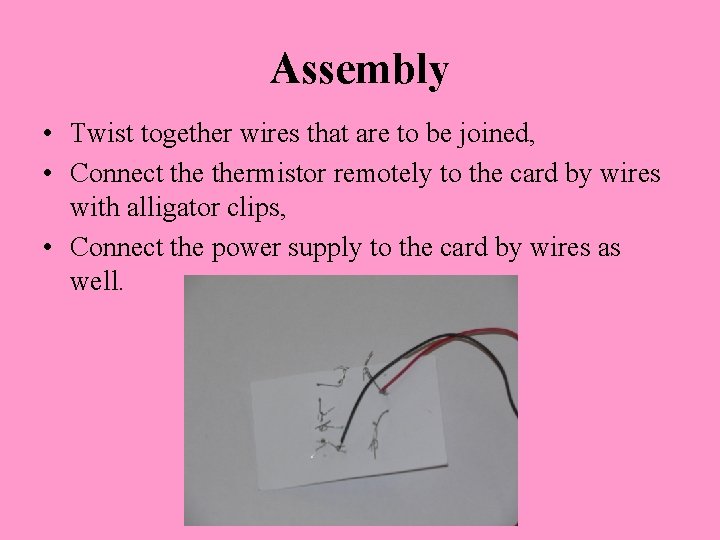

Assembly • Twist together wires that are to be joined, • Connect thermistor remotely to the card by wires with alligator clips, • Connect the power supply to the card by wires as well.

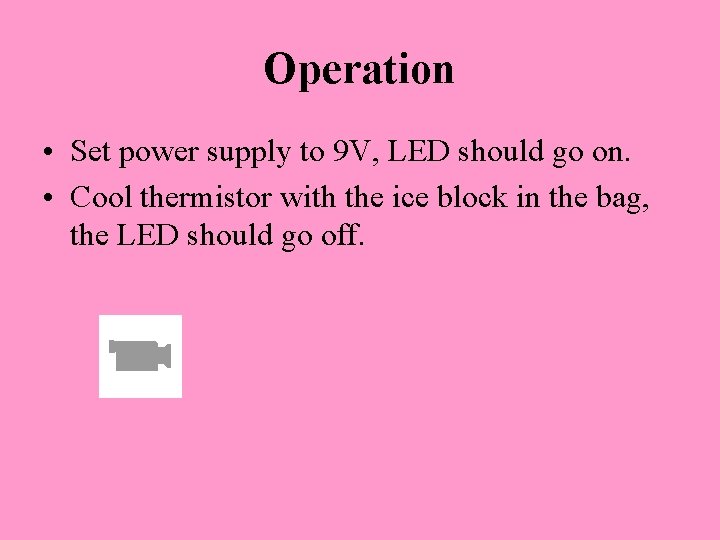

Operation • Set power supply to 9 V, LED should go on. • Cool thermistor with the ice block in the bag, the LED should go off.

Measurements Current Gain

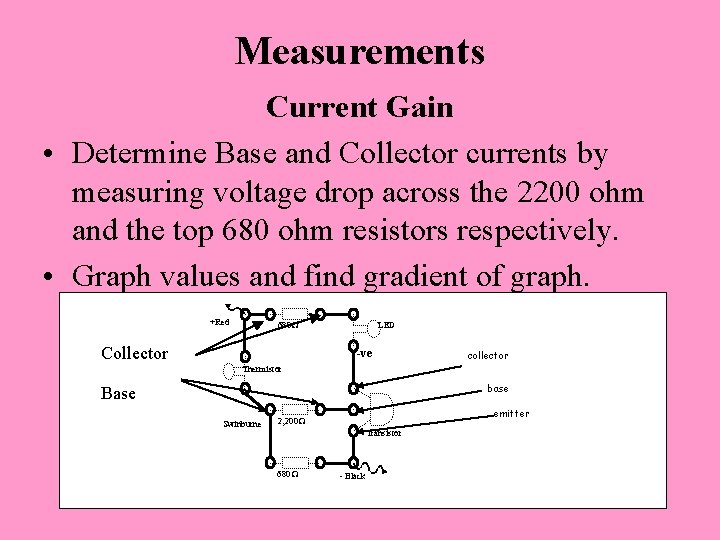

Measurements Current Gain • Determine Base and Collector currents by measuring voltage drop across the 2200 ohm and the top 680 ohm resistors respectively. • Graph values and find gradient of graph. +Red LED 680 Collector -ve collector Thermistor base Base Swinburne emitter 2, 200 Transistor 680 - Black

Measurements Voltage Gain

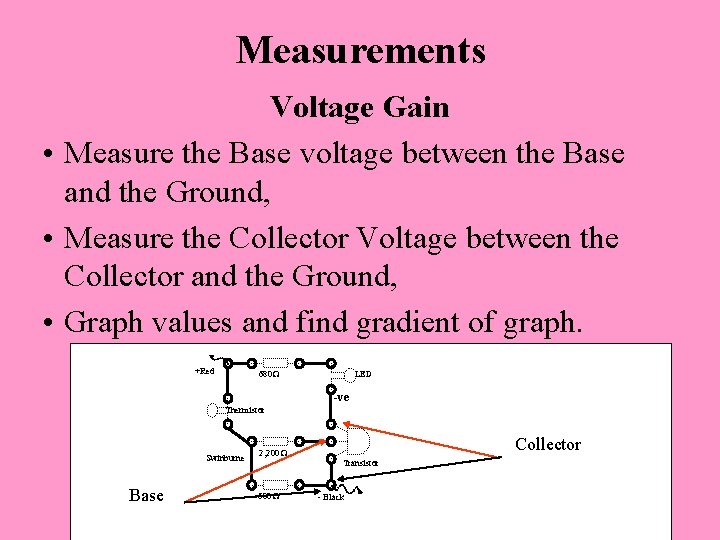

Measurements Voltage Gain • Measure the Base voltage between the Base and the Ground, • Measure the Collector Voltage between the Collector and the Ground, • Graph values and find gradient of graph. +Red LED 680 -ve Thermistor Swinburne Base 2, 200 680 Collector Transistor - Black
