Investigating high frequency underwater vessel noise and potential
- Slides: 24
Investigating high frequency underwater vessel noise and potential masking of killer whale echolocation clicks Tim Hunt Beam Reach Marine Science and Sustainability School Fall 2007 - beamreach. org/071 Flinders University of South Australia
Introduction n The Southern Resident Killer Whale n n Increase in WW boats over the years n n My study expand on aspects of this – boater cooperation! Look at specific vessel types using HF hydrophone n n n ‘ 98 -’ 05 consistently 20 vessels within ½ mile radius Erbe (2002) - underwater noise study of WW boats n n Endangered Sample up to 30 k. Hz at 44. 1 k sampling rate - HF samples up to 90 k. Hz at 192 k sampling rate WOW! Not done before measuring vessel noise new & novel! Echolocation clicks in these higher frequencies n Compare with boat noise to infer possible masking?
Spot the Orca
Echolocation clicks in killer whales What is an echolocation click? n What is it used for? n What does it sound like? n High frequency, range up to 80 k. Hz n n Need a device to sample up to these high frequencies…
Killer whale audiogram n n n Most sensitive 18 -42 k. Hz Simplified from Szymanski et al. 1999 2 orcas in captivity Attached probes to melon Measured ABR
Questions posed n Is a vessel cruising at high speeds (>18 knots) at 400 m “louder” that a vessel slow motoring at low speeds (5 -8 knots) at 100 m? n Is there is a difference in frequency spectrum levels between different vessel propulsion types? n To what degree, if at all, do different vessel
Methods Two speeds, two distances (relates to SJ County Law and BWW guidelines) n Slow Motor (SM) = speed of 5 -8 knots n n n When within 400 m of whales Cruise (C) = 18 -25 knots n When further than 400 m Test SM and C at 100 m and 400 m n Record echolocation clicks n

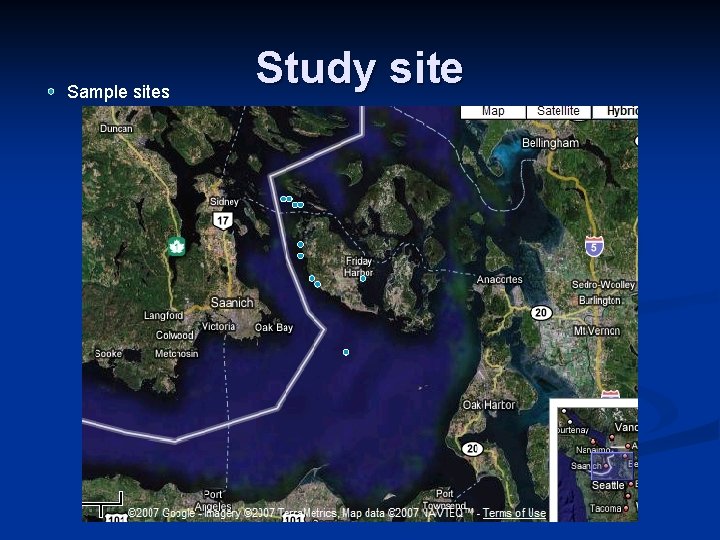

Sample sites Study site
Materials
Sampling
Vessels measured n Business names kept anonymous, vessel classification based on propulsion system n n n Twin Inboard 400 HP Bio. Diesel Twin Outboard 150 HP Surface Piercing Twin Inboard Diesel Jet Drive Also measured Gato Verde catamaran, Washington State Ferry, cargo ship and dinghy n
Results
More Results
Even more results n No sig. difference b/w SM 100 m & C 400 m n 3/5 vessels had difference in RL of 10 d. B or greater (C 400 m > SM 100 m) n Twin OB 150 HP opposite n Surface Piercing 1 d. B difference
A killer whale echolocation click What in the bloody hell do all these lines mean? ! Sounds above echo, clicks masked Sounds below echo, clicks heard
Vessels vs. click vs. audiogram 2 vessels below echo Both 115. 5 d. B Higher spectrum level = higher mean RL? NO! MASKING All vessels above echo
Discussion Peaks in Jet Drive vessel, & Twin IB 400 HP Bio. Diesel. Mmm…. n What is a significant d. B difference? n n 6 d. B = twice as loud in human ear Gato Verde – EM vs G, just propeller noise? n Echolocation click mean n n Bimodal distribution 10 -50 k. Hz n Similar to Au et al. 2003
Things to think about n KW Audiogram – is it representative of wild orcas? n n n Busy day in the Haro Strait - individual vessel noise might be indistinguishable to an orca Hard to quantify difference in vessel type n n n Individual tested reportedly partially deaf Can’t really say one is better/worse than another Can’t really say one is having more/less effect on echolocation Personal observations – orcas swimming under ferries & riding bow wave of cargo ship n Does noise really bother them?
Improvements/Future research n Make sample size bigger! Sample vessels on separate days n More clicks, perhaps infer distance? n n Measure vessels at more distances, build database, compare, infer, legislate? n Engine noise? Propeller noise? Combination? n n Test these to aid in minimising underwater noise More research = better understanding
If we can lower noise of this
And better understand this
Then we can minimise impact on this
Acknowledgements Beam Reach and all the crew n Boat operators for driving-by n Whale watch operators for the good times on the radio n Team Va. To for putting up with my singing n Flight Of The Conchords for musical comic relief during times of hardship n
Questions?
