Inverter System Basics of Inverter Technology Adjust capacity
Inverter System
Basics of Inverter Technology Adjust capacity according to actual load. Purpose Control refrigerant flow
Inverter Systems Product Features

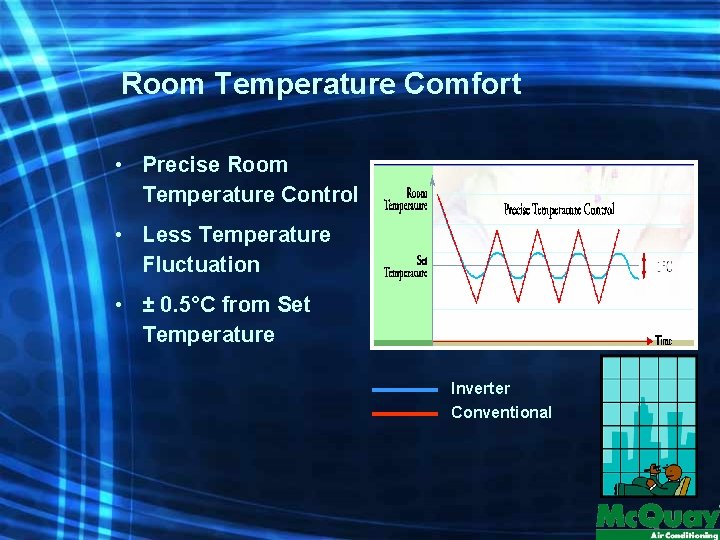

Room Temperature Comfort • Precise Room Temperature Control • Less Temperature Fluctuation • ± 0. 5°C from Set Temperature Inverter Conventional

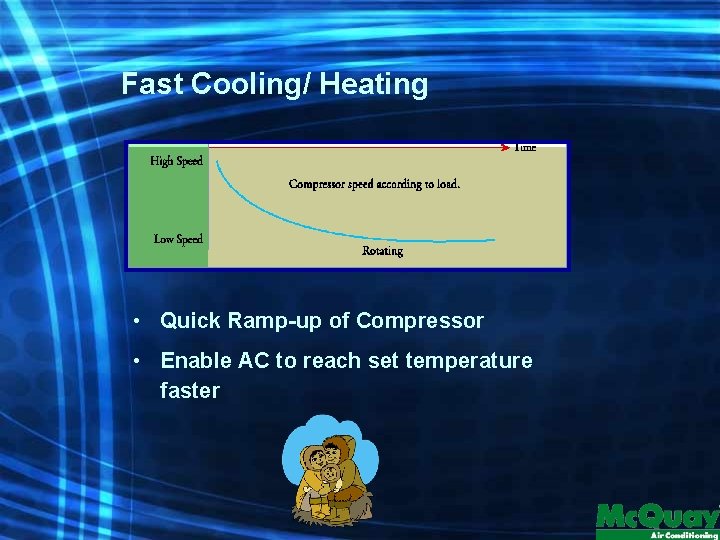

Fast Cooling/ Heating • Quick Ramp-up of Compressor • Enable AC to reach set temperature faster

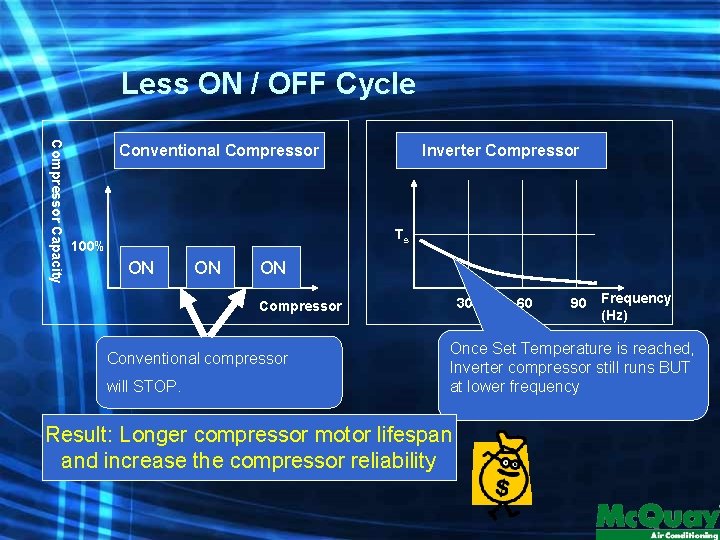

Less ON / OFF Cycle Compressor Capacity Conventional Compressor Inverter Compressor Ts 100% ON ON ON 30 Compressor Conventional compressor will STOP. 60 90 Frequency (Hz) Once Set Temperature is reached, Inverter compressor still runs BUT at lower frequency Result: Longer compressor motor lifespan and increase the compressor reliability

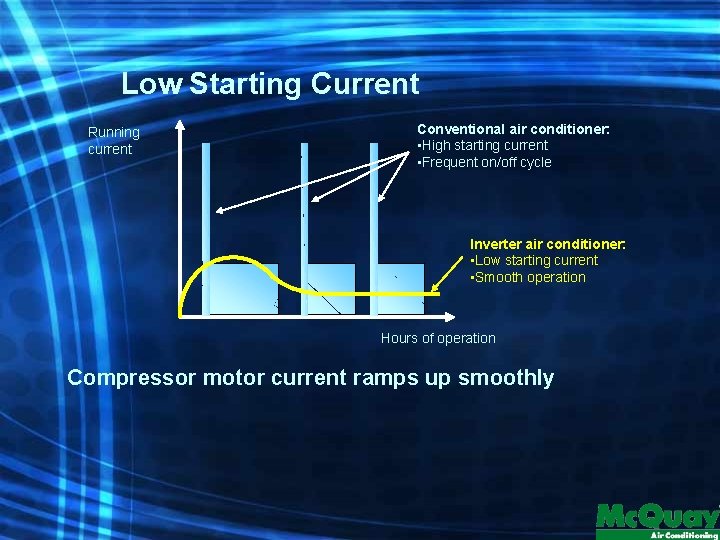

Low Starting Current Running current Conventional air conditioner: • High starting current • Frequent on/off cycle Inverter air conditioner: • Low starting current • Smooth operation Hours of operation Compressor motor current ramps up smoothly
Low Energy Consumption Most Frequently Used Area Inverter

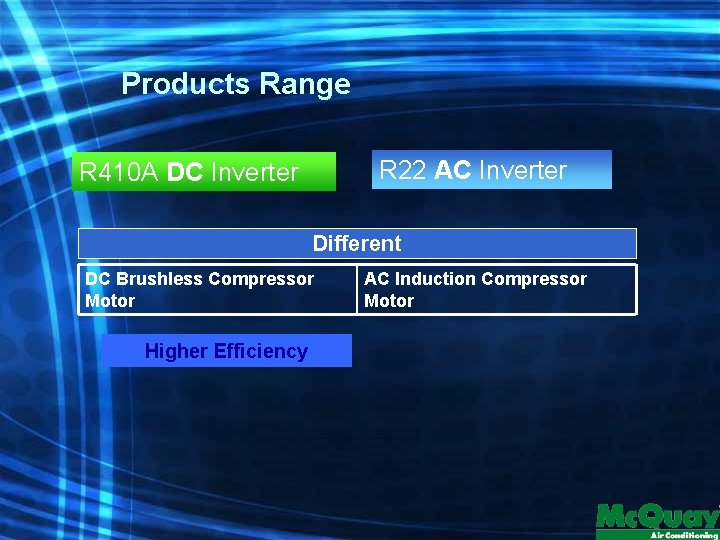

Products Range R 22 AC Inverter R 410 A DC Inverter Different DC Brushless Compressor Motor Higher Efficiency AC Induction Compressor Motor

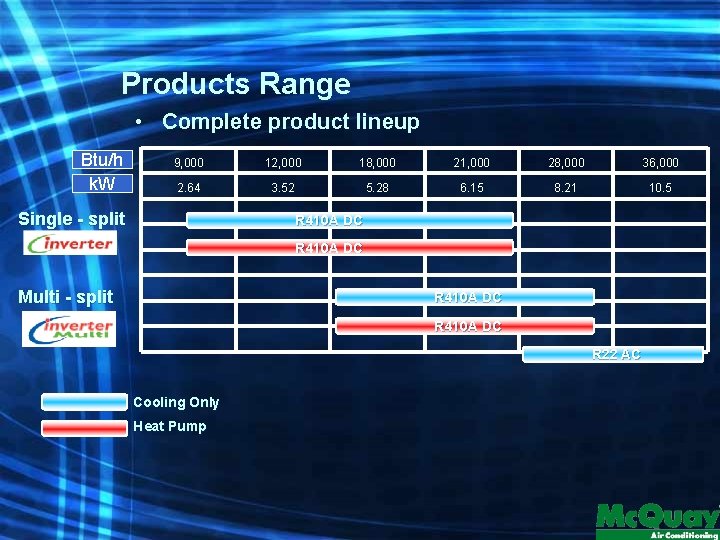

Products Range • Complete product lineup Btu/h k. W Single - split Multi - split 9, 000 12, 000 18, 000 21, 000 28, 000 36, 000 2. 64 3. 52 5. 28 6. 15 8. 21 10. 5 R 410 A DC Cooling Only Heat Pump R 410 A DC R 22 AC

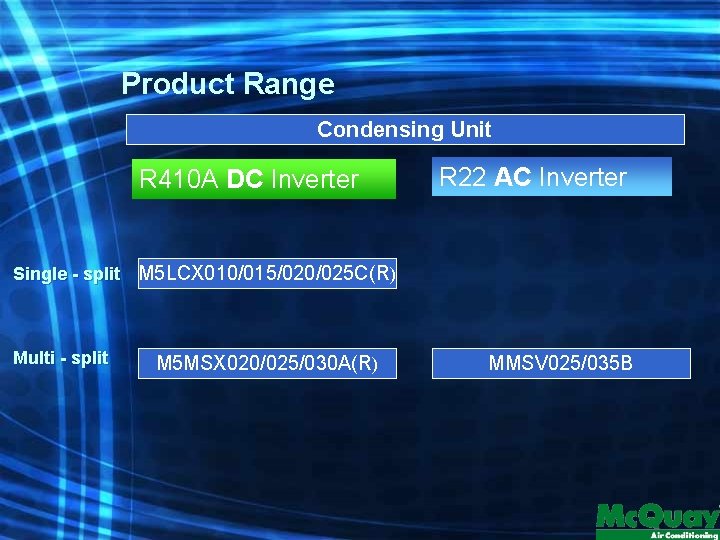

Product Range Condensing Unit R 410 A DC Inverter R 22 AC Inverter Single - split M 5 LCX 010/015/020/025 C(R) Multi - split M 5 MSX 020/025/030 A(R) MMSV 025/035 B

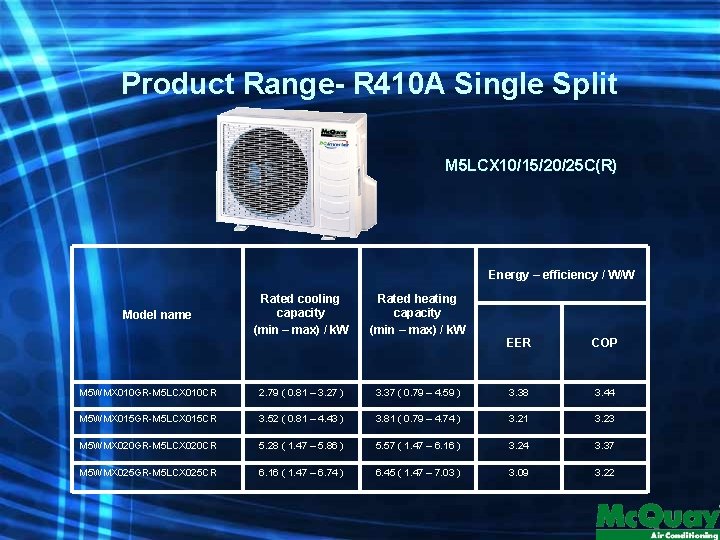

Product Range- R 410 A Single Split M 5 LCX 10/15/20/25 C(R) Energy – efficiency / W/W Rated cooling capacity (min – max) / k. W Rated heating capacity (min – max) / k. W M 5 WMX 010 GR-M 5 LCX 010 CR 2. 79 ( 0. 81 – 3. 27 ) M 5 WMX 015 GR-M 5 LCX 015 CR Model name EER COP 3. 37 ( 0. 79 – 4. 59 ) 3. 38 3. 44 3. 52 ( 0. 81 – 4. 43 ) 3. 81 ( 0. 79 – 4. 74 ) 3. 21 3. 23 M 5 WMX 020 GR-M 5 LCX 020 CR 5. 28 ( 1. 47 – 5. 86 ) 5. 57 ( 1. 47 – 6. 16 ) 3. 24 3. 37 M 5 WMX 025 GR-M 5 LCX 025 CR 6. 16 ( 1. 47 – 6. 74 ) 6. 45 ( 1. 47 – 7. 03 ) 3. 09 3. 22
Product Range- R 410 A Multi Split M 5 MSX 020/025/030 A(R) Model name Rated cooling capacity (min – max) / k. W Rated heating capacity (min – max) / k. W Energy – efficiency / W/W EER COP M 5 MSX 020 AR (System 1 to 2) 5. 57 ( 1. 32 – 6. 15 ) 6. 15 ( 1. 32 – 6. 74 ) 3. 71 3. 77 M 5 MSX 025 AR (System 1 to 3) 6. 45 ( 1. 32 – 7. 03 ) 7. 03 ( 1. 32 – 7. 62 ) 3. 20 3. 60 M 5 MSX 030 AR (System 1 to 4) 7. 62 ( 1. 32 – 8. 50 ) 8. 21 ( 1. 32 – 9. 38 ) 3. 20 3. 60

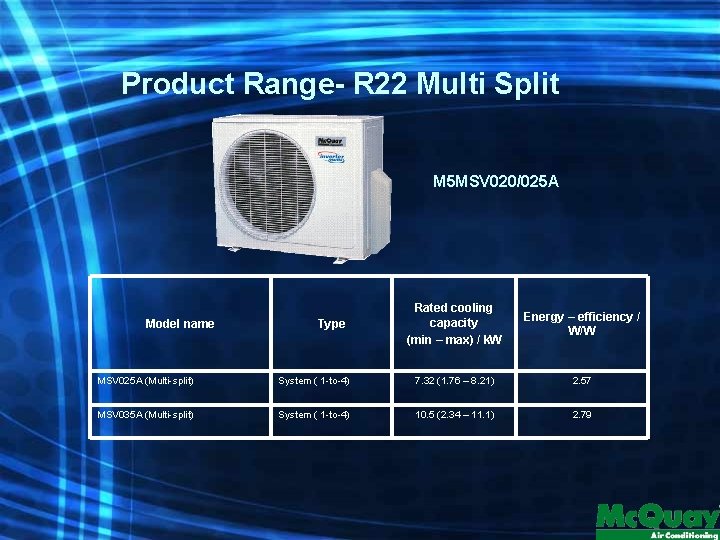

Product Range- R 22 Multi Split M 5 MSV 020/025 A Model name Type Rated cooling capacity (min – max) / k. W Energy – efficiency / W/W MSV 025 A (Multi-split) System ( 1 -to-4) 7. 32 (1. 76 – 8. 21) 2. 57 MSV 035 A (Multi-split) System ( 1 -to-4) 10. 5 (2. 34 – 11. 1) 2. 79

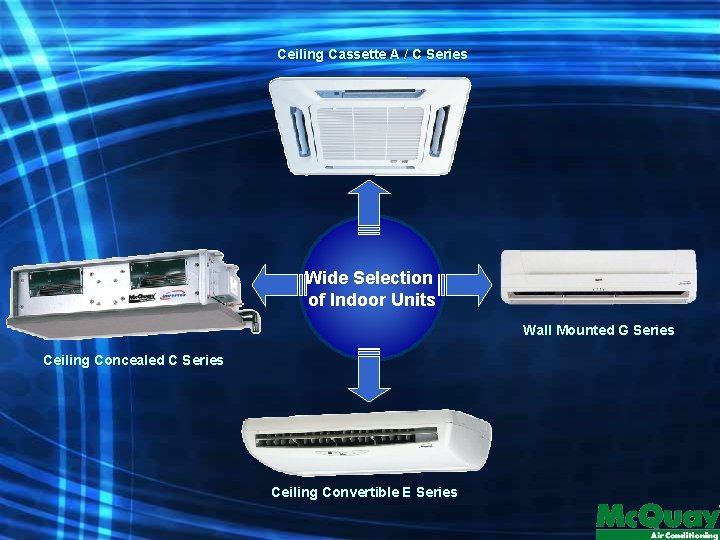

Ceiling Cassette A / C Series Wide Selection of Indoor Units Wall Mounted G Series Ceiling Concealed C Series Ceiling Convertible E Series

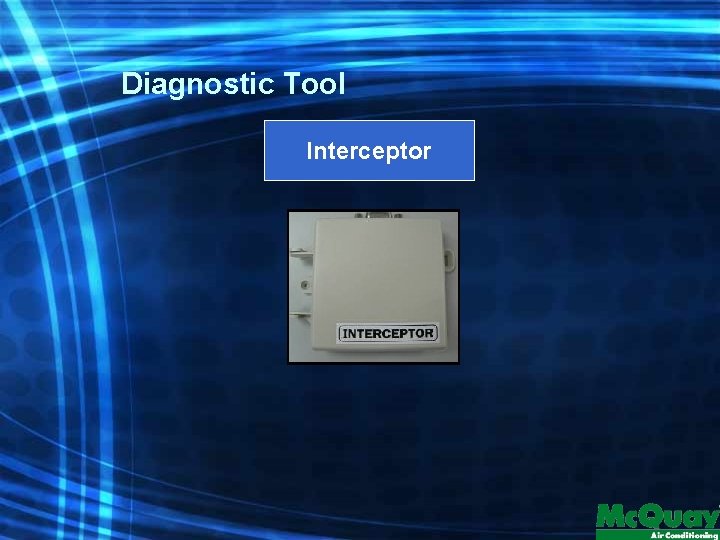

Diagnostic Tool Interceptor

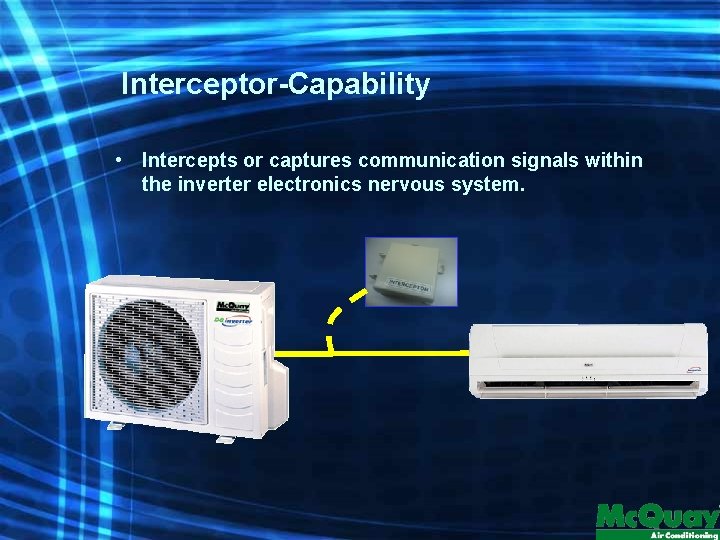

Interceptor-Capability • Intercepts or captures communication signals within the inverter electronics nervous system.

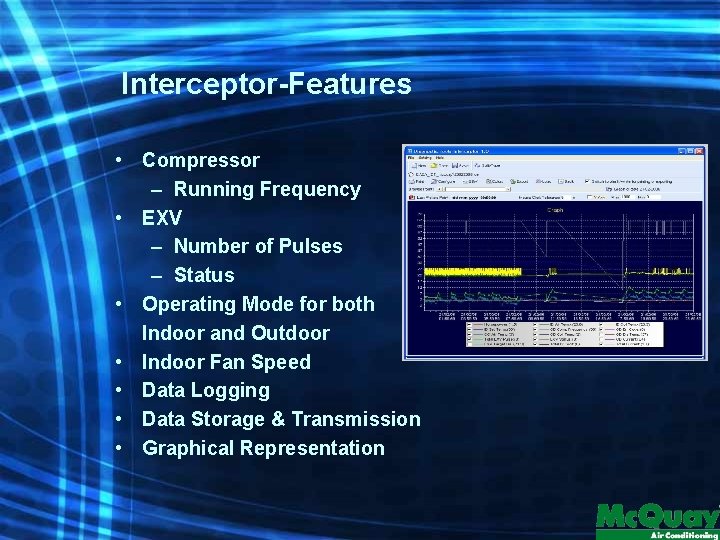

Interceptor-Features • Displays Operating Parameters – Temperature Readings for ALL sensors • Outdoor Air Temperature • Outdoor Coil Temperature • Indoor Air Temperature • Indoor Coil Temperature • Indoor Set Temperature • Compressor Discharge Temperature
Interceptor-Features • Compressor – Running Frequency • EXV – Number of Pulses – Status • Operating Mode for both Indoor and Outdoor • Indoor Fan Speed • Data Logging • Data Storage & Transmission • Graphical Representation
Interceptor - Summary QUICK AND EFFECTIVE TROUBLE-SHOOTING TOOL HIGH MOBILITY FOR EASIER ON-SITE SERVICE. * With Notebook PIN-POINTS SPECIFIC PROBLEMATIC AREA OR COMPONENT USEFUL FOR ANALYSIS AND FURTHER STUDY ABLE TO GENERATE ATTRACTIVE & EASY TO UNDERSTAND SERVICE REPORTS
