Inventory Management Inventory management A subsystem of logistics

Inventory Management

Inventory management A subsystem of logistics n Inventory: a stock of materials or other goods to facilitate production or to satisfy customer demand n Main decisions: n Which items should be carried in stock? n How much should be ordered? n When should an order be placed? n

The need to hold stocks 1 n n n Buffer between Supply and Demand To keep down production costs: to achieve low unit costs, production have to run as long as possible (setting up machines is tend to be costly) To take account of variable supply times: safety stock to cover delivery delays from suppliers To minimize buying costs associated with raising an order To accommodate variations (on the short run) in demand (to avoid stock-outs) To account for seasonal fluctuations: n n There are products popular only in peak times There are goods produced only at a certain time of the year

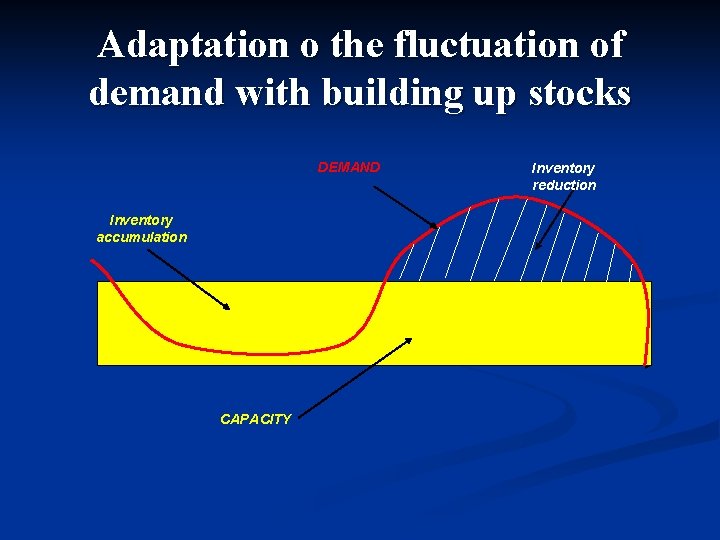

Adaptation o the fluctuation of demand with building up stocks DEMAND Inventory accumulation CAPACITY Inventory reduction

The need to hold stocks 2 n n n To take advantage of quantity discounts (buying in bulk) To allow for price fluctuations/speculation: to buy large quantities when a good is cheaper To help production and distribution operations run smoothly: to increase the independence of these activities To provide immediate service for customers To minimize production delays caused by lack of spare parts (for maintenance, breakdowns) Work-in-progress: facilitating production process by providing semi-finished stocks between different processes

Types of Stock-holding/Inventory n n n raw material, component and packaging stock in-process stocks (work-in-progress; WIP) finished products (finished goods inventory; FGI) pipeline stocks: held in the distribution chain general stores: contains a mixture of products to support spare parts: n n Consumables (nuts, bolts, etc. ) Rotables and repairables

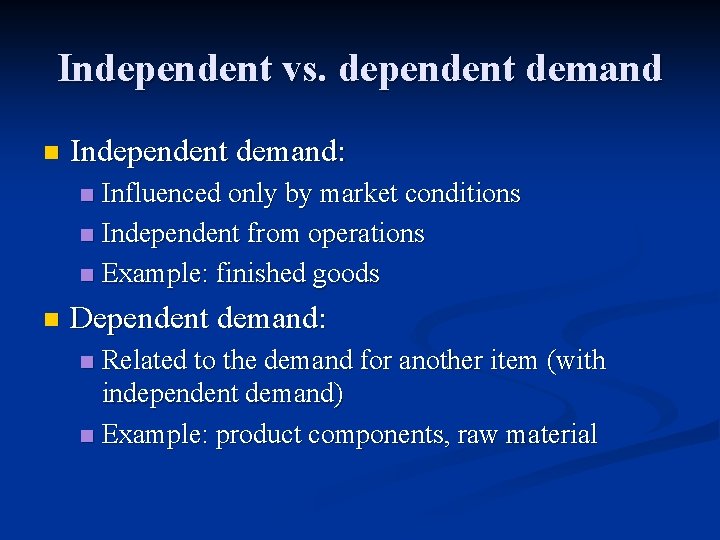

Independent vs. dependent demand n Independent demand: Influenced only by market conditions n Independent from operations n Example: finished goods n n Dependent demand: Related to the demand for another item (with independent demand) n Example: product components, raw material n

Another typology of stocks working stock: reflects the actual demand n cycle stock: follows the production (or demand) cycles n safety stock: to cover unexpected fluctuations in demand n speculative stock: built up on expectations n seasonal stock: goods stockpiled before peaks n

Inventory cost n n n Item cost: the cost of buying or producing inventory items Ordering cost: does not depend on the number of items ordered. Form typing the order to transportation and receiving costs. Holding (carrying) cost: n n Capital cost: the opportunity cost of tying up capital Storage cost: space, insurance, tax Cost of obsolescence, deterioration and loss Stockout cost: economic consequences of running out of stock (lost profit and/or goodwill)

Economic Order Quantity (EOQ) n Assumptions of the model: n n n n Demand rate is constant, recurring and known The lead time (from order placement and order delivery) is constant and known No stockouts are allowed Goods are ordered and produced in lots, and the lot is placed into inventory all at one time Unit item cost is constant, carrying cost is linear function of average inventory level Ordering cost is independent of the number of items in a lot The item is a single product (no interaction with other products)

The „SAW-TOOTH” Inventory level Order inteval Order quantity (Q) Average inventory leve = Q/2 Time

Total cost of inventory (tradeoff between ordering frequency and inventory level) Total cost Holding cost (H ∙ Q/2) Minimum cost Ordering cost (S ∙ D/Q) EOQ

Calculating the total cost of inventory n Let… n n n S be the ordering cost (setup cost) per oder D be demanded items per planning period H be the stock holding cost per unit n n n H=i∙C, where C is the unit cost of an item, and i is the carrying rate Q be the ordered quantity per order (= lot) TC = S ∙ (D/Q) + H ∙ (Q/2) (D/Q) is the number of orders period (Q/2) is the average inventory level in this model

The minimum cost (EOQ) TC = S ∙ (D/Q) + H ∙ (Q/2) n б. TC/б. Q = 0 n 0 = - S ∙ (D/Q 2) + H/2 n H/2 = S ∙ (D/Q 2) n Q 2 = (2 ∙ S ∙ D)/H n EOQ = √ (2 ∙ S ∙ D)/H n

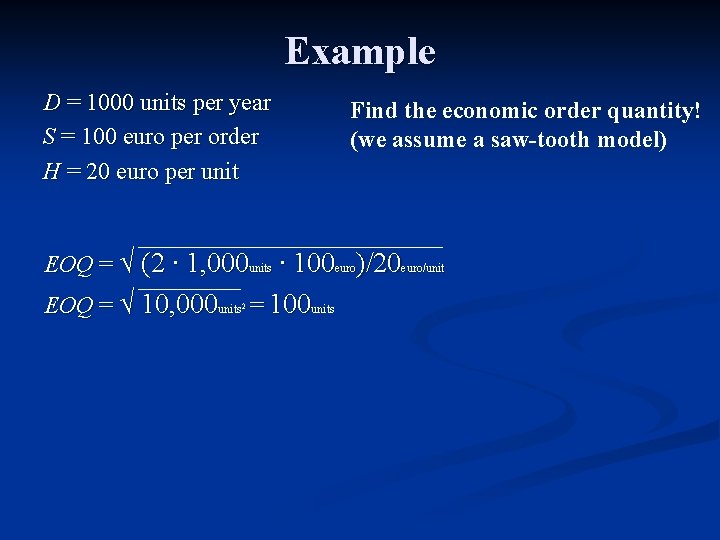

Example D = 1000 units per year S = 100 euro per order H = 20 euro per unit Find the economic order quantity! (we assume a saw-tooth model) EOQ = √ (2 ∙ 1, 000 units ∙ 100 euro)/20 euro/unit EOQ = √ 10, 000 units = 100 units 2

Reordering (or replenishment) point When to start the ordering process? n It depends on the… n n Stock position: stock on-hand (+ stock on-order) n in a simple saw-tooth model it is Q, n in some cases, there can be an initial stock (Q 0), that is different from Q. In this case the first order depends on Q 0 lead time (L): the time interval from setting up order to the start of using up the ordered stock n Average demand per day (d) n n R = Q/ d – L

Examples n n n n Q 0 = 600 tons Q = 200 tons d = 10 tons per day L = 8 days R 1 = 600 ts /10 ts/ds – 8 ds = 52. day Q 0 = Q = 400 tons d = 16 tons per day L =20 days R 1 = 400 ts /16 ts/ds – 20 ds = 5. day R 2 = 200 ts /10 ts/ds – 8 ds = 12 days after the arrival of the first order = 52+8+12=72. day

Example on both EOQ and R D = 2, 000 tons S = 100 euros per order H = 25 euros per order Q 0 = 1, 000 tons L = 12 days N = 250 days Calculate the following: EOQ d R 1 R 2 EOQ = √ (2 ∙ 2, 000 ts ∙ 100 euro)/25 euro/ts = 126, 49 ts d = 2, 000 ts/250 ds = 8 ts/ts/ds R 1 = 1, 000 ts/8 ts/ds – 12 ds = 113. day R 2 = 126, 49 ts /8 ts/ds – 12 ds = 3, 81 = 3 days after the arrival of the first order = 113+12+3 = 128.

The SAW-TOOTH with safety stock Inventory level Continuous demand Order quantity b Safety stock or buffer stock Time

Buffer (safety) stock b=z∙σ where z = safety factor from the (normal) distribution σ = sandard deviation of daily demand over lead time Let z be 1, 65 (95%), and the standard deviation of daily demand is 200 units/days. b = 1, 65 ∙ 200 units/ds = 330 units

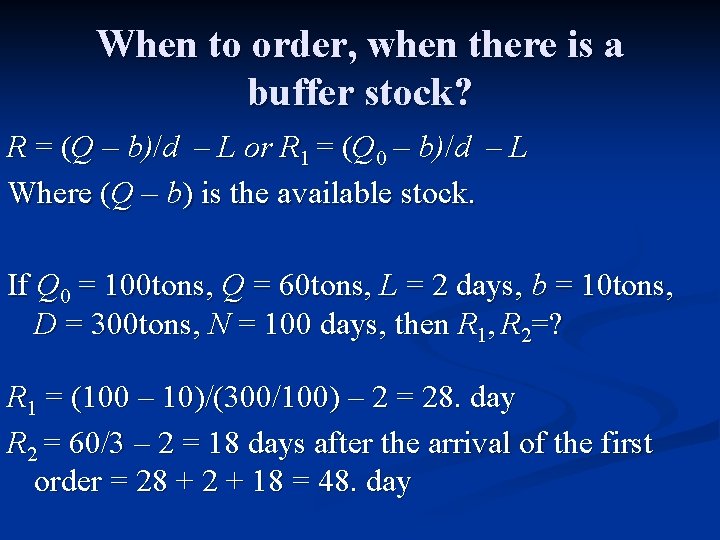

When to order, when there is a buffer stock? R = (Q – b)/d – L or R 1 = (Q 0 – b)/d – L Where (Q – b) is the available stock. If Q 0 = 100 tons, Q = 60 tons, L = 2 days, b = 10 tons, D = 300 tons, N = 100 days, then R 1, R 2=? R 1 = (100 – 10)/(300/100) – 2 = 28. day R 2 = 60/3 – 2 = 18 days after the arrival of the first order = 28 + 2 + 18 = 48. day

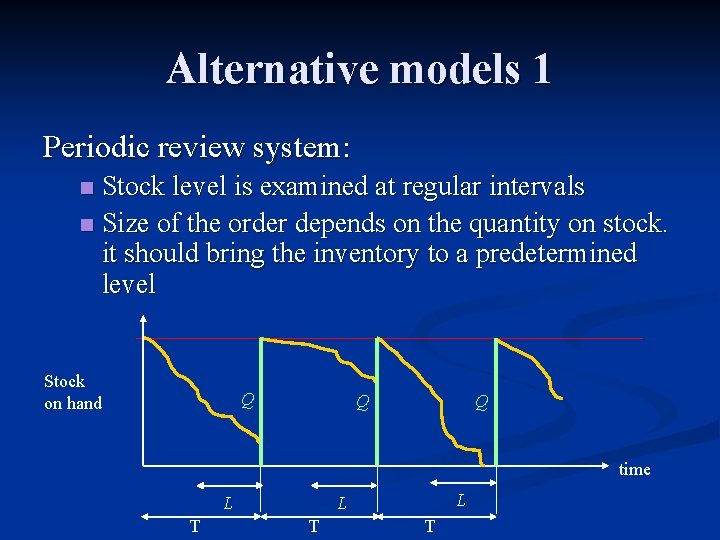

Alternative models 1 Periodic review system: Stock level is examined at regular intervals n Size of the order depends on the quantity on stock. it should bring the inventory to a predetermined level n Stock on hand Q Q Q time T L L L T T

Alternative models 2 Fixed-order-quantity system: A predetermined stock level (reorder point) is given, at which the replenishement order will be placed n The order quantity is constant n Stock on hand Q Q R L L L

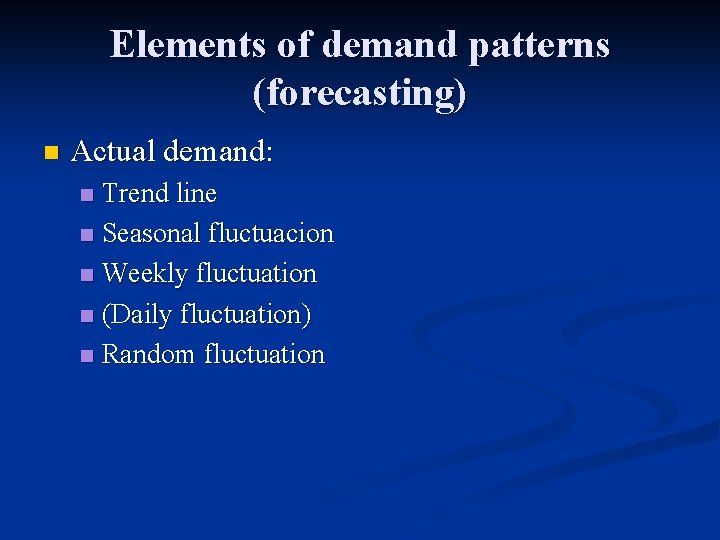

Elements of demand patterns (forecasting) n Actual demand: Trend line n Seasonal fluctuacion n Weekly fluctuation n (Daily fluctuation) n Random fluctuation n

Inventory decisions and Multiple The ‘square root law’: Distribution Centres / warehouses A rule of thumb n n The total safety-stock holding in a distribution system is proportional to the square root of the number of depot locations n Example: If we reduce the number of DCs from 10 to 5, the savings in safety stock is: 1 – (√ 5 / √ 10) = 29% Pareto’s law or the ’ 80/20 rule’: n A rule of thumb n Approximately 20% of storage items account for 80% of the inventory value measured in money. n ABC analysis (or Pareto analysis): n ‘A’ lines: fast movers (20%) – 80% of money usage n ‘B’ lines: medium movers (30%) – 15% of money usage n ‘C’ lines: slow movers (C+D 50%) – 5% of money usage n ‘D’ lines: obsolete / dead stock

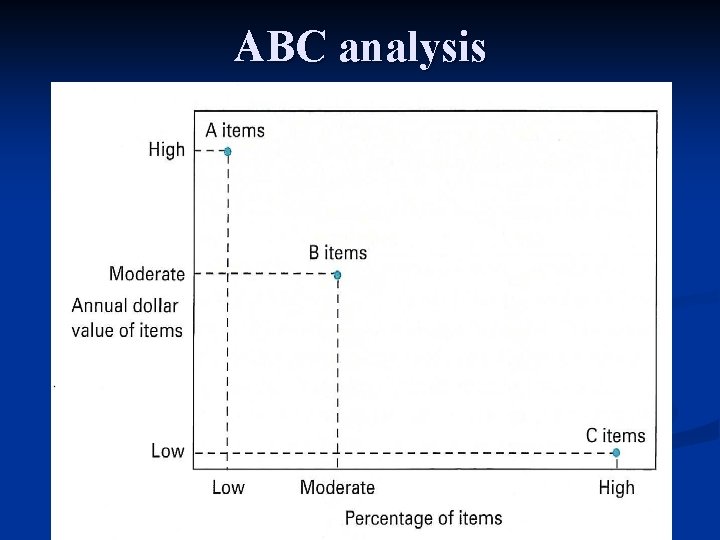

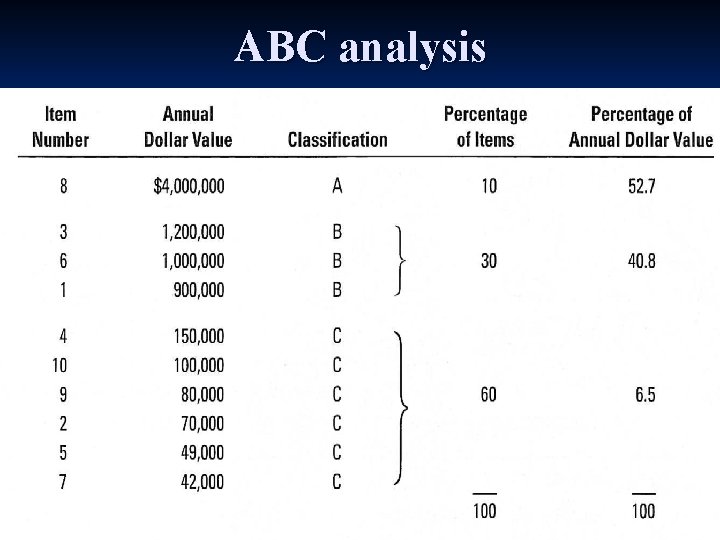

ABC analysis

ABC analysis

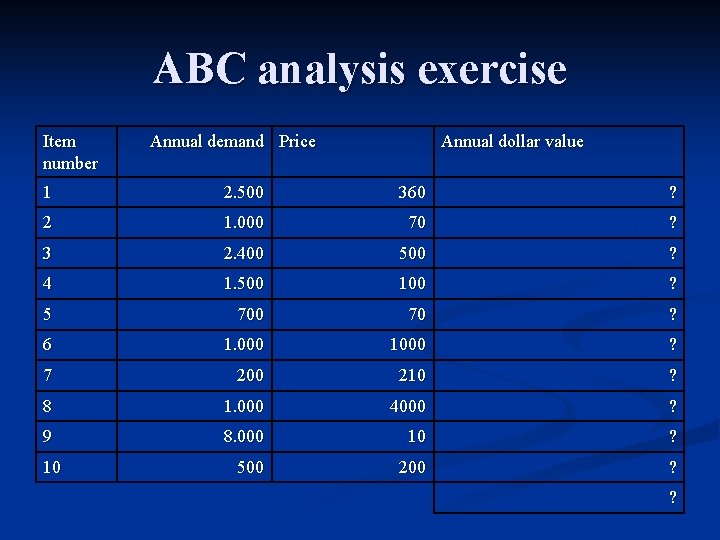

ABC analysis exercise Item number Annual demand Price Annual dollar value 1 2. 500 360 ? 2 1. 000 70 ? 3 2. 400 500 ? 4 1. 500 100 ? 5 700 70 ? 6 1. 000 1000 ? 7 200 210 ? 8 1. 000 4000 ? 9 8. 000 10 ? 500 200 ? 10 ?

ABC analysis exercise Item number Annual demand Price Annual dollar value 1 2. 500 360 900. 000 2 1. 000 70 70. 000 3 2. 400 500 1. 200. 000 4 1. 500 150. 000 5 700 70 49. 000 6 1. 000 7 200 210 42. 000 8 1. 000 4. 000 9 8. 000 10 80. 000 500 200 100. 000 10 ∑ 7. 591. 000

Solution Item number Annual dollar Classification 8 4. 000 3 1. 200. 000 6 1. 000 1 900. 000 4 150. 000 10 100. 000 9 80. 000 2 70. 000 5 49. 000 7 42. 000 Percentage of items Percentage of annual dollar value

Solution Item number Annual dollar Classification 8 4. 000 A 3 1. 200. 000 B 6 1. 000 B 1 900. 000 B 4 150. 000 C 10 100. 000 C 9 80. 000 C 2 70. 000 C 5 49. 000 C 7 42. 000 C ? Percentage of items Percentage of annual dollar value 10 52, 7 30 40, 8 60 6, 5 ?

Data Capture n Techniques and error rates n n n Written entry – 25, 000 in 3, 000 Keyboard entry – 10, 000 in 3, 000 Optical character recognition (OCR) – 100 in 3, 000 n n n labels that are both machine- and human-readable for example: license plates Bar code (code 39) – 1 in 3, 000 n n n (Rushton et al. 2006) fast, accurate and fairly robust reliable and cheap technique Transponders (radio frequency tags) – 1 in 30, 000 n n n a tag (microchip + antenna) affixed to the goods or container receiver antenna reader host station that relays the data to the server can be passive or active

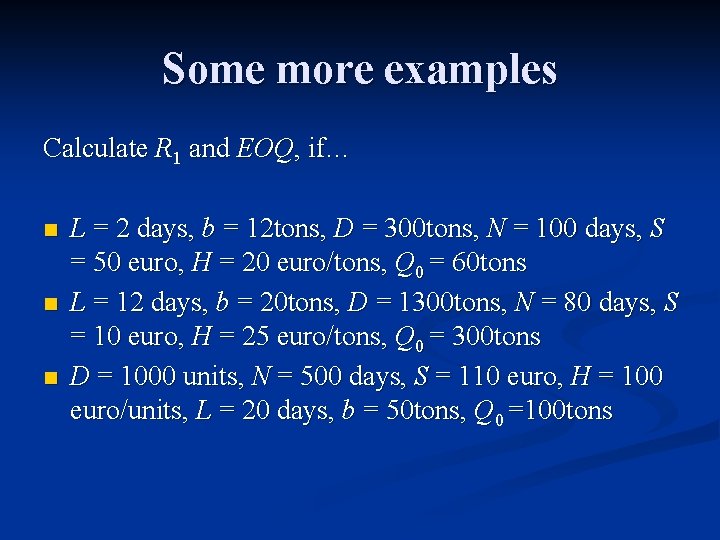

Some more examples Calculate R 1 and EOQ, if… n n n L = 2 days, b = 12 tons, D = 300 tons, N = 100 days, S = 50 euro, H = 20 euro/tons, Q 0 = 60 tons L = 12 days, b = 20 tons, D = 1300 tons, N = 80 days, S = 10 euro, H = 25 euro/tons, Q 0 = 300 tons D = 1000 units, N = 500 days, S = 110 euro, H = 100 euro/units, L = 20 days, b = 50 tons, Q 0 =100 tons
