Inventor modeling and Scene Graph MIT EECS 6. 837 Frédo Durand Seth Teller MIT

Inventor modeling and Scene Graph MIT EECS 6. 837 Frédo Durand Seth Teller MIT EECS 6. 837, Teller and Durand 1

Calendar • Assignment 1: Due Friday 20 at 5 pm • Final projects will

Calendar • Assignment 1: Due Friday 20 at 5 pm • Final projects will be due December 4 • Defense and presentation until December 10 • Dates can vary +/- 2 days MIT EECS 6. 837, Teller and Durand 2

Hierarchical models MIT EECS 6. 837, Teller and Durand 3

Hierarchical models MIT EECS 6. 837, Teller and Durand 3

Hierarchical models MIT EECS 6. 837, Teller and Durand 4

Hierarchical models MIT EECS 6. 837, Teller and Durand 4

Hierarchical models MIT EECS 6. 837, Teller and Durand 5

Hierarchical models MIT EECS 6. 837, Teller and Durand 5

Hierarchical models MIT EECS 6. 837, Teller and Durand 6

Hierarchical models MIT EECS 6. 837, Teller and Durand 6

Hierarchical models MIT EECS 6. 837, Teller and Durand 7

Hierarchical models MIT EECS 6. 837, Teller and Durand 7

Hierarchical models MIT EECS 6. 837, Teller and Durand 8

Hierarchical models MIT EECS 6. 837, Teller and Durand 8

Hierarchical models MIT EECS 6. 837, Teller and Durand 9

Hierarchical models MIT EECS 6. 837, Teller and Durand 9

Overview of Inventor • A suite of tools – Viewer(s) – Utilities • An

Overview of Inventor • A suite of tools – Viewer(s) – Utilities • An API – C++ set of classes for 3 D display and manipulation • File format – ASCII or binary – Later became VRML • Virtual Reality Modeling Language • Internet 3 D format MIT EECS 6. 837, Teller and Durand 10

Demo • View models • Show application developed under inventor • Look at. iv

Demo • View models • Show application developed under inventor • Look at. iv file MIT EECS 6. 837, Teller and Durand 11

Hierarchical modeling & scene graph • • Define relative layout of objects Basic idea:

Hierarchical modeling & scene graph • • Define relative layout of objects Basic idea: Hierarchical Tree Useful abstraction Useful for manipulation – Especially for articulated figures • Useful for rendering too • Heavy use of transformations – World/object space MIT EECS 6. 837, Teller and Durand 12

Questions? MIT EECS 6. 837, Teller and Durand 13

Questions? MIT EECS 6. 837, Teller and Durand 13

Today: Inventor modeling • A simple modeling example • Inventor tools • Inventor representation

Today: Inventor modeling • A simple modeling example • Inventor tools • Inventor representation • More complex objects MIT EECS 6. 837, Teller and Durand 14

Object and World Space Modeling • Object space a sort of “workbench" where components

Object and World Space Modeling • Object space a sort of “workbench" where components are assembled, combined • World space is a “canvas" on/in which finished objects are placed • But: often useful to view both ways • Usually, required transformations, ordering obvious • Example: Boat, sub, articulated grasper arm, treasure MIT EECS 6. 837, Teller and Durand 15

Simple modeling • Model a boat with an articulated grasp arm MIT EECS 6.

Simple modeling • Model a boat with an articulated grasp arm MIT EECS 6. 837, Teller and Durand 16

Simple bottom-up modeling • Model a boat with an articulated grasp arm MIT EECS

Simple bottom-up modeling • Model a boat with an articulated grasp arm MIT EECS 6. 837, Teller and Durand 17

Modeling the boat # boat, version 1 Switch { DEF boat Separator { Material

Modeling the boat # boat, version 1 Switch { DEF boat Separator { Material { diffuse. Color 1 0 0 } # RGB (red) Coordinate 3 { point [ 0 0 0, 5 0 0, 7 2 0, 4 1. 5 0, 1. 5 2 0, 0 2 0] } # Coordinate 3 Indexed. Face. Set { coord. Index [ 0, 1, 2, 3, 4, 5, 6, 7, -1 ] } } } # Switch MIT EECS 6. 837, Teller and Durand 18

Modeling the robot arm # grasper Switch { DEF grasper Separator { Material {

Modeling the robot arm # grasper Switch { DEF grasper Separator { Material { diffuse. Color 0 1 1 } Coordinate 3 { point [ -2 -1 0, -0. 5 -1 0, 2 -1 0, 1. 5 3 0, 1 1 0, 0. 5 1 0, -1 3 0, -1. 5 3 0 ] } # Coordinate 3 Indexed. Face. Set { coord. Index [ 0, 1, 8, 9, 10, 11, -1, 2, 3, 4, 5, 6, 7, -1 ] } } } # Switch MIT EECS 6. 837, Teller and Durand 19

Exploit symmetry # grasper alternative Switch { DEF grasper Separator { Material { diffuse.

Exploit symmetry # grasper alternative Switch { DEF grasper Separator { Material { diffuse. Color 0 1 1 } Coordinate 3 { point [ -2 -1 0, -0. 5 1 0, -1 3 0, -1. 5 3 0 ] } # Coordinate 3 Face. Set { num. Vertices [ 6 ] } Scale { scale. Factor -1 1 1 } # why ? Face. Set { num. Vertices [ 6 ] } } } # Switch MIT EECS 6. 837, Teller and Durand 20

Forearm (with use of grasper) # forearm Switch { DEF forearm Separator { Material

Forearm (with use of grasper) # forearm Switch { DEF forearm Separator { Material { diffuse. Color 1 0 1 } # magenta Coordinate 3 { point [ 0 -0. 5 0, 4 0. 5 0, 0 0. 5 0 ] } # Coordinate 3 Indexed. Face. Set { coord. Index [ 0, 1, 2, 3, -1 ] } # instance grasper Translation { translation 3. 5 0 0 } Rotation. XYZ { axis Z angle -1 } USE grasper } } # Switch MIT EECS 6. 837, Teller and Durand 21

Arm (uses forearm that uses grasper) # arm Switch { DEF arm Separator {

Arm (uses forearm that uses grasper) # arm Switch { DEF arm Separator { Material { diffuse. Color 1 0. 5 0 } Coordinate 3 { point [ 0 -0. 5 0, 4 0. 5 0, 0 0. 5 0 ] } # Coordinate 3 Indexed. Face. Set { coord. Index [ 0, 1, 2, 3, -1 ] } # instance forearm Translation { translation 3. 5 0 0 } Scale { scale. Factor 0. 5 0 } Rotation. XYZ { axis Z angle -0. 25 } # joint angle wrt. mount USE forearm } } # Switch MIT EECS 6. 837, Teller and Durand 22

Robot (uses…) # robot Switch { DEF robot Separator { Material { diffuse. Color

Robot (uses…) # robot Switch { DEF robot Separator { Material { diffuse. Color 0 1 0 } Coordinate 3 { point [ 0 0 0, 2 0 0, 3 1 0, 2 2 0, 0 2 0 ] } # Coordinate 3 Indexed. Face. Set { coord. Index [ 0, 1, 2, 3, 4, -1 ] } # instance entire arm Translation { translation 2 1 0 } Scale { scale. Factor 0. 5 0 } Rotation. XYZ { axis Z angle 0. 5 } # joint angle wrt. mount USE arm } } # Switch MIT EECS 6. 837, Teller and Durand 23

Placing robot on boat # boat, version 2 Switch { DEF boat Separator {

Placing robot on boat # boat, version 2 Switch { DEF boat Separator { Material { diffuse. Color 1 0 0 } Coordinate 3 {point [ 0 0 0, 5 0 0, 7 2 0, 4 1. 5 0, 1. 5 2 0, 0 2 0] } # Coordinate 3 Indexed. Face. Set { coord. Index [ 0, 1, 2, 3, 4, 5, 6, 7, -1 ] } # instance robot wrt boat Translation { translation 5 2 0 } # on board (up) Scale { scale. Factor 0. 5 0 } USE robot } } # Switch MIT EECS 6. 837, Teller and Durand 24

Gold coin # coin Switch { DEF coin Separator { Material { diffuse. Color

Gold coin # coin Switch { DEF coin Separator { Material { diffuse. Color 0. 8 0. 6 0 } # gold Coordinate 3 { point [ -1 -2 0, 2 -1 0, 2 1 0, 1 2 0, -2 1 0, -2 -1 0 ] } # Coordinate 3 Face. Set { num. Vertices [ 8 ] } } } # Switch MIT EECS 6. 837, Teller and Durand 25

Placing coin and robot in the ocean # boat, version 3 Switch { DEF

Placing coin and robot in the ocean # boat, version 3 Switch { DEF boat Separator {. . . # instance robot sub wrt boat Translation { translation 1. 5 -4 0 } # diving Scale { scale. Factor 0. 5 0 } USE robot } } # Switch # place boat on sea surface Separator { Translation { translation -8 -0. 5 0 } Scale { scale. Factor 2. 5 0 } USE boat } # place coin on sea bottom Separator { Translation { translation 3 -10 0 } Scale { scale. Factor 0. 25 0 } USE coin } MIT EECS 6. 837, Teller and Durand 26

How to grasp the coin? MIT EECS 6. 837, Teller and Durand 27

How to grasp the coin? MIT EECS 6. 837, Teller and Durand 27

Questions? MIT EECS 6. 837, Teller and Durand 28

Questions? MIT EECS 6. 837, Teller and Durand 28

Today: Inventor modeling • A simple modeling example • Inventor tools • Inventor representation

Today: Inventor modeling • A simple modeling example • Inventor tools • Inventor representation • More complex objects MIT EECS 6. 837, Teller and Durand 29

Inventor tools • Scene. Viewer MIT EECS 6. 837, Teller and Durand 30

Inventor tools • Scene. Viewer MIT EECS 6. 837, Teller and Durand 30

Interaction • • • Interaction Modes & Icons Default: 3 D Viewer (hand icon)

Interaction • • • Interaction Modes & Icons Default: 3 D Viewer (hand icon) Trackball, Walk, Fly, Plane view Also Select, Help, Home, Set Home, Center, Set Center, Ortho/Perspective MIT EECS 6. 837, Teller and Durand 31

Selection MIT EECS 6. 837, Teller and Durand 32

Selection MIT EECS 6. 837, Teller and Durand 32

Manipulators • Trackball • Tab Box • Jack MIT EECS 6. 837, Teller and

Manipulators • Trackball • Tab Box • Jack MIT EECS 6. 837, Teller and Durand 33

Light Creation/Editing • Point, Directional, Spot MIT EECS 6. 837, Teller and Durand 34

Light Creation/Editing • Point, Directional, Spot MIT EECS 6. 837, Teller and Durand 34

Material / Color Editing • Editors – Material, Color • Enabled only when some

Material / Color Editing • Editors – Material, Color • Enabled only when some entity is selected MIT EECS 6. 837, Teller and Durand 35

Questions? MIT EECS 6. 837, Teller and Durand 36

Questions? MIT EECS 6. 837, Teller and Durand 36

Today: Inventor modeling • A simple modeling example • Inventor tools • Inventor representation

Today: Inventor modeling • A simple modeling example • Inventor tools • Inventor representation • More complex objects MIT EECS 6. 837, Teller and Durand 37

Inventor Representations • Basic idea: Tree • Comprised of several node types: – Shape:

Inventor Representations • Basic idea: Tree • Comprised of several node types: – Shape: 3 D geometric objects – Transform: Affect current transformation – Property: Appearance, texture, etc. – Group: Collection of subgraphs MIT EECS 6. 837, Teller and Durand 38

Inventor Representations • • In fact, Scene graph Directed Acyclic Graph (DAG) Allows multiple

Inventor Representations • • In fact, Scene graph Directed Acyclic Graph (DAG) Allows multiple instantiations Cycle forbidden – because infinite recursions MIT EECS 6. 837, Teller and Durand 39

Traversal • Breadth first – Top to bottom, left to right MIT EECS 6.

Traversal • Breadth first – Top to bottom, left to right MIT EECS 6. 837, Teller and Durand 40

Traversal State • The State is updated during traversal – Transformations, properties – Influence

Traversal State • The State is updated during traversal – Transformations, properties – Influence of nodes can be complex – E. g. bottom to top MIT EECS 6. 837, Teller and Durand 41

Built-In Geometric Primitives • Trivial example: #Inventor V 2. 1 ascii Cube {} Primitive

Built-In Geometric Primitives • Trivial example: #Inventor V 2. 1 ascii Cube {} Primitive attributes: Default W, H, D (for cubes, spheres, cones, etc. ); Default Color; Material; etc Traversal state (all defaulted for now): Transform; Lights; Material; etc. MIT EECS 6. 837, Teller and Durand 42

Definition & Instantiation Switch { DEF unitcube Cube {} } # Switch Separator {

Definition & Instantiation Switch { DEF unitcube Cube {} } # Switch Separator { Scale { scale. Factor 1 1 2 } USE unitcube } # Separator MIT EECS 6. 837, Teller and Durand 43

Useful scene graph: Axes Separator { Translation { translation 2 0 0 } Scale

Useful scene graph: Axes Separator { Translation { translation 2 0 0 } Scale { scale. Factor 4. 0 0. 25 } Material { diffuse. Color 1 0 0 } Cube {} } # Separator {. . . Material { diffuse. Color 0 1 0 } Cube {} } # Separator. . . Separator {. . . Sphere {} } # Separator MIT EECS 6. 837, Teller and Durand 44

Persistence of Traversal State # place two boats on surface (surprising result ? )

Persistence of Traversal State # place two boats on surface (surprising result ? ) Separator { Translation { translation -8 3 0 } USE boat Translation { translation 2 3 0 } USE boat } MIT EECS 6. 837, Teller and Durand 45

Separator Nodes # place two boats on surface (expected result) Separator { Translation {

Separator Nodes # place two boats on surface (expected result) Separator { Translation { translation -8 3 0 } USE boat } Separator { Translation { translation 2 3 0 } USE boat } Pushes (saves) state when encountered Pops (restores) state when encountered MIT EECS 6. 837, Teller and Durand 46

Composing Transformations. . . Separator { Rotation { rotation 0 0 1 0. 5

Composing Transformations. . . Separator { Rotation { rotation 0 0 1 0. 5 } # axis, angle Translation { translation 3 0 0 } USE boat } # Separator . . . Separator { Translation{ translation 3 0 0 } Rotation { rotation 0 0 1 0. 5 } # axis, angle USE boat } # Separator MIT EECS 6. 837, Teller and Durand 47

Material Properties To color with “intrinsic material“ (constant color): . . . Light. Model

Material Properties To color with “intrinsic material“ (constant color): . . . Light. Model { model BASE_COLOR } File { name "coordaxes. iv" } Separator { Material { diffuse. Color 0. 8 0. 0 } Sphere {} } # Separator MIT EECS 6. 837, Teller and Durand 48

Using a Lighting Model To shade with “lighting model": . . . Light. Model

Using a Lighting Model To shade with “lighting model": . . . Light. Model { model PHONG } Directional. Light { intensity 1 color 1 1 1 direction -1 -1 -1 # "shining" this dir } Separator { Material { diffuse. Color 0. 25 specular. Color 0. 8 shininess 0. 9 } # Material Sphere {} } # Separator MIT EECS 6. 837, Teller and Durand 49

Polyhedral Objects Separator { Coordinate 3 { point [ -1 1 1, -1 -1

Polyhedral Objects Separator { Coordinate 3 { point [ -1 1 1, -1 -1 1, 1 1 1, -1 1 -1, -1 -1 -1, 1 1 -1 ] } # Coordinate 3 Indexed. Face. Set { # multiple faces coord. Index [ 0, 1, 2, 3, -1, # vertex ids, -1 ends face 3, 2, 6, 7, -1, 7, 6, 5, 4, -1, 4, 5, 1, 0, -1, 0, 3, 7, 4, -1, 1, 5, 6, 2, -1 ] } # Indexed. Face. Set } # Separator MIT EECS 6. 837, Teller and Durand 50

Specifying Face Normals, Colors # primarycube. iv Separator { # cube vertices Coordinate 3

Specifying Face Normals, Colors # primarycube. iv Separator { # cube vertices Coordinate 3 { point […. . ] } #coordinate 3 # face normals, per-face Normal { vector [-1 0 0, 0 -1 0, 0 0 -1, 0 0 1, ] } # Normal # assign normals per face Normal. Binding { value PER_PART } # face colors, per-face Base. Color { # set diffuse colors rgb [ 1 0 0, # 0, red 0 1 0, # 1, green 0 0 1, # 2, blue 0 MIT 1 EECS 1, # 6. 837, 3, ~red Teller and Durand 51

Normals, Colors Per Vertex. . . Material. Binding { value PER_VERTEX_INDEXED }. . .

Normals, Colors Per Vertex. . . Material. Binding { value PER_VERTEX_INDEXED }. . . material. Index [ # color ids; per face, then per vertex 0, 1, 2, 3, -1, # -x 0, 1, 2, 3, -1, # +x 0, 1, 2, 3, -1, # -y 0, 1, 2, 3, -1, # +y 0, 1, 2, 3, -1, # -z 0, 1, 2, 3, -1 # +z ] MIT EECS 6. 837, Teller and Durand 52

Questions? MIT EECS 6. 837, Teller and Durand 53

Questions? MIT EECS 6. 837, Teller and Durand 53

Today: Inventor modeling • A simple modeling example • Inventor tools • Inventor representation

Today: Inventor modeling • A simple modeling example • Inventor tools • Inventor representation • More complex objects MIT EECS 6. 837, Teller and Durand 54

File Inclusion #Inventor V 2. 1 ascii # file cubesphere. iv, a cube and

File Inclusion #Inventor V 2. 1 ascii # file cubesphere. iv, a cube and sphere. Switch { DEF mycube Separator { Cube { height 4 } } DEF mysphere Separator { Sphere { radius 2. } } } # top-level Separator is optional USE mycube USE mysphere # end of cubesphere. iv MIT EECS 6. 837, Teller and Durand 55

File Inclusion & Instancing #Inventor V 2. 1 ascii # instance 2 cubespheres. Switch

File Inclusion & Instancing #Inventor V 2. 1 ascii # instance 2 cubespheres. Switch { DEF cubesphere # call it what you wish File { name "cubesphere. iv" } } Separator { Translation { translation 2 0 0 } Scale { scale. Factor 2 2 1 } USE cubesphere } Separator { Translation { translation -2 0 0 } Scale { scale. Factor 1 1 2 } USE cubesphere } MIT EECS 6. 837, Teller and Durand 56

Hierarchical Instancing #Inventor V 2. 1 ascii File { name "coordaxes. iv" } Switch

Hierarchical Instancing #Inventor V 2. 1 ascii File { name "coordaxes. iv" } Switch { DEF fourcubes Separator { Translation { translation -1 -1 -1 } Scale { scale. Factor 0. 5 } Cube {} } # Separator. . . Separator { Translation { translation 1 -1 -1 } Scale { scale. Factor 0. 5 } Cube {} } # Separator }} USE fourcubes Translation { translation 0 0 2 } USE fourcubes MIT EECS 6. 837, Teller and Durand 57

Hierarchical Instancing #Inventor V 2. 1 ascii Switch {DEF eightcubes File { name "eightcubes.

Hierarchical Instancing #Inventor V 2. 1 ascii Switch {DEF eightcubes File { name "eightcubes. iv" }} Switch { DEF fourgroups Separator { Translation { translation -1 -1 -1 } Scale { scale. Factor 0. 5 } USE eightcubes } # Separator. . . Separator { Translation { translation 1 -1 -1 } Scale { scale. Factor 0. 5 } USE eightcubes } # Separator }} USE fourgroups Translation { translation 0 0 2 } USE fourgroups MIT EECS 6. 837, Teller and Durand 58

Modeling Complex Structures • Use simple hierarchy when: – natural “ownership" relation exists –

Modeling Complex Structures • Use simple hierarchy when: – natural “ownership" relation exists – repetitive structure occurs – simple shapes reoccur • Some entities require generalized hierarchy – graphs, networks, etc. • Some entities have no hierarchical structure – induce one with spatial data structures MIT EECS 6. 837, Teller and Durand 59

Smooth Surfaces with Polygons • Example: Sphere, using Spherical Coordinates MIT EECS 6. 837,

Smooth Surfaces with Polygons • Example: Sphere, using Spherical Coordinates MIT EECS 6. 837, Teller and Durand 60

Example: Faceted Sphere • Method 1: Explicit Parametrization • What range should , q,

Example: Faceted Sphere • Method 1: Explicit Parametrization • What range should , q, j take for sphere? – Advantages? Disadvantages? MIT EECS 6. 837, Teller and Durand 61

Projective Methods • Start with a regular polyhedron, with cospherical vertices (by definition) •

Projective Methods • Start with a regular polyhedron, with cospherical vertices (by definition) • Subdivide each (planar) face • Project new vertices onto sphere • Recurse MIT EECS 6. 837, Teller and Durand 62

Subdivision • Center-based, edge-based MIT EECS 6. 837, Teller and Durand 63

Subdivision • Center-based, edge-based MIT EECS 6. 837, Teller and Durand 63

Projection • Sphere equation (implicit): x 2 + y 2 + z 2 =

Projection • Sphere equation (implicit): x 2 + y 2 + z 2 = r 2 • Ray from origin to vertex vx; vy; vz (explicit): – (0; 0; 0) + t(vx; vy; vz) • Plug in: t 2 (vx 2 + vy 2 + vz 2) = r 2 • Solve for t, plug in to explicit expression MIT EECS 6. 837, Teller and Durand 64

Recursion • How many triangles after n recursion steps? (consider initial tetrahedron as n

Recursion • How many triangles after n recursion steps? (consider initial tetrahedron as n = 1) • Does this scheme exhibit any degeneracies? • What is surface normal at projected vertex (vx; vy; vz) MIT EECS 6. 837, Teller and Durand 65

Regular polyhedra • • • Tetrahedron Cube Octahedron Dodecahedron Icosahedron Models courtesy of –

Regular polyhedra • • • Tetrahedron Cube Octahedron Dodecahedron Icosahedron Models courtesy of – The Encyclopedia of Polyhedra By George W. Hart – http: //www. georgehart. com/virtual-polyhedra/vp. html MIT EECS 6. 837, Teller and Durand 66

Quadrics • Implicit surfaces of form • Or, can be expressed as Ax 2

Quadrics • Implicit surfaces of form • Or, can be expressed as Ax 2 + 2 Bxy + 2 Cxz + 2 Dx + Ey 2 +2 Fyz + 2 Gy + Hz 2 + 2 Iz + J = 0 • Quadrica Page – http: //www 3. kawase-h. ed. jp/Teachers/~Takahashi/Quadrica. html • http: //amath. colorado. edu/appm/staff/fast/java/qg. html MIT EECS 6. 837, Teller and Durand 67

Parametrizing Complex Objects • Example: Torus ? ? ? MIT EECS 6. 837, Teller

Parametrizing Complex Objects • Example: Torus ? ? ? MIT EECS 6. 837, Teller and Durand 68

Free-Form Surfaces: Bézier Patches Separator { Coordinate 3 { point [ -1. 5 0,

Free-Form Surfaces: Bézier Patches Separator { Coordinate 3 { point [ -1. 5 0, -0. 5 -1. 5 0, . . . 0. 5 1. 5 0, ] } # Coordinate 3 Indexed. Nurbs. Surface { num. UControl. Points 4 num. VControl. Points 4 u. Knot. Vector [ 0, 0, 1, 1, 1, 1 ] v. Knot. Vector [ 0, 0, 1, 1, 1, 1 ] coord. Index [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 ] } # Indexed. Nurbs. Surface } MIT EECS 6. 837, Teller and Durand 69

Fractals: Self-similar objects • Recursive construction rules yield regular fractals – von Koch snowflake

Fractals: Self-similar objects • Recursive construction rules yield regular fractals – von Koch snowflake – Sub-objects need not be connected: – Three-D construction rules abound: MIT EECS 6. 837, Teller and Durand 70

Fractal Objects • Sierpinski's gadget (area, volume in limit? ) • (Credit: Unreal image,

Fractal Objects • Sierpinski's gadget (area, volume in limit? ) • (Credit: Unreal image, rendered on Amiga) • Other versions possible MIT EECS 6. 837, Teller and Durand 71

Terrain: irregular fractal generation • Usually height fields, i. e. , z = f(x;

Terrain: irregular fractal generation • Usually height fields, i. e. , z = f(x; y) • Displacements can be random – Subdivision and displacement • Can also use randomness for (e. g. ) – geometric perturbations – parameter settings – material properties MIT EECS 6. 837, Teller and Durand 72

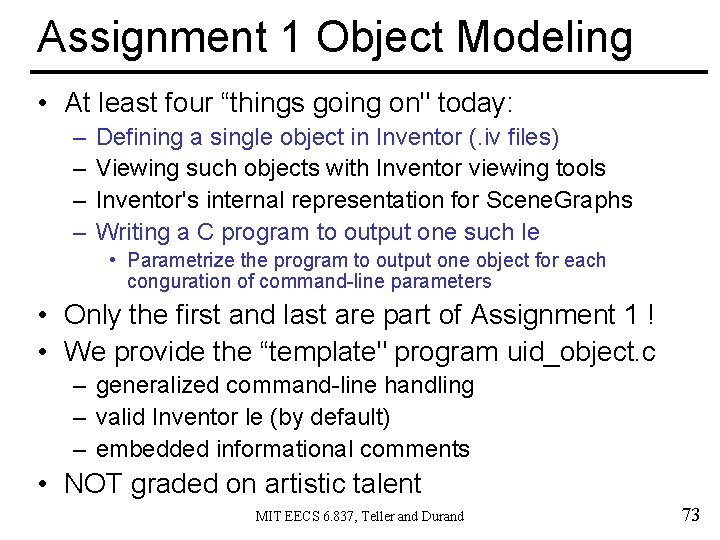

Assignment 1 Object Modeling • At least four “things going on" today: – –

Assignment 1 Object Modeling • At least four “things going on" today: – – Defining a single object in Inventor (. iv files) Viewing such objects with Inventor viewing tools Inventor's internal representation for Scene. Graphs Writing a C program to output one such le • Parametrize the program to output one object for each conguration of command-line parameters • Only the first and last are part of Assignment 1 ! • We provide the “template" program uid_object. c – generalized command-line handling – valid Inventor le (by default) – embedded informational comments • NOT graded on artistic talent MIT EECS 6. 837, Teller and Durand 73

Parametric Modeling • You should support at least four parameter types: – Existence -

Parametric Modeling • You should support at least four parameter types: – Existence - a binary attribute – Continuous - some arbitrary-valued attribute – Discrete - some integer-valued attribute – Material - a modifier for the surface properties • Extensions: – Animation (Rotor, Shuttle, Engines, etc. ) – Constraint: object must render at 5 Hz on a PC (can use ivview -q to optimize) MIT EECS 6. 837, Teller and Durand 74

Next Time • Rendering Pipeline MIT EECS 6. 837, Teller and Durand 75

Next Time • Rendering Pipeline MIT EECS 6. 837, Teller and Durand 75
