Invariant Scattering Convolution Networks Hasanov Vagif 2014. 06. 19

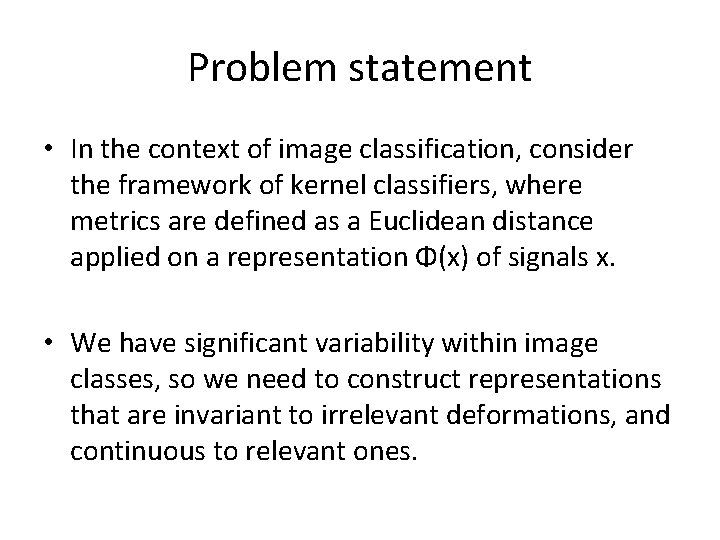

Problem statement • In the context of image classification, consider the framework of kernel classifiers, where metrics are defined as a Euclidean distance applied on a representation Φ(x) of signals x. • We have significant variability within image classes, so we need to construct representations that are invariant to irrelevant deformations, and continuous to relevant ones.

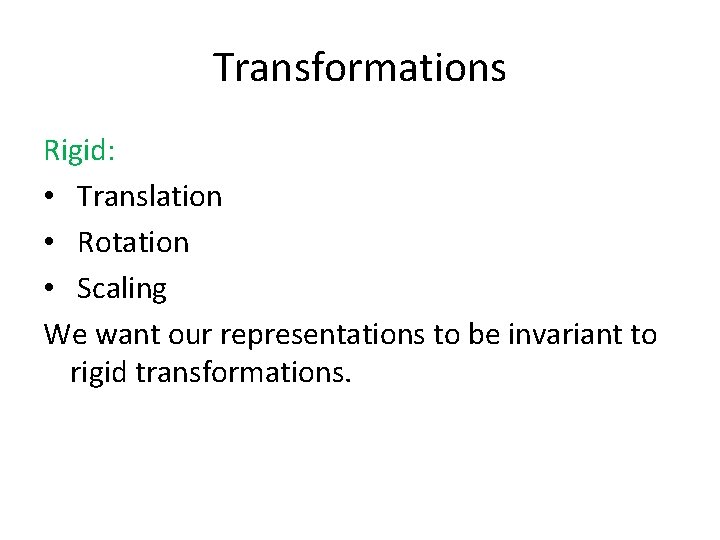

Transformations Rigid: • Translation • Rotation • Scaling We want our representations to be invariant to rigid transformations.

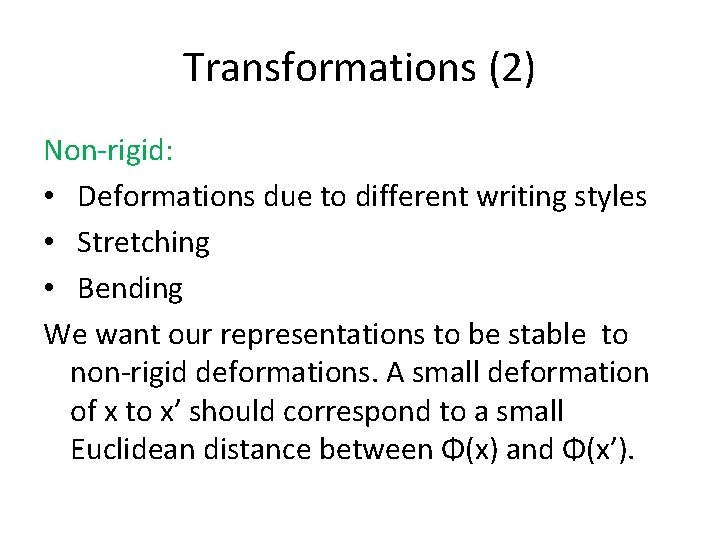

Transformations (2) Non-rigid: • Deformations due to different writing styles • Stretching • Bending We want our representations to be stable to non-rigid deformations. A small deformation of x to x’ should correspond to a small Euclidean distance between Φ(x) and Φ(x’).

Transformations of handwritten digits

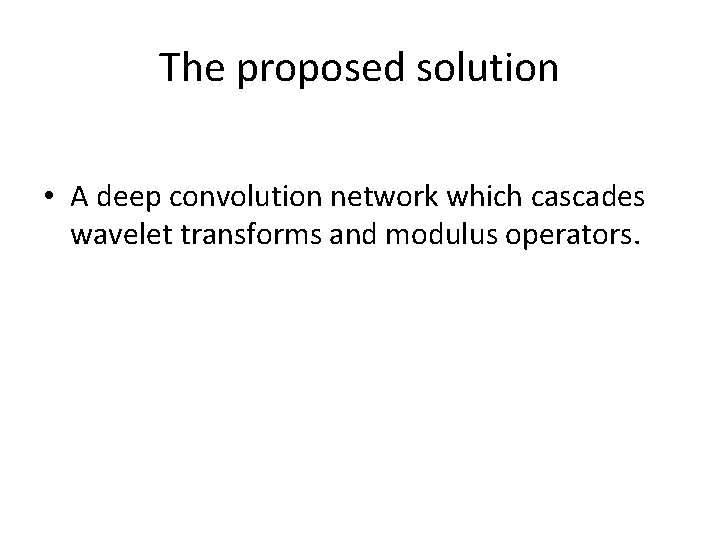

The proposed solution • A deep convolution network which cascades wavelet transforms and modulus operators.

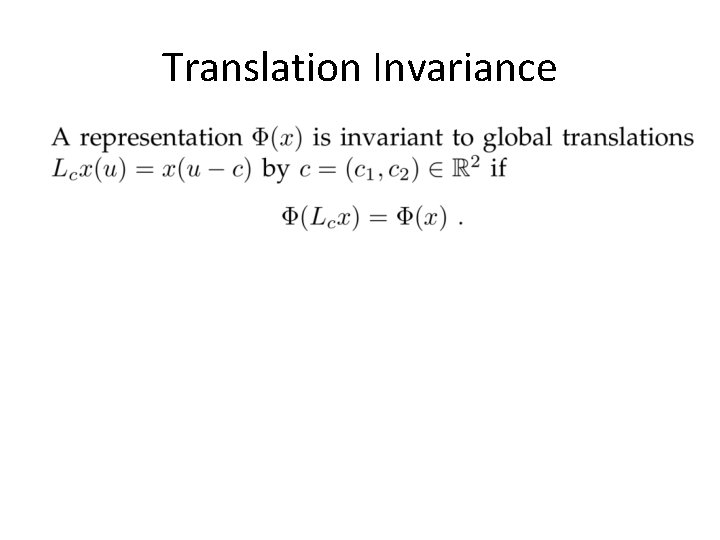

Translation Invariance

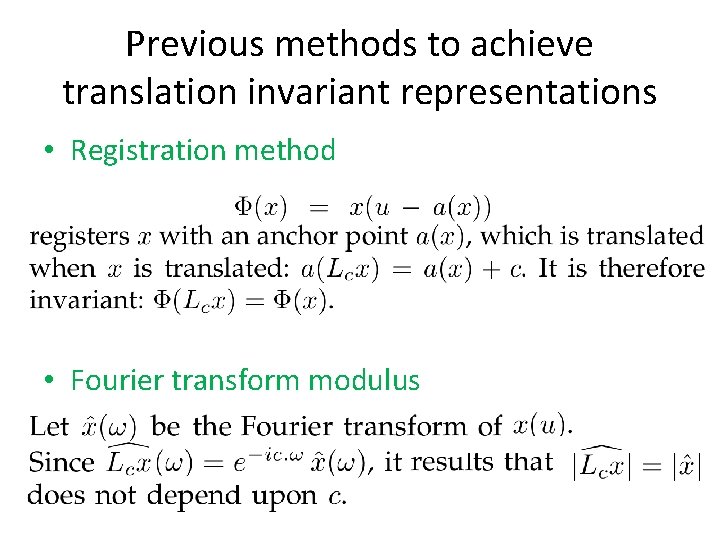

Previous methods to achieve translation invariant representations • Registration method • Fourier transform modulus

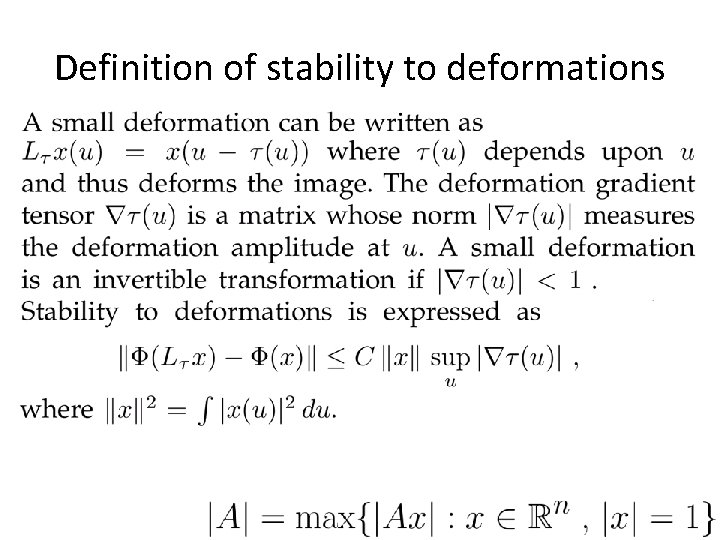

Definition of stability to deformations

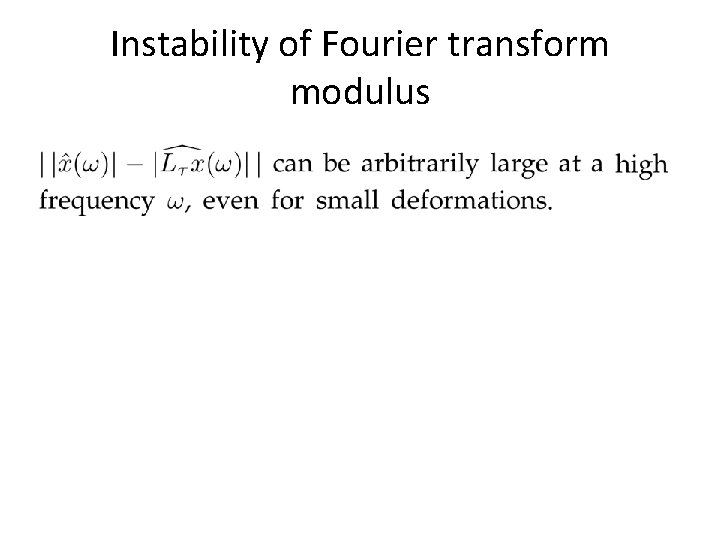

Instability of Fourier transform modulus

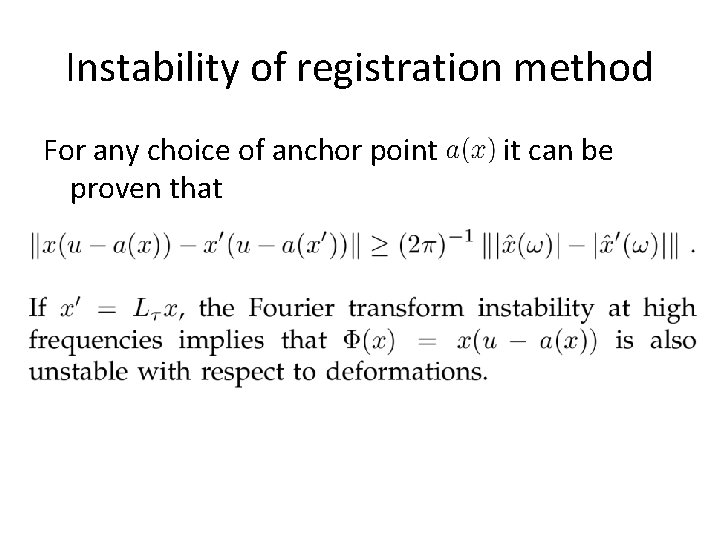

Instability of registration method For any choice of anchor point proven that it can be

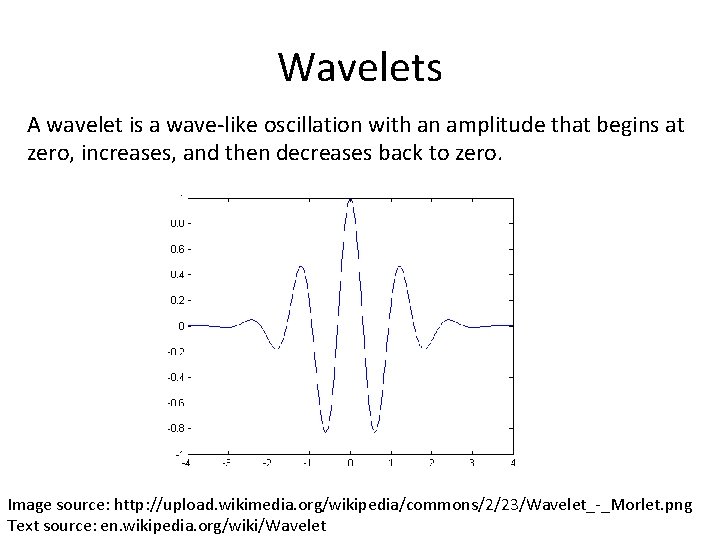

Wavelets A wavelet is a wave-like oscillation with an amplitude that begins at zero, increases, and then decreases back to zero. Image source: http: //upload. wikimedia. org/wikipedia/commons/2/23/Wavelet_-_Morlet. png Text source: en. wikipedia. org/wiki/Wavelet

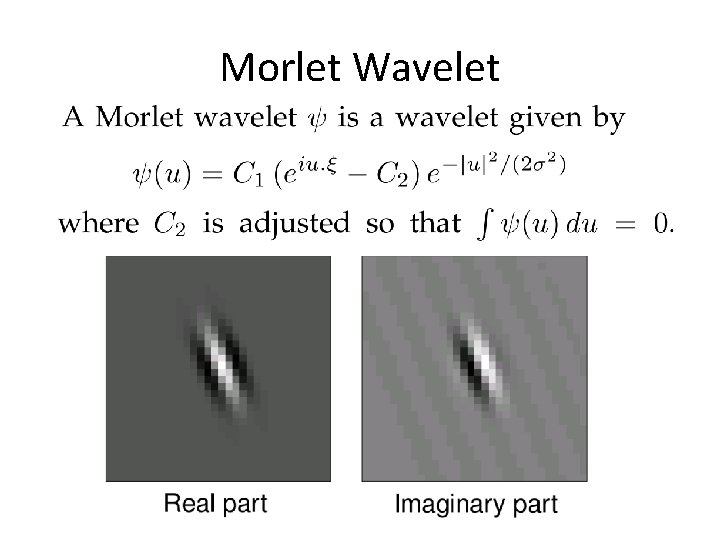

Morlet Wavelet

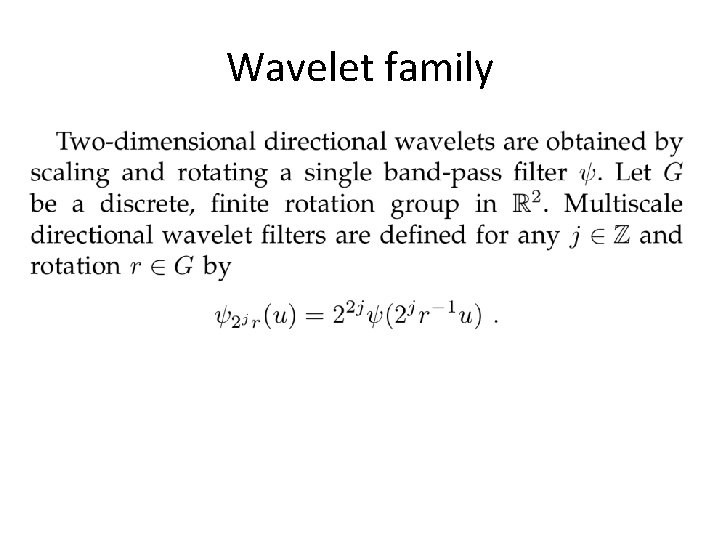

Wavelet family

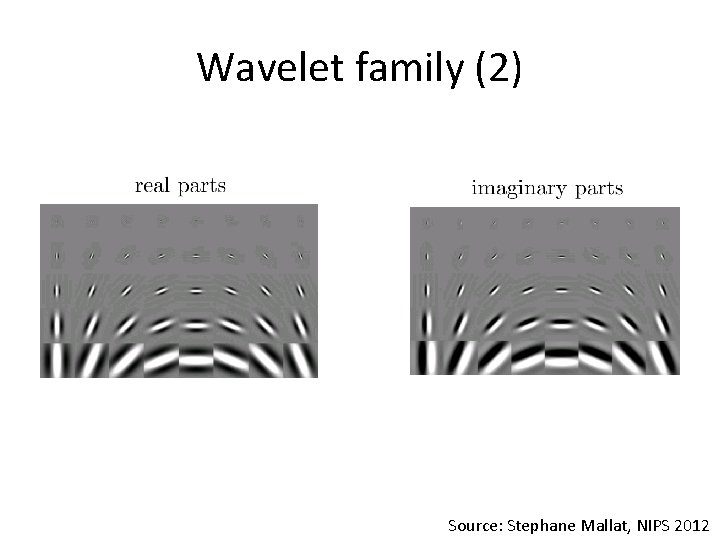

Wavelet family (2) Source: Stephane Mallat, NIPS 2012

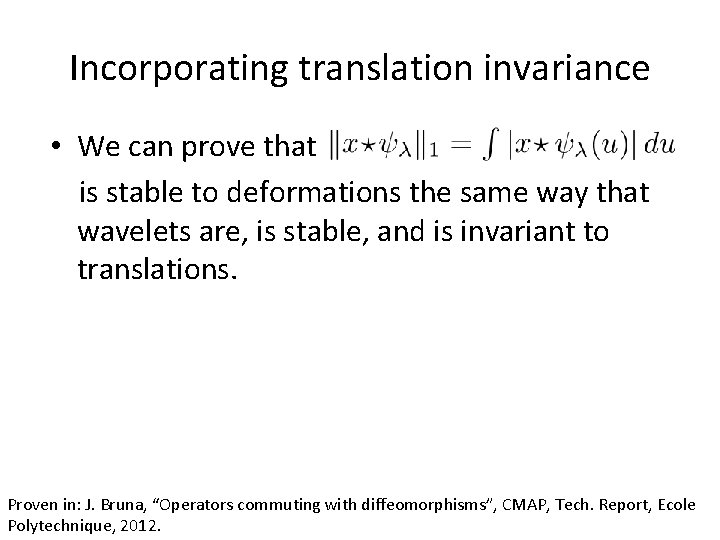

Incorporating translation invariance • We can prove that is stable to deformations the same way that wavelets are, is stable, and is invariant to translations. Proven in: J. Bruna, “Operators commuting with diffeomorphisms”, CMAP, Tech. Report, Ecole Polytechnique, 2012.

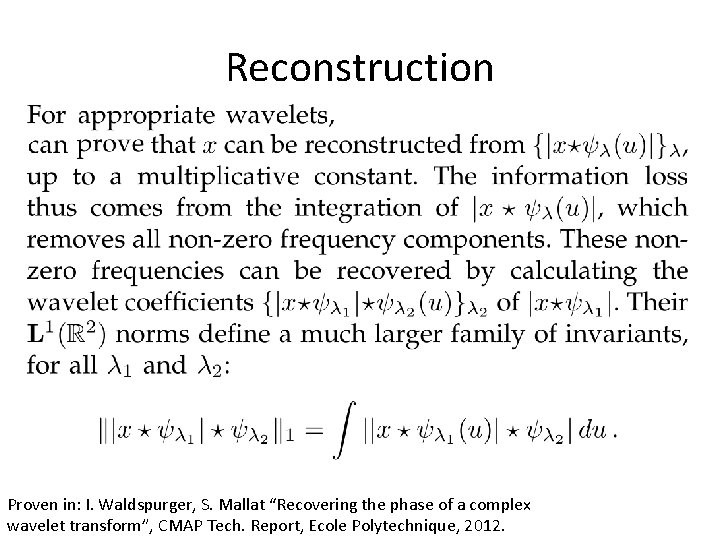

Reconstruction Proven in: I. Waldspurger, S. Mallat “Recovering the phase of a complex wavelet transform”, CMAP Tech. Report, Ecole Polytechnique, 2012.

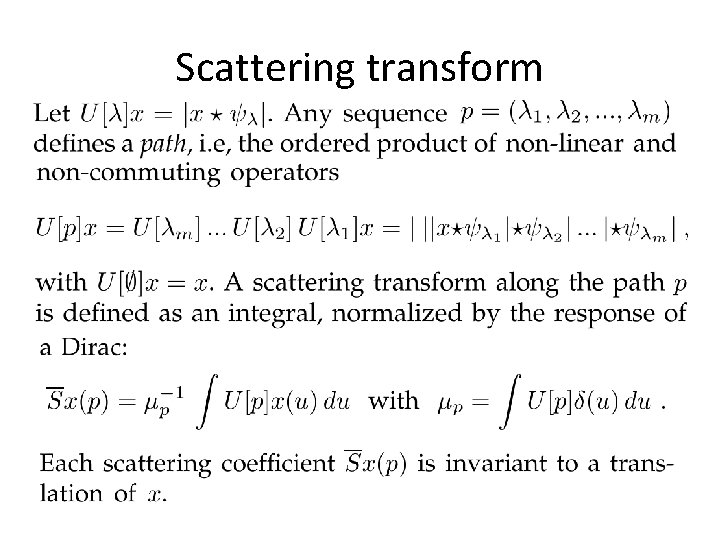

Scattering transform

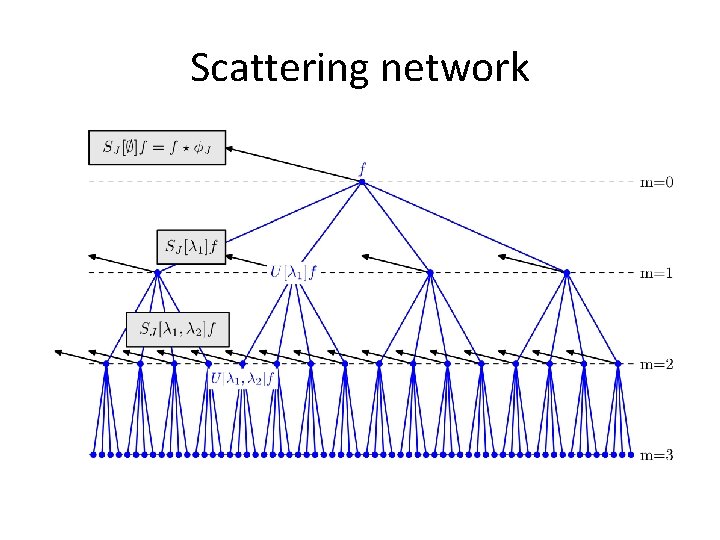

Scattering network
