Invariant Points Worksheet B The worksheet is in

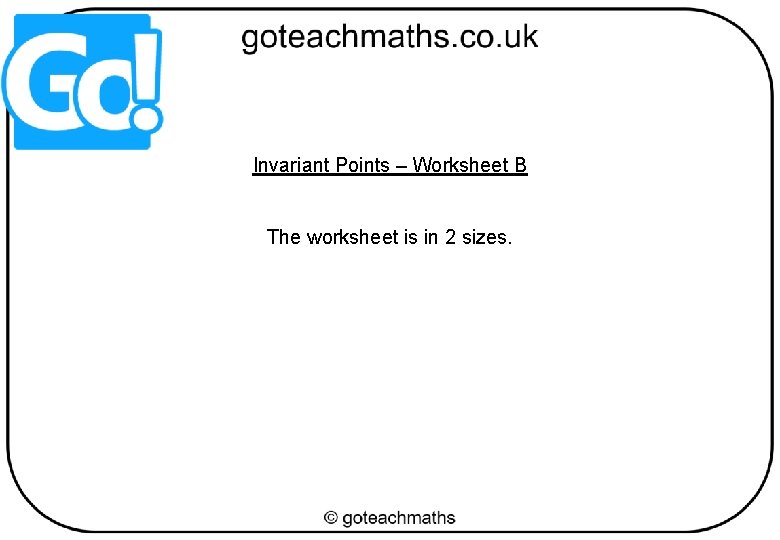

Invariant Points – Worksheet B The worksheet is in 2 sizes.

Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

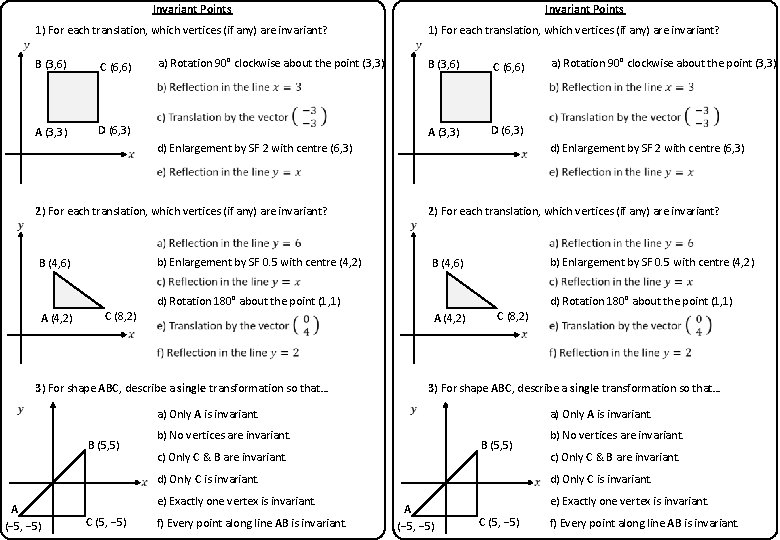

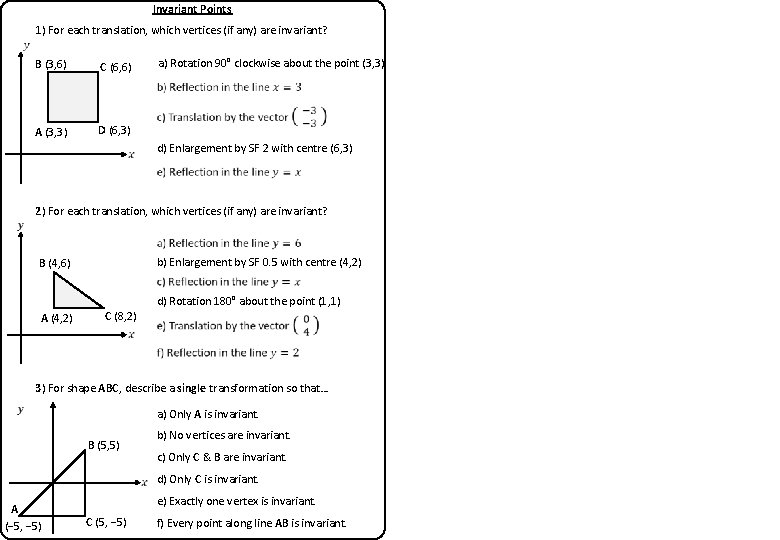

Invariant Points 1) For each translation, which vertices (if any) are invariant? B (3, 6) C (6, 6) A (3, 3) D (6, 3) a) Rotation 90° clockwise about the point (3, 3) d) Enlargement by SF 2 with centre (6, 3) 2) For each translation, which vertices (if any) are invariant? b) Enlargement by SF 0. 5 with centre (4, 2) B (4, 6) d) Rotation 180° about the point (1, 1) A (4, 2) C (8, 2) 3) For shape ABC, describe a single transformation so that… a) Only A is invariant. B (5, 5) b) No vertices are invariant. c) Only C & B are invariant. d) Only C is invariant. A (− 5, − 5) e) Exactly one vertex is invariant. C (5, − 5) f) Every point along line AB is invariant.

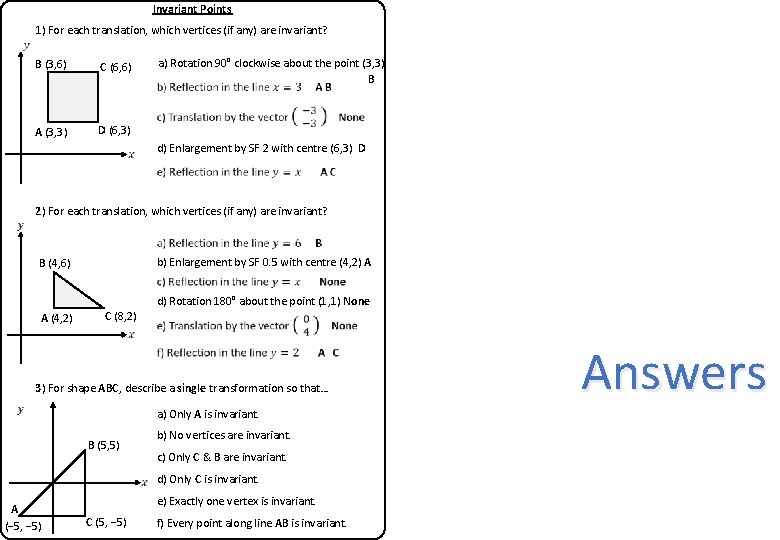

Invariant Points 1) For each translation, which vertices (if any) are invariant? B (3, 6) C (6, 6) A (3, 3) D (6, 3) a) Rotation 90° clockwise about the point (3, 3) B d) Enlargement by SF 2 with centre (6, 3) D 2) For each translation, which vertices (if any) are invariant? b) Enlargement by SF 0. 5 with centre (4, 2) A B (4, 6) d) Rotation 180° about the point (1, 1) None A (4, 2) C (8, 2) 3) For shape ABC, describe a single transformation so that… a) Only A is invariant. B (5, 5) b) No vertices are invariant. c) Only C & B are invariant. d) Only C is invariant. A (− 5, − 5) e) Exactly one vertex is invariant. C (5, − 5) f) Every point along line AB is invariant. Answers

Invariant Points 1) For each translation, which vertices (if any) are invariant? B (3, 6) C (6, 6) A (3, 3) D (6, 3) a) Rotation 90° clockwise about the point (3, 3) Invariant Points 1) For each translation, which vertices (if any) are invariant? B (3, 6) C (6, 6) A (3, 3) D (6, 3) d) Enlargement by SF 2 with centre (6, 3) 2) For each translation, which vertices (if any) are invariant? b) Enlargement by SF 0. 5 with centre (4, 2) B (4, 6) d) Rotation 180° about the point (1, 1) A (4, 2) C (8, 2) d) Rotation 180° about the point (1, 1) A (4, 2) 3) For shape ABC, describe a single transformation so that… C (8, 2) 3) For shape ABC, describe a single transformation so that… a) Only A is invariant. B (5, 5) a) Only A is invariant. b) No vertices are invariant. B (5, 5) c) Only C & B are invariant. d) Only C is invariant. A (− 5, − 5) e) Exactly one vertex is invariant. C (5, − 5) f) Every point along line AB is invariant. a) Rotation 90° clockwise about the point (3, 3) b) No vertices are invariant. c) Only C & B are invariant. d) Only C is invariant. A (− 5, − 5) e) Exactly one vertex is invariant. C (5, − 5) f) Every point along line AB is invariant.
