Intrusion Detection Host Vulnerability and Exploits, Common Attacks on Hosts CS 795 -Fall 2010

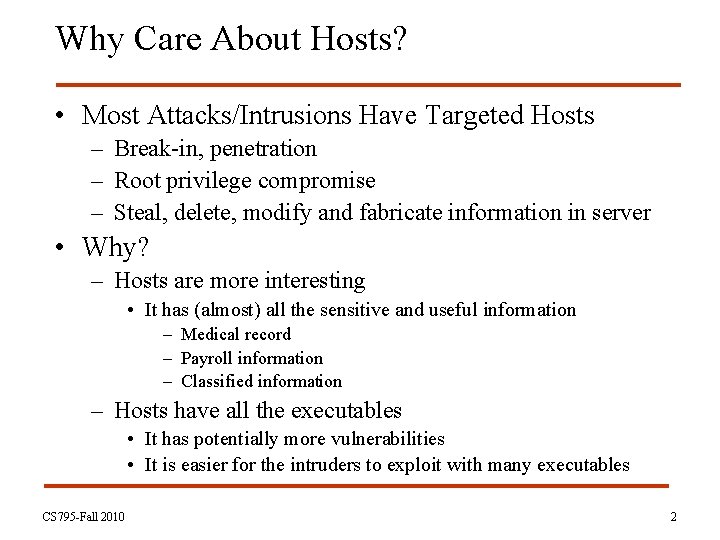

Why Care About Hosts? • Most Attacks/Intrusions Have Targeted Hosts – Break-in, penetration – Root privilege compromise – Steal, delete, modify and fabricate information in server • Why? – Hosts are more interesting • It has (almost) all the sensitive and useful information – Medical record – Payroll information – Classified information – Hosts have all the executables • It has potentially more vulnerabilities • It is easier for the intruders to exploit with many executables CS 795 -Fall 2010 2
Common Attack on Hosts • Gain Unauthorized Access to Host – User level • Could impersonate that user, change, delete or forge information – Root level • Could do everything to the host – worst possible scenario • Denial of Service Provided by the Host – Denial of use of a host completely • Disable the mail server – Denial of use of an application • Disable the online stock trading – Denial of use of data • Make the financial record inaccessible to users • What Else? CS 795 -Fall 2010 3
Do. S: Web Server Attacks • Many Do. S Attacks Are Against Web Servers – Attacker sends enormous amount of bogus requests to the web server • i. e. Syn-flood attack – Attacker sends a request consisting of thousands of ‘/’s. • Some servers go belly up at this • How to Detect? • How To Handle This Kind of Do. S? – Shutdown the web server? CS 795 -Fall 2010 4
Do. S: Mailbomb • Exploits The Open-Door Nature of Email System – Mail server is supposed to receive emails – Attacker sends thousands of huge junk emails • • Fill up disks, overflow the quotas Deny access to emails Cause legitimate emails lost Usually done by some automated tools • Mailbomb Is Different From Spam – There is no particular desire to have the email read, responded, or even necessarily received – The goal is to jam the email server and make is unusable • How To Detect This? • How To Handle This? CS 795 -Fall 2010 5
Do. S: Resource Hogging • Resource Hogs – Programs that uses up the resources of the machine • Fill up disks • Use all the memory • Use all the CPU cycle – Could be some executable downloaded – Code Wars was a game • Let opponents write programs that would use up all the resources, until the opponent’s code was unable to run • Detection Is Not Difficult – Except for memory leak • How To Handle This? CS 795 -Fall 2010 6
Unauthorized Access to Host • Widely Considered – A much more serious threat than Do. S • All the sensitive information • Impersonation – More difficult to detect than Do. S • Attack could come from inside • Attacker could have the legitimate user name and password – Steal/crack password • Attacker may gain access through backdoor CS 795 -Fall 2010 7
Ways To Gain Unauthorized Access to Host • Steal Account – Looking over one’s shoulder – Social engineering/Phishing – Sniffing – Spyware, key logger – Guessing the password – Cracking the password – What else? CS 795 -Fall 2010 8
Ways To Gain Unauthorized Access to Host • Abuse The Guest Account – Many systems have default guest account that requires no password • Anonymous FTP • Trojan Horse • Exploit Race Conditions – Usually used for gaining root privilege from normal user privilege • Exploit Buffer Overflow – Could gain root access remotely CS 795 -Fall 2010 9
Social Engineering/Phishing • Tricking People into Giving Access • Example – “Hello, this Smith, the Vice President of marketing. I need to update my photo in the corporate directory, and I’ve fogot my password” – “Hello, I’m a customer support from Citibank, and we are upgrading the security mechanism of our customer account management. Please login into web site www. phishing. org to verify the status of your account” • How to detect this automatically? CS 795 -Fall 2010 10
Account Guessing • Attacker Can Simply Guess The Password – Knowing something about the user helps • Kids/spouse/mother’s maiden name • Birthdays • Social security numbers – Sometimes just need to try a few obvious things to get in • How to Detect This? – Count the unsuccessful login attempts! – What if the attacker is really lucky such that he/she gets the right password in the first try? CS 795 -Fall 2010 11
Sniffing • Wiretap the network • Sniffer the wireless • There Are Tools – That automatically look for user IDs and password from the sniffered trace • How To Prevent? – Use encryption – Never send password in plaintext • How To Detect? CS 795 -Fall 2010 12
Trojan Horse • A Program – That appears to do one thing but secretly does another • Could Be Planted From Local – Running a trojan that simulate the login screen of a computer in a public lab – The trojan records the first login, and prompts the victim with error message – The trojan exits and let the real login program runs • Could Be Planted From Remote – The attacker send an email with an attachment of a really cool screen saver – Once the victim is tricked into using it • The screen saver opens a backdoor and allows the attacker access to the computer whenever the screen saver is running CS 795 -Fall 2010 13
Trojan Horse • Program with an expected and hidden effect – Appears normal/expected – hidden effect violates security policy • User tricked into executing Trojan horse – Expects (and sees) expected behavior – Hidden effect performed with user’s authorization CS 795 -Fall 2010 14
Cracking The Password • In Unix – Password is not stored in plaintext, but in hashed form • (user name, Hash(password)) – When a user enters the password, system computes Hash(password); a match on the hash would allow user to login • Offline Guessing the Password – Steal the password file /etc/passwd • Some cgi scripts let you do this through a web server – Run crack on the password file • Try all possible passwords and compare the hashes of them with Hash(password) in the password file CS 795 -Fall 2010 15
Cracking The Password Case Study • Farmer and Venema performed the following study in 1993 – – Tried to obtain password files from 656 hosts Succeeded on 24 hosts Tried to crack the passwords Got • 5 root passwords • 259 passwords in total • Access to 19 (out of 24) hosts CS 795 -Fall 2010 16

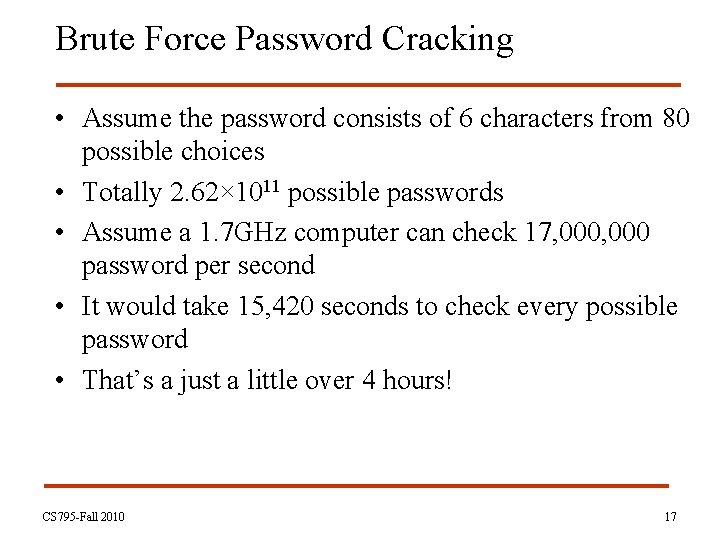

Brute Force Password Cracking • Assume the password consists of 6 characters from 80 possible choices • Totally 2. 62× 1011 possible passwords • Assume a 1. 7 GHz computer can check 17, 000 password per second • It would take 15, 420 seconds to check every possible password • That’s a just a little over 4 hours! CS 795 -Fall 2010 17
Brute Force Password Cracking • Assume the password consists of 8 characters from 80 possible choices • Totally 1. 67× 1015 possible passwords • Assume a 1. 7 GHz computer can check 17, 000 password per second • It would take 108 seconds to check every possible password • That’s about 3 years • Assume the computation power doubles every 18 months (Moore’s Law) – It would need another 19 years to be able to crack 8 character password in 4 hours CS 795 -Fall 2010 18
Defense Against Password Cracking • Use Strong Password – Longer – Not in dictionary • Shadow the password – Only the root has access to the actual hashes of passwords • • Watch for Failed Login Attempts Make Sure There Are No Open Accounts Use Encryption for Access from Remote Is Password Cracking Detectable? CS 795 -Fall 2010 19
Defense Against Password Cracking • Question: – With increased number of accounts and passwords, how are you going to organize and remember them? • Interesting approaches: – Site-Specific Password [HP Lab TR’ 03] – Pwd. Hash [USENIX Security’ 05] CS 795 -Fall 2010 20

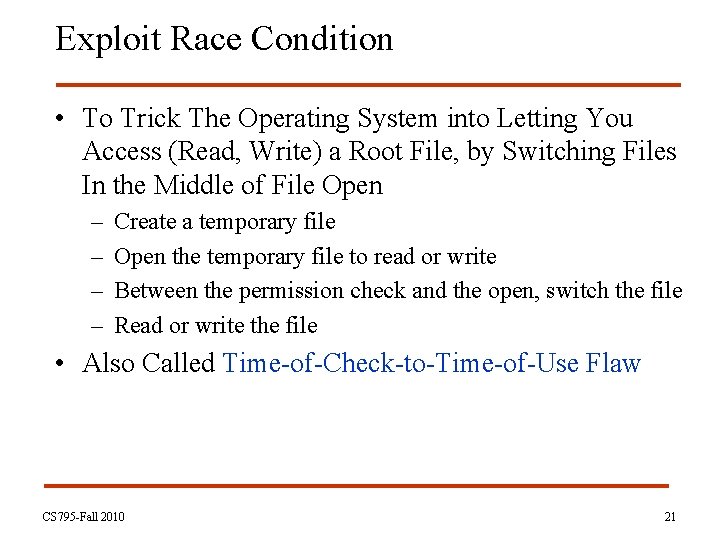

Exploit Race Condition • To Trick The Operating System into Letting You Access (Read, Write) a Root File, by Switching Files In the Middle of File Open – – Create a temporary file Open the temporary file to read or write Between the permission check and the open, switch the file Read or write the file • Also Called Time-of-Check-to-Time-of-Use Flaw CS 795 -Fall 2010 21
Exploit Race Condition • Example – Create a temporary file /tmp/X – Open the temporary file to write. • The OS will check if you have permission • You do, since it is your file anyway! – Before the file is opened, but after the permission check, remove /tmp/X, and create a symbolic link to /etc/passwd! – /etc/password will be opened for writing – Write something to /etc/passwd – This would allow one to create new account (or modify existing account) in the password file!!! CS 795 -Fall 2010 22
Exploit Race Condition / /tmp /etc /tmp/X /etc/passwd Create X in /tmp CS 795 -Fall 2010 23
Exploit Race Condition / /tmp /etc /tmp/X /etc/passwd Access /tmp/X to write CS 795 -Fall 2010 24
Exploit Race Condition / /tmp /etc /tmp/X /etc/passwd Link /tmp/X to /etc/passwd CS 795 -Fall 2010 25
Exploit Race Condition / /tmp /etc /tmp/X /etc/passwd Write /tmp/X CS 795 -Fall 2010 26

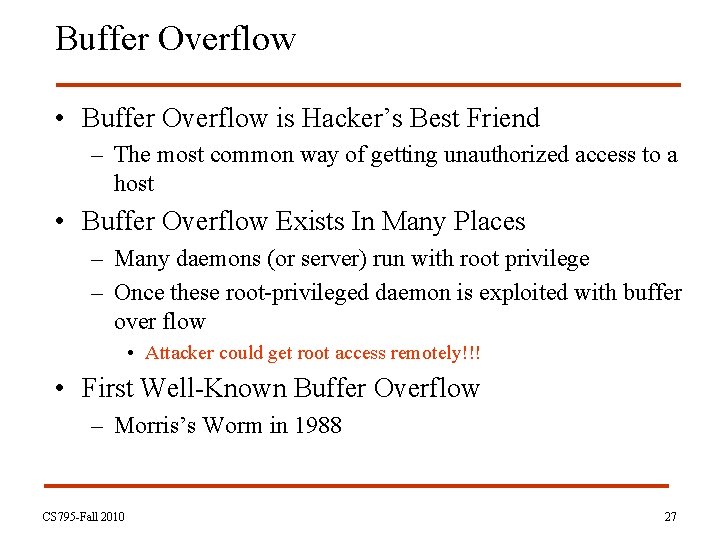

Buffer Overflow • Buffer Overflow is Hacker’s Best Friend – The most common way of getting unauthorized access to a host • Buffer Overflow Exists In Many Places – Many daemons (or server) run with root privilege – Once these root-privileged daemon is exploited with buffer over flow • Attacker could get root access remotely!!! • First Well-Known Buffer Overflow – Morris’s Worm in 1988 CS 795 -Fall 2010 27
Overview of Buffer Overflow Vulnerability • Run-Time Memory Management of Executables – Use stack to hold • local (or automatic) variables • Return address of function calls (in x 86) • Programming Language C Emphasizes Performance – No check on buffer bounds • strcpy() • gets() • etc. • Overflow of Local Variables Could – Overwrite the return address – Control what to be run after current function CS 795 -Fall 2010 28
Run-Time Stack Memory Organization Text text section Data-bss section Lower mem address (Initialized) Data (Uninitialized) SP Stack growth Run-Time Stack FP Higher mem address SP: Stack Pointer; FP: Frame Pointer CS 795 -Fall 2010 29
Run-Time Stack Memory Management • Procedure Prolog (Before A Function is Executed) – – – Advance SP to reserve space for parameters (if any) Save the IP (Instruction Pointer) to stack as return address Save current FP (so that is can be restored later) Copy SP to FP to create a new FP Advance SP to reserve space for local variables • Procedure Epilog (Before A Function Exits) – Clean up the stack – Restore previous SP & FP CS 795 -Fall 2010 30
Example C Program void function(int a, int b, int c) { char buffer 1[5]; char buffer 2[10]; } int main() { function(1, 2, 3); return 0; } CS 795 -Fall 2010 31
Current Run-Time Stack Text text section Data-bss section Lower mem address (Initialized) Data (Uninitialized) SP FP Higher mem address SP: Stack Pointer; FP: Frame Pointer CS 795 -Fall 2010 32
Reserve Space for Parameters Text text section Data-bss section SP Lower mem address (Initialized) Data (Uninitialized) a b c FP Higher mem address SP: Stack Pointer; FP: Frame Pointer CS 795 -Fall 2010 33

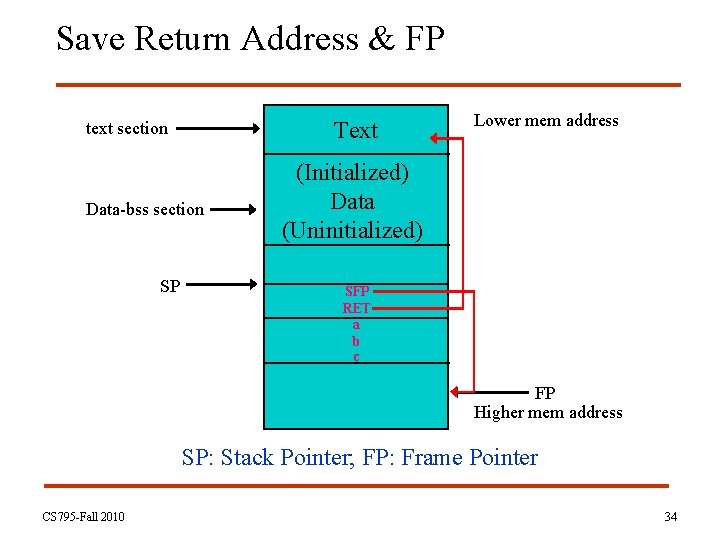

Save Return Address & FP Text text section Data-bss section SP Lower mem address (Initialized) Data (Uninitialized) SFP RET a b c FP Higher mem address SP: Stack Pointer; FP: Frame Pointer CS 795 -Fall 2010 34
Allocate New Stack Frame Text text section Data-bss section SP Lower mem address (Initialized) Data (Uninitialized) SFP RET a b c FP Higher mem address SP: Stack Pointer; FP: Frame Pointer CS 795 -Fall 2010 35
Allocate Space for Local Variables Text text section Data-bss section SP Lower mem address (Initialized) Data (Uninitialized) buffer 2 buffer 1 SFP RET a b c FP Higher mem address SP: Stack Pointer; FP: Frame Pointer CS 795 -Fall 2010 36
Overflow Buffer 1 To Overwrite RET Text text section Data-bss section SP Lower mem address (Initialized) Data (Uninitialized) buffer 2 buffer 1 SFP RET a b c FP My program somewhere Higher mem address SP: Stack Pointer; FP: Frame Pointer CS 795 -Fall 2010 37
Stack Smashing Attack • Inject Attack Code – Overflow the buffer with string that is actually executable binary code native to the machine – Most common attack code is to spawn a shell • Change the Return Address – Overwrite the return address with pointer to attack code • Once the Current Function Returns – The attack code will get control with the same privilege of the original process CS 795 -Fall 2010 38

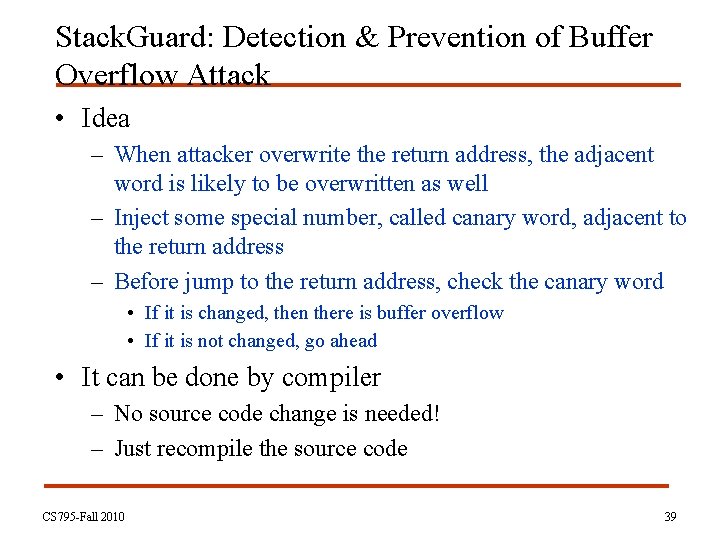

Stack. Guard: Detection & Prevention of Buffer Overflow Attack • Idea – When attacker overwrite the return address, the adjacent word is likely to be overwritten as well – Inject some special number, called canary word, adjacent to the return address – Before jump to the return address, check the canary word • If it is changed, then there is buffer overflow • If it is not changed, go ahead • It can be done by compiler – No source code change is needed! – Just recompile the source code CS 795 -Fall 2010 39
Code Injection Defense • Security Extensions – Non-Executable Stack – Mem. Guard, Stack. Guard, … – Libsafe • NX Protection – Hardware vs. Software • Randomization – Address Space Layout Randomization – Instruction Set Randomization CS 795 -Fall 2010 40
Virus Checking Algorithms CS 795 -Fall 2010

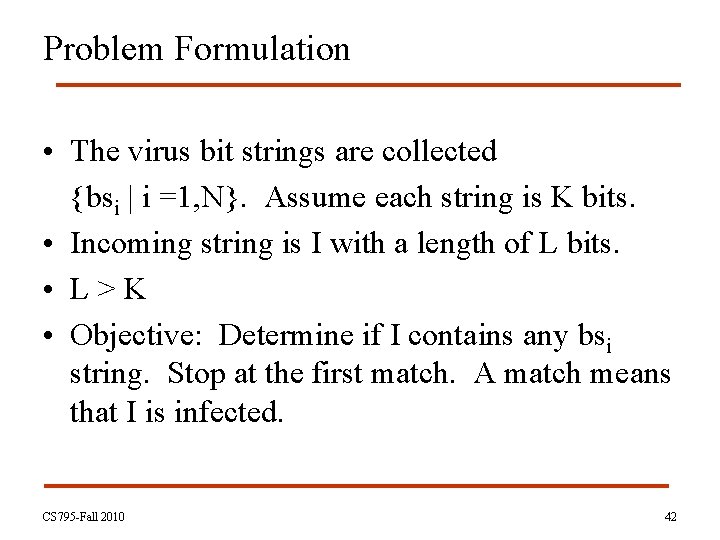

Problem Formulation • The virus bit strings are collected {bsi | i =1, N}. Assume each string is K bits. • Incoming string is I with a length of L bits. • L>K • Objective: Determine if I contains any bsi string. Stop at the first match. A match means that I is infected. CS 795 -Fall 2010 42

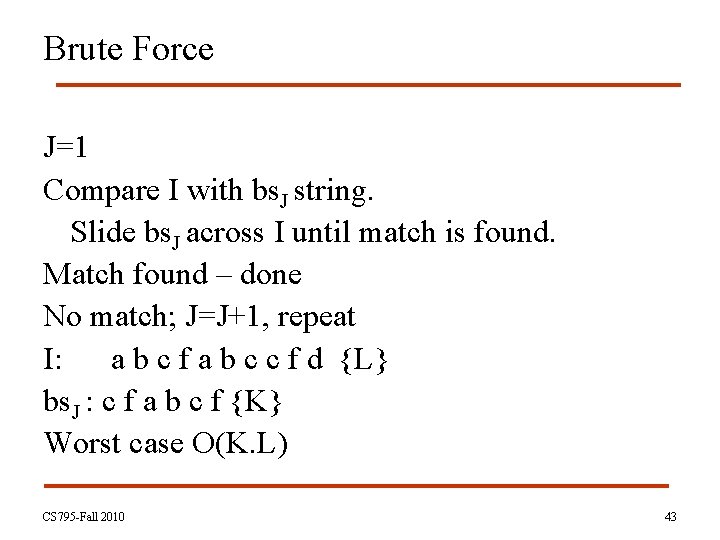

Brute Force J=1 Compare I with bs. J string. Slide bs. J across I until match is found. Match found – done No match; J=J+1, repeat I: a b c f a b c c f d {L} bs. J : c f a b c f {K} Worst case O(K. L) CS 795 -Fall 2010 43
Random • Compute signature of the K string • Compute signature of each K substring of the L string • Compare the two signature strings • If signature match then virus • Signature could be a simple mod operation • O(K. L) – practical approach CS 795 -Fall 2010 44

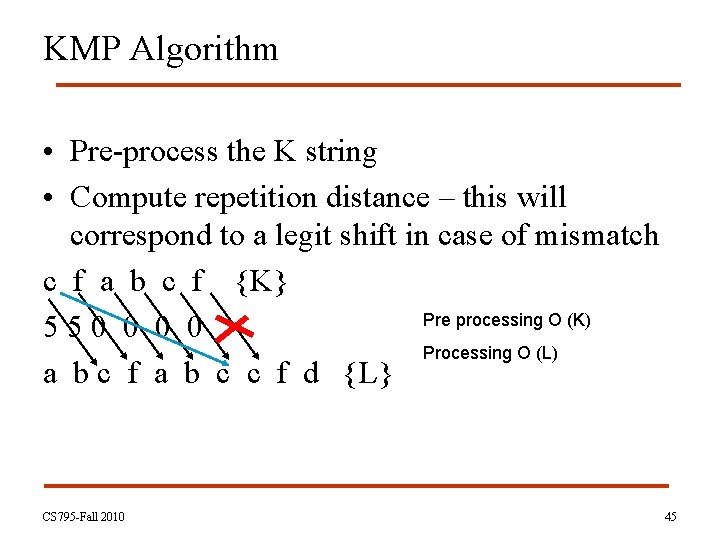

KMP Algorithm • Pre-process the K string • Compute repetition distance – this will correspond to a legit shift in case of mismatch c f a b c f {K} Pre processing O (K) 550 0 Processing O (L) a b c f a b c c f d {L} CS 795 -Fall 2010 45
Automata Scheme • Use automata to reduce computation • Use K string to fix state transitions • Correct sequence leads to match state CS 795 -Fall 2010 46
Source: Cormen, Leiserson, Rivest, Stein, Introduction To Algorithms CS 795 -Fall 2010 47
