IntroPart 1 Introduction to Database Management Ch 1

Intro-Part 1 Introduction to Database Management: Ch 1 & 2

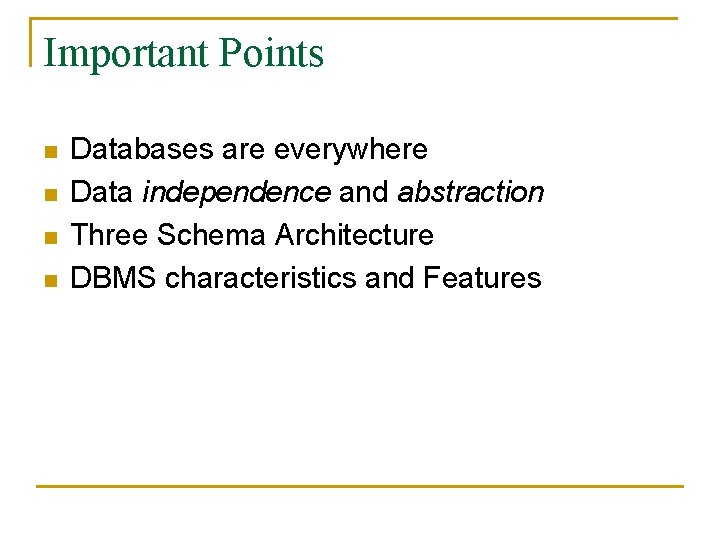

Important Points n n Databases are everywhere Data independence and abstraction Three Schema Architecture DBMS characteristics and Features

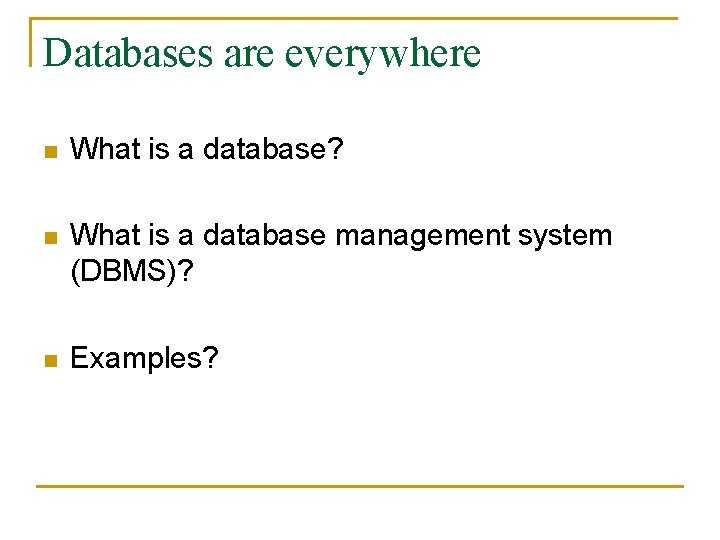

Databases are everywhere n What is a database? n What is a database management system (DBMS)? n Examples?

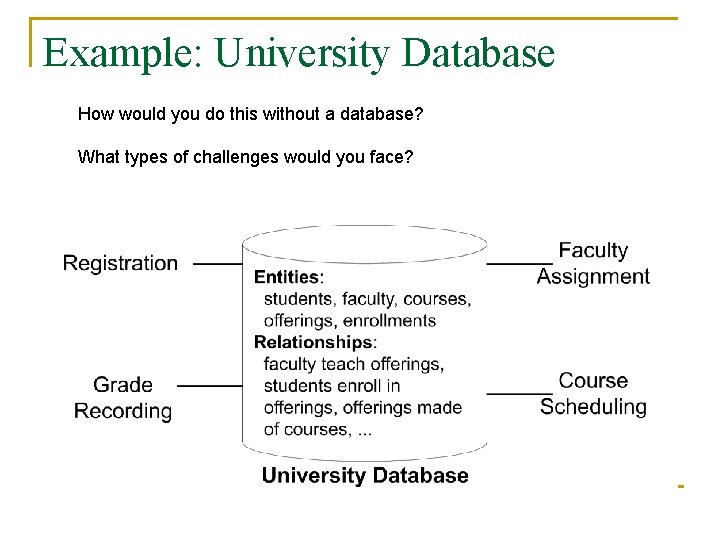

Example: University Database How would you do this without a database? What types of challenges would you face?

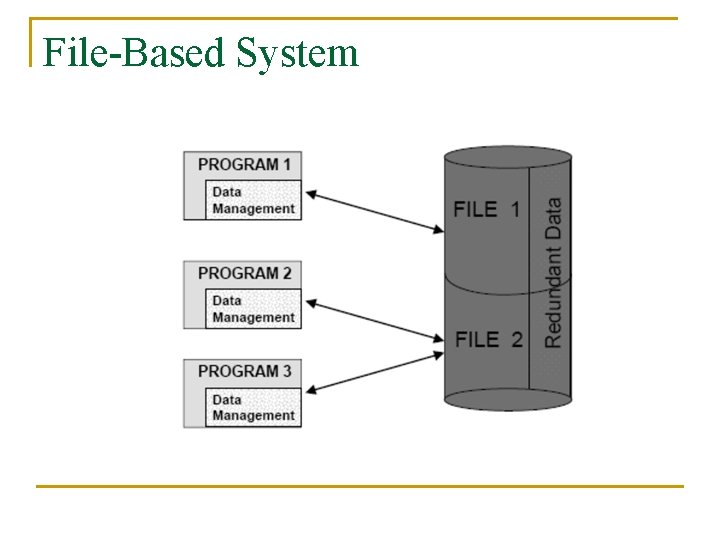

File-Based System

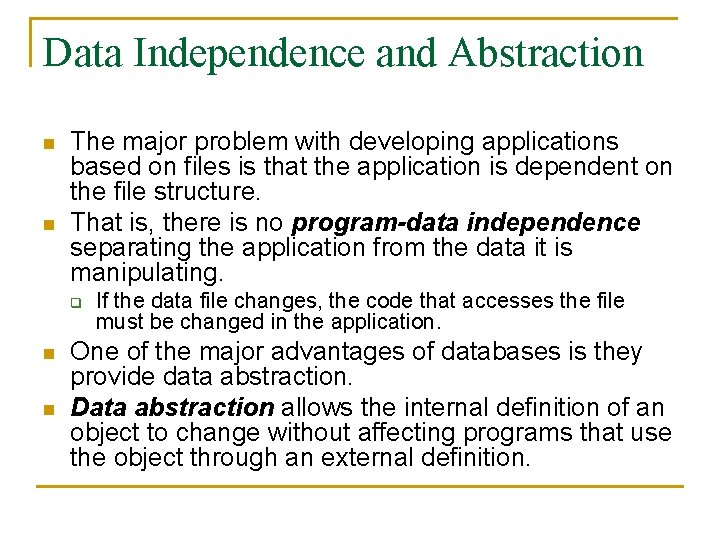

Data Independence and Abstraction n n The major problem with developing applications based on files is that the application is dependent on the file structure. That is, there is no program-data independence separating the application from the data it is manipulating. q n n If the data file changes, the code that accesses the file must be changed in the application. One of the major advantages of databases is they provide data abstraction. Data abstraction allows the internal definition of an object to change without affecting programs that use the object through an external definition.

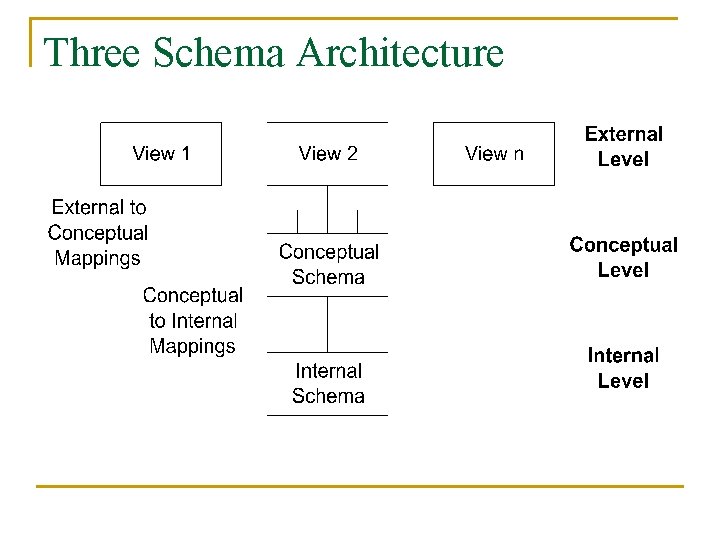

Three Schema Architecture

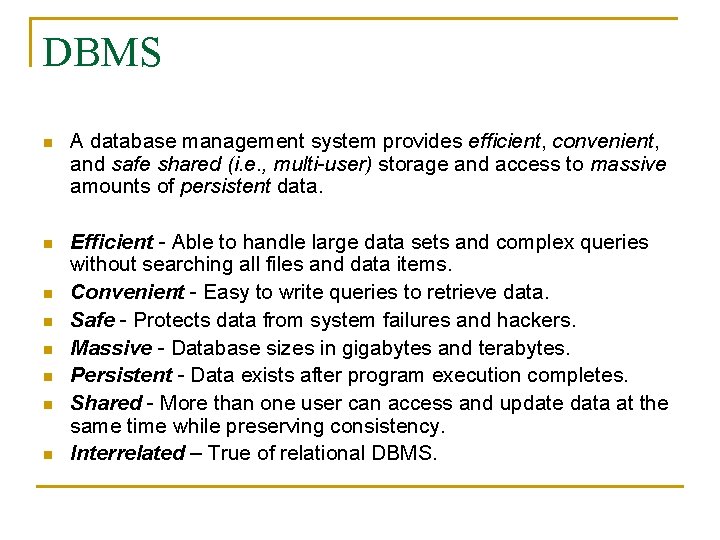

DBMS n A database management system provides efficient, convenient, and safe shared (i. e. , multi-user) storage and access to massive amounts of persistent data. n Efficient - Able to handle large data sets and complex queries without searching all files and data items. Convenient - Easy to write queries to retrieve data. Safe - Protects data from system failures and hackers. Massive - Database sizes in gigabytes and terabytes. Persistent - Data exists after program execution completes. Shared - More than one user can access and update data at the same time while preserving consistency. Interrelated – True of relational DBMS. n n n

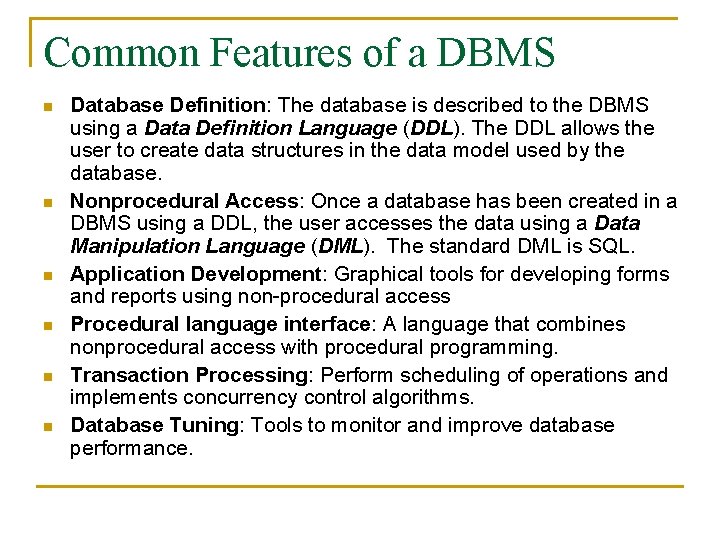

Common Features of a DBMS n n n Database Definition: The database is described to the DBMS using a Data Definition Language (DDL). The DDL allows the user to create data structures in the data model used by the database. Nonprocedural Access: Once a database has been created in a DBMS using a DDL, the user accesses the data using a Data Manipulation Language (DML). The standard DML is SQL. Application Development: Graphical tools for developing forms and reports using non-procedural access Procedural language interface: A language that combines nonprocedural access with procedural programming. Transaction Processing: Perform scheduling of operations and implements concurrency control algorithms. Database Tuning: Tools to monitor and improve database performance.

University Database

University Database (ERD)

Nonprocedural Access n n Query: request for data to answer a question Indicate what parts of database to retrieve not the procedural details Improve productivity and improve accessibility SQL SELECT statement and graphical tools

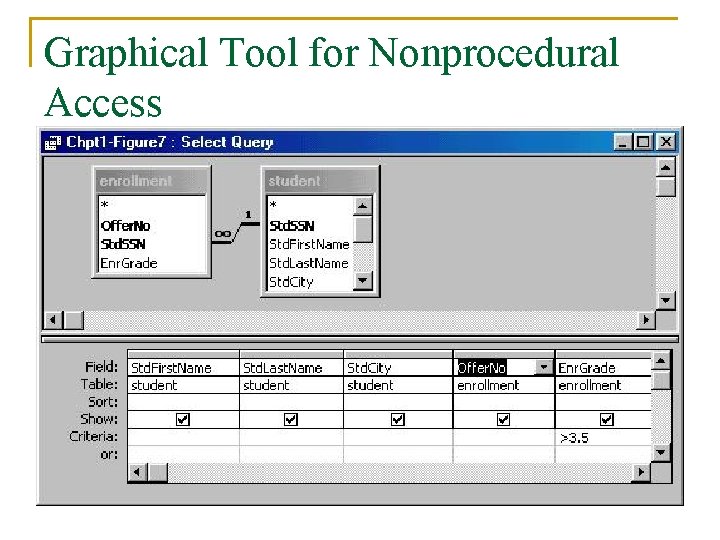

Graphical Tool for Nonprocedural Access

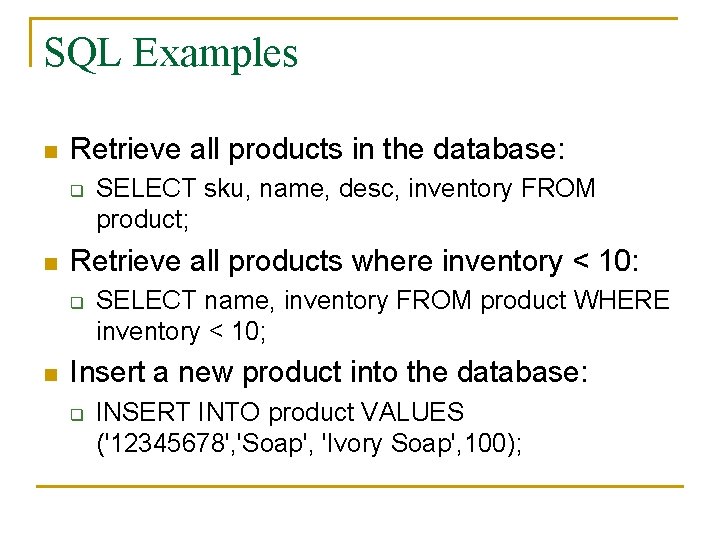

SQL Examples n Retrieve all products in the database: q n Retrieve all products where inventory < 10: q n SELECT sku, name, desc, inventory FROM product; SELECT name, inventory FROM product WHERE inventory < 10; Insert a new product into the database: q INSERT INTO product VALUES ('12345678', 'Soap', 'Ivory Soap', 100);
