Introduction to Webcam Astrophotography Ed Ting Lowbrow June

Introduction to Webcam Astrophotography Ed Ting Lowbrow June 15, 2012

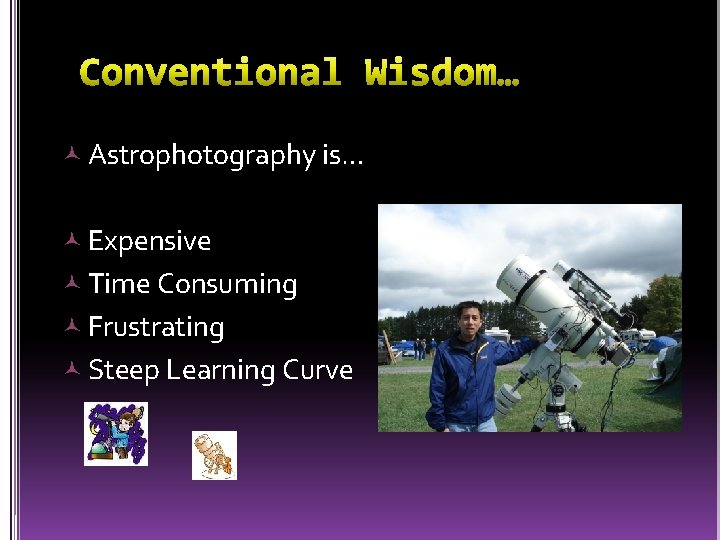

Astrophotography is… Expensive Time Consuming Frustrating Steep Learning Curve

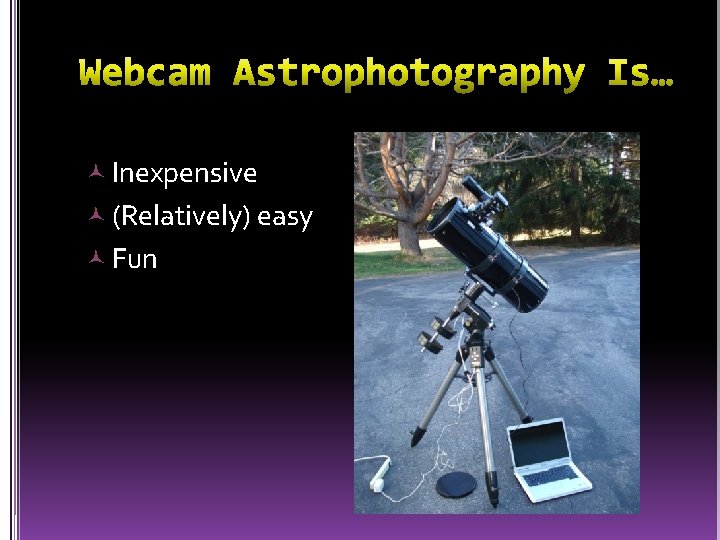

Inexpensive (Relatively) easy Fun

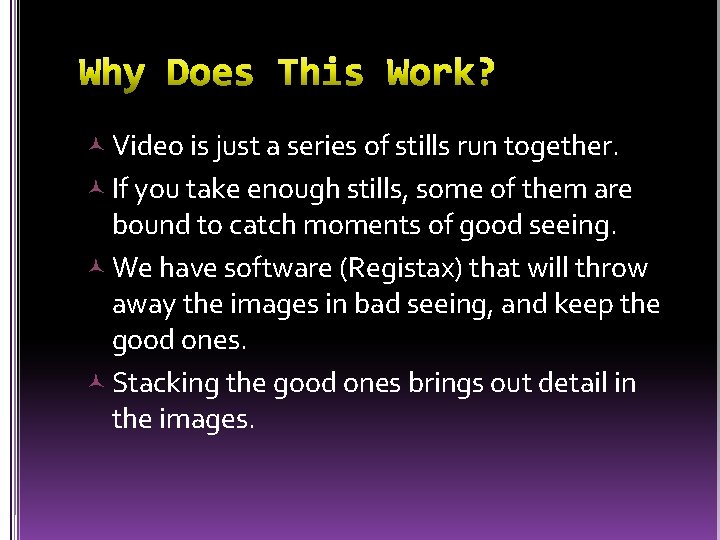

Video is just a series of stills run together. If you take enough stills, some of them are bound to catch moments of good seeing. We have software (Registax) that will throw away the images in bad seeing, and keep the good ones. Stacking the good ones brings out detail in the images.

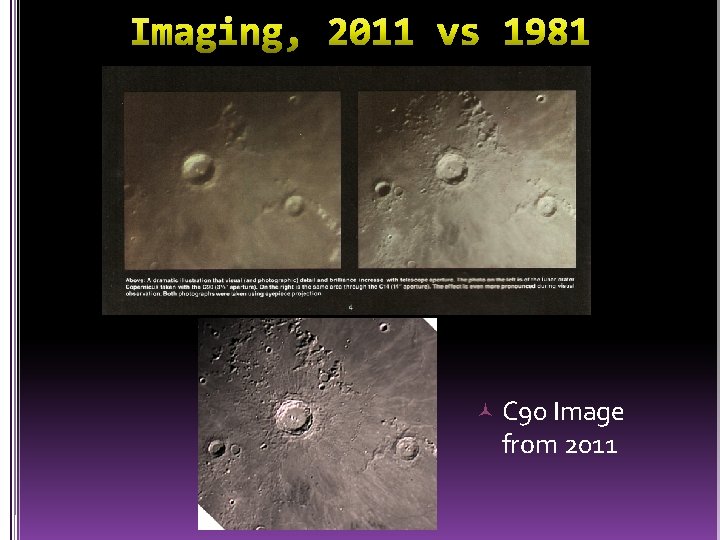

C 90 Image from 2011

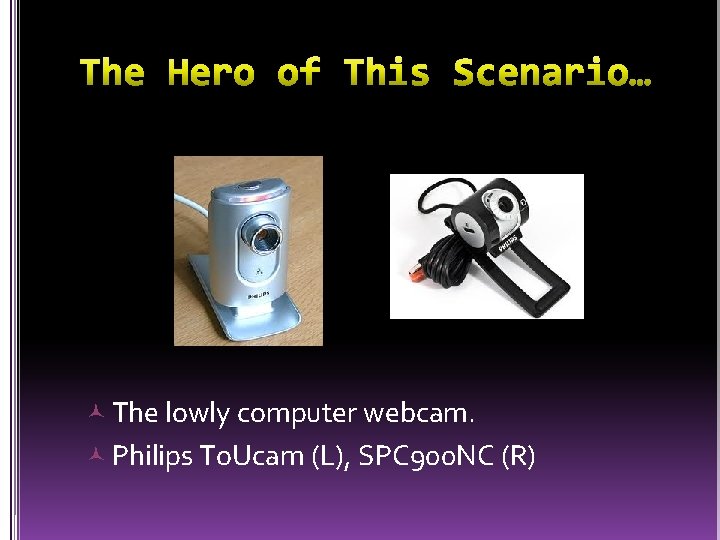

The lowly computer webcam. Philips To. Ucam (L), SPC 900 NC (R)

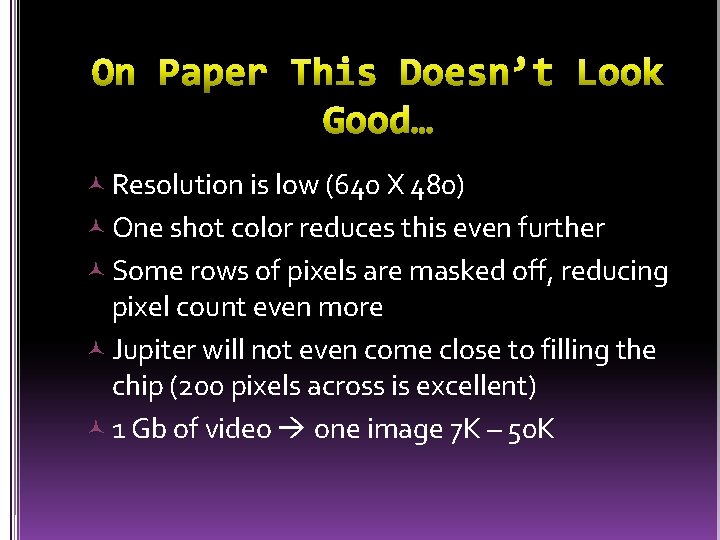

Resolution is low (640 X 480) One shot color reduces this even further Some rows of pixels are masked off, reducing pixel count even more Jupiter will not even come close to filling the chip (200 pixels across is excellent) 1 Gb of video one image 7 K – 50 K

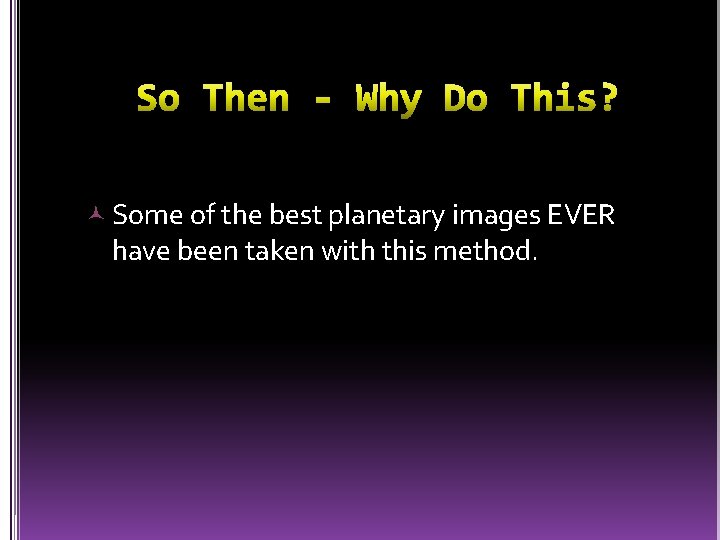

Some of the best planetary images EVER have been taken with this method.

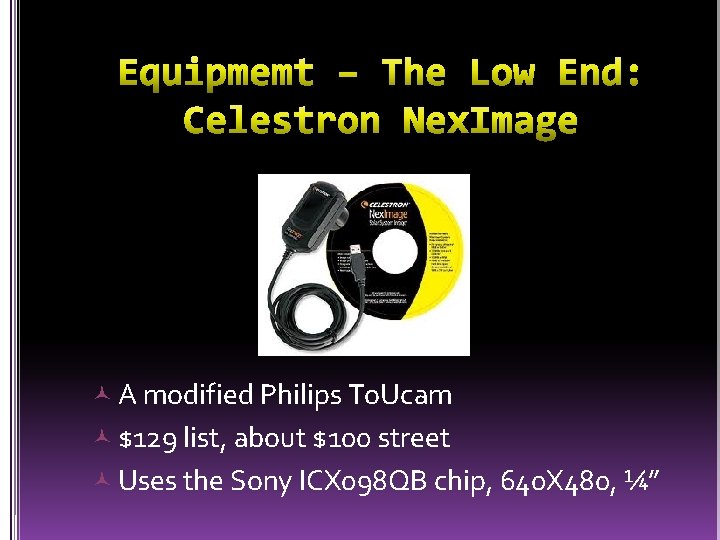

A modified Philips To. Ucam $129 list, about $100 street Uses the Sony ICX 098 QB chip, 640 X 480, ¼”

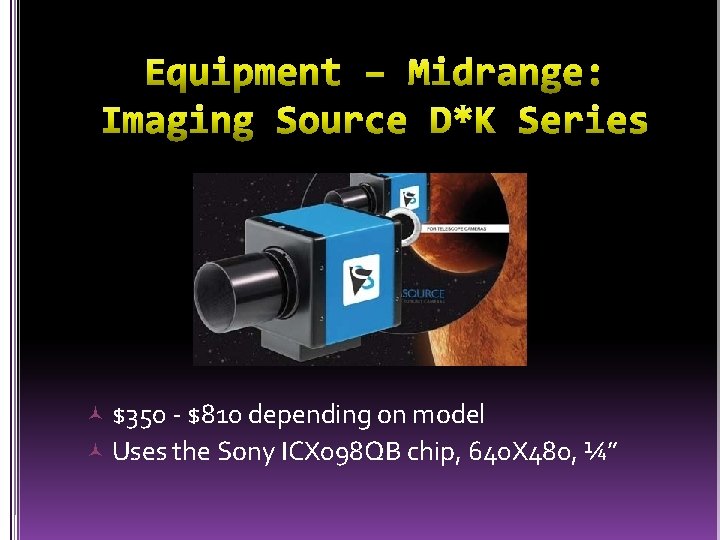

$350 - $810 depending on model Uses the Sony ICX 098 QB chip, 640 X 480, ¼”

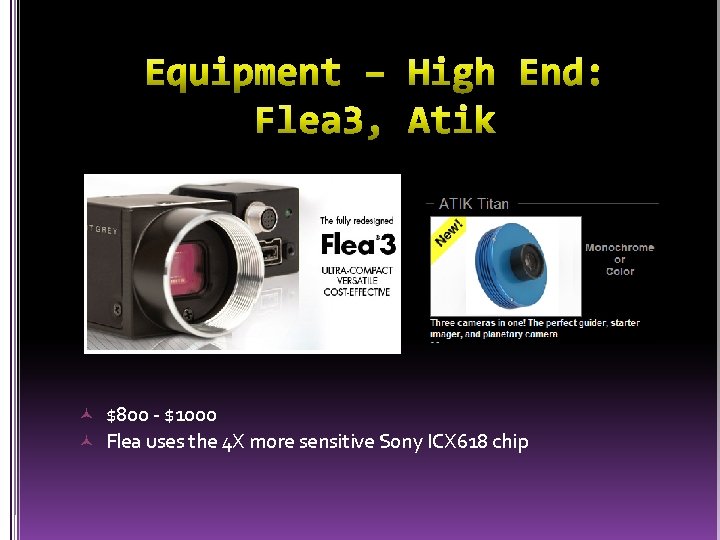

$800 - $1000 Flea uses the 4 X more sensitive Sony ICX 618 chip

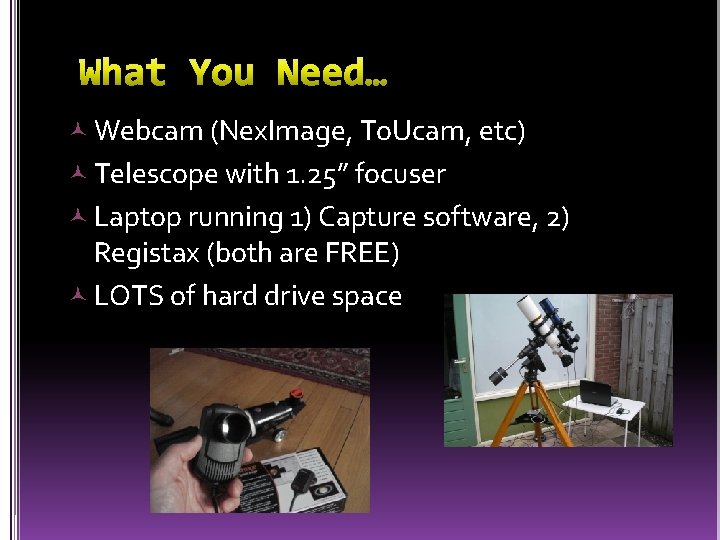

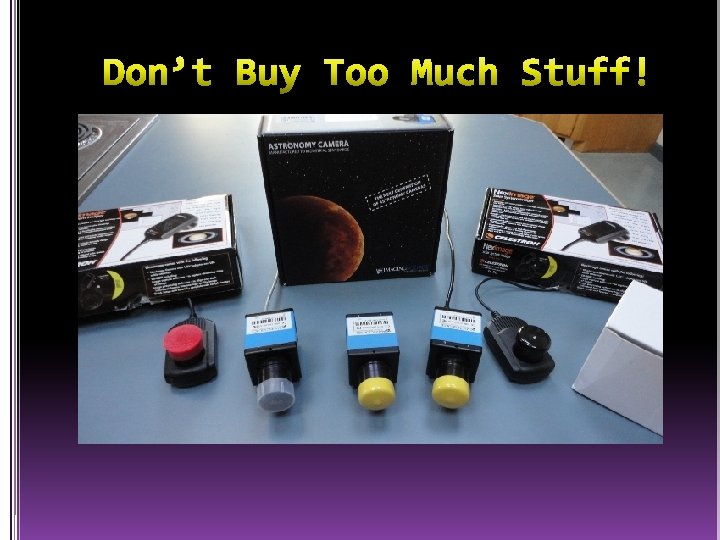

Webcam (Nex. Image, To. Ucam, etc) Telescope with 1. 25” focuser Laptop running 1) Capture software, 2) Registax (both are FREE) LOTS of hard drive space

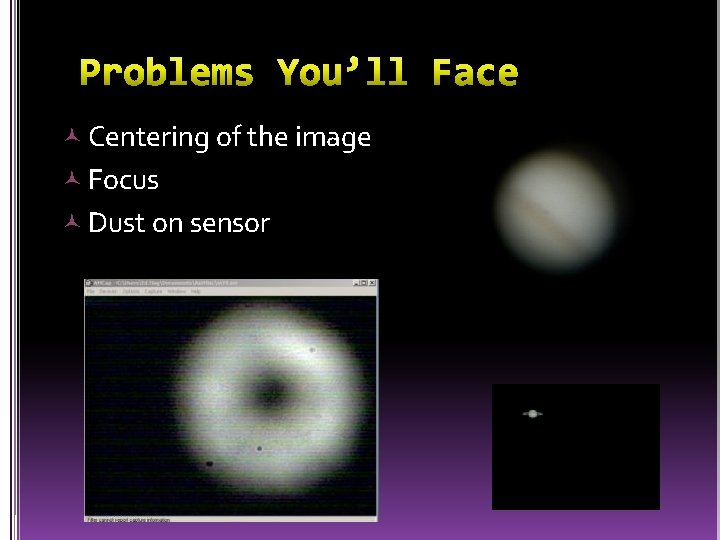

Centering of the image Focus Dust on sensor

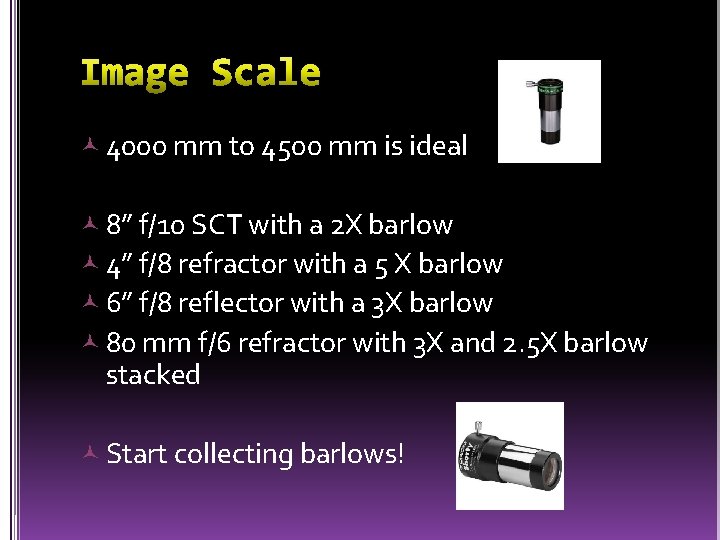

4000 mm to 4500 mm is ideal 8” f/10 SCT with a 2 X barlow 4” f/8 refractor with a 5 X barlow 6” f/8 reflector with a 3 X barlow 80 mm f/6 refractor with 3 X and 2. 5 X barlow stacked Start collecting barlows!

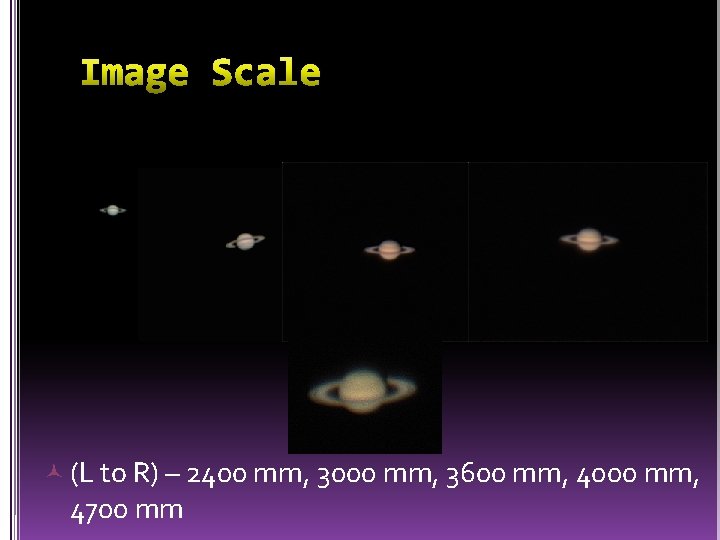

(L to R) – 2400 mm, 3000 mm, 3600 mm, 4000 mm, 4700 mm

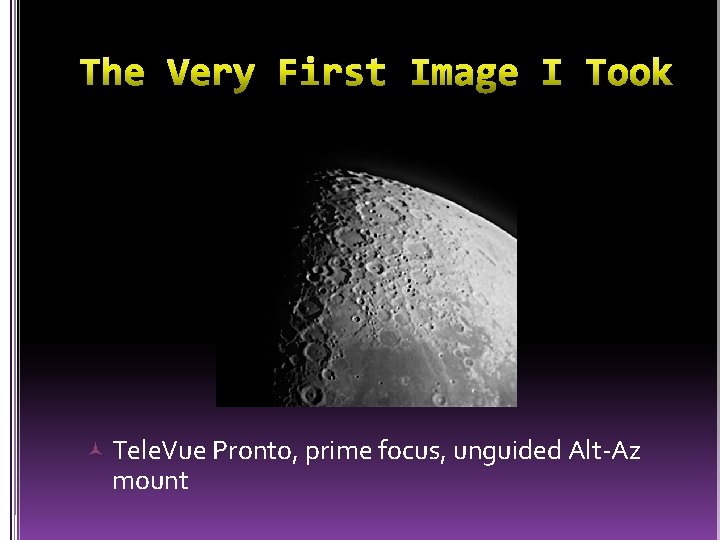

Tele. Vue Pronto, prime focus, unguided Alt-Az mount

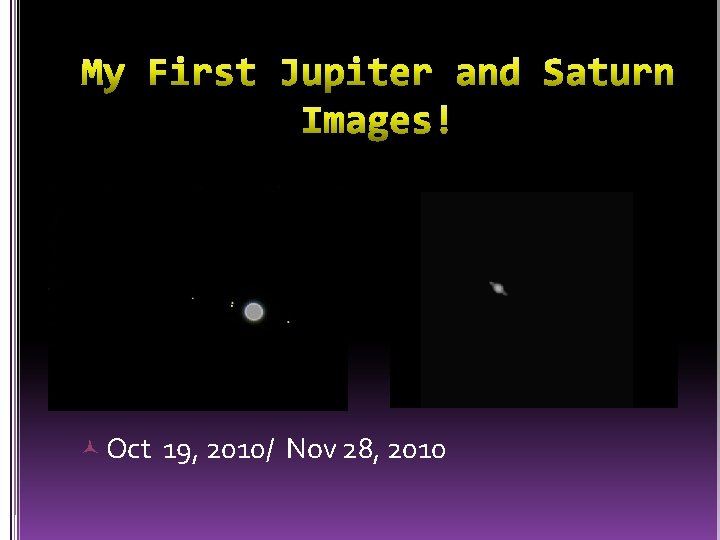

Oct 19, 2010/ Nov 28, 2010

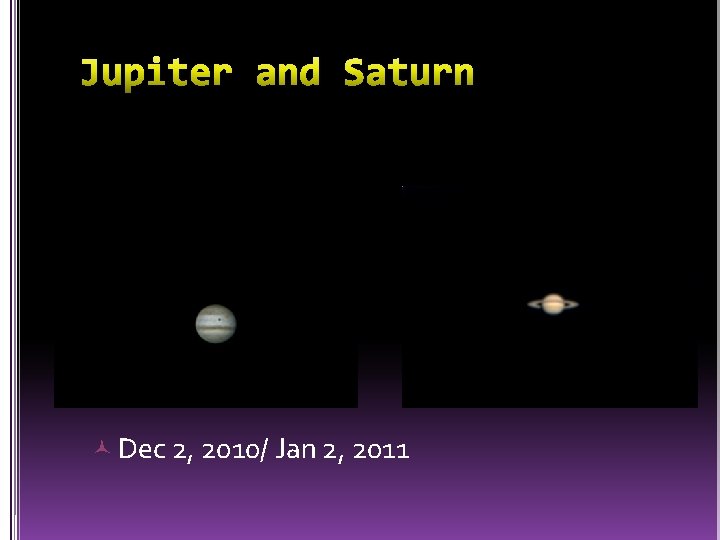

Dec 2, 2010/ Jan 2, 2011

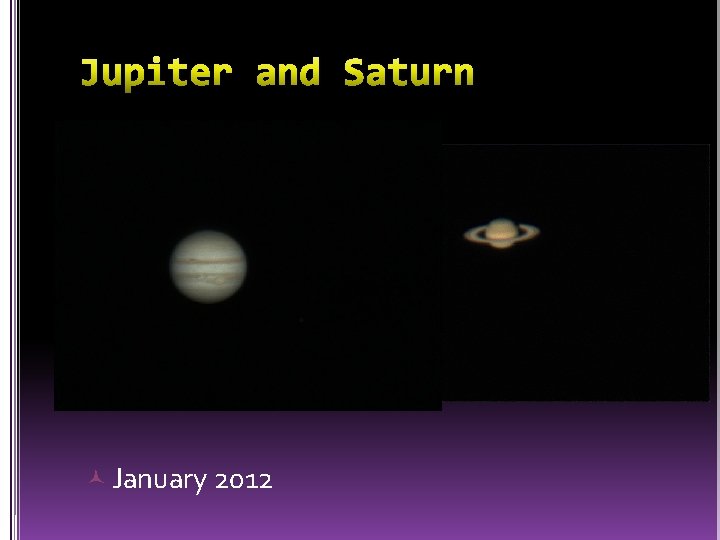

January 2012

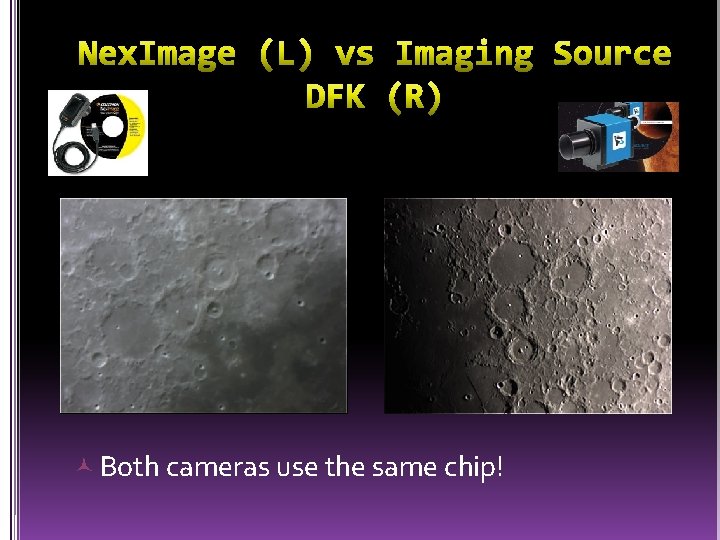

Both cameras use the same chip!

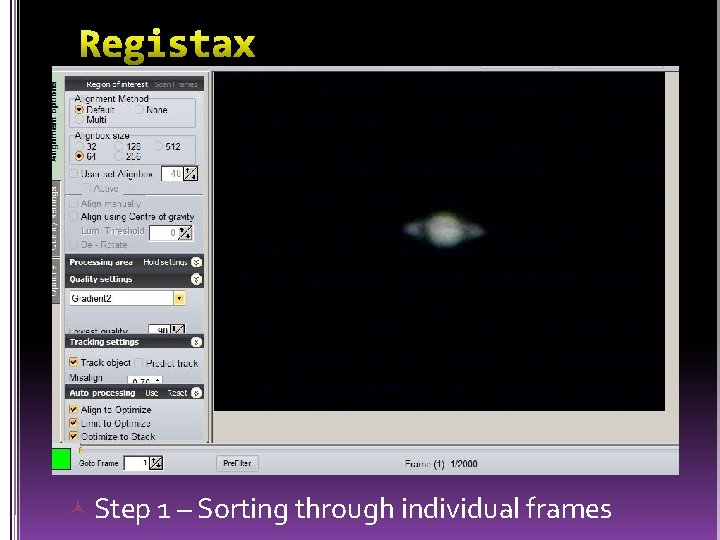

Step 1 – Sorting through individual frames

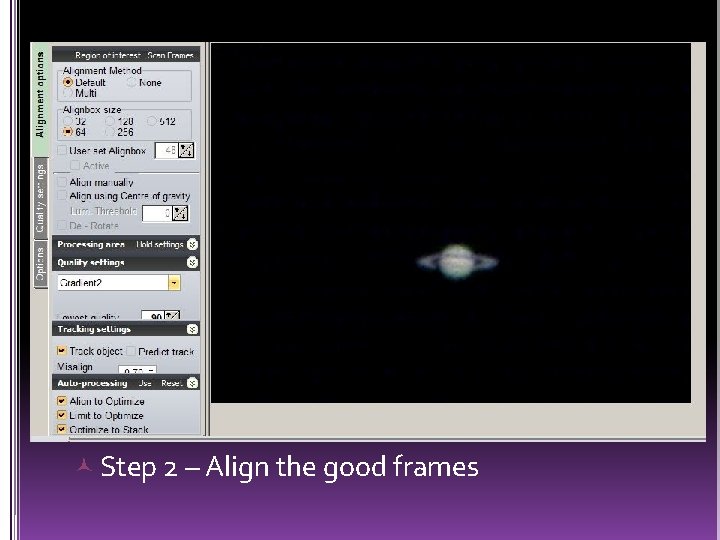

Step 2 – Align the good frames

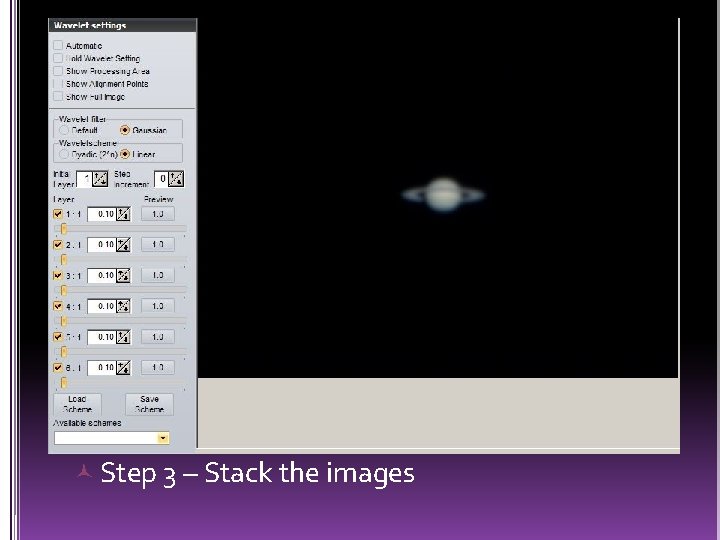

Step 3 – Stack the images

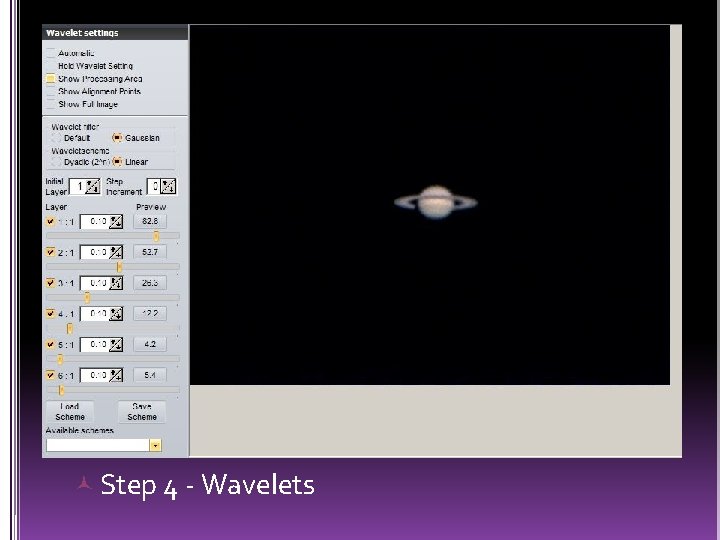

Step 4 - Wavelets

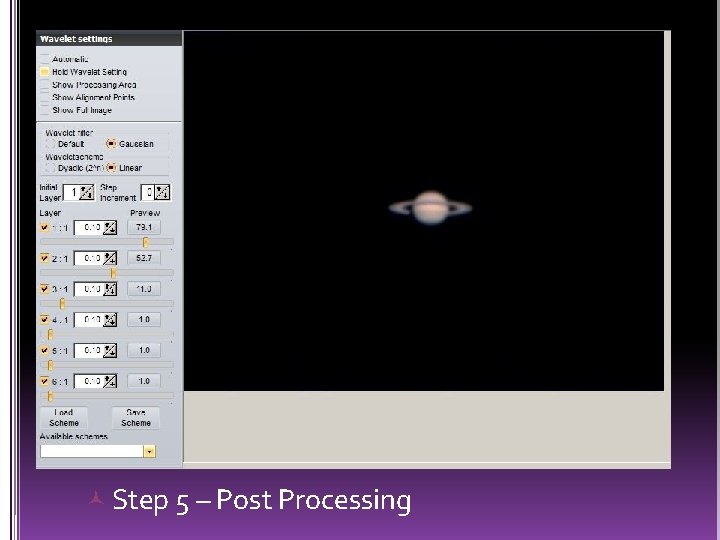

Step 5 – Post Processing

C 6 w/ 2 X barlow, Nex. Image, Registax, 1/2/11

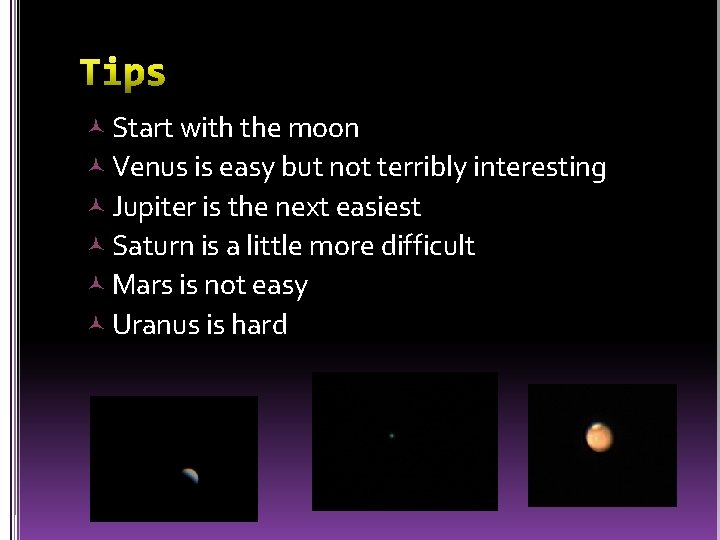

Start with the moon Venus is easy but not terribly interesting Jupiter is the next easiest Saturn is a little more difficult Mars is not easy Uranus is hard

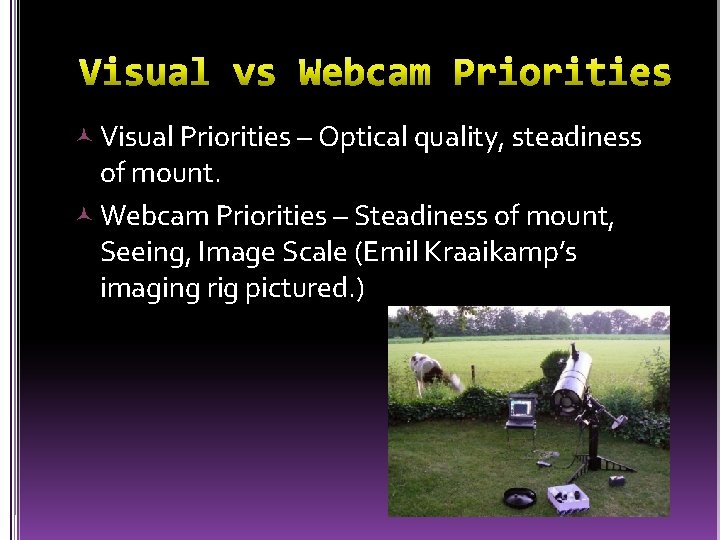

Visual Priorities – Optical quality, steadiness of mount. Webcam Priorities – Steadiness of mount, Seeing, Image Scale (Emil Kraaikamp’s imaging rig pictured. )

Celestron C 9. 25, 1. 8 X barlow, Imaging Source DBK

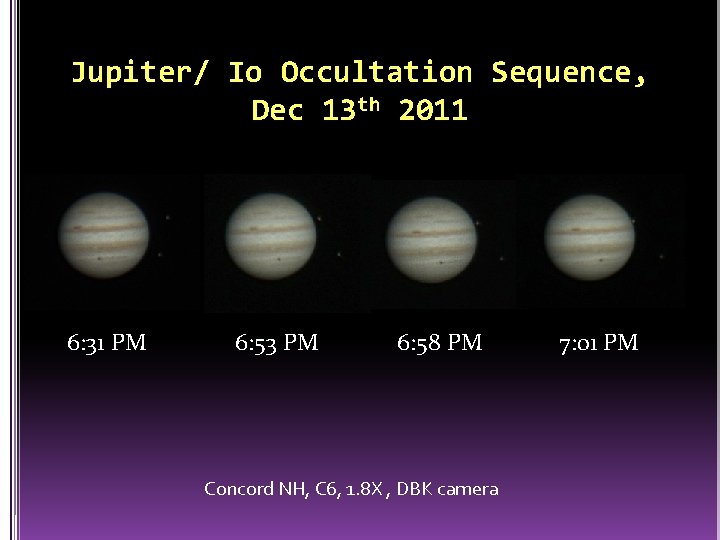

Jupiter/ Io Occultation Sequence, Dec 13 th 2011 6: 31 PM 6: 53 PM 6: 58 PM Concord NH, C 6, 1. 8 X , DBK camera 7: 01 PM

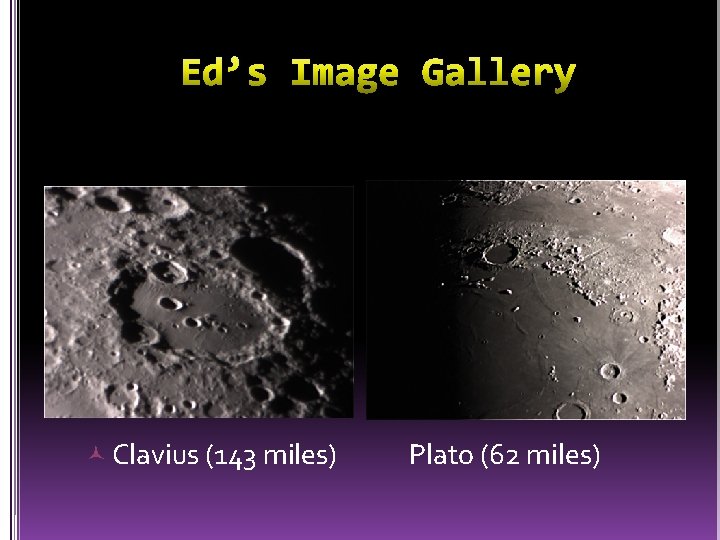

Clavius (143 miles) Plato (62 miles)

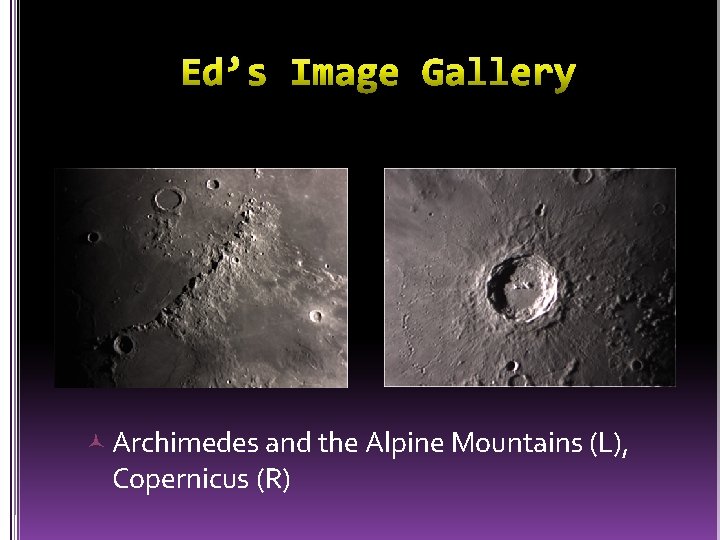

Archimedes and the Alpine Mountains (L), Copernicus (R)

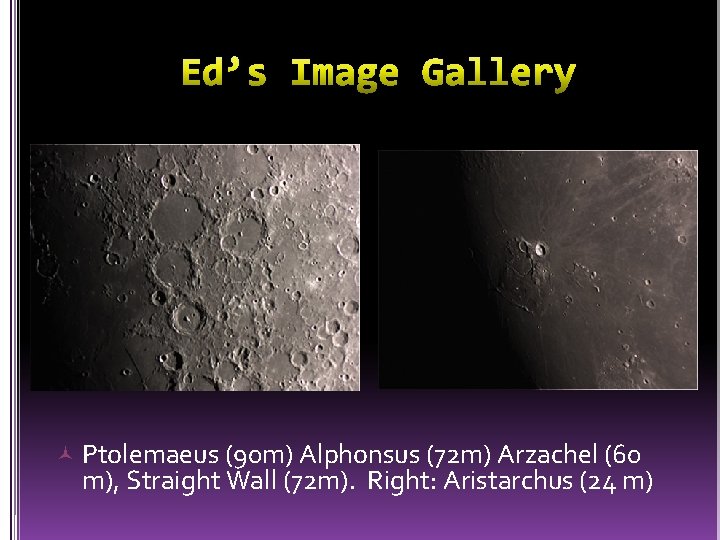

Ptolemaeus (90 m) Alphonsus (72 m) Arzachel (60 m), Straight Wall (72 m). Right: Aristarchus (24 m)

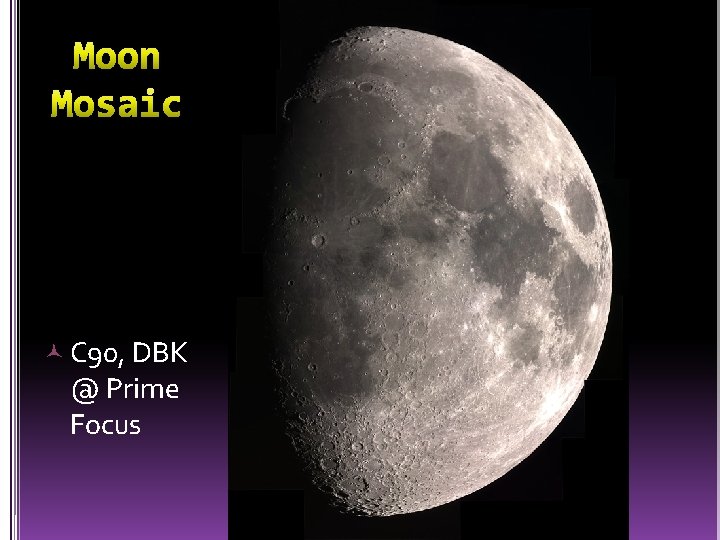

C 90, DBK @ Prime Focus

Gardner Gerry, Orion XT 8, G 11

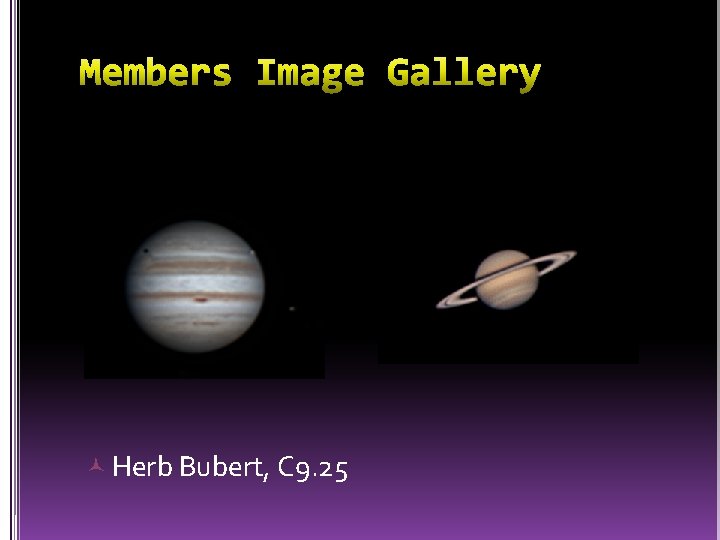

Herb Bubert, C 9. 25

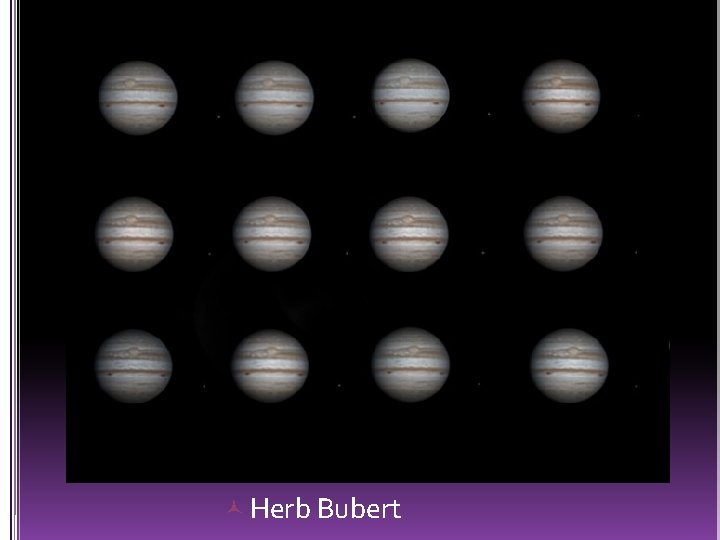

Herb Bubert

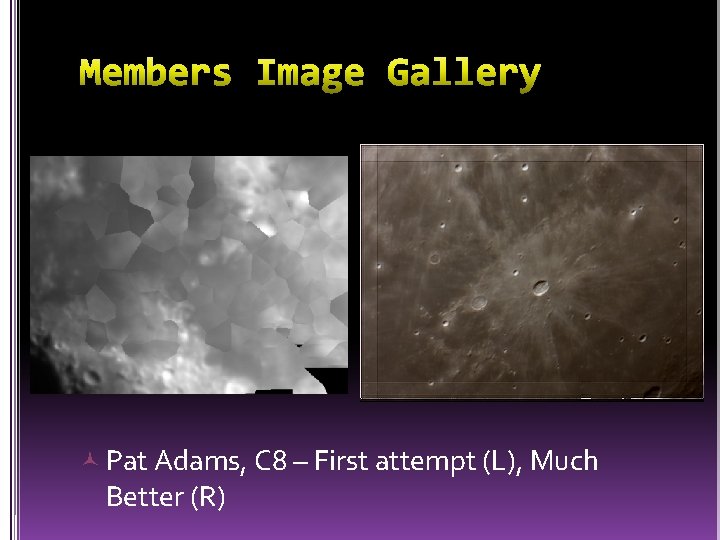

Pat Adams, C 8 – First attempt (L), Much Better (R)

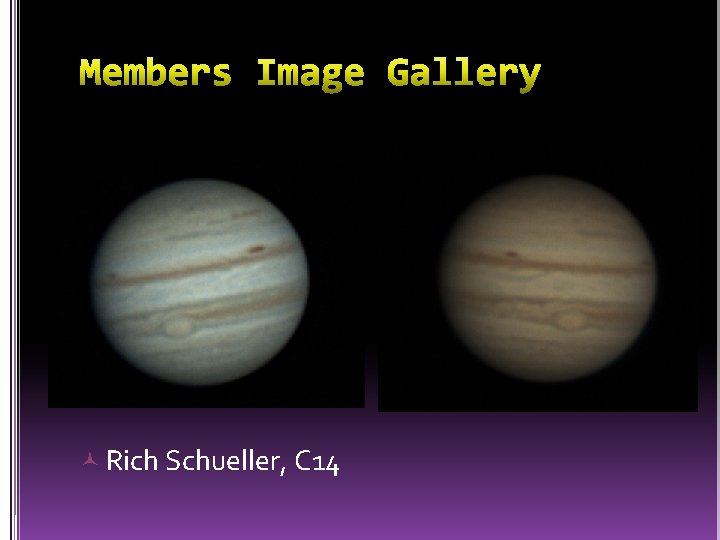

Rich Schueller, C 14

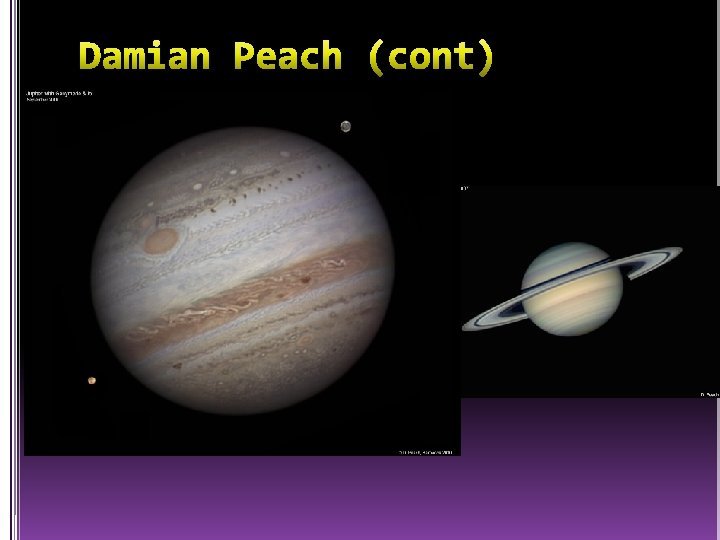

Emil Kraaikamp Christopher Go Damian Peach Zac Pujic Eric Ng

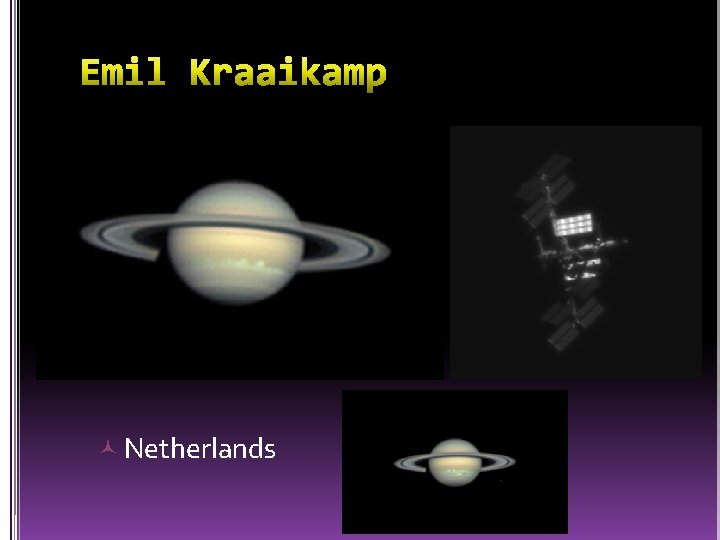

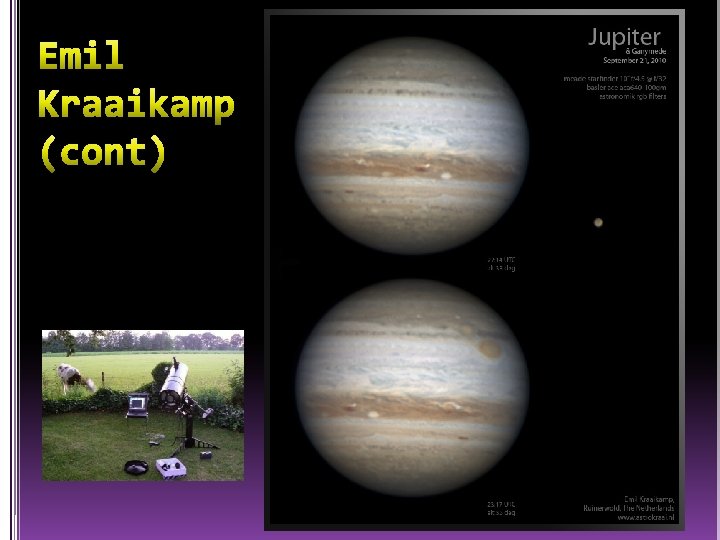

Netherlands


Philippines , DMK and Flea 3 cameras


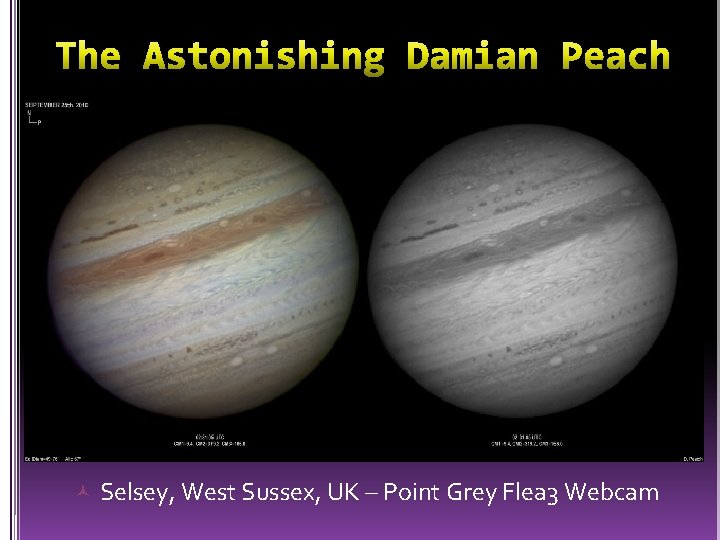

Selsey, West Sussex, UK – Point Grey Flea 3 Webcam



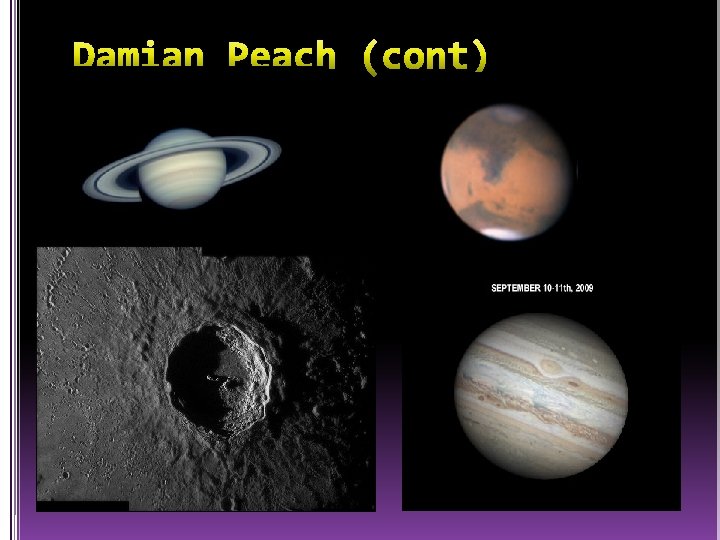

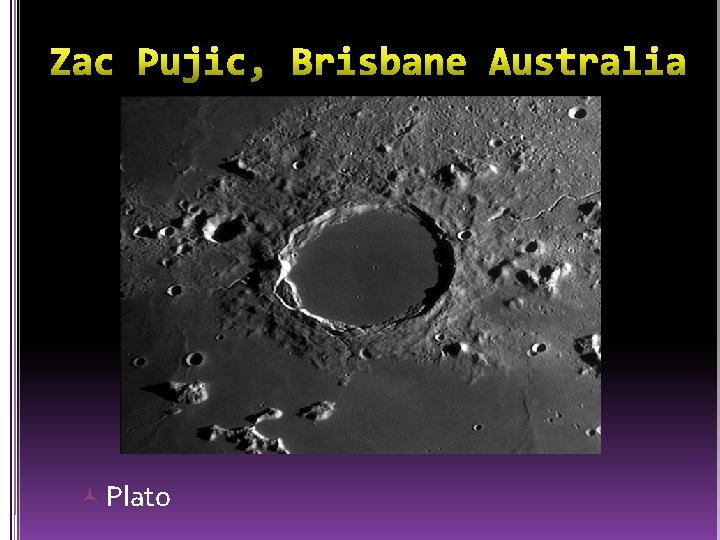

Plato

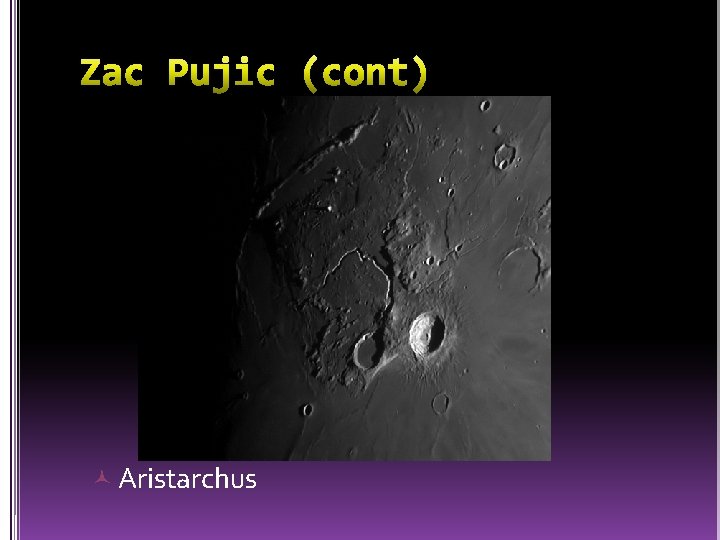

Aristarchus

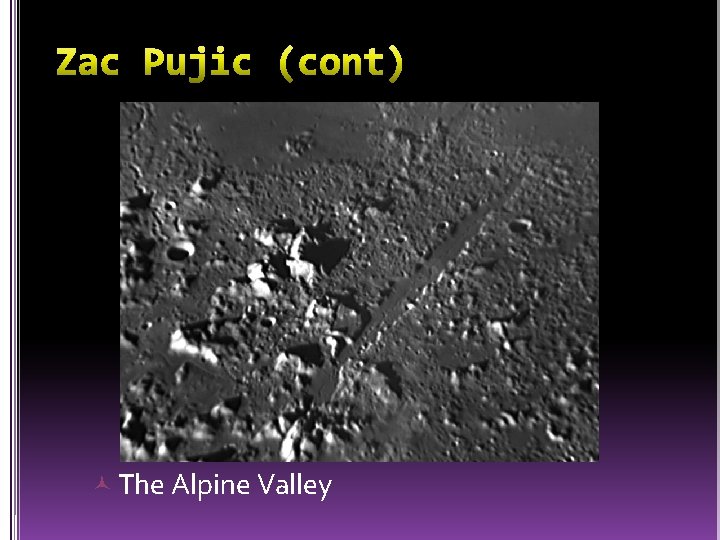

The Alpine Valley

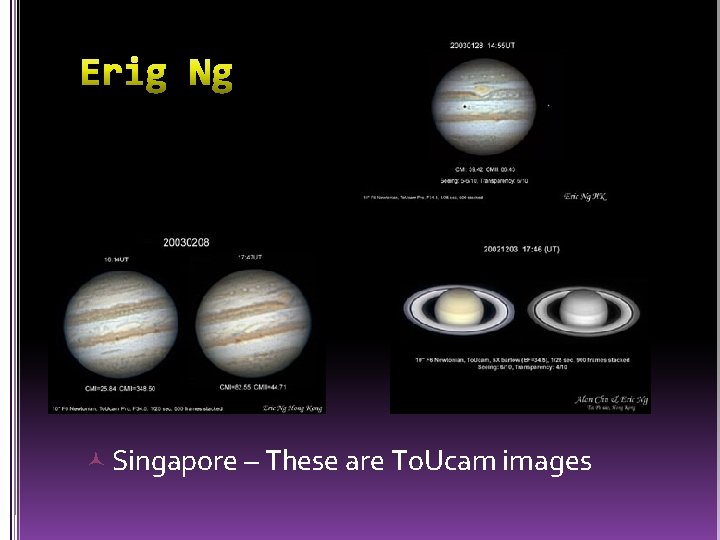

Singapore – These are To. Ucam images

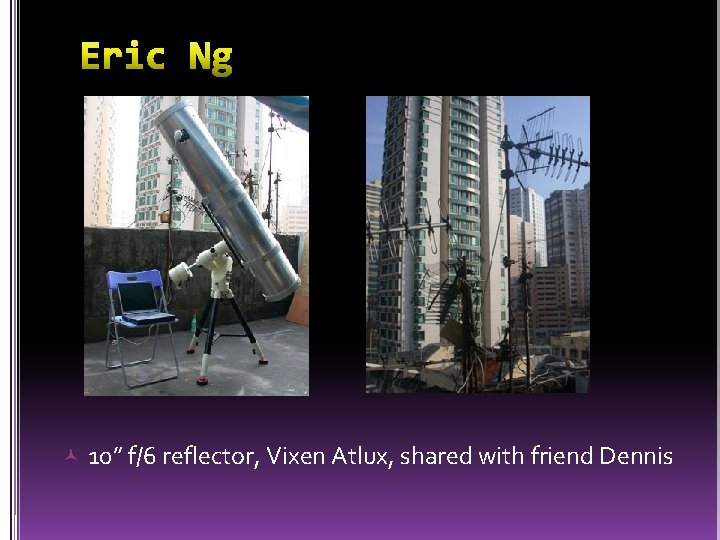

10” f/6 reflector, Vixen Atlux, shared with friend Dennis

Lowbrow Astronomers – Let’s see your images!
- Slides: 61
