Introduction to USB Agenda Introduction to USB LPC

Introduction to USB

Agenda Introduction to USB LPC 23 xx Block diagram MCB 2300 demo 2

Introduction to USB Plugging the USB cable Communication flow Lets talk about USB applications 3

USB- A Brief History USB 1. 1 Approved on 11/23/99 by the USB Core team 12 Mbps bus Full-speed (12 Mbps) Low-speed (1. 5 Mbps) Standard A connector and standard B connector Interrupt (OUT) Transfer was added USB 2. 0 OTG Original USB 2. 0 Supplements the 2. 0 specification released specification on April 27, 2000 Connects peripherals 480 Mbps bus High-speed (480 Mbps) Full-speed (12 Mbps) Low-speed (1. 5 Mbps) directly to each other (peer to peer) New mini-A connector and mini-AB receptacle Backward compatible with USB 1. 1 New mini-B connector 4

Plugging the USB Cable Bus enumeration – The process of identifying and configuring USB devices During enumeration: – Assigning an address – Reading “Descriptors” from device – Assigning and loading a device driver Host software responsibility 5

Descriptors Data Structure with a defined format that enables a host to learn about a device and its capabilities. Device Descriptor Configuration Descriptor Interface Descriptor Endpoint Descriptor 6

Introduction to USB Plugging the USB cable Communication flow Lets talk about USB applications 7

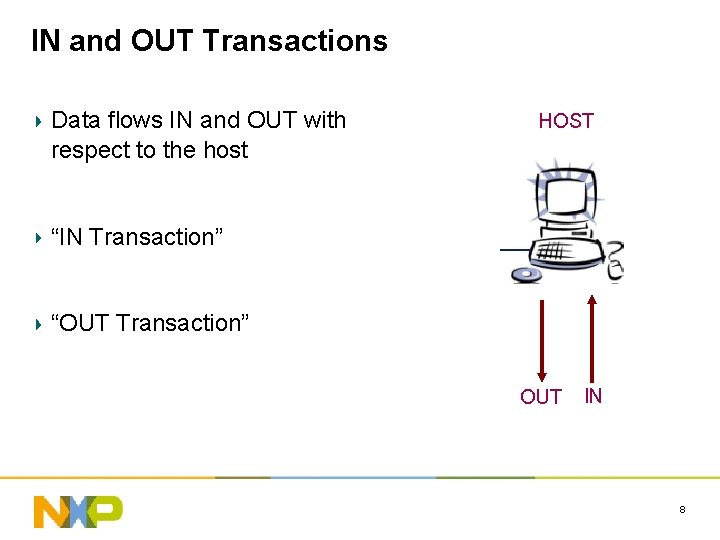

IN and OUT Transactions Data flows IN and OUT with respect to the host HOST “IN Transaction” “OUT Transaction” OUT IN 8

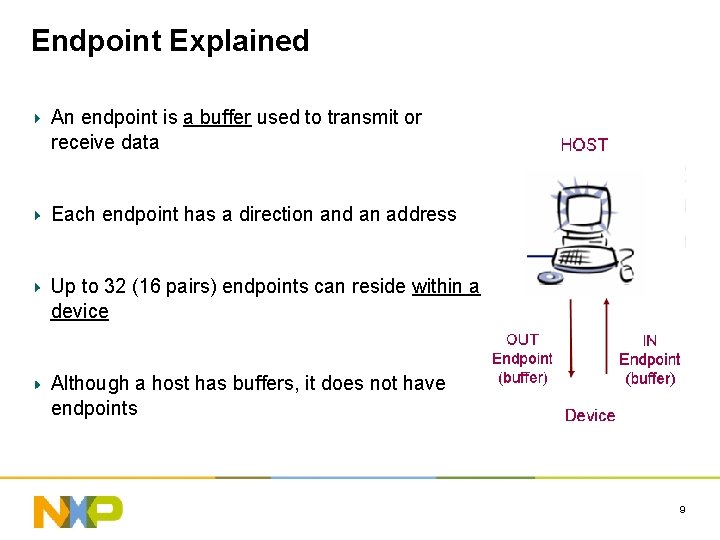

Endpoint Explained An endpoint is a buffer used to transmit or receive data Each endpoint has a direction and an address Up to 32 (16 pairs) endpoints can reside within a device Although a host has buffers, it does not have endpoints 9

Introduction to USB Plugging the USB cable Communication flow Lets talk about USB applications 10

USB Applications Interrupt Transfer Bulk Transfer Control Transfer (Bus Enumeration) Isochronous Transfer 11

Interrupt Transfer (1) Device never interrupts the host. Host polls the device Only way low speed devices can transfer data Also used by the host to send data to the device on a scheduled basis Maximum packet size: 1 -64 12

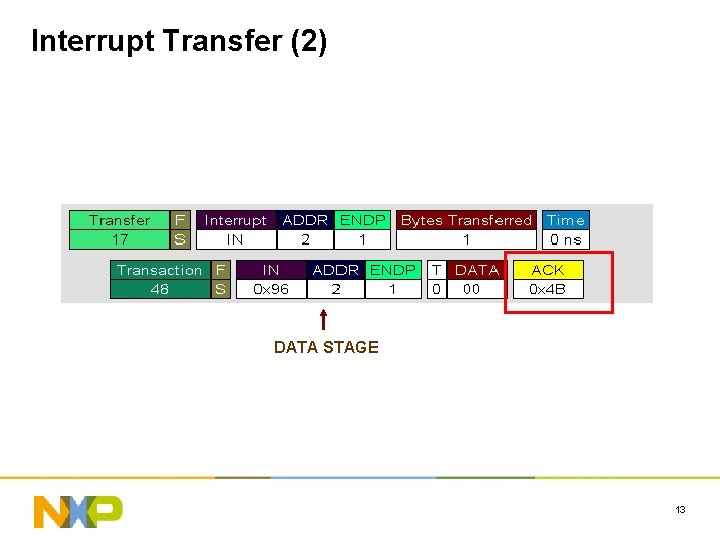

Interrupt Transfer (2) DATA STAGE 13

Bulk Transfer (1) Used for large amount of data Only full and high-speed devices Host controller ensures that bulk transfer are eventually completed but it does not guarantee bandwidth Fastest transfer type on an otherwise idle bus Maximum packet size: 8, 16, 32, 64, 512 14

Bulk Transfer (2) DATA STAGE 15

Isochronous Transfer (1) Fixed number of bytes per frame. Bandwidth is guaranteed No error correction – No ACK field Used for continuous communication of time-relevant information (streaming data) Full and high-speed devices only Maximum Packet size: 1 -1023 16

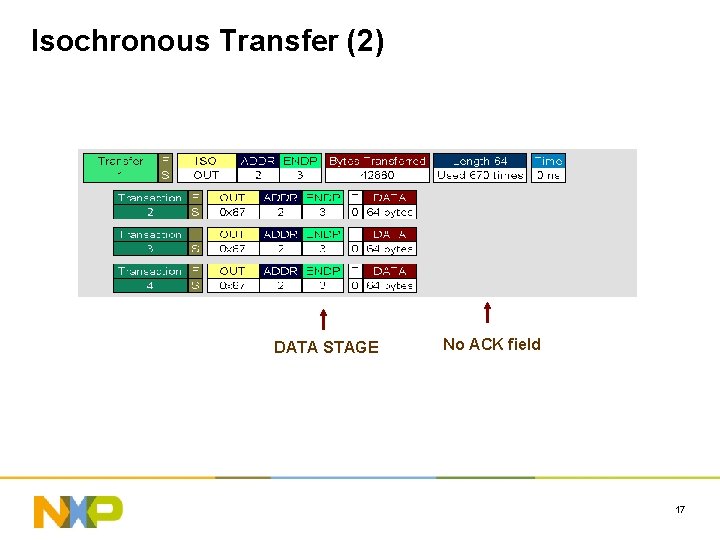

Isochronous Transfer (2) DATA STAGE No ACK field 17

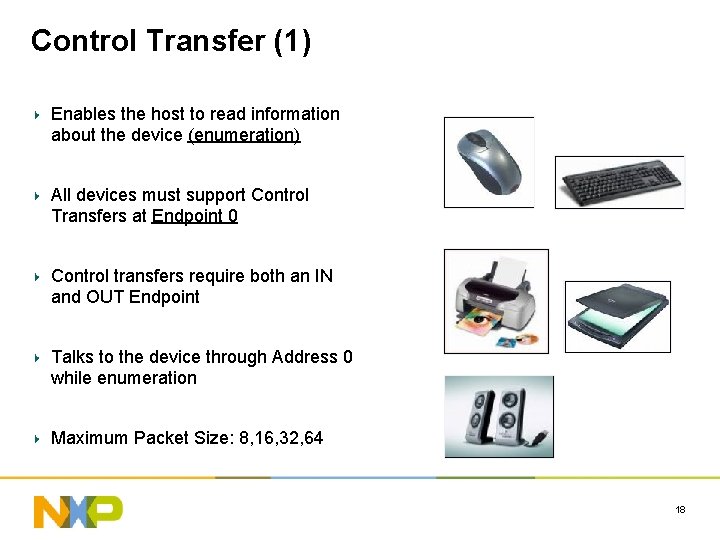

Control Transfer (1) Enables the host to read information about the device (enumeration) All devices must support Control Transfers at Endpoint 0 Control transfers require both an IN and OUT Endpoint Talks to the device through Address 0 while enumeration Maximum Packet Size: 8, 16, 32, 64 18

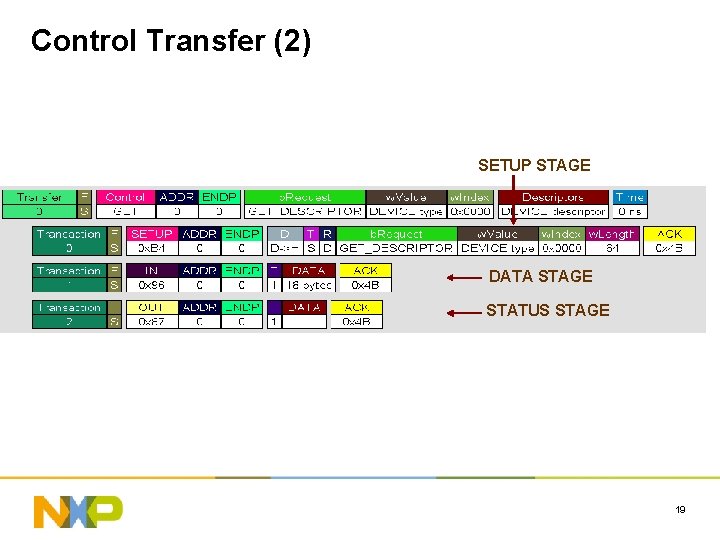

Control Transfer (2) SETUP STAGE DATA STAGE STATUS STAGE 19

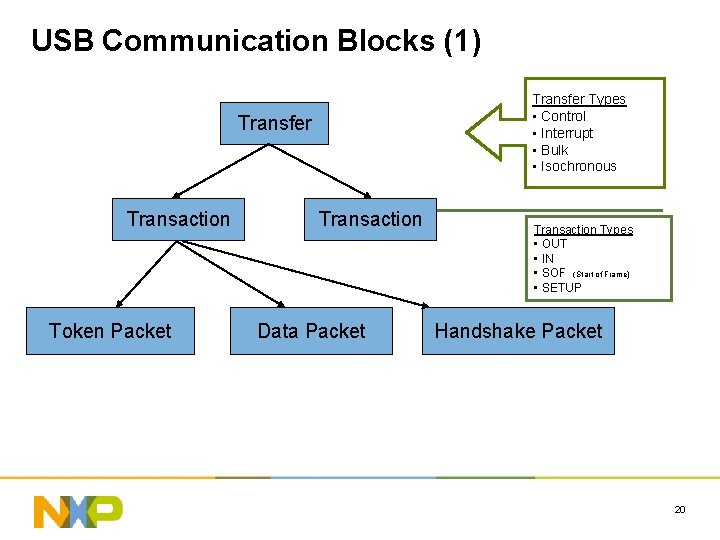

USB Communication Blocks (1) Transfer Types • Control • Interrupt • Bulk • Isochronous Transfer Transaction Token Packet Transaction Data Packet Transaction Types • OUT • IN • SOF (Start of Frame) • SETUP Handshake Packet 20

USB Communication Blocks (2) 21

LPC 23 xx 22

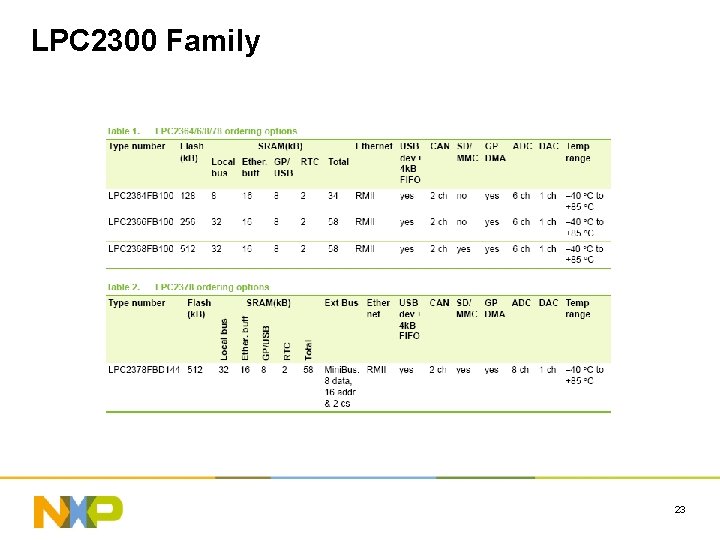

LPC 2300 Family 23

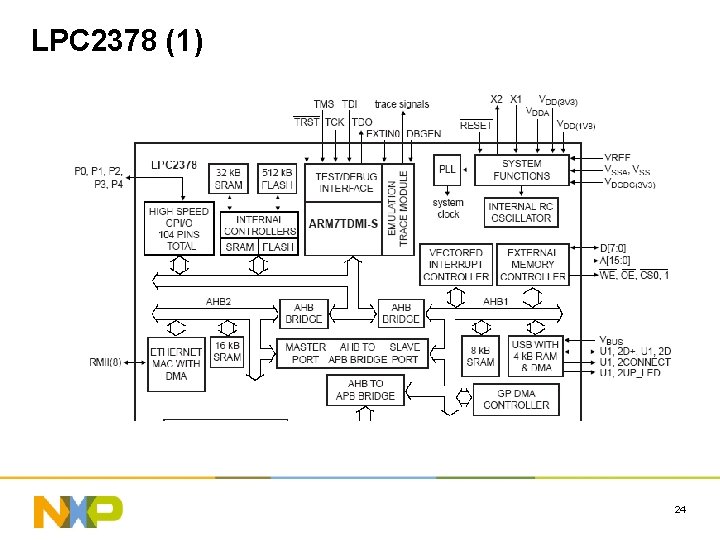

LPC 2378 (1) 24

LPC 2378 (2) 25

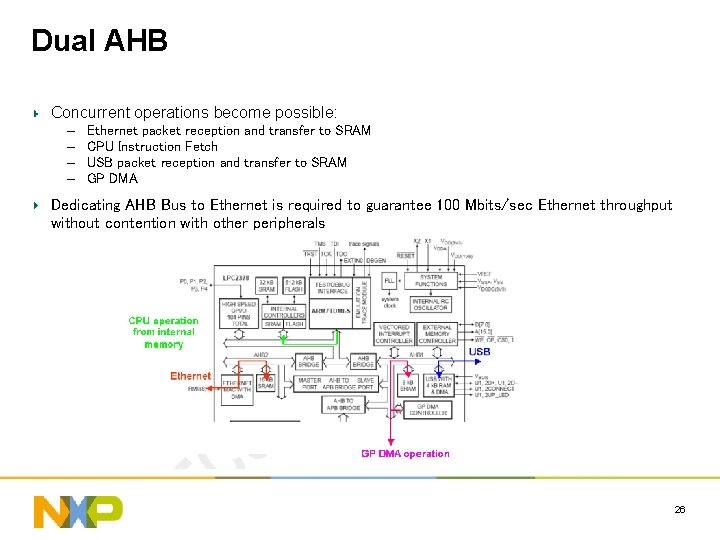

Dual AHB Concurrent operations become possible: – – Ethernet packet reception and transfer to SRAM CPU Instruction Fetch USB packet reception and transfer to SRAM GP DMA Dedicating AHB Bus to Ethernet is required to guarantee 100 Mbits/sec Ethernet throughput without contention with other peripherals 26

USB 2. 0 Fully Compliant with USB 2. 0 Spec Supports Control, Bulk, Interrupt and Isochronous endpoints Scalable realization of Endpoints at Run time Double buffering supported for Bulk and Isochronous Endpoints Supports DMA transfer on all non-control endpoints 27

Available USB Device Stacks for LPC 2300/2400/214 x (list does not claim to be complete…) Keil RL-USB: – http: //www. keil. com/arm/rl-usb. asp Micrium µC/USB Device – http: //www. micrium. com/products/usb-device/overview. html Micro Digital smx. USBD – http: //www. smxrtos. com/rtos/usb/smxusbd. htm HCC Embedded USB (EUSB) Device Stack – http: //www. hcc-embedded. com/site. php? mid=120 CMX-USB – http: //www. cmx. com/cmx_usb. pdf Express Logic USBX – http: //www. rtos. com/page/product. php? id=6 28

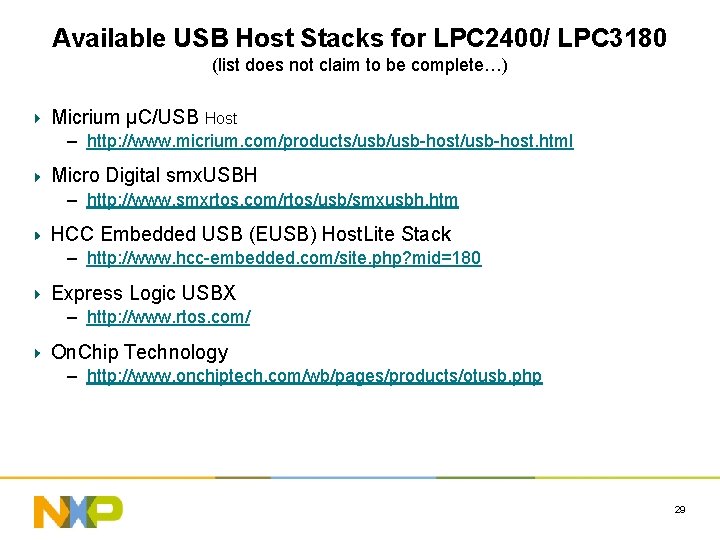

Available USB Host Stacks for LPC 2400/ LPC 3180 (list does not claim to be complete…) Micrium µC/USB Host – http: //www. micrium. com/products/usb-host/usb-host. html Micro Digital smx. USBH – http: //www. smxrtos. com/rtos/usb/smxusbh. htm HCC Embedded USB (EUSB) Host. Lite Stack – http: //www. hcc-embedded. com/site. php? mid=180 Express Logic USBX – http: //www. rtos. com/ On. Chip Technology – http: //www. onchiptech. com/wb/pages/products/otusb. php 29
