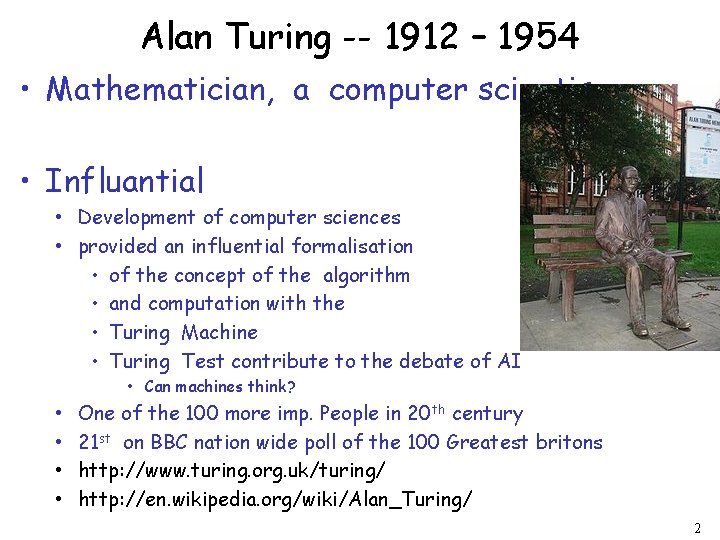

Alan Turing -- 1912 – 1954 • Mathematician, a computer scientis • Influantial • Development of computer sciences • provided an influential formalisation • of the concept of the algorithm • and computation with the • Turing Machine • Turing Test contribute to the debate of AI • Can machines think? • • One of the 100 more imp. People in 20 th century 21 st on BBC nation wide poll of the 100 Greatest britons http: //www. turing. org. uk/turing/ http: //en. wikipedia. org/wiki/Alan_Turing/ 2

The Turing Machine 10 01 1 10 1 1 1 0 0 0 A TM consists of an infinite length tape, on which input is provided as a finite sequence of symbols. A head reads the input tape. The TM starts at start state s 0. On reading an input symbol it optionally replaces it with another symbol, changes its internal state and moves one cell to the right or left. 3

The Turing Machine A TM is defined as: TM = <S, T, s 0, d, H> where, S is a set of TM states T is a set of tape symbols s 0 is the start state H S is a set of halting states d : S x T x {L, R} is the transition function 4

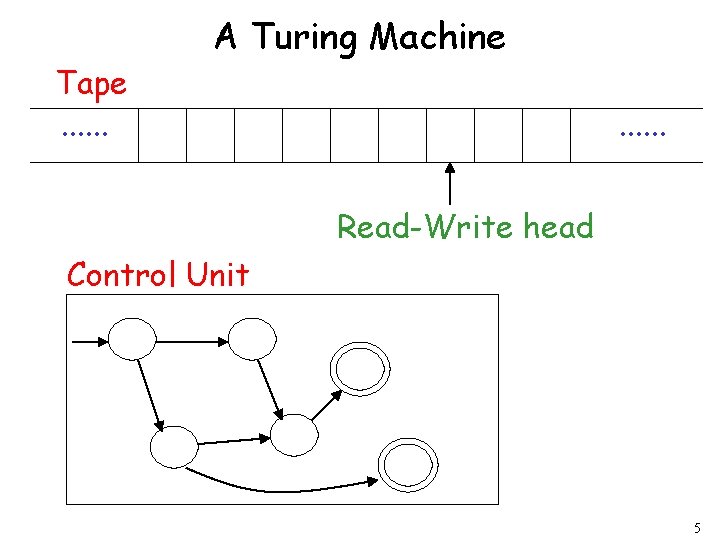

Tape. . . A Turing Machine. . . Read-Write head Control Unit 5

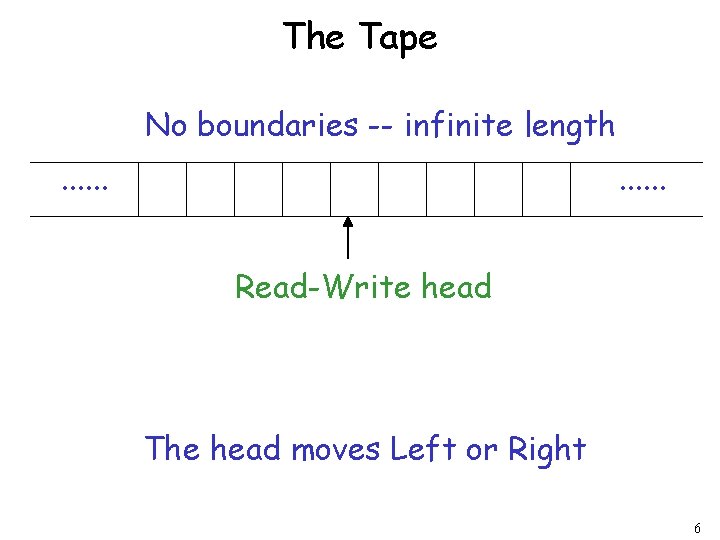

The Tape No boundaries -- infinite length. . . Read-Write head The head moves Left or Right 6

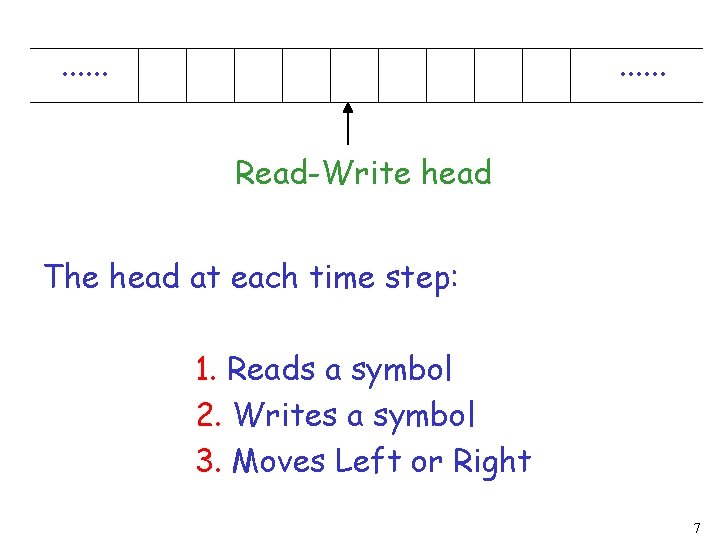

. . . Read-Write head The head at each time step: 1. Reads a symbol 2. Writes a symbol 3. Moves Left or Right 7

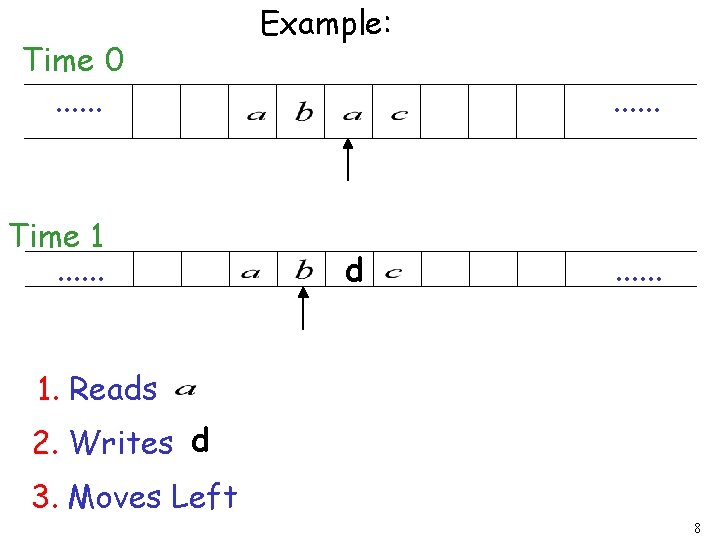

Time 0. . . Time 1. . . Example: . . . d . . . 1. Reads 2. Writes d 3. Moves Left 8

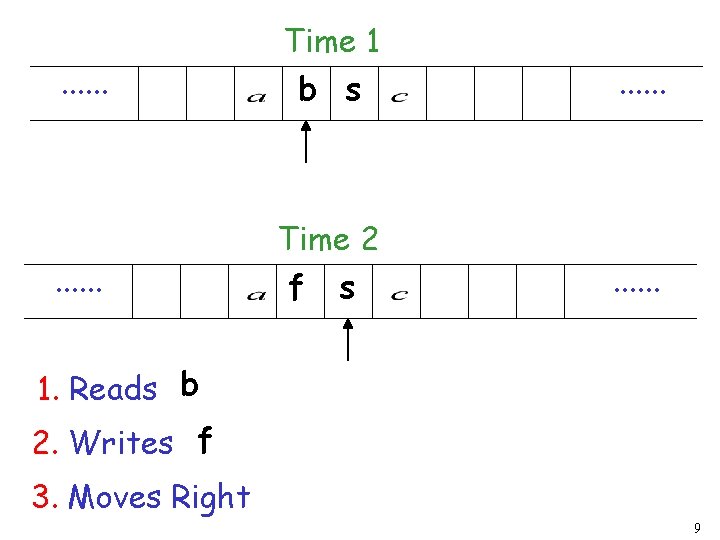

. . . Time 1 b s Time 2 f s . . . 1. Reads b 2. Writes f 3. Moves Right 9

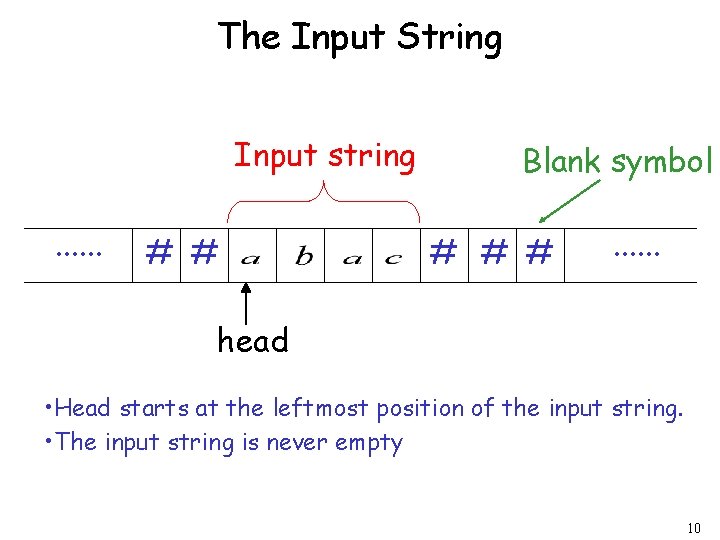

The Input String Input string. . . # # Blank symbol # # # . . . head • Head starts at the leftmost position of the input string. • The input string is never empty 10

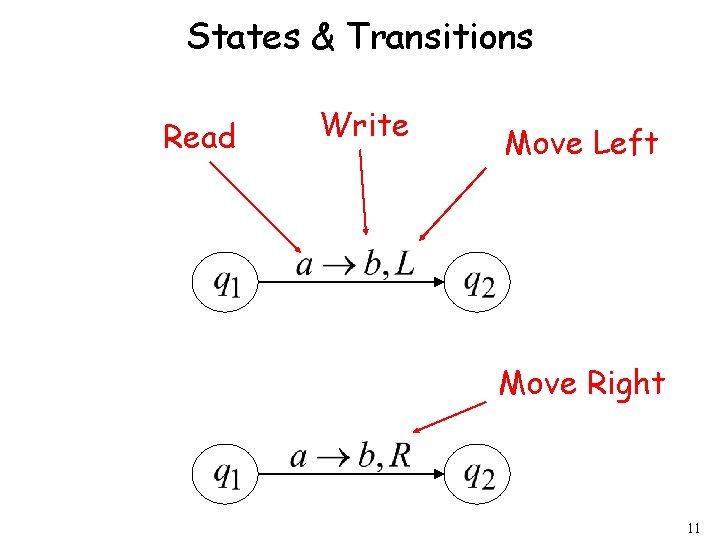

States & Transitions Read Write Move Left Move Right 11

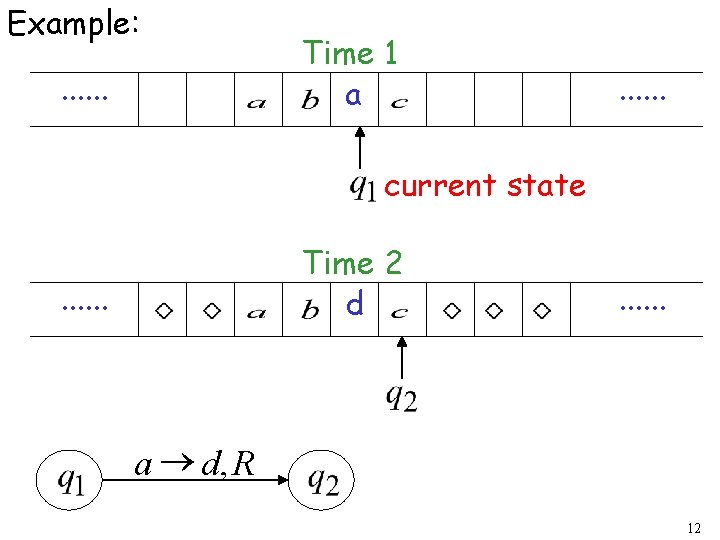

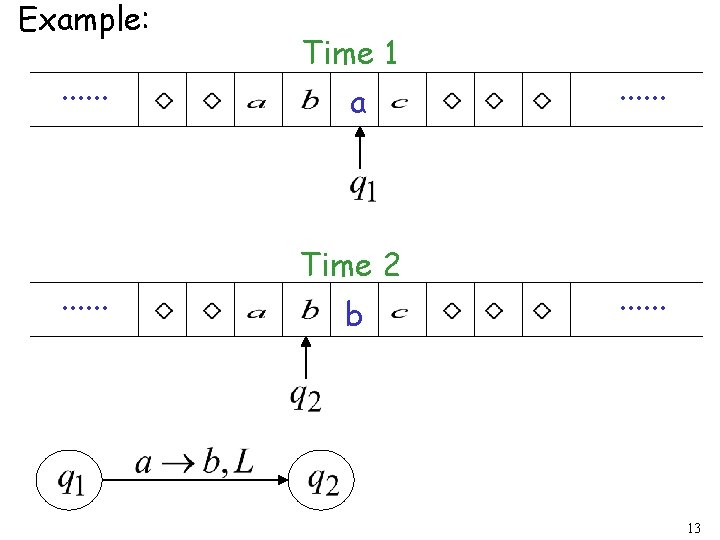

Example: . . . Time 1 a . . . current state Time 2 d . . . a ® d, R 12

Example: . . . Time 1 a Time 2 b . . . 13

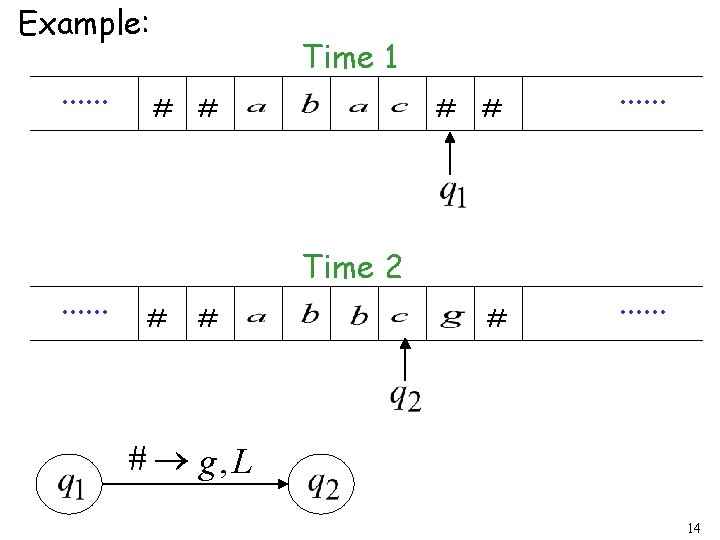

Example: . . . Time 1 # # . . . Time 2 # # # ® g, L 14

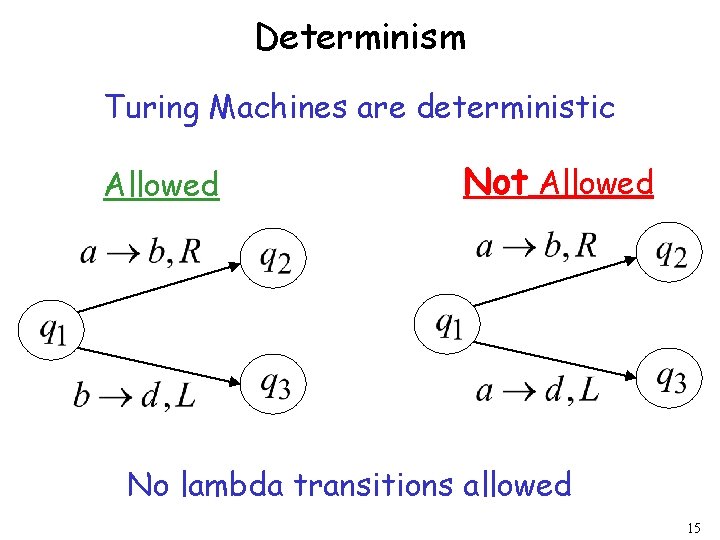

Determinism Turing Machines are deterministic Allowed Not Allowed No lambda transitions allowed 15

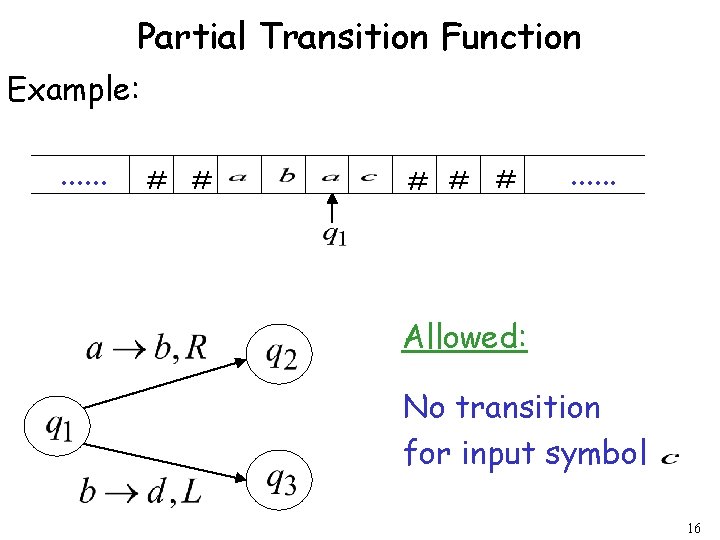

Partial Transition Function Example: . . . # # # . . . Allowed: No transition for input symbol 16

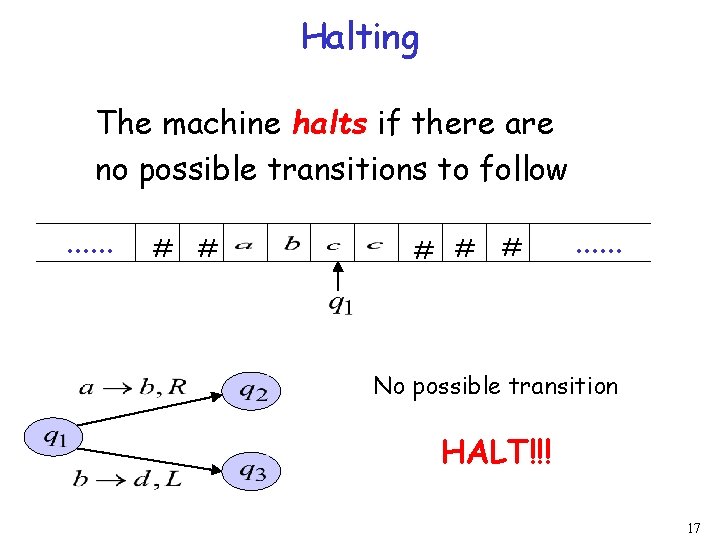

Halting The machine halts if there are no possible transitions to follow. . . # # # . . . No possible transition HALT!!! 17

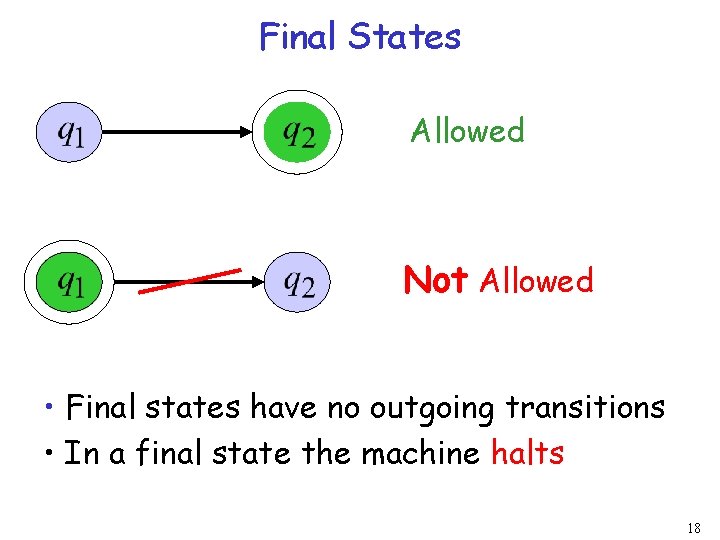

Final States Allowed Not Allowed • Final states have no outgoing transitions • In a final state the machine halts 18

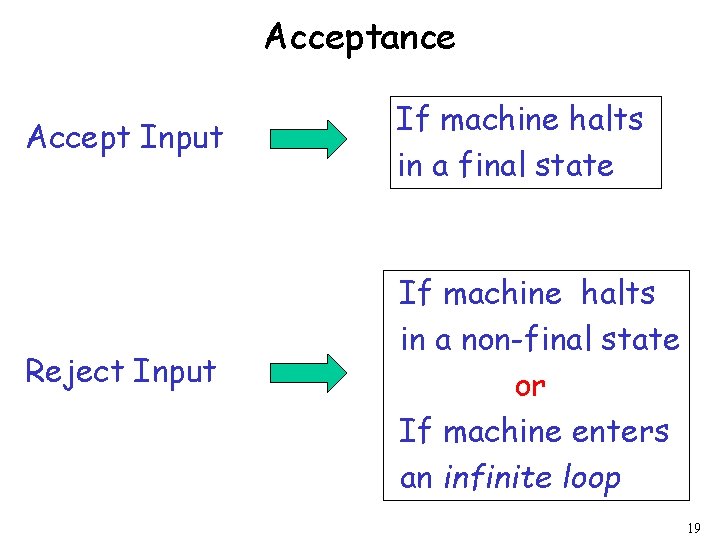

Acceptance Accept Input If machine halts in a final state Reject Input If machine halts in a non-final state or If machine enters an infinite loop 19

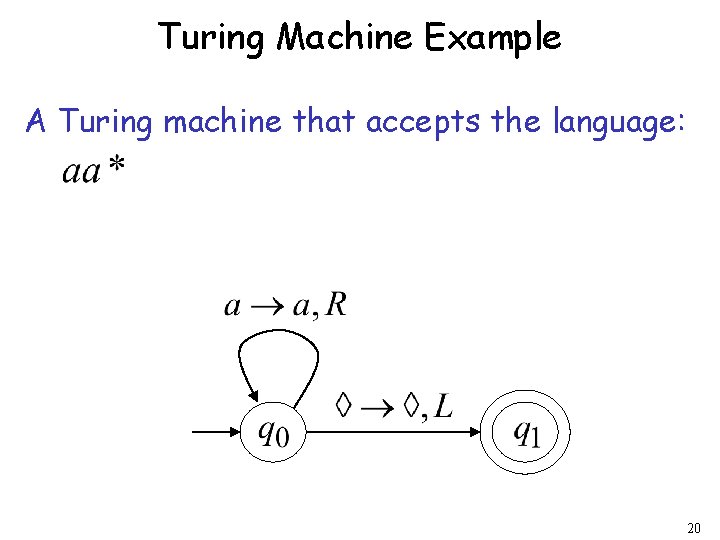

Turing Machine Example A Turing machine that accepts the language: 20

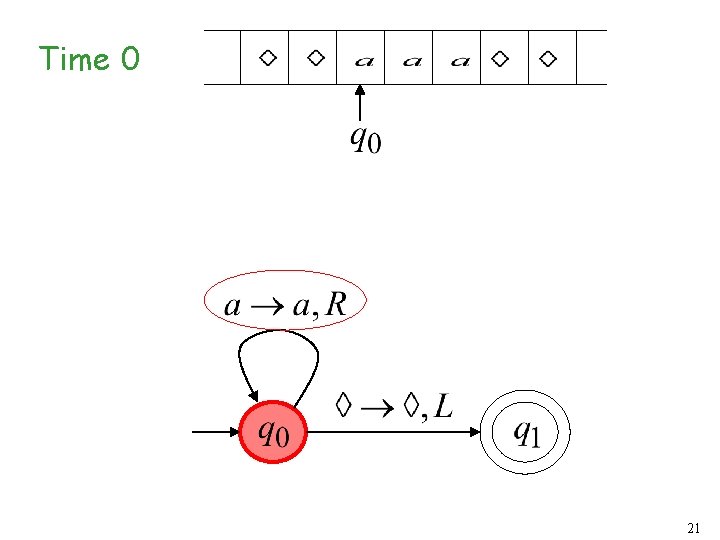

Time 0 21

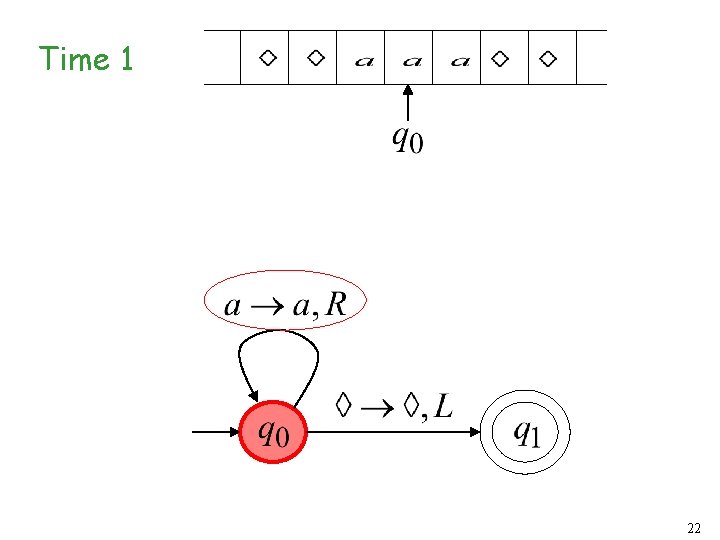

Time 1 22

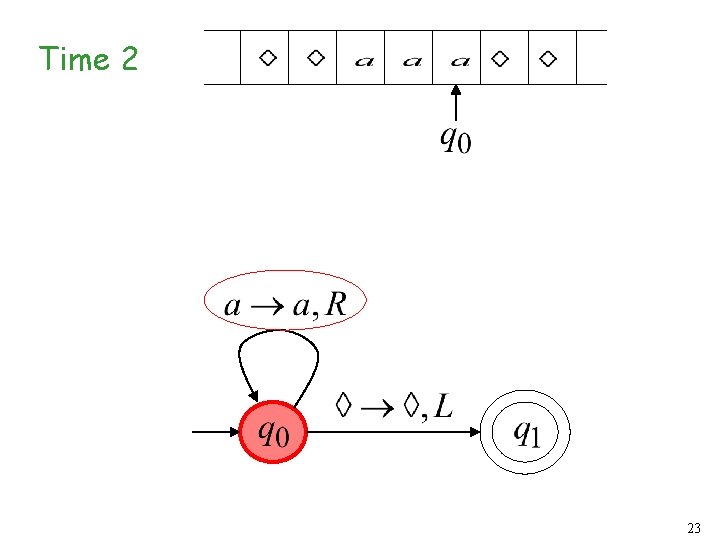

Time 2 23

Time 3 24

Time 4 Halt & Accept 25

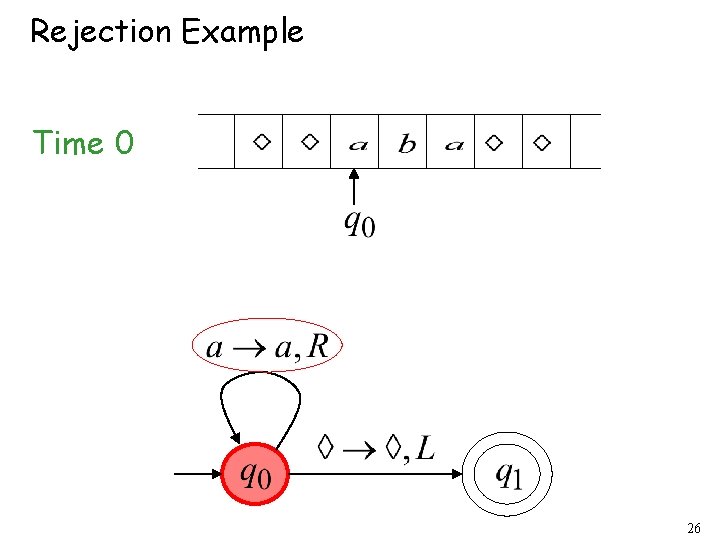

Rejection Example Time 0 26

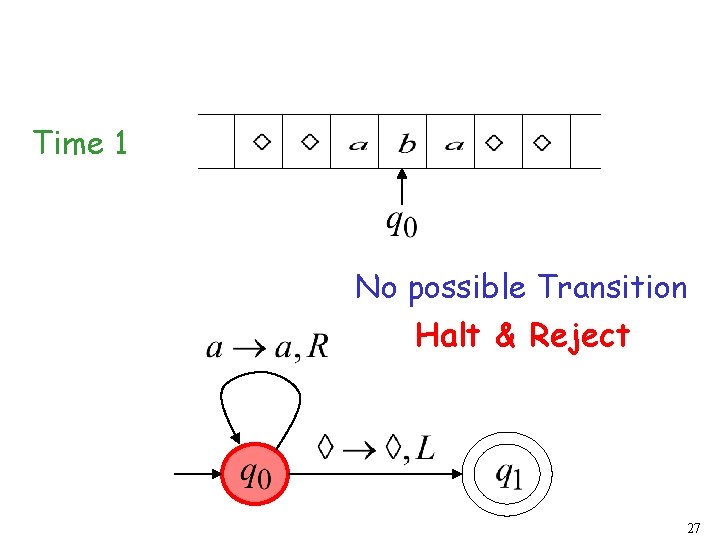

Time 1 No possible Transition Halt & Reject 27

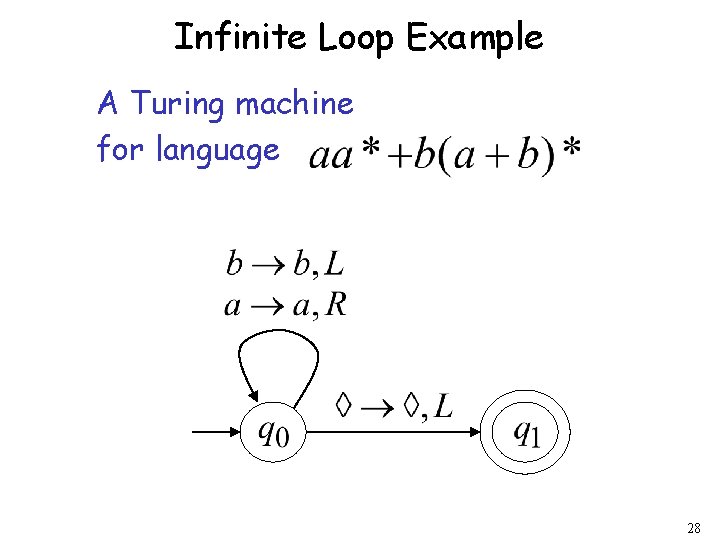

Infinite Loop Example A Turing machine for language 28

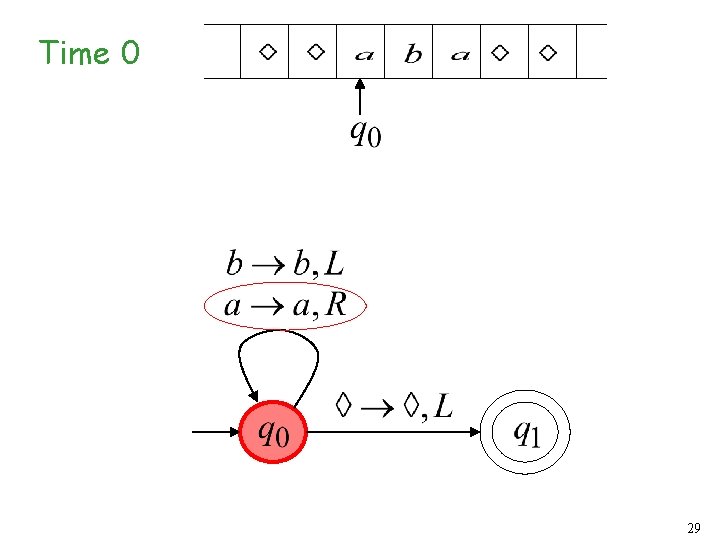

Time 0 29

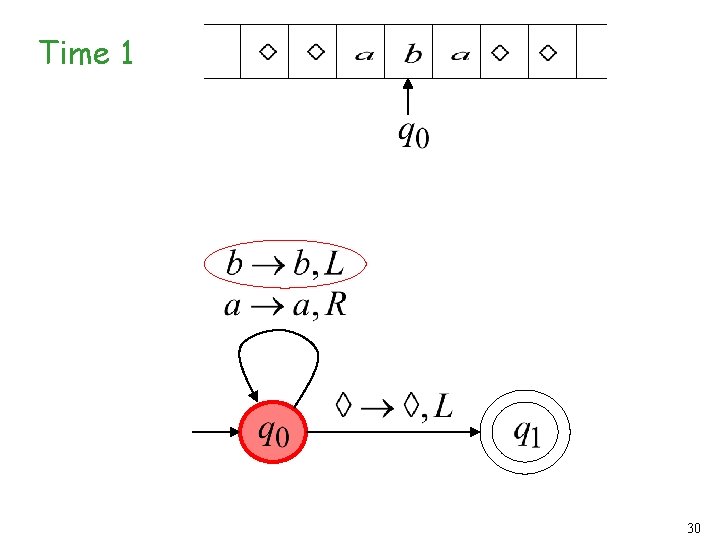

Time 1 30

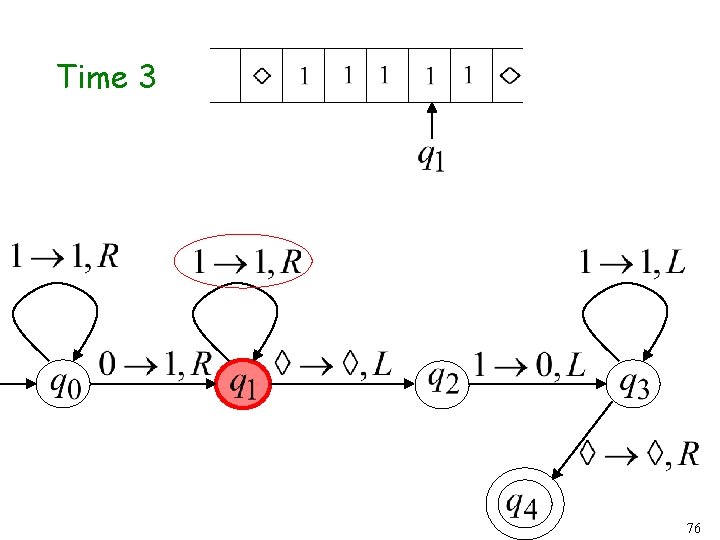

Time 2 31

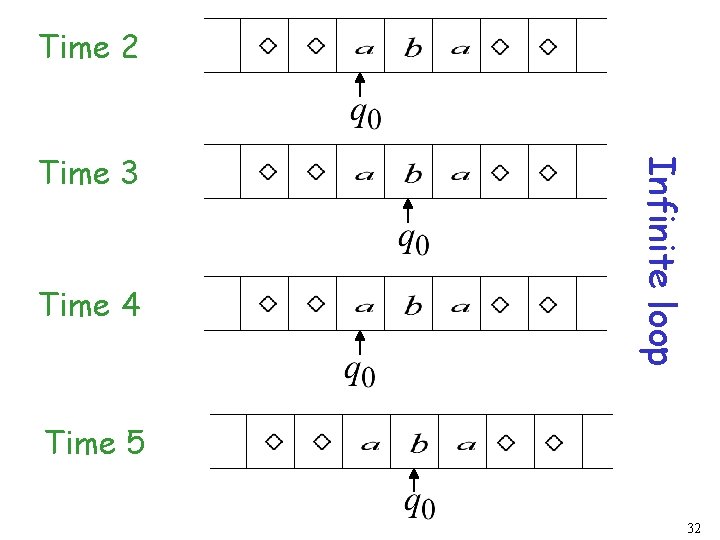

Time 2 Time 4 Infinite loop Time 3 Time 5 32

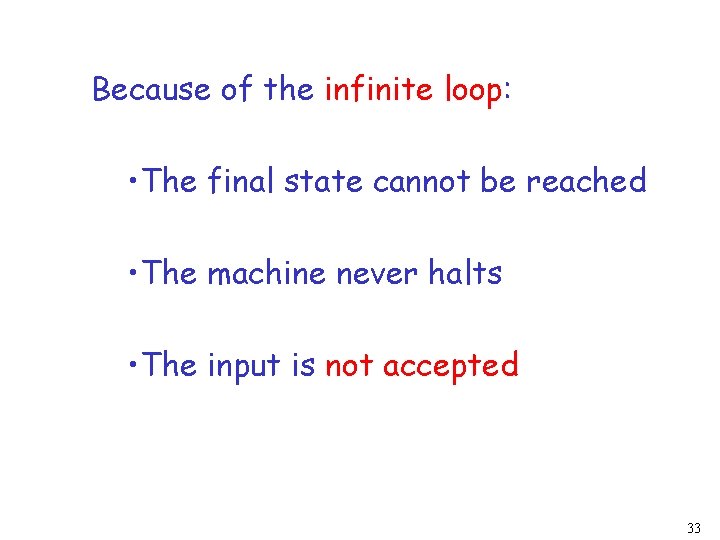

Because of the infinite loop: • The final state cannot be reached • The machine never halts • The input is not accepted 33

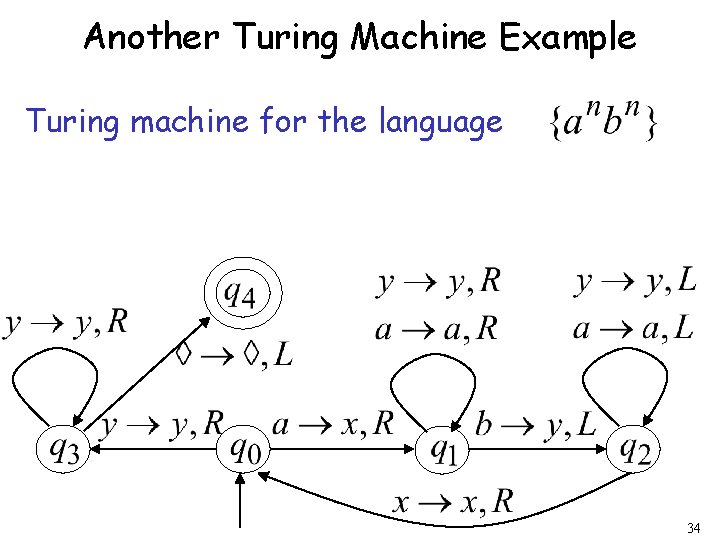

Another Turing Machine Example Turing machine for the language 34

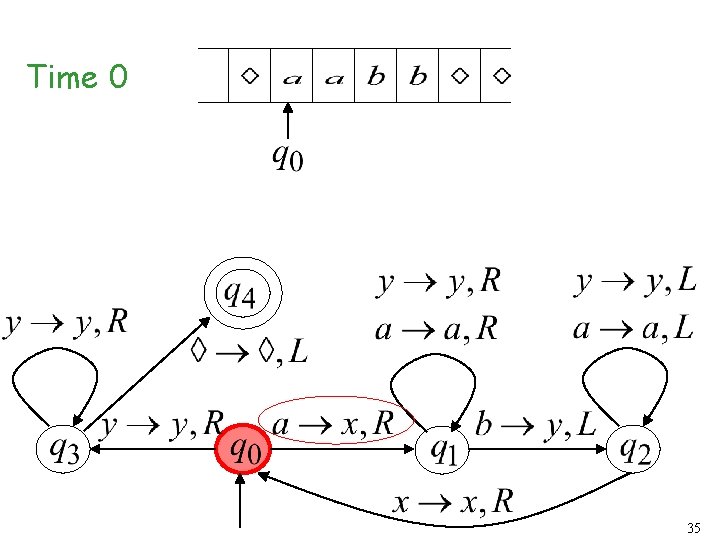

Time 0 35

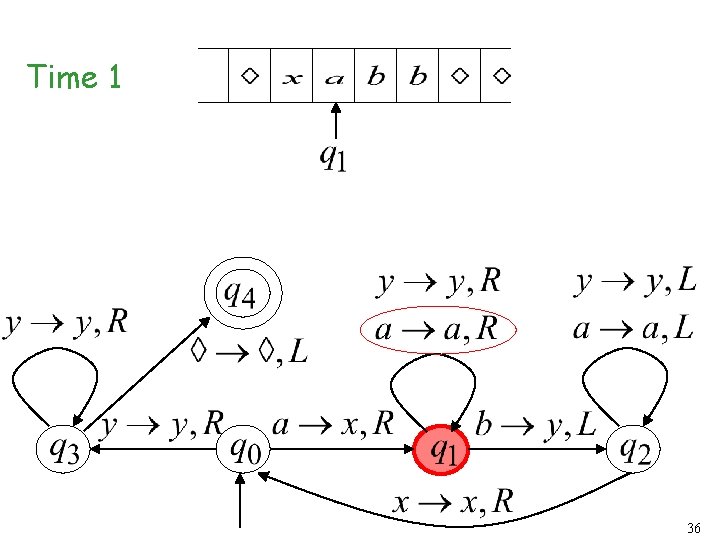

Time 1 36

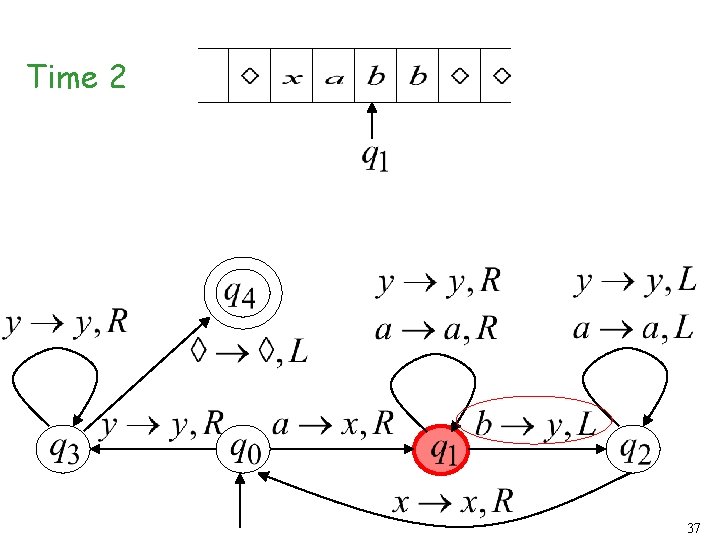

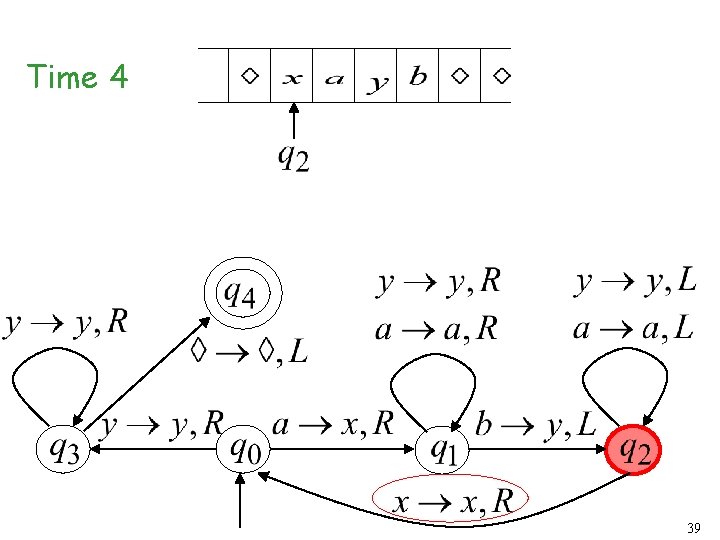

Time 2 37

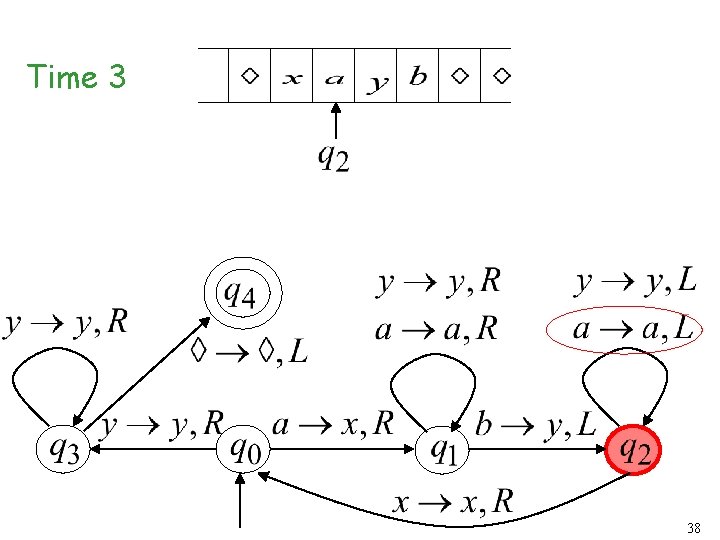

Time 3 38

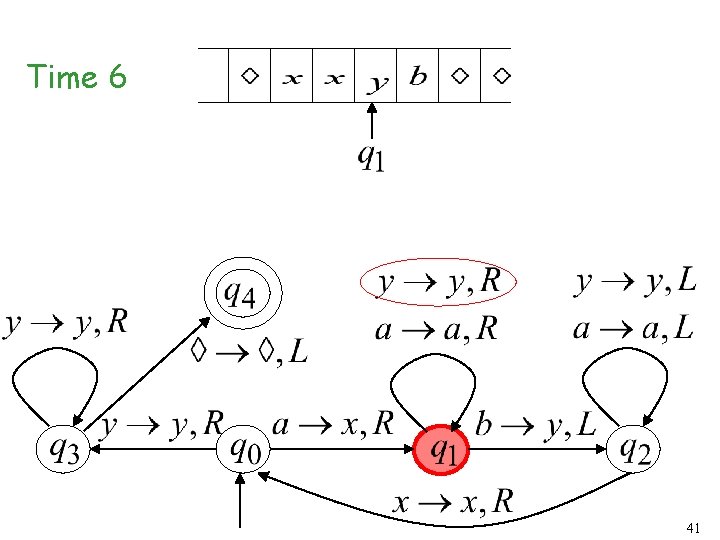

Time 4 39

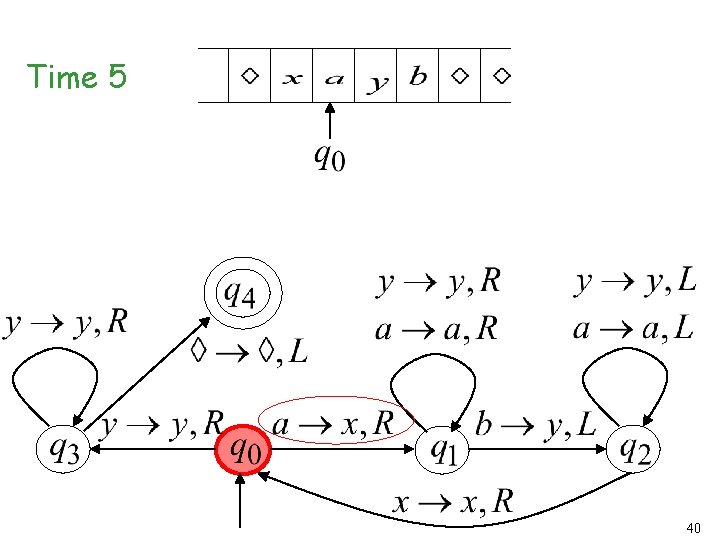

Time 5 40

Time 6 41

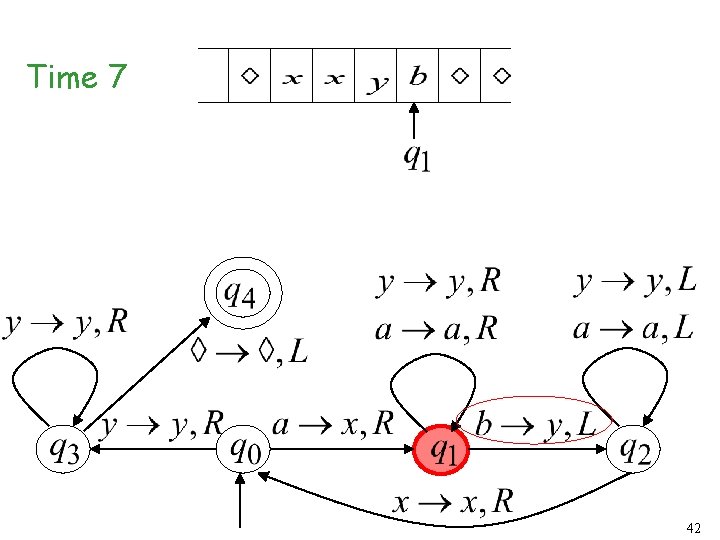

Time 7 42

Time 8 43

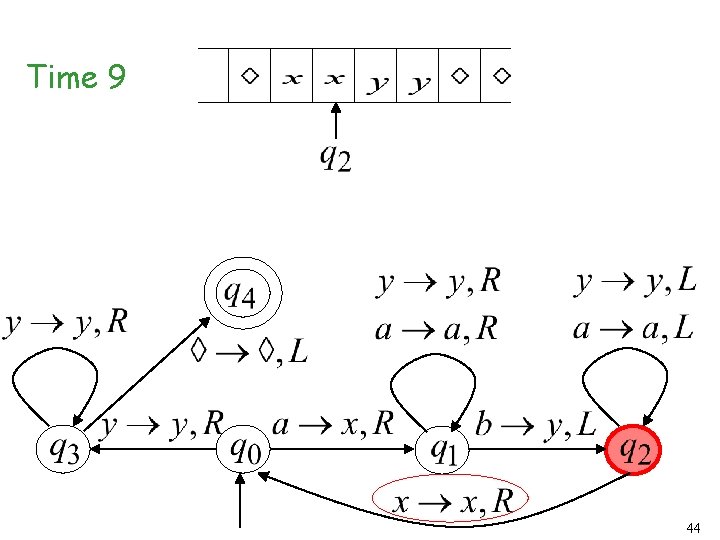

Time 9 44

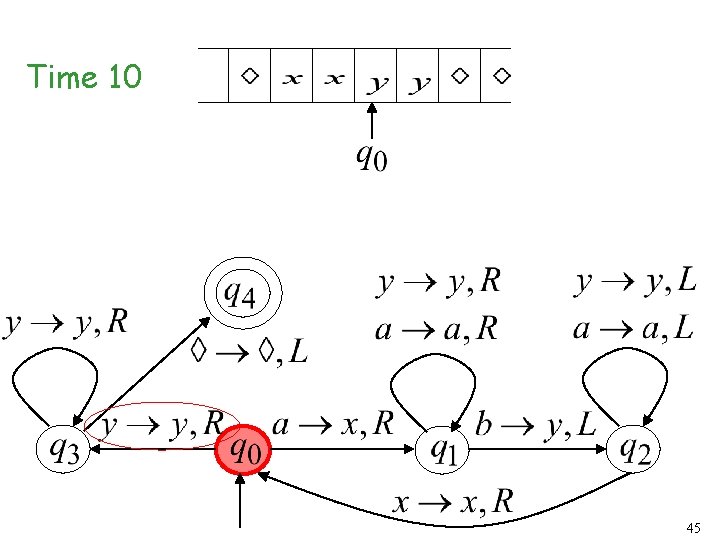

Time 10 45

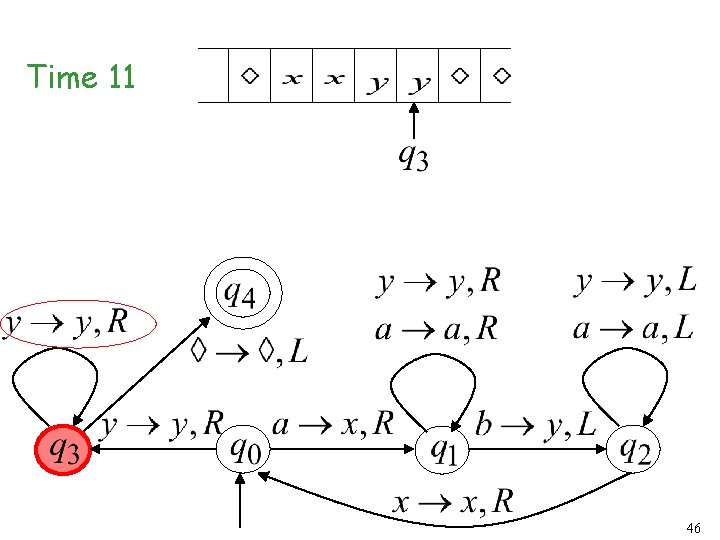

Time 11 46

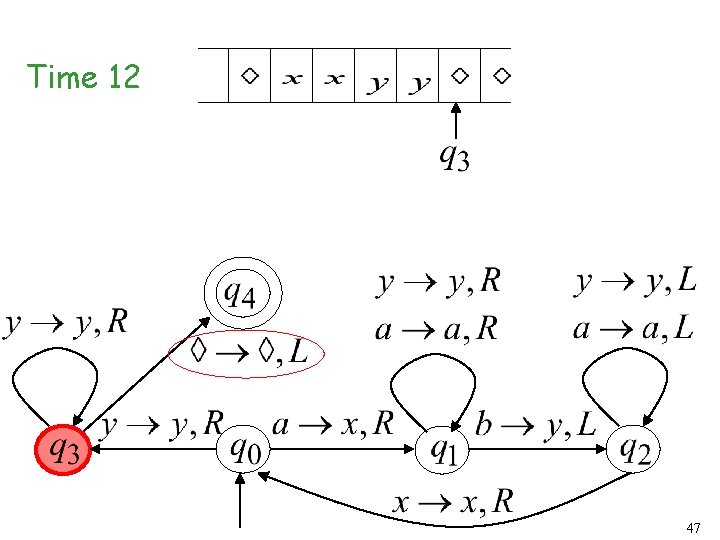

Time 12 47

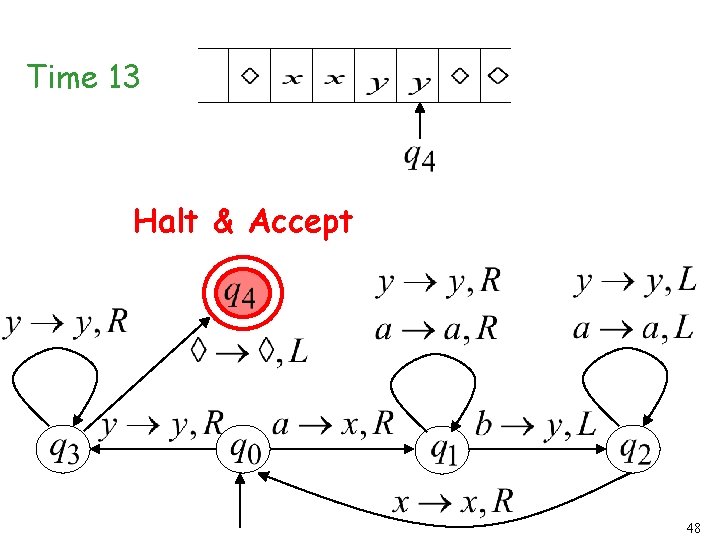

Time 13 Halt & Accept 48

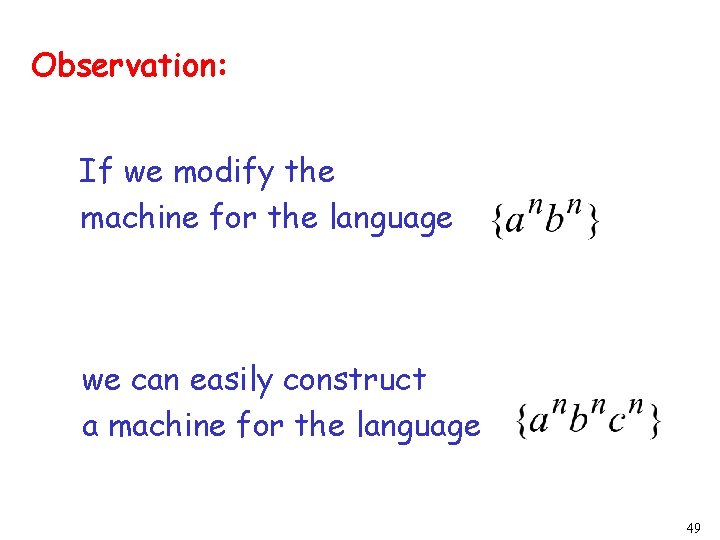

Observation: If we modify the machine for the language we can easily construct a machine for the language 49

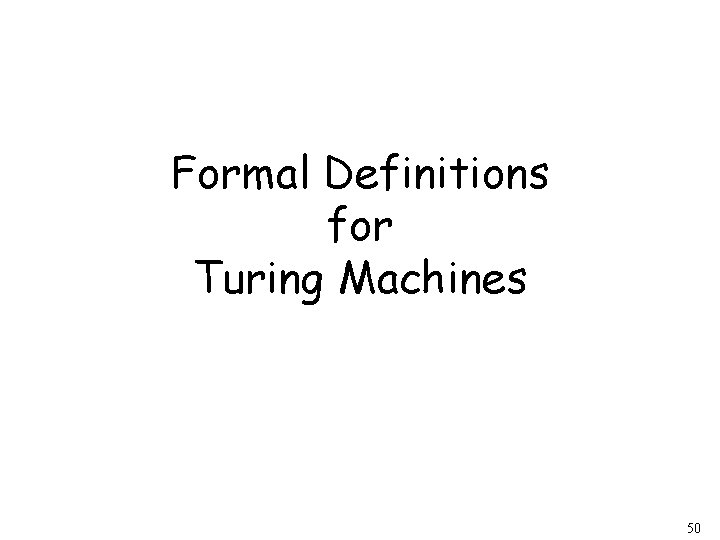

Formal Definitions for Turing Machines 50

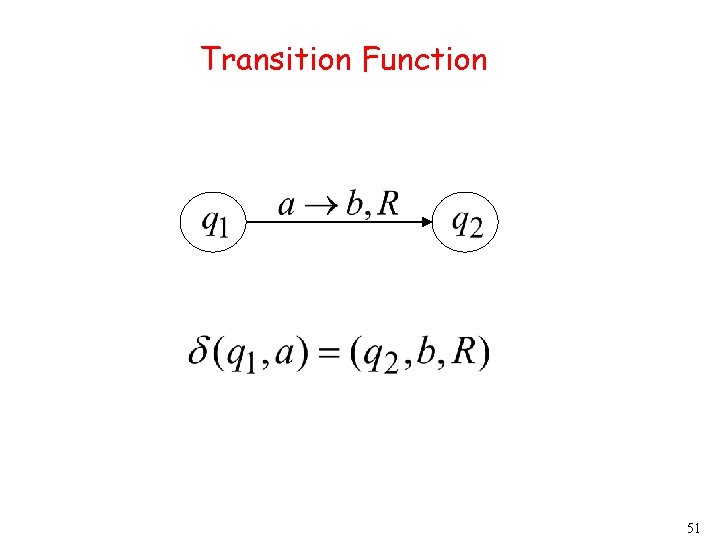

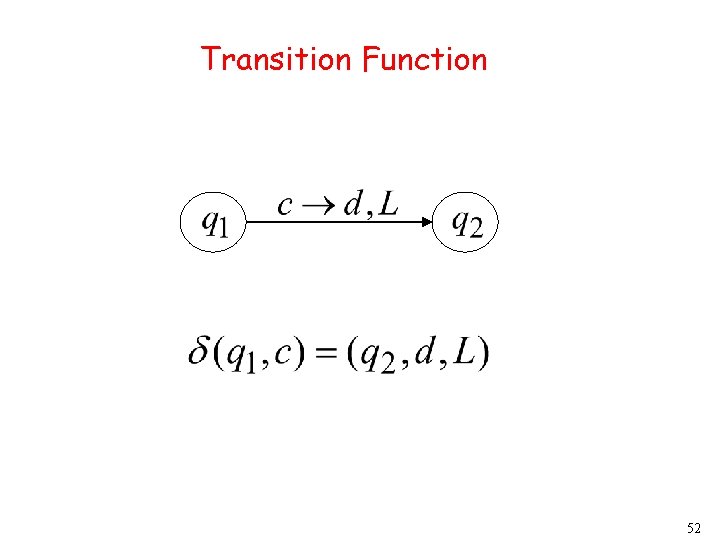

Transition Function 51

Transition Function 52

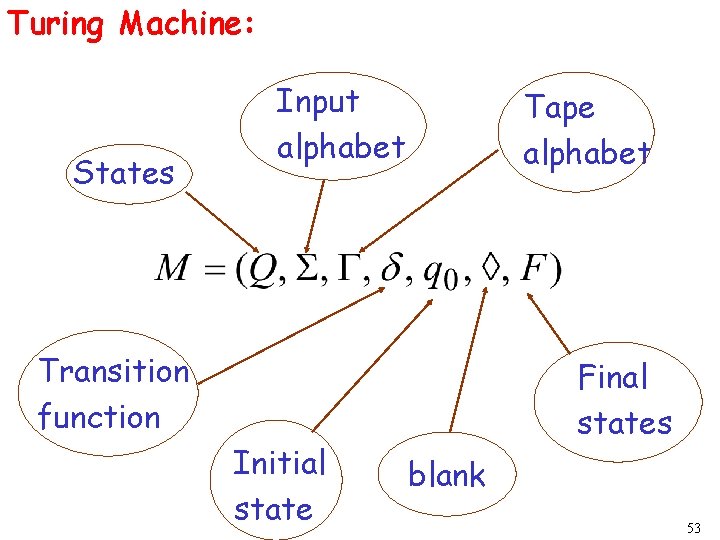

Turing Machine: States Input alphabet Tape alphabet Transition function Initial state Final states blank 53

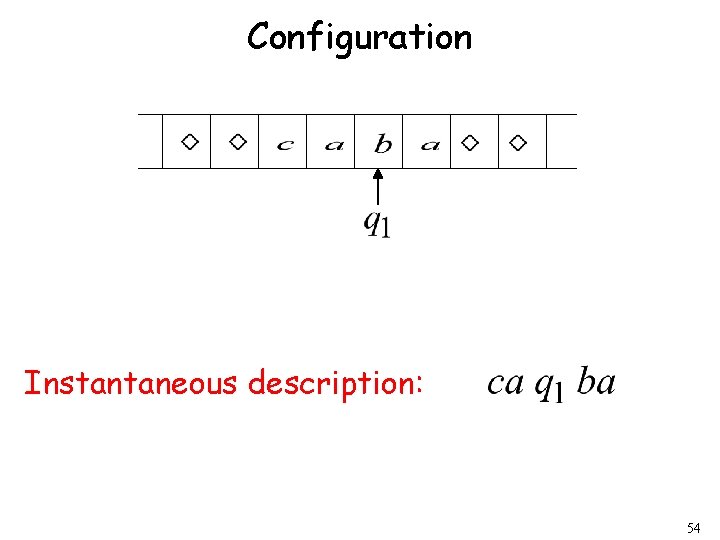

Configuration Instantaneous description: 54

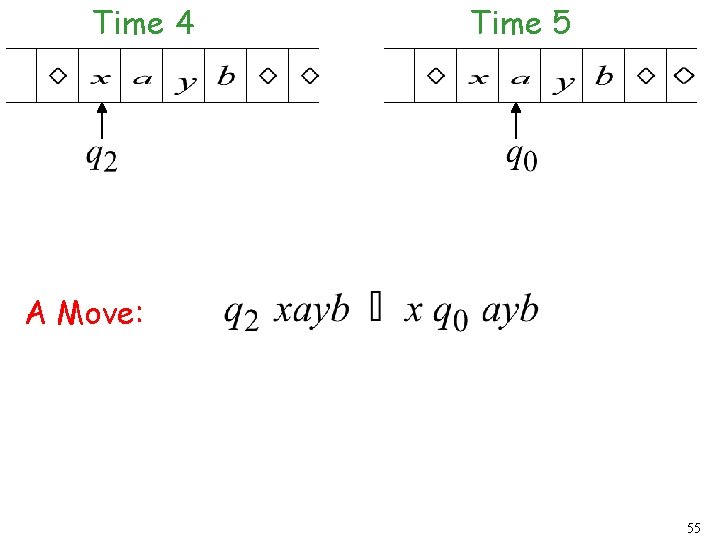

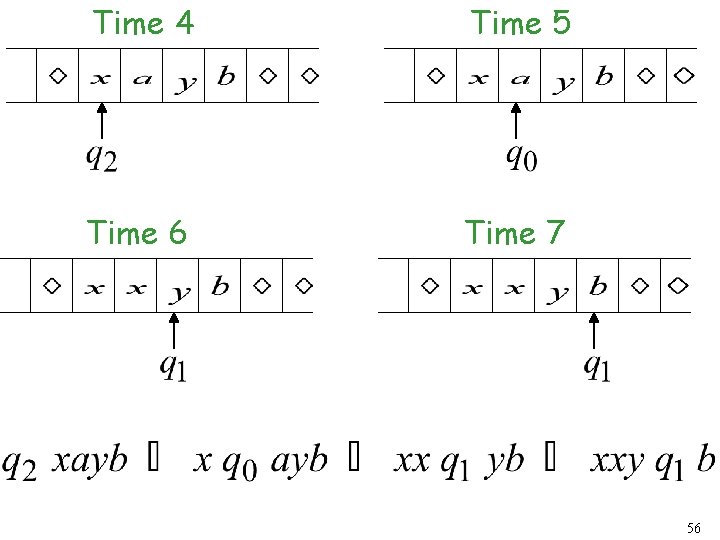

Time 4 Time 5 A Move: 55

Time 4 Time 5 Time 6 Time 7 56

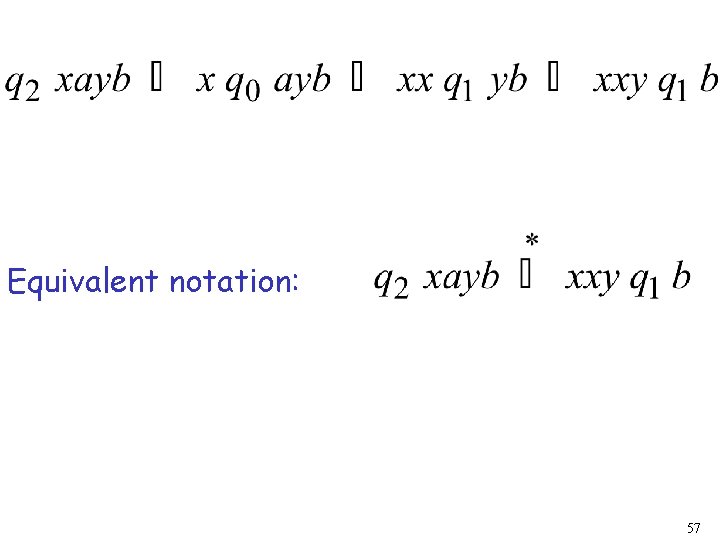

Equivalent notation: 57

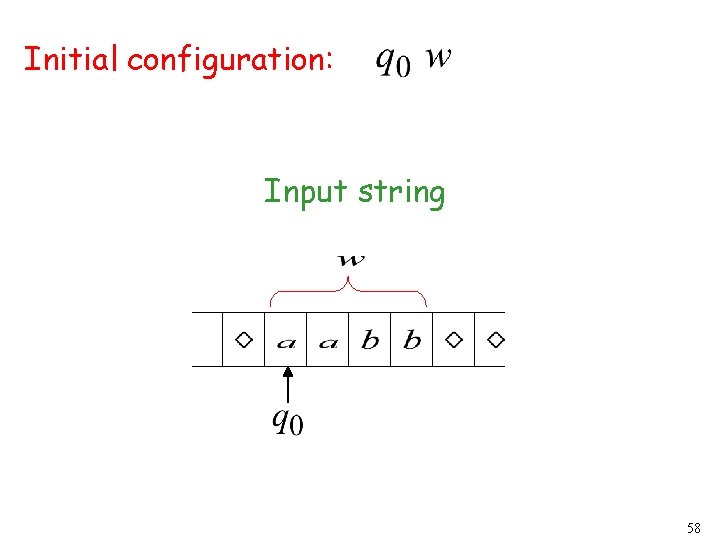

Initial configuration: Input string 58

The Accepted Language For any Turing Machine Initial state Final state 59

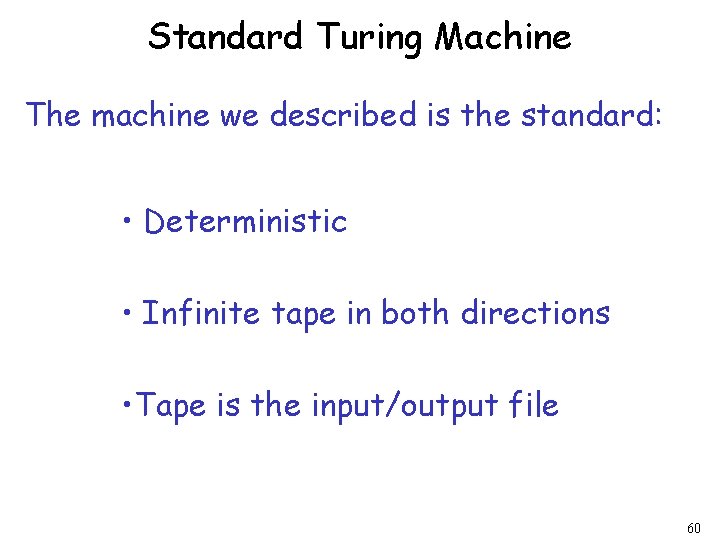

Standard Turing Machine The machine we described is the standard: • Deterministic • Infinite tape in both directions • Tape is the input/output file 60

Computing Functions with Turing Machines 61

A function Domain: has: Result Region: 62

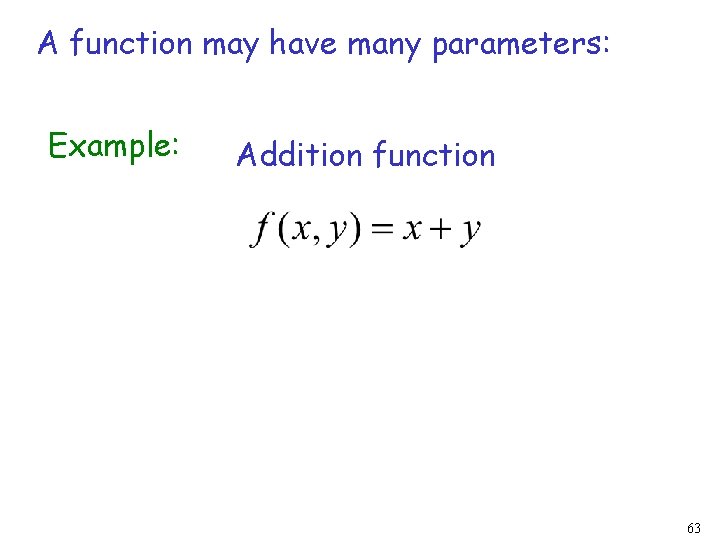

A function may have many parameters: Example: Addition function 63

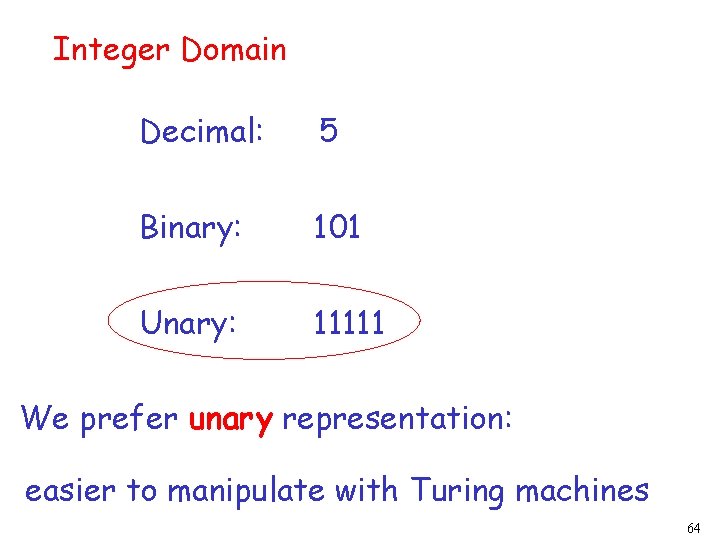

Integer Domain Decimal: 5 Binary: 101 Unary: 11111 We prefer unary representation: easier to manipulate with Turing machines 64

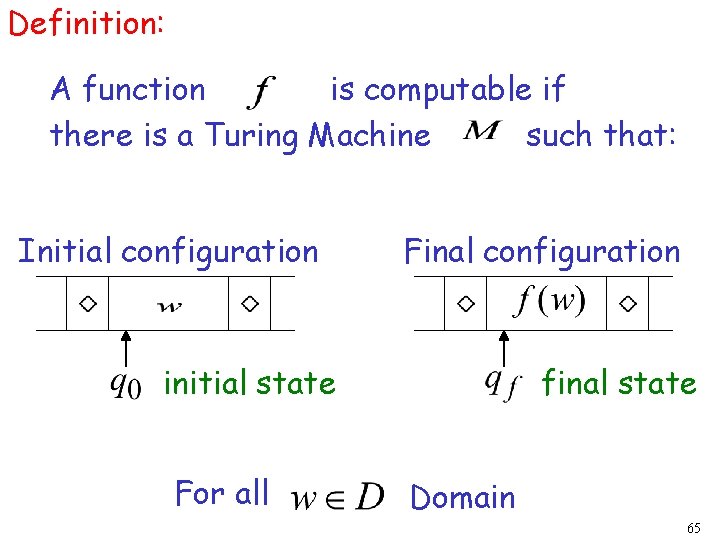

Definition: A function is computable if there is a Turing Machine such that: Initial configuration Final configuration initial state For all final state Domain 65

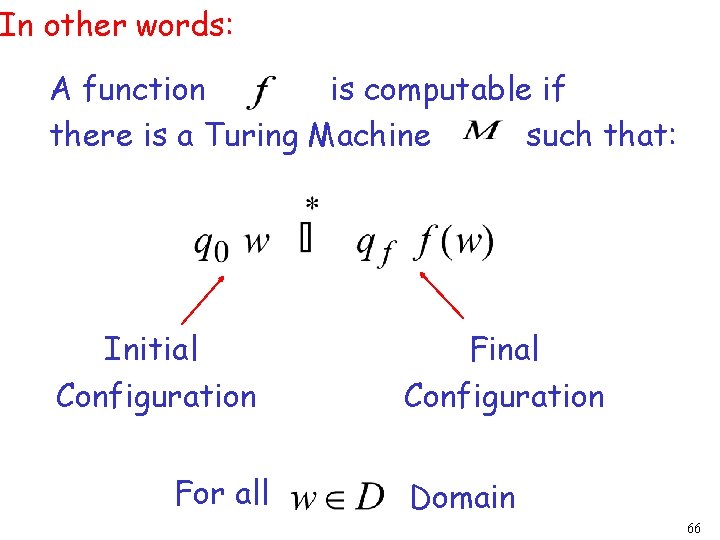

In other words: A function is computable if there is a Turing Machine such that: Initial Configuration For all Final Configuration Domain 66

Example The function is computable are integers Turing Machine: Input string: unary Output string: unary 67

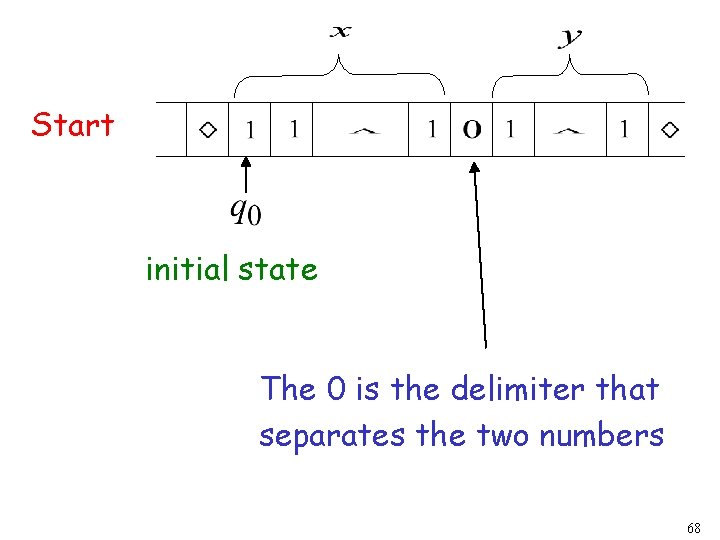

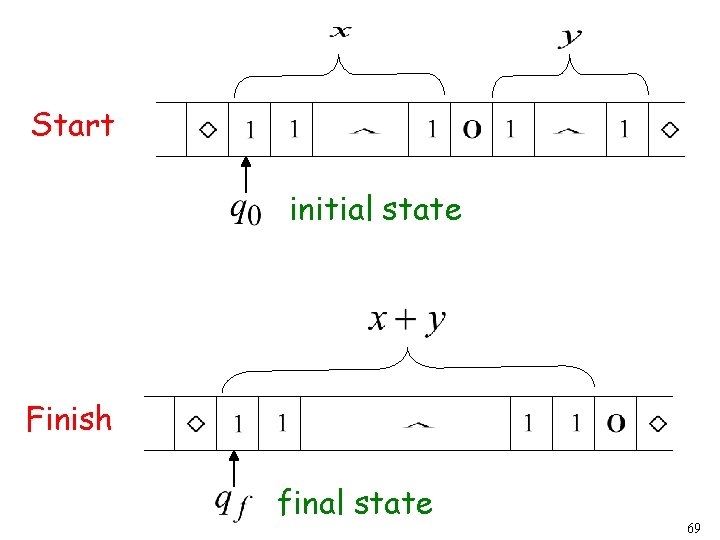

Start initial state The 0 is the delimiter that separates the two numbers 68

Start initial state Finish final state 69

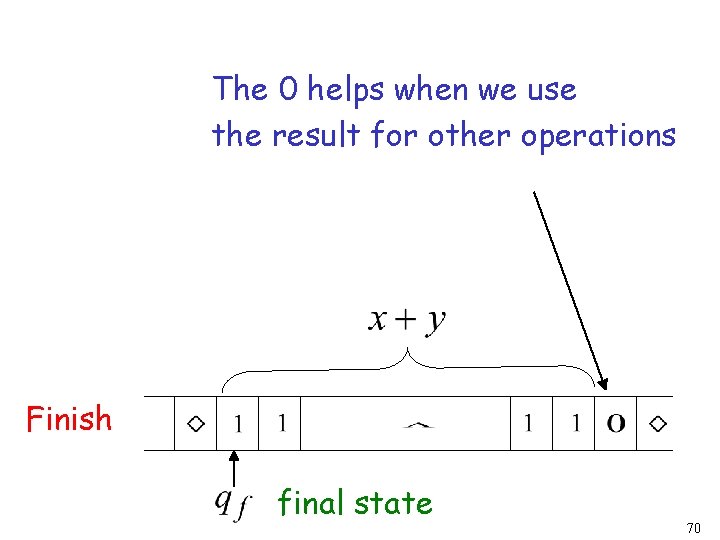

The 0 helps when we use the result for other operations Finish final state 70

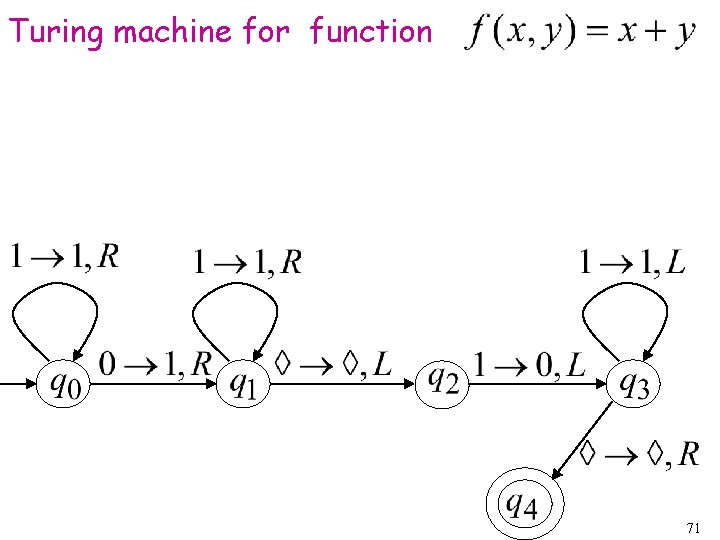

Turing machine for function 71

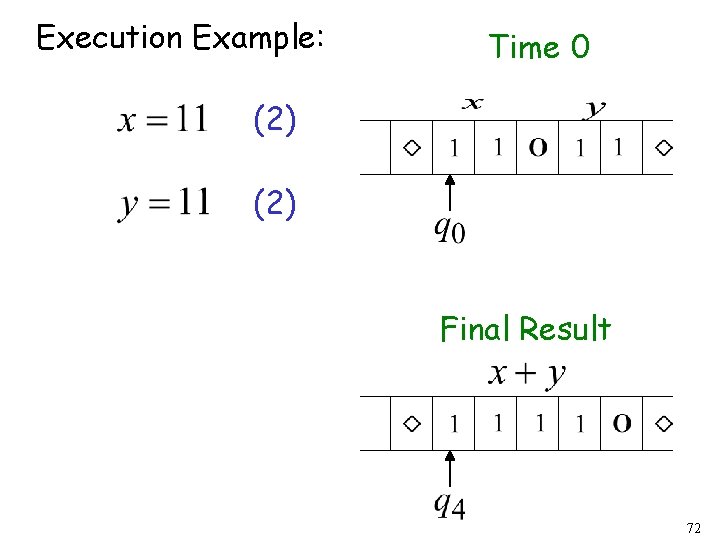

Execution Example: Time 0 (2) Final Result 72

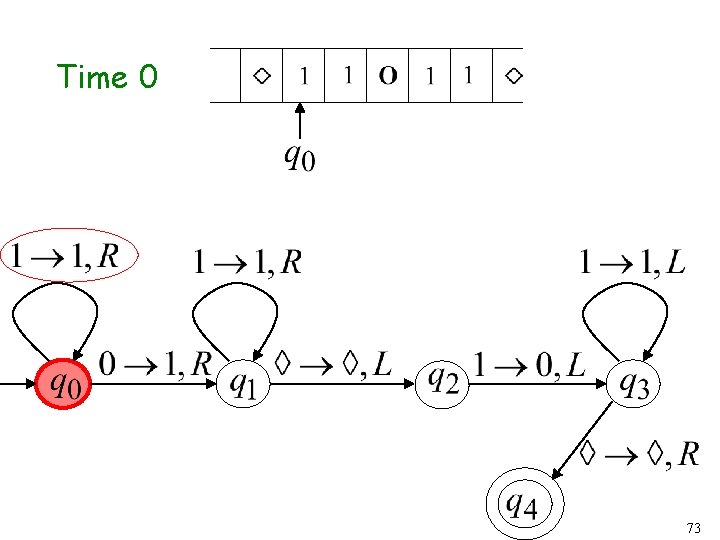

Time 0 73

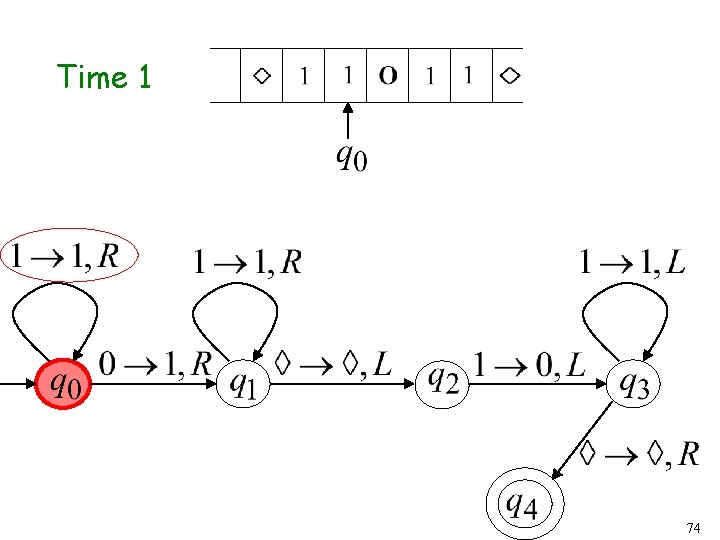

Time 1 74

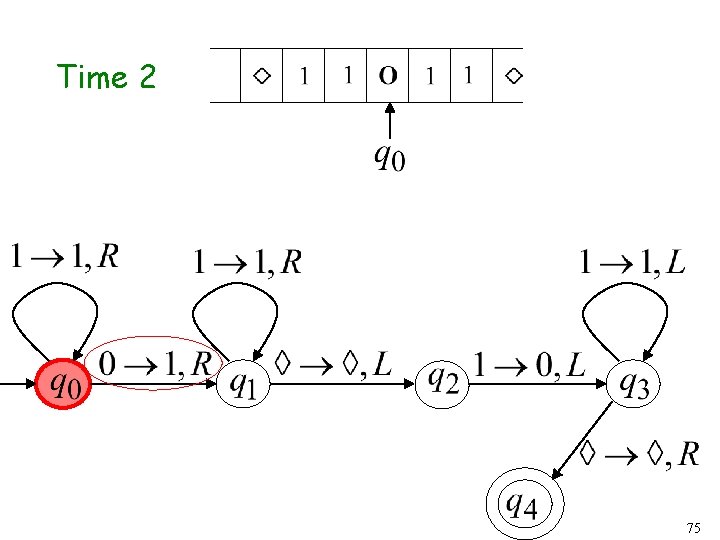

Time 2 75

Time 3 76

Time 4 77

Time 5 78

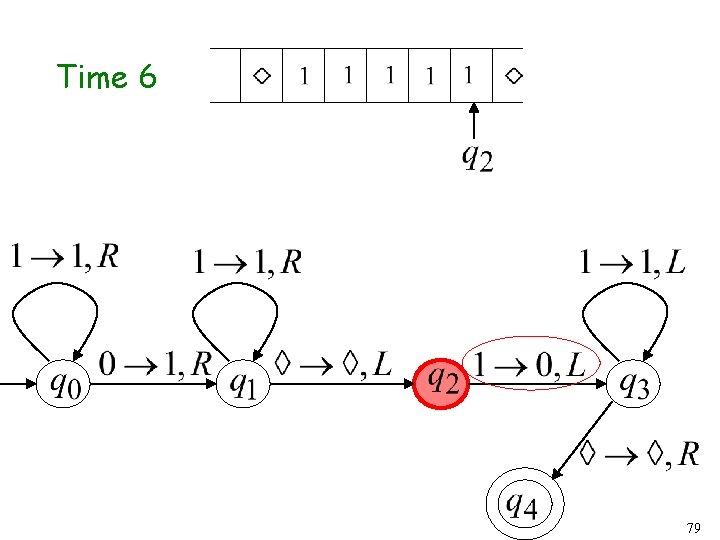

Time 6 79

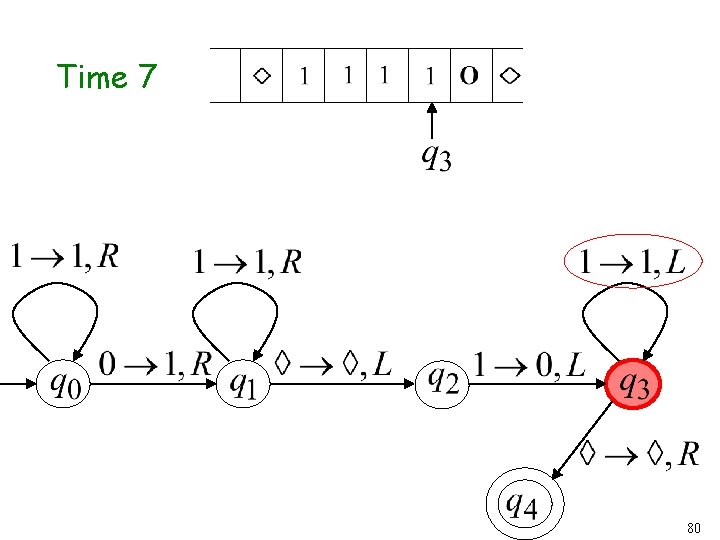

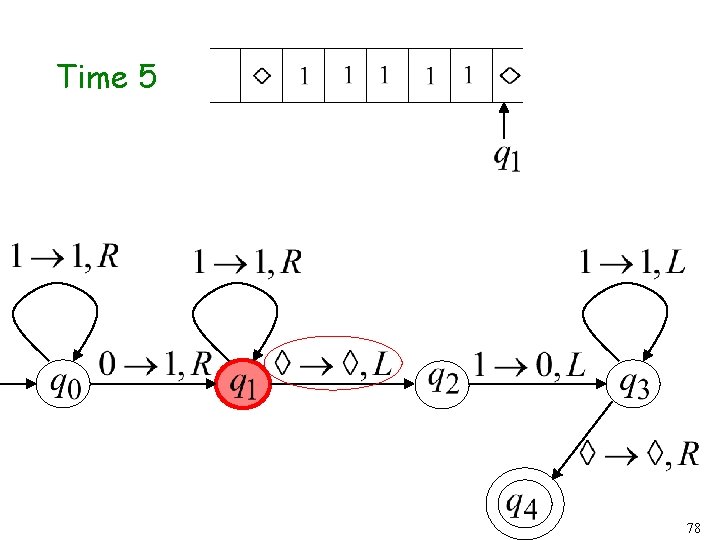

Time 7 80

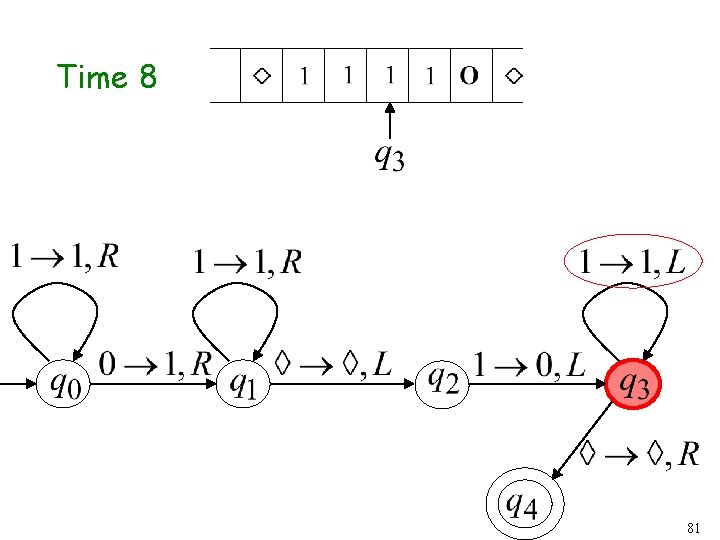

Time 8 81

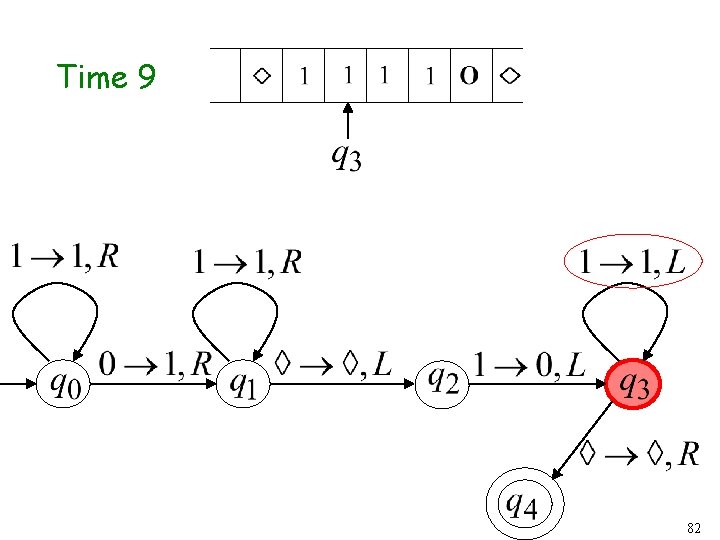

Time 9 82

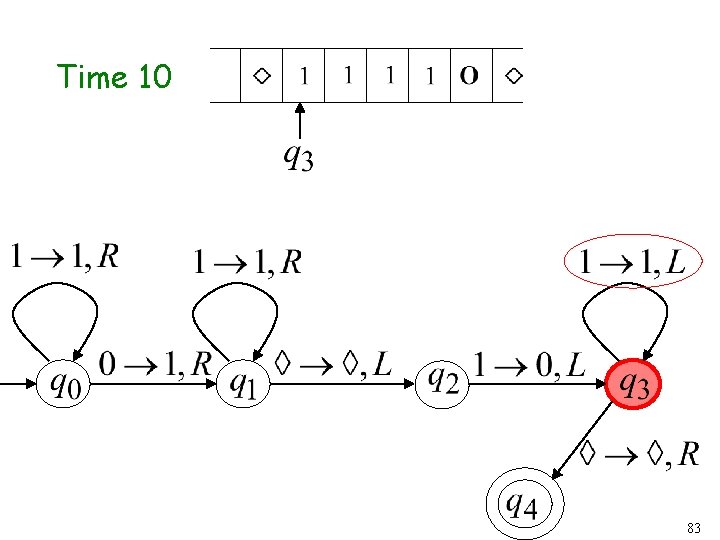

Time 10 83

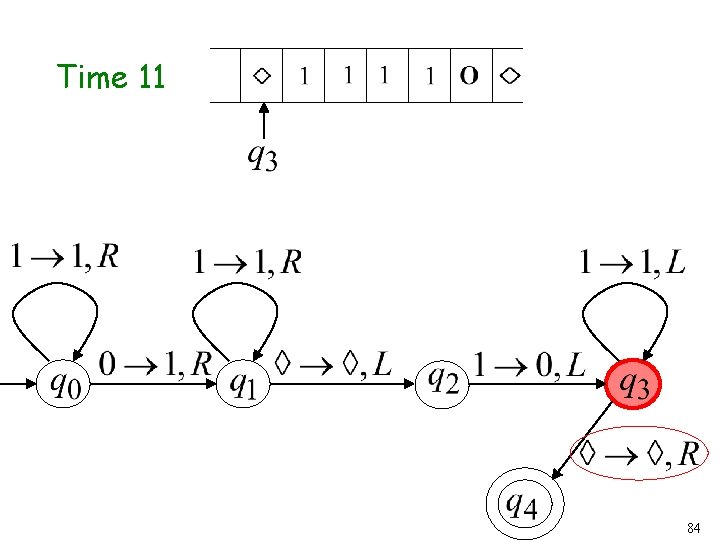

Time 11 84

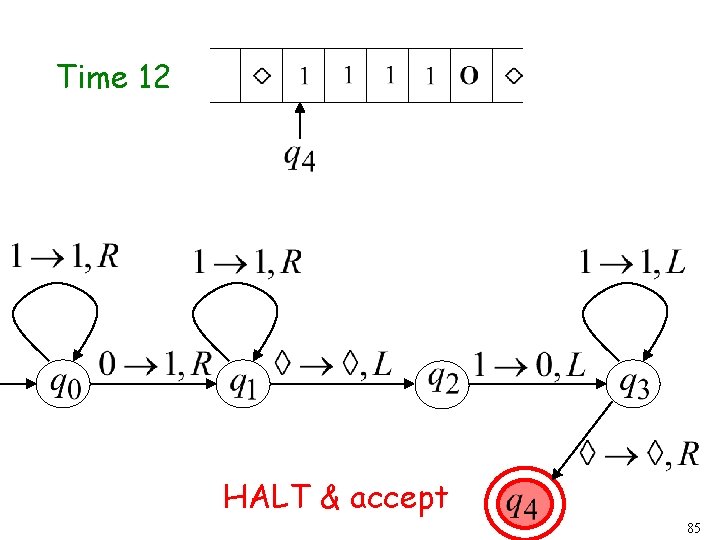

Time 12 HALT & accept 85

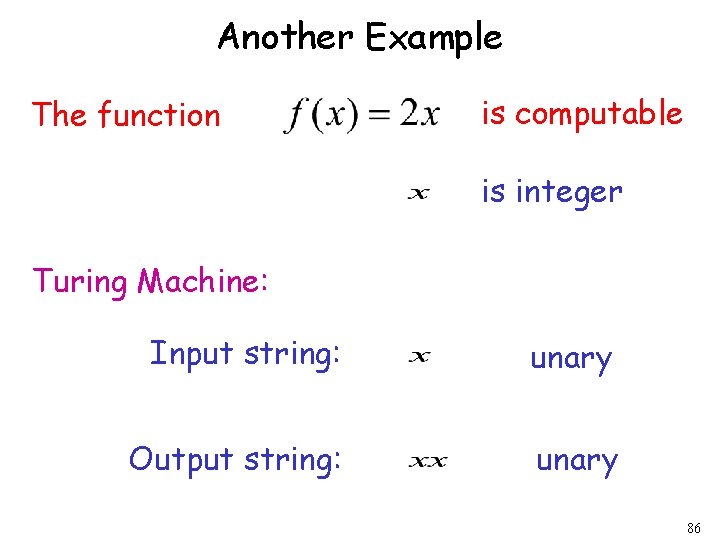

Another Example The function is computable is integer Turing Machine: Input string: unary Output string: unary 86

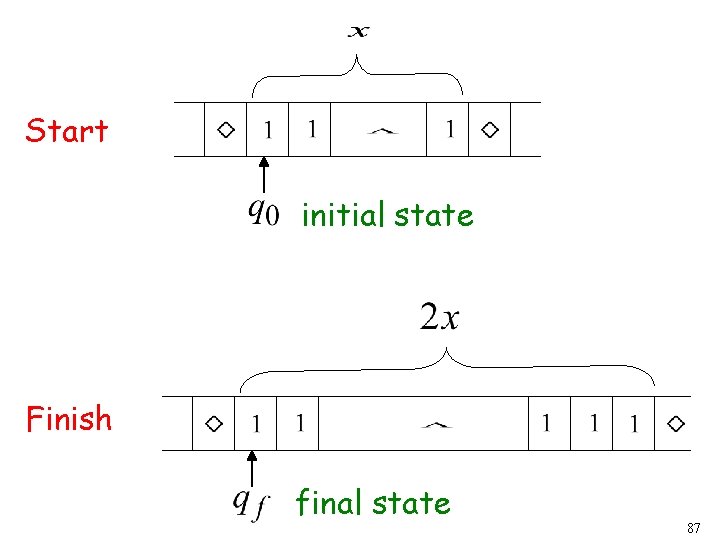

Start initial state Finish final state 87

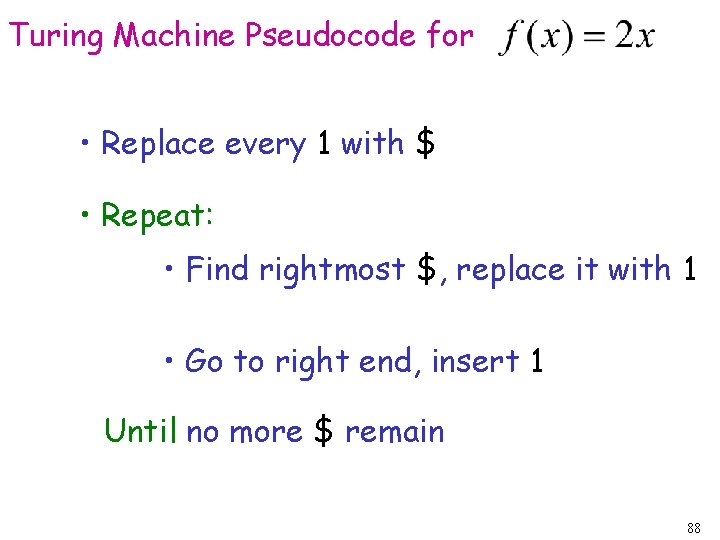

Turing Machine Pseudocode for • Replace every 1 with $ • Repeat: • Find rightmost $, replace it with 1 • Go to right end, insert 1 Until no more $ remain 88

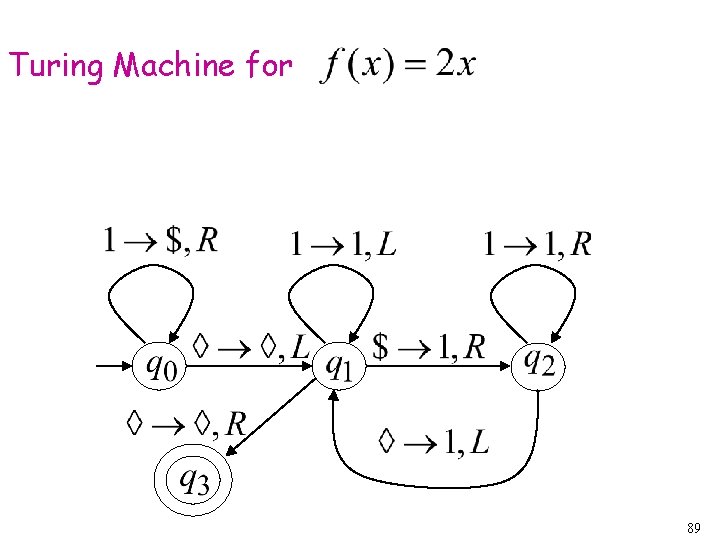

Turing Machine for 89

Start Example Finish 90

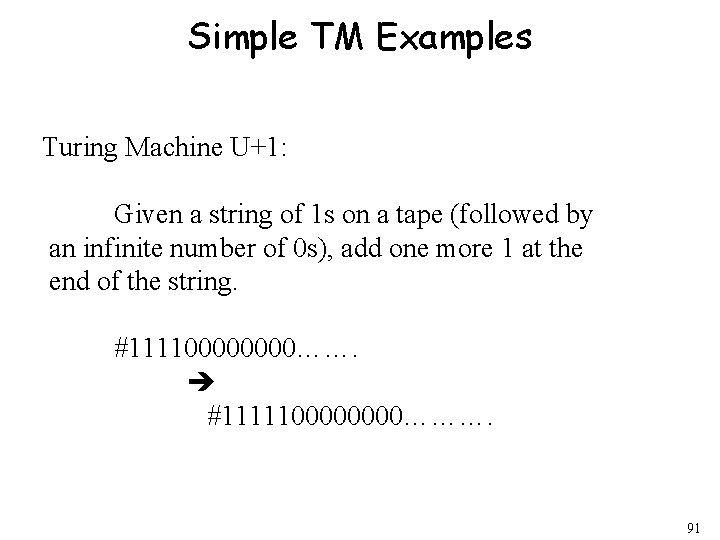

Simple TM Examples Turing Machine U+1: Given a string of 1 s on a tape (followed by an infinite number of 0 s), add one more 1 at the end of the string. #11110000……. #111110000………. 91

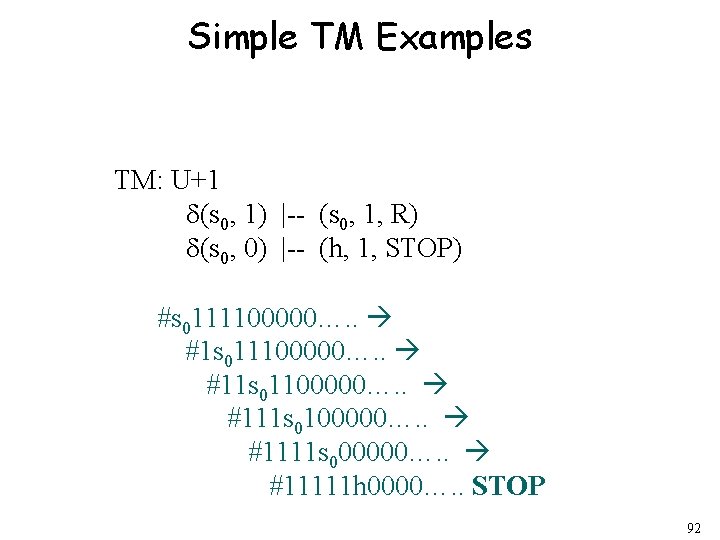

Simple TM Examples TM: U+1 d(s 0, 1) |-- (s 0, 1, R) d(s 0, 0) |-- (h, 1, STOP) #s 0111100000…. . #1 s 011100000…. . #11 s 01100000…. . #111 s 0100000…. . #1111 s 000000…. . #11111 h 0000…. . STOP 92

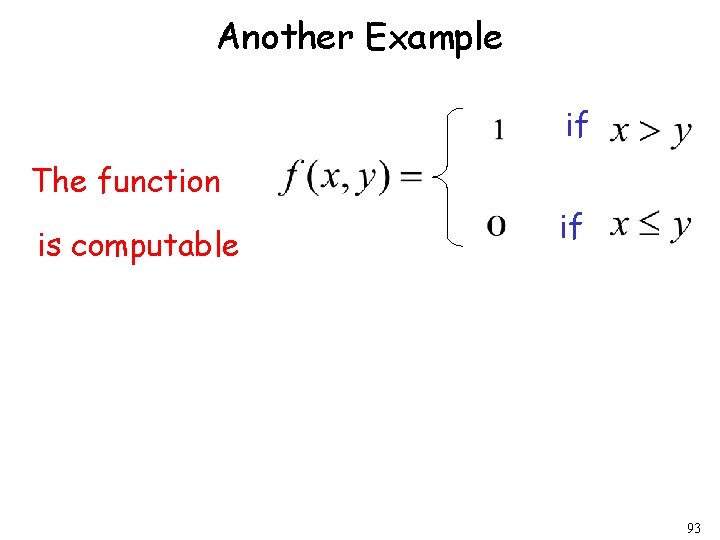

Another Example if The function is computable if 93

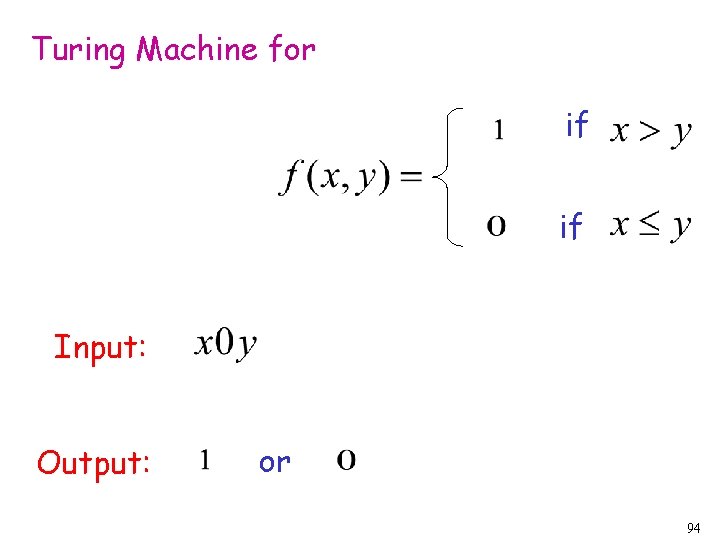

Turing Machine for if if Input: Output: or 94

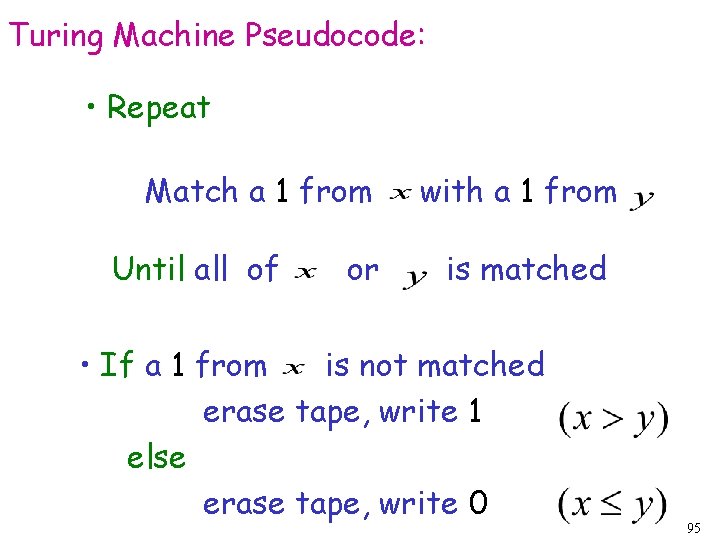

Turing Machine Pseudocode: • Repeat Match a 1 from Until all of or with a 1 from is matched • If a 1 from is not matched erase tape, write 1 else erase tape, write 0 95

Combining Turing Machines 96

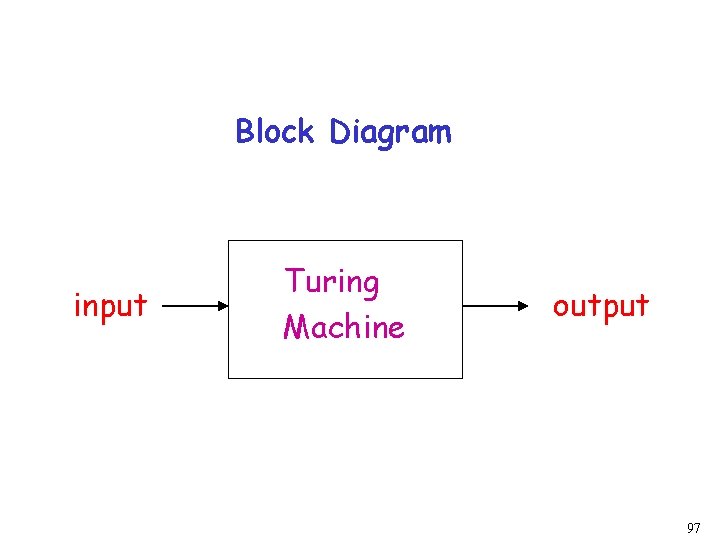

Block Diagram input Turing Machine output 97

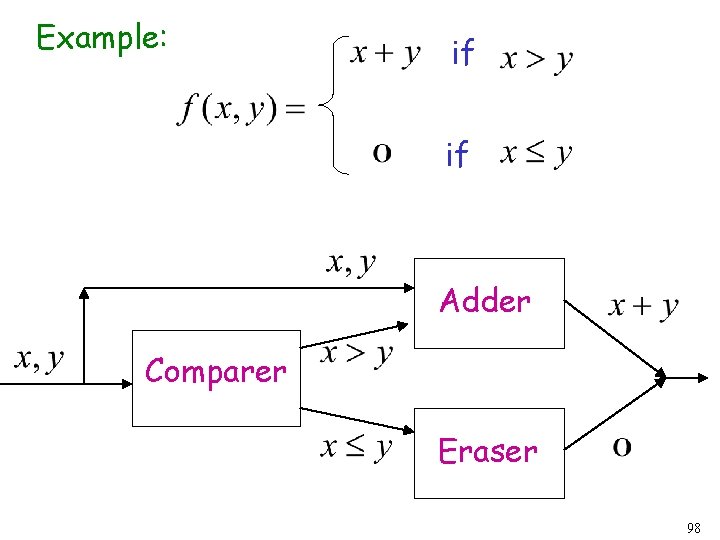

Example: if if Adder Comparer Eraser 98

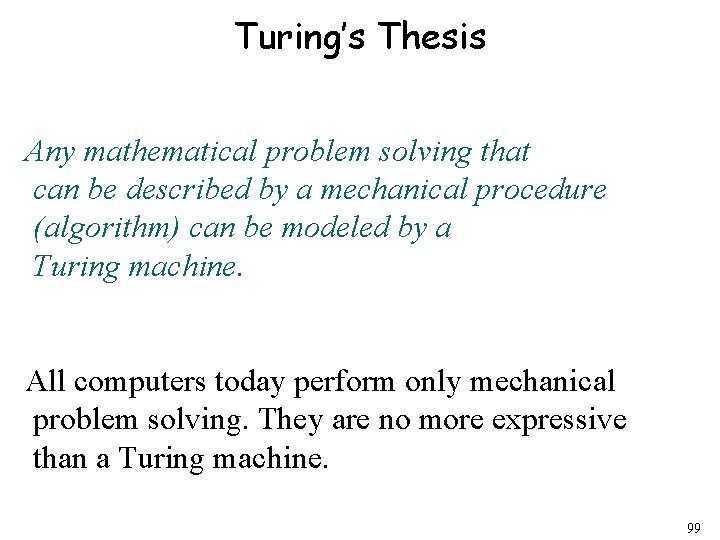

Turing’s Thesis Any mathematical problem solving that can be described by a mechanical procedure (algorithm) can be modeled by a Turing machine. All computers today perform only mechanical problem solving. They are no more expressive than a Turing machine. 99

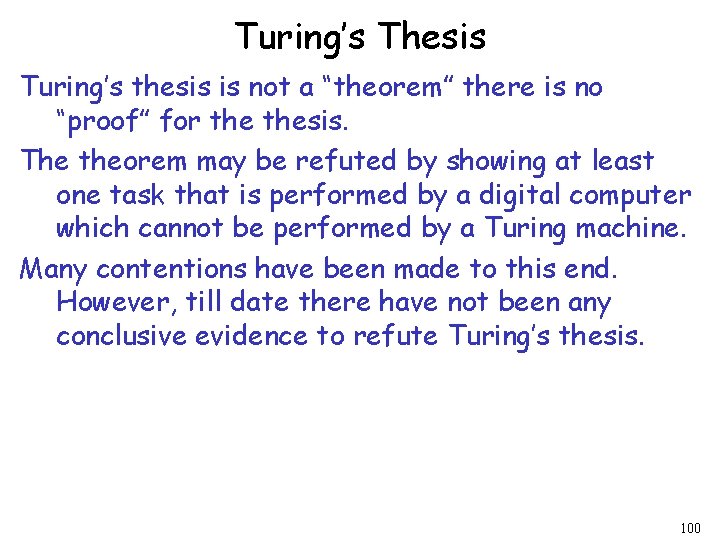

Turing’s Thesis Turing’s thesis is not a “theorem” there is no “proof” for thesis. The theorem may be refuted by showing at least one task that is performed by a digital computer which cannot be performed by a Turing machine. Many contentions have been made to this end. However, till date there have not been any conclusive evidence to refute Turing’s thesis. 100

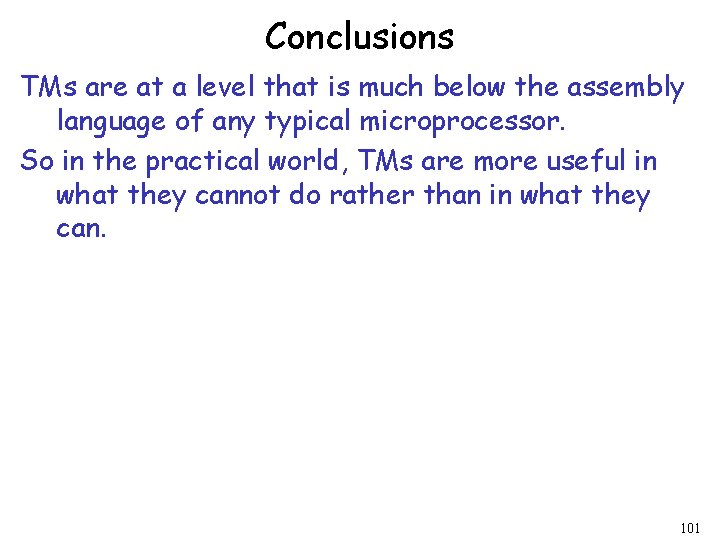

Conclusions TMs are at a level that is much below the assembly language of any typical microprocessor. So in the practical world, TMs are more useful in what they cannot do rather than in what they can. 101

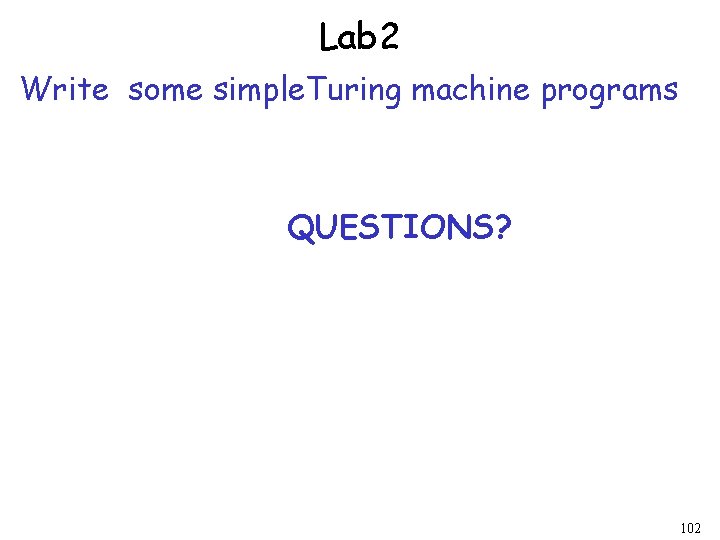

Lab 2 Write some simple. Turing machine programs QUESTIONS? 102
