INTRODUCTION TO TRIGONOMETRY MADE BY ANISH HAKHU IX

INTRODUCTION TO TRIGONOMETRY MADE BY: ANISH HAKHU IX - A

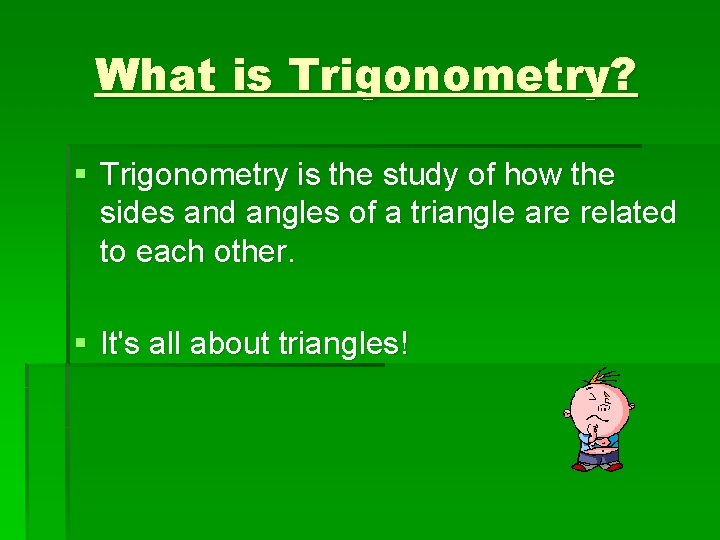

What is Trigonometry? § Trigonometry is the study of how the sides and angles of a triangle are related to each other. § It's all about triangles!

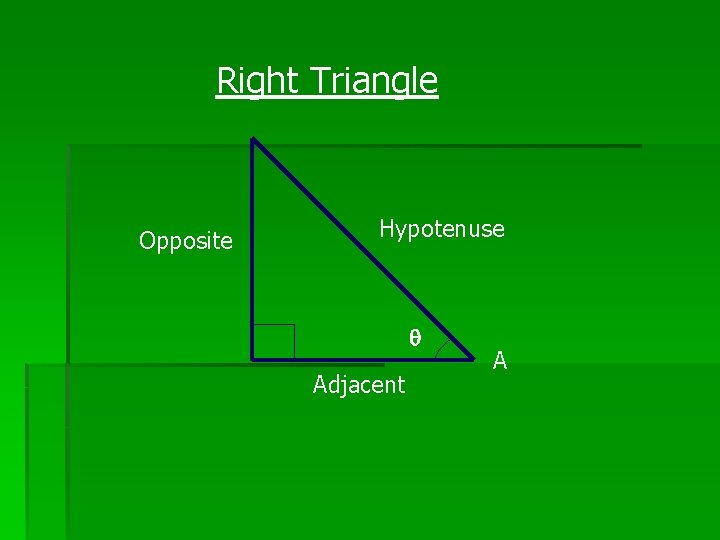

Right Triangle Opposite Hypotenuse q Adjacent A

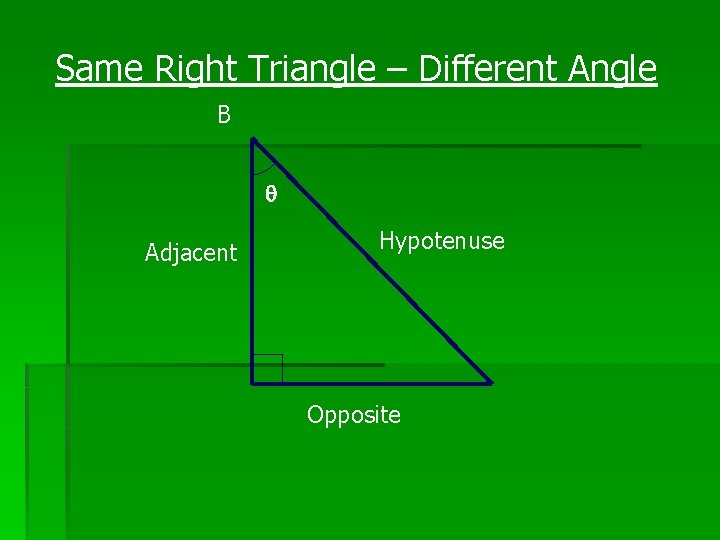

Same Right Triangle – Different Angle B q Adjacent Hypotenuse Opposite

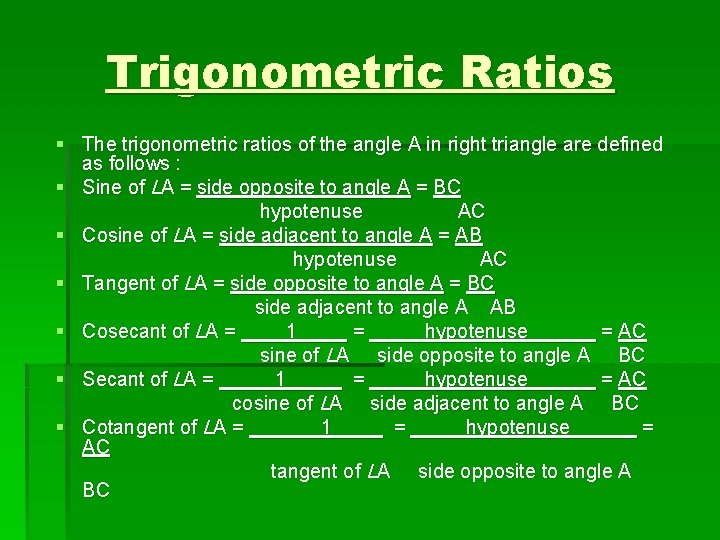

Trigonometric Ratios § The trigonometric ratios of the angle A in right triangle are defined as follows : § Sine of LA = side opposite to angle A = BC hypotenuse AC § Cosine of LA = side adjacent to angle A = AB hypotenuse AC § Tangent of LA = side opposite to angle A = BC side adjacent to angle A AB § Cosecant of LA = 1 = hypotenuse = AC sine of LA side opposite to angle A BC § Secant of LA = 1 = hypotenuse = AC cosine of LA side adjacent to angle A BC § Cotangent of LA = 1 = hypotenuse = AC tangent of LA side opposite to angle A BC

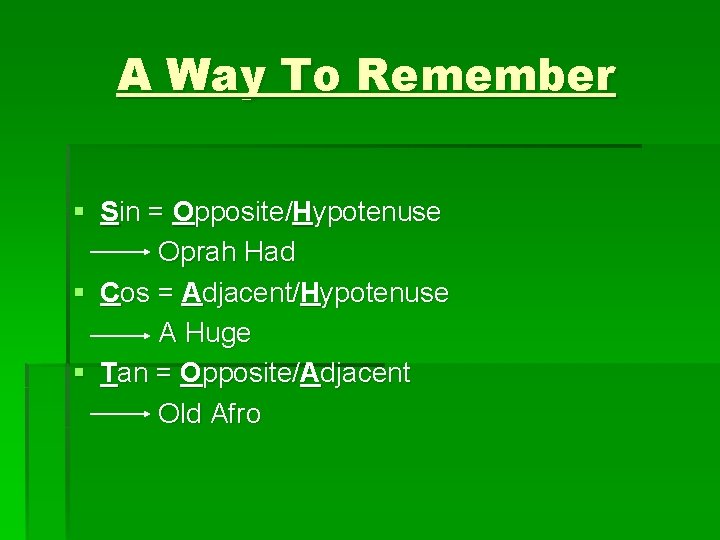

A Way To Remember § Sin = Opposite/Hypotenuse Oprah Had § Cos = Adjacent/Hypotenuse A Huge § Tan = Opposite/Adjacent Old Afro

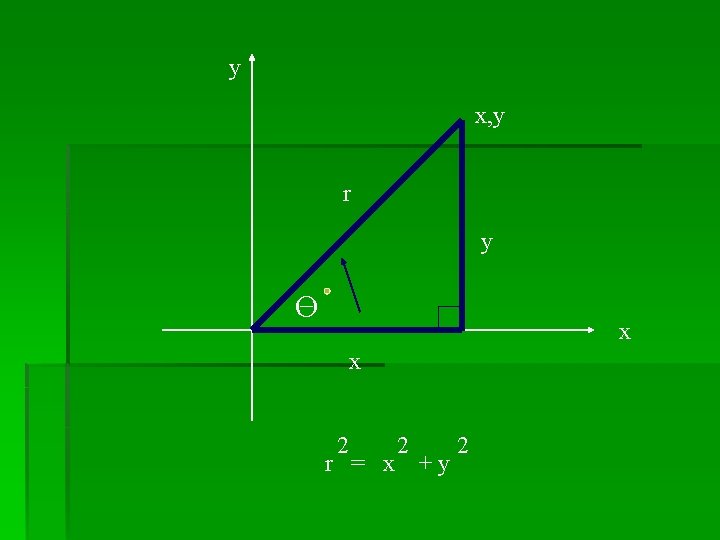

y x, y r y O x x 2 r = x 2 +y 2

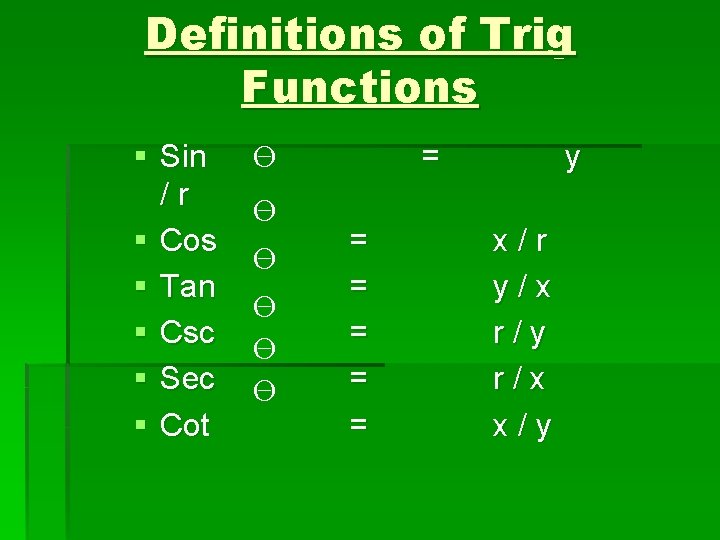

Definitions of Trig Functions § Sin /r § Cos § Tan § Csc § Sec § Cot = O O O = = = y x/r y/x r/y r/x x/y

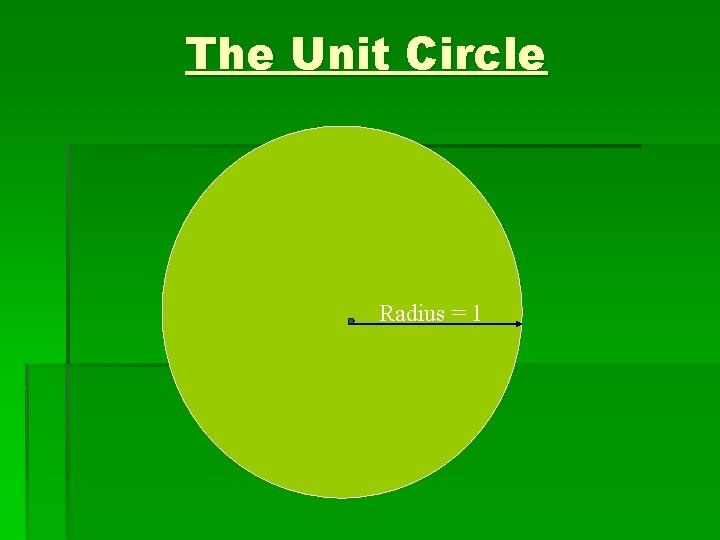

The Unit Circle Radius = 1

y x, y 1 1/2 30 x √ 3/2 2 r = x 2 +y 2

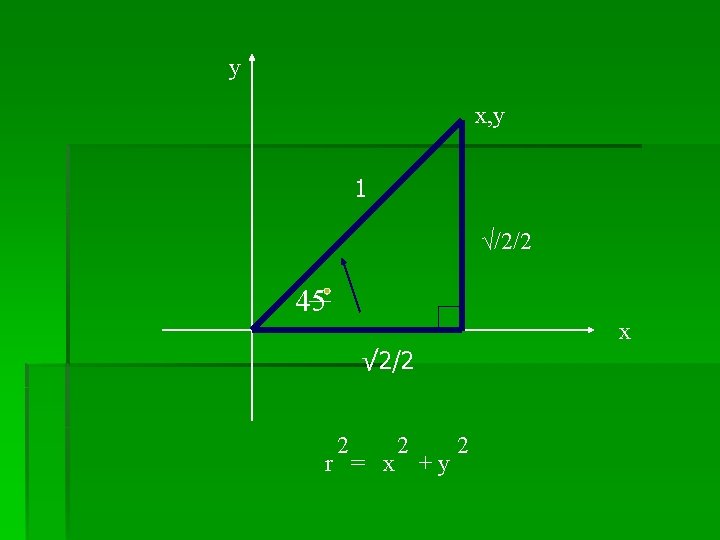

y x, y 1 √/2/2 45 x √ 2/2 2 r = x 2 +y 2

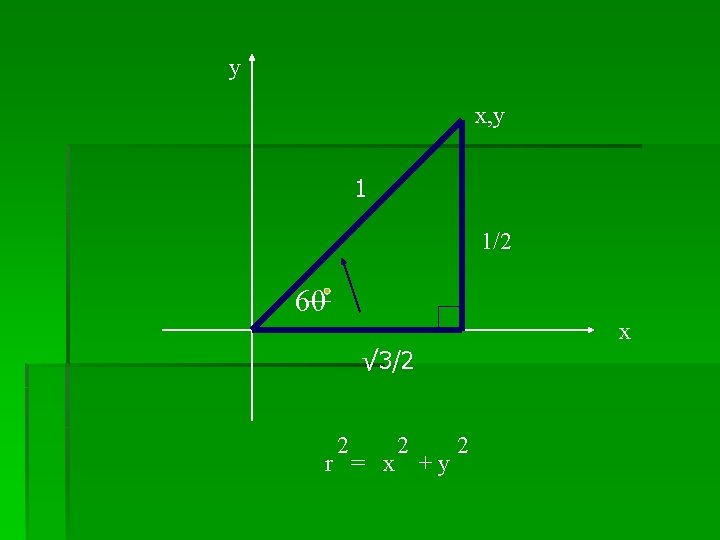

y x, y 1 1/2 60 x √ 3/2 2 r = x 2 +y 2

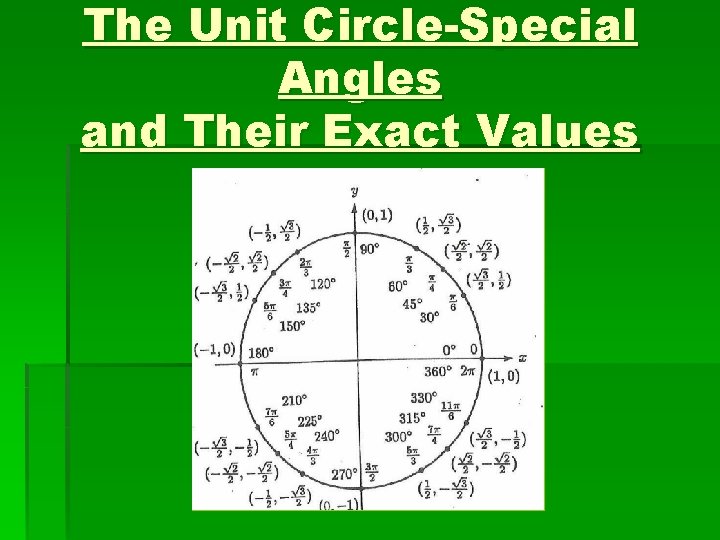

The Unit Circle-Special Angles and Their Exact Values

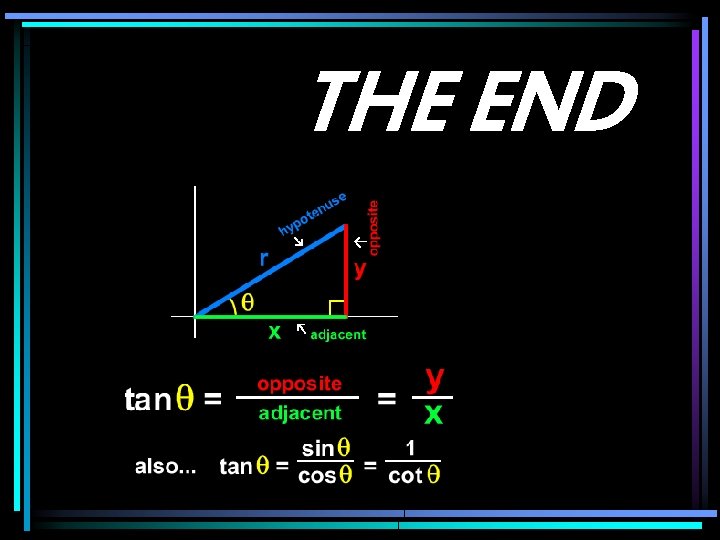

THE END
