INTRODUCTION TO THE WORLD OF EIS WIRE CABLE
INTRODUCTION TO THE WORLD OF EIS WIRE & CABLE
ORGANIZATIONAL CHART President Nick Moceri V. P. Sales & New Business Development Mike Cinicolo Sales Manager Al Wodyka Account Manager Blaire Miller Account Manager Carmen Washington Regional Sales Manager Rick Thompson Executive Vice President & General Manager Roy St. Andre Plant Manager Glen Costa Engineering Manager Rich Goyette Process Engineer Jim Straley Product Engineer Dan La. Bonte CFO Armand Mayotte Quality Assurance John Wysk Purchasing Manager Peter Gaudet Controller Dorey Jimmo Human Resources & Purchasing Assistant Jenny Kowal

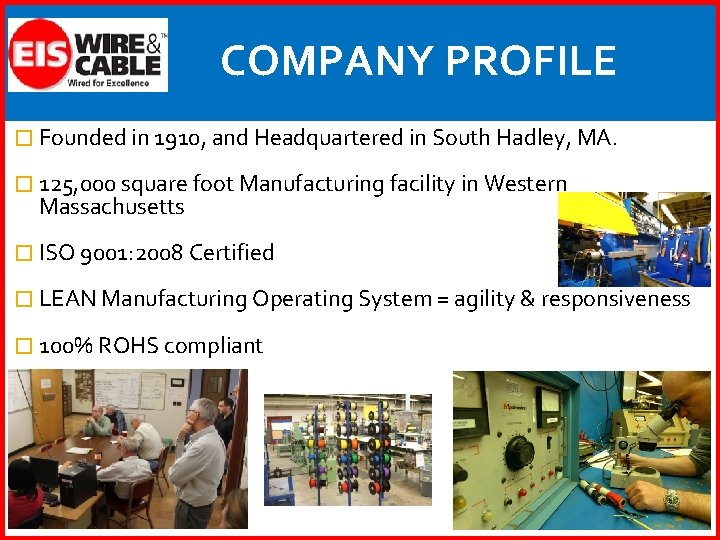

COMPANY PROFILE � Founded in 1910, and Headquartered in South Hadley, MA. � 125, 000 square foot Manufacturing facility in Western Massachusetts � ISO 9001: 2008 Certified � LEAN Manufacturing Operating System = agility & responsiveness � 100% ROHS compliant our Global Sourcing Partner with a goal of helping you achieve your strategic objectives with value added solutions
FY 2012 vs. FY 2013 COMMERCIAL SALES BY MARKET FY 2012 FY 2013

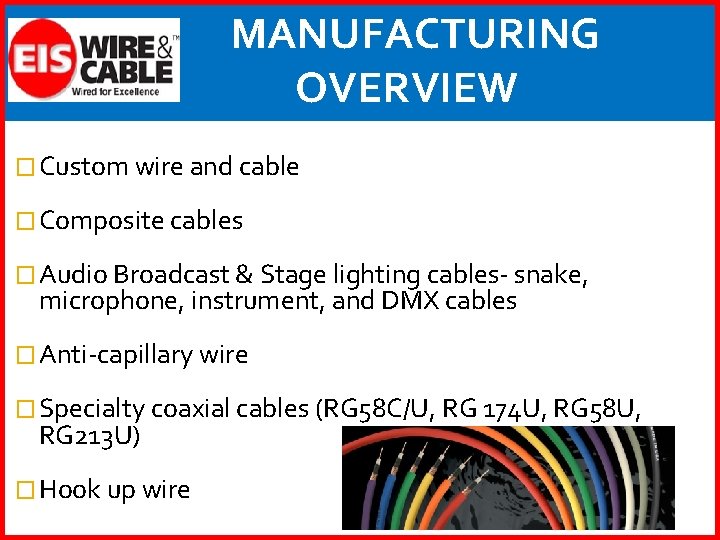

MANUFACTURING OVERVIEW � Custom wire and cable � Composite cables � Audio Broadcast & Stage lighting cables- snake, microphone, instrument, and DMX cables � Anti-capillary wire � Specialty coaxial cables (RG 58 C/U, RG 174 U, RG 58 U, RG 213 U) � Hook up wire
MARKETS SERVED � Medical � Audio Broadcast � Food & Beverage § Petro Chemical § Military/Defense § Industrial § Sensor § Factory Automation § Detonation of Explosives § Automotive § Theme Parks – Design § Private Labeling

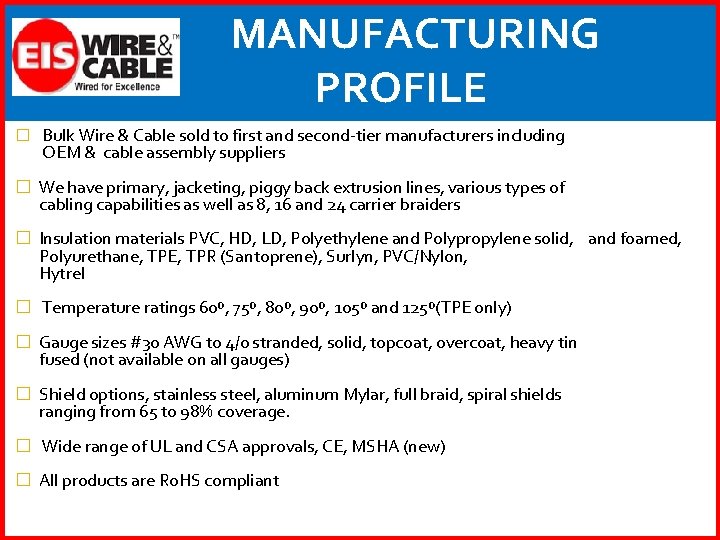

MANUFACTURING PROFILE � Bulk Wire & Cable sold to first and second-tier manufacturers including OEM & cable assembly suppliers � We have primary, jacketing, piggy back extrusion lines, various types of cabling capabilities as well as 8, 16 and 24 carrier braiders � Insulation materials PVC, HD, LD, Polyethylene and Polypropylene solid, and foamed, Polyurethane, TPE, TPR (Santoprene), Surlyn, PVC/Nylon, Hytrel � Temperature ratings 60º, 75º, 80º, 90º, 105º and 125º(TPE only) � Gauge sizes #30 AWG to 4/0 stranded, solid, topcoat, overcoat, heavy tin fused (not available on all gauges) � Shield options, stainless steel, aluminum Mylar, full braid, spiral shields ranging from 65 to 98% coverage. � Wide range of UL and CSA approvals, CE, MSHA (new) � All products are Ro. HS compliant
MANUFACTURING CAPABILITIES § Maximum cable core diameter in cabling is. 750” § Largest nominal diameter at jacketing is 1. 00” § EIS can monitor capacitance on line but cannot test for impedance § Voltage ratings ranging from 30 to 1, 000 § Multi conductor count 2 to 56 pairs or 2 to 60 conductors § Bunch cabling (currently cannot offer contra-helical lay’s) § Planetary cabling (recently purchased 18 bay cabler estimated to be operational Q 1 2015) § The smallest gauge for braiding is 40 AWG
MATERIALS THAT EIS CAN-NOT PROCESS § Teflon's, FEP, TFE, PFA and PTFE § Halar (ECTFE) § Cross Linked PVC or PE § Irradiated PVC or PE § Silicone, Neoprene, EPDM rubber § Tefzel § When in doubt call us at 800 -255 -5201
MATERIALS THAT EIS CAN-NOT PROCESS § Do not water block (Gel filled) § Copper tapes § Armor clad § Messenger Wire § Magnet Wire § Shipboard cables
PRODUCTS NOT MANUFACTURED BY EIS § Category 5 & 6 cables § Building Wire § Fire Alarm and Security Cables § Flat Cable § Bonded Cable § Multi Conductor RGB cables § When in doubt call us at 800 -255 -5201
APPROVALS UL & CSA
EIS CSA APPROVALS CSA AWM SINGLE CONDUCTOR � GROUP CLASS TEMP VOLT SIZE RANGE INSUL. Flame Rating � I A/B 80°C 150/300 44 -10 SRP FT 1 � I A 105°C 300 30 – 4/0 PVC FT 1 � I A 105°C 600 30 – 4/0 PVC FT 1 � I A 105°C 1000 30 – 1000 MCM PVC FT 1 � INSULATION THICKNESS VARY WITH CONDUCTOR SIZE AND VOLTAGE RATING � ALL COLORS EXCEPT CLEAR AND TRANSLUCENT
EIS CSA APPROVALS EIS APPROVALS FOR CSA AWM MULTI CONDUCTOR PARALLEL/ ZIPCORD CONSTRUCTION � GROUP Rating � I � I CLASS TEMP VOLT SIZE RANGE INSUL. Flame A 90°C A/B 105°C 600 300 24 – 10 30 – 10 PVC PVC � INSULATION THICKNESS VARY WITH APPROVALS * ALL COLORS EXCEPT CLEAR AND TRANSLUCENT * EXTRUDED RIP CONSTRUCTION FT 1
EIS CSA APPROVALS EIS APPROVALS FOR CSA AWM MULTICONDUCTOR/ROUND GRP CLASS Notes I A/B I/II A I/II A/B I/II A/B 1, 3, 9 I/II A TEMP VOLT JKT Type/min avg. SIZE 80°C 80°C 105°C 105°C 150 300 300 300 600 1000 600 600 PVC. 009 PVC. 030 PVC. 030 30 -10 30 -16 28 -10 30 -10 24 -14 30 -10 75°C 300 TPE. 030 28 -18 NOTES: 1) ALL COLORS EXCEPT CLEAR AND TRANSLUCENT 3) OPTIONAL SHIELDING 9) OPTINAL INEER COVERINGS 10) ALL COLORS INCLUDING CLEAR AND TRANSLUCENT Insul type/min avg SR-PVC. 009 POLYPRO. 008 SR-PVC. 009 PVC. 015 SRP. 009/PVC. 015 PVC. 030 PVC. 020 PVC. 015 HDPE. 009 Flame Rating FT 1 FT 4 FT 1 FT 1 FT 4 1, 10 1, 3 1, 3 1, 3 FT 1 1, 3
EIS CSA APPROVALS �AWM Group I : Internal Wiring �AWM Group II : External Wiring �Class A : Where not subject to mechanical abuse �Class B : Where may be subjected to mechanical abuse
EQUIPMENT & LEAD WIRES �TEW, TEWN �TR-64 �This Standard applies to insulated conductors intended for internal wiring of electrical equipment, for leads of transformers, motors, etc, and for luminous-tube signs and ignition systems, to be installed in accordance with the Canadian Electrical Code, Part I.
INSULATION TYPE TEMP MAX VOLTAGE AWG INSULATION TEWN TR-64 105°C 90°C 600 V 26 - 4/0 18 - 16 24 - 14 PVC / NYLON PVC INSULATION THICKNESS VARY WITH CONDUCTOR SIZE Type TEW / TEWN may have single or multi-conductor constructions with or without overall covering and with or Without shielding.
LISTED CABLE APPROVALS FOR CSA �CMG FT 4 75°C PVC/PVC �CMH FT 1 75°C PVC/PVC �Shielded or Unshielded
UL LISTED CABLE APPROVALS � � SUBJECT 444 COMUNICATION UL & C(UL) CMG 75° or 105°C PVC/PVC shielded or unshielded * UL & C(UL) CM / CMH 75°C or 105°C PVC/PVC shielded or unshielded * UL & C(UL) CM / CMH � 60°C PE/PVC Aluminum Mylar shield required UL & C(UL) CMP 75°C PVC/PVC plenum rated 2 to 12 cond. shielded or unshielded * UL & C(UL) CMR 75°C PVC/PVC Riser rated shielded or unshielded � UL & C(UL) CMX / CMX –OUTDOOR – CMG / CMX-OUTDOOR-CM 105°C PVC/PVC , shielded or unshielded , 2 to 30 conductors.

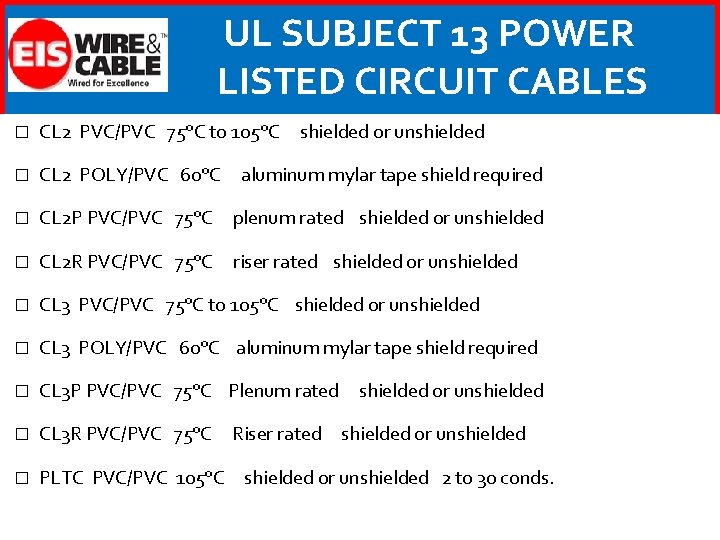

UL SUBJECT 13 POWER LISTED CIRCUIT CABLES � CL 2 PVC/PVC 75°C to 105°C shielded or unshielded � CL 2 POLY/PVC 60°C aluminum mylar tape shield required � CL 2 P PVC/PVC 75°C plenum rated shielded or unshielded � CL 2 R PVC/PVC 75°C riser rated shielded or unshielded � CL 3 PVC/PVC 75°C to 105°C shielded or unshielded � CL 3 POLY/PVC 60°C aluminum mylar tape shield required � CL 3 P PVC/PVC 75°C Plenum rated � CL 3 R PVC/PVC 75°C � PLTC PVC/PVC 105°C Riser rated shielded or unshielded 2 to 30 conds.
UL 1277 ELECTRICAL POWER & CONTROL TRAY CABLES � 90°C 600 Volts � 2 or more conductors � 18 AWG or larger �Shielded or Unshielded �Direct Burial / Sunlight resistant
UL SUBJECT 2250 INSTRUMENTATION TRAY CABLE � 105°C � 22 AWG to 12 AWG � 2 to 30 conductors �Shielded or Unshielded �Sunlight resistant

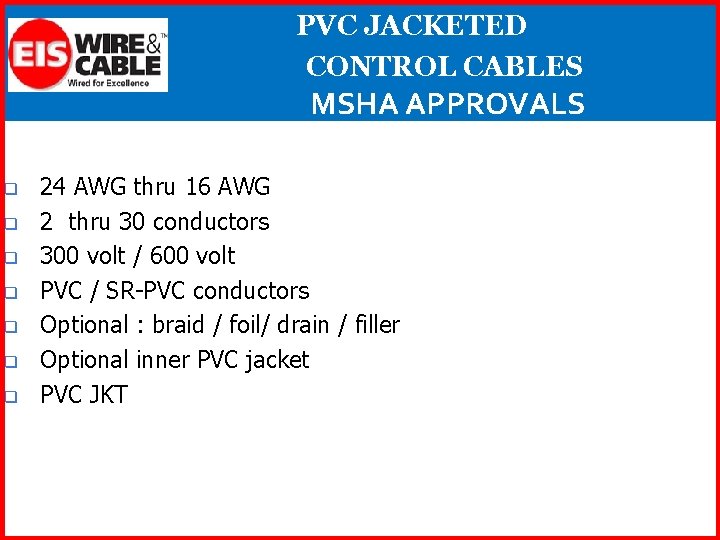

PVC JACKETED CONTROL CABLES MSHA APPROVALS q q q q 24 AWG thru 16 AWG 2 thru 30 conductors 300 volt / 600 volt PVC / SR-PVC conductors Optional : braid / foil/ drain / filler Optional inner PVC jacket PVC JKT
UL SUBJECT 62 �SPT-1 , SPT-2, SPT-3 �SVT, SJT 60°C to 105°C

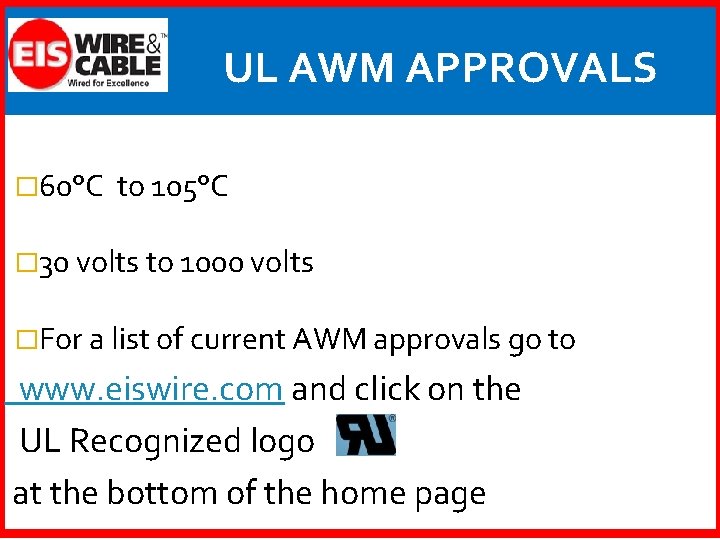

UL AWM APPROVALS � 60°C to 105°C � 30 volts to 1000 volts �For a list of current AWM approvals go to www. eiswire. com and click on the UL Recognized logo at the bottom of the home page
UL STYLES Table of Recognized Styles. Single-conductor, thermoplastic insulation. 1001 1041 1117 1228 1297 1338 1416 1506 1002 1042 1118 1229 1298 1339 1418 1507 1003 1043 1119 1230 1299 1340 1420 1509 1004 1044 1120 1231 1300 1341 1421 1519 1005 1045 1121 1232 1301 1342 1422 1520 1006 1046 1122 1233 1302 1343 1423 1545 1007 1047 1123 1234 1303 1344 1426 1547 1008 1048 1124 1235 1305 1345 1427 1555 1009 1049 1141 1236 1306 1346 1428 1556 1011 1050 1142 1237 1307 1347 1434 1568 1012 1051 1143 1238 1308 1348 1435 1569 1013 1052 1146 1239 1310 1349 1436 1581 1014 1053 1147 1240 1311 1350 1437 1582 1015 1054 1151 1265 1312 1351 1438 1589 1016 1055 1152 1266 1314 1352 1439 1598 1017 1056 1153 1269 1315 1354 1443 1605 1018 1057 1158 1270 1316 1366 1444 1606 1019 1058 1159 1271 1317 1370 1446 1612 1020 1059 1160 1272 1318 1375 1447 1613 1021 1060 1161 1273 1319 1379 1452 1624 1022 1061 1162 1274 1320 1380 1453 1642 1023 1062 1163 1275 1321 1381 1466 1662 1024 1063 1184 1276 1322 1382 1474 1676 1025 1064 1185 1277 1323 1384 1475 1680 1026 1065 1186 1278 1324 1387 1477 1681 1027 1066 1187 1279 1325 1389 1478 1692 1028 1095 1188 1280 1326 1390 1479 1731 1029 1096 1190 1281 1327 1391 1480 1742 1030 1101 1191 1282 1328 1392 1483 1743 1031 1102 1195 1283 1329 1396 1485 1873 1032 1108 1196 1284 1330 1400 1489 10012 1033 1109 1197 1287 1331 1401 1490 10070 1034 1110 1207 1288 1332 1402 1493 10138 1035 1111 1208 1289 1333 1403 1495 10152 1037 1113 1210 1291 1334 1404 1497 10236 1038 1114 1211 1292 1335 1405 1498 10269 1039 1115 1218 1295 1336 1406 1499 10708 1040 1116 1220 1296 1337 1407 1500 11306
UL STYLES � Multiple-conductor, thermoplastic insulation. 2001 2045 2099 2185 2291 2379 2498 2653 2002 2046 2100 2186 2310 2380 2500 2654 2003 2047 2101 2187 2311 2381 2501 2655 2004 2048 2102 2188 2312 2382 2502 2656 2005 2050 2103 2189 2313 2383 2509 2660 2006 2051 2104 2190 2315 2384 2516 2661 2007 2052 2105 2203 2317 2385 2517 2662 2008 2053 2106 2205 2318 2386 2518 2667 2009 2054 2108 2206 2319 2387 2522 2668 2010 2055 2109 2207 2320 2388 2526 2674 2011 2056 2110 2208 2321 2392 2528 2678 2012 2057 2111 2209 2322 2396 2532 2704 2013 2058 2112 2210 2325 2397 2535 2709 2014 2059 2113 2211 2326 2400 2536 2725 2015 2060 2114 2212 2331 2405 2548 2726 2016 2061 2115 2213 2332 2407 2549 2732 2017 2062 2116 2240 2335 2408 2550 2733 2018 2063 2117 2251 2338 2414 2561 2754 2019 2064 2118 2252 2339 2415 2563 2777 2020 2065 2119 2253 2340 2418 2570 2778 2021 2066 2120 2254 2341 2427 2571 2780 2022 2067 2121 2257 2342 2433 2573 2781 2023 2068 2122 2258 2343 2434 2574 2785 2024 2069 2123 2262 2344 2439 2576 2786 2025 2070 2124 2263 2345 2444 2582 2789 2026 2071 2125 2264 2346 2448 2584 2802 2027 2072 2126 2265 2347 2449 2586 2819 2028 2073 2127 2266 2349 2456 2587 2833 2029 2074 2128 2267 2350 2461 2589 2905 2030 2075 2129 2268 2351 2462 2598 2906 2031 2076 2133 2269 2352 2463 2606 2908 2032 2077 2134 2270 2353 2464 2610 2919 2033 2084 2145 2271 2354 2473 2611 2920 2034 2088 2146 2272 2355 2474 2612 2921 2035 2089 2147 2273 2356 2476 2614 2937 2036 2090 2151 2274 2357 2477 2625 2990 2037 2091 2152 2275 2362 2480 2626 2991 2038 2092 2153 2276 2365 2481 2629 2992 2039 2093 2165 2277 2366 2482 2630 2993 2040 2094 2174 2278 2372 2483 2631 20000 2041 2095 2181 2279 2373 2486 2635 20006 2042 2096 2182 2280 2376 2490 2637 20063 2043 2097 2183 2288 2377 2493 2651 21582 2044 2098 2184 2289 2378 2494 2652 20233 20234 20320 20549 20668 20669 20963 21744 21781 21907
NEW MARKETS � Medical Electronics ▪ ▪ ▪ ▪ Product Applications Medical Equipment • Patient monitoring (Pulse oximetry, EKG, EEG, ECG) • Electrosurgical equipment, instruments and lasers • Defibrillators • Fetal Monitors • X-Ray and Radiology • Ultrasound systems ▪ Test Equipment ▪ • Charge Amplifiers ▪ • Vibration Analyzers • Oscilloscopes

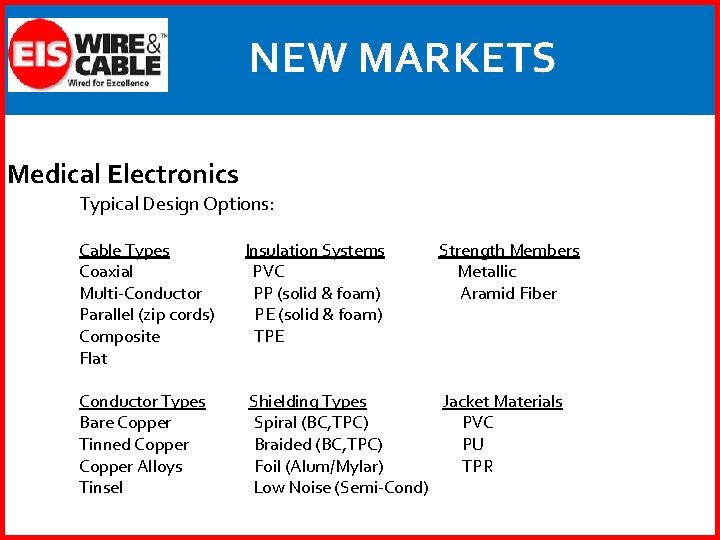

NEW MARKETS Medical Electronics Typical Design Options: Cable Types Coaxial Multi-Conductor Parallel (zip cords) Composite Flat Insulation Systems PVC PP (solid & foam) PE (solid & foam) TPE Strength Members Metallic Aramid Fiber Conductor Types Bare Copper Tinned Copper Alloys Tinsel Shielding Types Jacket Materials Spiral (BC, TPC) PVC Braided (BC, TPC) PU Foil (Alum/Mylar) TPR Low Noise (Semi-Cond)
NEW MARKETS Sensor Electronics Product Applications • Load Cell • Liquid Level • Flow Level • Photoelectric • Vibration

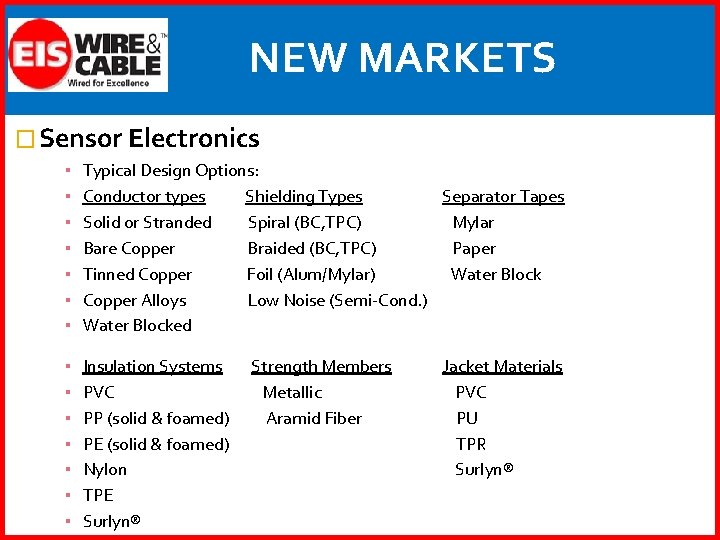

NEW MARKETS � Sensor Electronics ▪ ▪ ▪ ▪ Typical Design Options: Conductor types Shielding Types Separator Tapes Solid or Stranded Spiral (BC, TPC) Mylar Bare Copper Braided (BC, TPC) Paper Tinned Copper Foil (Alum/Mylar) Water Block Copper Alloys Low Noise (Semi-Cond. ) Water Blocked ▪ ▪ ▪ ▪ Insulation Systems PVC PP (solid & foamed) PE (solid & foamed) Nylon TPE Surlyn® Strength Members Metallic Aramid Fiber Jacket Materials PVC PU TPR Surlyn®
NEW MARKETS Factory Automation Product Applications Tray Cables (VNTC, 600 v, 90 c) • Industrial control systems • Intercom systems • Power extensions • Traffic control relays Instrument/Power Limited Tray Cables (ITC/PLTC, 300 v, 105 c) • Factory automation equipment • Material handling equipment • Sensors • Process control equipment
NEW MARKETS Factory Automation Product: Type ITC/PLTC General Purpose Tray Cable, 300 v, 105 c Standards: Additional available ratings: • NEC Articles 727 & 725 UL AWM 2517 (300 v) • UL 2250 ITC (22 AWG – 12 AWG) UL AWM 2586 (600 v) • UL 13 PLTC AWM l/ll A/B 300 v FT 4 • UL 1685 flame test AWM l/ll A/B 600 v FT 4 • IEEE 1202 / FT 4 CMX-OUTDOOR-CMG MSHA
NEW MARKETS Factory Automation Product: Type ITC/PLTC General Purpose Tray Cable, 300 v, 105 c Unshielded Multi-Conductor Cables Construction: Conductors: 22 AWG – 18 AWG, Tinned Copper. Additional gauge sizes and custom conductor count (2 to 30) available upon request. Insulation: Extruded PVC Jacket: Extruded Black PVC. Additional colors are available upon customer request. Color Code: Individually colored for ease of identification.
NEW MARKETS Factory Automation Product: Type ITC/PLTC General Purpose Tray Cable, 300 v, 105 c Shielded Multi-Conductor Cables Construction: Conductors: 22 AWG – 18 AWG, Tinned Copper. Additional gauge sizes and custom conductor count (2 to 30) available upon request. Insulation: Extruded PVC Shield: Aluminum/Polyester foil overall. Optional braided shield available upon request. Jacket: Extruded Black PVC. Additional colors are available upon customer request. Color Code: Individually colored for ease of identification.
NEW MARKETS Factory Automation Product: Type VNTC/UL Type TC Tray Cable, 600 v, 90 c Dry / 75 c Wet Standards: • UL Type TC, 600 volts • UL 1581 • UL 1685 flame test • NEC Type TFN/TFFN, THHN/THWN conductors • NEMA WC-70/ICEA S-95 -685 • IEEE 1202 (70, 000 BTU/hr) • IEEE 383 (70, 000 BTU/hr) • UL Subject 1277 (70, 000 BTU/hr)

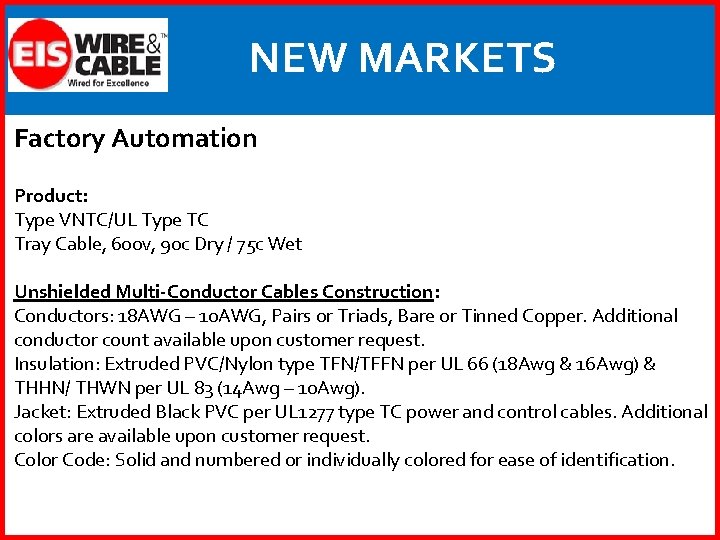

NEW MARKETS Factory Automation Product: Type VNTC/UL Type TC Tray Cable, 600 v, 90 c Dry / 75 c Wet Unshielded Multi-Conductor Cables Construction: Conductors: 18 AWG – 10 AWG, Pairs or Triads, Bare or Tinned Copper. Additional conductor count available upon customer request. Insulation: Extruded PVC/Nylon type TFN/TFFN per UL 66 (18 Awg & 16 Awg) & THHN/ THWN per UL 83 (14 Awg – 10 Awg). Jacket: Extruded Black PVC per UL 1277 type TC power and control cables. Additional colors are available upon customer request. Color Code: Solid and numbered or individually colored for ease of identification.

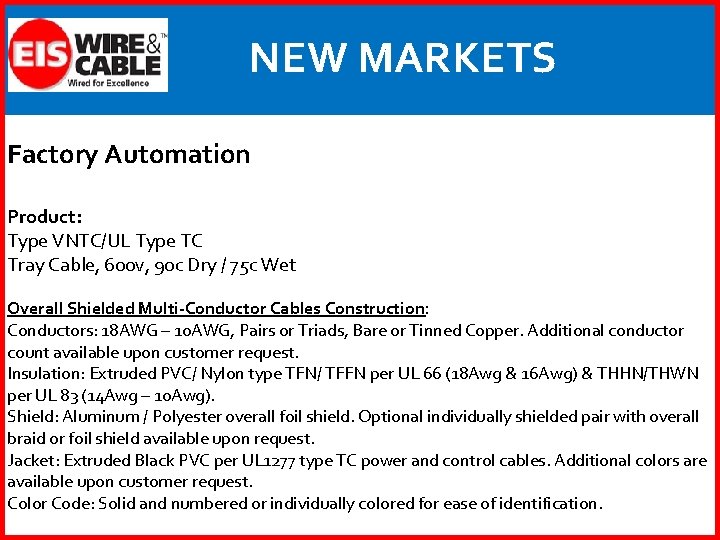

NEW MARKETS Factory Automation Product: Type VNTC/UL Type TC Tray Cable, 600 v, 90 c Dry / 75 c Wet Overall Shielded Multi-Conductor Cables Construction: Conductors: 18 AWG – 10 AWG, Pairs or Triads, Bare or Tinned Copper. Additional conductor count available upon customer request. Insulation: Extruded PVC/ Nylon type TFN/ TFFN per UL 66 (18 Awg & 16 Awg) & THHN/THWN per UL 83 (14 Awg – 10 Awg). Shield: Aluminum / Polyester overall foil shield. Optional individually shielded pair with overall braid or foil shield available upon request. Jacket: Extruded Black PVC per UL 1277 type TC power and control cables. Additional colors are available upon customer request. Color Code: Solid and numbered or individually colored for ease of identification.
POLYURETHANE JACKET CONTROL CABLES U. L. AWM APPROVALS
New Polyurethane Jacketed Cables for use in Industrial and factory Automation

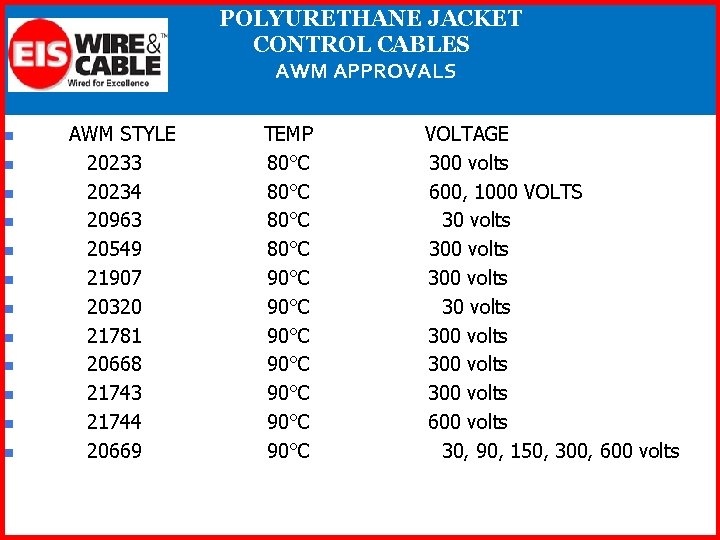

POLYURETHANE JACKET CONTROL CABLES AWM APPROVALS n n n AWM STYLE 20233 20234 20963 20549 21907 20320 21781 20668 21743 21744 20669 TEMP 80°C 90°C 90°C VOLTAGE 300 volts 600, 1000 VOLTS 30 volts 300 volts 300 volts 600 volts 30, 90, 150, 300, 600 volts
POLYURETHANE JACKET CONTROL CABLES APPROVALS FOR CSA AWM MULTICONDUCTOR/ROUND Optional inner AWM GROUP AWM CLASS TEMP (Deg C) Max. Voltage JKT Type Min avg. thickness Covering type Min avg thickness Size Range (AWG) Insulation type Min avg. Thickness Cond. Count 30 -10 POLYPRO. 008 2 to 10 1, 2, 3, 10, 11 SRP. 006/PVC. 009 2 to 30 2, 3, 9, 10, 11 I/II A/B 80° 300 PUR. 017 I/II A/B 80° /90° 300 PUR. 017 PVC/. 008 30 -10 I/II A/B 80° /90° 600 PUR. 017 PVC/. 008 30 -10 NOTES: 1) ALL COLORS EXCEPT CLEAR AND TRANSLUCENT 2) FLAME CLASSIFICATION FT 1 3) OPTIONAL SHIELDING 9) OPTIONAL INNER COVERINGS 10) INSULATION: ALL COLORS INCLUDING CLEAR AND TRANSLUCENT 11) JACKET: ALL COLORS EXCEPT CLEAR AND TRANSLUCENT SRP/PVC. 015 Notes

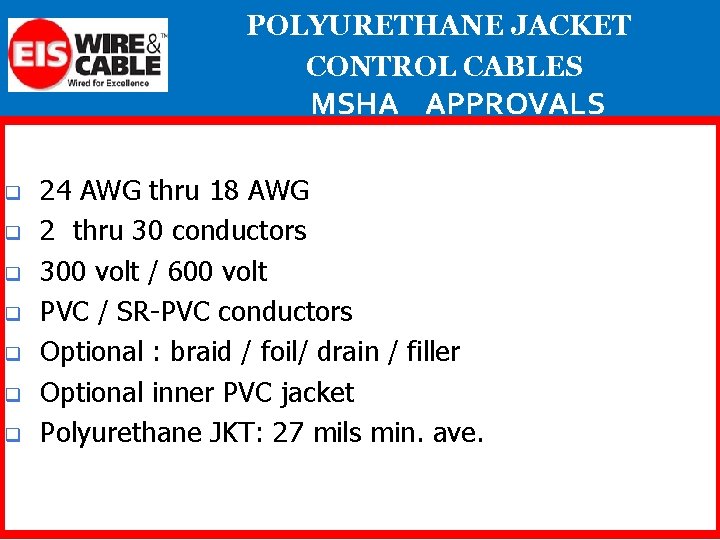

POLYURETHANE JACKET CONTROL CABLES MSHA APPROVALS q q q q 24 AWG thru 18 AWG 2 thru 30 conductors 300 volt / 600 volt PVC / SR-PVC conductors Optional : braid / foil/ drain / filler Optional inner PVC jacket Polyurethane JKT: 27 mils min. ave.
EIS CUSTOM PACKAGING � 500’ , 1000’, 2500’, 5000’, Multi-Conductor Cable Put Ups � Bulk Put Ups, due to larger runs needed for easy cut and strip � Barrel Packaging for Single Conductor Cables 8” 15” Half Barrels, 30” Full Barrels, and 42” Barrels Quarter Barrels, � Wood Reels for single and multi-conductor Cables 12”, 14”, 16”, 18”, 24”, 30”, 36” and possibilities for a 42” � Plastic Reels at customers request. � Reelex Boxes for all multi conductor cables with a range from 500’ to 1 K’ put up, 10. 5”, 12”, 13” and others as per customers request. � Reel in a Box usually for detonation cables in 1000 meter put ups = 3281’
````` � � � � � WAYS EIS CAN REDUCE YOUR INVENTORY LEVELS Reduce inventory management risks Reduce total cost of purchased product due to market fluctuation Shrink / consolidate vendor base Transition current business from non-viable sources Outsource non-core processes Improve existing designs and process Minimize paper work and admin costs Coordinate with your EIS teams Increase effectiveness of your people Increase effectiveness of your promises
EXPERIENCE � We are a well trained experienced technical resource. Sales people are product specialists. � Collectively over 200 years of experience � 6 managers with more than 20 years with the company � Identifying EIS Products best suited for your application needs � Our average tenure is still over 12 years even as we are adding new people � Customer survey’s always return an excellent rating for technical, product knowledge, and best service in the market � Continued education and training programs keeps us fresh and up to date on new innovations in industry and Products.
