Introduction to the Microscope Care Parts Focusing Wet
- Slides: 8
Introduction to the Microscope §Care §Parts §Focusing §Wet mounts §Calculating magnification

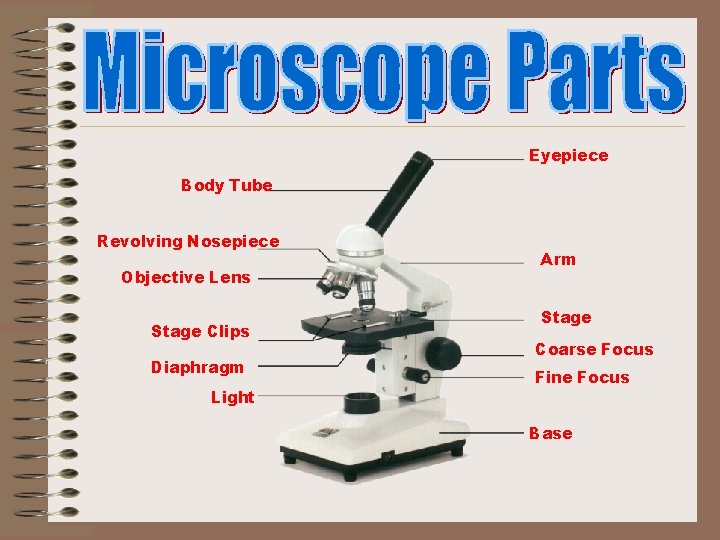

Eyepiece Body Tube Revolving Nosepiece Objective Lens Stage Clips Diaphragm Light Arm Stage Coarse Focus Fine Focus Base

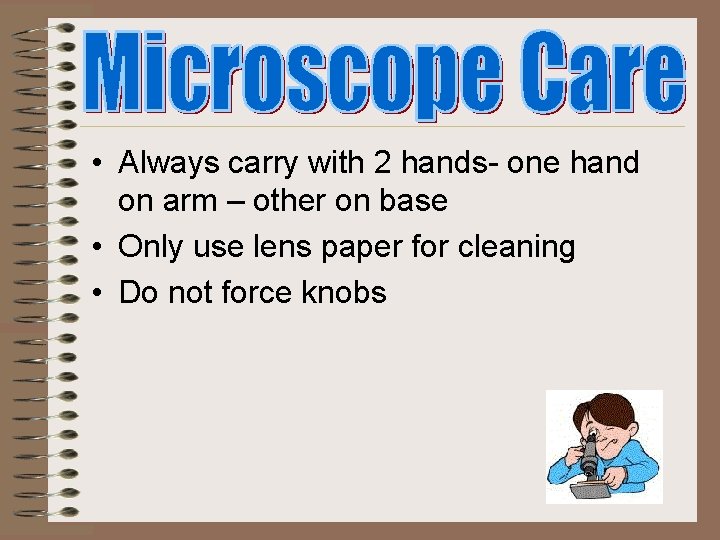

• Always carry with 2 hands- one hand on arm – other on base • Only use lens paper for cleaning • Do not force knobs

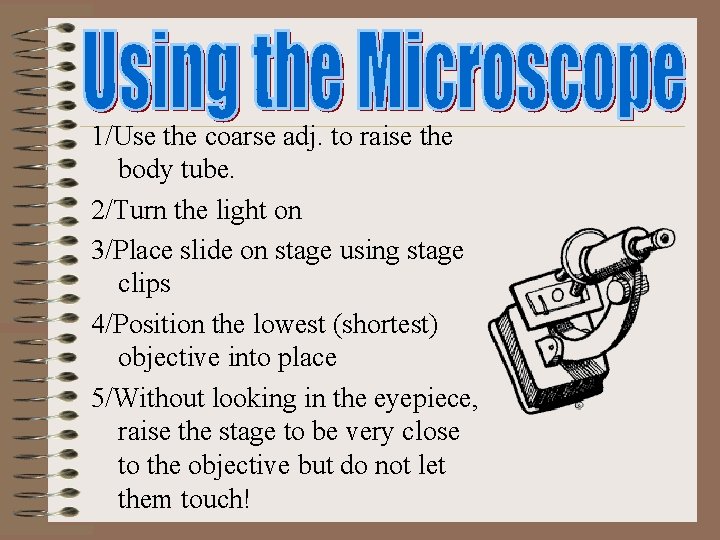

1/Use the coarse adj. to raise the body tube. 2/Turn the light on 3/Place slide on stage using stage clips 4/Position the lowest (shortest) objective into place 5/Without looking in the eyepiece, raise the stage to be very close to the objective but do not let them touch!

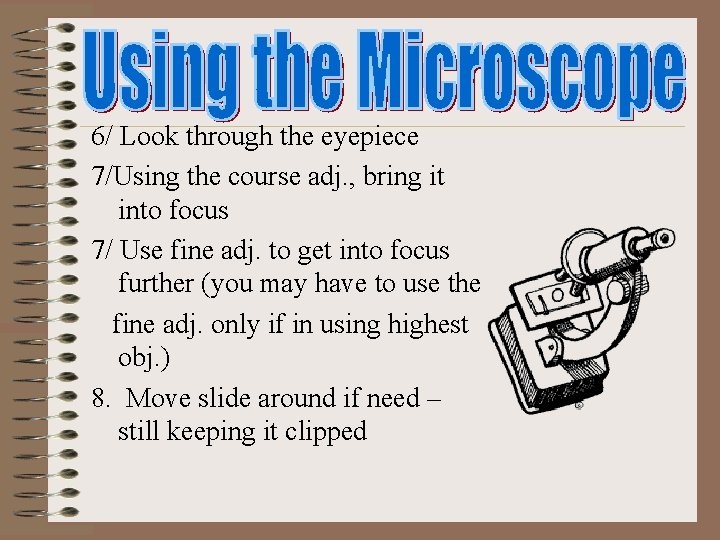

6/ Look through the eyepiece 7/Using the course adj. , bring it into focus 7/ Use fine adj. to get into focus further (you may have to use the fine adj. only if in using highest obj. ) 8. Move slide around if need – still keeping it clipped

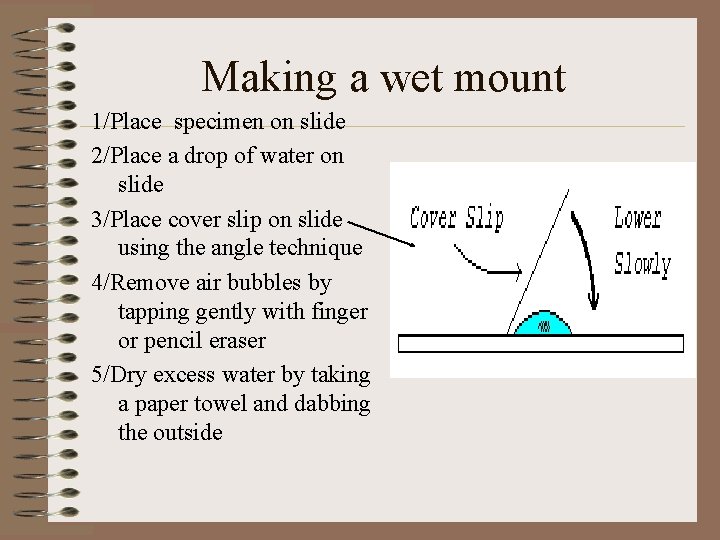

Making a wet mount 1/Place specimen on slide 2/Place a drop of water on slide 3/Place cover slip on slide using the angle technique 4/Remove air bubbles by tapping gently with finger or pencil eraser 5/Dry excess water by taking a paper towel and dabbing the outside
To make a stained slide • 1/Make a wet mount with water and coverslip • 2/Place a drop of stain at one end of the cover slip • 3/ hold a piece of paper towel at the other end of cover slip - this will draw the stain across the speciman

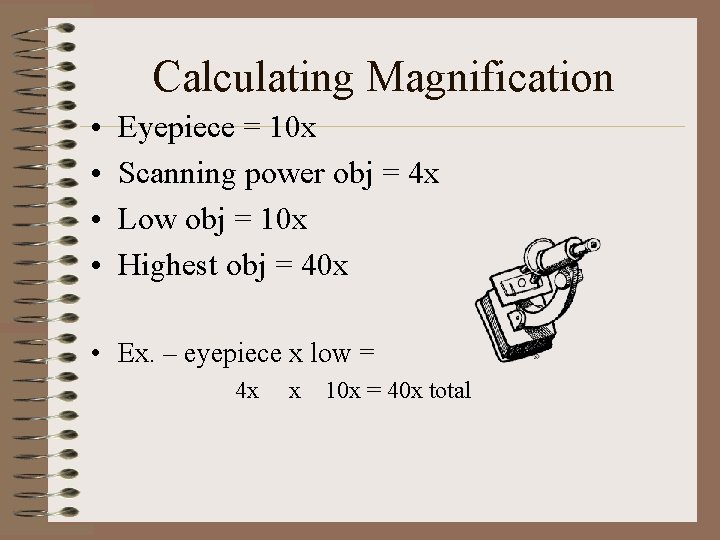

Calculating Magnification • • Eyepiece = 10 x Scanning power obj = 4 x Low obj = 10 x Highest obj = 40 x • Ex. – eyepiece x low = 4 x x 10 x = 40 x total
