Introduction to the Global Positioning System (GPS)
GPS (Global Positioning Systems) • GPS ---- What it is and what it does. – worldwide radio-navigation system formed from a constellation of 24 satellites and their base stations on the ground. – calculates position on earth – gives position in the form of (x, y, z) coordinates or latitude, longitude, and elevation
GPS Quick Facts • GPS development began in the 1970’s as part of the DOD’s Defense Navigation Satellite System • First NAVSTAR satellites were launched in the late 1970 s • First testing of GPS ground equipment began in the early 1980 s • Full use of GPS signal by civilians was blocked until 02 MAY 2000, when Selective Availability was deactivated
Before GPS • Landmarks: Only work in local area. Subject to movement or destruction by environmental factors. • Dead (Ded) Reckoning: Very complicated. Accuracy depends on measurement tools which are often relatively crude. Errors accumulate quickly. • Celestial: Complicated and only works at night in good weather. Limited precision. • LORAN: Limited coverage (mostly coastal). Accuracy variable, affected by geographic situation. Easy to jam or disturb.
How GPS Works • 24 satellite system, orbiting at 10, 900 NM and monitored by five ground stations • GPS works through signal triangulation (really trilateration) • Four visible satellites are needed for a good positional fix
How GPS Works
Accuracy and Precision Accurate Precise Accurate & Precise

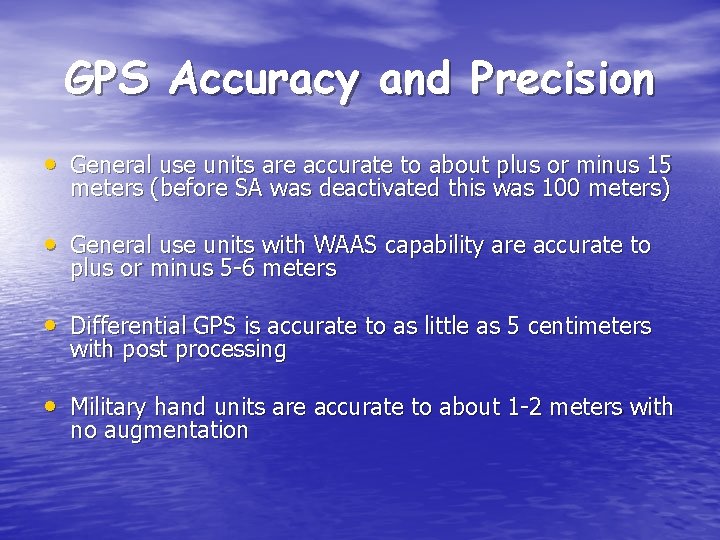

GPS Accuracy and Precision • General use units are accurate to about plus or minus 15 meters (before SA was deactivated this was 100 meters) • General use units with WAAS capability are accurate to plus or minus 5 -6 meters • Differential GPS is accurate to as little as 5 centimeters with post processing • Military hand units are accurate to about 1 -2 meters with no augmentation
Errors and the DOPs • The Major Error Types – Ephemeris – Atmospheric – Multipath • Errors are calculated as Dilutions Of Precision (DOP)
Types of DOPs
Projections and Datums • A projection is a representation of the curved surface of the earth on a flat surface. – It involves the use of mathematical transformations between the location of places on the earth and their projected locations on the plane. • Datums - define the origin and orientation of the coordinate system used. – NAD 27, NAD 83, WGS 84
Latitude and Longitude • Latitude – North of Equator is positive, South is negative • Longitude – West of the Meridian is negative, East is positive
Latitude and Longitude • Can be expressed as: – Degrees, minutes, seconds (DMS) • 34 o 15’ 45” N x 119 o 05’ 15” W – Degrees, decimal minutes (DMm) • 34 o 15. 750 N x 119 o 05. 250 W – Decimal Degrees (Dd) • 34. 2625 x -119. 0875

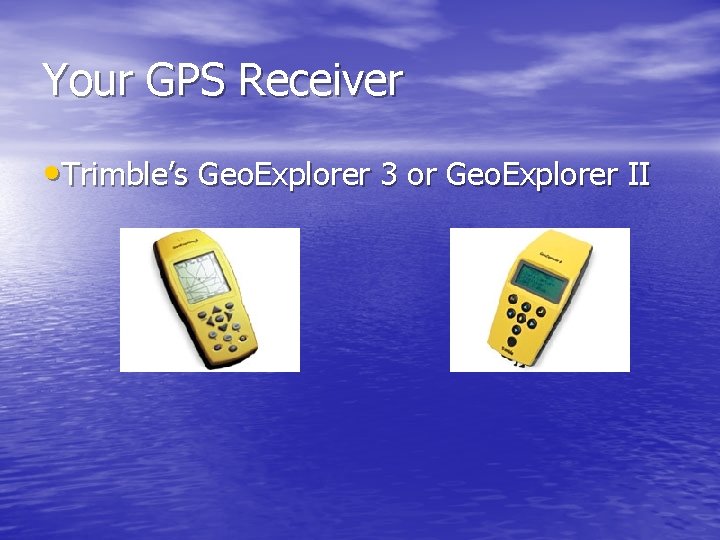

Your GPS Receiver • Trimble’s Geo. Explorer 3 or Geo. Explorer II
GIS - A Thinker’s Tool
With GIS, you can explore any topic that involves locations. You can analyze how it relates to other conditions of a given place, or to similar features in other places. For instance. . . SYHS GIS Lab GIS - A Thinker's Tool 4
• When high numbers of deformed frogs are found, what characteristics, near or far, might influence this? ESRI Schools & Libraries GIS - A Thinker's Tool 5
• Where recent turmoil has uprooted a population, how might surrounding regions have contributed to the situation, and how might they respond? SYHS GIS LAB GIS - A Thinker's Tool 7
• When controversy about a facility threatens to tear a community apart, how can they visualize the information and evaluate the alternatives? SYHS GIS Lab GIS - A Thinker's Tool 8
• When a scourge strikes and spreads, where can barriers be erected effectively to limit its expansion? SYHS GIS Lab GIS - A Thinker's Tool 9
GIS allows bringing together disparate data from diverse fields. Users must wrestle with: data relevance n data quality n analyses used n relationships identified n interpretations drawn n SYHS GIS LAB GIS - A Thinker's Tool 10
The process of GIS n n n n Think about a place or a topic. . . Ask a question about it. . . Make a map. . . Explore the patterns that appear. . . Enhance the data or modify the analysis. . . Ask a new question … repeat. . . SYHS GIS LAB GIS - A Thinker's Tool 12
GIS and GPS • GIS is a system in • • which information on location is found. GPS is a system in which the information is placed on a map. To the right is an example of the two working together.
Santa Ynez High GIS Department
Arc. View provides data visualization, query, analysis, and integration capabilities along with the ability to create and edit geographic data. ESRI Arc. View
MFWorks by Keigan Systems represents an easy to use tool box for the analysis and visualization of spatial data. Students can find relationships in collected GIS data and plot it on a grid map: MFWorks for Geo. Media

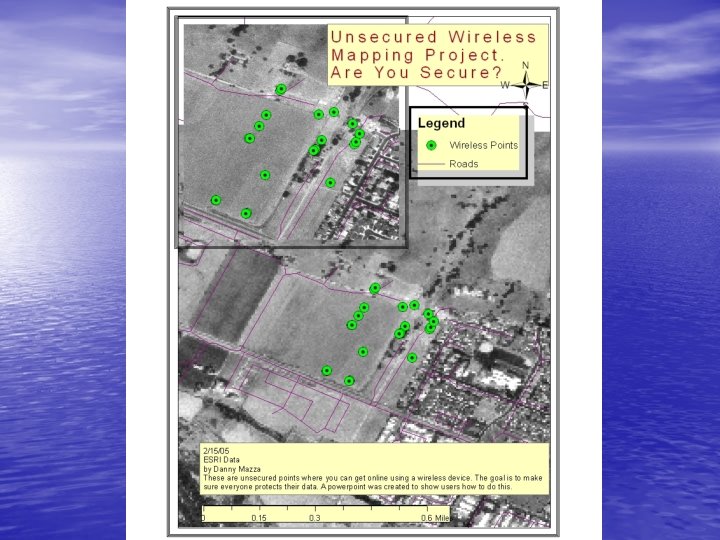

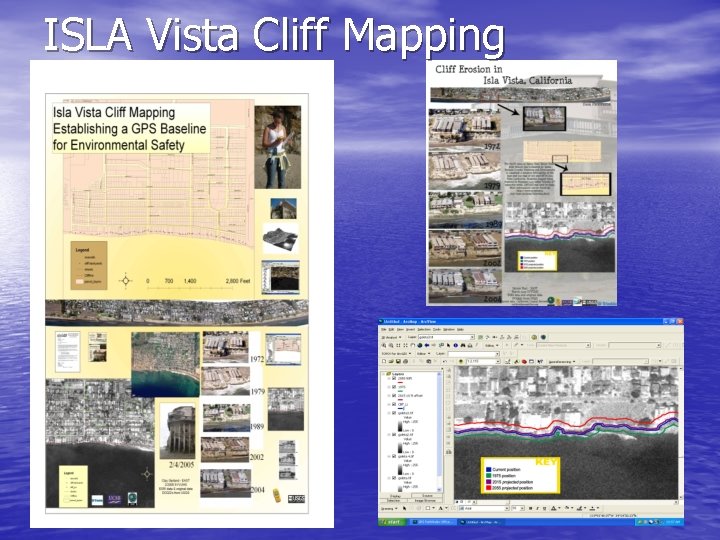

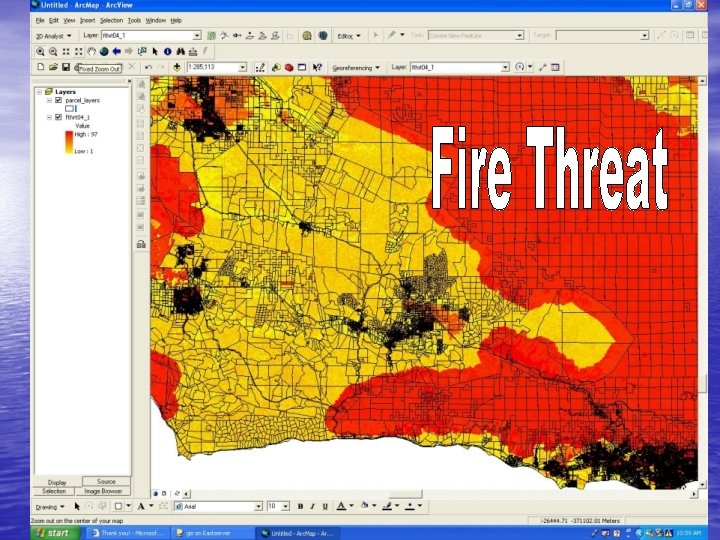

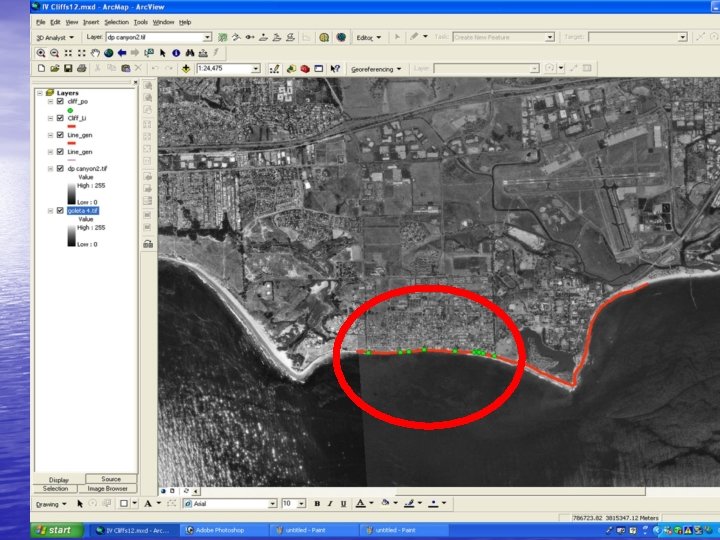

ISLA Vista Cliff Mapping
Adrian Evarts Maps Trails for UCSB Docents Trails Mapped for Docents to use as trainings and guides for field trips
EAST works with: SYV Water Conservation District Mapping Ballard
Plotting the Points We went out onto HWY 154 and using the Geo. Explorer 3, Plotted the location of all the accidents. When we got back to the EAST Lab we transferred all the plotted points onto a map of HWY 154. The map shows where each accident took place, as well as the cause, and other useful information. All the information that we have collected and put together will soon be up for public access.
Andrew Murray Vineyard Project Andrew Murray Vineyards came to the EAST Lab for help mapping the grape vines of their vineyard. We took a team of about 5 people went out to the vineyard. Using the Geo. Explorer 3 we walked around all the grapevine patches and plotted points. The vineyard was beautiful and we had a lot of fun.
Murray Vineyards
Mapping of Ballard Water District
Water District
EAST works on coastal water quality and surf spots Study Region (50) Waters h eds rangin g from 10 -5 0 km 2 Santa Barbara Channel Ventura River, 590 km 2 Santa Clara River, 4200 km 2 Los Angeles, CA Multi-source Land Cover Data (2002 v 1) California Department of Forestry and Fire Protection
MBARI Monterey Bay Multibeam Survey 4 EAST Facilitators Spend 1 week together Using GIS Big Sur Pockmark Field
Geocoding of SYVUHS Students : by Kelly Lyon

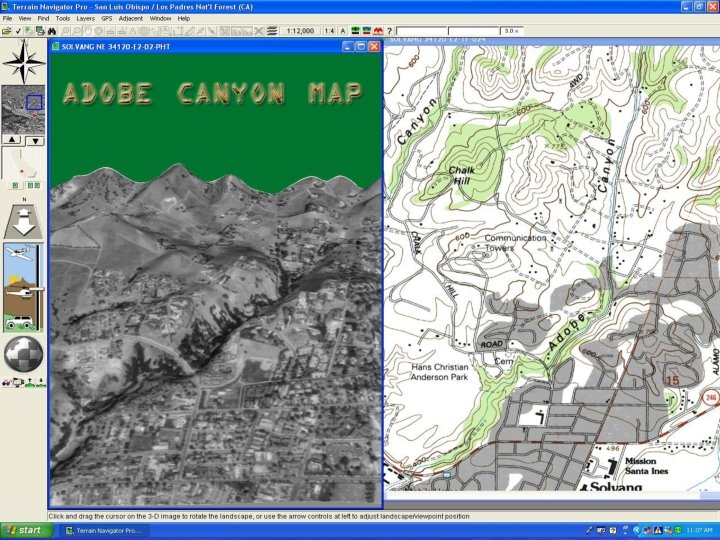

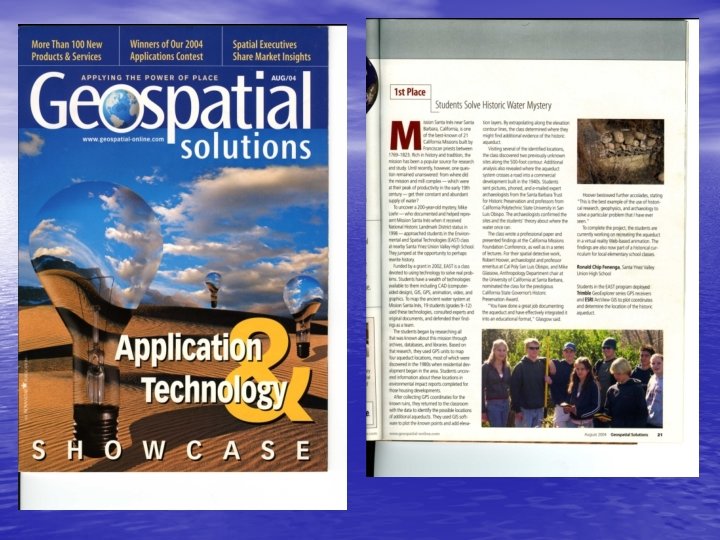

FLASH! Students find Dam Site!
Santa Ynez Valley High School Dynamic GIS – Geography, History, Conservation
