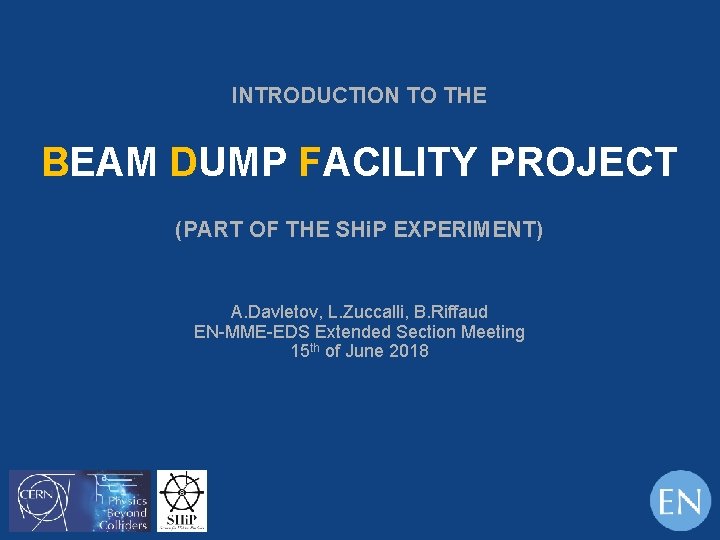

INTRODUCTION TO THE BEAM DUMP FACILITY PROJECT (PART OF THE SHi. P EXPERIMENT) A. Davletov, L. Zuccalli, B. Riffaud EN-MME-EDS Extended Section Meeting 15 th of June 2018

Cosmological observations tell us the Standard Model of Particle Physics explains about 5% of the energy present in the universe. WHAT ABOUT THE REST ? (Hidden Sectors) 15/06/2018 EN-MME-EDS Extended Section Meeting #9

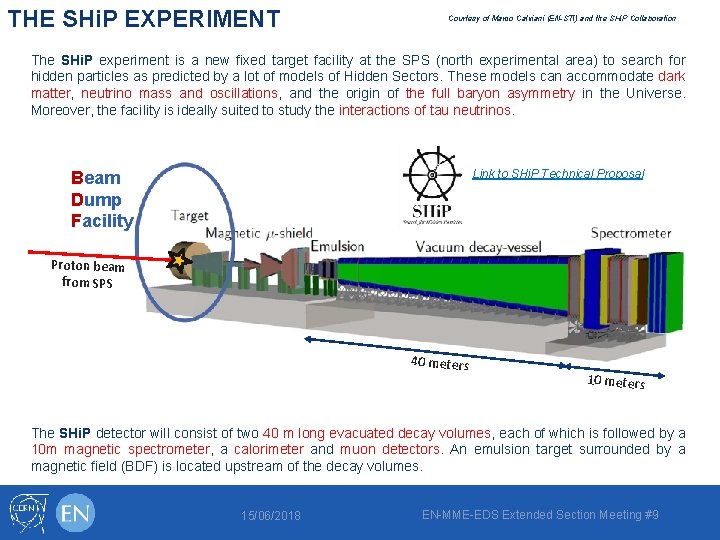

THE SHi. P EXPERIMENT Cosmological observations tell us the Standard Model of Particle The SHi. P experiment is a about new fixed 5% targetof facility the SPS (north experimental search for Physics explains theat energy present in area) the touniverse. Courtesy of Marco Calviani (EN-STI) and the SHi. P Collaboration hidden particles as predicted by a lot of models of Hidden Sectors. These models can accommodate dark matter, neutrino mass and oscillations, and the origin of the full baryon asymmetry in the Universe. Moreover, the facility is ideally suited to study the interactions of tau neutrinos. Link to SHi. P Technical Proposal Beam Dump Facility Proton beam from SPS 40 meters 10 meters The SHi. P detector will consist of two 40 m long evacuated decay volumes, each of which is followed by a 10 m magnetic spectrometer, a calorimeter and muon detectors. An emulsion target surrounded by a magnetic field (BDF) is located upstream of the decay volumes. 15/06/2018 EN-MME-EDS Extended Section Meeting #9

THE SHi. P EXPERIMENT The SHi. P experiment will be built next to the North Experimental Area in the CERN Prévessin site. SHi. P & BDF Approx. 2 km You are here 15/06/2018 EN-MME-EDS Extended Section Meeting #9

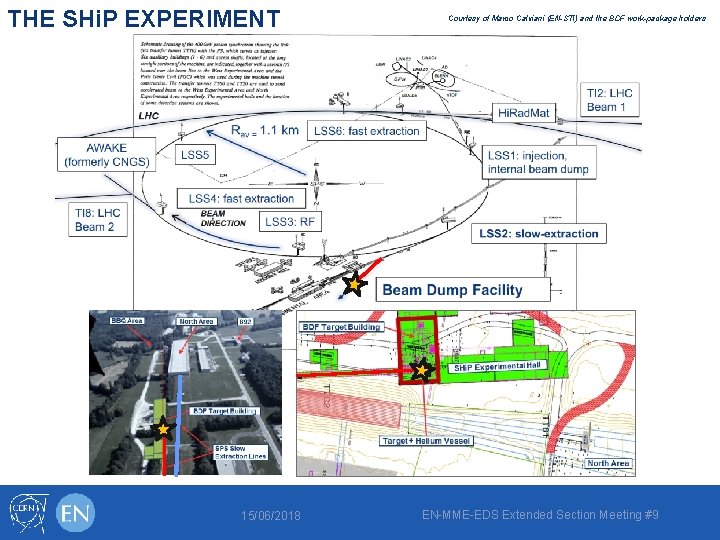

THE SHi. P EXPERIMENT 15/06/2018 Courtesy of Marco Calviani (EN-STI) and the BDF work-package holders EN-MME-EDS Extended Section Meeting #9

THE BEAM DUMP FACILITY BDF Target Building Courtesy of Keith Kershaw (EN-STI), Jean-Louis Grenard (EN-HE) and OTL (UK) 15/06/2018 EN-MME-EDS Extended Section Meeting #9

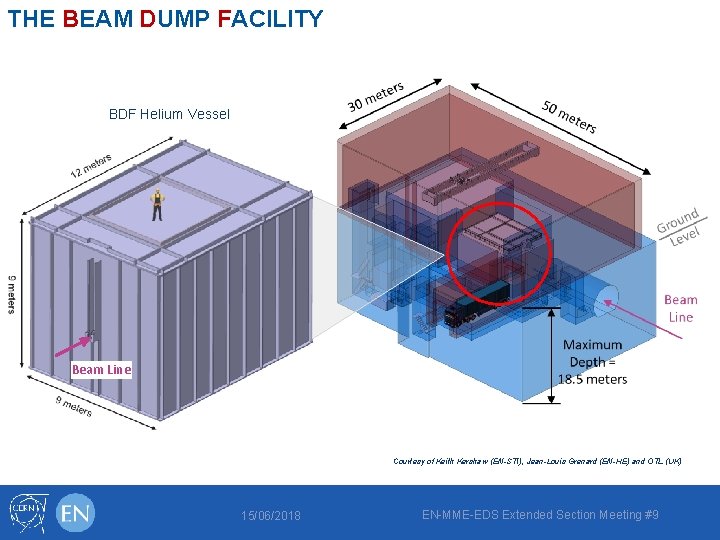

THE BEAM DUMP FACILITY BDF Helium Vessel Beam Line Courtesy of Keith Kershaw (EN-STI), Jean-Louis Grenard (EN-HE) and OTL (UK) 15/06/2018 EN-MME-EDS Extended Section Meeting #9

THE BEAM DUMP FACILITY Small lid Mobile Shielding (6 m x 5 m) Bunker Shielding Magnetic Coil Shielding Proximity Shielding Collimator Magnetic Target Coil Upstream Concrete Shielding Large lid (12 m x 9 m) Top Proximity BDF Target. Shielding + Helium Box Target Lateral Yoke (very high radiation level – FLUKA analysis on-going) Proximity Shielding Helium Vessel (approx. 1000 m 3) Design status of the helium vessel to be presented by Albert Shielding Design status of the target BDF Target Shielding to be presented by Laurent (4500 tons, 85% cast iron, 15% concrete) 15/06/2018 EN-MME-EDS Extended Section Meeting #9

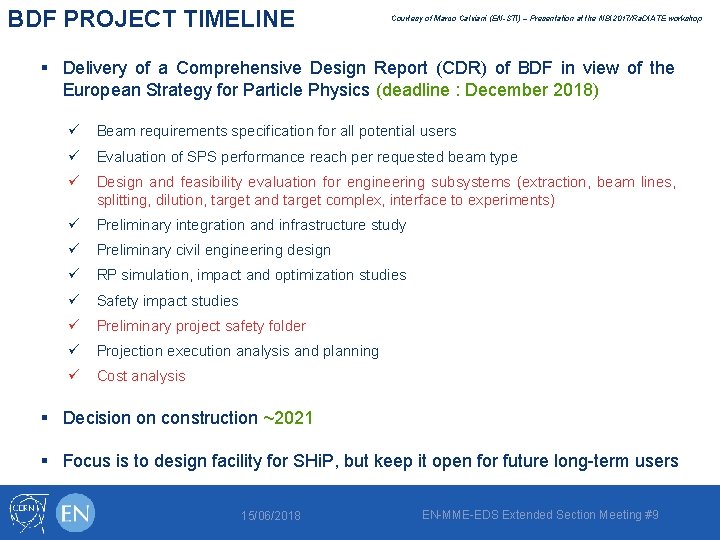

BDF PROJECT TIMELINE Courtesy of Marco Calviani (EN-STI) – Presentation at the NBI 2017/Ra. DIATE workshop § Delivery of a Comprehensive Design Report (CDR) of BDF in view of the European Strategy for Particle Physics (deadline : December 2018) ü Beam requirements specification for all potential users ü Evaluation of SPS performance reach per requested beam type ü Design and feasibility evaluation for engineering subsystems (extraction, beam lines, splitting, dilution, target and target complex, interface to experiments) ü Preliminary integration and infrastructure study ü Preliminary civil engineering design ü RP simulation, impact and optimization studies ü Safety impact studies ü Preliminary project safety folder ü Projection execution analysis and planning ü Cost analysis § Decision on construction ~2021 § Focus is to design facility for SHi. P, but keep it open for future long-term users 15/06/2018 EN-MME-EDS Extended Section Meeting #9

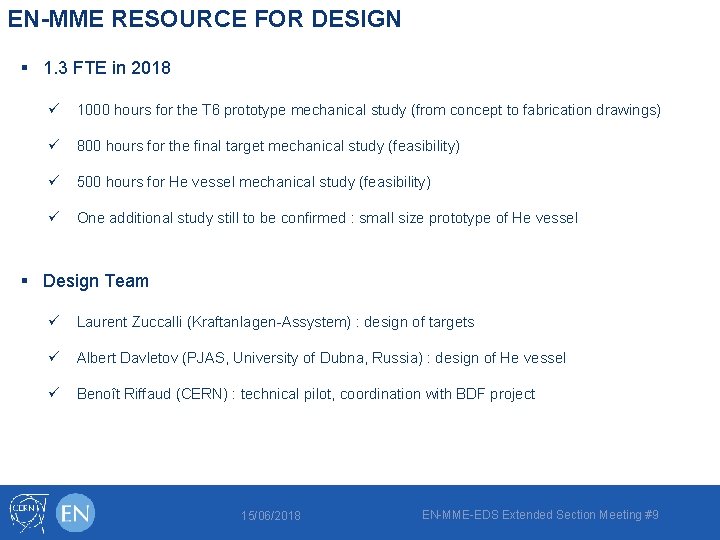

EN-MME RESOURCE FOR DESIGN § 1. 3 FTE in 2018 ü 1000 hours for the T 6 prototype mechanical study (from concept to fabrication drawings) ü 800 hours for the final target mechanical study (feasibility) ü 500 hours for He vessel mechanical study (feasibility) ü One additional study still to be confirmed : small size prototype of He vessel § Design Team ü Laurent Zuccalli (Kraftanlagen-Assystem) : design of targets ü Albert Davletov (PJAS, University of Dubna, Russia) : design of He vessel ü Benoît Riffaud (CERN) : technical pilot, coordination with BDF project 15/06/2018 EN-MME-EDS Extended Section Meeting #9
