Introduction to the 8000 Hearing Aid Test System

Introduction to the 8000 Hearing Aid Test System By: Kristina Frye Electronics, Inc.

Outline p Coupler Measurements n n Coupler Directional ANSI/IEC Coupler Multicurve Advanced Coupler: Enhanced DSP, Attack & Release, I/O, Battery Current

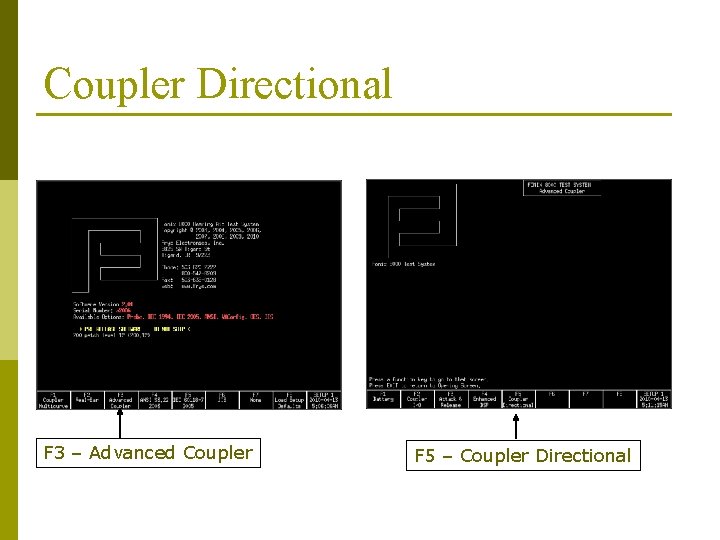

Coupler Directional F 3 – Advanced Coupler F 5 – Coupler Directional

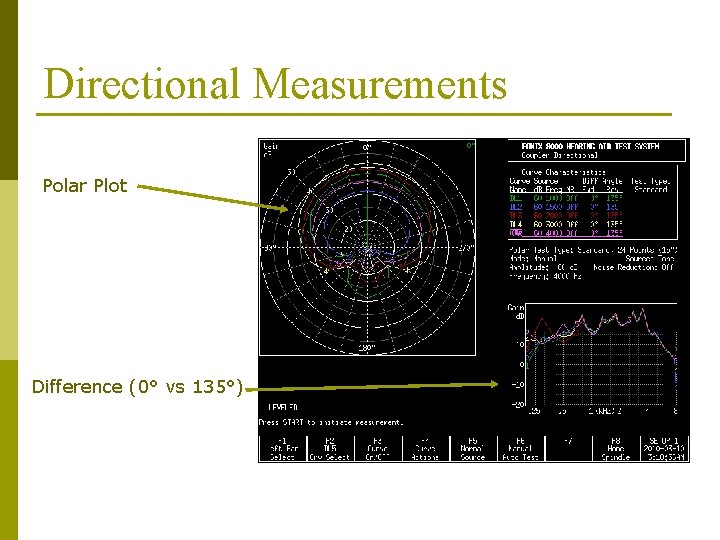

Directional Measurements Polar Plot Difference (0° vs 135°)

Simultaneous, Manual, and Auto Modes p In Simultaneous Mode, five polar plot curves are measured simultaneously n p p A Composite source signal is used to take the measurements. The response at specified frequencies is graphed In Manual Mode, the user selects the curve to measure. A Puretone signal at the user specified frequency or a Composite source is used. In Auto Mode, the user can pre-save manual measurements and run curves automatically

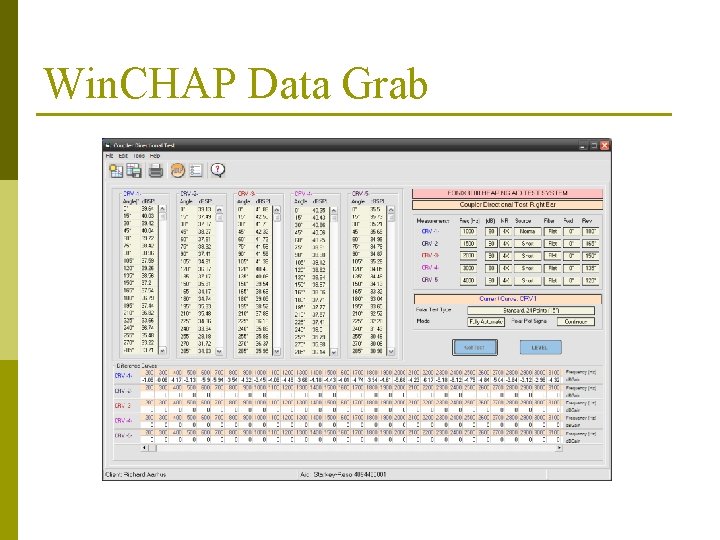

Win. CHAP Data Grab

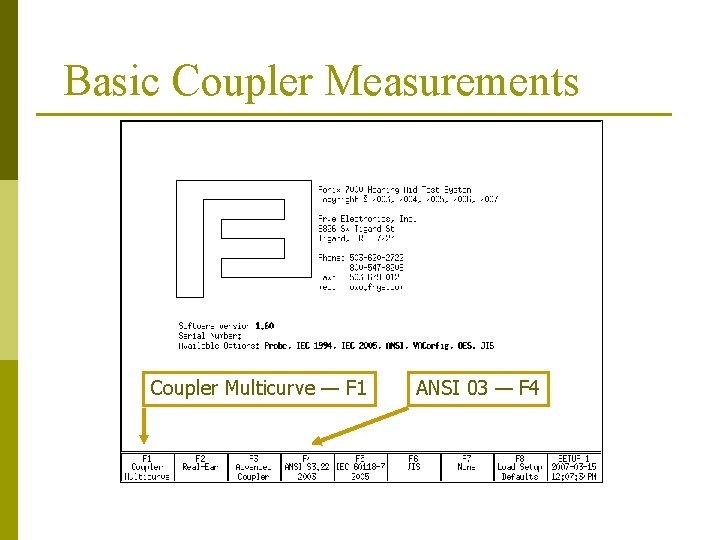

Basic Coupler Measurements Coupler Multicurve — F 1 ANSI 03 — F 4

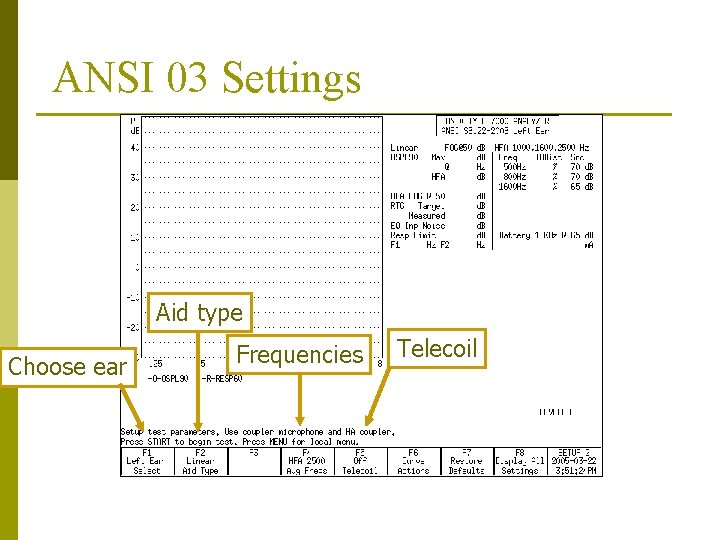

ANSI 03 Settings Aid type Choose ear Frequencies Telecoil

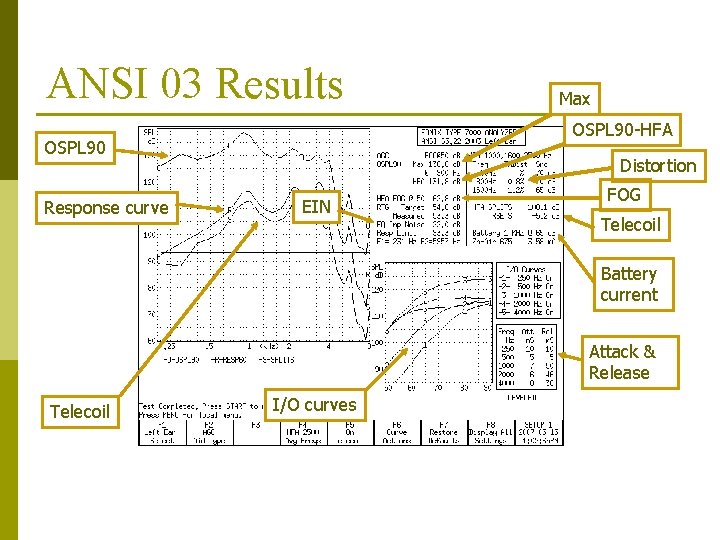

ANSI 03 Results OSPL 90 -HFA OSPL 90 Response curve Max Distortion EIN FOG Telecoil Battery current Attack & Release Telecoil I/O curves

Troubleshooter ANSI

Coupler Multicurve Features Realistic frequency response measurements p Variety of signal types: Composite, Digital Speech, Pure-tone sweeps p Display 10 different curves simultaneously p Switch back and forth between gain and output. All curves translated. p

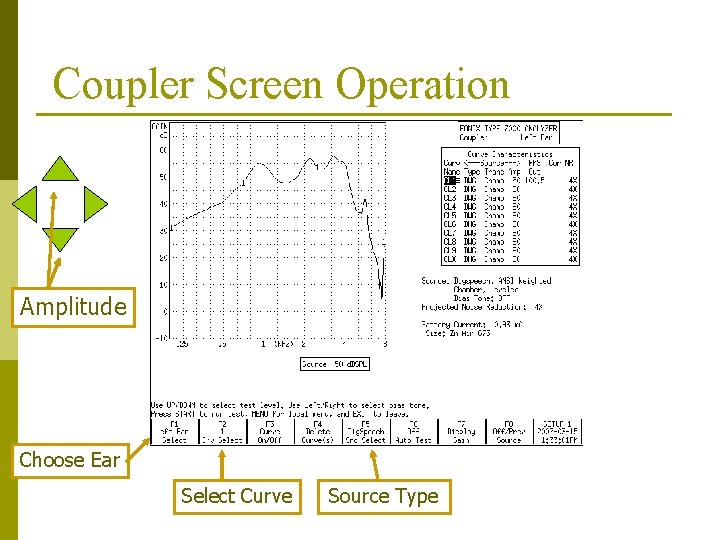

Coupler Screen Operation Amplitude Choose Ear Select Curve Source Type

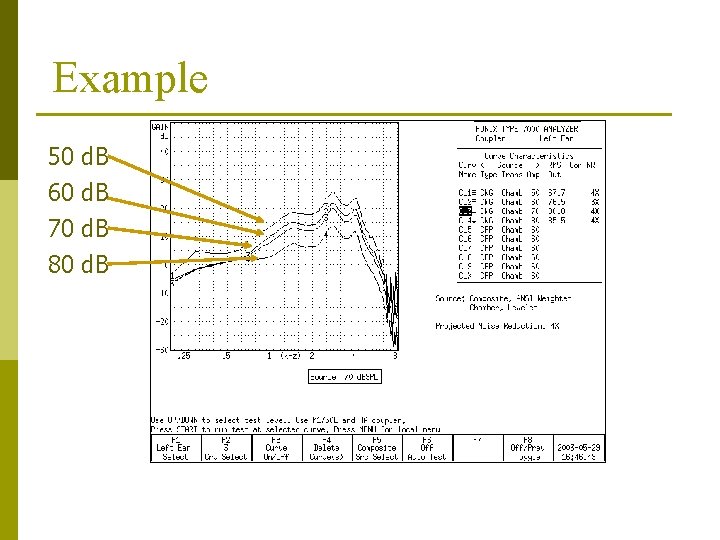

Example 50 60 70 80 d. B

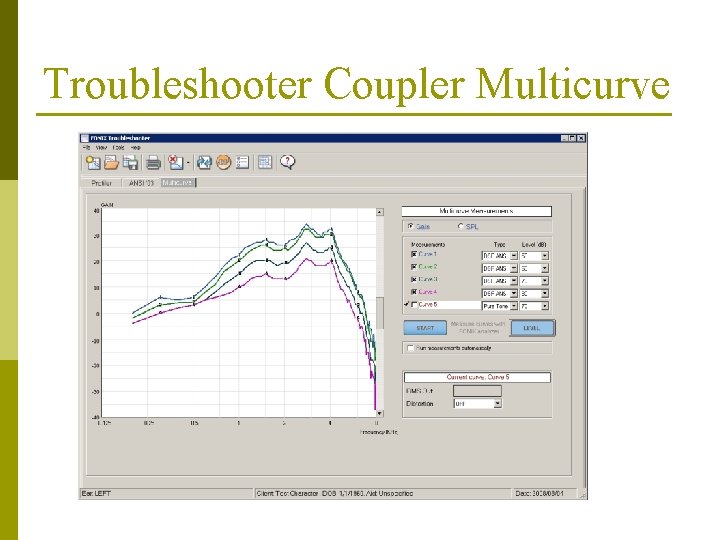

Troubleshooter Coupler Multicurve

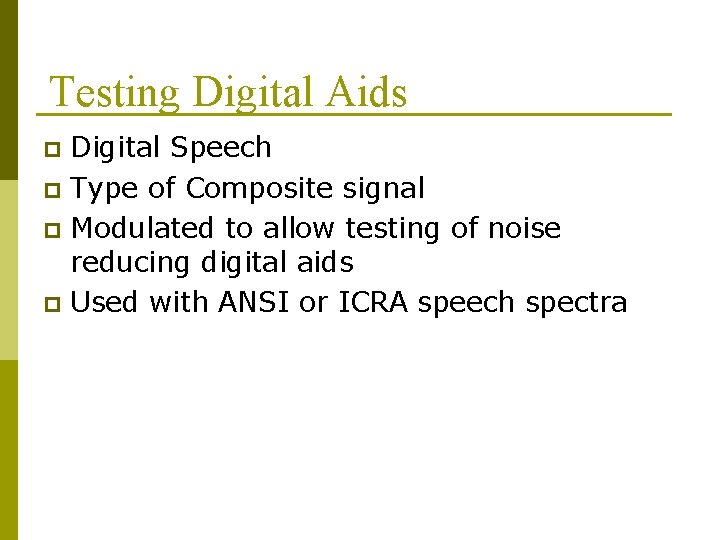

Testing Digital Aids Digital Speech p Type of Composite signal p Modulated to allow testing of noise reducing digital aids p Used with ANSI or ICRA speech spectra p

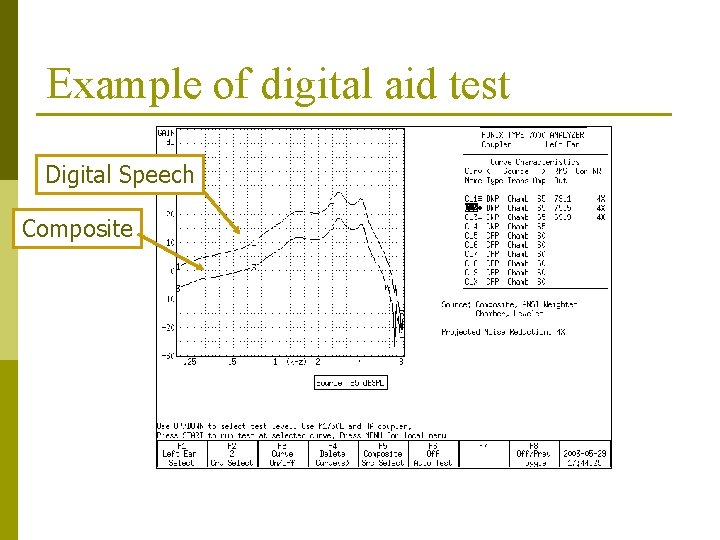

Example of digital aid test Digital Speech Composite

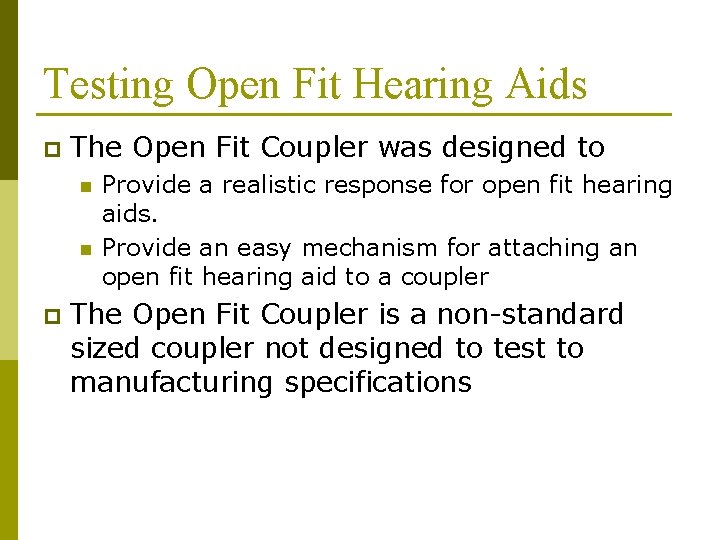

Testing Open Fit Hearing Aids p The Open Fit Coupler was designed to n n p Provide a realistic response for open fit hearing aids. Provide an easy mechanism for attaching an open fit hearing aid to a coupler The Open Fit Coupler is a non-standard sized coupler not designed to test to manufacturing specifications

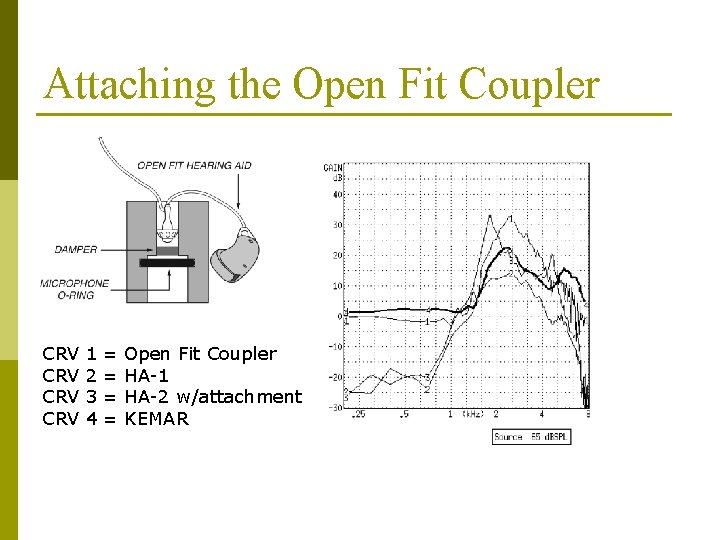

Attaching the Open Fit Coupler CRV CRV 1 2 3 4 = = Open Fit Coupler HA-1 HA-2 w/attachment KEMAR

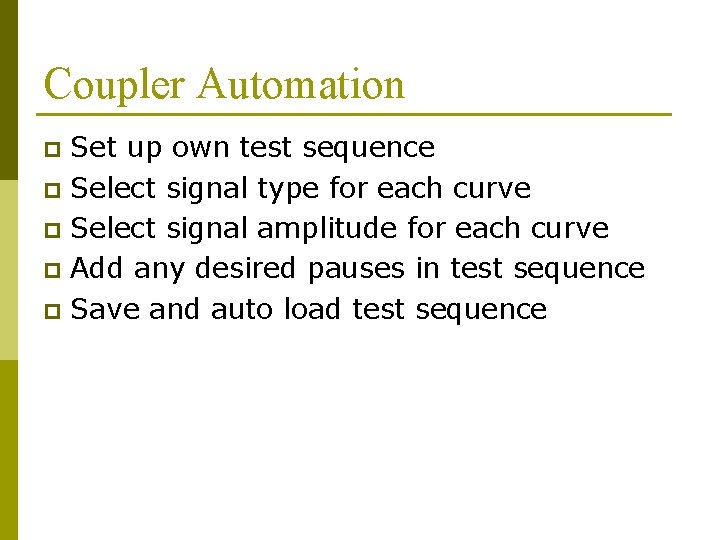

Coupler Automation Set up own test sequence p Select signal type for each curve p Select signal amplitude for each curve p Add any desired pauses in test sequence p Save and auto load test sequence p

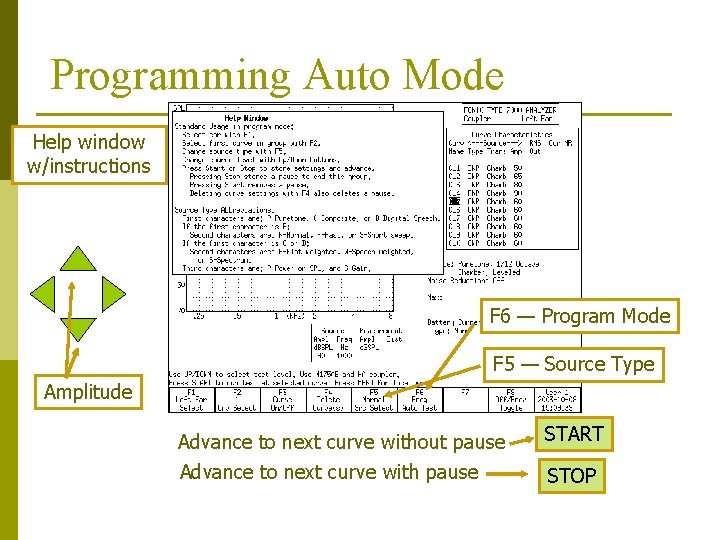

Programming Auto Mode Help window w/instructions F 6 — Program Mode F 5 — Source Type Amplitude Advance to next curve without pause Advance to next curve with pause START STOP

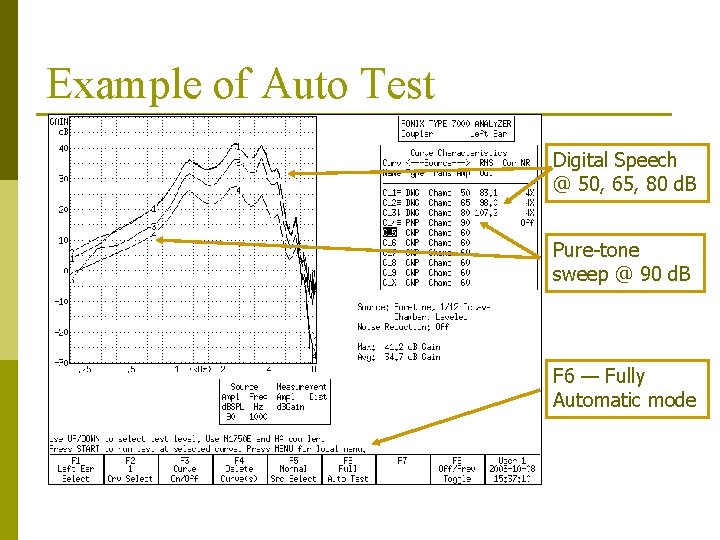

Example of Auto Test Digital Speech @ 50, 65, 80 d. B Pure-tone sweep @ 90 d. B F 6 — Fully Automatic mode

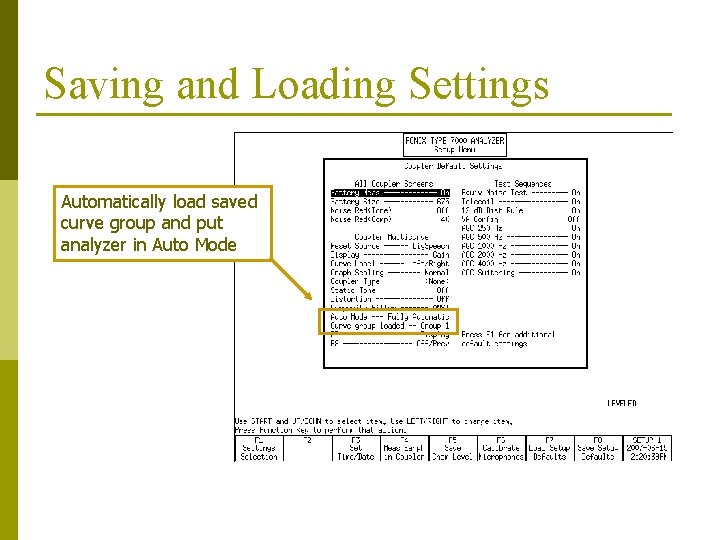

Saving and Loading Settings Automatically load saved curve group and put analyzer in Auto Mode

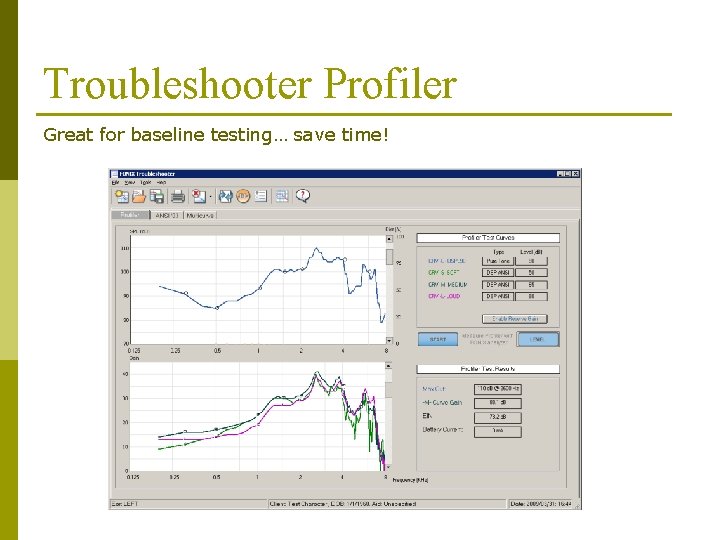

Troubleshooter Profiler Great for baseline testing… save time!

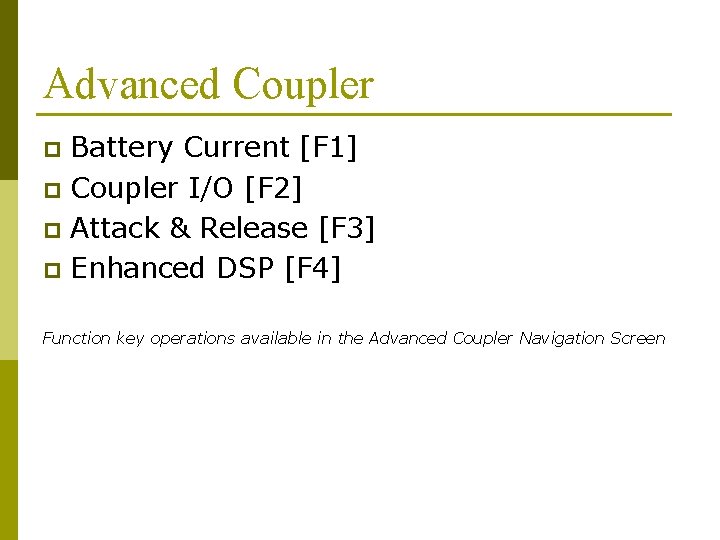

Advanced Coupler Battery Current [F 1] p Coupler I/O [F 2] p Attack & Release [F 3] p Enhanced DSP [F 4] p Function key operations available in the Advanced Coupler Navigation Screen

Battery Current Screen Measure Battery Current as a function of frequency p Measure Battery Current as a function of amplitude p Estimate battery life of hearing aid p

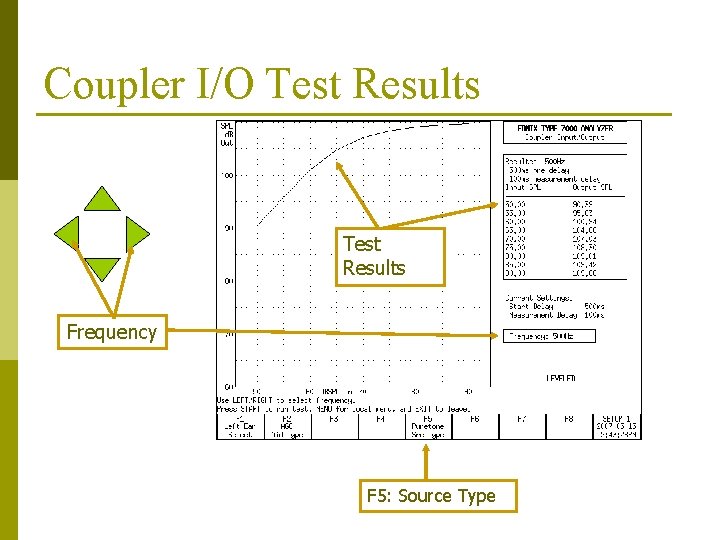

Coupler I/O Test Results Frequency F 5: Source Type

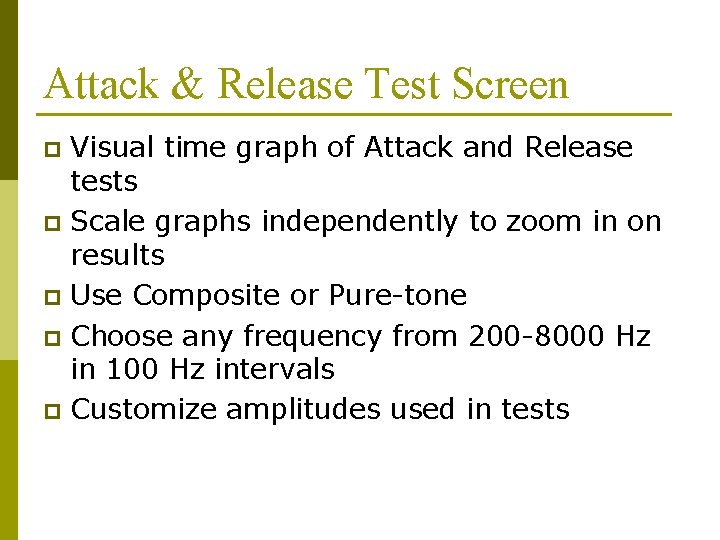

Attack & Release Test Screen Visual time graph of Attack and Release tests p Scale graphs independently to zoom in on results p Use Composite or Pure-tone p Choose any frequency from 200 -8000 Hz in 100 Hz intervals p Customize amplitudes used in tests p

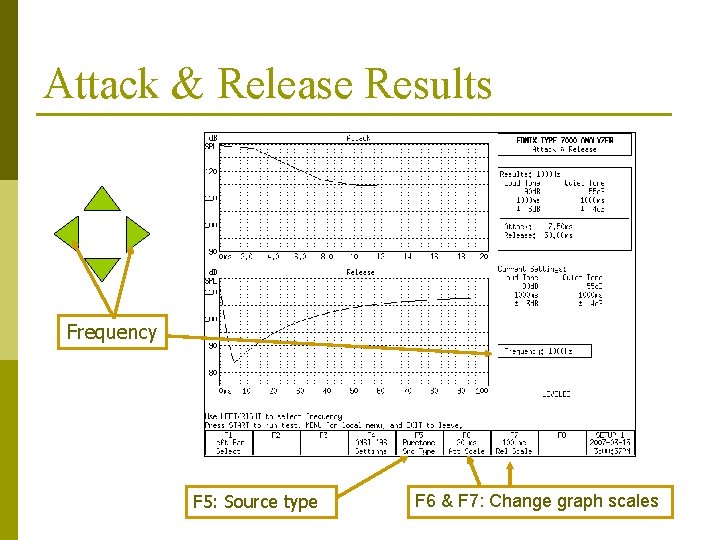

Attack & Release Results Frequency F 5: Source type F 6 & F 7: Change graph scales

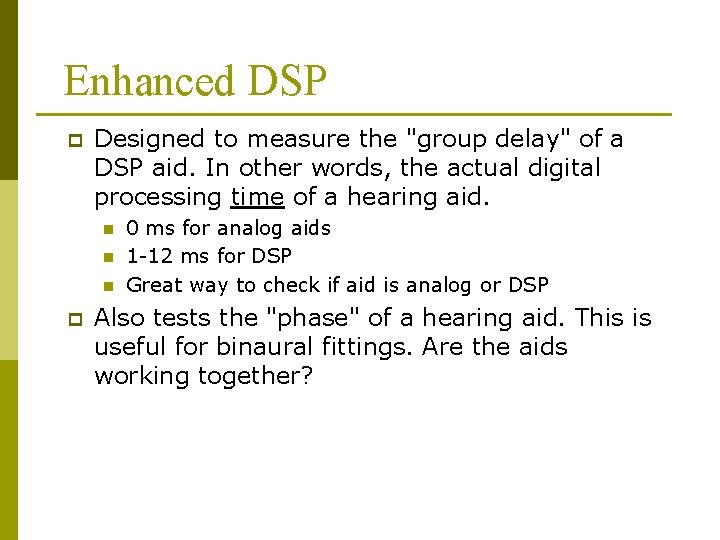

Enhanced DSP p Designed to measure the "group delay" of a DSP aid. In other words, the actual digital processing time of a hearing aid. n n n p 0 ms for analog aids 1 -12 ms for DSP Great way to check if aid is analog or DSP Also tests the "phase" of a hearing aid. This is useful for binaural fittings. Are the aids working together?

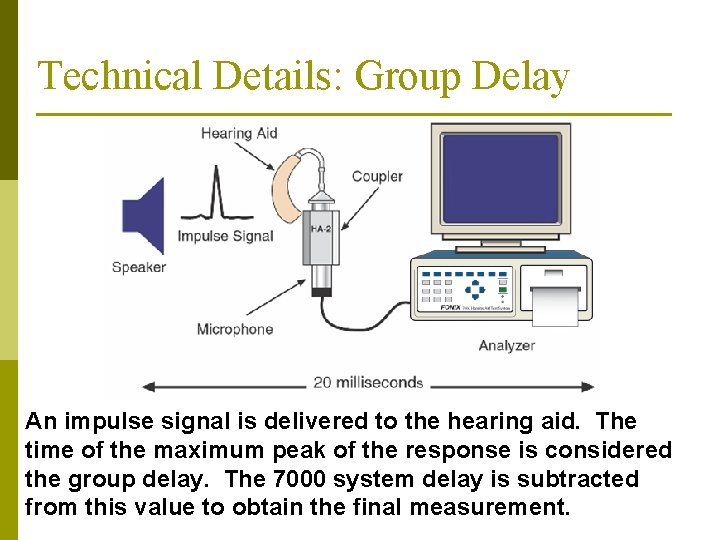

Technical Details: Group Delay An impulse signal is delivered to the hearing aid. The time of the maximum peak of the response is considered the group delay. The 7000 system delay is subtracted from this value to obtain the final measurement.

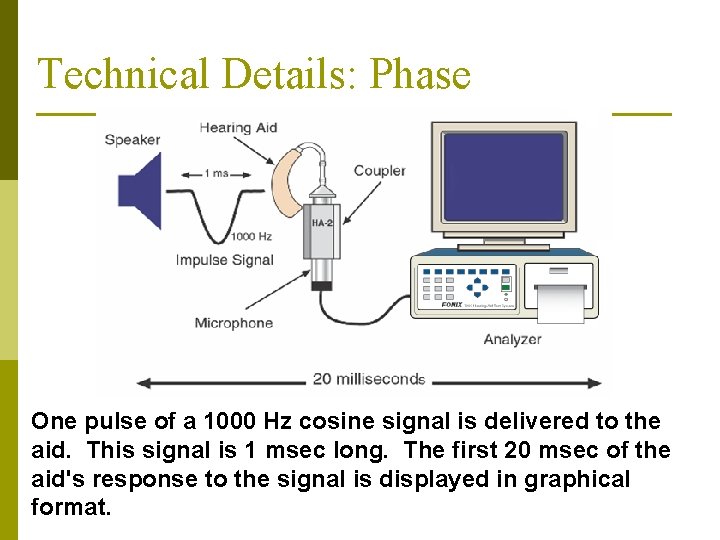

Technical Details: Phase One pulse of a 1000 Hz cosine signal is delivered to the aid. This signal is 1 msec long. The first 20 msec of the aid's response to the signal is displayed in graphical format.

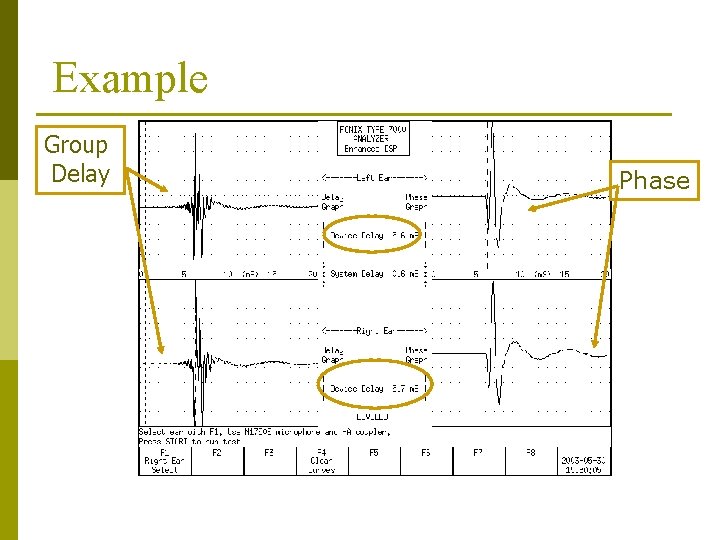

Example Group Delay Phase
