Introduction to Technical Drawing Introduction to key vocabulary

Introduction to Technical Drawing Introduction to key vocabulary for Middle School Students Copyright © 2012 Teresa Johnson All rights reserved by author. Permission to copy for single classroom use. Electronic distribution limited to single classroom use only. Not for public display.

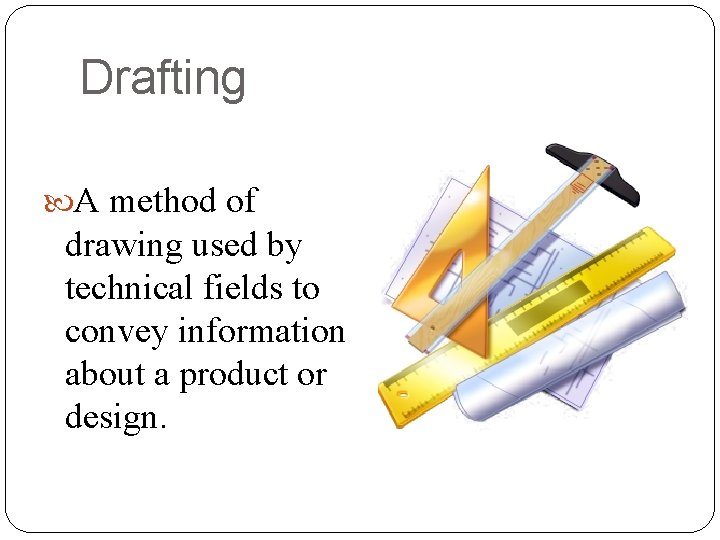

Drafting A method of drawing used by technical fields to convey information about a product or design.

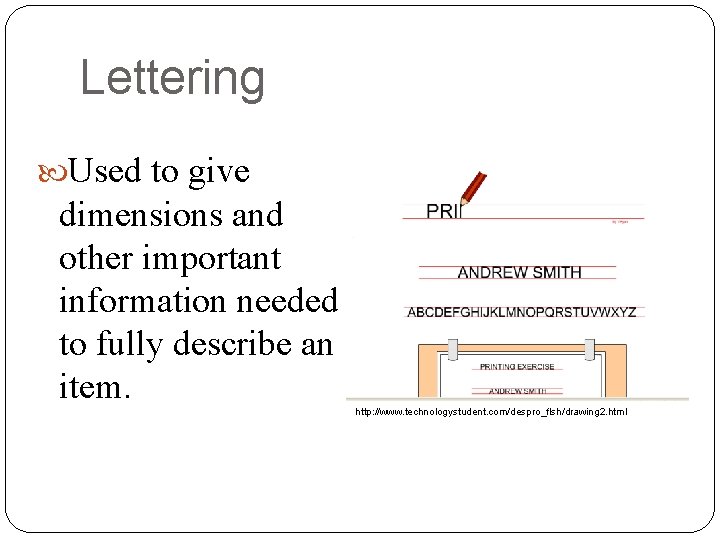

Lettering Used to give dimensions and other important information needed to fully describe an item. http: //www. technologystudent. com/despro_flsh/drawing 2. html

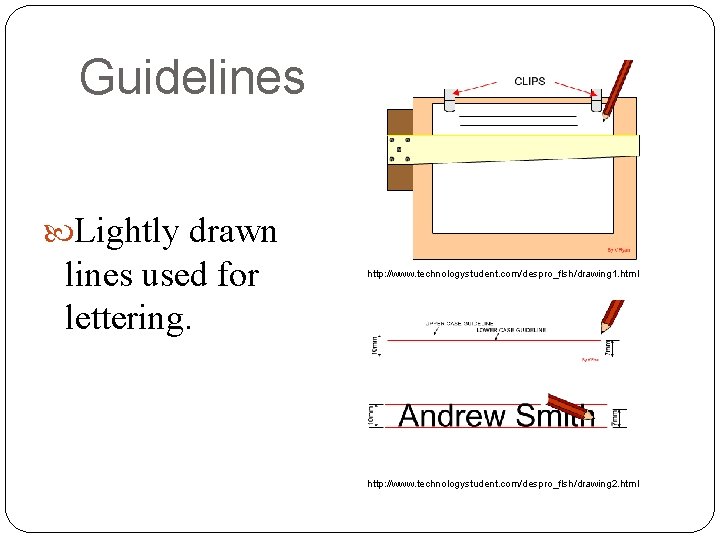

Guidelines Lightly drawn lines used for lettering. http: //www. technologystudent. com/despro_flsh/drawing 1. html http: //www. technologystudent. com/despro_flsh/drawing 2. html

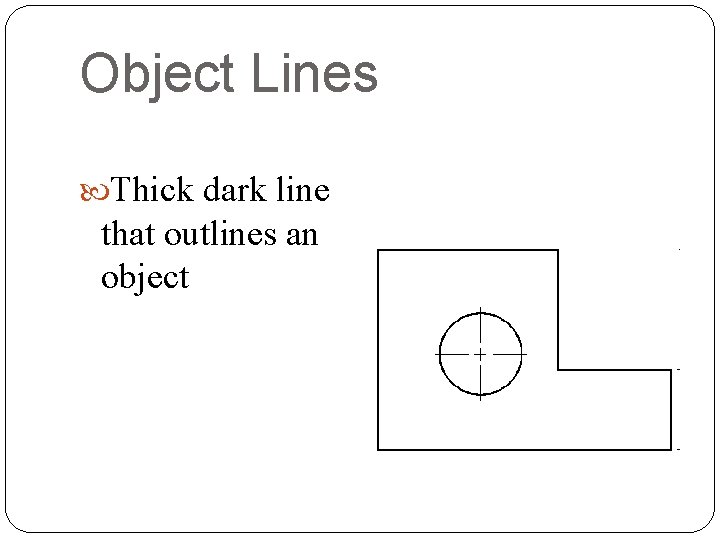

Object Lines Thick dark line that outlines an object

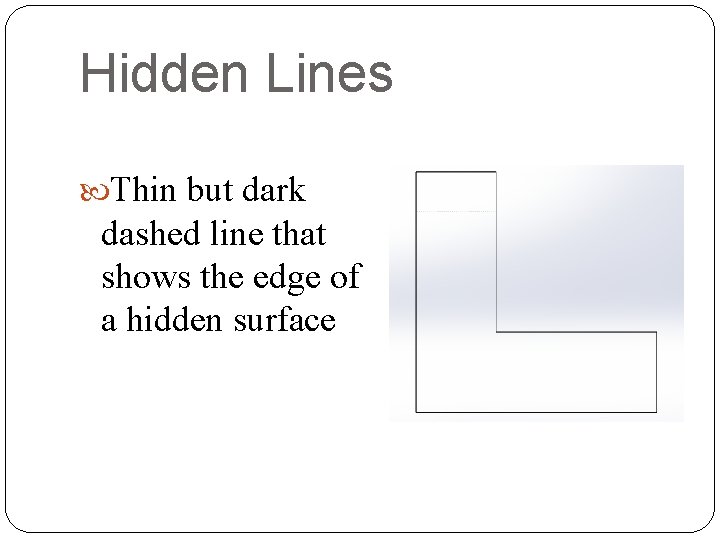

Hidden Lines Thin but dark dashed line that shows the edge of a hidden surface

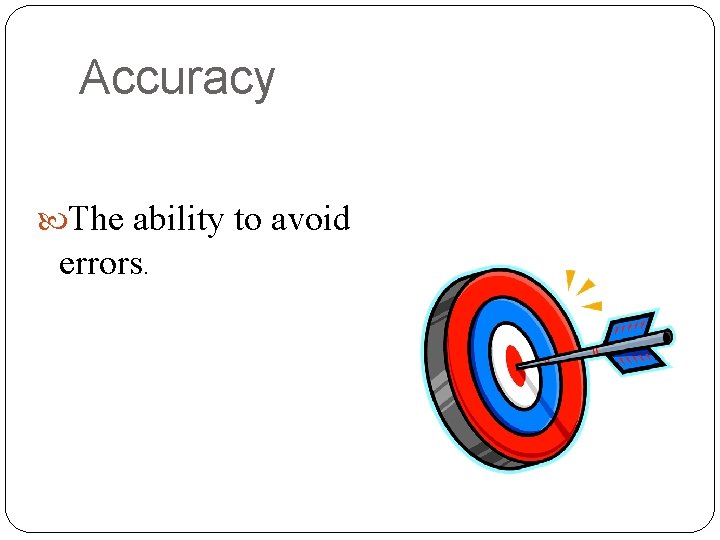

Accuracy The ability to avoid errors.

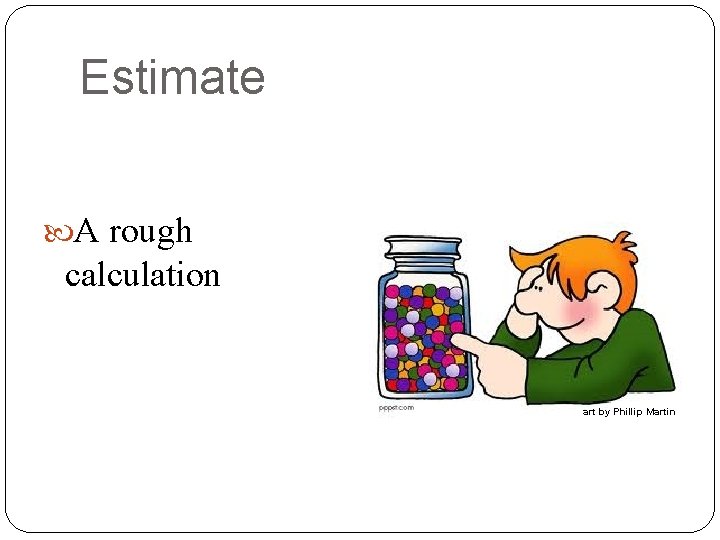

Estimate A rough calculation art by Phillip Martin

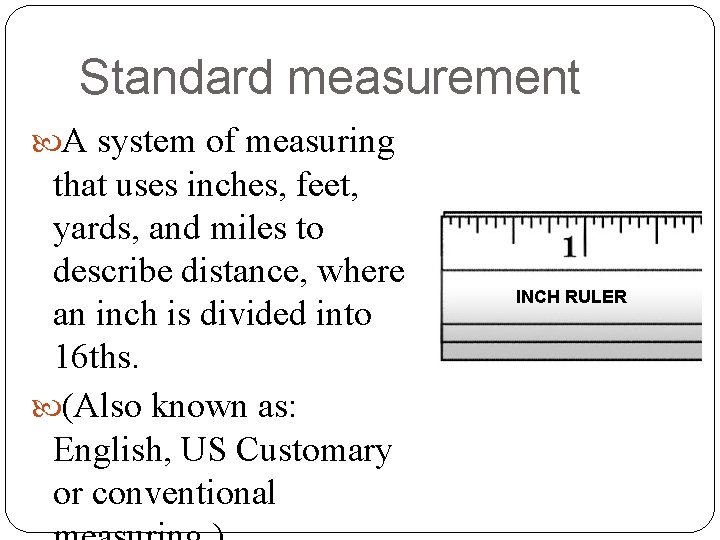

Standard measurement A system of measuring that uses inches, feet, yards, and miles to describe distance, where an inch is divided into 16 ths. (Also known as: English, US Customary or conventional INCH RULER

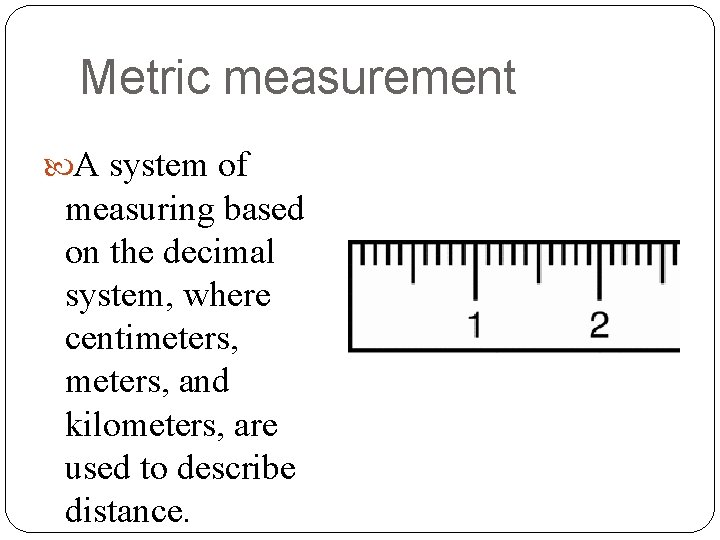

Metric measurement A system of measuring based on the decimal system, where centimeters, and kilometers, are used to describe distance.

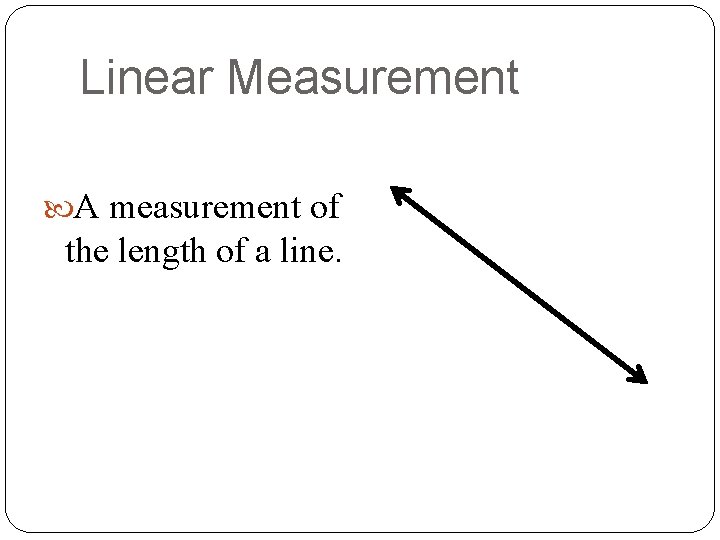

Linear Measurement A measurement of the length of a line.
