INTRODUCTION TO SPINTRONICS Josh Schaefferkoetter February 27 2007

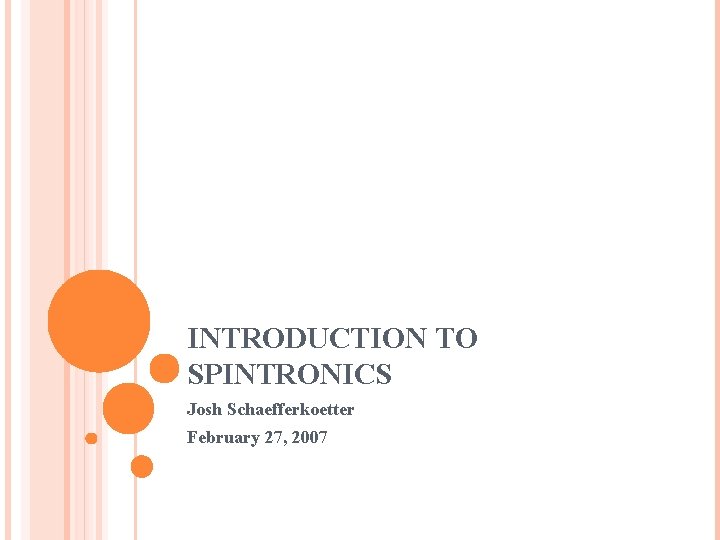

INTRODUCTION TO SPINTRONICS Josh Schaefferkoetter February 27, 2007

INTRODUCTION Conventional electronic devices ignore the spin property and rely strictly on the transport of the electrical charge of electrons Adding the spin degree of freedom provides new effects, new capabilities and new functionalities

FUTURE DEMANDS Moore’s Law states that the number of transistors on a silicon chip will roughly double every eighteen months By 2008, it is projected that the width of the electrodes in a microprocessor will be 45 nm across As electronic devices become smaller, quantum properties of the wavelike nature of electrons are no longer negligible Spintronic devices offer the possibility of enhanced functionality, higher speed, and reduced power consumption

ADVANTAGES OF SPIN Information is stored into spin as one of two possible orientations Spin lifetime is relatively long, on the order of nanoseconds Spin currents can be manipulated Spin devices may combine logic and storage functionality eliminating the need for separate components Magnetic storage is nonvolatile Binary spin polarization offers the possibility of applications as qubits in quantum computers

GMR 1988 France, GMR discovery is accepted as birth of spintronics A Giant Magneto. Resistive device is made of at least two ferromagnetic layers separated by a spacer layer When the magnetization of the two outside layers is aligned, lowest resistance Conversely when magnetization vectors are antiparallel, high R Small fields can produce big effects parallel and perpendicular current

PARALLEL CURRENT GMR Current runs parallel between the ferromagnetic layers Most commonly used in magnetic read heads Has shown 200% resistance difference between zero point and antiparallel states

SPIN VALVE Simplest and most successful spintronic device Used in HDD to read information in the form of small magnetic fields above the disk surface

PERPENDICULAR CURRENT GMR Easier to understand theoretically, think of one FM layer as spin polarizer and other as detector Has shown 70% resistance difference between zero point and antiparallel states Basis for Tunneling Magneto. Resistance

TUNNEL MAGNETORESISTANCE Tunnel Magnetoresistive effect combines the two spin channels in the ferromagnetic materials and the quantum tunnel effect TMR junctions have resistance ratio of about 70% Mg. O barrier junctions have produced 230% MR

MRAM uses magnetic storage elements instead of electric used in conventional RAM Tunnel junctions are used to read the information stored in Magnetoresistive Random Access Memory, typically a” 0” for zero point magnetization state and “ 1” for antiparallel state

MRAM Attempts were made to control bit writing by using relatively large currents to produce fields This proves unpractical at nanoscale level

SPIN TRANSFER Current passed through a magnetic field becomes spin polarized This flipping of magnetic spins applies a relatively large torque to the magnetization within the external magnet This torque will pump energy to the magnet causing its magnetic moment to precess If damping force is too small, the current spin momentum will transfer to the nanomagnet, causing the magnetization will flip Unwanted effect in spin valves Possible applications in memory writing

MRAM The spin transfer mechanism can be used to write to the magnetic memory cells Currents are about the same as read currents, requiring much less energy

MRAM promises: Density of DRAM Speed of SRAM Non-volatility like flash

SPIN TRANSISTOR Ideal use of MRAM would utilize control of the spin channels of the current Spin transistors would allow control of the spin current in the same manner that conventional transistors can switch charge currents Using arrays of these spin transistors, MRAM will combine storage, detection, logic and communication capabilities on a single chip This will remove the distinction between working memory and storage, combining functionality of many devices into one

DATTA DAS SPIN TRANSISTOR The Datta Das Spin Transistor was first spin device proposed for metal-oxide geometry, 1989 Emitter and collector are ferromagnetic with parallel magnetizations The gate provides magnetic field Current is modulated by the degree of precession in electron spin

MAGNETIC SEMICONDUCTORS Materials like magnetite are magnetic semiconductors Development of materials similar to conventional Research aimed at dilute magnetic semiconductors Manganese is commonly doped onto substrate However previous manganese-doped Ga. As has transition temp at - 88 o. C Curie temperatures above room must be produced

MAGNETIC SEMICONDUCTORS 39 F. Matsukura, H. Ohno, A. Shen, and Y. Sugawara, “Transport Properties and Origin of Ferromagnetism in (Ga, Mn)As, ” Phys. Rev. B 57, R 2037 (1998). 40 A. M. Nazmul, T. Amemiya, Y. Shuto, S. Sugahara, and M. Tanaka, “High Temperature Ferromagnetism in Ga. As-Based Heterostructures with Mn Delta Doping”; see http: //arxiv. org/cond-mat/0503444 (2005). 41 F. Matsukura, E. Abe, and H. Ohno, “Magnetotransport Properties of (Ga, Mn)Sb, ” J. Appl. Phys. 87, 6442 (2000). X. Chen, M. Na, M. Cheon, S. Wang, H. Luo, B. D. Mc. Combe, X. Liu, Y. Sasaki, T. Wojtowicz, J. K. Furdyna, S. J. Potashnik, and P. Schiffer, “Above-Room-Temperature Ferromagnetism in Ga. Sb/Mn Digital Alloys, ” Appl. Phys. Lett. 81, 511 (2002). Y. D. Park, A. T. Hanbicki, S. C. Erwin, C. S. Hellberg, J. M. Sullivan, J. E. Mattson, T. F. Ambrose, A. Wilson, G. Spanos, and B. T. Jonker, “A Group-IV Ferromagnetic Semiconductor: Mnx. Ge 1−x, ” Science 295, 651 (2002). Y. Matsumoto, M. Murakami, T. Shono, T. Hasegawa, T. Fukumura, M. Kawasaki, P. Ahmet, T. Chikyow, S. Koshihara, and H. Koinuma, “Room-Temperature Ferromagnetism in Transport Transition Metal-Doped Titanium Dioxide, ” Science 291, 854 (2001). M. L. Reed, N. A. El-Masry, H. H. Stadelmaier, M. E. Ritums, N. J. Reed, C. A. Parker, J. C. Roberts, and S. M. Bedair, “Room Temperature Ferromagnetic Properties of (Ga, Mn)N, ” Appl. Phys. Lett. 79, 3473 (2001). S. Cho, S. Choi, G. -B. Cha, S. Hong, Y. Kim, Y. -J. Zhao, A. J. Freeman, J. B. Ketterson, B. Kim, Y. Kim, and B. -C. Choi, “Room-Temperature Ferromagnetism in (Zn 1−x. Mnx)Ge. P 2 Semiconductors, ” Phys. Rev. Lett. 88, 257203 (2002). S. B. Ogale, R. J. Choudhary, J. P. Buban, S. E. Lofland, S. R. Shinde, S. N. Kale, V. N. Kulkarni, J. Higgins, C. Lanci, J. R. Simpson, N. D. Browning, S. Das Sarma, H. D. Drew, R. L. Greene, and T. Venkatesan, “High Temperature Ferromagnetism with a Giant Magnetic Moment in Transparent Co-Doped Sn. O 2−δ, ” Phys. Rev. Lett. 91, 077205 (2003). Y. G. Zhao, S. R. Shinde, S. B. Ogale, J. Higgins, R. Choudhary, V. N. Kulkarni, R. L. Greene, T. Venkatesan, S. E. Lofland, C. Lanci, J. P. Buban, N. D. Browning, S. Das Sarma, and A. J. Millis, “Co-Doped La 0. 5 Sr 0. 5 Ti. O 3−δ: Diluted Magnetic Oxide System with High Curie Temperature, ” Appl. Phys. Lett. 83, 2199– 2201 (2003). 48 H. Saito, V. Zayets, S. Yamagata, and K. Ando, “Room-Temperature Ferromagnetism in a II–VI Diluted Magnetic Semiconductor Zn 1−x. Crx. Te, ” Phys. Rev. Lett. 90, 207202 (2003). 49 P. Sharma, A. Gupta, K. V. Rao, F. J. Owens, R. Sharma, R. Ahuja, J. M. Osorio Guillen, B. Johansson, and G. A. Gehring, “Ferromagnetism Above Room Temperature in Bulk and Transparent Thin Films of Mn-Doped Zn. O, ” Nature Mater. 2, 673 (2003). 50 J. Philip, N. Theodoropoulou, G. Berera, J. S. Moodera, and B. Satpati, “High-Temperature Ferromagnetism in Manganese-Doped Indium–Tin Oxide Films, ” Appl. Phys. Lett. 85, 777 (2004). H. X. Liu, S. Y. Wu, R. K. Singh, L. Gu, D. J. Smith, N. R. Dilley, L. Montes, M. B. Simmonds, and N. Newman, “Observation of Ferromagnetism at over 900 K in Cr-doped Ga. N and Al. N, ” Appl. Phys. Lett. 85, 4076 (2004). S. Y. Wu, H. X. Liu, L. Gu, R. K. Singh, M. van Schilfgaarde, D. J. Smith, N. R. Dilley, L. Montes, M. B. Simmonds, and N. Newman, “Synthesis and Characterization of High Quality Ferromagnetic Cr-Doped Ga. N and Al. N Thin Films with Curie Temperatures Above 900 K” (2003 Fall Materials Research Society Symposium Proceedings), Mater. Sci. Forum 798, B 10. 57. 1 (2004). 42 43 44 45 46 47 51 52 53

CURRENT RESEARCH Weitering et al. have made numerous advances Ferromagnetic transition temperature in excess of 100 K in (Ga, Mn)As diluted magnetic semiconductors (DMS's). Spin injection from ferromagnetic to non-magnetic semiconductors and long spin-coherence times in semiconductors. Ferromagnetism in Mn doped group IV semiconductors. Room temperature ferromagnetism in (Ga, Mn)N, (Ga, Mn)P, and digital-doped (Ga, Mn)Sb. Large magnetoresistance in ferromagnetic semiconductor tunnel junctions.

CURRENT RESEARCH Material science Many methods of magnetic doping Spin transport in semiconductors

CONCLUSION Interest in spintronics arises, in part, from the looming problem of exhausting the fundamental physical limits of conventional electronics. However, complete reconstruction of industry is unlikely and spintronics is a “variation” of current technology The spin of the electron has attracted renewed interest because it promises a wide variety of new devices that combine logic, storage and sensor applications. Moreover, these "spintronic" devices might lead to quantum computers and quantum communication based on electronic solid-state devices, thus changing the perspective of information technology in the 21 st century.
