Introduction to Scheme COP-4020 1

Introduction to Scheme COP-4020 1

Scheme • Meta-language for coding interpreters – “clean” semantics • Scheme = LISP +

Scheme • Meta-language for coding interpreters – “clean” semantics • Scheme = LISP + ALGOL – simple uniform syntax; symbols and lists – block structure; static scoping – statement : evaluated for its effect – expression : evaluated for its value • Dynamic type checking – flexible but inefficient (rapid prototyping) Scheme COP-4020 2

Expressions Literals • Literals Variables Procedure calls • numerals(2), strings(“abc”), boolean(#t), etc. • Variables

Expressions Literals • Literals Variables Procedure calls • numerals(2), strings(“abc”), boolean(#t), etc. • Variables • Identifier represents a variable. Variable reference denotes the value of its binding. x 5 ref Scheme COP-4020 3

Scheme Identifiers • E. g. , y, x 5, +, two+two, zero? , etc

Scheme Identifiers • E. g. , y, x 5, +, two+two, zero? , etc • (Illegal) 5 x, y)2, ab c, etc • Identifiers – reserved keywords – variables • pre-defined functions/constants • ordinary • functions = procedures Scheme COP-4020 4

Procedure Call (application) • (operator-expr operand-expr. . . ) – prefix expression (proc/op arg

Procedure Call (application) • (operator-expr operand-expr. . . ) – prefix expression (proc/op arg 1 arg 2 arg 3. . . ) • Order of evaluation of the sub-expressions is “explicitly” left unspecified by Scheme. • cf. C is silent about it. • cf. Java specifies a left to right processing. (+ ((f Scheme x 2 (p 3) 2 5 3)) 6) COP-4020 5

Special Forms • Definition • (define <var> <expr>) • Conditional • (if <test> <then>

Special Forms • Definition • (define <var> <expr>) • Conditional • (if <test> <then> <else>) (define false #f) (if (zero? 5) Scheme COP-4020 0 #t) 6

Data Types • values, operations, canonical representation • Type-checking • static : compile-time :

Data Types • values, operations, canonical representation • Type-checking • static : compile-time : efficient • dynamic : run-time : flexible – numbers: +, -, *, number? , = etc – booleans: #t, #f, boolean? , etc – strings: string? , string->list, etc Scheme COP-4020 7

Symbols • Identifiers treated as primitive values. Manipulated at run-time. – Distinct from identifiers

Symbols • Identifiers treated as primitive values. Manipulated at run-time. – Distinct from identifiers that name variables in the program text. – Distinct from strings (sequence of characters). • Meta-programming quote symbol? Scheme COP-4020 8

Lists • Ordered sequence of elements of arbitrary types (Heterogeneous) • operations – car,

Lists • Ordered sequence of elements of arbitrary types (Heterogeneous) • operations – car, cdr, cons, null? , . . . – list, append, . . . – first, second, . . . , ninth Scheme COP-4020 9

Pairs (cons ’a ’b) b a (cons ’a a Scheme (cons ’b b COP-4020

Pairs (cons ’a ’b) b a (cons ’a a Scheme (cons ’b b COP-4020 nil) ) nil () 10

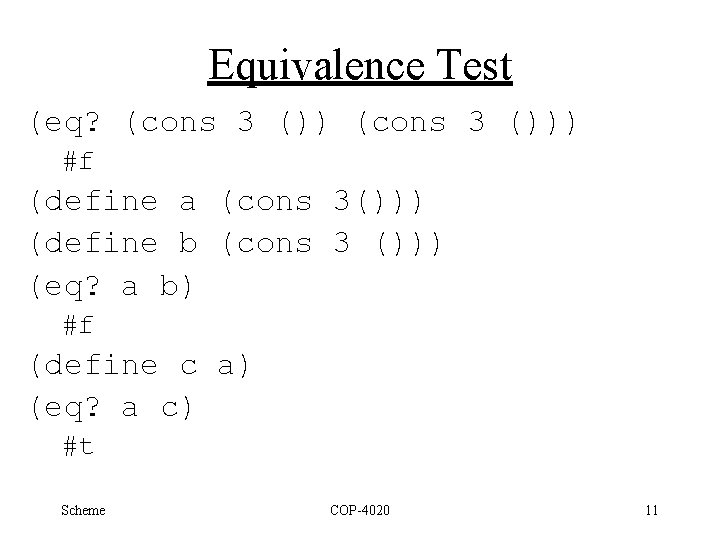

Equivalence Test (eq? (cons 3 ())) #f (define a (cons 3())) (define b (cons

Equivalence Test (eq? (cons 3 ())) #f (define a (cons 3())) (define b (cons 3 ())) (eq? a b) #f (define c a) (eq? a c) #t Scheme COP-4020 11

Vectors • Both records and arrays provide random access to components. However, records are

Vectors • Both records and arrays provide random access to components. However, records are heterogeneous, while arrays are homogenoeus. • Vectors are heterogeneous structures that provide random access to components using a computable index. Scheme COP-4020 12

 • Constructors and accessors (define v (vector 1 (+ 1 2))) #(1 3)

• Constructors and accessors (define v (vector 1 (+ 1 2))) #(1 3) (vector-ref v 0) 1 (vector-length v) 2 • Index is 0 -based. Scheme COP-4020 13

Procedures • In Scheme, procedures are first-class objects. That is, they may be passed

Procedures • In Scheme, procedures are first-class objects. That is, they may be passed to or returned from procedures or stored in a data structure. (if (procedure? 3) car cdr) #<procedure> (procedure? append) #t Scheme COP-4020 14

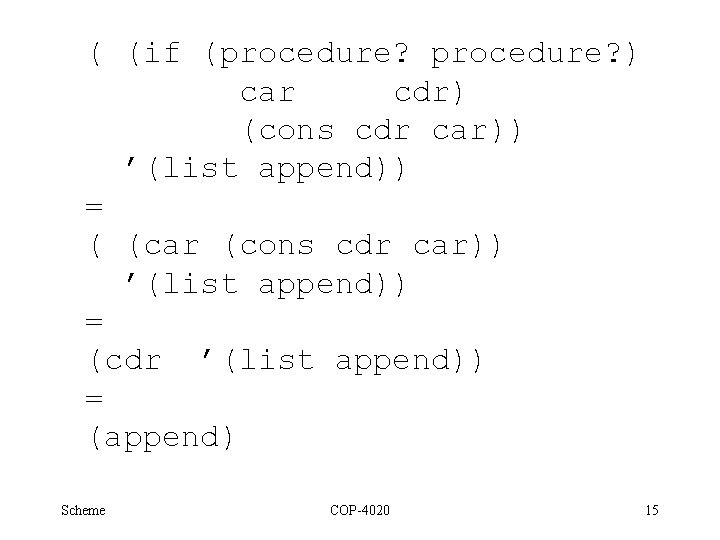

( (if (procedure? ) car cdr) (cons cdr car)) ’(list append)) = ( (car

( (if (procedure? ) car cdr) (cons cdr car)) ’(list append)) = ( (car (cons cdr car)) ’(list append)) = (cdr ’(list append)) = (append) Scheme COP-4020 15

Apply-function (apply cons ’( x (y z))) = (cons ’x ’(y z)) = (x

Apply-function (apply cons ’( x (y z))) = (cons ’x ’(y z)) = (x y z) (apply f ’(a 1 a 2. . . an)) = (f ’a 1 ’a 2. . . ’an) (apply <func> <list-of-args>) Scheme COP-4020 16

(apply (list procedure? (list apply))) = (apply [ proc-fn [ apply-fn ] ] )

(apply (list procedure? (list apply))) = (apply [ proc-fn [ apply-fn ] ] ) = (apply proc-fn [apply-fn] ) = #t Scheme COP-4020 17

Anonymous Fucntions (lambda <formals> <body-expr>) E. g. , ( (lambda (n) (+ n 2))

Anonymous Fucntions (lambda <formals> <body-expr>) E. g. , ( (lambda (n) (+ n 2)) 5) = 7 • Evaluate actual argument expressions • Bind these values to formals • Evaluate body expression (static scoping) Scheme COP-4020 18

Variable Arity Procedures (+ 1 2 3) (append ’(1 (p q)) () ’(a b

Variable Arity Procedures (+ 1 2 3) (append ’(1 (p q)) () ’(a b c)) (list 1 2 3 4 5) (lambda <formal> <body>) • <formal> is bound to the list of actual argument values supplied in a call. Scheme COP-4020 19

(define mul (lambda x (if (null? x) 1 (* (car x) (apply mul (cdr

(define mul (lambda x (if (null? x) 1 (* (car x) (apply mul (cdr x)) ) )) ; 1 is identity w. r. t * ) ; assuming * is binary (mul 1 (+ 2 3) 5) Scheme COP-4020 20

Binding constructs in Scheme • define • binds value to a name. • l-function

Binding constructs in Scheme • define • binds value to a name. • l-function application • binds formal parameters to actual argument values. • let-constructs • introduces local bindings – let* – letrec Scheme COP-4020 21

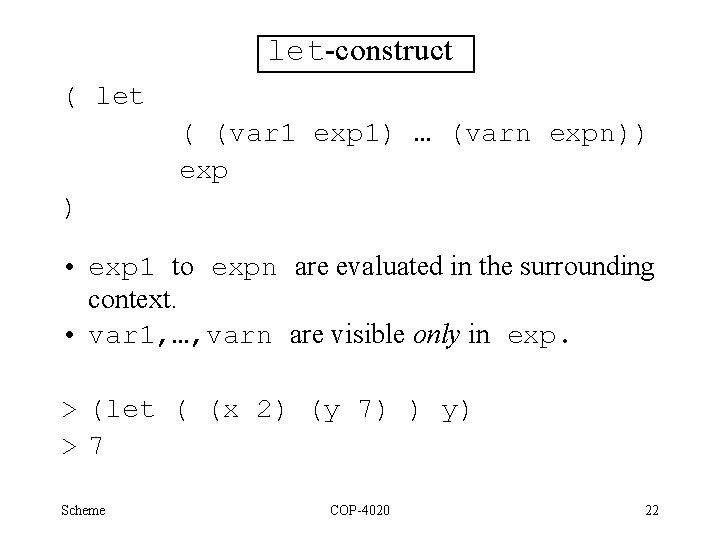

let-construct ( let ( (var 1 exp 1) … (varn expn)) exp ) •

let-construct ( let ( (var 1 exp 1) … (varn expn)) exp ) • exp 1 to expn are evaluated in the surrounding context. • var 1, …, varn are visible only in exp. > (let ( (x 2) (y 7) ) y) >7 Scheme COP-4020 22

> (let ( (x y) (y 7) ) y) > *error* “y” undefined >

> (let ( (x y) (y 7) ) y) > *error* “y” undefined > > > > (define y (let ( (x 7 (let ( (x 5 (let ( (y 5 (not 7) Scheme 5) y) (y 7) ) y) y) (y 7) ) x) 7) (x y) ) x) COP-4020 23

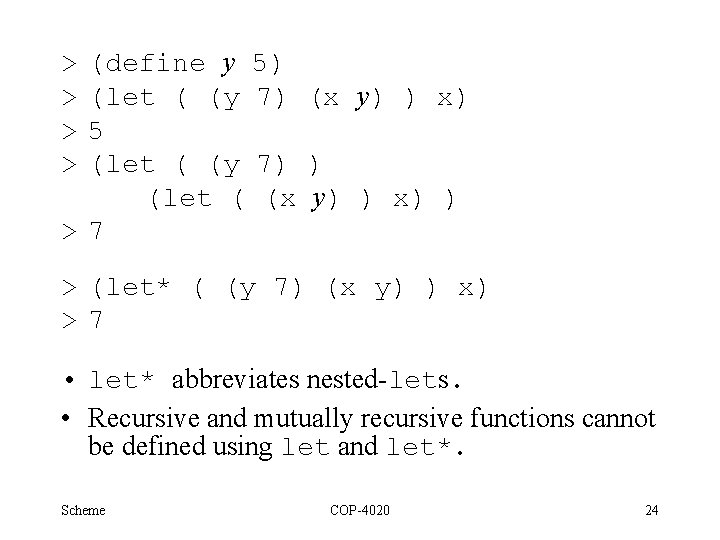

(define y 5) (let ( (y 7) (x y) ) x) 5 (let (

(define y 5) (let ( (y 7) (x y) ) x) 5 (let ( (y 7) ) (let ( (x y) ) x) ) >7 > > > (let* ( (y 7) (x y) ) x) >7 • let* abbreviates nested-lets. • Recursive and mutually recursive functions cannot be defined using let and let*. Scheme COP-4020 24

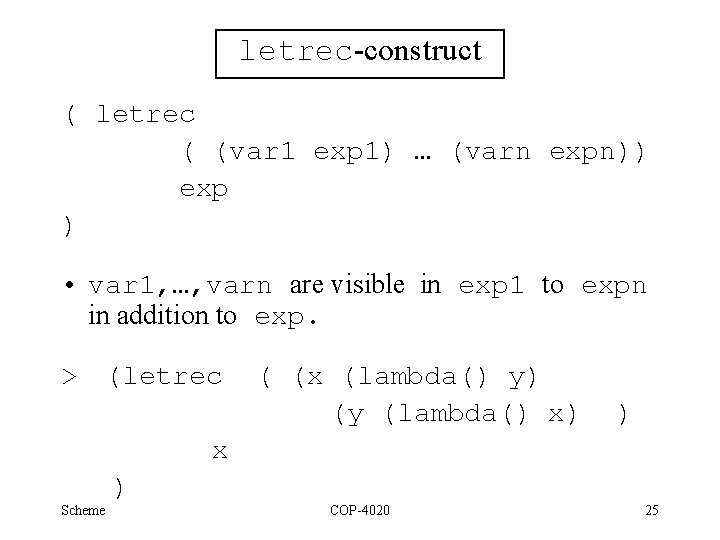

letrec-construct ( letrec ( (var 1 exp 1) … (varn expn)) exp ) •

letrec-construct ( letrec ( (var 1 exp 1) … (varn expn)) exp ) • var 1, …, varn are visible in exp 1 to expn in addition to exp. > (letrec ( (x (lambda() y) (y (lambda() x) ) x Scheme ) COP-4020 25

letrec-construct > (letrec ( (f (lambda(n) (- 1 n)) )) ) ) (if (zero?

letrec-construct > (letrec ( (f (lambda(n) (- 1 n)) )) ) ) (if (zero? n) 1 (f (f 5) ) > 1 > (letrec ( ( f ) (lambda () g) ( g ) 2 ) ( f ) ) > 2 Scheme COP-4020 26

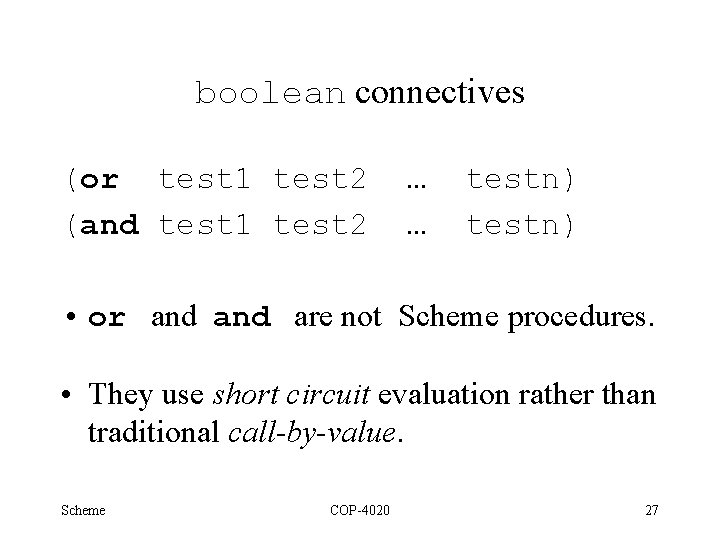

boolean connectives (or test 1 test 2 (and test 1 test 2 … …

boolean connectives (or test 1 test 2 (and test 1 test 2 … … testn) • or and are not Scheme procedures. • They use short circuit evaluation rather than traditional call-by-value. Scheme COP-4020 27

Branching constructs (cond (test 1 (test 2 … (testn (else ) Scheme (case key

Branching constructs (cond (test 1 (test 2 … (testn (else ) Scheme (case key exp 1) (keylist 1 exp 1) exp 2) (keylist 2 exp 2) … expn) (keylistn expn) exp) (else exp) ) COP-4020 28
