Introduction • Kinematics : science of motion that treats the subject without regard to the forces that cause it. position velocity acceleration all higher order derivatives of the position variables

• Kinematics of manipulators refers to all the geometrical and time-based properties of the motion. • In this chapter, we consider position and orientation of the manipulator linkages in static situations.

• The central topic of this chapter is a method to compute the position and orientation of the manipulator's end-effector relative to the base of the manipulator as a function of the joint variables.

Link Description • A manipulator may be thought of as a set of bodies connected in a chain by joints. • These bodies are called links. • Joints form a connection between a neighboring pair of links.

• The term lower pair is used to describe the connection between a pair of bodies when the relative motion is characterized by two surfaces sliding over one another. Fig. 10. 1: The six possible lower-pair joints

• A link is considered only as a rigid body that defines the relationship between two neighboring joint axes of a manipulator. • Joint axis i is defined by a line in space, or a vector direction, about which link i rotates relative to link i - 1.

Fig. 10. 2: The kinematic function of a link is to maintain a fixed relationship between the two joint axes it supports.

Fig. 10. 3: A simple link that supports two revolute axes.

• Link Length : axis i and axis i – 1 (perpendicular) • Link twist : angle located on a plane whose normal is perpendicular line, and created by based on the difference of two axes

Link-Connector Description • In the investigation of kinematics, we need only worry about two quantities, which will completely specify the way in which links are connected together. Fig. 10. 4: The link offset, d, and the joint angle, θ, are two parameters that may be used to describe the nature of the connection between neighboring links.

Intermediate links in the chain • Link offset : the distance along this common axis from one link to the next. • Joint angle, θi : the amount of rotation about this common axis between one link and its neighbor. • Figure 10. 4 shows the interconnection of link i-1 and link i. Recall that at ai-1 is the mutual perpendicular between the two axes of link i — 1. Likewise, ai is the mutual perpendicular defined for link i. The first parameter of interconnection is the link offset, di, which is the signed distance measured along the axis of joint i from the point where ai-1 intersects the axis to the point where ai intersects the axis.

• The link offset di is variable if joint i is prismatic. • The second parameter of interconnection is the angle made between an extension of ai-1 and ai measured about the axis of joint i. • This angle is named and is variable for a revolute joint.

First and last links in the chain • Link length ai, and link twist, αi depend on joint axes i and i + 1. • Hence, a 1 through an-1 and α 1 through αn-1 are defined as was discussed in this section. • At the ends of the chain, it will be our convention to assign zero to these quantities. That is, a 0 = an = 0. 0 and α 0 = αn = 0. 0.

• Link offset, and joint angle, are well defined for joints 2 through n — 1. • If joint 1 is revolute, the zero position for may be chosen arbitrarily, d 1 = 0. 0 will be our convention. • Similarly, if joint 1 is prismatic, the zero position of d 1 may be chosen arbitrarily; d 1 = 0. 0 will be our convention. Exactly the same statements apply to joint n.

Link parameters • A robot can be described kinematically by giving the values of four quantities for each link. Two describe the link itself, and two describe the link‘s connection to a neighboring link. • In the usual case of a revolute joint, θi is called the joint variable, and the other three quantities would be fixed link parameters. • For prismatic joints, d 1 is the joint variable, and the other three quantities are fixed link parameters. The definition of mechanisms by means of these quantities is a convention usually called the Denavit—Hartenberg notation.

• For a six-jointed robot, 18 numbers would be required to describe the fixed portion of its kinematics completely. • In the case of a six-jointed robot with all revolute joints, the 18 numbers are in the form of six sets of (αi, di).

Convention For Affixing Frames To Links • In order to describe the location of each link relative to its neighbors, we define a frame attached to each link. • The link frames are named by number according to the link to which they are attached. That is, frame {i} is attached rigidly to link i.

Intermediate links in the chain • The convention we will use to locate frames on the links is as follows: The -axis of frame {i}, called , is coincident with the joint axis i. The origin of frame {i} is located where the ai perpendicular intersects the joint i axis. points along a 1 in the direction from joint ito joint i + 1. • In the case of a 1 = 0, is normal to the plane of and We define αi as being measured in the right-hand sense about and so we see that the freedom of choosing the sign of αi in this case corresponds to two choices for the direction of. is formed by the right-hand rule to complete the ith frame.

a c b

First and last links in the chain • We attach a frame to the base of the robot, or link 0, called frame {0}. This frame does not move; for the problem of arm kinematics, it can be considered the reference frame. We may describe the position of all other link frames in terms of this frame. • Frame {0} is arbitrary, so it always simplifies matters to choose along axis 1 and to locate frame {0} so that it coincides with frame {1} when joint variable 1 is zero. • Using this convention, we will always have a 0 = 0. 0, α 0 = 0. 0. Additionally, this ensures that d 1 = 0. 0 if joint 1 is revolute, or θ 1 = 0. 0 if joint 1 is prismatic.

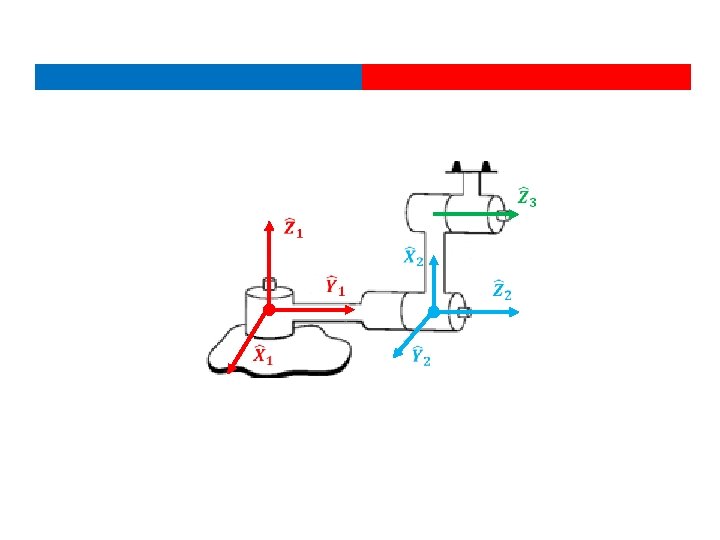

Fig. 10. 5: Link frames are attached so that frame {i} is attached rigidly to link i.

Common normal for intersecting Z axis

Summary of the link parameters in terms of the link frames • If the link frames have been attached to the links according to our convention, the following definitions of the link parameters are valid: • We usually choose ai > 0, because it corresponds to a distance; however, and are signed quantities.

Summary of the link parameters in terms of the link frames • The following is a summary of the procedure to follow when faced with a new mechanism, in order to properly attach the link frames: 1. Identify the joint axes and imagine (or draw) infinite lines along them. steps 2 through 5 below, consider two of these neighboring lines (at axes i and i + 1). 2. Identify the common perpendicular between them, or point of intersection. At the point of intersection, or at the point where the common perpendicular meets the ith axis, assign the link-frame origin. 3. Assign the axis pointing along the ith joint axis. 4. Assign the axis pointing along the common perpendicular, or, if the axes intersect, assign to be normal to the plane containing the two axes.

5. Assign the axis to complete a right-hand coordinate system. 6. Assign {0} to match {1} when the first joint variable is zero. For {N}, choose an origin location and direction freely, but generally so as to cause as many linkage parameters as possible to become zero.

MANIPULATOR KINEMATICS • We derive the general form of the transformation that relates the frames attached to neighboring links. • We then concatenate these individual transformations to solve for the position and orientation of link n relative to link 0.

Fig. 10. 13: Two possible frame assignments.

Fig. 10. 14: Two more possible frame assignments.

Derivation of link transformations • We wish to construct the transform that defines frame {i } relative to the frame {i — 1}. • In general, this transformation will be a function of the four link parameters. For any given robot, this transformation will be a function of only one variable, the other three parameters being fixed by mechanical design.

• Each of these four transformations will be a function of one link parameter oniy and will be simple enough that we can write down its form by inspection. • We begin by defining three intermediate frames for each link—{P}, {Q}, and {R}. • Figure 10. 15 shows the same pair of joints as before with frames {P}, {Q}, and {R} defined. • Note that only the and axes are shown for each frame, to make the drawing clearer. Frame {R} differs from frame {i - 1} only by a rotation of

Frame (Q} differs from {R} by a translation ai-1. Frame {P} differs from {Q} by a rotation and frame {i} differs from {P} by a translation di.

Fig. 10. 15: Location of intermediate frames {P}, {Q}, and {R}. Frame (Q} differs from {R} by a translation ai-1. Frame {P} differs from {Q} by a rotation and frame {i} differs from {P} by a translation di. If we wish to write the transformation that transforms vectors defined in {i} to their description in {i – 1} we may write

Considering each of these transformations, we see that the last mentioned equation may be written where the notation Screw. Q(r, θ) stands for the combination of a translation along an axis by a distance r and a rotation about the same axis by an angle

Concatenating Link Transformations • Once the link frames have been defined and the corresponding link parameters found, developing the kinematic equations is straightforward. • From the values of the link parameters, the individual link-transformation matrices can be computed. • Then, the link transformations can be multiplied together to find the single transformation that relates frame [N} to frame {0}: • This transformation, , will be a function of all ii joint variables. If the robot's joint-position sensors are queried, the Cartesian position and orientation of the last link can be computed by

ACTUATOR SPACE, JOINT SPACE, AND CARTESIAN SPACE • The position of all the links of a manipulator of n degrees of freedom can be specified with a set of n joint variables. • This set of variables is often referred to as the a x 1 joint vector. • The space of all such joint vectors is referred to as joint space. • We have been concerned with computing the Cartesian space description from knowledge of the joint-space description. • We use the term Cartesian space when position is measured along orthogonal axes and orientation is measured according to any of the conventions. • Sometimes, the terms task-oriented space and operational space are used for what we will call Cartesian space.

Fig. 10. 16: Mappings between kinematic descriptions • There are three representations of a manipulator's position and orientation: descriptions in actuator space, in joint space, and in Cartesian space • The ways in which actuators might be connected to move a joint are quite varied; they might be catalogued, but we wifi not do so here. For each robot we design or seek to analyze, the correspondence between actuator positions and joint positions must be solved

EXAMPLES: KINEMATICS OF TWO INDUSTRIAL ROBOTS • Current industrial robots are available in many different kinematic configurations. • In this section, we work out the kinematics of two typical industrial robots. First we consider the Unimation PUMA 560, a rotary-joint manipulator with six degrees of freedom. • Kinematic equations as functions of the joint angles will be solved. • For this example, we will skip the additional problem of the relationship between actuator space and joint space. • Second, we consider the Yasukawa Motoman L-3, a robot with five degrees of freedom and rotary joints. This example is done in detail, including the actuator-to-joint transformations.

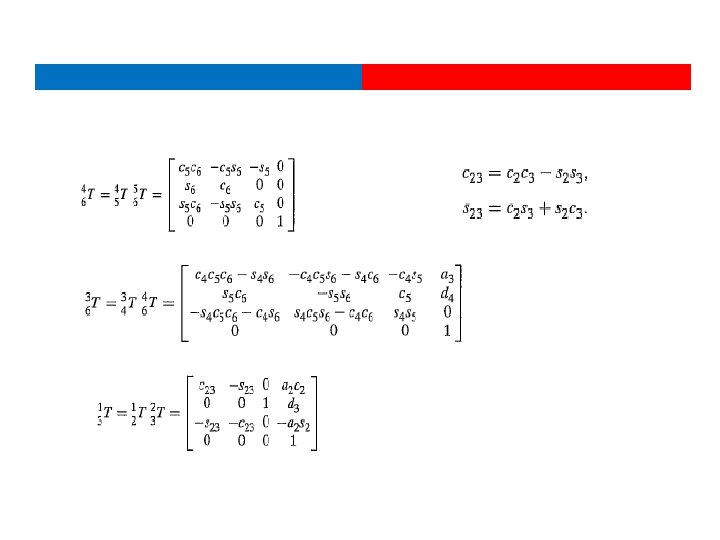

The PUMA 560 • The Unimation PUMA 560 is a robot with six degrees of freedom and all rotational joints (i. e. , it is a 6 R mechanism). Fig. 10. 17: The Unimation PUMA 560. Courtesy of Unimation Incorporated, Shelter Rock Lane, Danbury

Fig. 10. 18: Some kinematic parameters and frame assignments for the PUMA 560

Fig. 10. 19: Kinematic parameters and frame assignments for the forearm of the PUMA 560 manipulator.

Fig. 10. 20: Schematic of a 3 R wrist in which all three axes intersect at a point and are mutually orthogonal

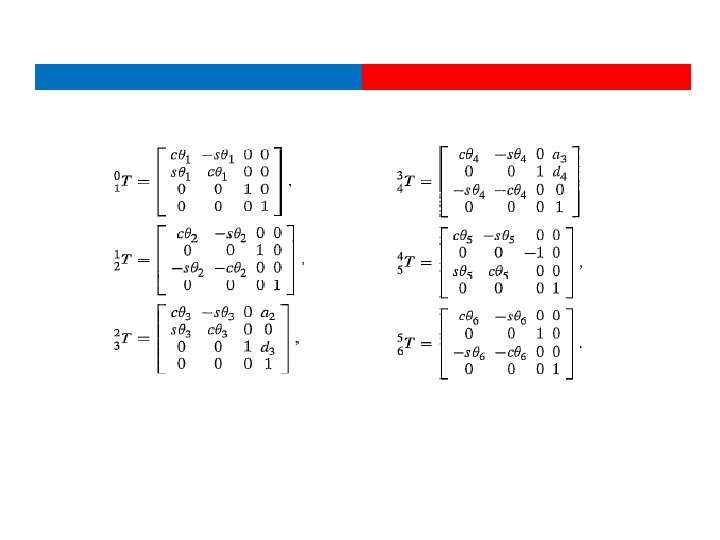

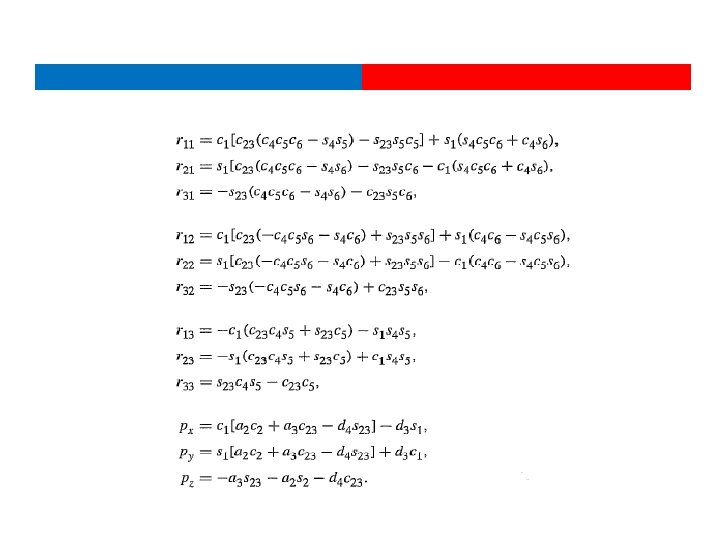

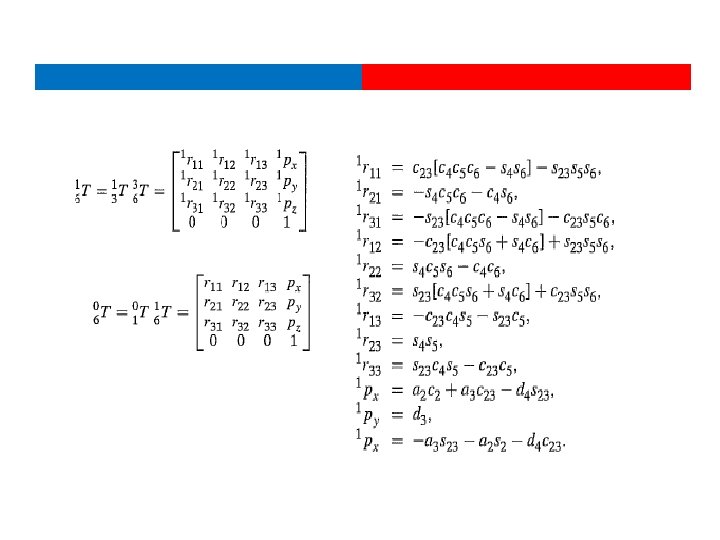

Fig. 10. 21: Link parameters of the PUMA 560.

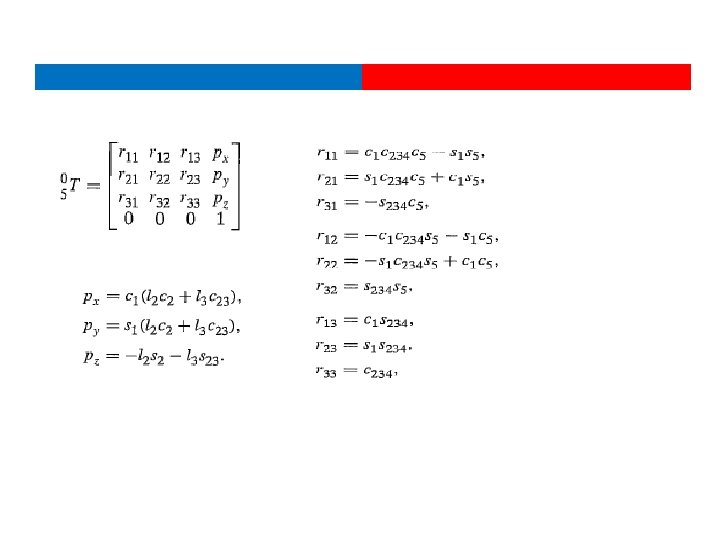

The Yasukawa Motoman L-3 • The Yasukawa Motoman L-3 is a popular industrial manipulator with five degrees of freedom. • the Motoman is not a simple open kinematic chain, but rather makes use of two linear actuators coupled to links 2 and 3 with four-bar linkages. • Also, through a chain drive, joints 4 and 5 are operated by two actuators in a differential arrangement.

• We will solve the kinematics in two stages. First, we will solve for joint angles from actuator positions. • Second, we will solve for Cartesian position and orientation of the last link from joint angles. • In this second stage, we can treat the system as if it were a simple open-kinematic-chain SR device.

• The actuator is a linear one that directly controls the length of the segment labeled DC. Triangle ABC is ftxed, as is the length BD. • Joint 2 pivots about point B, and the actuator pivots slightly about point C as the linkage moves. • We give the following names to the constants (lengths and angles) associated with actuator 2:

Fig. 10. 22: The Yasukawa Motoman L-3. Courtesy of Yasukawa.

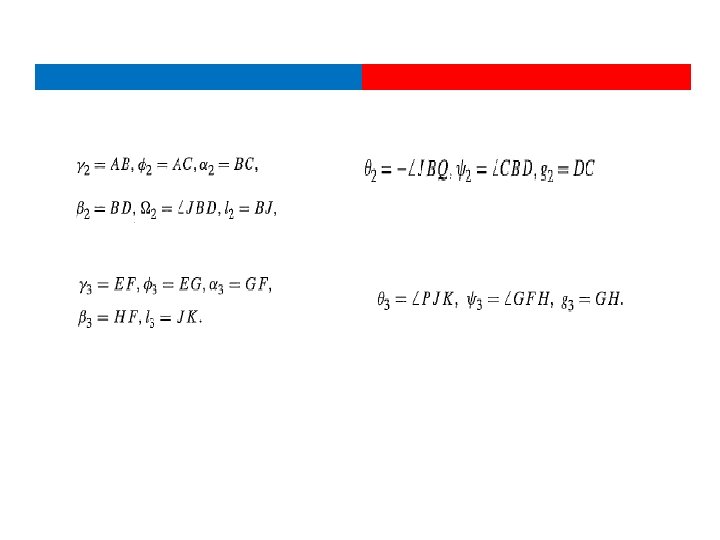

Fig. 10. 23: Kinematic details of the Yasukawa actuator-2 linkage Fig. 10. 24: Kinematic details of the Yasukawa actuator-3 linkage.

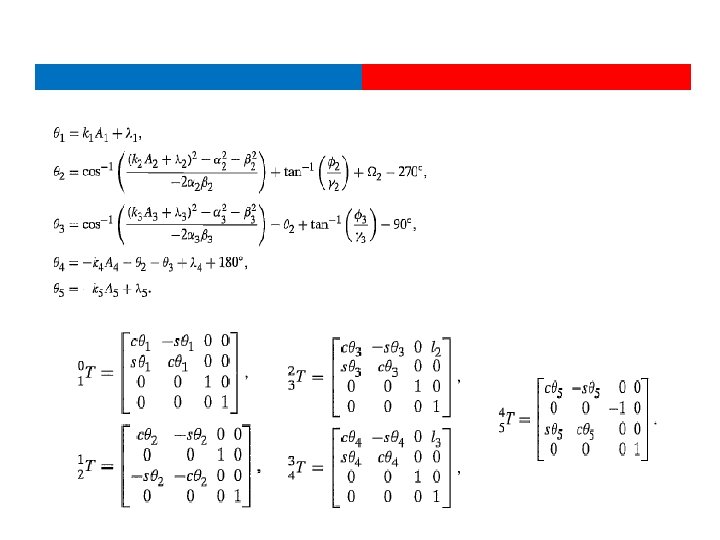

Fig. 10. 25: Assignment of link frames for the Yasukawa L-3. Fig. 10. 26: Link parameters of the Yasukawa L-3 manipulator.

FRAMES WITH STANDARD NAMES Fig. 10. 27: The standard frames

• The base frame, {B} is located at the base of the manipulator. It is merely another name for frame {0}. It is affixed to a nonmoving part of the robot, sometimes called link 0. • The station frame, {S} is located in a task-relevant location. it is at the corner of a table upon which the robot is to work. As far as the user of this robot system is concerned, {S} is the universe frame, and all actions of the robot are performed relative to it. It is sometimes called the task frame, the world frame, or the universe frame.

• The wrist frame, {W} is affixed to the last link of the manipulator. It is another name for frame {N}, the link frame attached to the last link of the robot. Very often, {W} has its origin fixed at a point called the wrist of the manipulator, and {W} moves with the last link of the manipulator. • The tool frame, {T} is affixed to the end of any tool the robot happens to be holding. When the hand is empty, {T} is usually located with its origin between the fingertips of the robot. The tool frame is always specified with respect to the wrist frame.

• The goal frame, {G} is a description of the location to which the robot is to move the tool. Specifically this means that, at the end of the motion, the tool frame should be brought to coincidence with the goal frame. {G} is always specified relative to the station frame.

Fig. 10. 28: Example of the assignment of standard frames

EXAMPLES: KINEMATICS OF TWO INDUSTRIAL ROBOTS • Exercise 3. 3 • Exercise 3. 4 All problems are from Craig’s Intro to Robotics, Mechanics, and Control 3 rd ed.
