Introduction to Robotics A Force of the Future
Introduction to Robotics A Force of the Future
Robots of the media

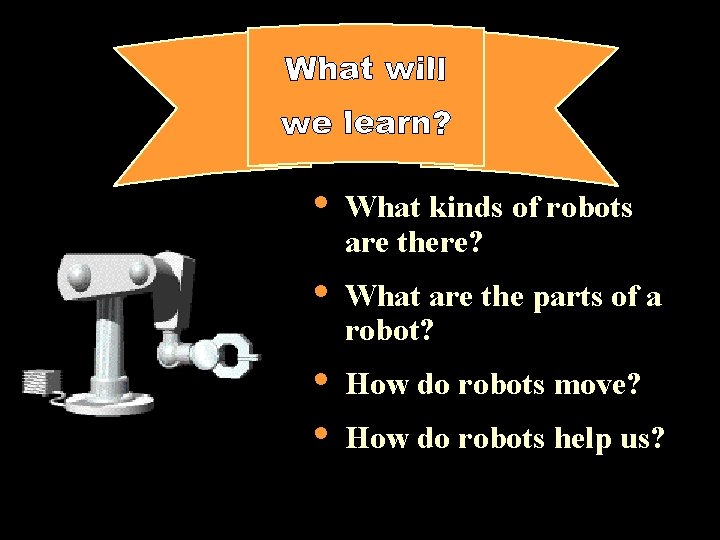

• What kinds of robots are there? • What are the parts of a robot? • How do robots move? • How do robots help us?
What kinds of robots are there?

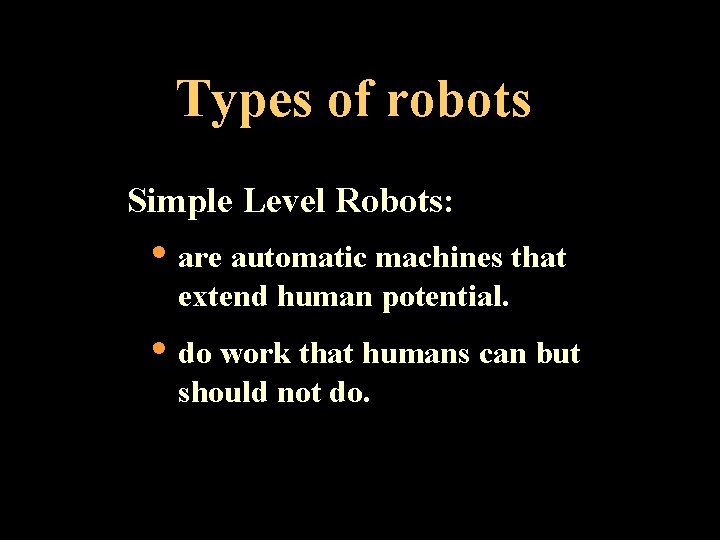

Types of robots Simple Level Robots: • are automatic machines that extend human potential. • do work that humans can but should not do.

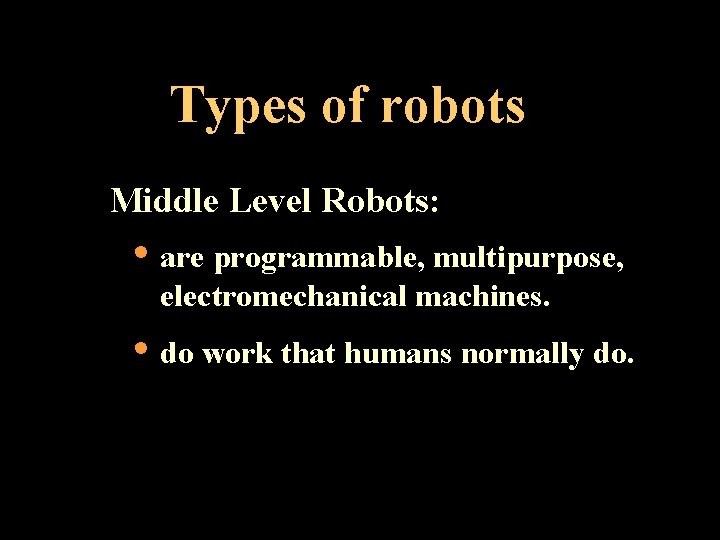

Types of robots Middle Level Robots: • are programmable, multipurpose, electromechanical machines. • do work that humans normally do.

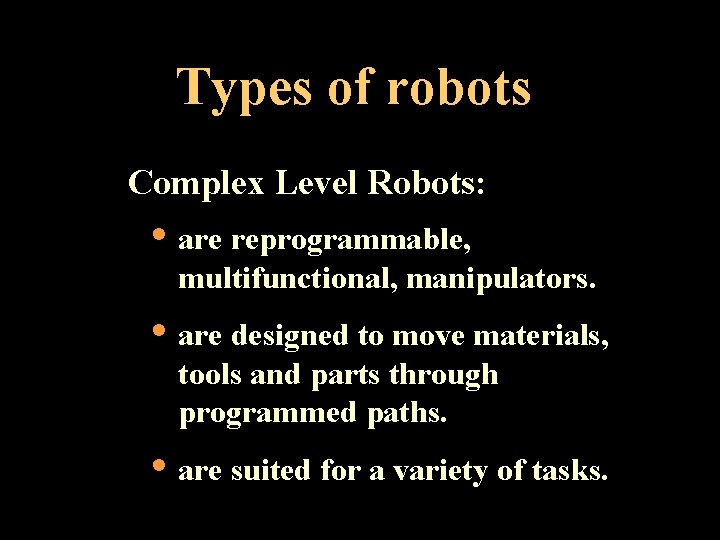

Types of robots Complex Level Robots: • are reprogrammable, multifunctional, manipulators. • are designed to move materials, tools and parts through programmed paths. • are suited for a variety of tasks.

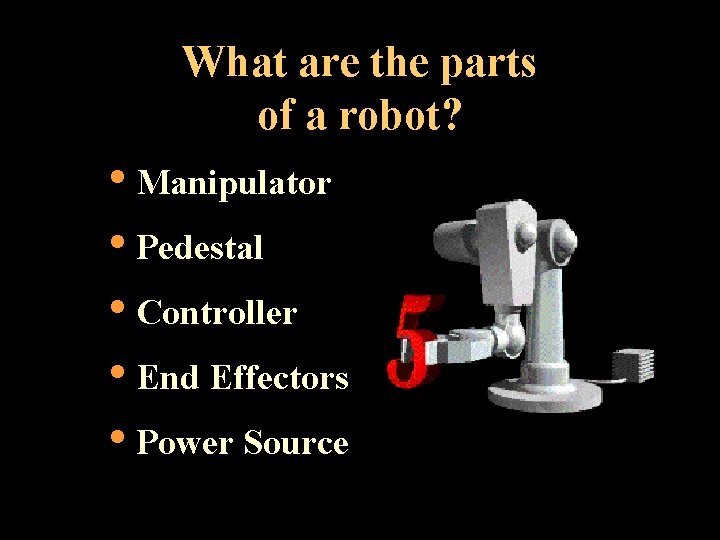

What are the parts of a robot? • Manipulator • Pedestal • Controller • End Effectors • Power Source

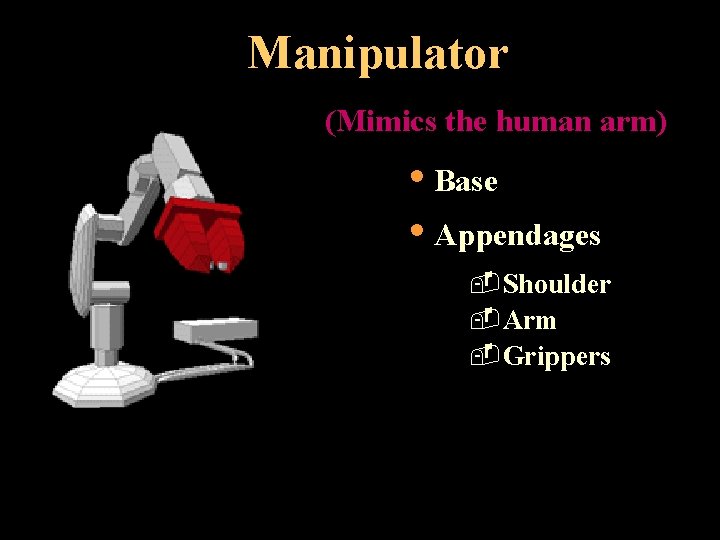

Manipulator (Mimics the human arm) • Base • Appendages -Shoulder -Arm -Grippers

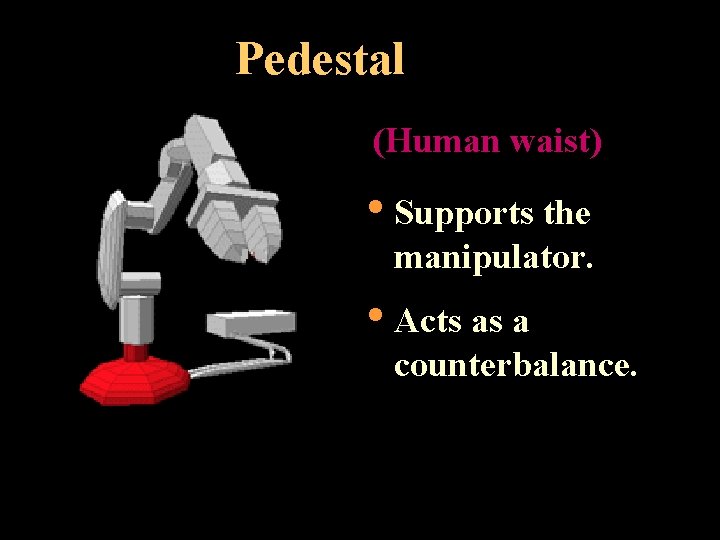

Pedestal (Human waist) • Supports the manipulator. • Acts as a counterbalance.

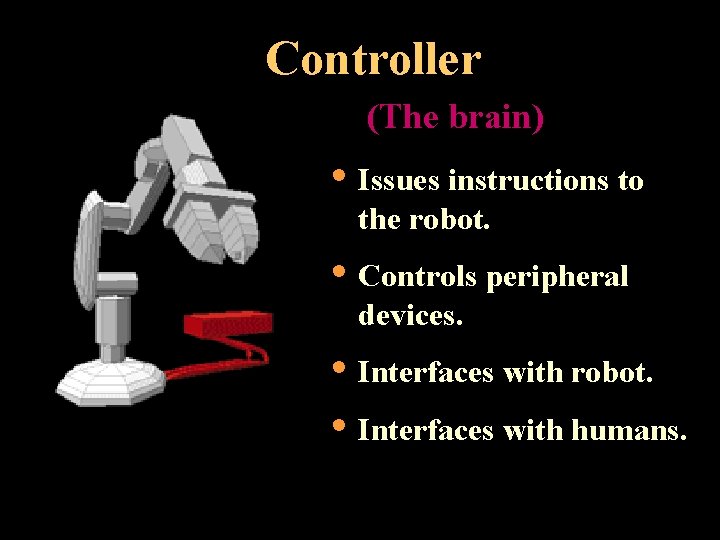

Controller (The brain) • Issues instructions to the robot. • Controls peripheral devices. • Interfaces with robot. • Interfaces with humans.

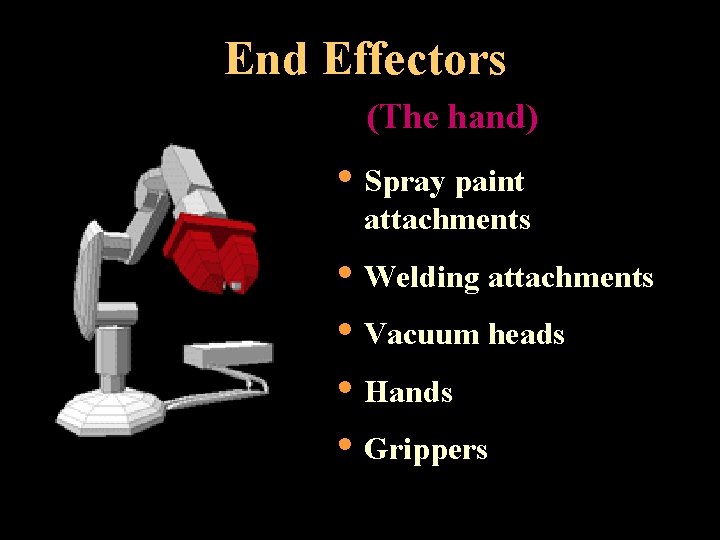

End Effectors (The hand) • Spray paint attachments • Welding attachments • Vacuum heads • Hands • Grippers

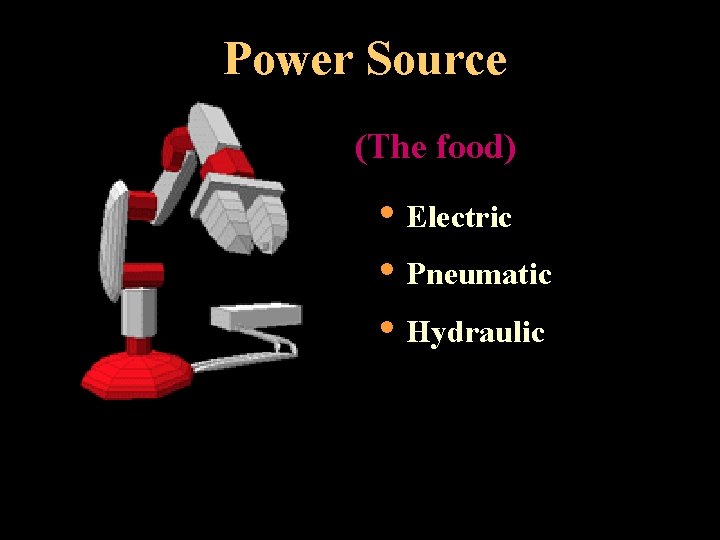

Power Source (The food) • Electric • Pneumatic • Hydraulic

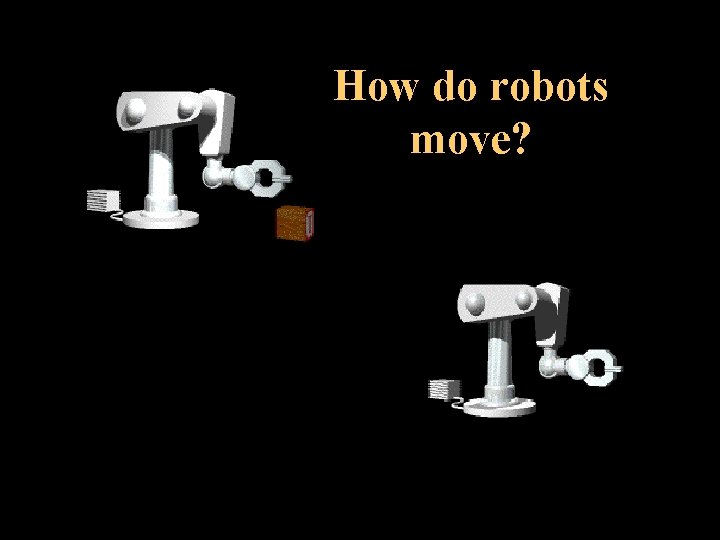

How do robots move?

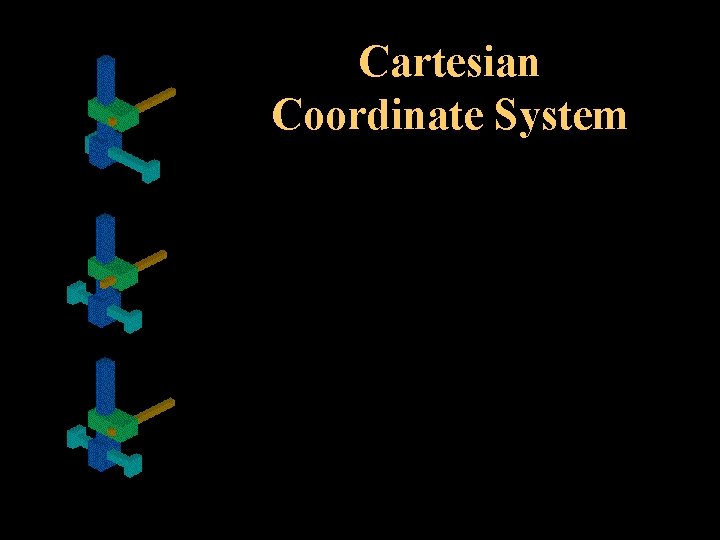

Cartesian Coordinate System

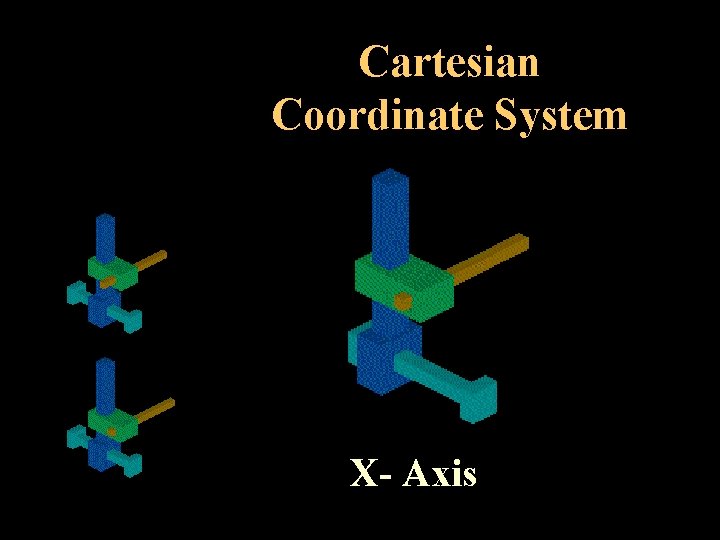

Cartesian Coordinate System X- Axis

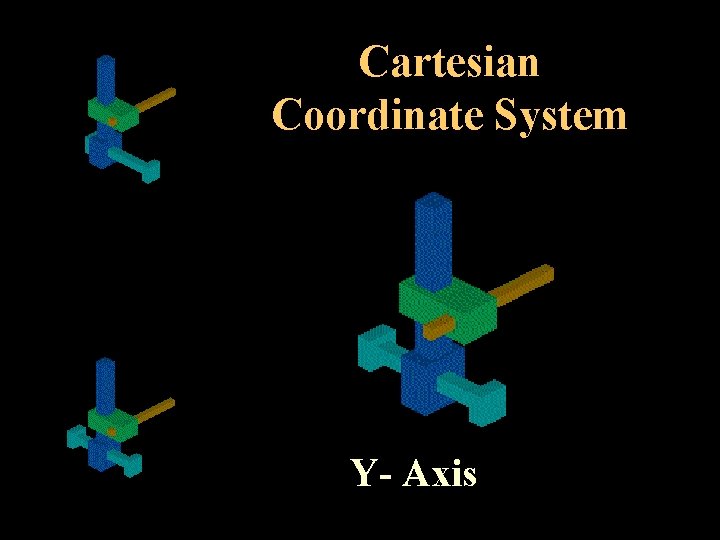

Cartesian Coordinate System Y- Axis

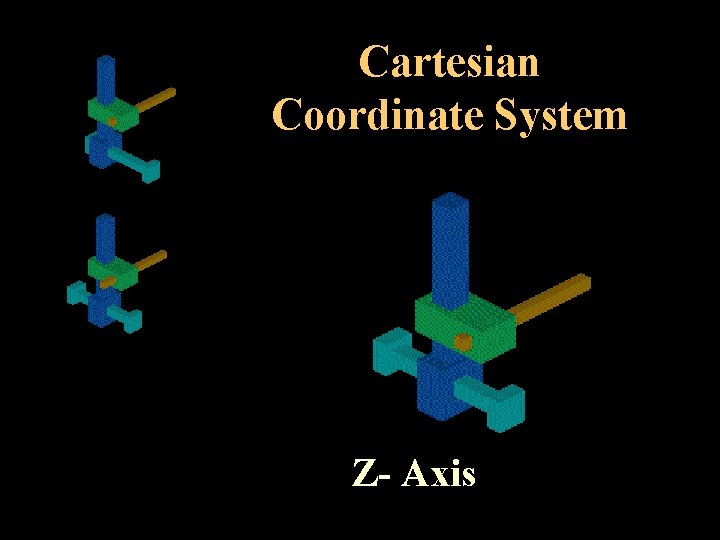

Cartesian Coordinate System Z- Axis
Cartesian Coordinate System

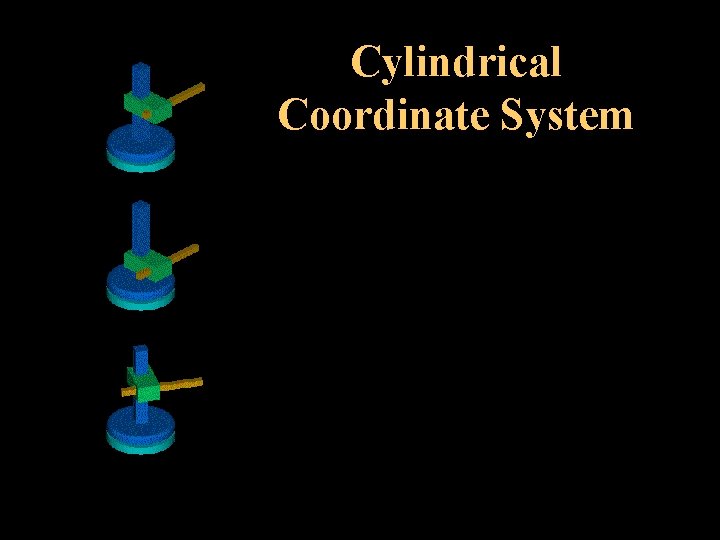

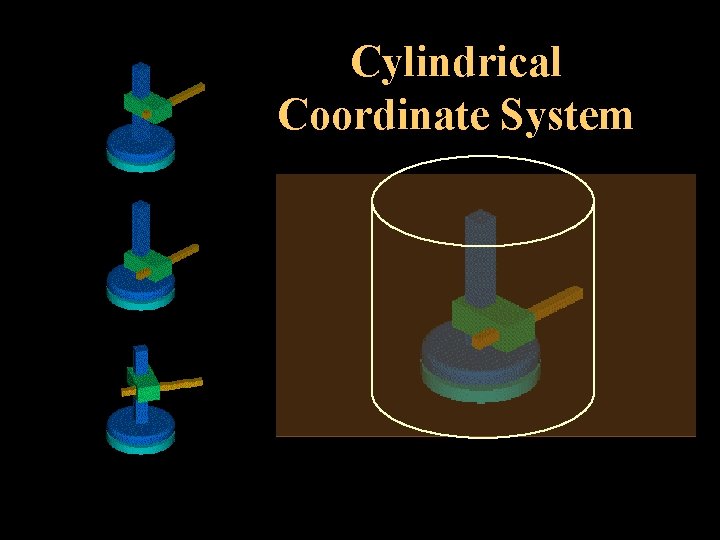

Cylindrical Coordinate System

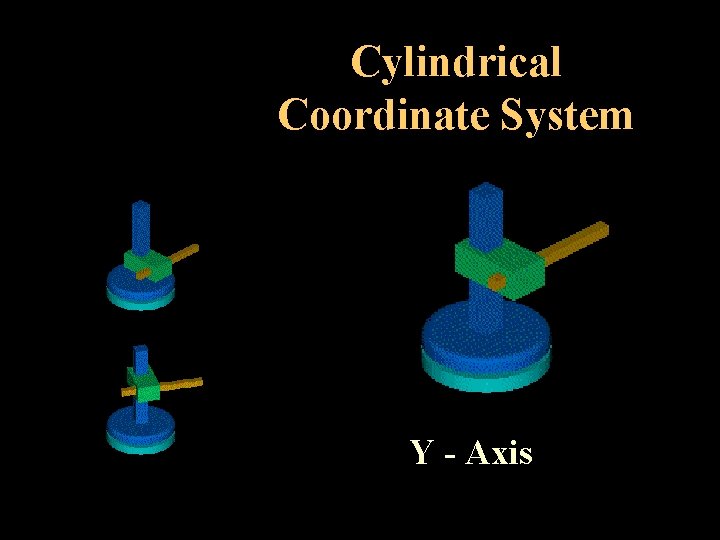

Cylindrical Coordinate System Y - Axis

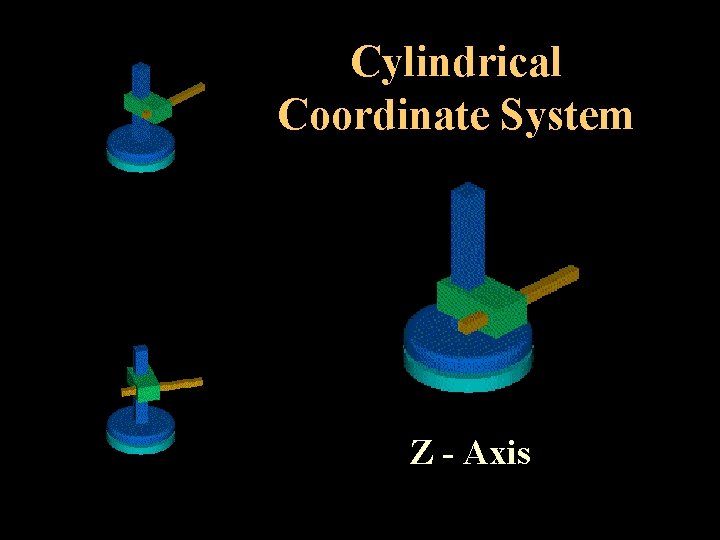

Cylindrical Coordinate System Z - Axis

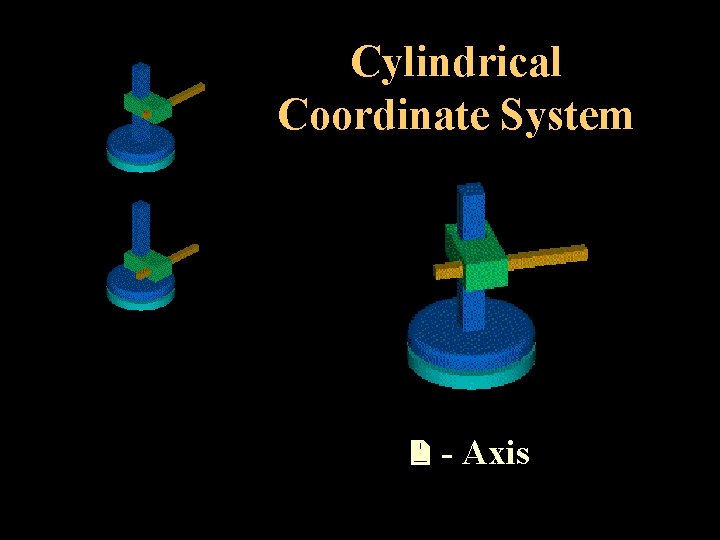

Cylindrical Coordinate System - Axis
Cylindrical Coordinate System

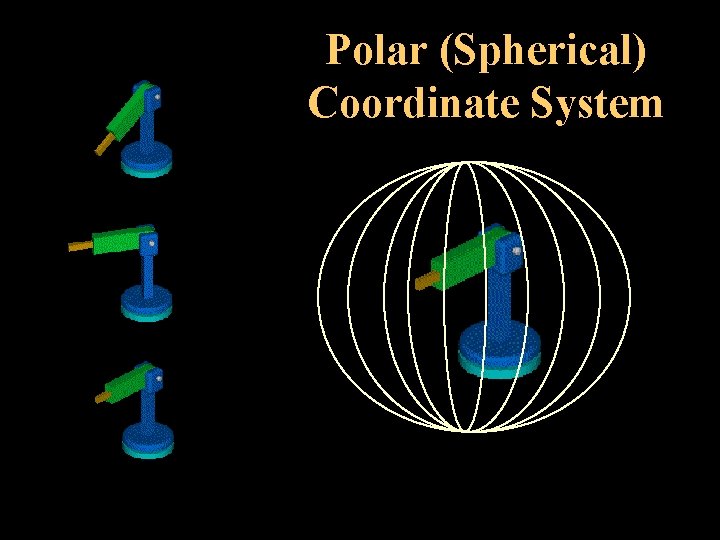

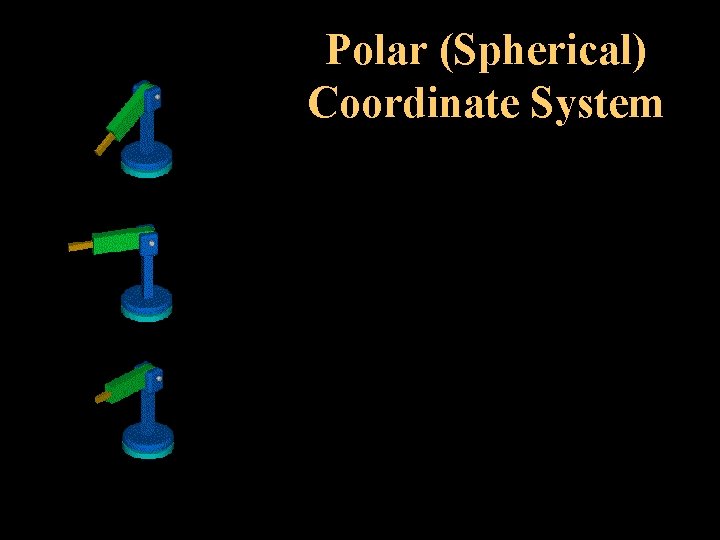

Polar (Spherical) Coordinate System

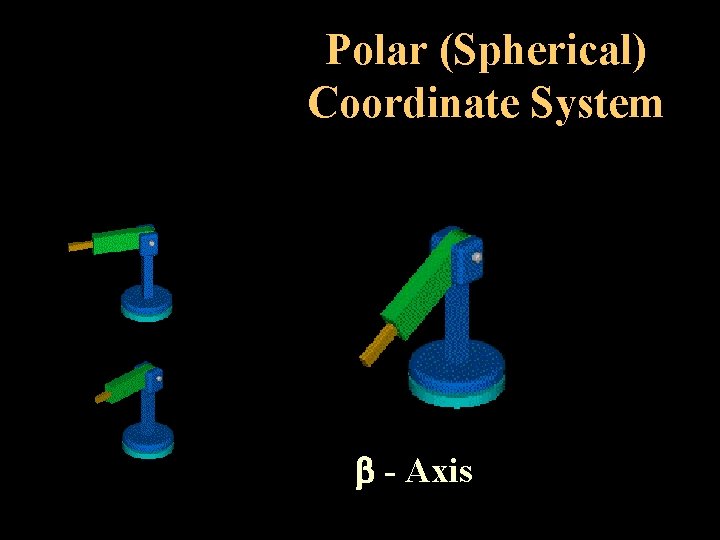

Polar (Spherical) Coordinate System - Axis
Polar (Spherical) Coordinate System - Axis

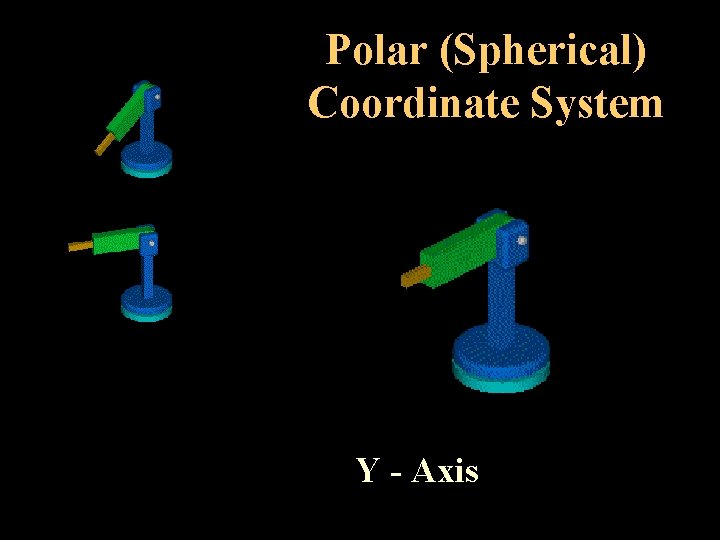

Polar (Spherical) Coordinate System Y - Axis
Polar (Spherical) Coordinate System

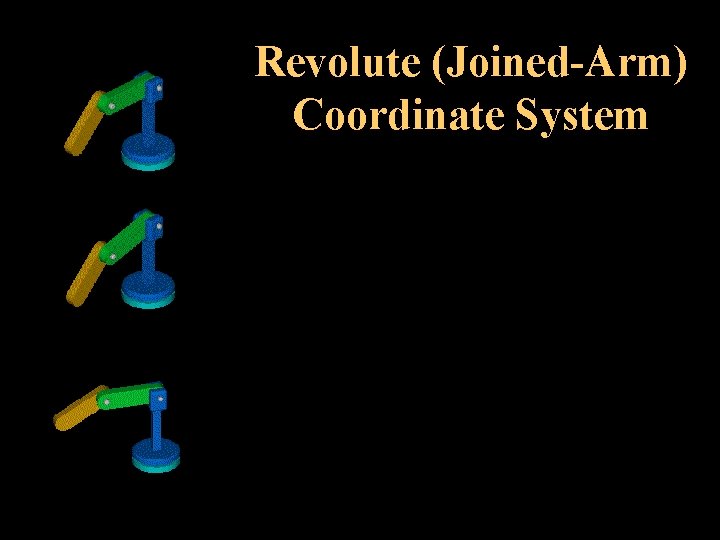

Revolute (Joined-Arm) Coordinate System

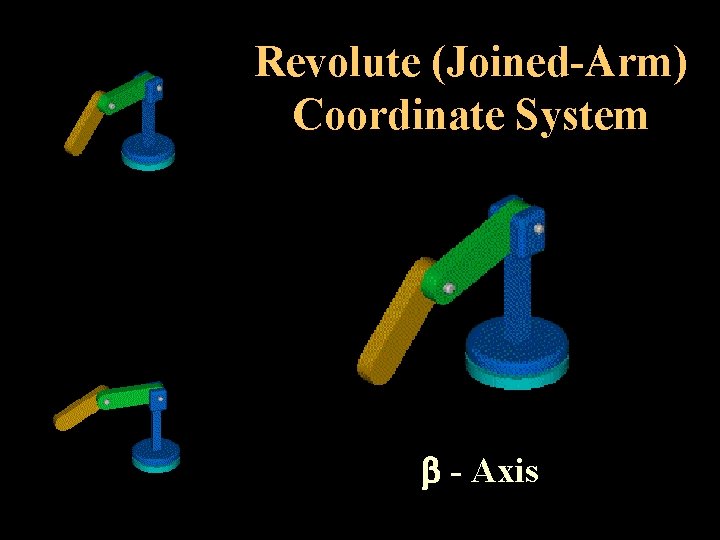

Revolute (Joined-Arm) Coordinate System - Axis
Revolute (Joined-Arm) Coordinate System - Axis
Revolute (Joined-Arm) Coordinate System - Axis

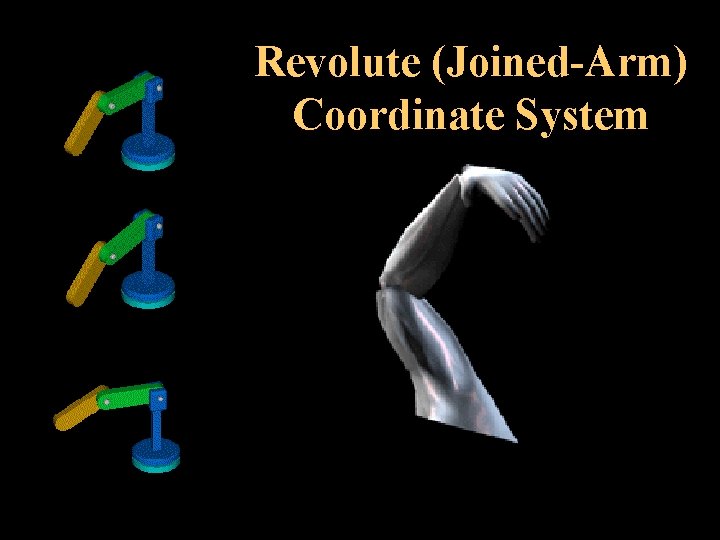

Revolute (Joined-Arm) Coordinate System
Stop !! Time out !!

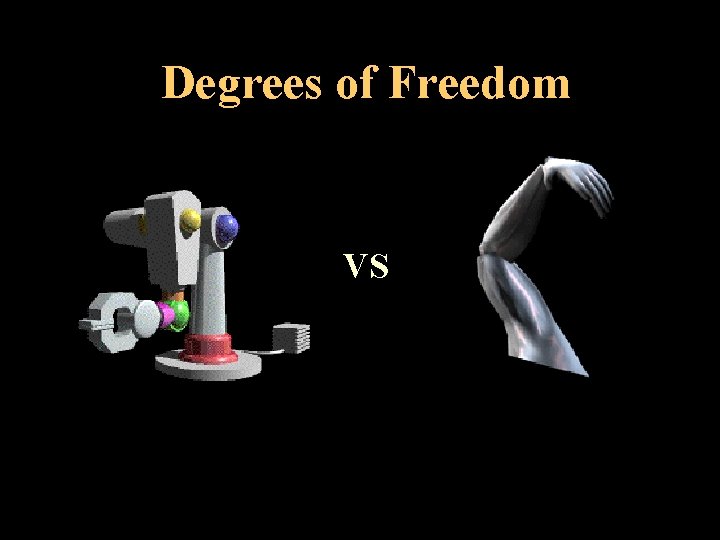

Degrees of Freedom VS

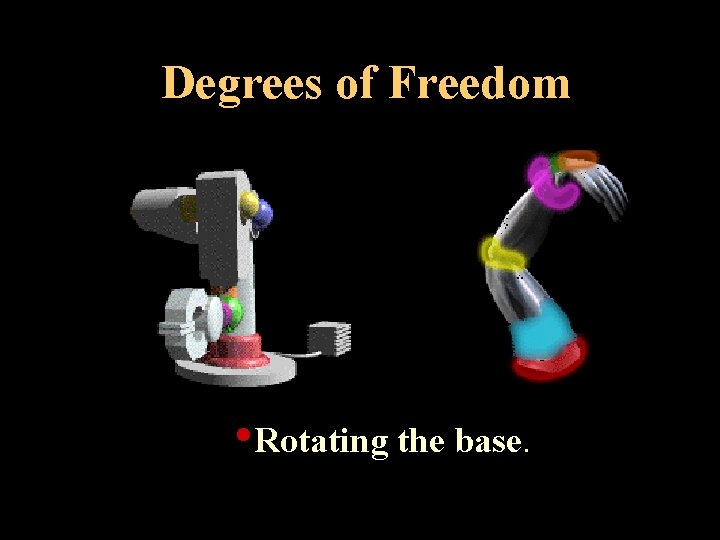

Degrees of Freedom • Rotating the base.

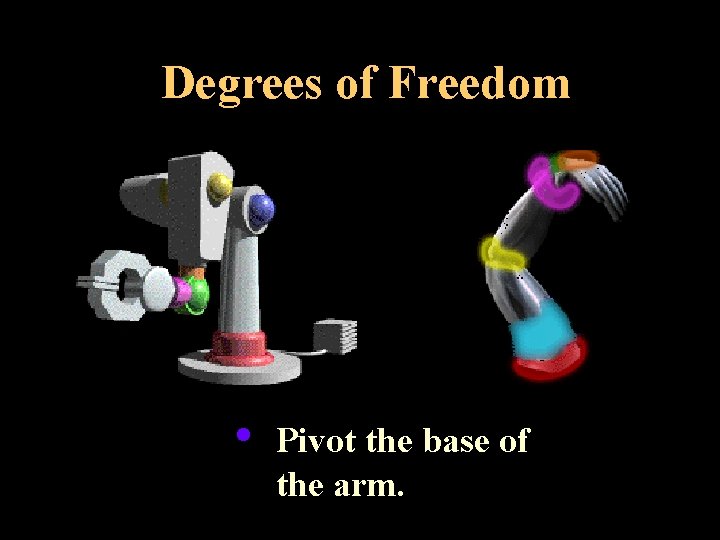

Degrees of Freedom • Pivot the base of the arm.

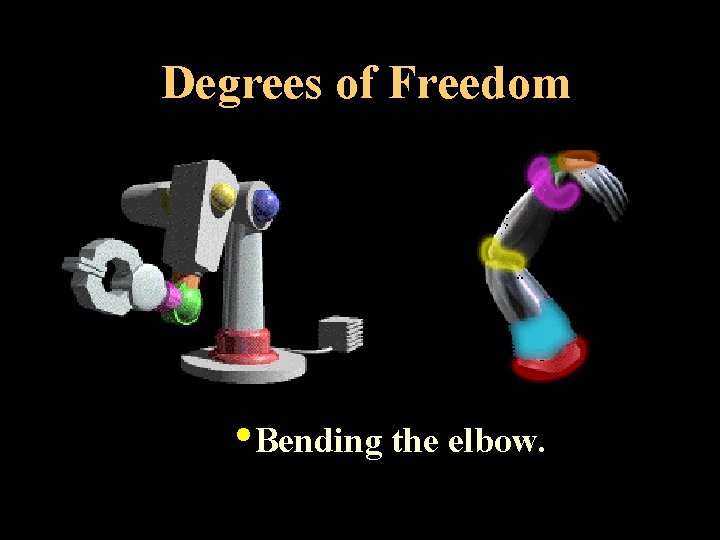

Degrees of Freedom • Bending the elbow.

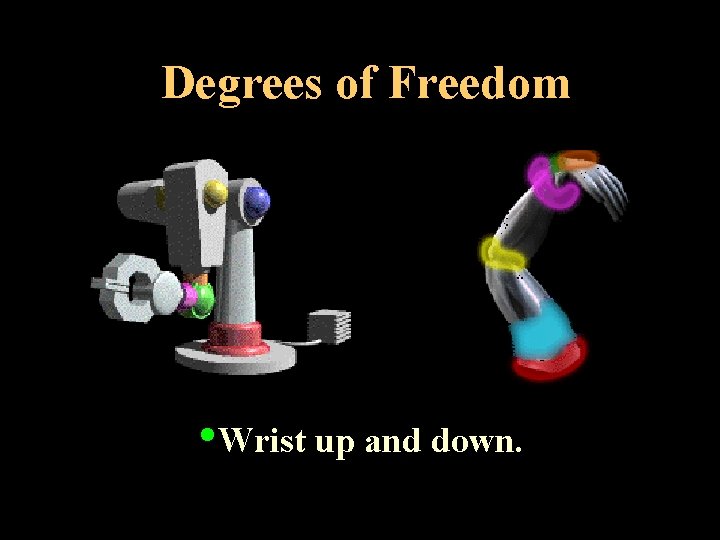

Degrees of Freedom • Wrist up and down.

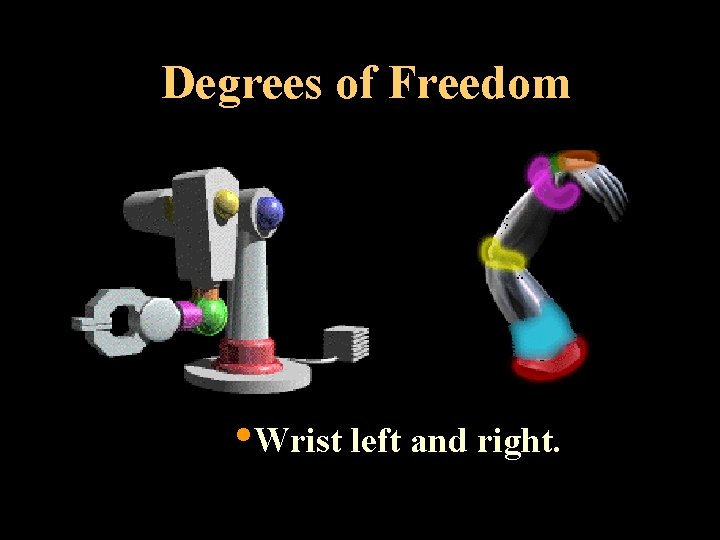

Degrees of Freedom • Wrist left and right.

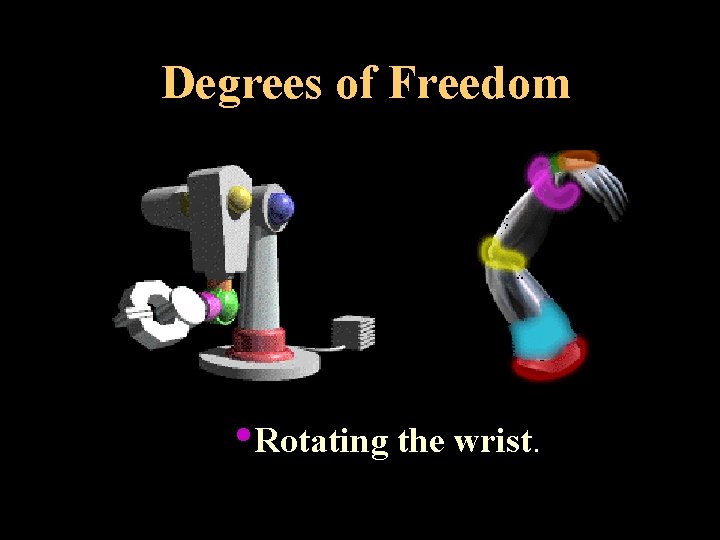

Degrees of Freedom • Rotating the wrist.

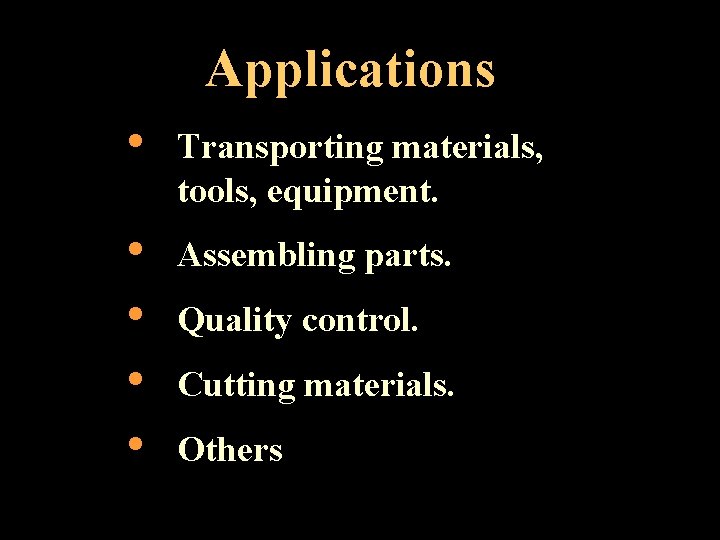

Applications • Transporting materials, tools, equipment. • • Assembling parts. Quality control. Cutting materials. Others

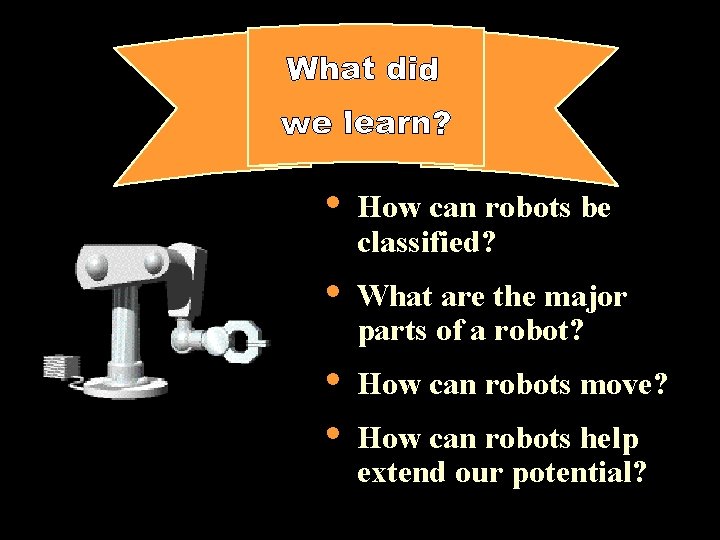

• How can robots be classified? • What are the major parts of a robot? • How can robots move? • How can robots help extend our potential?
