Introduction to Programming Python Lab 2 Variables Python

Introduction to Programming Python Lab 2: Variables Python. Lab 2 lecture slides. ppt 8 October 2019 or 24 January 2020 Ping Brennan (p. brennan@bbk. ac. uk) 1

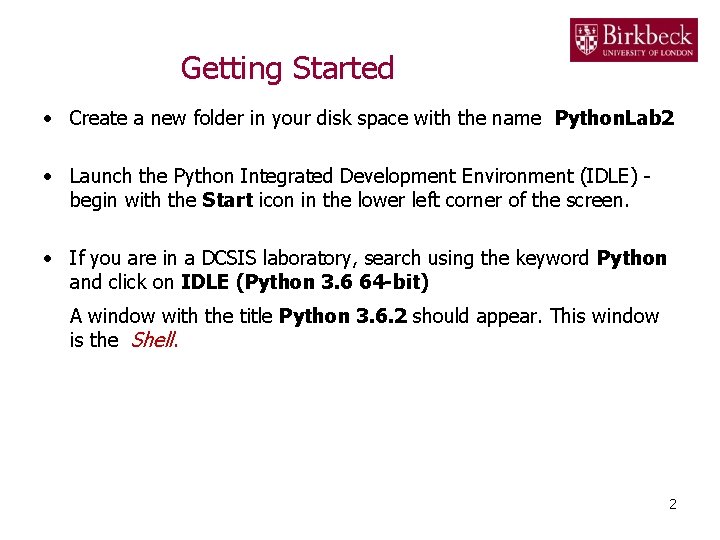

Getting Started • Create a new folder in your disk space with the name Python. Lab 2 • Launch the Python Integrated Development Environment (IDLE) begin with the Start icon in the lower left corner of the screen. • If you are in a DCSIS laboratory, search using the keyword Python and click on IDLE (Python 3. 6 64 -bit) A window with the title Python 3. 6. 2 should appear. This window is the Shell. 2

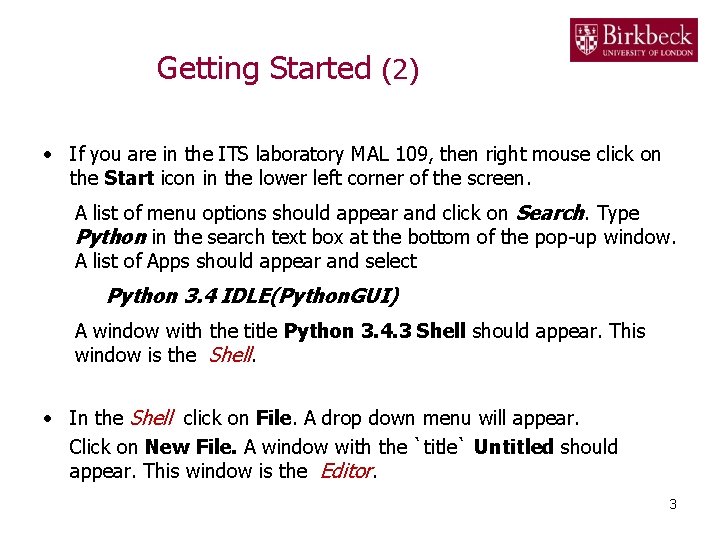

Getting Started (2) • If you are in the ITS laboratory MAL 109, then right mouse click on the Start icon in the lower left corner of the screen. A list of menu options should appear and click on Search. Type Python in the search text box at the bottom of the pop-up window. A list of Apps should appear and select Python 3. 4 IDLE(Python. GUI) A window with the title Python 3. 4. 3 Shell should appear. This window is the Shell. • In the Shell click on File. A drop down menu will appear. Click on New File. A window with the `title` Untitled should appear. This window is the Editor. 3

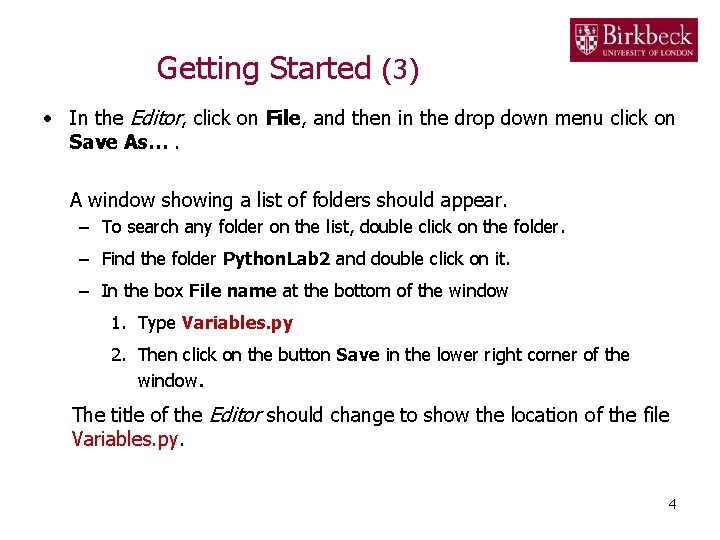

Getting Started (3) • In the Editor, click on File, and then in the drop down menu click on Save As…. A window showing a list of folders should appear. – To search any folder on the list, double click on the folder. – Find the folder Python. Lab 2 and double click on it. – In the box File name at the bottom of the window 1. Type Variables. py 2. Then click on the button Save in the lower right corner of the window. The title of the Editor should change to show the location of the file Variables. py. 4

Question 2. Program to compute volumes • Copy the following code, taken from Python for Everyone (PFE) Section 2. 1. 5, into the Editor. ## # This program computes the volume (in litres) of a six-pack of soda # cans and the total volume of a six-pack and a two-litre bottle. # # Litres in a 12 -ounce can and a two-litre bottle. CAN_VOLUME = 0. 355 BOTTLE_VOLUME = 2. 0 # Number of cans per pack. cans. Per. Pack = 6 # Calculate total volume in the cans. total. Volume = cans. Per. Pack * CAN_VOLUME print("A six-pack of 12 -ounce cans contains", total. Volume, "litres. ") # Calculate total volume in the cans and a 2 -litre bottle. total. Volume = total. Volume + BOTTLE_VOLUME print("A six-pack and a two-litre bottle contain", total. Volume, "litres. ") 5

Question 2. Program to compute volumes (2) • Declaring variables in the Python program: – Statements such as cans. Per. Pack = 6 assign values to variables. – This is the first occurrence of the variable name cans. Per. Pack. Thus the variable is created and assigned a value, in this case 6. The type of the value is int. – The statement CAN_VOLUME = 0. 355 creates the variable CAN_VOLUME and assigns it a floatingpoint value of 0. 355. The type of the value is float for any floating-point number that contains a fractional part. 6

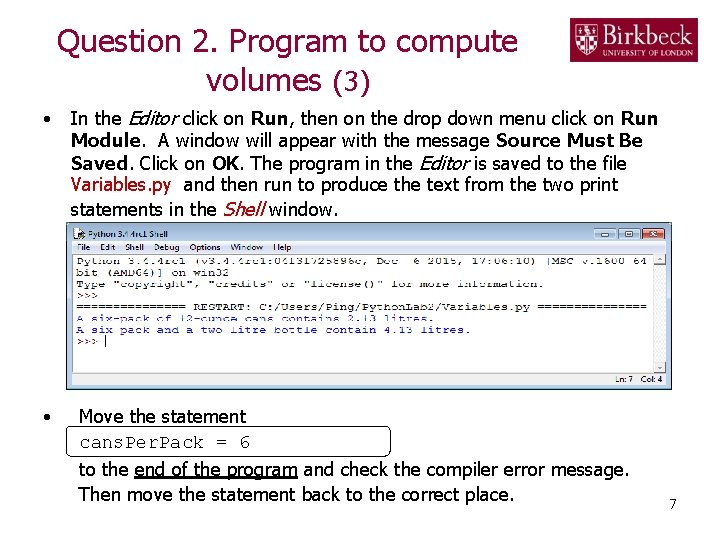

Question 2. Program to compute volumes (3) • In the Editor click on Run, then on the drop down menu click on Run Module. A window will appear with the message Source Must Be Saved. Click on OK. The program in the Editor is saved to the file Variables. py and then run to produce the text from the two print statements in the Shell window. • Move the statement cans. Per. Pack = 6 to the end of the program and check the compiler error message. Then move the statement back to the correct place. 7

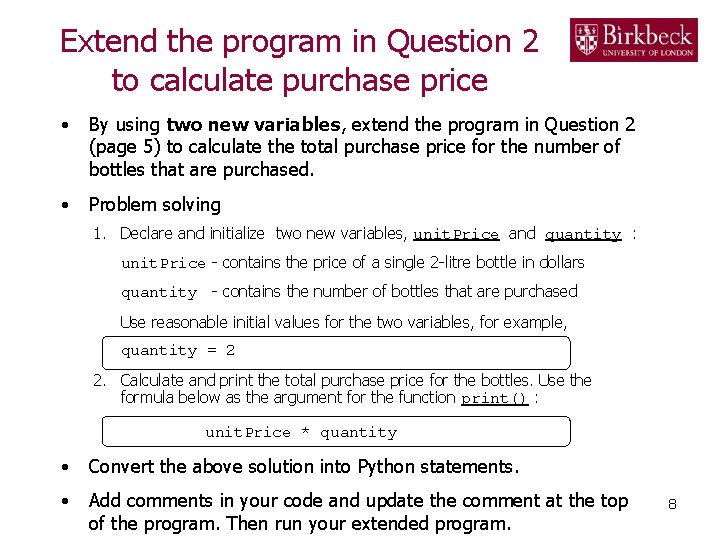

Extend the program in Question 2 to calculate purchase price • By using two new variables, extend the program in Question 2 (page 5) to calculate the total purchase price for the number of bottles that are purchased. • Problem solving 1. Declare and initialize two new variables, unit. Price and quantity : unit. Price - contains the price of a single 2 -litre bottle in dollars quantity - contains the number of bottles that are purchased Use reasonable initial values for the two variables, for example, quantity = 2 2. Calculate and print the total purchase price for the bottles. Use the formula below as the argument for the function print() : unit. Price * quantity • Convert the above solution into Python statements. • Add comments in your code and update the comment at the top of the program. Then run your extended program. 8

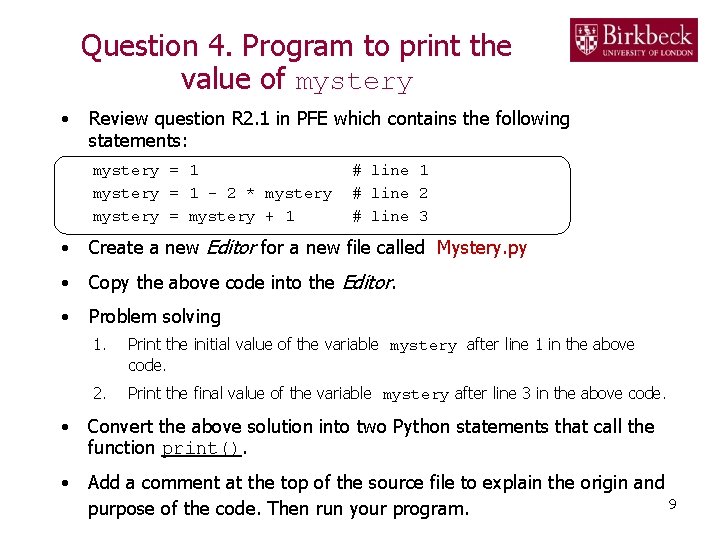

Question 4. Program to print the value of mystery • Review question R 2. 1 in PFE which contains the following statements: mystery = 1 - 2 * mystery = mystery + 1 # line 2 # line 3 • Create a new Editor for a new file called Mystery. py • Copy the above code into the Editor. • Problem solving 1. Print the initial value of the variable mystery after line 1 in the above code. 2. Print the final value of the variable mystery after line 3 in the above code. • Convert the above solution into two Python statements that call the function print(). • Add a comment at the top of the source file to explain the origin and 9 purpose of the code. Then run your program.

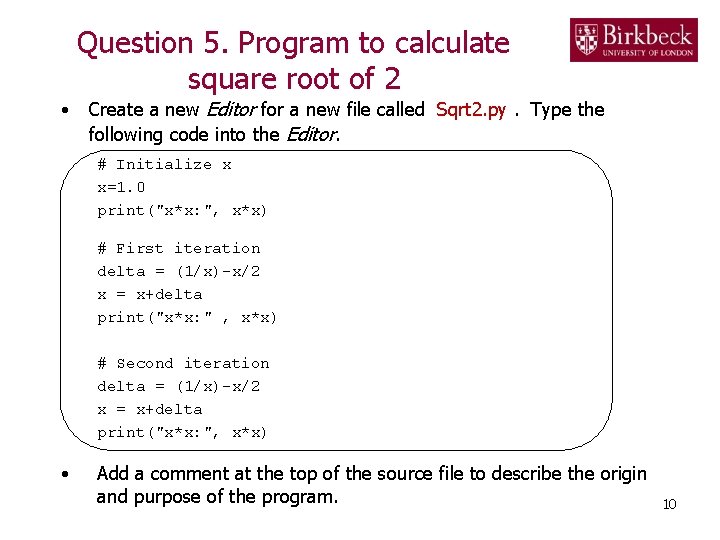

Question 5. Program to calculate square root of 2 • Create a new Editor for a new file called Sqrt 2. py. Type the following code into the Editor. # Initialize x x=1. 0 print("x*x: ", x*x) # First iteration delta = (1/x)-x/2 x = x+delta print("x*x: " , x*x) # Second iteration delta = (1/x)-x/2 x = x+delta print("x*x: ", x*x) • Add a comment at the top of the source file to describe the origin and purpose of the program. 10

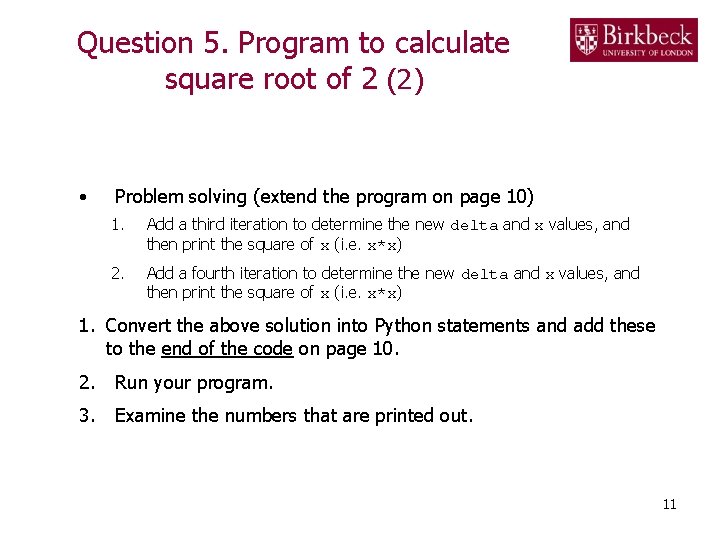

Question 5. Program to calculate square root of 2 (2) • Problem solving (extend the program on page 10) 1. Add a third iteration to determine the new delta and x values, and then print the square of x (i. e. x*x) 2. Add a fourth iteration to determine the new delta and x values, and then print the square of x (i. e. x*x) 1. Convert the above solution into Python statements and add these to the end of the code on page 10. 2. Run your program. 3. Examine the numbers that are printed out. 11

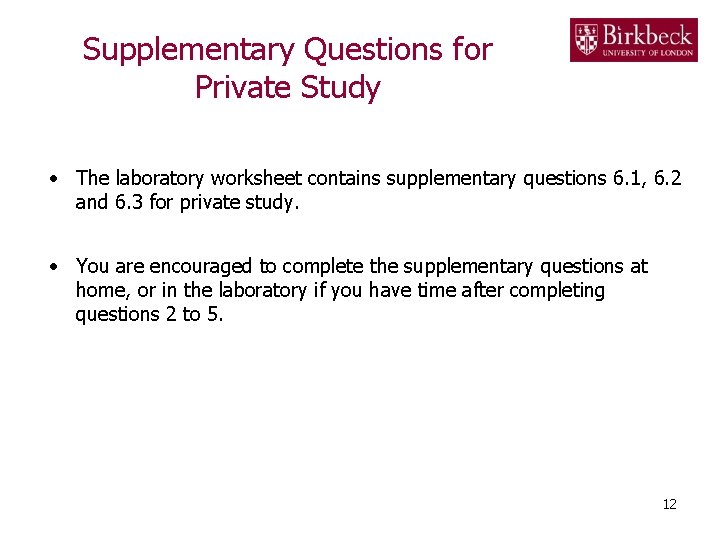

Supplementary Questions for Private Study • The laboratory worksheet contains supplementary questions 6. 1, 6. 2 and 6. 3 for private study. • You are encouraged to complete the supplementary questions at home, or in the laboratory if you have time after completing questions 2 to 5. 12

Appendix A Variable Names (Python For Everyone, Section 2. 1. 3) When you define a variable, you need to give it a name that describes its purpose. You must follow a few simple rules when naming something in Python: • Names must start with a letter or the underscore (_) character, and the remaining characters must be letters, numbers, or underscores. • Other symbols such as ? or % cannot be used, and spaces are not permitted inside names. • Names are case sensitive in Python. • Python reserved words cannot be used as names. Recommended practice: • • • Use descriptive names for variables. Begin names of variables with a lowercase letter. By convention, name of a variable that is all uppercase indicates a 13 constant, that is the value of the variable does not change.
