Introduction to Programming in Haskell Koen Lindstrm Claessen

Introduction to Programming in Haskell Koen Lindström Claessen

Programming • Exciting subject at the heart of computing • Never programmed? – Learn to make the computer obey you! • Programmed before? – Lucky you! Your knowledge will help a lot. . . –. . . as you learn a completely new way to program • Everyone will learn a great deal from this course!

Goal of the Course • Start from the basics, after Datorintroduktion • Learn to write small-to-medium sized programs in Haskell • Introduce basic concepts of computer science

The Flow You prepare in advance You learn with exercises Mondays/Tuesdays Do not break the flow! I explain in lecture Tuesdays, Fridays You put to practice with lab assignments Submit end of each week

Exercise Sessions • Mondays or Tuesdays – Depending on what group you are in • Come prepared • Work on exercises together • Discuss and get help from tutor – Personal help • Make sure you understand this week’s things before you leave

Lab Assignments • Work in pairs – (Almost) no exceptions! • Lab supervision – Book a time in advance – One time at a time! • Start working on lab when you have understood the matter even this • Submit end of each week! • Feedback – Return: The tutor has something to tell you; fix and submit again – OK: You are done

Getting Help • Weekly group sessions – personal help to understand material • Lab supervision – specific questions about programming assignment at hand • Discussion forum – general questions, worries, discussions

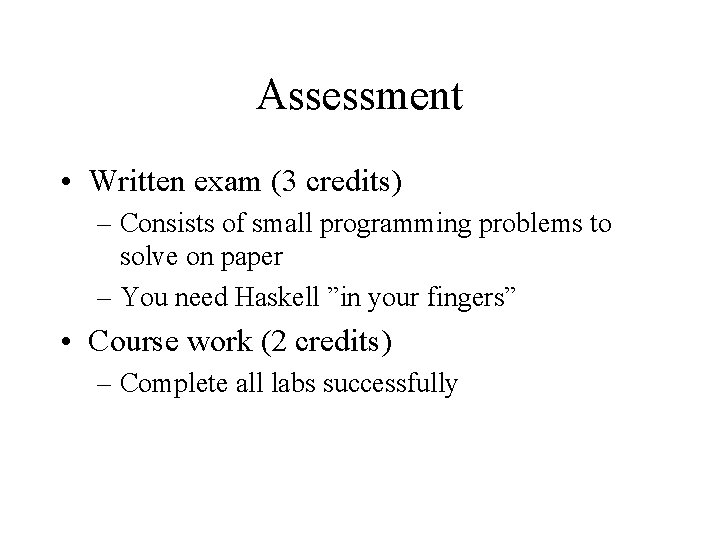

Assessment • Written exam (3 credits) – Consists of small programming problems to solve on paper – You need Haskell ”in your fingers” • Course work (2 credits) – Complete all labs successfully

A Risk • 7 weeks is a short time to learn programming • So the course is fast paced – Each week we learn a lot – Catching up again is hard • So do keep up! – Read the text book each week – Make sure you can solve the problems – Go to the weekly exercise sessions – From the beginning

Course Homepage • The course homepage will have ALL up-todate information relevant for the course – Schedule – Lab assignments – Exercises – Last-minute changes – (etc. ) Or Google for ”chalmers introduction functional programming” http: //www. cs. chalmers. se/Cs/Grundutb/Kurser/funht/

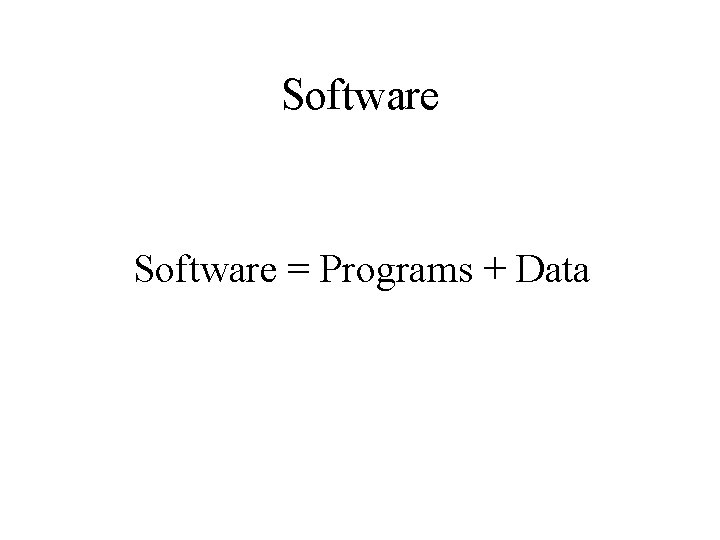

Software = Programs + Data

Data is any kind of storable information. Examples: • Numbers • Maps • Letters • Video clips • Email messages • Mouse clicks • Songs on a CD • Programs

Programs compute new data from old data. Example: Baldur’s Gate computes a sequence of screen images and sounds from a sequence of mouse clicks.

Building Software Systems A large system may contain many millions of lines of code. Software systems are among the most complex artefacts ever made. Systems are built by combining existing components as far as possible. Volvo buys engines from Mitsubishi. Bonnier buys Quicktime Video from Apple.

Programming Languages Programs are written in programming languages. There are hundreds of different programming languages, each with their strengths and weaknesses. A large system will often contain components in many different languages.

which language should we teach? Programming Languages Scheme Lisp C Haskell C++ Java ML BASIC C# Python csh Curry O’Ca. ML Java. Script Perl bash Erlang Lustre VHDL Esterel Verilog Ruby Prolog Mercury Post. Script SQL PDF

Programming Language Features dynamically typed statically typed type inference polymorphism overloading parameterized types lazy higher-order functions Haskell object oriented unification backtracking real-time immutable datastructures concurrency high performance reflection type classes pure functions distribution virtual machine compiler metaprogramming C Java interpreter

Teaching Programming • Give you a broad basis – Easy to learn more programming languages – Easy to adapt to new programming languages • Haskell is defining state-of-the-art in programming language development – Appreciate differences between languages – Become a better programmer!

Industrial Uses of Functional Languages Intel (microprocessor verification) Hewlett Packard (telecom event correlation) Ericsson (telecommunications) Carlstedt Research & Technology (air-crew scheduling) Hafnium (Y 2 K tool) Shop. com (e-commerce) Motorola (test generation) Thompson (radar tracking) Microsoft (SDV) Jasper (hardware verification)

Why Haskell? • Haskell is a very high-level language (many details taken care of automatically). • Haskell is expressive and concise (can achieve a lot with a little effort). • Haskell is good at handling complex data and combining components. • Haskell is not a high-performance language (prioritise programmer-time over computer-time).

A Haskell Demo • Start the GHCi Haskell interpreter: > ghci ___ _ / _ / // __(_) / /_// /_/ / / | | / /_\/ __ / /___| | ____// /_/____/|_| GHC Interactive, version 6. 6. 1, for Ha http: //www. haskell. org/ghc/ Type : ? for help. Loading package base. . . linking. . . done. Prelude> The prompt. GHCi is ready for input.

GHCi as a Calculator Type in expressions, and ghci calculates and prints their value. Prelude> 2+2 4 Prelude> 2 -2 0 Prelude> 2*3 6 Prelude> 2/3 0. 66666667 Multiplication and division look a bit unfamiliar – we cannot omit multiplication, or type horizontal lines. 2 3 X

Binding and Brackets Prelude> 2+2*3 8 Prelude> (2+2)*3 12 Prelude> (1+2)/(3+4) 0. 428571429 Multiplication and division ”bind more tightly” than addition and subtraction – so this means 2+6, not 4*3. We use brackets to change the binding (just as in mathematics), so this is 4*3. This is how we write 1+2 3+4

Quiz • What is the value of this expression? Prelude> 1+2/3+4

Quiz • What is the value of this expression? Prelude> 1+2/3+4 5. 66666667

Example: Currency Conversion • Suppose we want to buy a game costing € 53 from a foreign web site. Prelude> 53*9. 16642 485. 82026 Exchange rate: € 1 = 9. 16642 SEK Price in SEK Boring to type 9. 16642 every time we convert a price!

Naming a Value • We give a name to a value by making a definition. • Definitions are put in a file, using a text editor such as emacs. > emacs Examples. hs The UNIX prompt, not the ghci one! Haskell files end in. hs Do this in a separate window, so you can edit and run hugs simultaneously.

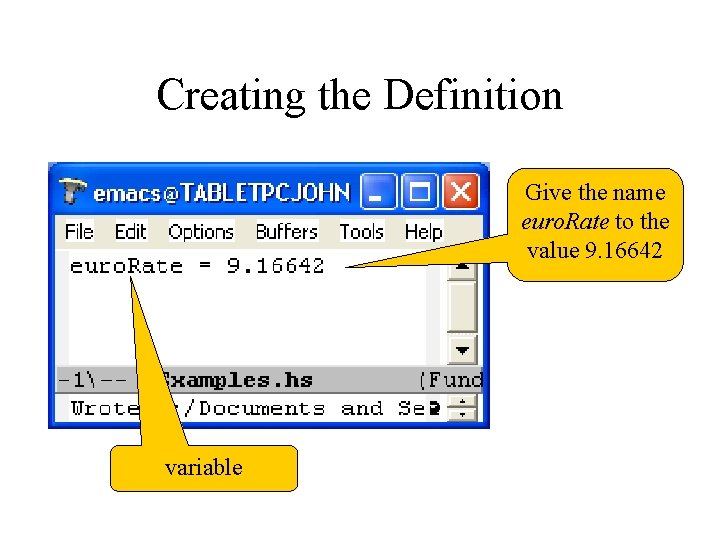

Creating the Definition Give the name euro. Rate to the value 9. 16642 variable

Using the Definition The prompt changes – we have now loaded a program. Load the file Examples. hs into ghci – make the definition available. Prelude> : l Examples Main> euro. Rate 9. 16642 Main> 53*euro. Rate 485. 82026 Main> We are free to make use of the definition.

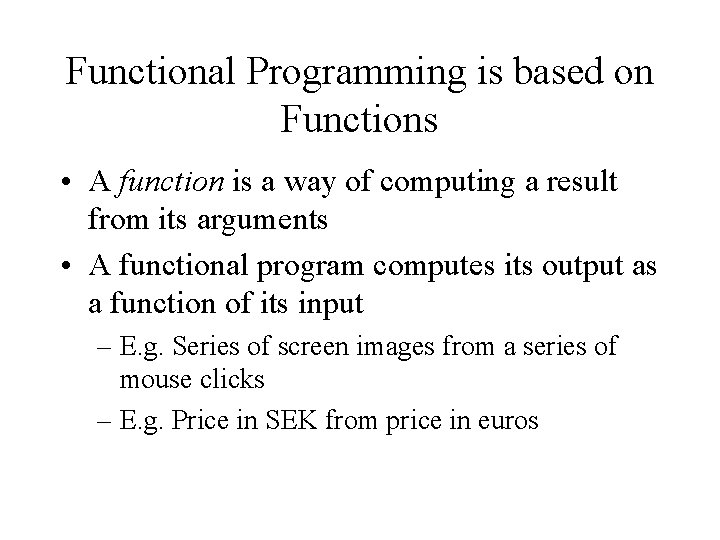

Functional Programming is based on Functions • A function is a way of computing a result from its arguments • A functional program computes its output as a function of its input – E. g. Series of screen images from a series of mouse clicks – E. g. Price in SEK from price in euros

A Function to convert Euros to SEK A definition – placed in the file Examples. hs A comment – to help us understand the program -- convert euros to SEK sek x = x*euro. Rate Function name – the name we are defining. Name for the argument Expression to compute the result

Using the Function Main> : r Main> sek 53 485. 82026 Reload the file to make the new definition available. Call the function Notation: no brackets! C. f. sin 0. 5, log 2, not f(x). sek x = x*euro. Rate x = 53 While we evaluate the right hand side 53*euro. Rate

Binding and Brackets again Main> sek 53 485. 82026 Main> sek 50 + 3 461. 321 Main> sek (50+3) 485. 82026 Main> Different! This is (sek 50) + 3. Functions bind most tightly of all. Use brackets to recover sek 53. No stranger than writing sin and sin ( + )

Converting Back Again -- convert SEK to euros euro x = x/euro. Rate Main> 53. 0 Main> 49. 0 Main> 217. 0 : r euro 485. 82026 euro (sek 49) sek (euro 217) Testing the program: trying it out to see if does the right thing.

Automating Testing • Why compare the result myself, when I have a computer? The operator == tests whether two values are equal Main> 2 == 2 True Yes they are Main> 2 == 3 No they aren’t False Main> euro (sek 49) == 49 Note: two equal signs True are an operator. Let the computer check the result. One equal sign makes a definition.

Defining the Property • Define a function to perform the test for us prop_Euro. Sek x = euro (sek x) == x Main> prop_Euro. Sek 53 True Main> prop_Euro. Sek 49 True Performs the same tests as before – but now we need only remember the function name!

Writing Properties in Files • Functions with names beginning ”prop_” are properties – they should always return True • Writing properties in files – Tells us how functions should behave – Tells us what has been tested – Lets us repeat tests after changing a definition • Properties help us get programs right!

Automatic Testing • Testing account for more than half the cost of a software project • We will use a tool for automatic testing import Test. Quick. Check Add first in the file of definitions – makes Quick. Check available. Capital letters must appear exactly as they do here.

Running Tests Main> quick. Check prop_Euro. Sek Falsifiable, after 10 tests: 3. 75 It’s not true! The value for which the test fails. Main> sek 3. 75 34. 374075 Main> euro 34. 374075 3. 75 Looks OK Runs 100 randomly chosen tests

The Problem • There is a very tiny difference between the initial and final values Main> euro (sek 3. 75) - 3. 75 4. 44089209850063 e-016 e means £ 10 -16 • Calculations are only performed to about 15 significant figures • The property is wrong!

Fixing the Problem • The result should be nearly the same • The difference should be small – say <0. 000001 Main> 2<3 True Main> 3<2 False We can use < to see whether one number is less than another

Defining ”Nearly Equal” • We can define new operators with names made up of symbols x ~== y = x-y < 0. 000001 With arguments x and y Define a new operator ~== Which returns True if the difference between x and y is less than 0. 000001

Testing ~== Main> 3 ~== 3. 0000001 True Main> 3~==4 True What’s wrong? x ~== y = x-y < 0. 000001 OK

Fixing the Definition • A useful function Main> abs 3 3 Main> abs (-3) 3 Absolute value x ~== y = abs (x-y) < 0. 000001 Main> 3 ~== 4 False

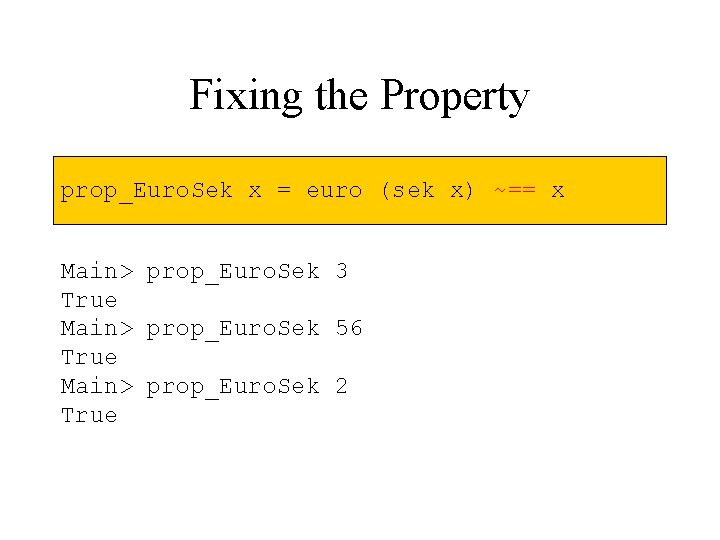

Fixing the Property prop_Euro. Sek x = euro (sek x) ~== x Main> prop_Euro. Sek 3 True Main> prop_Euro. Sek 56 True Main> prop_Euro. Sek 2 True

Name the Price • Let’s define a name for the price of the game we want price = 53 Main> sek price ERROR - Type error *** Expression *** Term *** Type *** Does not match in application : sek price : Integer : Double

Every Value has a Type • The : i command prints information about a name Main> : i price : : Integer Main> : i euro. Rate : : Double Integer (whole number) is the type of price Double is the type of real numbers Funny name, but refers to double the precision that computers originally used

More Types The type of truth values, named after the logician Boole Main> : i True : : Bool -- data constructor Main> : i False : : Bool -- data constructor The type of a function Main> : i sek : : Double -> Double Type of the result Main> : i prop_Euro. Sek : : Double -> Bool Type of the argument

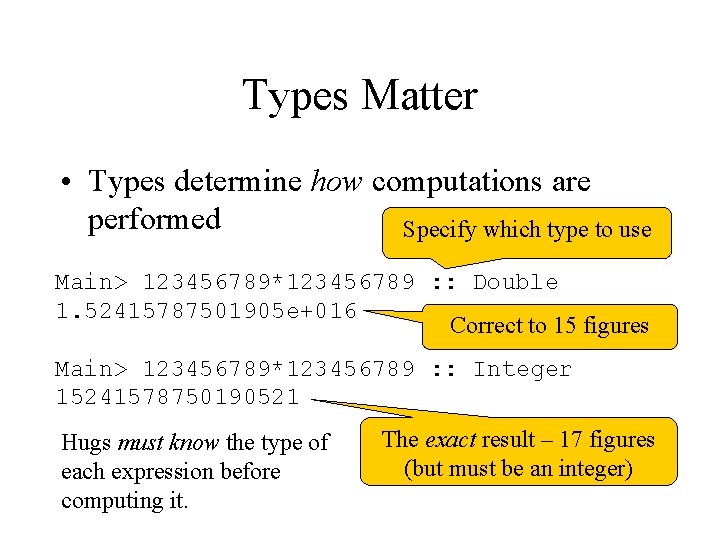

Types Matter • Types determine how computations are performed Specify which type to use Main> 123456789*123456789 : : Double 1. 52415787501905 e+016 Correct to 15 figures Main> 123456789*123456789 : : Integer 15241578750190521 Hugs must know the type of each expression before computing it. The exact result – 17 figures (but must be an integer)

Type Checking • Infers (works out) the type of every expression • Checks that all types match – before running the program

Our Example Main> : i price : : Integer Main> : i sek : : Double -> Double Main> sek price ERROR - Type error *** Expression *** Term *** Type *** Does not match in application : sek price : Integer : Double

Why did it work before? Certainly works to say 53 What is the type of 53? Main> sek 53 485. 82026 Main> 53 : : Integer 53 can be used with several 53 types – it is overloaded Main> 53 : : Double 53. 0 Main> price : : Integer Giving it a name fixes 53 the type Main> price : : Double ERROR - Type error in type annotation *** Term : price *** Type : Integer *** Does not match : Double

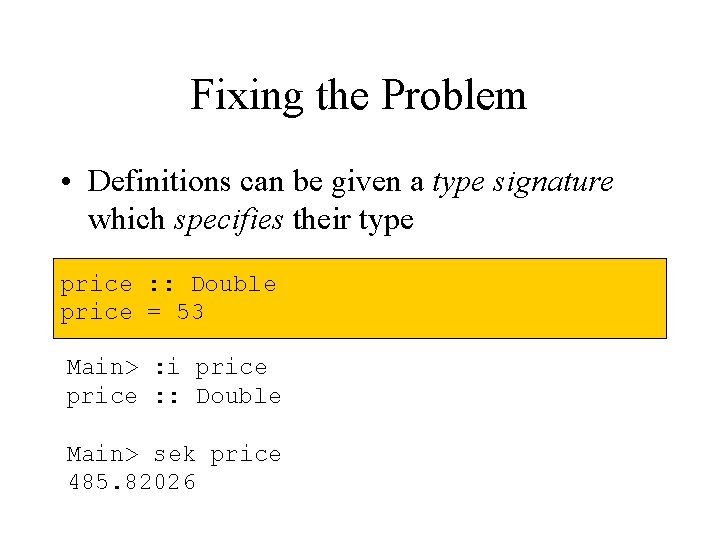

Fixing the Problem • Definitions can be given a type signature which specifies their type price : : Double price = 53 Main> : i price : : Double Main> sek price 485. 82026

Always Specify Type Signatures! • They help the reader (and you) understand the program • The type checker can find your errors more easily, by checking that definitions have the types you say • Type error messages will be easier to understand • Sometimes they are necessary (as for price)

Example with Type Signatures euro. Rate : : Double euro. Rate = 9. 16642 sek, euro : : Double -> Double sek x = x*euro. Rate euro x = x/euro. Rate prop_Euro. Sek : : Double -> Bool prop_Euro. Sek x = euro (sek x) ~== x

What is the type of 53? Main> : i 53 Unknown reference `53' Main> : t sek 53 : : Double Main> : t 53 53 : : Num a => a If a is a numeric type : i only works for names But : t gives the type (only) of any expression Then 53 can have type a Main> : i * infixl 7 * (*) : : Num a => a -> a -- class member Then * can have type a->a->a

What is Num exactly? Main> : i Num A ”class” of types -- type class. . . class (Eq a, Show a) => Num a where (+) : : a -> a With these (-) : : a -> a operations (*) : : a -> a. . . -- instances: instance Num Int Types which belong to instance Num Integer this class instance Num Float instance Num Double instance Integral a => Num (Ratio a)

Examples Main> 2 + 3. 5 5. 5 2, +, and 3. 5 can all work on Double Main> True + 3 ERROR - Cannot infer instance *** Instance : Num Bool *** Expression : True + 3 Sure enough, Bool is not in the Num class

A Tricky One! Main> sek (-10) -91. 6642 Main> sek -10 ERROR - Cannot infer instance *** Instance : Num (Double -> Double) *** Expression : sek - 10 What’s going on?

Operators Again Main> : i + infixl 6 + (+) : : Num a => a -> a -- class member Main> : i * infixl 7 * (*) : : Num a => a -> a -- class member The binding power (or precedence) of an operator – * binds tighter than + because 7 is greater than 6

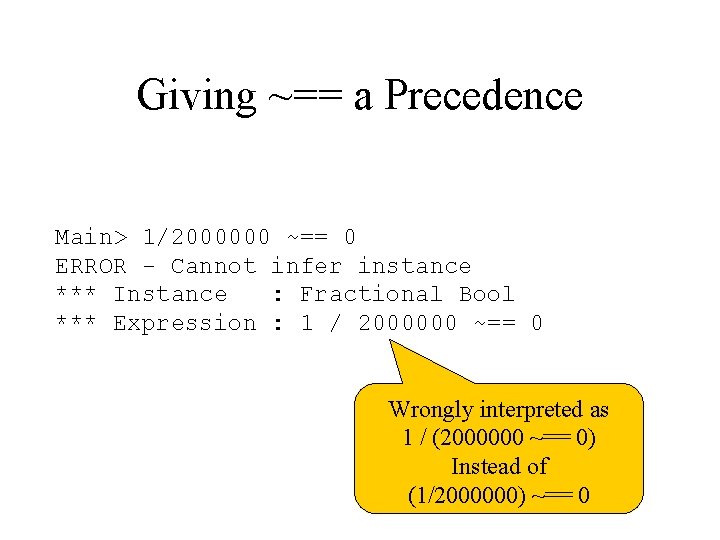

Giving ~== a Precedence Main> 1/2000000 ~== 0 ERROR - Cannot infer instance *** Instance : Fractional Bool *** Expression : 1 / 2000000 ~== 0 Wrongly interpreted as 1 / (2000000 ~== 0) Instead of (1/2000000) ~== 0

Giving ~== a Precedence • ~== should bind the same way as == Main> : i == infix 4 == (==) : : Eq a => a -> Bool -- class member infix 4 ~== x ~== y = abs (x-y) < 0. 000001 Main> 1/2000000 ~== 0 True

Summary • Think about the properties of your program –. . . and write them down • It helps you understanding – the problem you are solving – the program you are writing • It helps others understanding what you did – co-workers – customers – you in 1 year from now

Cases and Recursion

Example: The squaring function • Example: a function to compute -- sq x returns the square of x sq : : Integer -> Integer sq x = x * x

Evaluating Functions • To evaluate sq 5: – Use the definition—substitute 5 for x throughout • sq 5 = 5 * 5 – Continue evaluating expressions • sq 5 = 25 • Just like working out mathematics on paper sq x = x * x

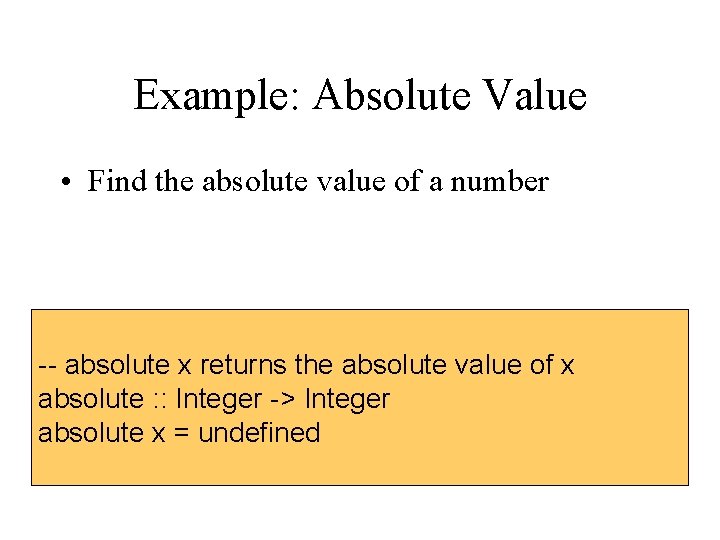

Example: Absolute Value • Find the absolute value of a number -- absolute x returns the absolute value of x absolute : : Integer -> Integer absolute x = undefined

Example: Absolute Value • Find the absolute value of a number Programs must often choose between • Two cases! – If x is positive, result is x – If x is negative, result is -x alternatives -- absolute x returns the absolute value of x Think of the cases! absolute : : Integer -> Integer These are guards absolute x | x > 0 = undefined absolute x | x < 0 = undefined

Example: Absolute Value • Find the absolute value of a number • Two cases! – If x is positive, result is x – If x is negative, result is -x -- absolute x returns the absolute value of x absolute : : Integer -> Integer Fill in the result in absolute x | x > 0 = x each case absolute x | x < 0 = -x

Example: Absolute Value • Find the absolute value of a number • Correct the code -- absolute x returns the absolute value of x absolute : : Integer -> Integer >= is greater than absolute x | x >= 0 = x or equal, ¸ absolute x | x < 0 = -x

Evaluating Guards • Evaluate absolute (-5) – We have two equations to use! – Substitute • absolute (-5) | -5 >= 0 = -5 • absolute (-5) | -5 < 0 = -(-5) absolute x | x >= 0 = x absolute x | x < 0 = -x

Evaluating Guards • Evaluate absolute (-5) – We have two equations to use! – Evaluate the guards • absolute (-5) | False = -5 • absolute (-5) | True = -(-5) absolute x | x >= 0 = x absolute x | x < 0 = -x Discard this equation Keep this one

Evaluating Guards • Evaluate absolute (-5) – We have two equations to use! – Erase the True guard • absolute (-5) = -(-5) absolute x | x >= 0 = x absolute x | x < 0 = -x

Evaluating Guards • Evaluate absolute (-5) – We have two equations to use! – Compute the result • absolute (-5) = 5 absolute x | x >= 0 = x absolute x | x < 0 = -x

Notation • We can abbreviate repeated left hand sides absolute x | x >= 0 = x absolute x | x < 0 = -x absolute x | x >= 0 = x | x < 0 = -x • Haskell also has if then else absolute x = if x >= 0 then x else -x

Example: Computing Powers • Compute (without using built-in x^n)

Example: Computing Powers • Compute (without using built-in x^n) • Name the function power

Example: Computing Powers • Compute (without using built-in x^n) • Name the inputs power x n = undefined

Example: Computing Powers • Compute (without using built-in x^n) • Write a comment -- power x n returns x to the power n power x n = undefined

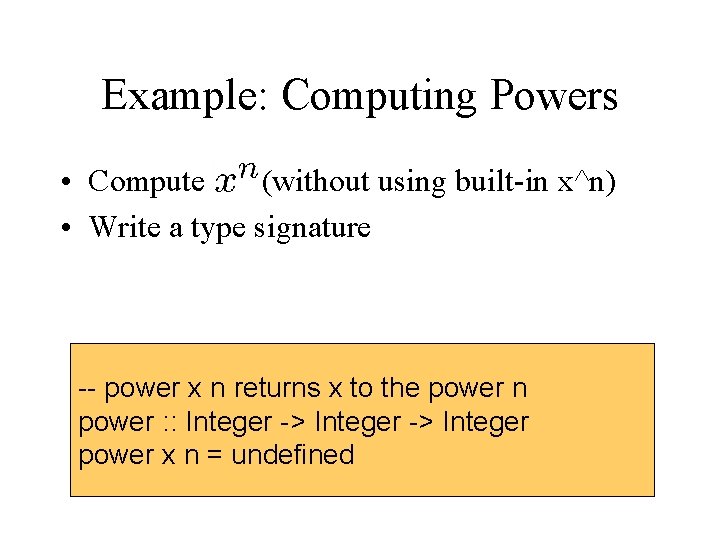

Example: Computing Powers • Compute (without using built-in x^n) • Write a type signature -- power x n returns x to the power n power : : Integer -> Integer power x n = undefined

How to Compute power? • We cannot write – power x n = x * … * x n times

A Table of Powers n power x n 0 1 1 x 2 x*x 3 x*x*x • Each row is x* the previous one • Define power x n to compute the nth row

A Definition? power x n = x * power x (n-1) • Testing: Main> power 2 2 ERROR - stack overflow Why?

A Definition? power x n | n > 0 = x * power x (n-1) • Testing: – Main> power 2 2 – Program error: pattern match failure: power 2 0

A Definition? First row of the table power x 0 = 1 power x n | n > 0 = x * power x (n-1) • Testing: – Main> power 2 2 – 4 The BASE CASE

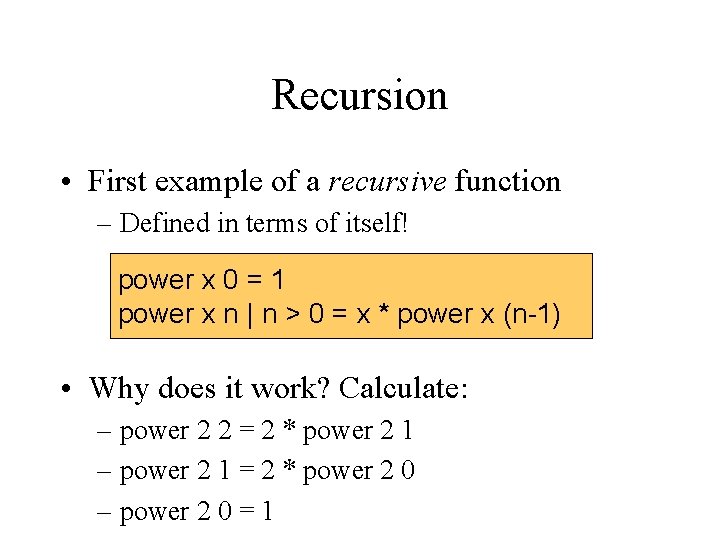

Recursion • First example of a recursive function – Defined in terms of itself! power x 0 = 1 power x n | n > 0 = x * power x (n-1) • Why does it work? Calculate: – power 2 2 = 2 * power 2 1 – power 2 1 = 2 * power 2 0 – power 2 0 = 1

Recursion • First example of a recursive function – Defined in terms of itself! power x 0 = 1 power x n | n > 0 = x * power x (n-1) • Why does it work? Calculate: – power 2 2 = 2 * power 2 1 – power 2 1 = 2 * 1 – power 2 0 = 1

Recursion • First example of a recursive function – Defined in terms of itself! power x 0 = 1 power x n | n > 0 = x * power x (n-1) • Why does it work? Calculate: – power 2 2 = 2 * 2 – power 2 1 = 2 * 1 – power 2 0 = 1 No circularity!

Recursion • First example of a recursive function – Defined in terms of itself! power x 0 = 1 power x n | n > 0 = x * power x (n-1) • Why does it work? Calculate: – power 2 2 = 2 * power 2 1 – power 2 1 = 2 * power 2 0 – power 2 0 = 1 The STACK

Recursion • Reduce a problem (e. g. power x n) to a smaller problem of the same kind • So that we eventually reach a ”smallest” base case • Solve base case separately • Build up solutions from smaller solutions Powerful problem solving strategy in any programming language!

Counting the regions • n lines. How many regions? remove one line. . . problem is easier! when do we stop?

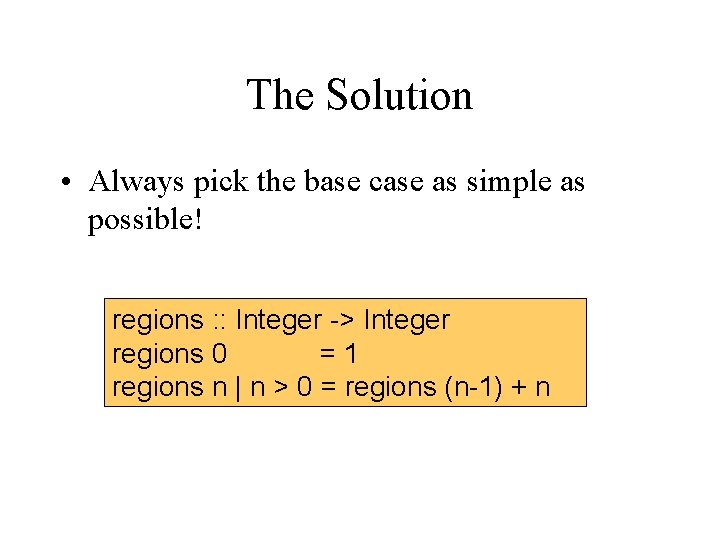

The Solution • Always pick the base case as simple as possible! regions : : Integer -> Integer regions 0 =1 regions n | n > 0 = regions (n-1) + n

Course Text Book The Craft of Functional Programming (second edition), by Simon Thompson. Available at Cremona. An excellent book which goes well beyond this course, so will be useful long after the course is over. Read Chapter 1 to 4 before the laboratory sessions on Wednesday, Thursday and Friday. uses Hugs instead of GHCi

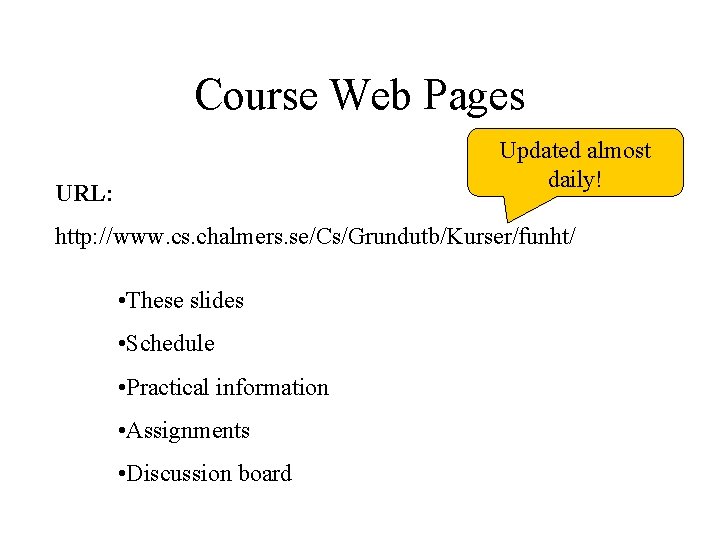

Course Web Pages Updated almost daily! URL: http: //www. cs. chalmers. se/Cs/Grundutb/Kurser/funht/ • These slides • Schedule • Practical information • Assignments • Discussion board
