Introduction to Probability Distributions Random Variable A random

Introduction to Probability Distributions

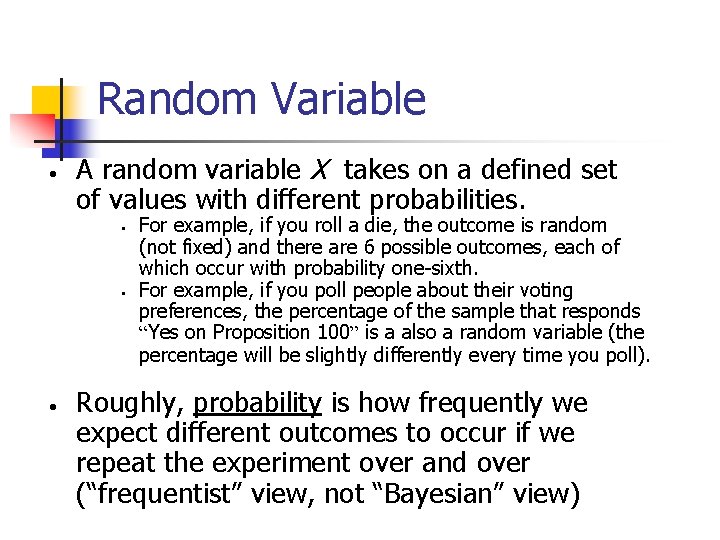

Random Variable • A random variable X takes on a defined set of values with different probabilities. • • • For example, if you roll a die, the outcome is random (not fixed) and there are 6 possible outcomes, each of which occur with probability one-sixth. For example, if you poll people about their voting preferences, the percentage of the sample that responds “Yes on Proposition 100” is a also a random variable (the percentage will be slightly differently every time you poll). Roughly, probability is how frequently we expect different outcomes to occur if we repeat the experiment over and over (“frequentist” view, not “Bayesian” view)

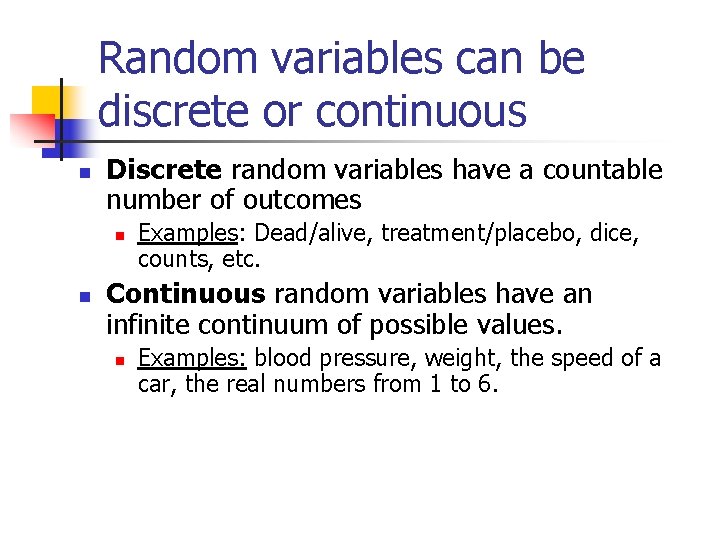

Random variables can be discrete or continuous n Discrete random variables have a countable number of outcomes n n Examples: Dead/alive, treatment/placebo, dice, counts, etc. Continuous random variables have an infinite continuum of possible values. n Examples: blood pressure, weight, the speed of a car, the real numbers from 1 to 6.

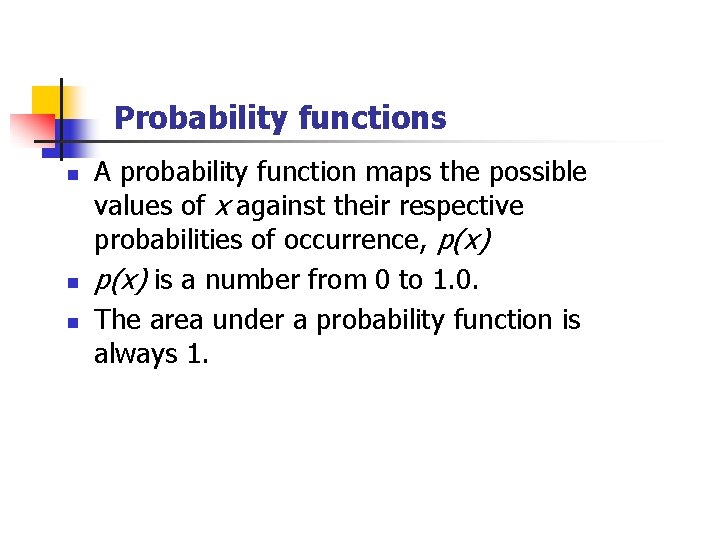

Probability functions n n n A probability function maps the possible values of x against their respective probabilities of occurrence, p(x) is a number from 0 to 1. 0. The area under a probability function is always 1.

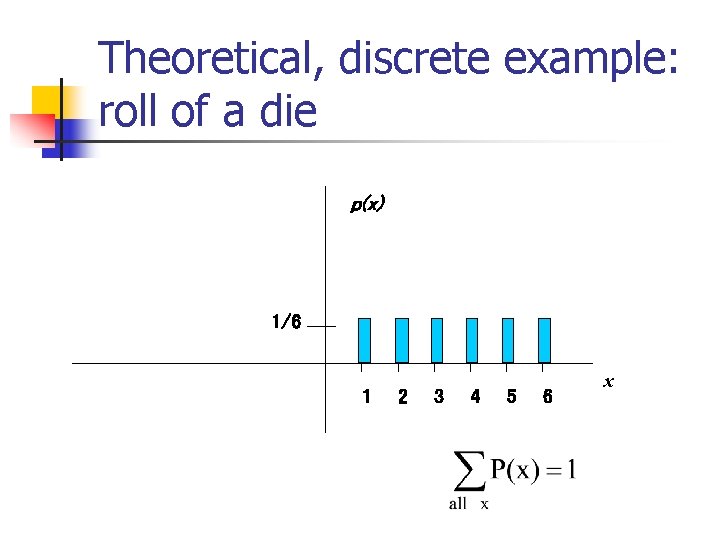

Theoretical, discrete example: roll of a die p(x) 1/6 1 2 3 4 5 6 x

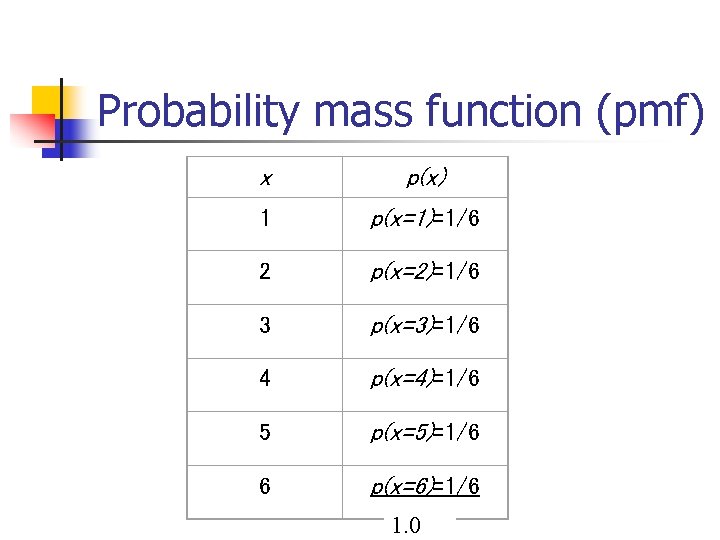

Probability mass function (pmf) x p(x) 1 p(x=1)=1/6 2 p(x=2)=1/6 3 p(x=3)=1/6 4 p(x=4)=1/6 5 p(x=5)=1/6 6 p(x=6)=1/6 1. 0

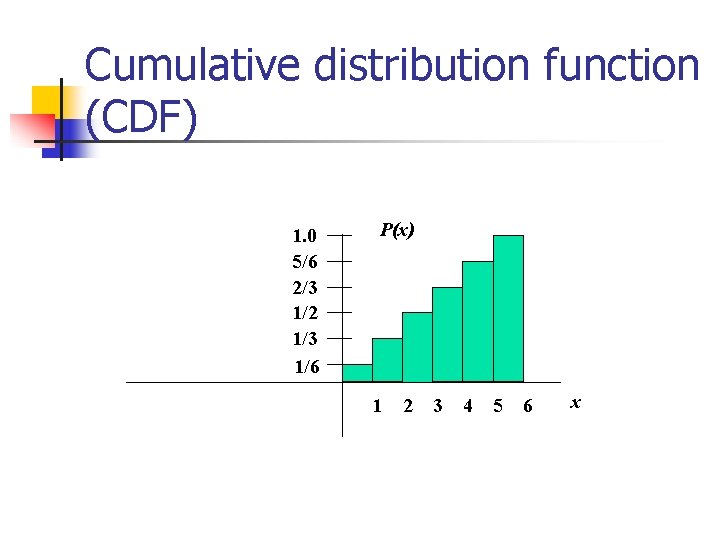

Cumulative distribution function (CDF) 1. 0 5/6 2/3 1/2 1/3 1/6 P(x) 1 2 3 4 5 6 x

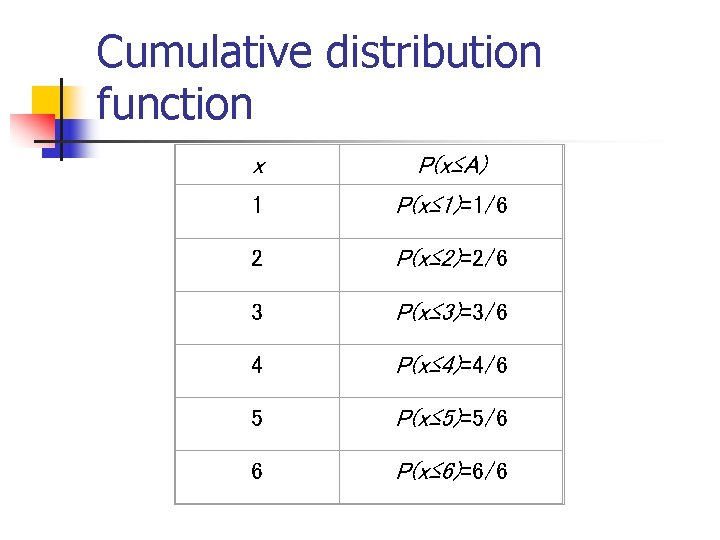

Cumulative distribution function x P(x≤A) 1 P(x≤ 1)=1/6 2 P(x≤ 2)=2/6 3 P(x≤ 3)=3/6 4 P(x≤ 4)=4/6 5 P(x≤ 5)=5/6 6 P(x≤ 6)=6/6

Practice Problem: n The number of patients seen in the ER in any given hour is a random variable represented by x. The probability distribution for x is: x P(x) 10. 4 11. 2 12. 2 13. 1 14. 1 Find the probability that in a given hour: a. exactly 14 patients arrive b. At least 12 patients arrive p(x 12)= (. 2 +. 1) =. 4 c. At most 11 patients arrive p(x≤ 11)= (. 4 +. 2) =. 6 p(x=14)=. 1

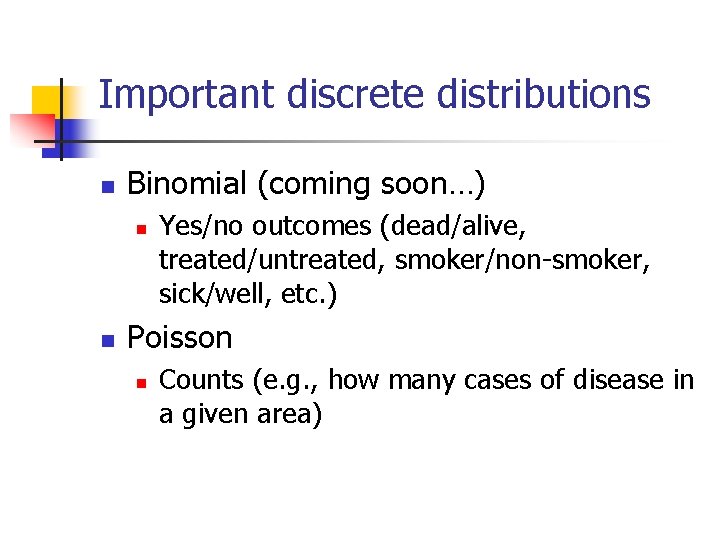

Important discrete distributions n Binomial (coming soon…) n n Yes/no outcomes (dead/alive, treated/untreated, smoker/non-smoker, sick/well, etc. ) Poisson n Counts (e. g. , how many cases of disease in a given area)

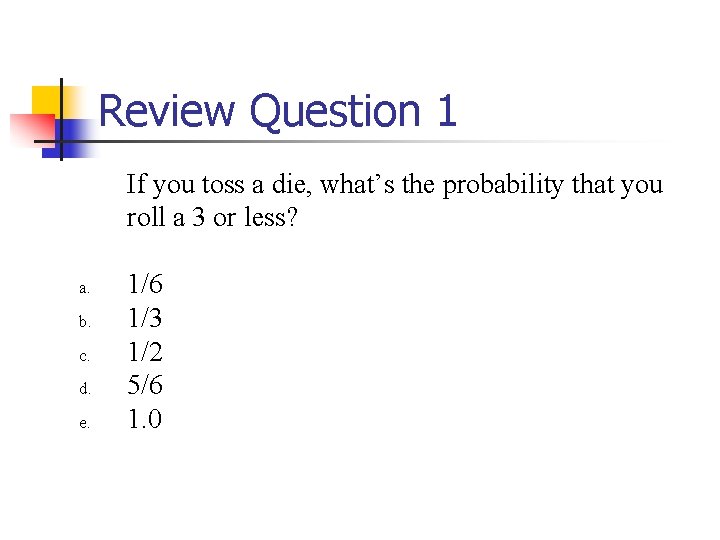

Review Question 1 If you toss a die, what’s the probability that you roll a 3 or less? a. b. c. d. e. 1/6 1/3 1/2 5/6 1. 0

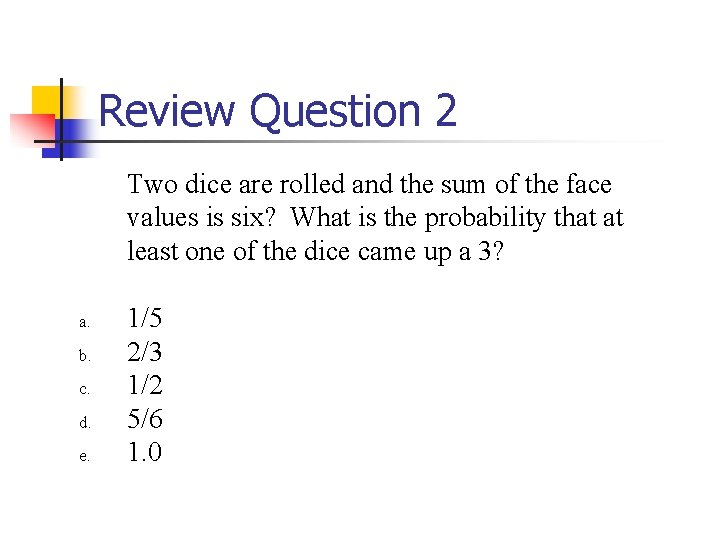

Review Question 2 Two dice are rolled and the sum of the face values is six? What is the probability that at least one of the dice came up a 3? a. b. c. d. e. 1/5 2/3 1/2 5/6 1. 0

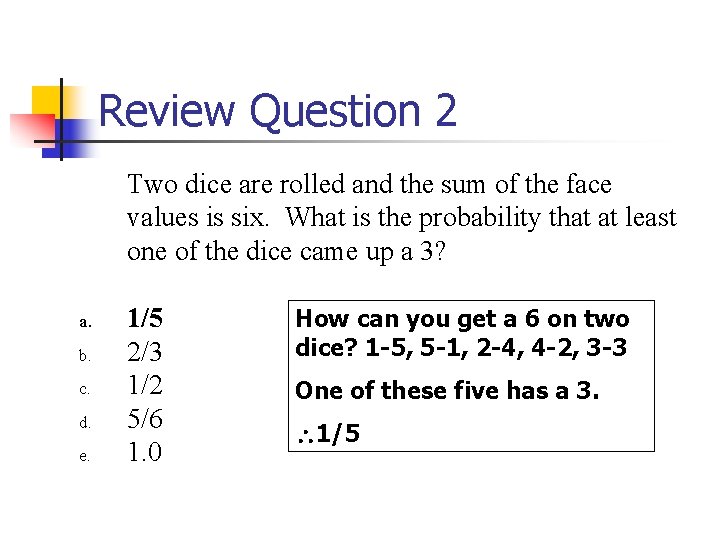

Review Question 2 Two dice are rolled and the sum of the face values is six. What is the probability that at least one of the dice came up a 3? a. b. c. d. e. 1/5 2/3 1/2 5/6 1. 0 How can you get a 6 on two dice? 1 -5, 5 -1, 2 -4, 4 -2, 3 -3 One of these five has a 3. 1/5

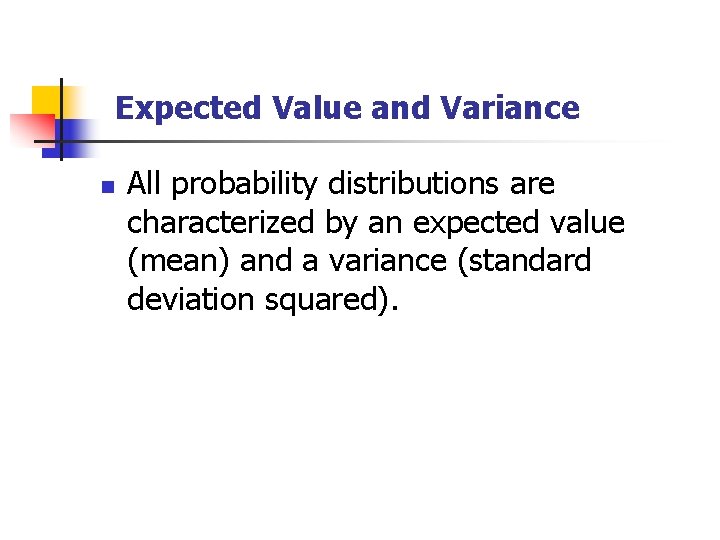

Expected Value and Variance n All probability distributions are characterized by an expected value (mean) and a variance (standard deviation squared).

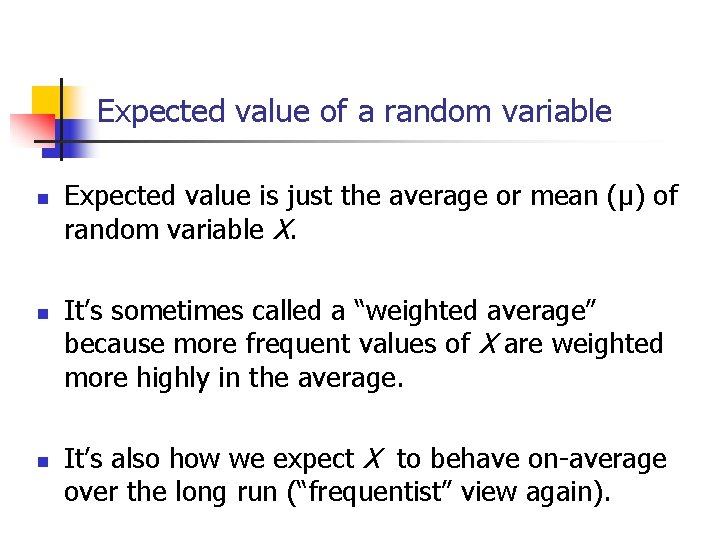

Expected value of a random variable n n n Expected value is just the average or mean (µ) of random variable X. It’s sometimes called a “weighted average” because more frequent values of X are weighted more highly in the average. It’s also how we expect X to behave on-average over the long run (“frequentist” view again).

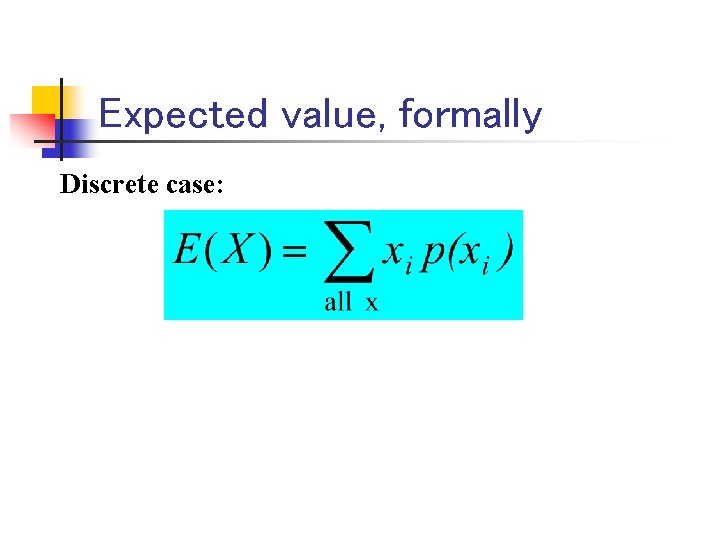

Expected value, formally Discrete case:

Example: expected value n Recall the following probability distribution of ER arrivals: x P(x) 10. 4 11. 2 12. 2 13. 1 14. 1

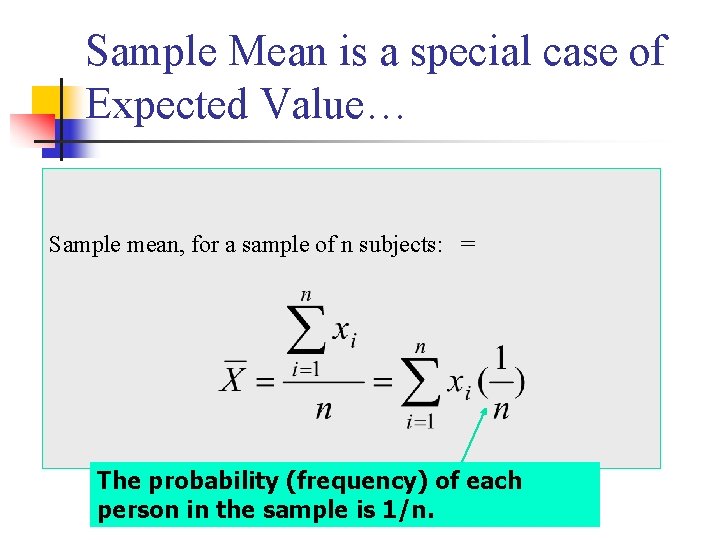

Sample Mean is a special case of Expected Value… Sample mean, for a sample of n subjects: = The probability (frequency) of each person in the sample is 1/n.

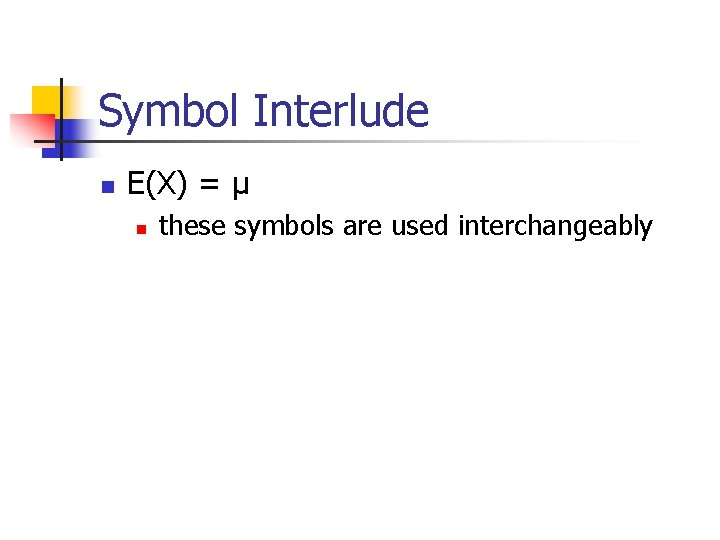

Symbol Interlude n E(X) = µ n these symbols are used interchangeably

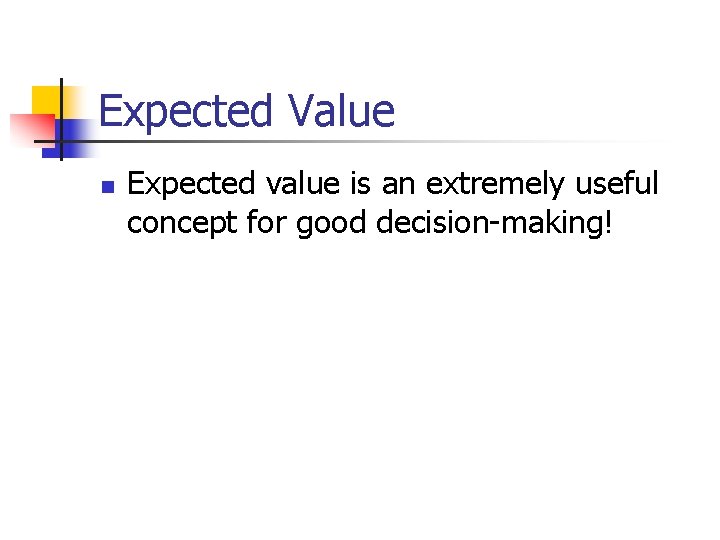

Expected Value n Expected value is an extremely useful concept for good decision-making!

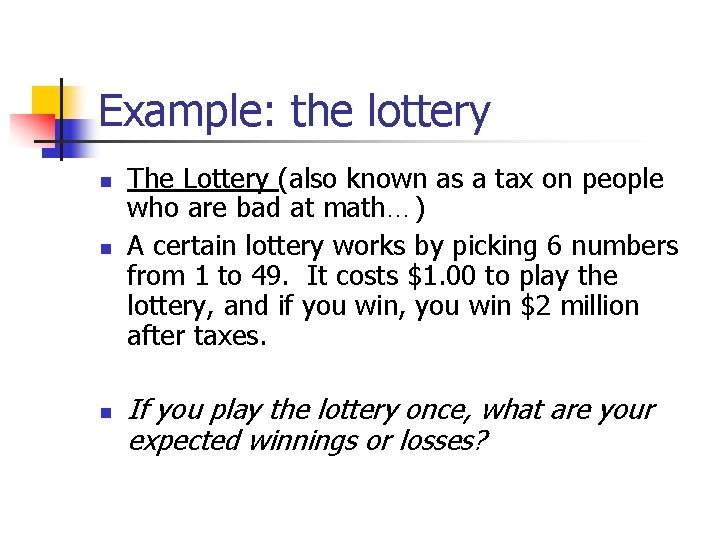

Example: the lottery n n n The Lottery (also known as a tax on people who are bad at math…) A certain lottery works by picking 6 numbers from 1 to 49. It costs $1. 00 to play the lottery, and if you win, you win $2 million after taxes. If you play the lottery once, what are your expected winnings or losses?

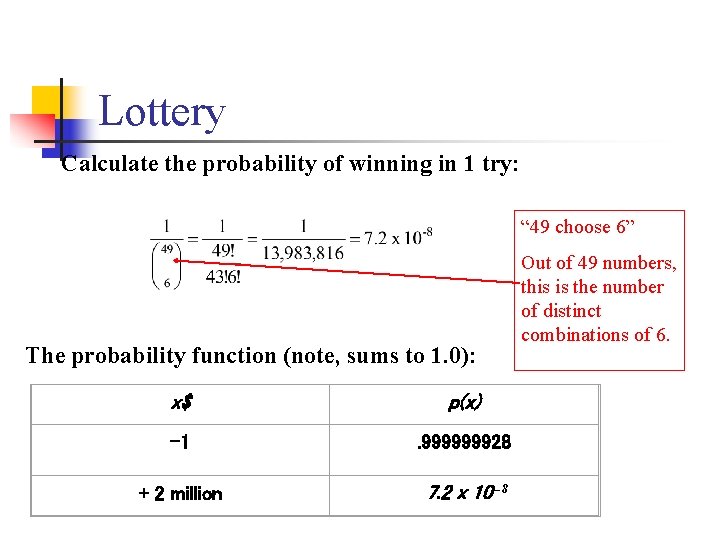

Lottery Calculate the probability of winning in 1 try: “ 49 choose 6” The probability function (note, sums to 1. 0): x$ p(x) -1 . 999999928 + 2 million 7. 2 x 10 --8 Out of 49 numbers, this is the number of distinct combinations of 6.

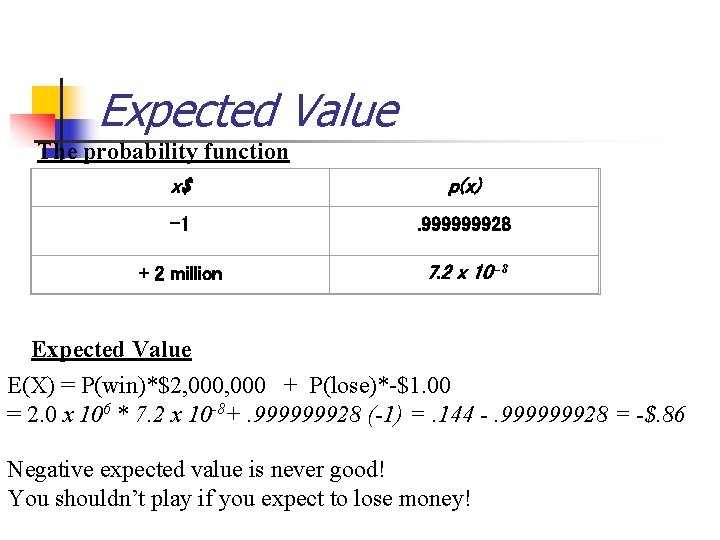

Expected Value The probability function x$ p(x) -1 . 999999928 + 2 million 7. 2 x 10 --8 Expected Value E(X) = P(win)*$2, 000 + P(lose)*-$1. 00 = 2. 0 x 106 * 7. 2 x 10 -8+. 999999928 (-1) =. 144 -. 999999928 = -$. 86 Negative expected value is never good! You shouldn’t play if you expect to lose money!

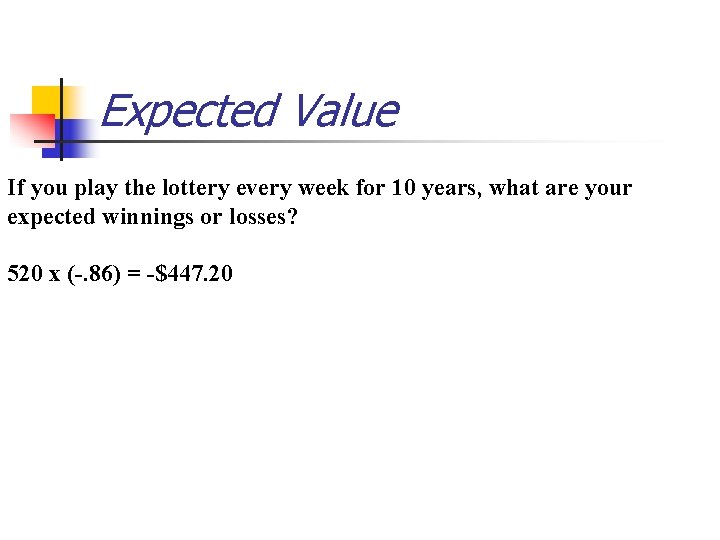

Expected Value If you play the lottery every week for 10 years, what are your expected winnings or losses? 520 x (-. 86) = -$447. 20

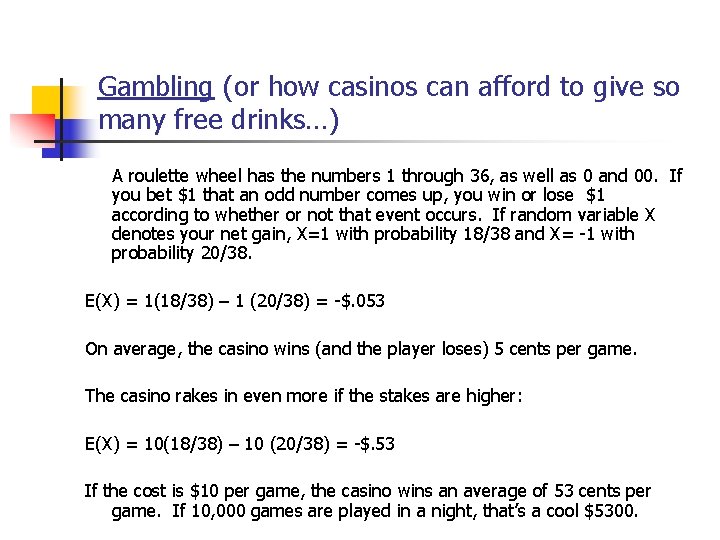

Gambling (or how casinos can afford to give so many free drinks…) A roulette wheel has the numbers 1 through 36, as well as 0 and 00. If you bet $1 that an odd number comes up, you win or lose $1 according to whether or not that event occurs. If random variable X denotes your net gain, X=1 with probability 18/38 and X= -1 with probability 20/38. E(X) = 1(18/38) – 1 (20/38) = -$. 053 On average, the casino wins (and the player loses) 5 cents per game. The casino rakes in even more if the stakes are higher: E(X) = 10(18/38) – 10 (20/38) = -$. 53 If the cost is $10 per game, the casino wins an average of 53 cents per game. If 10, 000 games are played in a night, that’s a cool $5300.

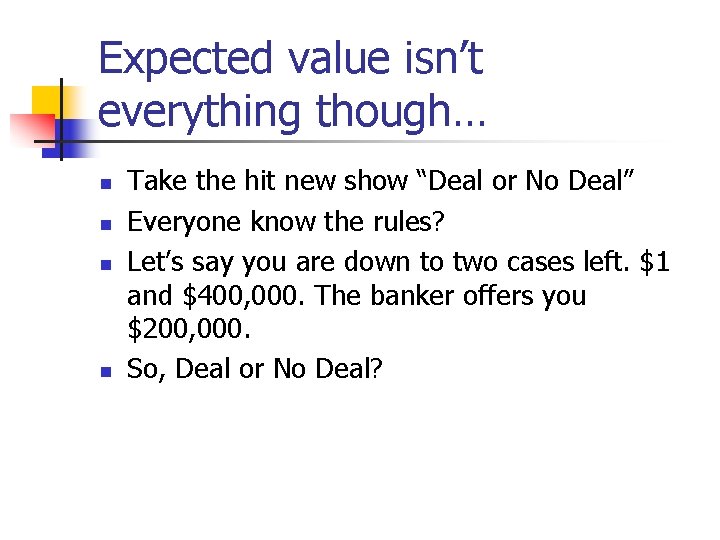

Expected value isn’t everything though… n n Take the hit new show “Deal or No Deal” Everyone know the rules? Let’s say you are down to two cases left. $1 and $400, 000. The banker offers you $200, 000. So, Deal or No Deal?

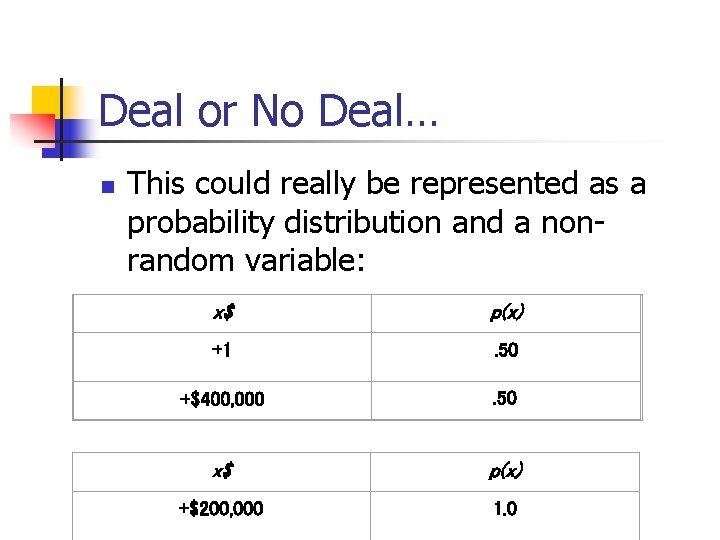

Deal or No Deal… n This could really be represented as a probability distribution and a nonrandom variable: x$ p(x) +1 . 50 +$400, 000 . 50 x$ p(x) +$200, 000 1. 0

Expected value doesn’t help… x$ p(x) +1 . 50 +$400, 000 . 50 x$ p(x) +$200, 000 1. 0

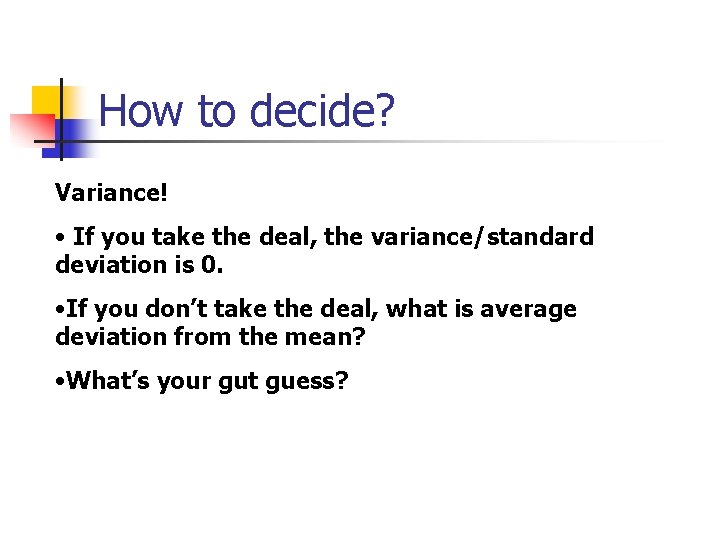

How to decide? Variance! • If you take the deal, the variance/standard deviation is 0. • If you don’t take the deal, what is average deviation from the mean? • What’s your gut guess?

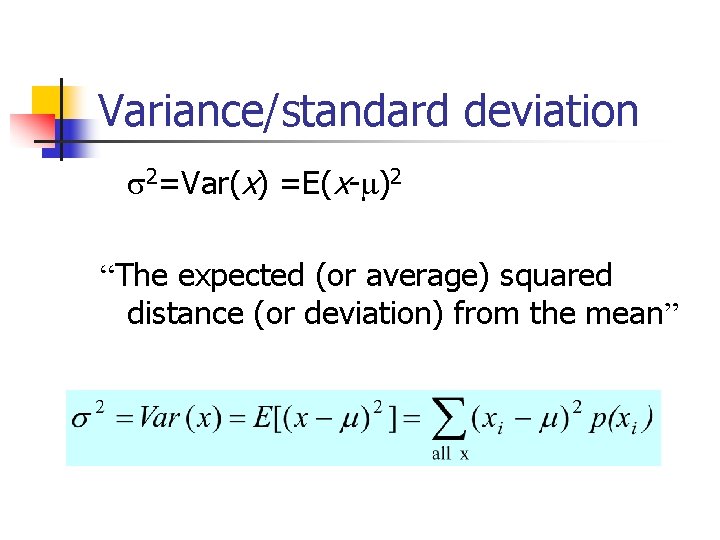

Variance/standard deviation 2=Var(x) =E(x- )2 “The expected (or average) squared distance (or deviation) from the mean”

Similarity to empirical variance The variance of a sample: s 2 = Division by n-1 reflects the fact that we have lost a “degree of freedom” (piece of information) because we had to estimate the sample mean before we could estimate the sample variance.

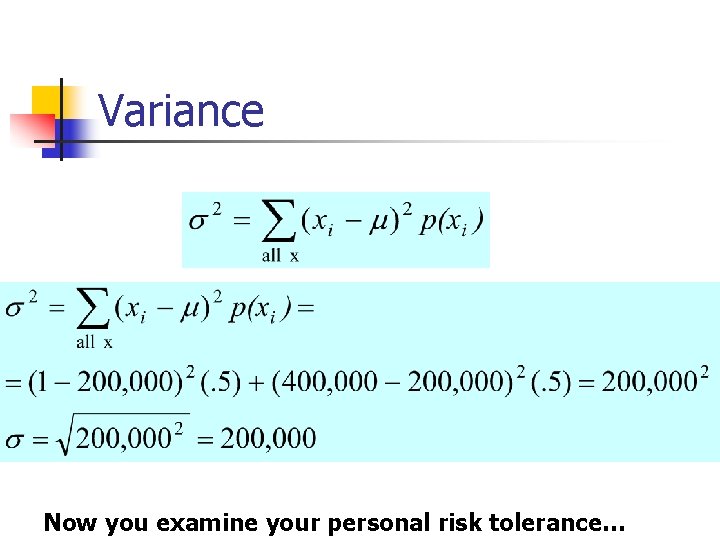

Variance Now you examine your personal risk tolerance…

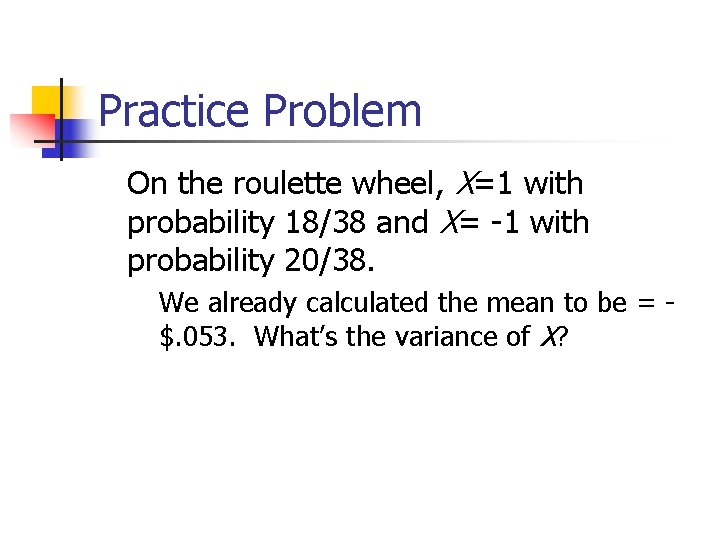

Practice Problem On the roulette wheel, X=1 with probability 18/38 and X= -1 with probability 20/38. n We already calculated the mean to be = $. 053. What’s the variance of X?

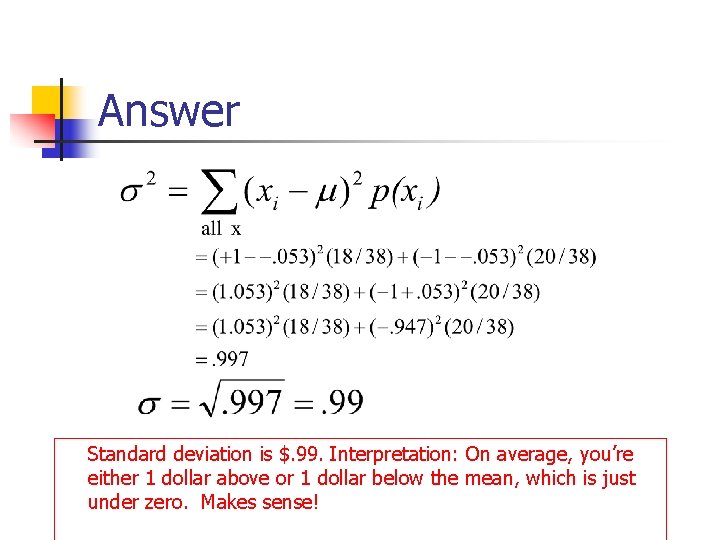

Answer Standard deviation is $. 99. Interpretation: On average, you’re either 1 dollar above or 1 dollar below the mean, which is just under zero. Makes sense!

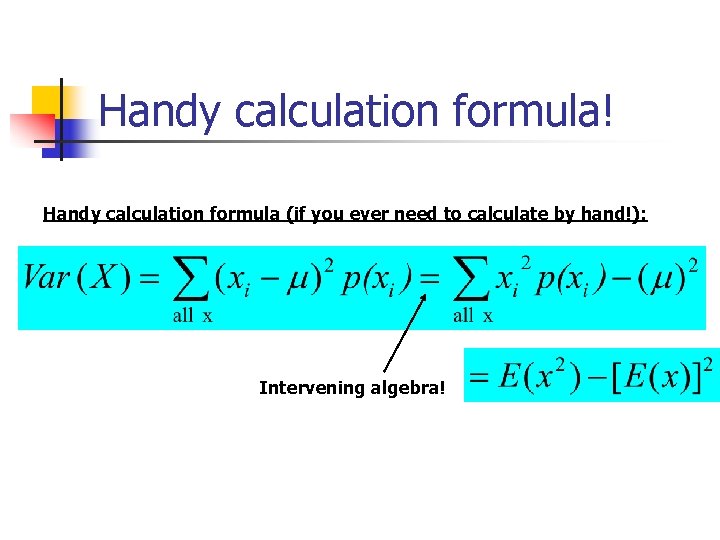

Handy calculation formula! Handy calculation formula (if you ever need to calculate by hand!): Intervening algebra!

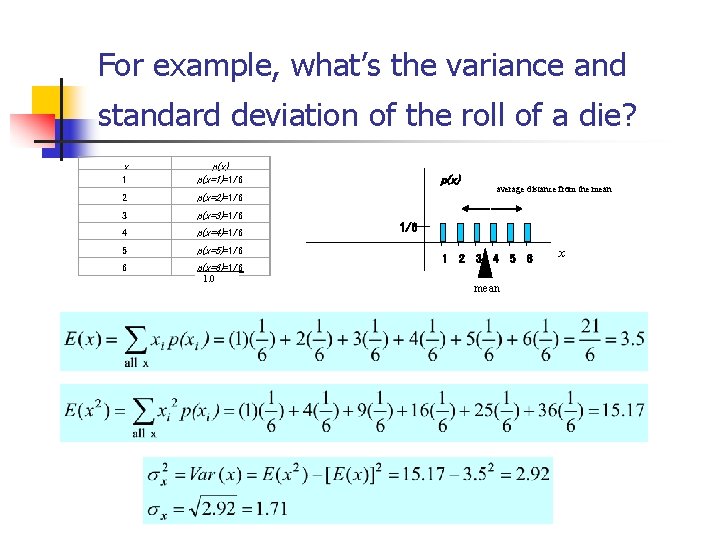

For example, what’s the variance and standard deviation of the roll of a die? 1 x p(x) p(x=1)=1/6 2 p(x=2)=1/6 3 p(x=3)=1/6 4 p(x=4)=1/6 5 p(x=5)=1/6 6 p(x=6)=1/6 1. 0 p(x) average distance from the mean 1/6 1 2 3 4 5 6 mean x

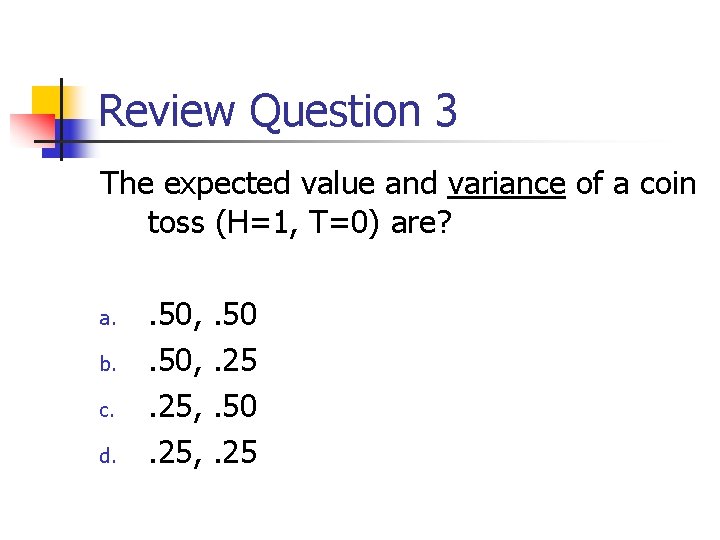

Review Question 3 The expected value and variance of a coin toss (H=1, T=0) are? a. b. c. d. . 50, . 25, . 50. 25

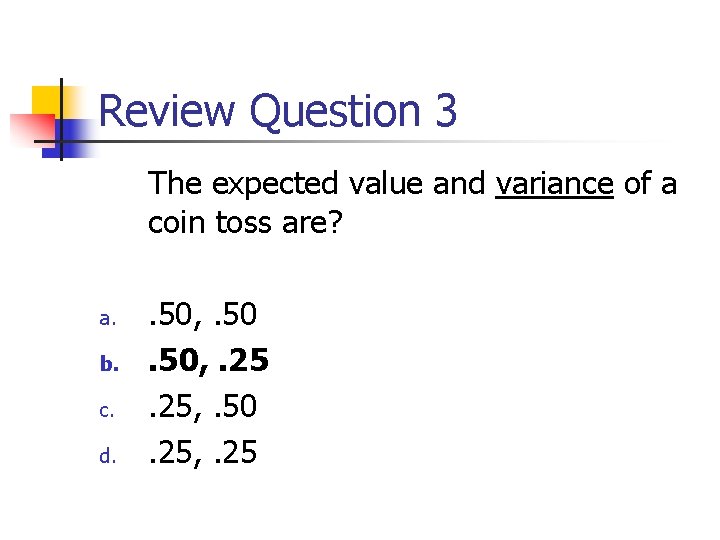

Review Question 3 The expected value and variance of a coin toss are? a. b. c. d. . 50, . 25, . 50. 25, . 25

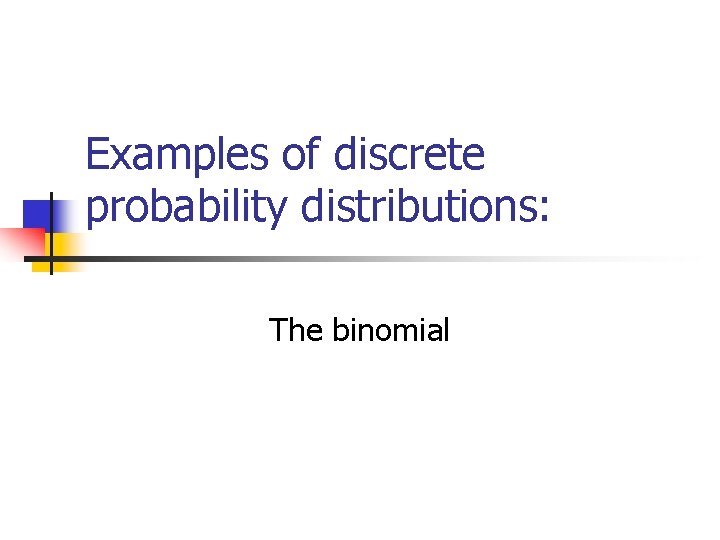

Examples of discrete probability distributions: The binomial

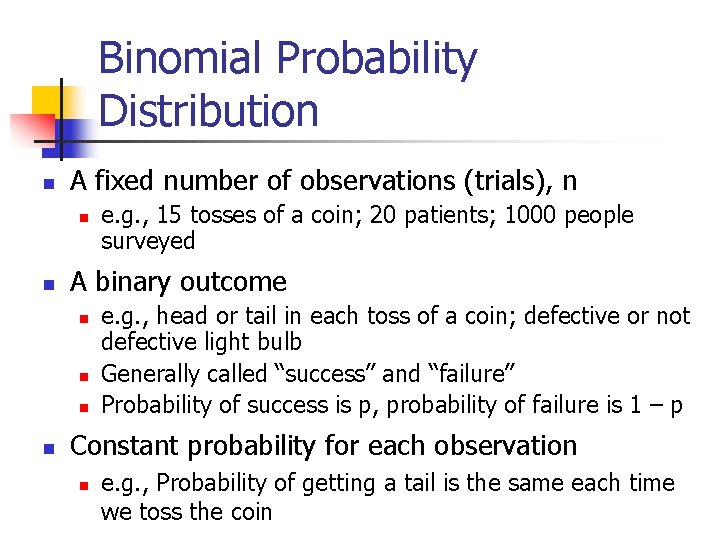

Binomial Probability Distribution n A fixed number of observations (trials), n n n A binary outcome n n e. g. , 15 tosses of a coin; 20 patients; 1000 people surveyed e. g. , head or tail in each toss of a coin; defective or not defective light bulb Generally called “success” and “failure” Probability of success is p, probability of failure is 1 – p Constant probability for each observation n e. g. , Probability of getting a tail is the same each time we toss the coin

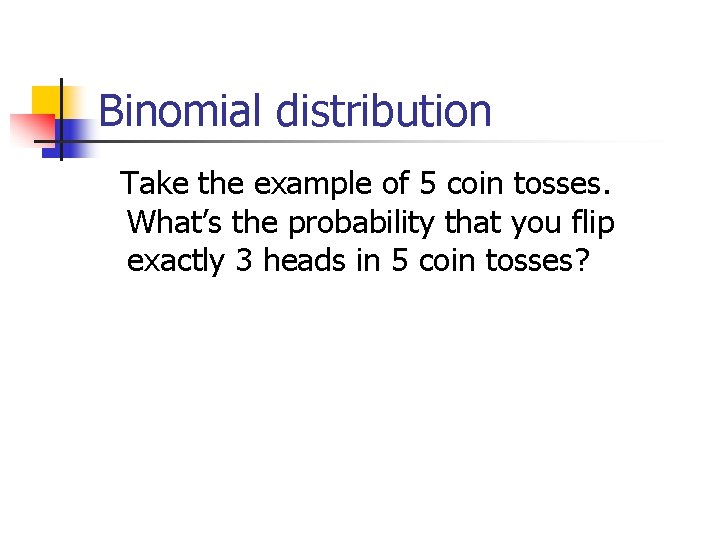

Binomial distribution Take the example of 5 coin tosses. What’s the probability that you flip exactly 3 heads in 5 coin tosses?

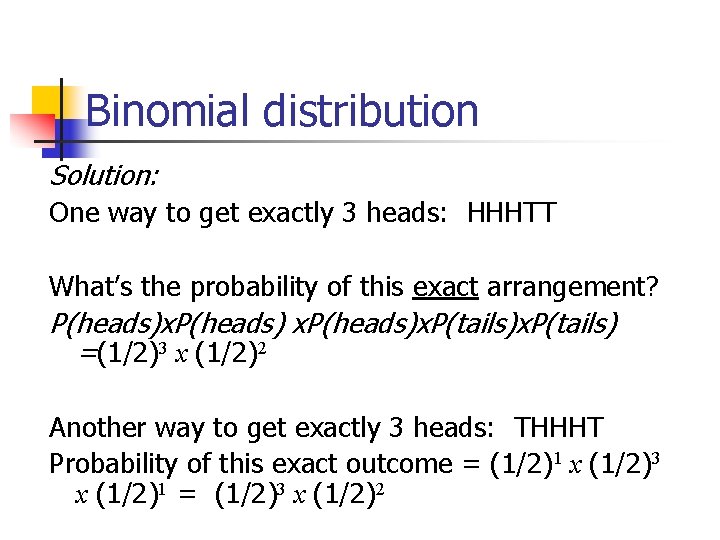

Binomial distribution Solution: One way to get exactly 3 heads: HHHTT What’s the probability of this exact arrangement? P(heads)x. P(tails) =(1/2)3 x (1/2)2 Another way to get exactly 3 heads: THHHT Probability of this exact outcome = (1/2)1 x (1/2)3 x (1/2)1 = (1/2)3 x (1/2)2

Binomial distribution In fact, (1/2)3 x (1/2)2 is the probability of each unique outcome that has exactly 3 heads and 2 tails. So, the overall probability of 3 heads and 2 tails is: (1/2)3 x (1/2)2 + …. . for as many unique arrangements as there are—but how many are there? ?

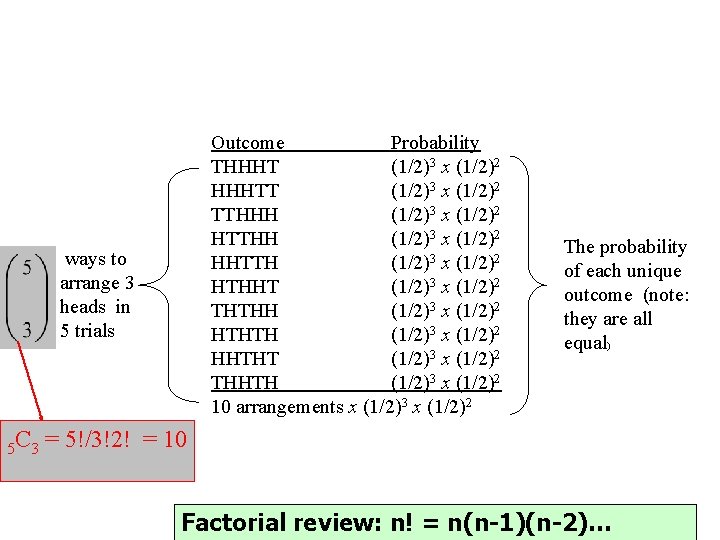

Outcome Probability THHHT (1/2)3 x (1/2)2 HHHTT (1/2)3 x (1/2)2 TTHHH (1/2)3 x (1/2)2 HTTHH (1/2)3 x (1/2)2 HHTTH (1/2)3 x (1/2)2 HTHHT (1/2)3 x (1/2)2 THTHH (1/2)3 x (1/2)2 HTHTH (1/2)3 x (1/2)2 HHTHT (1/2)3 x (1/2)2 THHTH (1/2)3 x (1/2)2 10 arrangements x (1/2)3 x (1/2)2 ways to arrange 3 heads in 5 trials 5 C 3 The probability of each unique outcome (note: they are all equal) = 5!/3!2! = 10 Factorial review: n! = n(n-1)(n-2)…

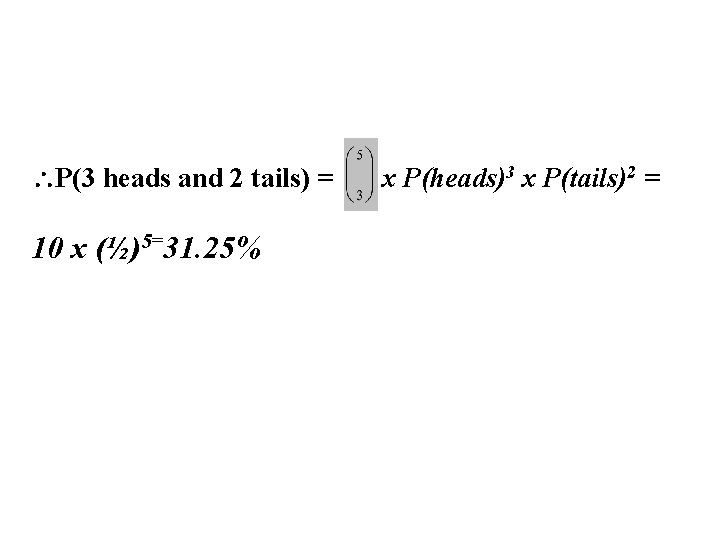

P(3 heads and 2 tails) = 10 x (½)5=31. 25% x P(heads)3 x P(tails)2 =

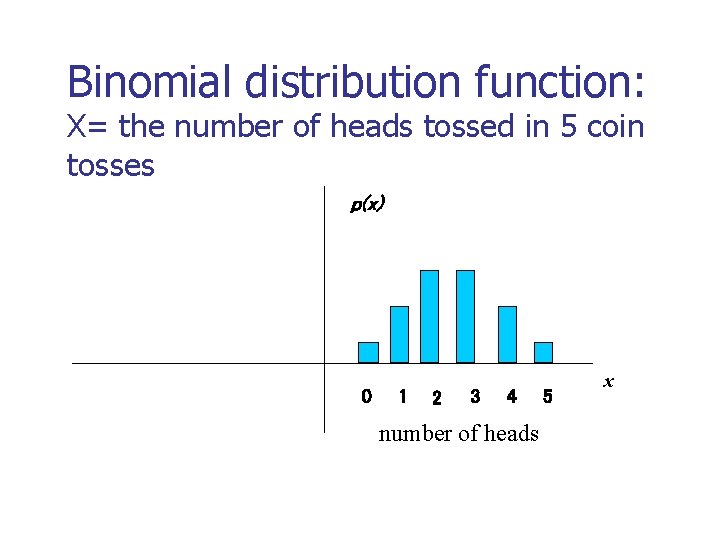

Binomial distribution function: X= the number of heads tossed in 5 coin tosses p(x) 0 1 2 3 4 number of heads 5 x

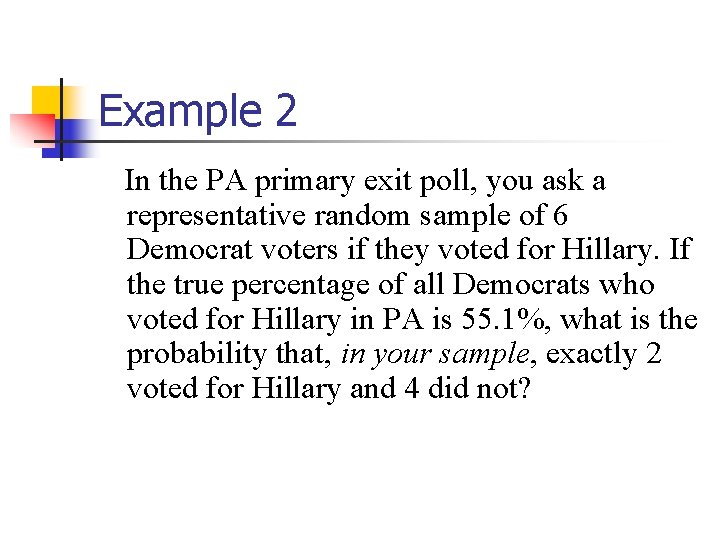

Example 2 In the PA primary exit poll, you ask a representative random sample of 6 Democrat voters if they voted for Hillary. If the true percentage of all Democrats who voted for Hillary in PA is 55. 1%, what is the probability that, in your sample, exactly 2 voted for Hillary and 4 did not?

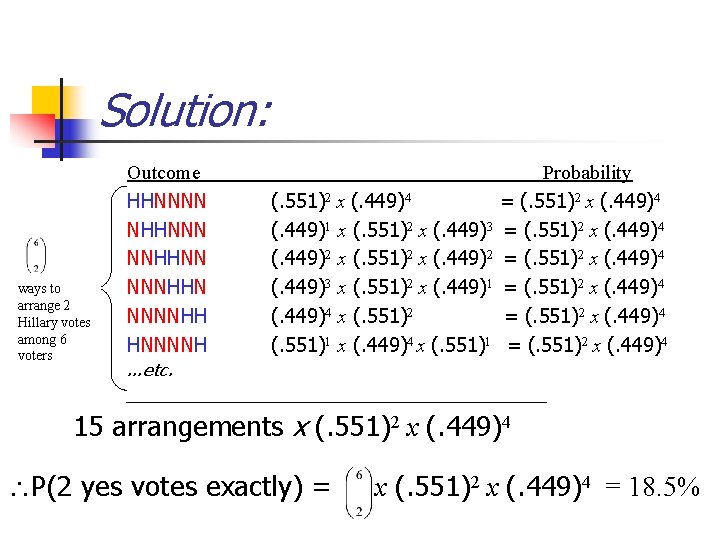

Solution: ways to arrange 2 Hillary votes among 6 voters Outcome HHNNNN NHHNNN NNHHNN NNNHHN NNNNHH HNNNNH (. 551)2 x (. 449)4 (. 449)1 x (. 551)2 x (. 449)3 (. 449)2 x (. 551)2 x (. 449)2 (. 449)3 x (. 551)2 x (. 449)1 (. 449)4 x (. 551)2 (. 551)1 x (. 449)4 x (. 551)1 Probability = (. 551)2 x (. 449)4 …etc. 15 arrangements x (. 551)2 x (. 449)4 P(2 yes votes exactly) = x (. 551)2 x (. 449)4 = 18. 5%

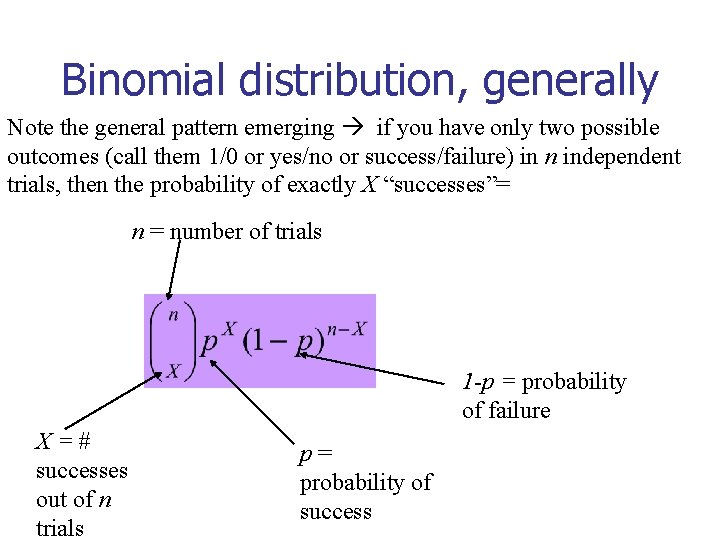

Binomial distribution, generally Note the general pattern emerging if you have only two possible outcomes (call them 1/0 or yes/no or success/failure) in n independent trials, then the probability of exactly X “successes”= n = number of trials 1 -p = probability of failure X=# successes out of n trials p= probability of success

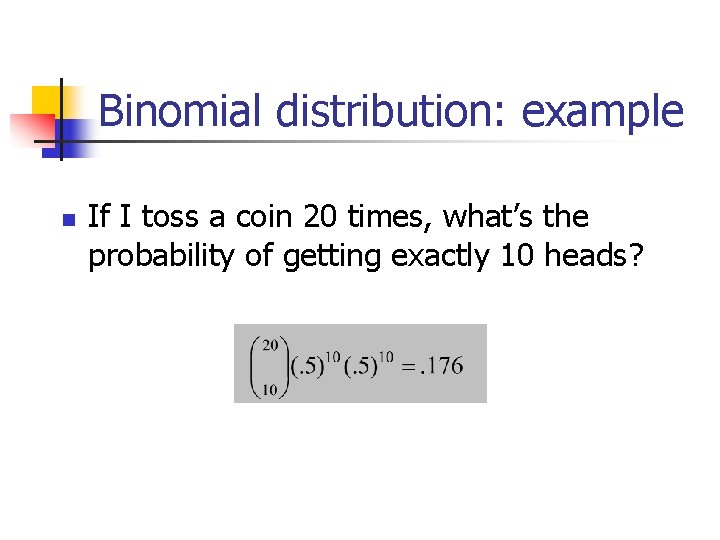

Binomial distribution: example n If I toss a coin 20 times, what’s the probability of getting exactly 10 heads?

Binomial distribution: example n If I toss a coin 20 times, what’s the probability of getting 2 or fewer heads?

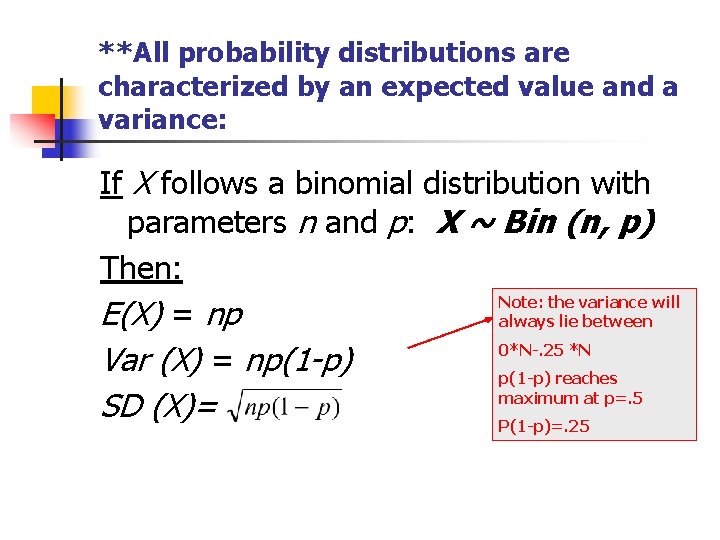

**All probability distributions are characterized by an expected value and a variance: If X follows a binomial distribution with parameters n and p: X ~ Bin (n, p) Then: Note: the variance will E(X) = np always lie between 0*N-. 25 *N Var (X) = np(1 -p) reaches SD (X)= maximum at p=. 5 P(1 -p)=. 25

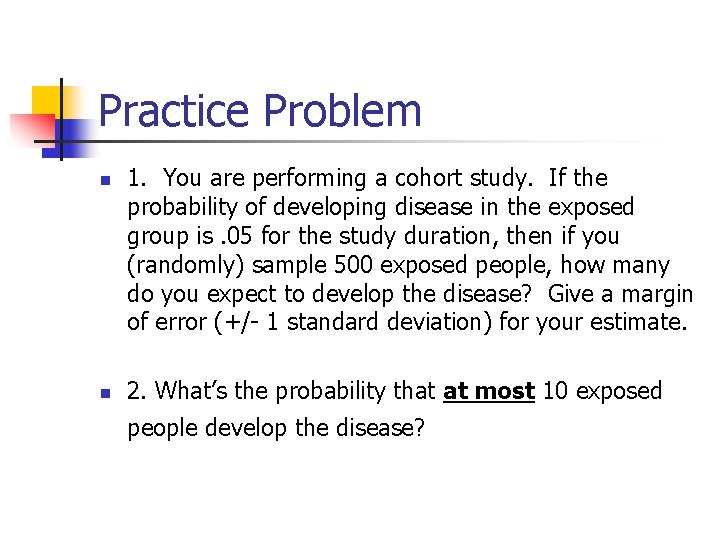

Practice Problem n n 1. You are performing a cohort study. If the probability of developing disease in the exposed group is. 05 for the study duration, then if you (randomly) sample 500 exposed people, how many do you expect to develop the disease? Give a margin of error (+/- 1 standard deviation) for your estimate. 2. What’s the probability that at most 10 exposed people develop the disease?

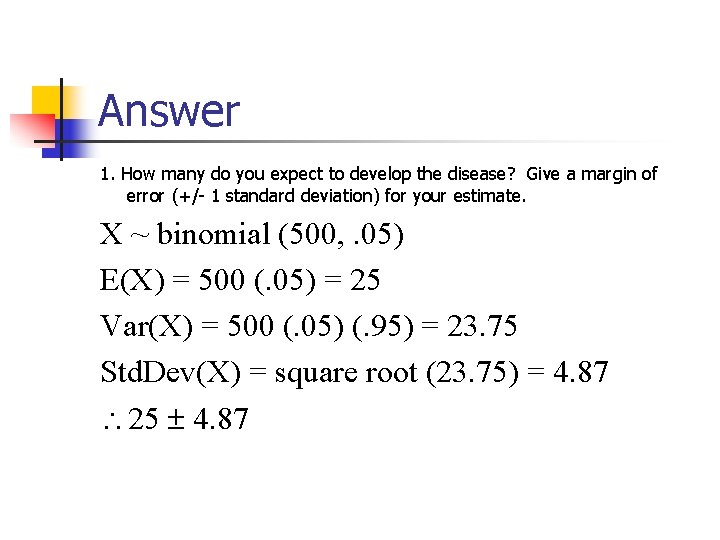

Answer 1. How many do you expect to develop the disease? Give a margin of error (+/- 1 standard deviation) for your estimate. X ~ binomial (500, . 05) E(X) = 500 (. 05) = 25 Var(X) = 500 (. 05) (. 95) = 23. 75 Std. Dev(X) = square root (23. 75) = 4. 87 25 4. 87

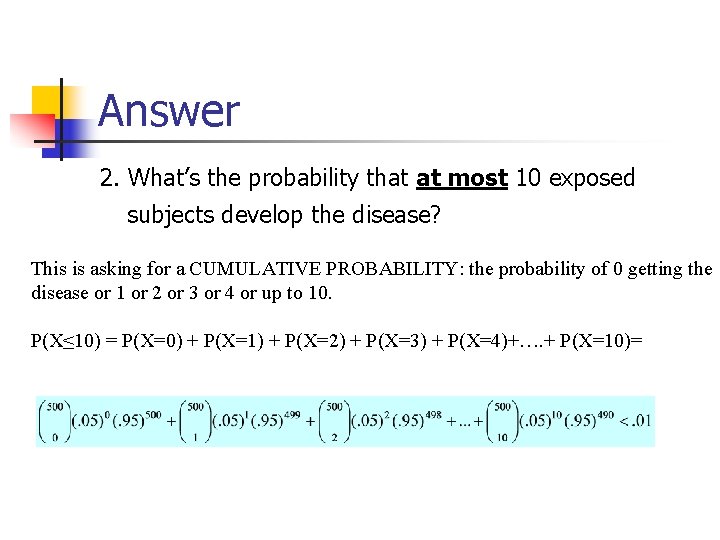

Answer 2. What’s the probability that at most 10 exposed subjects develop the disease? This is asking for a CUMULATIVE PROBABILITY: the probability of 0 getting the disease or 1 or 2 or 3 or 4 or up to 10. P(X≤ 10) = P(X=0) + P(X=1) + P(X=2) + P(X=3) + P(X=4)+…. + P(X=10)=

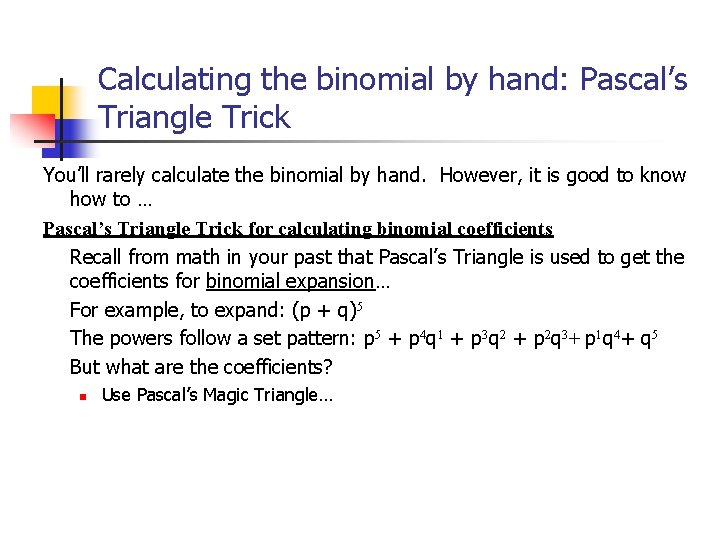

Calculating the binomial by hand: Pascal’s Triangle Trick You’ll rarely calculate the binomial by hand. However, it is good to know how to … Pascal’s Triangle Trick for calculating binomial coefficients Recall from math in your past that Pascal’s Triangle is used to get the coefficients for binomial expansion… For example, to expand: (p + q)5 The powers follow a set pattern: p 5 + p 4 q 1 + p 3 q 2 + p 2 q 3+ p 1 q 4+ q 5 But what are the coefficients? n Use Pascal’s Magic Triangle…

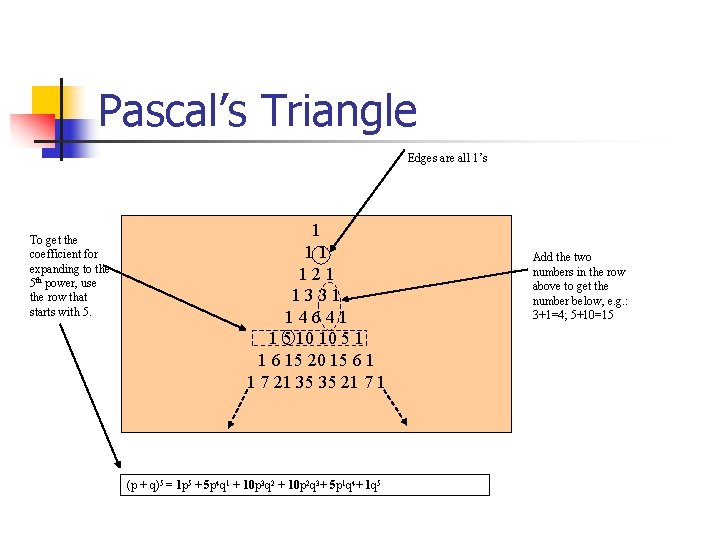

Pascal’s Triangle Edges are all 1’s To get the coefficient for expanding to the 5 th power, use the row that starts with 5. 1 11 121 1331 14641 1 5 10 10 5 1 1 6 15 20 15 6 1 1 7 21 35 35 21 7 1 (p + q)5 = 1 p 5 + 5 p 4 q 1 + 10 p 3 q 2 + 10 p 2 q 3+ 5 p 1 q 4+ 1 q 5 Add the two numbers in the row above to get the number below, e. g. : 3+1=4; 5+10=15

Same coefficients for X~Bin(5, p) For example, X=# heads in 5 coin tosses: X P(X) 0 1 2 3 4 5 From line 5 of Pascal’s triangle!

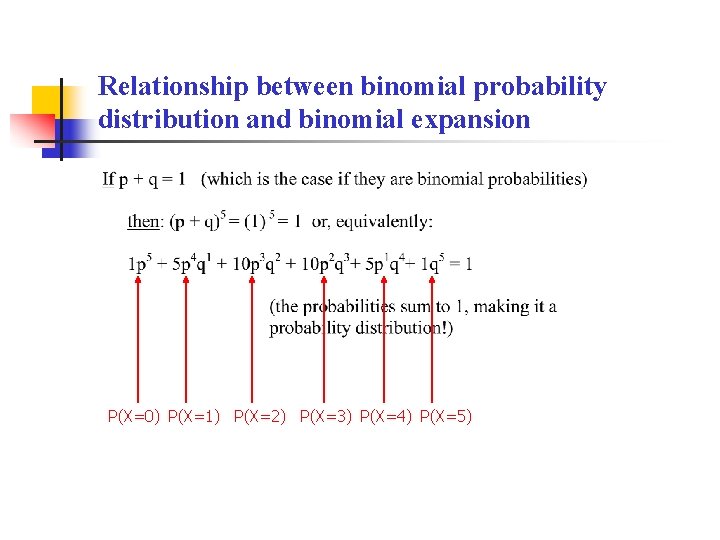

Relationship between binomial probability distribution and binomial expansion P(X=0) P(X=1) P(X=2) P(X=3) P(X=4) P(X=5)

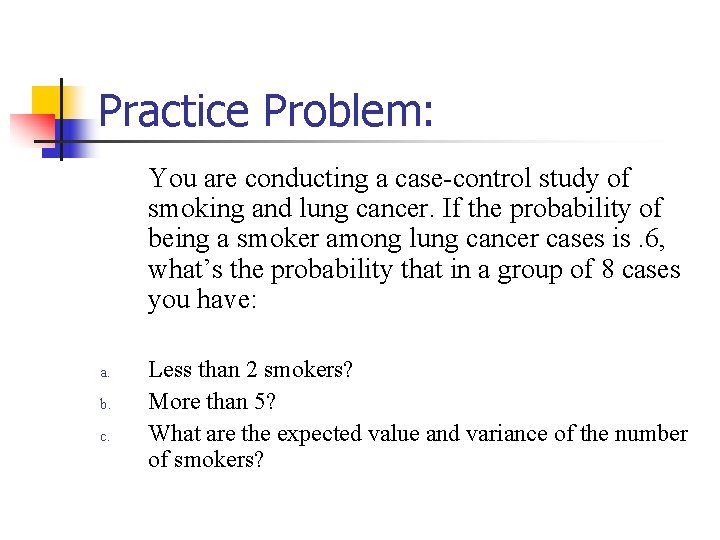

Practice Problem: You are conducting a case-control study of smoking and lung cancer. If the probability of being a smoker among lung cancer cases is. 6, what’s the probability that in a group of 8 cases you have: a. b. c. Less than 2 smokers? More than 5? What are the expected value and variance of the number of smokers?

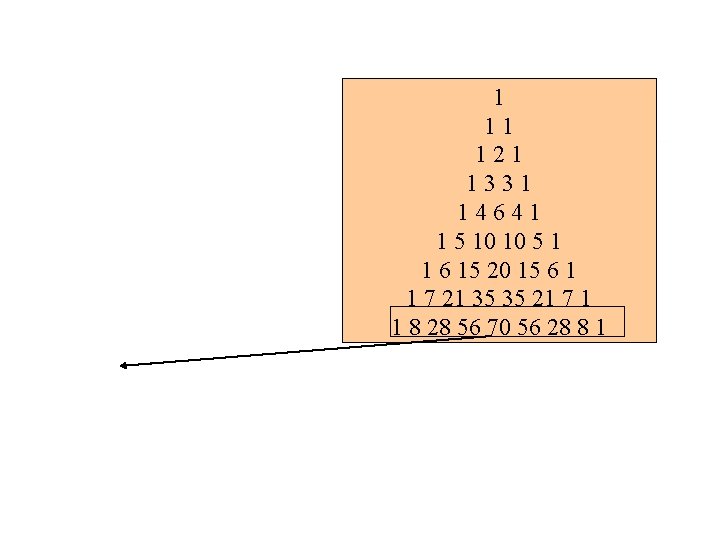

Answer 1 11 121 1331 14641 1 5 10 10 5 1 1 6 15 20 15 6 1 1 7 21 35 35 21 7 1 1 8 28 56 70 56 28 8 1

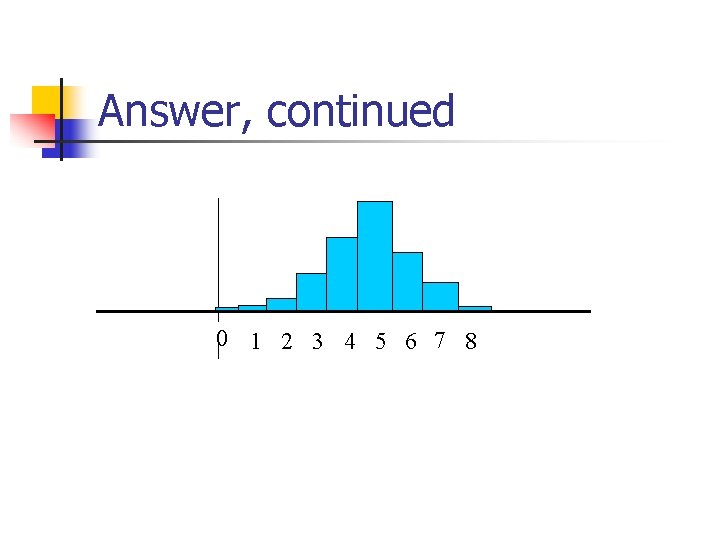

Answer, continued 0 1 2 3 4 5 6 7 8

Answer, continued P(<2)=. 00065 +. 008 =. 00865 P(>5)=. 21+. 09+. 0168 =. 3168 0 1 2 3 4 5 6 7 8 E(X) = 8 (. 6) = 4. 8 Var(X) = 8 (. 6) (. 4) =1. 92 Std. Dev(X) = 1. 38

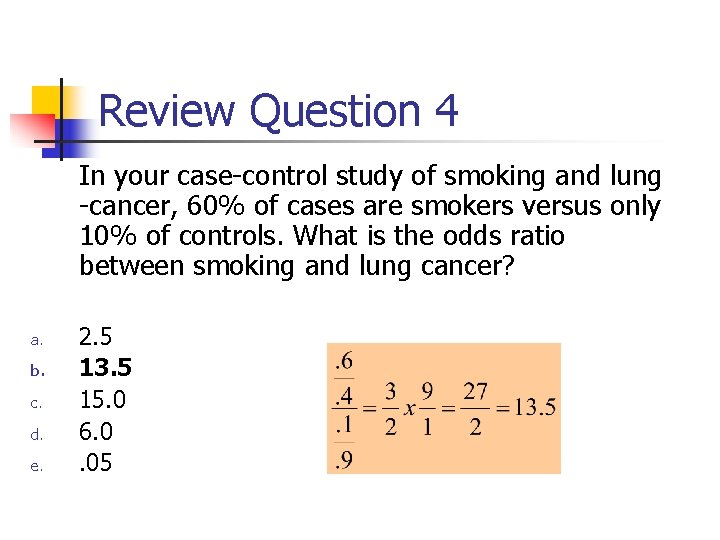

Review Question 4 In your case-control study of smoking and lung -cancer, 60% of cases are smokers versus only 10% of controls. What is the odds ratio between smoking and lung cancer? a. b. c. d. e. 2. 5 13. 5 15. 0 6. 0. 05

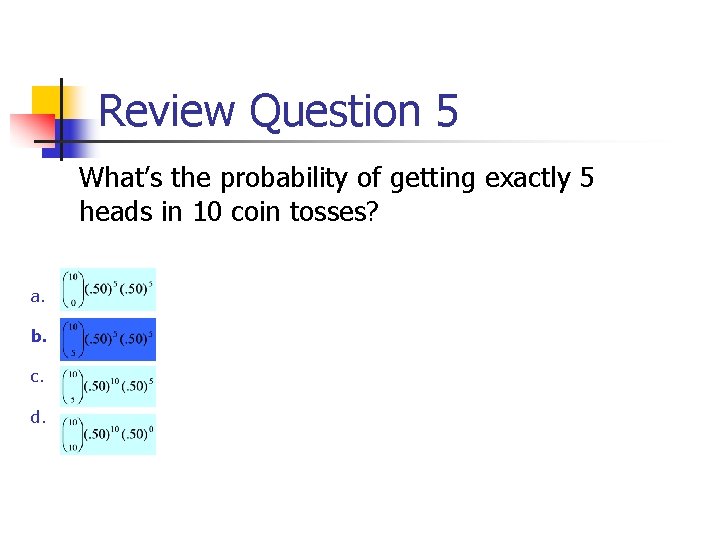

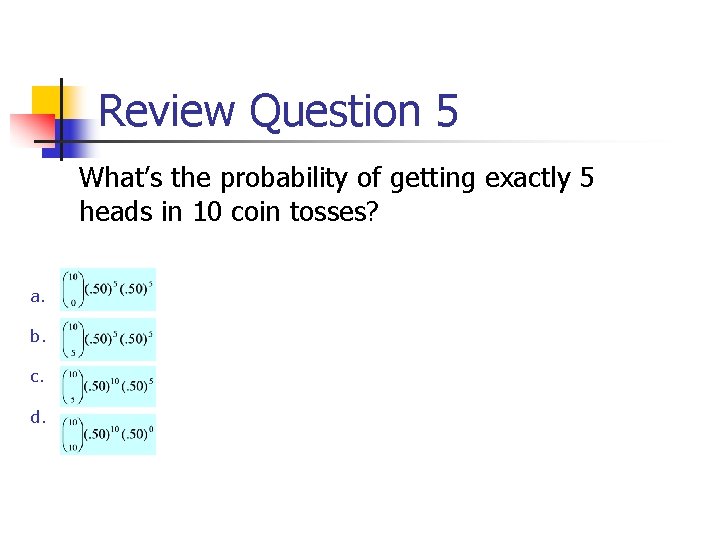

Review Question 5 What’s the probability of getting exactly 5 heads in 10 coin tosses? a. b. c. d.

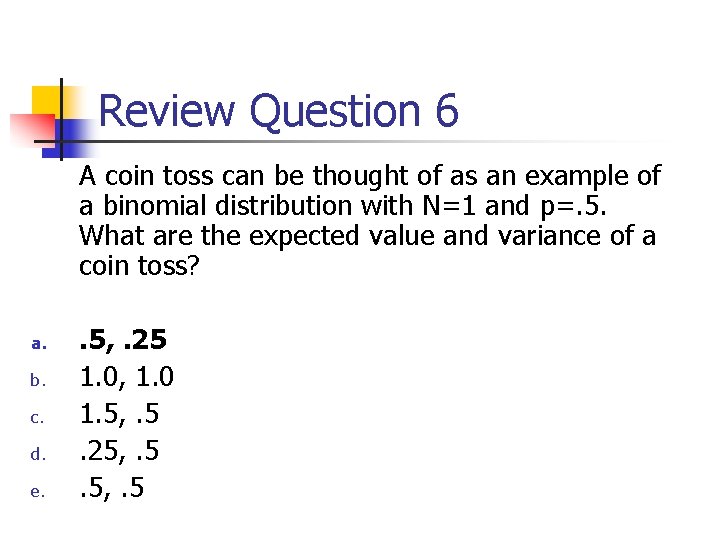

Review Question 6 A coin toss can be thought of as an example of a binomial distribution with N=1 and p=. 5. What are the expected value and variance of a coin toss? a. b. c. d. e. . 5, . 25 1. 0, 1. 0 1. 5, . 5. 25, . 5

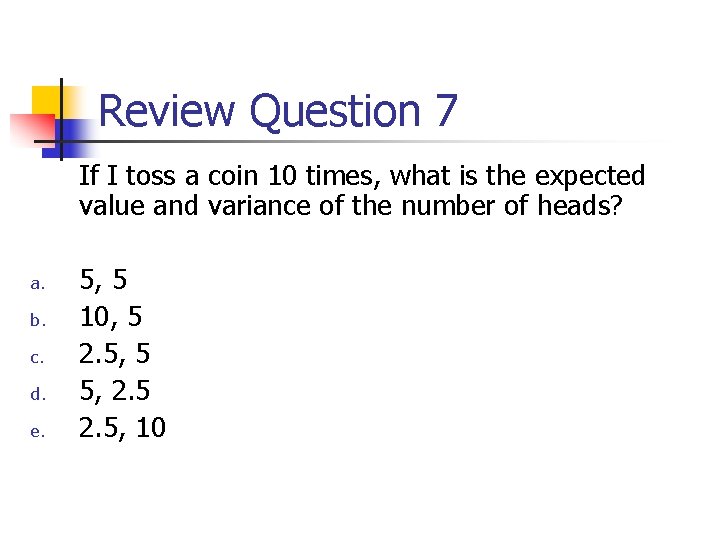

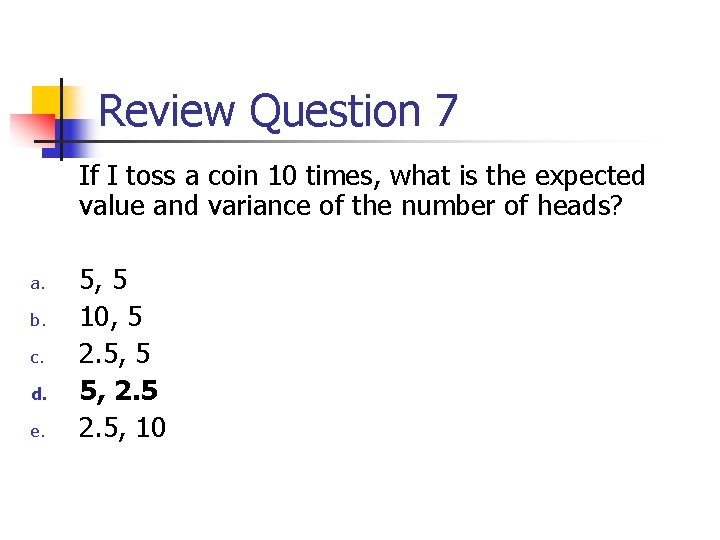

Review Question 7 If I toss a coin 10 times, what is the expected value and variance of the number of heads? a. b. c. d. e. 5, 5 10, 5 2. 5, 5 5, 2. 5, 10

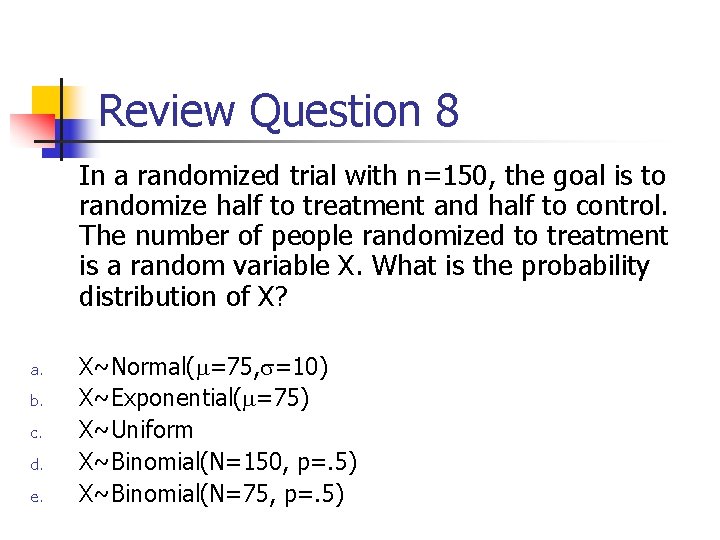

Review Question 8 In a randomized trial with n=150, the goal is to randomize half to treatment and half to control. The number of people randomized to treatment is a random variable X. What is the probability distribution of X? a. b. c. d. e. X~Normal( =75, =10) X~Exponential( =75) X~Uniform X~Binomial(N=150, p=. 5) X~Binomial(N=75, p=. 5)

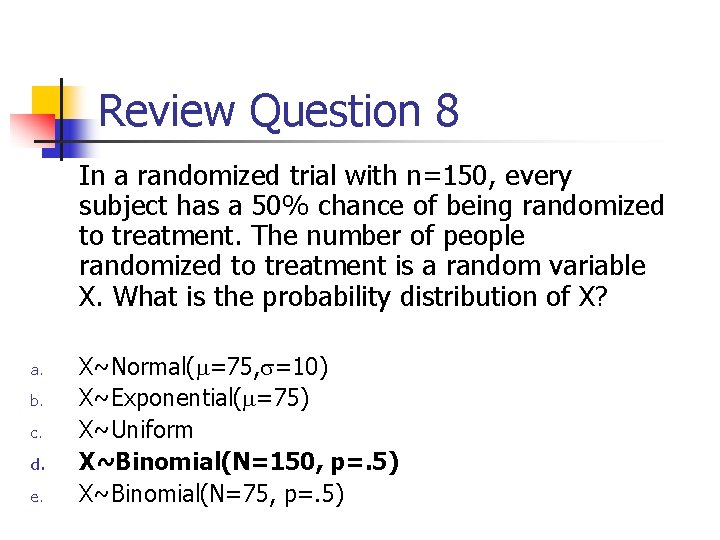

Review Question 8 In a randomized trial with n=150, every subject has a 50% chance of being randomized to treatment. The number of people randomized to treatment is a random variable X. What is the probability distribution of X? a. b. c. d. e. X~Normal( =75, =10) X~Exponential( =75) X~Uniform X~Binomial(N=150, p=. 5) X~Binomial(N=75, p=. 5)

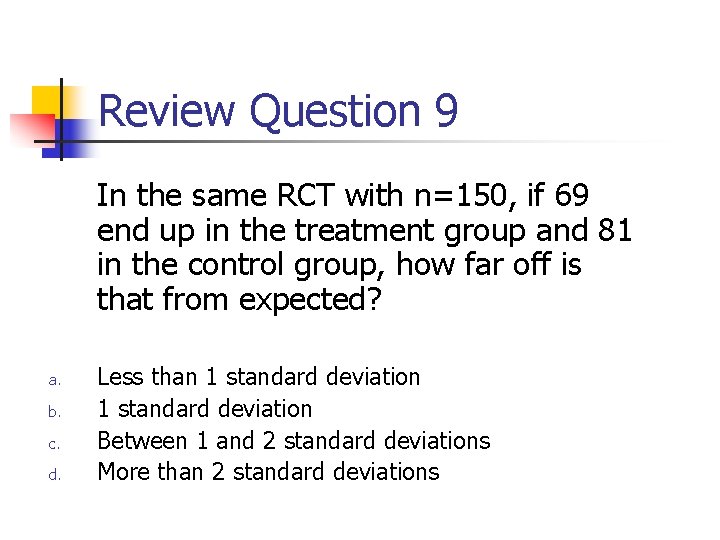

Review Question 9 In the same RCT with n=150, if 69 end up in the treatment group and 81 in the control group, how far off is that from expected? a. b. c. d. Less than 1 standard deviation Between 1 and 2 standard deviations More than 2 standard deviations

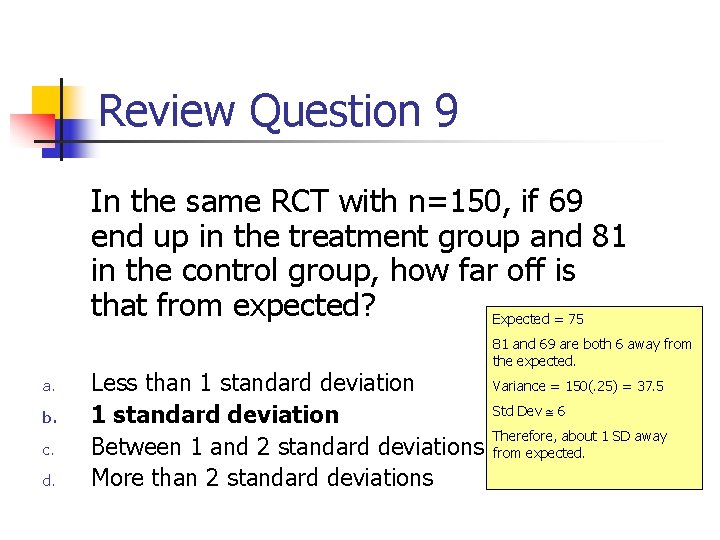

Review Question 9 In the same RCT with n=150, if 69 end up in the treatment group and 81 in the control group, how far off is that from expected? Expected = 75 a. b. c. d. Less than 1 standard deviation Between 1 and 2 standard deviations More than 2 standard deviations 81 and 69 are both 6 away from the expected. Variance = 150(. 25) = 37. 5 Std Dev 6 Therefore, about 1 SD away from expected.

Proportions… n n The binomial distribution forms the basis of statistics for proportions. A proportion is just a binomial count divided by n. n n For example, if we sample 200 cases and find 60 smokers, X=60 but the observed proportion=. 30. Statistics for proportions are similar to binomial counts, but differ by a factor of n.

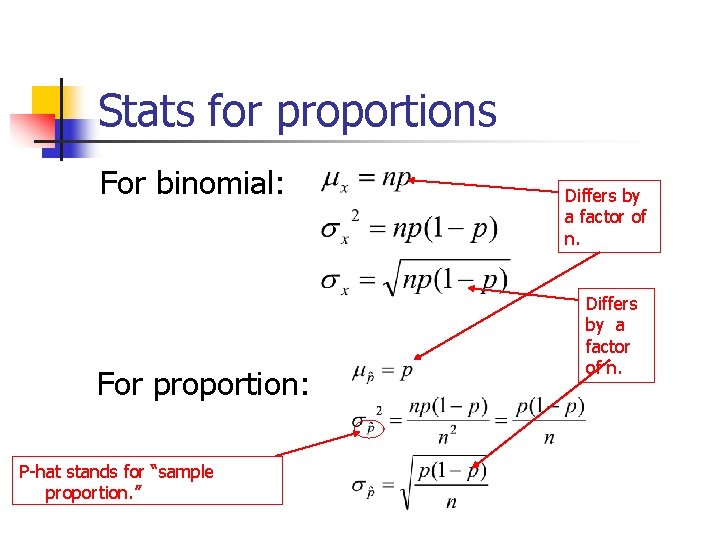

Stats for proportions For binomial: For proportion: P-hat stands for “sample proportion. ” Differs by a factor of n.

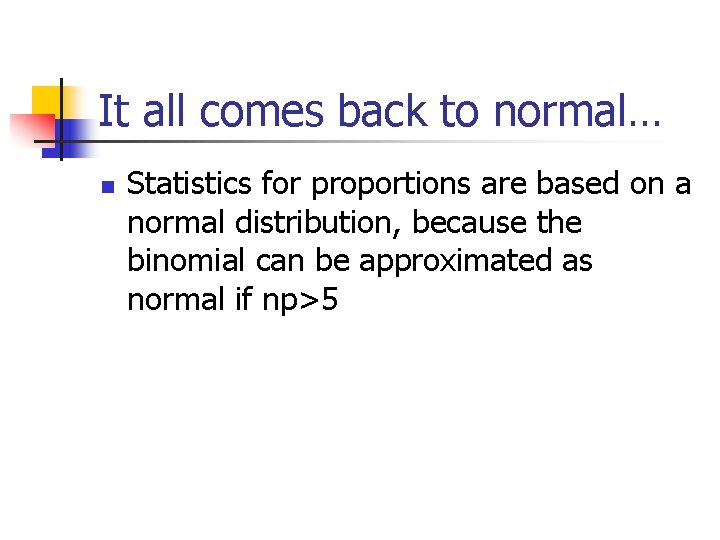

It all comes back to normal… n Statistics for proportions are based on a normal distribution, because the binomial can be approximated as normal if np>5

Continuous probability distributions

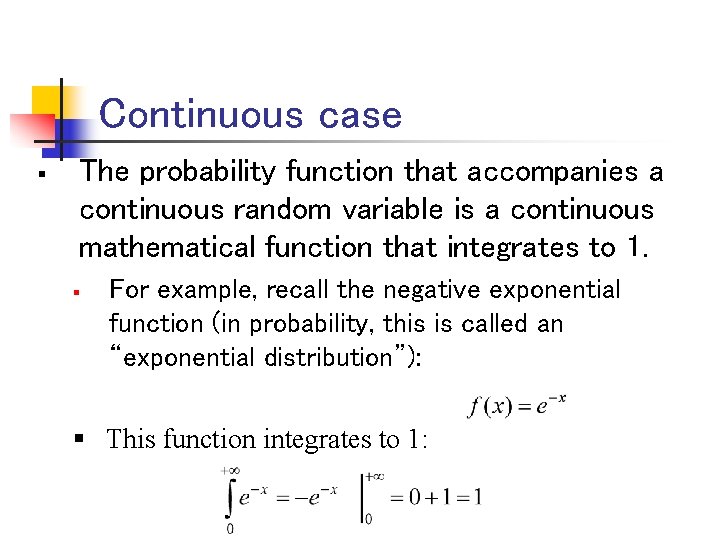

Continuous case § The probability function that accompanies a continuous random variable is a continuous mathematical function that integrates to 1. § For example, recall the negative exponential function (in probability, this is called an “exponential distribution”): § This function integrates to 1:

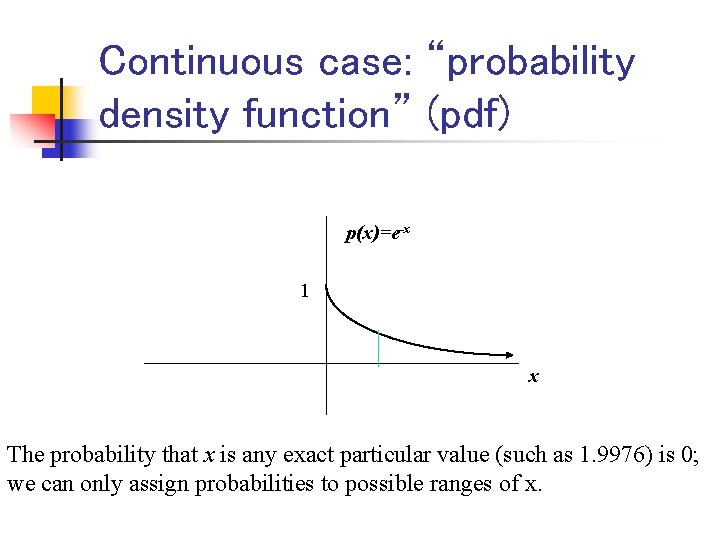

Continuous case: “probability density function” (pdf) p(x)=e-x 1 x The probability that x is any exact particular value (such as 1. 9976) is 0; we can only assign probabilities to possible ranges of x.

For example, the probability of x falling within 1 to 2: Clinical example: Survival times after lung transplant may roughly follow an exponential function. Then, the probability that a patient will die in the second year after surgery (between years 1 and 2) is 23%. p(x)=e-x 1 2

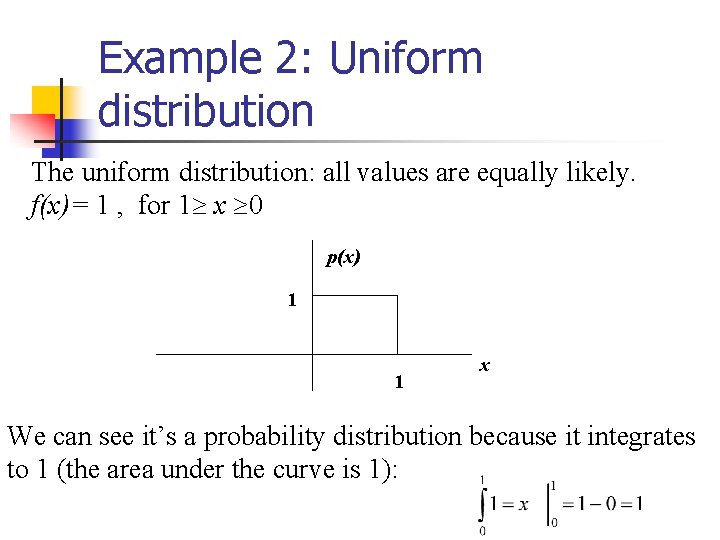

Example 2: Uniform distribution The uniform distribution: all values are equally likely. f(x)= 1 , for 1 x 0 p(x) 1 1 x We can see it’s a probability distribution because it integrates to 1 (the area under the curve is 1):

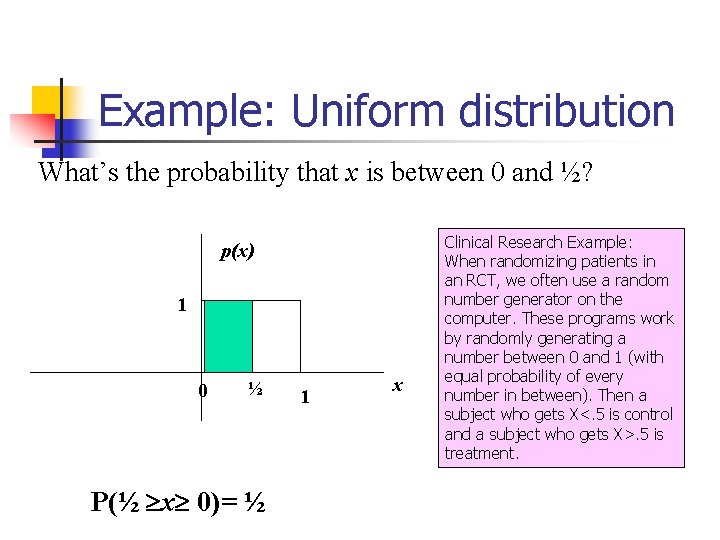

Example: Uniform distribution What’s the probability that x is between 0 and ½? p(x) 1 0 ½ P(½ x 0)= ½ 1 x Clinical Research Example: When randomizing patients in an RCT, we often use a random number generator on the computer. These programs work by randomly generating a number between 0 and 1 (with equal probability of every number in between). Then a subject who gets X<. 5 is control and a subject who gets X>. 5 is treatment.

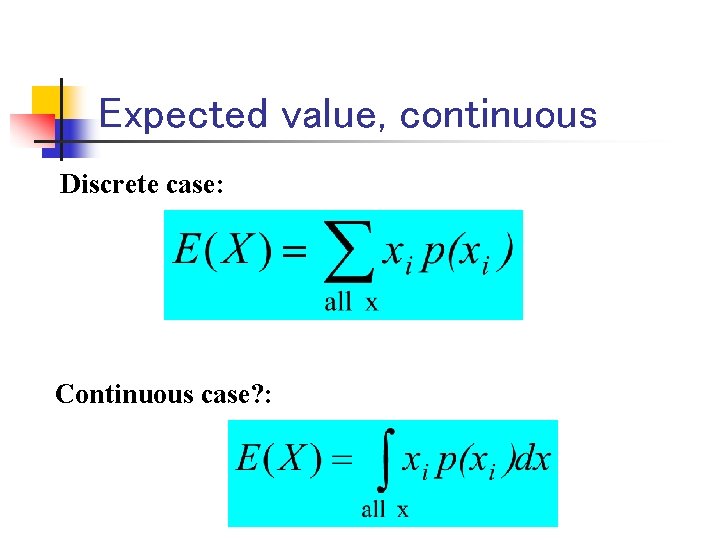

Expected value, continuous Discrete case: Continuous case? :

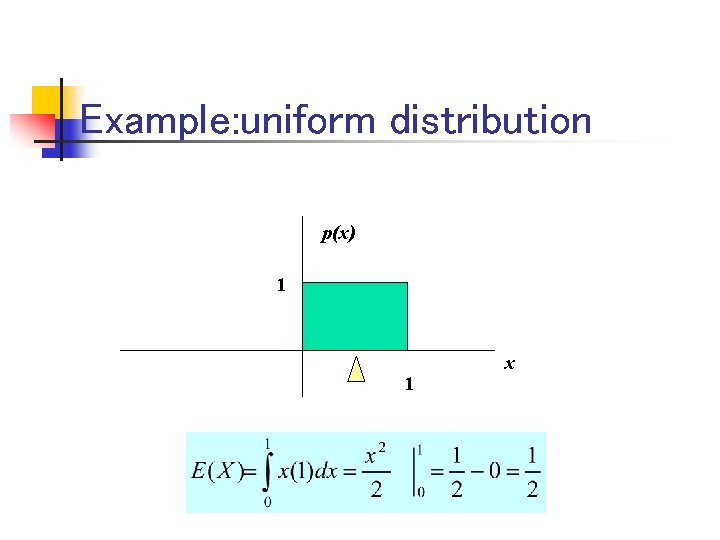

Example: uniform distribution p(x) 1 1 x

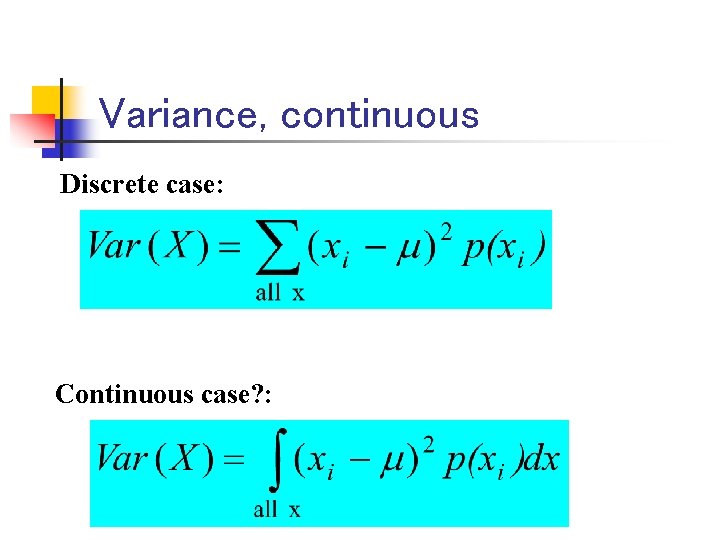

Variance, continuous Discrete case: Continuous case? :

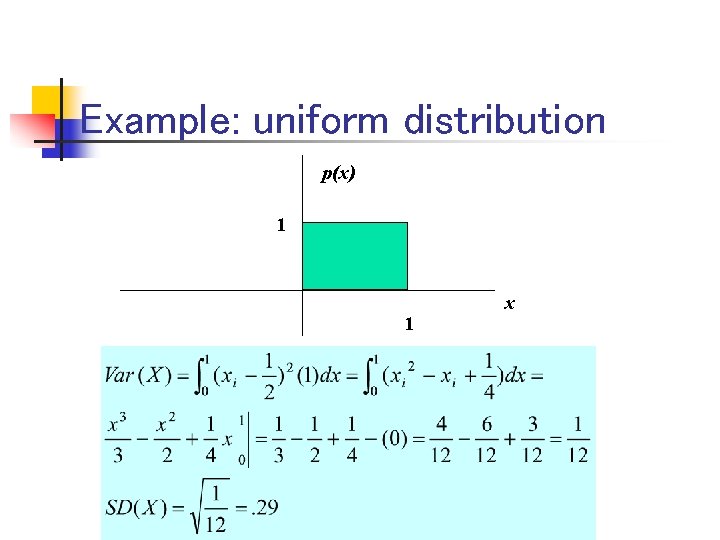

Example: uniform distribution p(x) 1 1 x

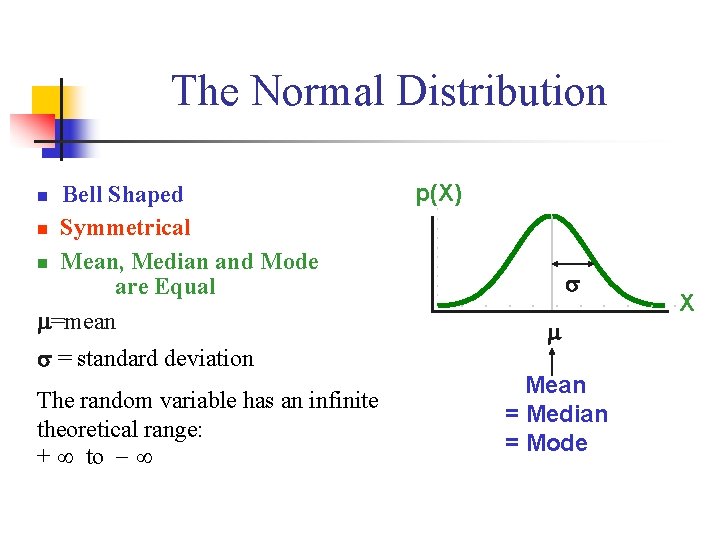

The Normal Distribution ‘Bell Shaped’ n Symmetrical n Mean, Median and Mode are Equal m=mean n s = standard deviation The random variable has an infinite theoretical range: + to p(X) s m Mean = Median = Mode X
