Introduction to Presented by Sandeep Baruah Scientist C

Introduction to Presented by Sandeep Baruah Scientist ‘C’ Vigyan Prasar sandeep@vigyanprasar. gov. in Digital Video Broadcasting – Return Channel via Satellite

DVB-RCS Digital Video Broadcasting - Return Channel via Satellite

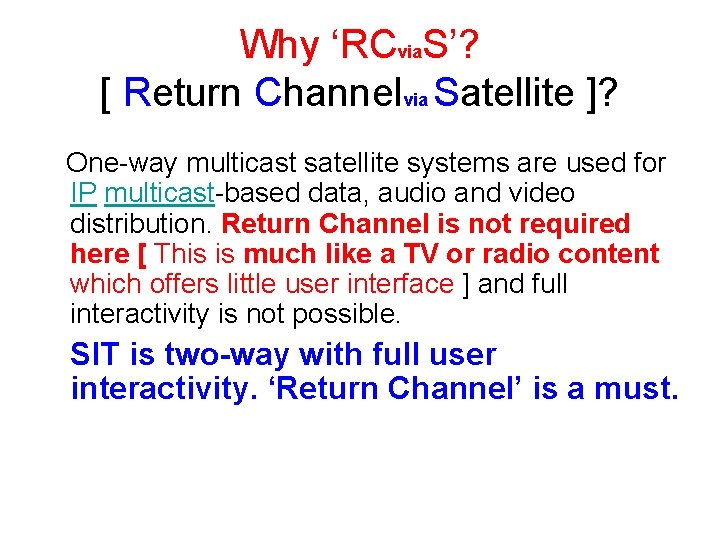

Why ‘RCvia. S’? [ Return Channelvia Satellite ]? One-way multicast satellite systems are used for IP multicast-based data, audio and video distribution. Return Channel is not required here [ This is much like a TV or radio content which offers little user interface ] and full interactivity is not possible. SIT is two-way with full user interactivity. ‘Return Channel’ is a must.

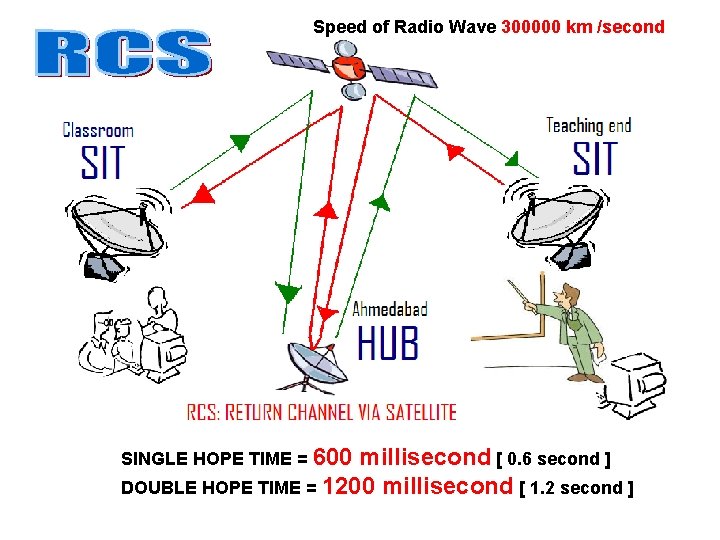

Speed of Radio Wave 300000 km /second SINGLE HOPE TIME = 600 millisecond [ 0. 6 second ] DOUBLE HOPE TIME = 1200 millisecond [ 1. 2 second ]

Star Network Star network consists of one central switch, hub or computer which acts as a router to transmit messages. Reduces chance of network failure by connecting all of the systems to a central node. This central hub rebroadcasts all transmissions received from any peripheral node to all peripheral nodes on the network, sometimes including the originating node. All peripheral nodes may thus communicate with all others by transmitting to, and receiving from, the central node [ Teaching End only. New Delhi ] [ Classroom Bhubaneswar ] [ Ahmedabad ]

CLARKE ORBIT Arthur C Clarke 1945 36, 000 km Non-Interactive transmissions, e. g. TV telecast

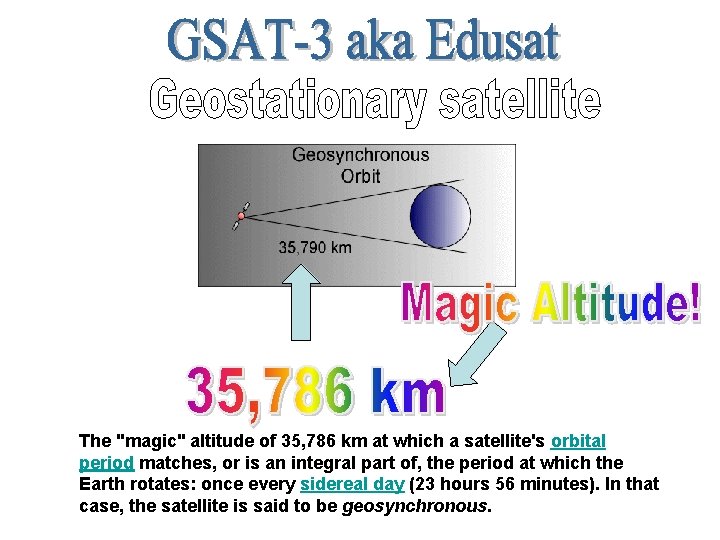

The "magic" altitude of 35, 786 km at which a satellite's orbital period matches, or is an integral part of, the period at which the Earth rotates: once every sidereal day (23 hours 56 minutes). In that case, the satellite is said to be geosynchronous.

Longitude 74. 1439 degrees East Latitude 0. 0758 degrees South Altitude 35, 785. 530 km Azimuth 186. 5 degrees Elevation 56. 4 degrees

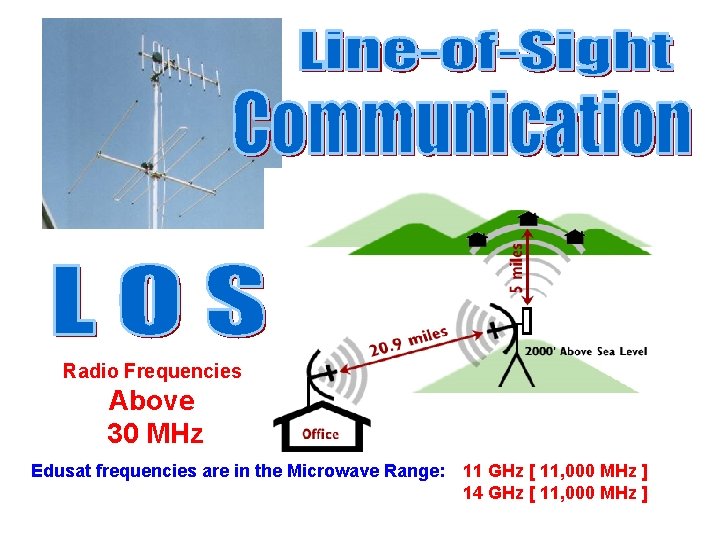

Radio Frequencies Above 30 MHz Edusat frequencies are in the Microwave Range: 11 GHz [ 11, 000 MHz ] 14 GHz [ 11, 000 MHz ]

Pointing the Antenna Azimuth refers to the rotation of the whole antenna around a vertical axis. By definition North is 0 deg, East is 90 deg, South is 180 deg and west is 270 deg. North can also be called 360 deg. An approximate azimuth angle is normally sufficient. Elevation refers to the angle between the dish pointing direction, directly towards the satellite, and the local horizontal plane. It is the up-down angle.

It is easy to point an antenna to a GEO

GSAT-3 or EDUSAT is the first Indian satellite built exclusively for serving the educational sector. It is mainly intended to meet the demand for an interactive satellite based distance education system for the country, especially for the development of the population in remote and rural locations.

Though Geostationary Satellite covers a large area, it has a problem called ‘Time Lag’ [ delayed reception of signal ] Delayed reception of signal DOUBLE HOPE TIME = 1200 millisecond [ 1. 2 second ] A theoretical alternative to satellites that is being explored is the use of ultra-light solar powered airplane or an airship [ Stratellite ] that could fly in a continuous a circling path perhaps 70, 000 feet [ 20 km ] high. These would act as flying satellites, providing high-speed service to customers below the aircraft. Since the roundtrip signal distance would only be 30 miles, the latency caused by the radio wave is an almost insignificant 0. 1 ms under the craft, and 2 ms at the edge of the covered area, at a 300 km (200 miles) distance.

Travels at a speed of 3, 00000 km per second 30, 00000 km Suppose the radio signal has to travel a distance of 30, 00000 km; it would take 10 seconds for its one way journey. To receive a reply back from the target It would take another 10 seconds. Total 20 seconds!

1 sec [ or in 1000 millisecond ]: 300000 km 1 ms [ 0. 001 sec ] : 300 km To travel 36, 000: 36, 000 300 km 120 ms = 120 ms

Latency: A Major Challenge in digital communication Satellite communications present one major challenge with respect to the performance of Internet applications -- the communication latency between two earth stations connected by a satellite. For GEO satellite communications systems, the latency is at least 250 milliseconds [sometimes framing, queuing, and onboard switching can add extra delays, making the end-to-end latency as high as 400 milliseconds]. This is approximately 10 times higher than a point-topoint fiber optics connection. The latency might not affect bulk data transfer and broadcast-type applications, but it will hurt highly interactive applications that require extensive handshaking between two sites. Unfortunately, one of the major Internet transport protocols, TCP, requires such interaction.

Radio frequencies

Different frequencies have different propagation characteristics MICROWAVE 1 -300 GHz HF 3 -30 MHz

Wavelengths approximately: 30 cm [ frequency = 1 GHz ] to 1 mm [ 300 GHz ] Frequencies between 3000 MHz [ 3× 108 Hz ] and 300 GHz [ 3× 1011 Hz ]

Ku band [ Edusat uses 14 & 11 GHz ] • The Ku band (pronounced "kay-yoo"; Kurtz-under band) is a portion of the electromagnetic spectrum in the microwave range of frequencies ranging from 12 to 18 GHz. • Ku band is primarily used for satellite communications, particularly for satellite backhauls from remote locations

• High bandwidth – satellite can deliver throughput at gigabits per second rates. • Inexpensive – A satellite communications system is relatively inexpensive because there are no cable-laying costs, and one satellite covers a very large area. • Untethered communication – Users can enjoy untethered communication anywhere within the footprints of the satellite. • Simple network topology – Compared with the mesh interconnection model of the terrestrial Internet, GEO satellite networks have much simpler delivery paths. The simpler topology often results in more manageable network performance.

Bandwidth 30. 75 – 31. 50 MHz We get bandwidth of 750 k. Hz only [ 0. 75 MHz ] But say if we use 13. 75 -14. 50 MHz we 750 MHz [ 0. 75 GHz ]

lower frequency bands are virtually immune to radio attenuation, but are crowded, expensive and require larger antennas. It makes sense then to explore the possibility of reliable all-weather communication using higher bands (namely Ku and Ka), which are more sensitive to attenuation but less expensive.

Limitations Ku band signals can be affected by rain attenuation. In case of TV reception, only heavy rainfalls (>100 mm/hr) will have noticeable effect for the user. Due to ‘Latency’, possibility of ‘Link Failure’.

RECEIVE ONLY SIT TWO-WAY SIT

RADIO TV ONE WAY SITS can be used for + INTERACTIVE [ TWO WAY ]

The link from Hub to SIT is called Forward Link (FL) The Hub is primarily responsible for carrying Internet Protocol (IP) traffic between Satellite Interactive Terminals (SITs) & other external networks. It is also responsible for overall network management & SITs management. The IP traffic at Hub is encapsulated in to MPEG-TS in DVB format. After necessary stages for modulation, frequency conversion, amplification etc. , the same traffic is uplinked for SITs. Moving Picture Experts Group or MPEG is a working group of ISO/IEC charged with the development of video and audio encoding standards The link from Hub to SIT is called Forward Link (FL) and it uses a standard Digital Video Broadcasting (DVB) format. It allows data rate up to 45 MSPS. Presently FL is configured for 10 MSPS considering satellite resources available & total traffic expected among all the SITs. The FL is like big pipe & carries the combined traffic for all SITs. MSPS – Mega Samples Per Second.

The IP traffic at SIT is encapsulated in to either MPEG or ATM cell. After necessary stages for modulation, frequency conversion, amplification etc. , the same traffic is uplinked for Hub. The link from SIT to Hub is called Return Link (RL) and it is responsible to carry the return link traffic using Multi-Frequency Time Division Multiple Access (MF-TDMA) based on ATM or MPEG standard. Single SIT allows data rate up to 2 Mbps. Presently each SIT is configured in Hub for Maximum 624 / 512 Kbps data. The RL BW for SIT is controlled by controlling nos. of time slots. In MF-TDMA, each carrier is divided in nos. of logical time slots. The Hub assigns un-assigned time slots to particular SIT. The SIT sends the traffic (either ATM/ MPEG cell) to hub using these time slots. Asynchronous Transfer Mode (ATM) is a cell relay, Circuit switching network and data link layer protocol which encodes data traffic into small (53 bytes; 48 bytes of data and 5 bytes of header information) fixed-sized cells. This differs from other technologies based on packet-switched networks (such as the Internet Protocol or Ethernet), in which variable sized packets (sometimes known as frames) are used. ATM is a connection-oriented technology, in which a logical connection is established between the two endpoints before the actual data exchange begins.

MPEG Moving Picture Experts Group or MPEG is a working group of ISO/IEC charged with the development of video and audio encoding standards Data Rate up to 45 MSPS [MSPS – Mega Samples Per Second. Sampling rate for analog to digital converters. ] Asynchronous Transfer Mode (ATM) is a cell relay, Circuit switching network and data link layer protocol which encodes data traffic into small (53 bytes; 48 bytes of data and 5 bytes of header information) fixed-sized cells. This differs from other technologies based on packet-switched networks (such as the Internet Protocol or Ethernet), in which variable sized packets (sometimes known as frames) are used. ATM is a connection-oriented technology, in which a logical connection is established between the two endpoints before the actual data exchange begins. Hub FL [ Forward Link ] Class Room RL [ Return Link ] : Link from SIT to Hub 624 KBPS

TDMA [ Time Division Multiple Access ] SIT RL MPEG: 11 time slots x 56. 75 KBPS data rate = 624 KBPS SIT RL ATM: 24 time slots x 16 KBPS = 384 KBPS • • • A kilobit per second (kbit/s or kbps or k. Baud) is a unit of data transfer rate equal to 1, 000 bits per second. It is sometimes mistakenly thought to mean 1, 024 bits per second, using the binary meaning of the kilo- prefix, though this is incorrect. Examples: 56 K modem — 56, 000 bit/s 128 kbit/s mp 3 — 128, 000 bit/s [1] 64 k ISDN — 64, 000 bit/s [2] 1536 k T 1 — 1, 536, 000 bit/s (1. 536 Mbit/s) Most digital representations of audio are measured in kbit/s: (These values vary depending on audio data compression schemes) 4 kbit/s – minimum necessary for recognizable speech (using special-purpose speech codecs) 8 kbit/s – telephone quality 32 kbit/s – MW quality 96 kbit/s – FM quality • 192 kbit/s – Nearly CD quality for a file compressed in the MP 3 format • 1, 411 kbit/s – CD audio (at 16 -bits for each channel and 44. 1 k. Hz) RBDC : Rate-Based Dynamic Capacity VBDC : Volume-Based Dynamic Capacity

Traffic Time Slots: T 1 to T 11 Carrier Frequencies: F 1 to F 8 Time slots used by particular SIT in MPEG Frame At present carrier carrying the MPEG cells is divided in 11 nos. of traffic time slots. Single time slot supports 56. 75 kbps data rate. Each Teaching End (TE) is configured permanently (CRA) in Hub with such 11 time slots which will support up to 624 (56. 75*11) Kbps RL traffic.

Traffic Time Slots: T 1 to T 32 Carrier Frequencies: F 1 to F 15 Time slots used by particular SIT in ATM Frame At present carrier carrying the ATM cells is divided in 32 nos. of traffic time slots & single time slot supports 16 kbps data rate. Each Class Room (CR) is configured in Hub with request based 24 time slots. I. e. 4 RBDC & 20 VBDC. This will supports up to 384 (16*24) kbps RL traffic.

Return Link [ RL ] traffic is brought to Hub with use of 4 types of time slots. The SIT can be configured with one or more types of time slots. [1] Constant Rate Assignment [ CRA ] This type of time slots is assigned by Hub when particular SIT logs ON (Switch ON). CRA provides guaranteed RL bandwidth. It is most suitable for real time traffic like Video & Voice Conferencing & other non-real time applications. Each TE is configured with this type of time slots.

[2] Rate Based Dynamic Control [ RBDC ] This type of time slots is assigned by Hub when particular SIT demands/requests for allotment of time slots. RBDC provides [on demand] RL bandwidth. Hub will allot the number of time slots proportional to data rate at the LAN port of SIT. It is suitable for real time traffic like Voice Conferencing & other non-real time applications like file transfer. Each CR is configured for this type of time slots. Voice Conferencing [ Real time ] File Transfer [ Non-real time]

Return Link RL- Types of Time Slots [3] Volume Based Dynamic Control [ VBDC ] This type of time slots is assigned by Hub when particular SIT demands/requests for allotment of time slots. VBDC provides (on demand) RL bandwidth. Hub will allot the number of time slots proportional to data Volume at the LAN port of SIT. It is suitable for non-real time applications. Each CR is additionally configured for this type of time slots.

RL- Types of Time Slots [ 4 ] Free Capacity Assignment (FCA) In pool of time slots with Hub, some time slots are free. The free time slots are assigned by Hub to SIT to fulfill the requirement of data transfer. It is like bonus to SIT. It is suitable for non-real time applications.

Hub Overview The system can be divided into two segments: SIT and Hub. The SIT segment represents what is installed on the customer’s site. The Hub segment represents the equipment used by the service provider.

Hub-Sub systems The communication between SITs is always through Hub. The data transmitted from one SIT is first received by Return Link Sub system (RLSS) of Hub. The data received by RLSS is routed to Forward Link Sub System (FLSS) for re-transmission. The retransmitted data is received by another SIT. The complete Hub consists of FLSS & RLSS. The FLSS consists of · IP Router. · IP Encapsulator & DVB Multiplexer · PCR Inserter (Part of RLSS) · L-Band DVB Modulator · Ku-Band SSPB & Antenna

Hub-Sub systems The RLSS consists of · Antenna & LNBC · Multi Carrier Demodulator (MCD) Board · Signaling (SIG) Board · Traffic (TRF) Board · Operation, Administration and Management (OAM) plus PCR Monitor Board · DVB Demodulator (For RCR Monitoring function) · IP Router The OAM stores the database of all-valid SITs like MAC address, IP address, configuration files including permissible Max. bandwidth, type of access etc.

SIT Overview The satellite interactive terminal (SIT) is composed of the outdoor unit (ODU), which includes the antenna and RF transceiver, and the indoor unit (IDU).

SIT ODU [ Out. Door Unit ] u Provides RF interface with the satellite u Ku-band transmit up-converted from an L-Band IDU signal u Ku-Band receive and down-converted for L-band IDU u Series 3000 IDU supports up to 2 W SSPB u ODU Mainly composed of: u Reflector u SSPB (Solid State Power Block Converter) u LNB (Low Noise Block) u Feed Horn/OMT (Ortho-Mode Translator)

[ Low Noise Block Converter ] Converts Ku Band [ 10. 712. 75 GHz ] signals to LBand [ 0. 950 -2. 150 GHz ] Ku-band linear-polarised LNBAs microwave satellite signals do not easily pass through walls, roofs, or even glass windows, satellite antennas are required to be outdoors, and the signal needs to be passed indoors via cables. When radio signals are sent through coaxial cables, the higher the frequency, the more losses occur in the cable per unit of length.

SIT ODU l General Safety u Danger area near Antenna u General rule: Don’t stand in front of the Antenna!

SIT Grounding l Grounding u The ODU must be grounded in strict accordance with National and Local electrical codes. u ODU copper ground wire should be connected to the local Lightning Protection System (LPS) u Where the LPS is not available proper grounding requires installation of a ground rod(s). The copper ground wire(s) from the ODU would connect to this ground system.

Interface with IDU l Interface u IDU supplies to SSPB (Tx) u 24 V DC u Transmit signal 950 -1450 MHz u 10 MHz reference u IDU receives 950 -2150 MHz Rx signal from LNBC (Rx) & supplies 18 VDC to LNBC (Rx) u LAN Port interfaces customer’s equipment.

One or more Ethernet IP address based devices (called hosts) all to gather make one LAN at customer’s site. The one LAN may have many devices like PC, Server, VOIP, IP address based camera etc. When each LAN, located at geographically different site is connected all together through SIT, make one WAN. The SIT is the part of local LAN & functions to provide connectivity of Local LAN with WAN. The IDU acts as a Gateway when traffic is towards WAN. The current IP plan for SIT is as bellow. IP Address: Subnet Mask: For IDU: 172. 21. X. 1 255. 0 Where X: Sequential No. assigned to each IDU.

Teaching End (TE)- Sub Hub All the SITs in network are physically same. Any SIT of particular user agency can be configured as a Sub Hub. The main differences in parameters configured in Hub are: For Sub Hub · Multicast facility is enabled. · Constant (CRA) 624 kbps (Sub Hub to Hub) RL BW is allotted for Multicast & other traffic. For Class Room (CR) · Multicast facility is disabled & BW is of different type & less (I. e. 384 Kbps with combination of RBDC & VBDC). Additionally Sub Hub will have more facilities like servers, studio etc.

Pinging is an integral part of SIT functionality test PING History! Mike Muuss wrote the program in December, 1983, as a tool to troubleshoot odd behavior on an IP network. He named it after the pulses of sound made by a sonar, since its operation is analogous to active sonar in submarines, in which an operator issues a pulse of energy (a network packet) at the target, which then bounces from the target and is received by the operator. Later David L. Mills provided a backronym, "Packet INternet Grouper (Groper)", also by other people "Packed INternet Gopher", after the small rodents. Michael John Muuss ( October 16 , 1958 - November 20, 2000) wrote the freeware network tool Ping. A graduate of Johns Hopkins University, he was a senior scientist at the U. S. Army Research Lab in Maryland

RUN START TYPE CMD

1. SELF-TEST If you PING the IP address of your own computer It ensures the functionality of the LAN card of your computer

Steps to confirm the full functionality of SIT: Check that POWER, READY, Satellite TX & RX LED glow. Ping IP address of PC itself first. The reply is expected within 10 ms. Ping the IP address of IDU. The reply is expected within 10 ms. Also Ethernet TX & RX LEDs will glow. Ping the IP address of Hub Router (ping 192. 168. 2. 1 –t –w 2000) The reply is expected within 600 ms (single hope satellite delay). Note: -t is used for repeated ping. -w 2000 is used for 2000 ms waiting period for reply. If the reply from Hub is within 600 ms & without any packet loss, the connectivity of Local station/SIT with Hub can be considered perfectly OK.

SIT Functionality Checks (6) Ping the IP address of VP IDU (ping 172. 21. 1. 1 –t –w 2000). The reply is expected within 1200 ms (double hope satellite delay). (7) If the reply from remote SIT is within 1200 ms & without any packet loss, the connectivity of local SIT with VP IDU can be considered perfectly OK.

Important Instructions Do ü It is recommended that each site must have one low cost Digital Multi Meter (DMM) to measure the Mains supply & other preliminary checks for SIT. ü Always follow the rules/procedure/guidelines set by HQ for quick solution to the problem & efficient use of edusat network. ü Always switch OFF the SIT whenever it is not required for Prolonged time. ü Always maintain the effectiveness of Earth pit by pouring it with water at regular interval.

Important Instructions ü Always assure that the equipments to be interfaced with IDU are properly grounded. ü While demonstrating the ODU to visitor, students, always stand in the back side of antenna. ü Always go through steps shown in chapter “SIT Routine Functionality Checks” whenever SIT functionality is doubtful. ü Always inspect the ODU & IFL cable for any damage or misalignment whenever IDU does not lock to FL from Hub. ü Always keep the backup of application SW. ü Always handle IDU, IFL cables carefully. Assure that IFL are tension free.

Important Instructions ü Always confirm SIT functionality with use of standalone PC & small cable whenever SIT functionality is doubtful. ü Always prefer regulated supply & air-conditioned environment for operation of SIT.

Important Instructions Don’t q. Don’t stand in front of antenna when IDU is in powered condition. q. Don’t disturb the cement blocks kept on antenna base frame. If disturbed Antenna may loose its original pointing. q. Don’t try to shift antenna. If disturbed from original position, antenna may loose LOS. q. Don’t connect & disconnect IFL cables when IDU is in powered condition. The IFL carries the DC voltage. q. Don’t connect other equipment with dedicated Earth pit provided for SIT. q. Don’t put any thing on IDU.

Important Instructions q. Don’t try to extend cable by connecting other type of cable. The IDU meets the specifications only with supplied cable. q. Don’t operate SIT with unreliable power source like Genset, Locally made Inverter etc. q. Don’t try to troubleshoot SIT by your own. q. Don’t change SM of PC other than 255. 0 q. Don’t use any proxy between PC & IDU. The IDU doesn’t function with any proxy. q. Don’t use Ethernet cable more than 100 Mtr. The exact length depends on quality of Ethernet cable.

Help Desk & on-line support Help desk is provided in SIT Training Manual. If SIT has minor fault & two way communication with SIT exists, the particular SIT can be monitored from Hub & proper actions can be taken from Hub itself. However if SIT has major problem like failure of SIT sub-system, the site requires visit of maintenance engineer from Service provider. In this case, SIT user has to send Service Call Form with complete information to service provider prior to site visit by service engineer.

Hands-on training on • Assigning IP address to PC • Accessing IDU • SIT Fault Diagnosis • Running of Applications with SIT
