Introduction to Plasma Physics and Plasmabased Acceleration Charged

Introduction to Plasma Physics and Plasmabased Acceleration Charged particles in external fields

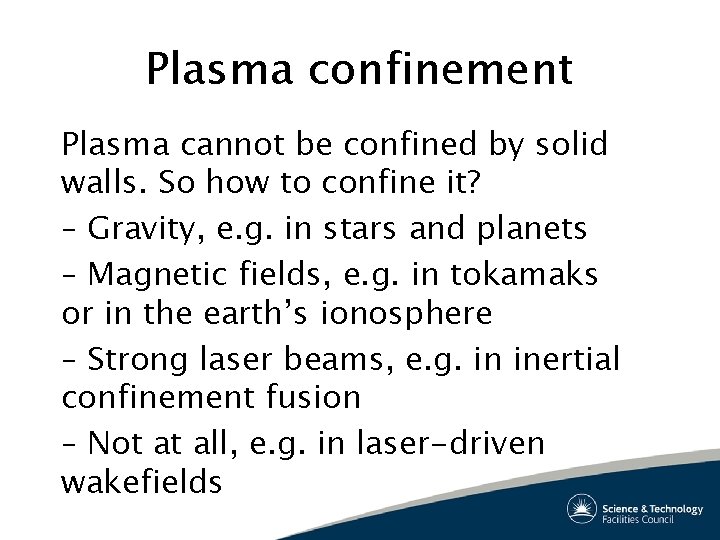

Plasma confinement Plasma cannot be confined by solid walls. So how to confine it? – Gravity, e. g. in stars and planets – Magnetic fields, e. g. in tokamaks or in the earth’s ionosphere – Strong laser beams, e. g. in inertial confinement fusion – Not at all, e. g. in laser-driven wakefields

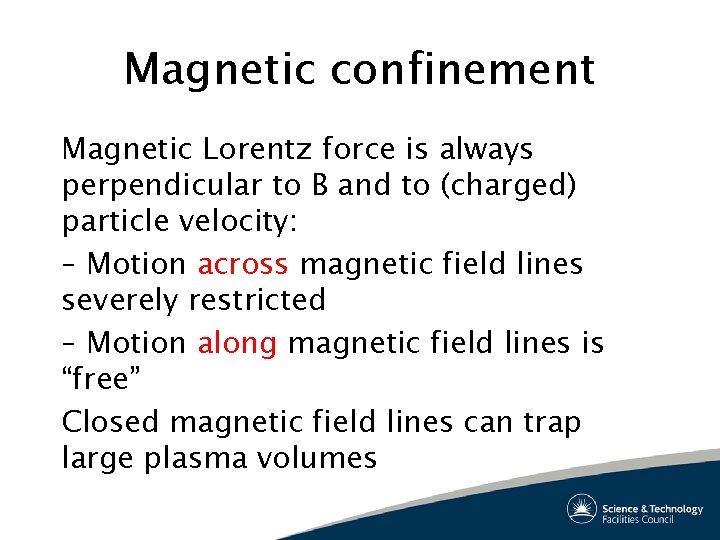

Magnetic confinement Magnetic Lorentz force is always perpendicular to B and to (charged) particle velocity: – Motion across magnetic field lines severely restricted – Motion along magnetic field lines is “free” Closed magnetic field lines can trap large plasma volumes

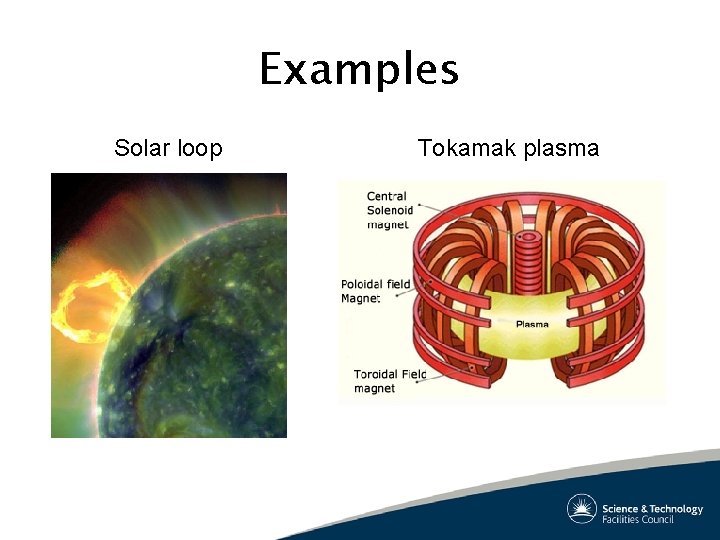

Examples Solar loop Tokamak plasma

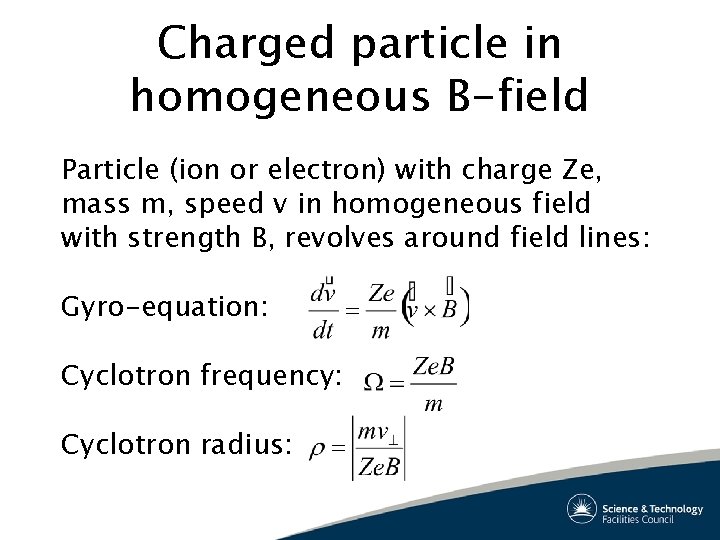

Charged particle in homogeneous B-field Particle (ion or electron) with charge Ze, mass m, speed v in homogeneous field with strength B, revolves around field lines: Gyro-equation: Cyclotron frequency: Cyclotron radius:

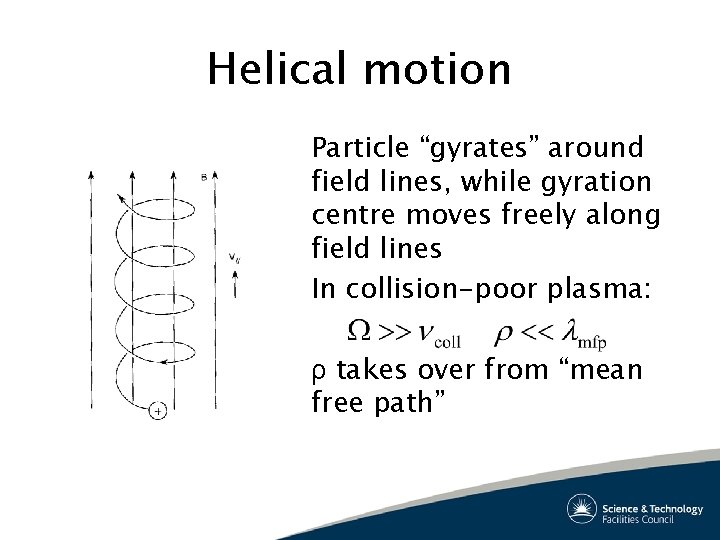

Helical motion Particle “gyrates” around field lines, while gyration centre moves freely along field lines In collision-poor plasma: ρ takes over from “mean free path”

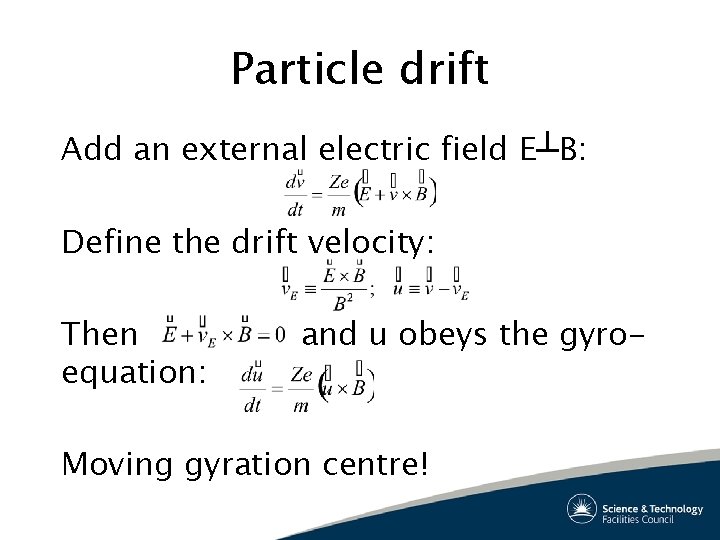

Particle drift Add an external electric field E┴B: Define the drift velocity: Then equation: and u obeys the gyro- Moving gyration centre!

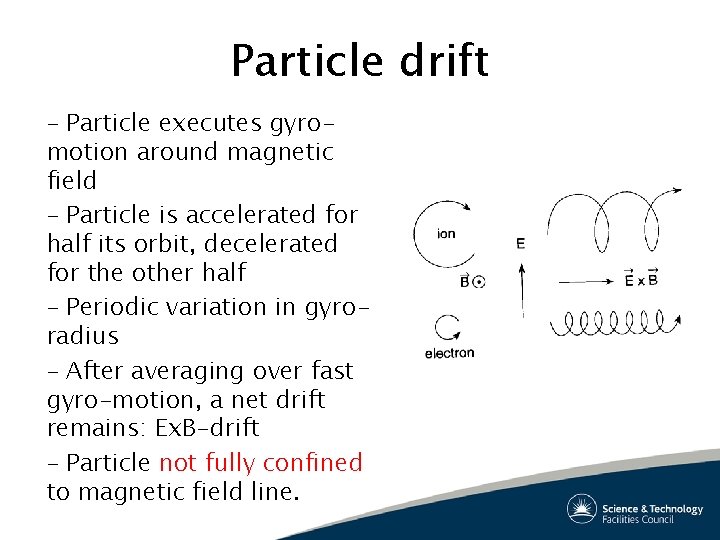

Particle drift – Particle executes gyromotion around magnetic field – Particle is accelerated for half its orbit, decelerated for the other half – Periodic variation in gyroradius – After averaging over fast gyro-motion, a net drift remains: Ex. B-drift – Particle not fully confined to magnetic field line.

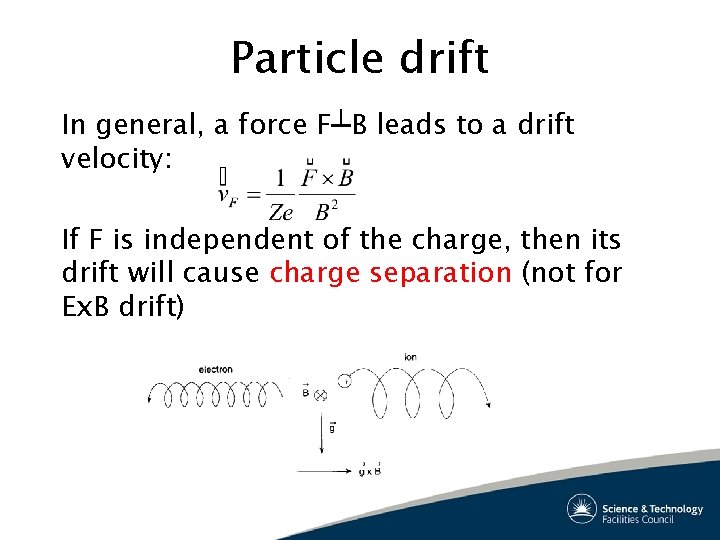

Particle drift In general, a force F┴B leads to a drift velocity: If F is independent of the charge, then its drift will cause charge separation (not for Ex. B drift)

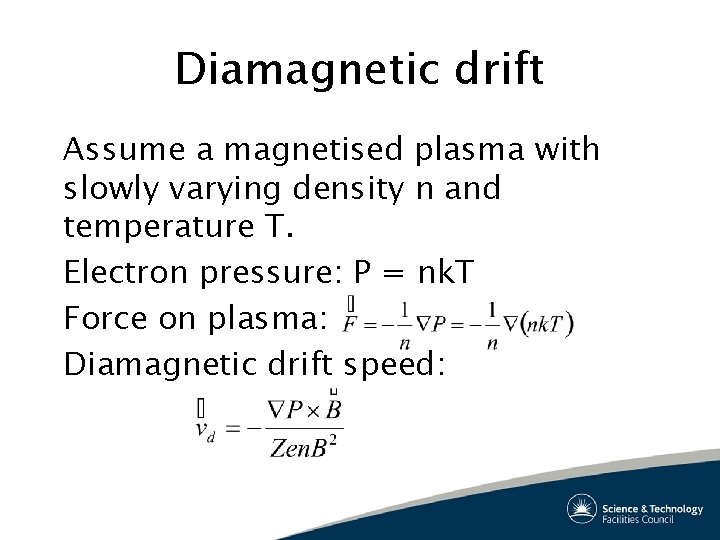

Diamagnetic drift Assume a magnetised plasma with slowly varying density n and temperature T. Electron pressure: P = nk. T Force on plasma: Diamagnetic drift speed:

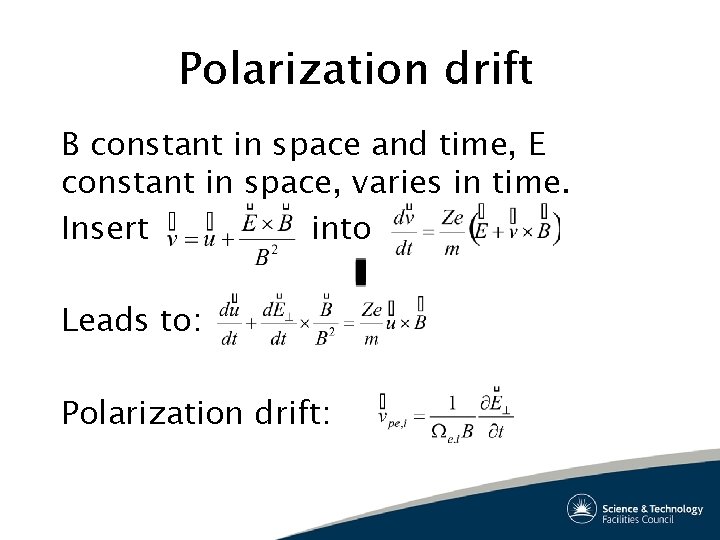

Polarization drift B constant in space and time, E constant in space, varies in time. Insert into Leads to: Polarization drift:

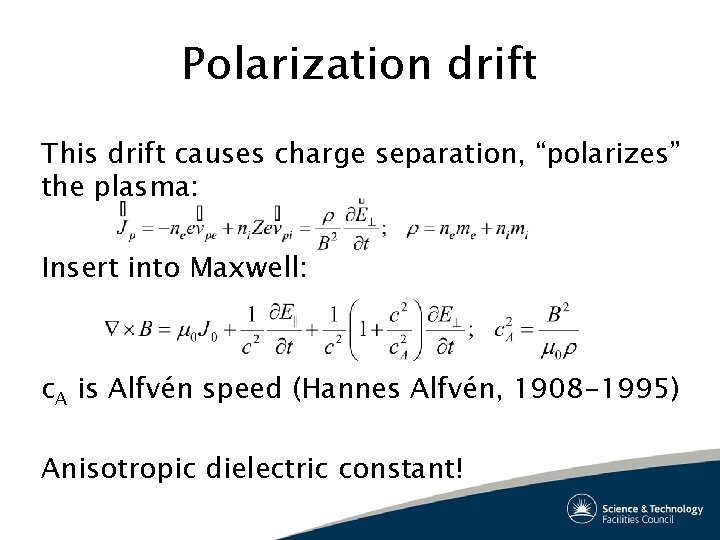

Polarization drift This drift causes charge separation, “polarizes” the plasma: Insert into Maxwell: c. A is Alfvén speed (Hannes Alfvén, 1908 -1995) Anisotropic dielectric constant!

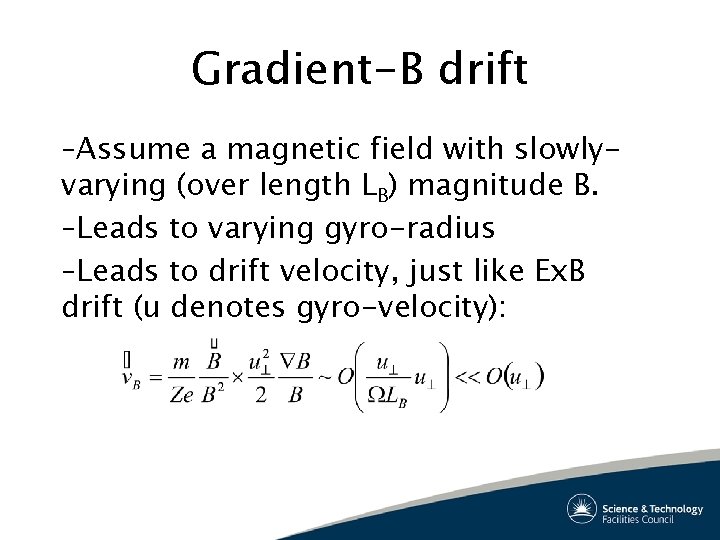

Gradient-B drift –Assume a magnetic field with slowlyvarying (over length LB) magnitude B. –Leads to varying gyro-radius –Leads to drift velocity, just like Ex. B drift (u denotes gyro-velocity):

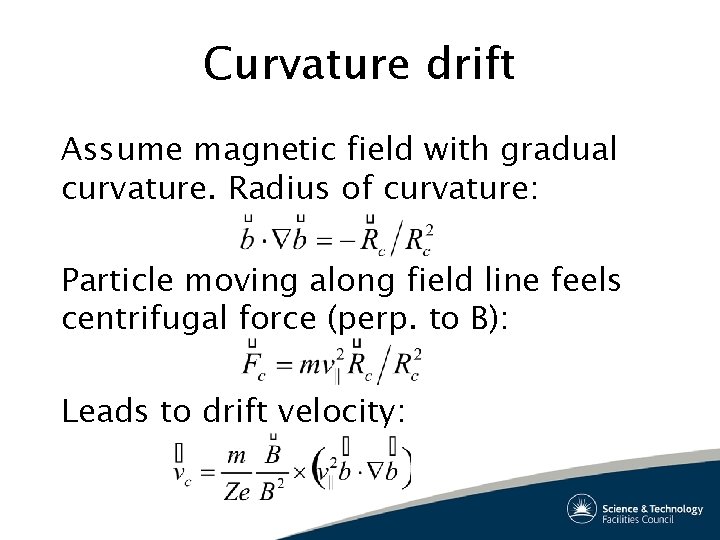

Curvature drift Assume magnetic field with gradual curvature. Radius of curvature: Particle moving along field line feels centrifugal force (perp. to B): Leads to drift velocity:

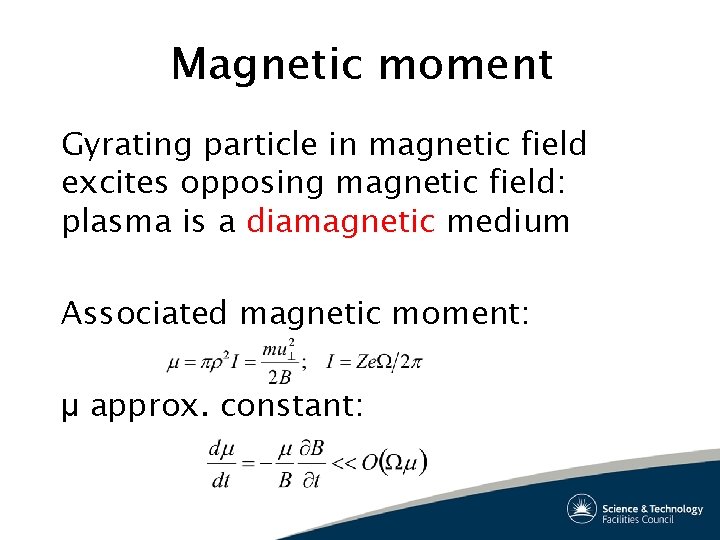

Magnetic moment Gyrating particle in magnetic field excites opposing magnetic field: plasma is a diamagnetic medium Associated magnetic moment: μ approx. constant:

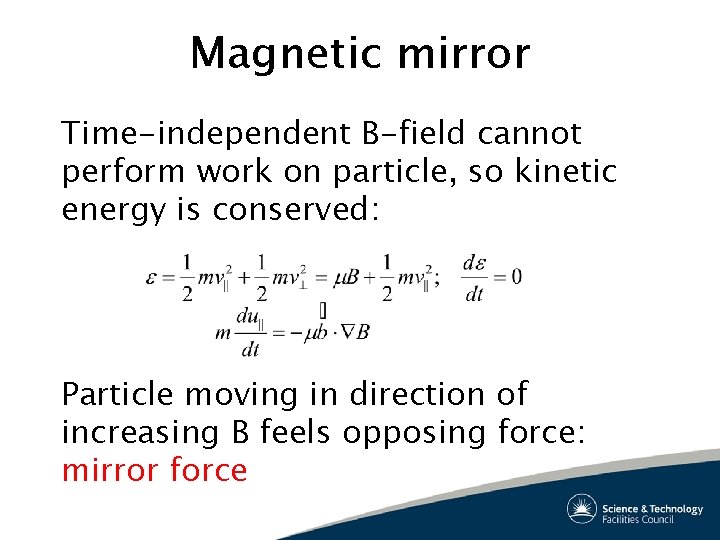

Magnetic mirror Time-independent B-field cannot perform work on particle, so kinetic energy is conserved: Particle moving in direction of increasing B feels opposing force: mirror force

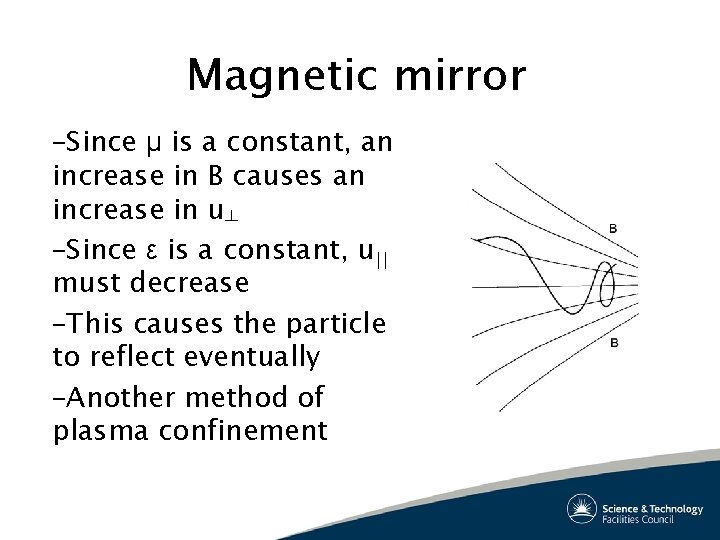

Magnetic mirror –Since μ is a constant, an increase in B causes an increase in u┴ –Since ε is a constant, u|| must decrease –This causes the particle to reflect eventually –Another method of plasma confinement

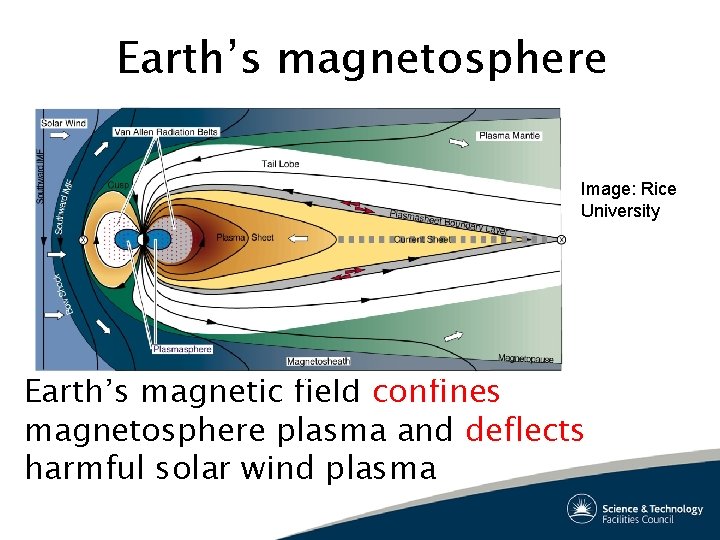

Earth’s magnetosphere Image: Rice University Earth’s magnetic field confines magnetosphere plasma and deflects harmful solar wind plasma

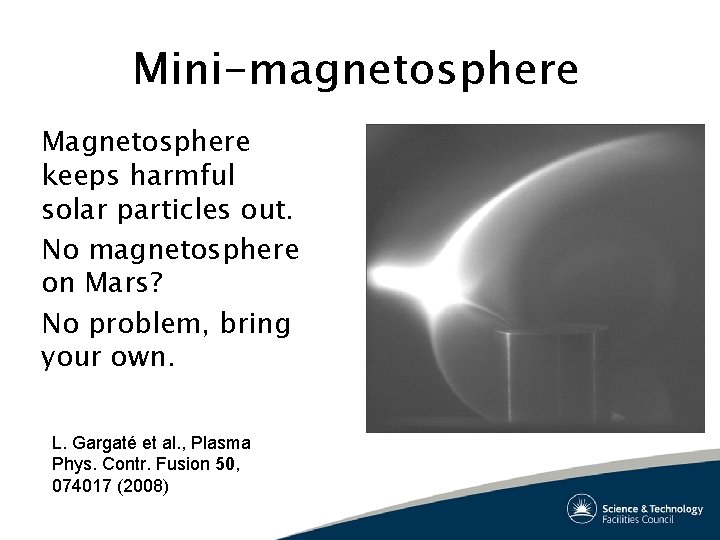

Mini-magnetosphere Magnetosphere keeps harmful solar particles out. No magnetosphere on Mars? No problem, bring your own. L. Gargaté et al. , Plasma Phys. Contr. Fusion 50, 074017 (2008)

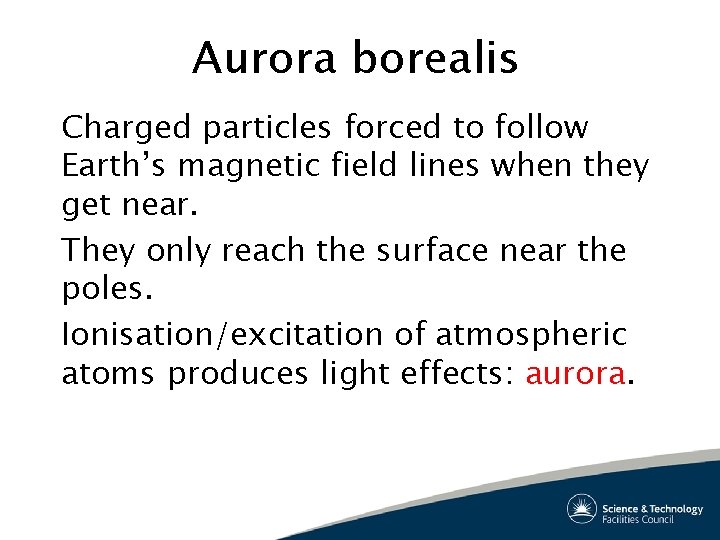

Aurora borealis Charged particles forced to follow Earth’s magnetic field lines when they get near. They only reach the surface near the poles. Ionisation/excitation of atmospheric atoms produces light effects: aurora.

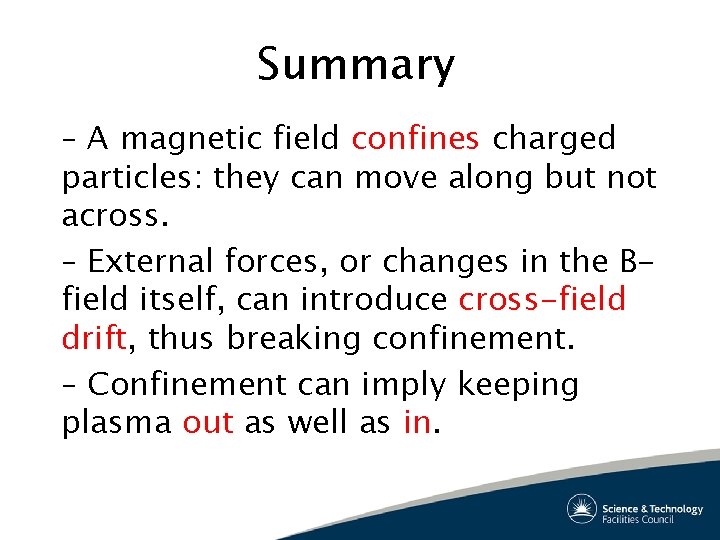

Summary – A magnetic field confines charged particles: they can move along but not across. – External forces, or changes in the Bfield itself, can introduce cross-field drift, thus breaking confinement. – Confinement can imply keeping plasma out as well as in.
