Introduction to Patterns Introduction to Patterns Pattern Webster

Introduction to Patterns

Introduction to Patterns Pattern: Webster definition of Pattern: Something regarded as a normative example to be copied.

Definition in the Pattern Community Definition: Pattern: A representation of a proven solution. Problem Applicable Forces Solution Benefits Consequences

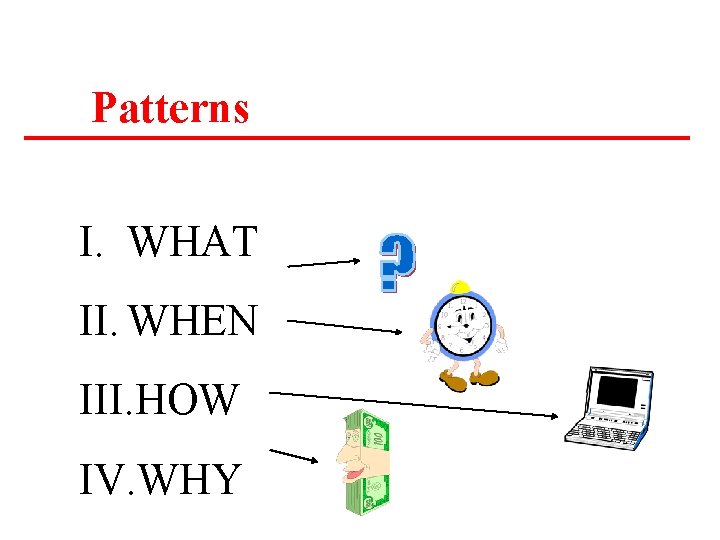

Patterns I. WHAT II. WHEN III. HOW IV. WHY

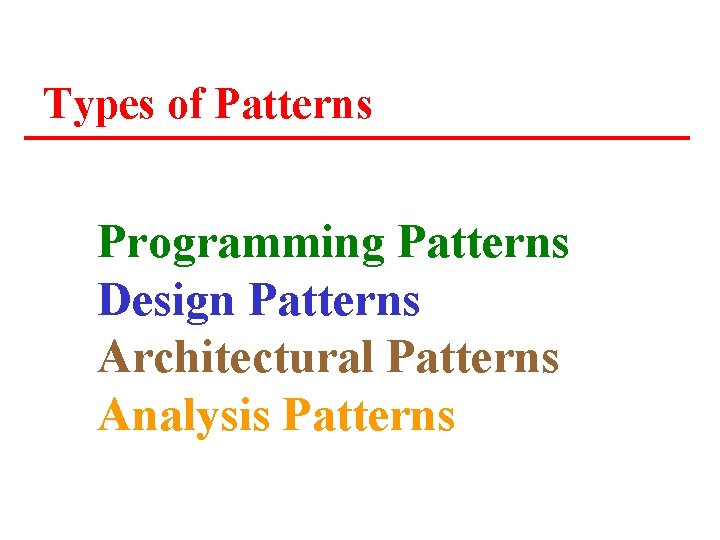

Types of Patterns Programming Patterns Design Patterns Architectural Patterns Analysis Patterns

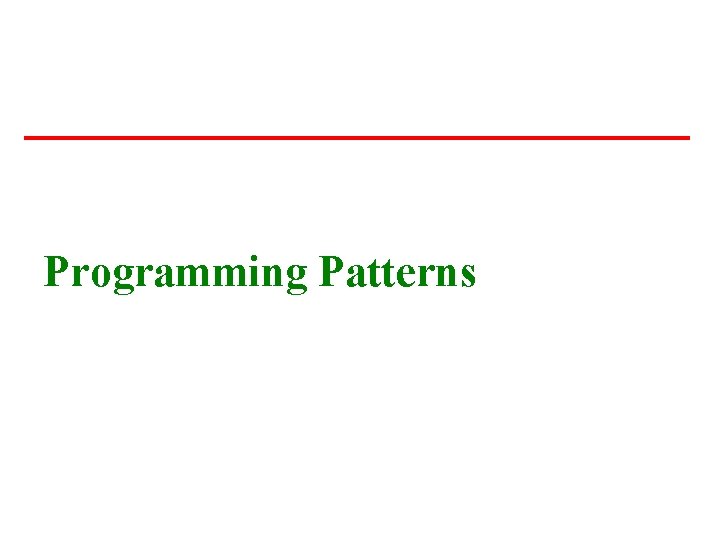

Programming Patterns

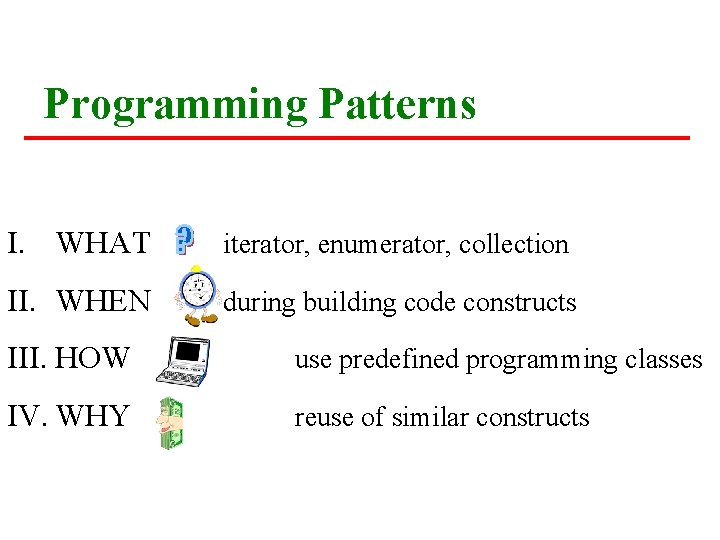

Programming Patterns I. WHAT iterator, enumerator, collection II. WHEN during building code constructs III. HOW use predefined programming classes IV. WHY reuse of similar constructs

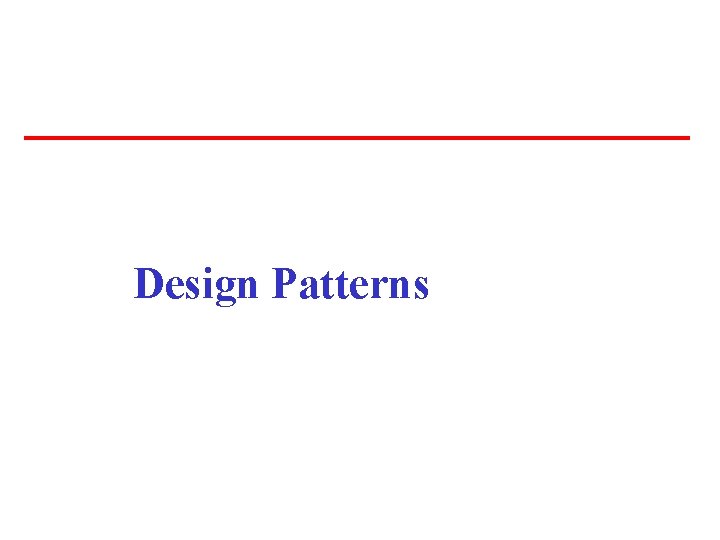

Design Patterns

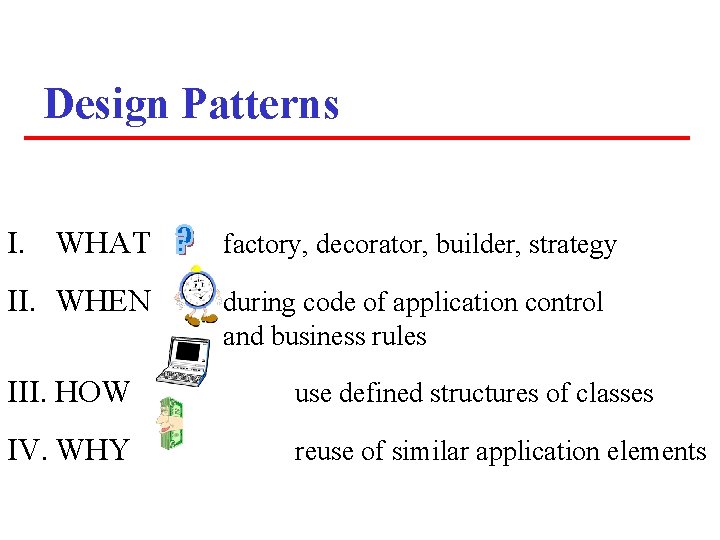

Design Patterns I. WHAT factory, decorator, builder, strategy II. WHEN during code of application control and business rules III. HOW use defined structures of classes IV. WHY reuse of similar application elements

Analysis Patterns I. WHAT person, contract, accounting post II. WHEN during code of domain III. HOW use defined structures of classes IV. WHY reuse of similar application elements

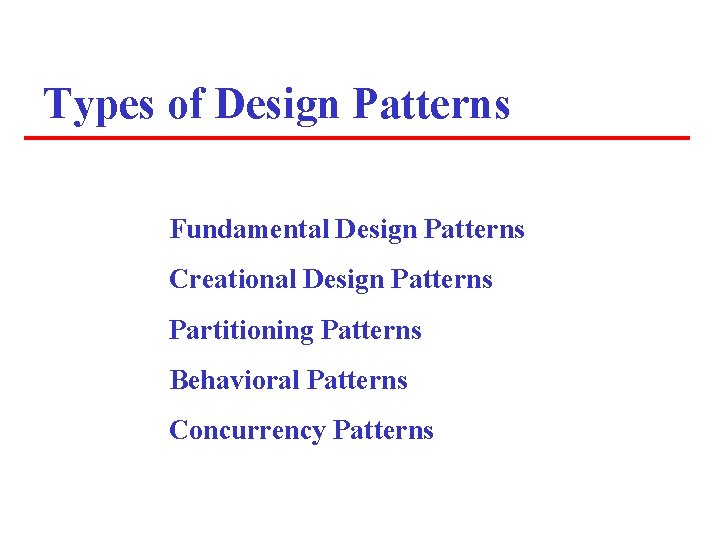

Types of Design Patterns Fundamental Design Patterns Creational Design Patterns Partitioning Patterns Behavioral Patterns Concurrency Patterns

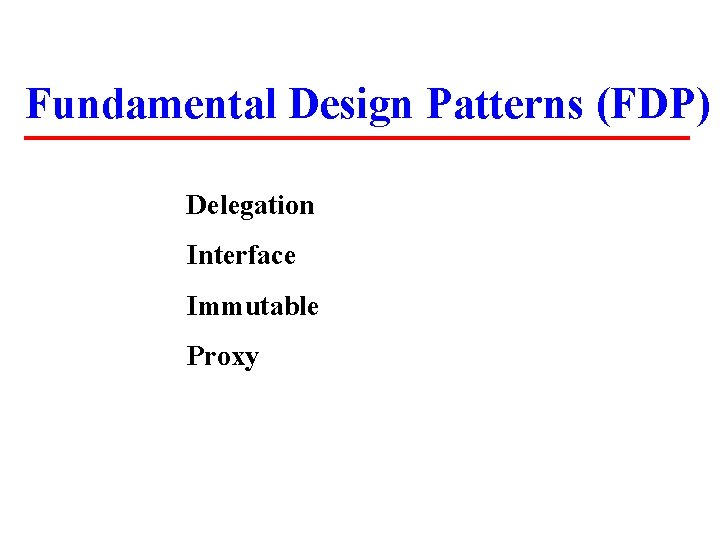

Fundamental Design Patterns (FDP) Delegation Interface Immutable Proxy

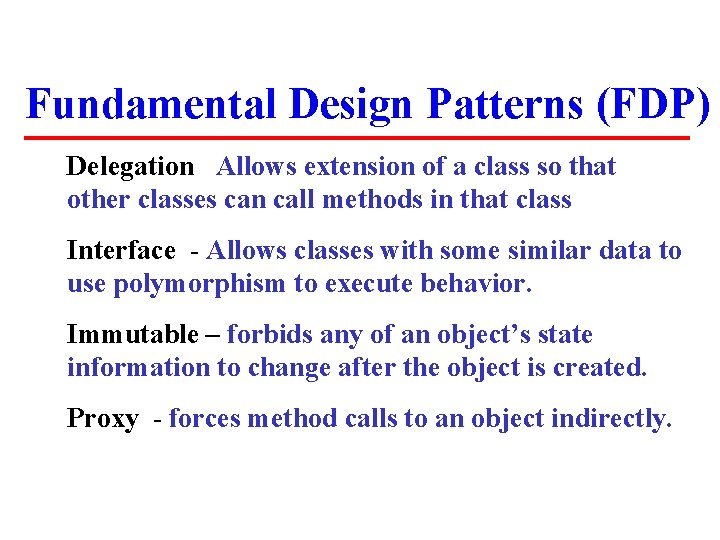

Fundamental Design Patterns (FDP) Delegation Allows extension of a class so that other classes can call methods in that class Interface - Allows classes with some similar data to use polymorphism to execute behavior. Immutable – forbids any of an object’s state information to change after the object is created. Proxy - forces method calls to an object indirectly.

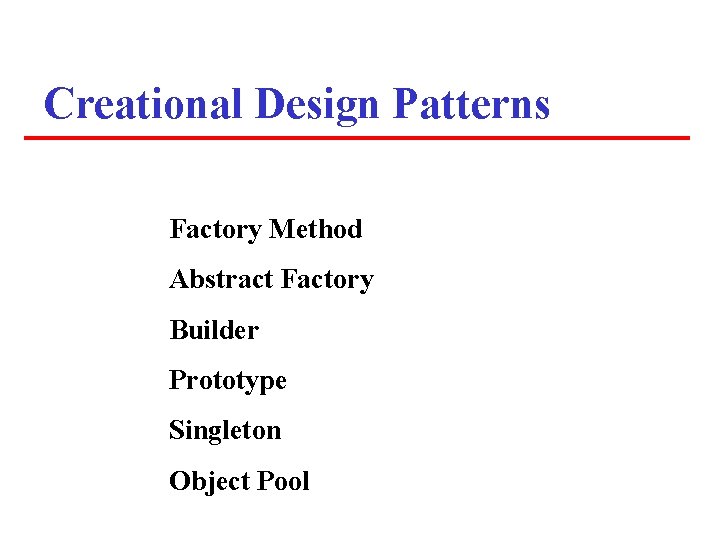

Creational Design Patterns Factory Method Abstract Factory Builder Prototype Singleton Object Pool

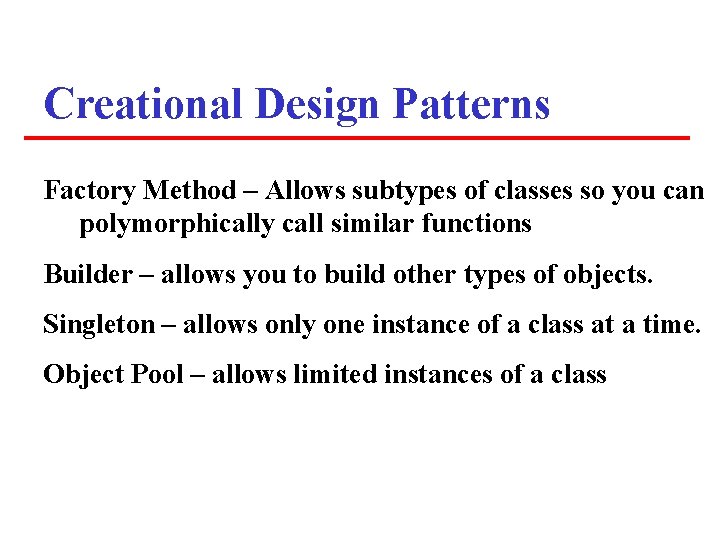

Creational Design Patterns Factory Method – Allows subtypes of classes so you can polymorphically call similar functions Builder – allows you to build other types of objects. Singleton – allows only one instance of a class at a time. Object Pool – allows limited instances of a class

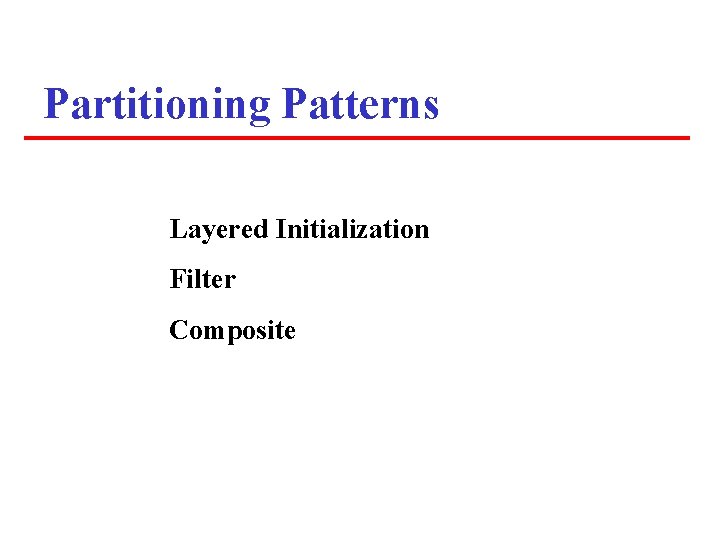

Partitioning Patterns Layered Initialization Filter Composite

Partitioning Patterns Layered Initialization Filter Composite

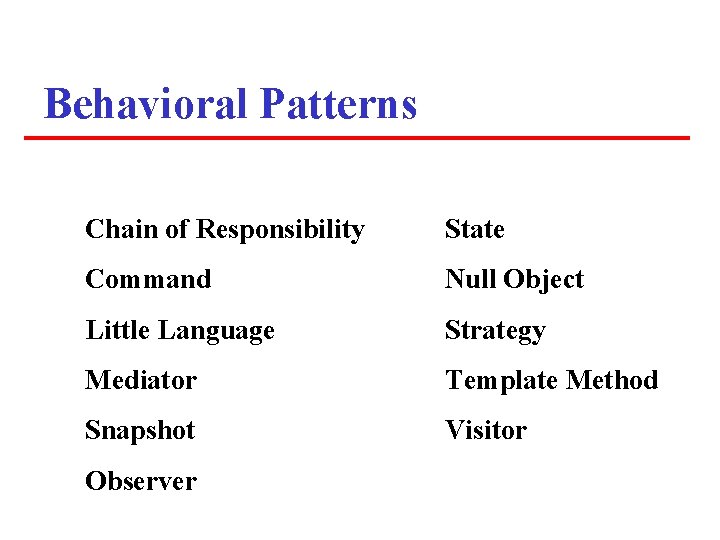

Behavioral Patterns Chain of Responsibility State Command Null Object Little Language Strategy Mediator Template Method Snapshot Visitor Observer

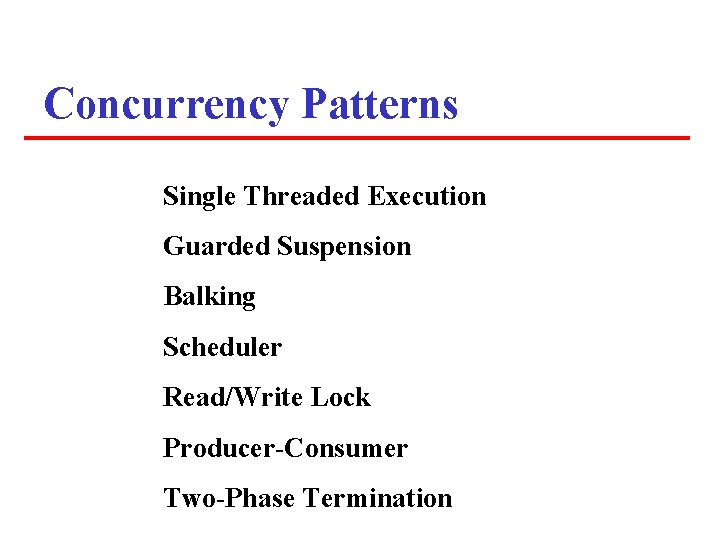

Concurrency Patterns Single Threaded Execution Guarded Suspension Balking Scheduler Read/Write Lock Producer-Consumer Two-Phase Termination

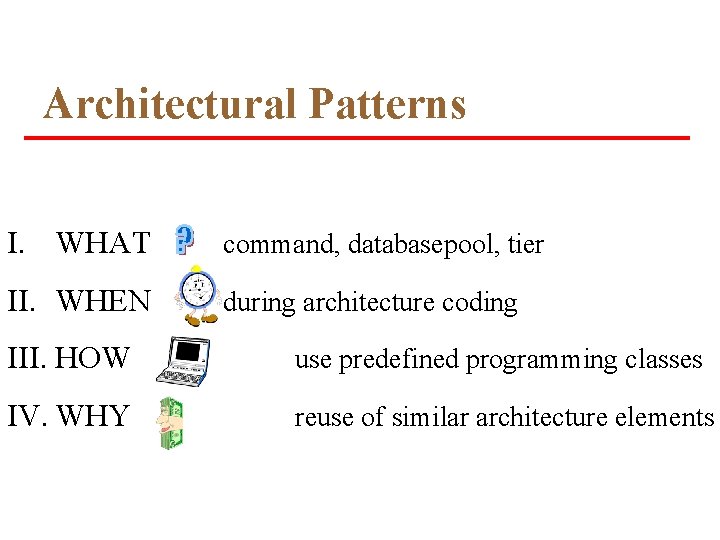

Architectural Patterns I. WHAT command, databasepool, tier II. WHEN during architecture coding III. HOW use predefined programming classes IV. WHY reuse of similar architecture elements

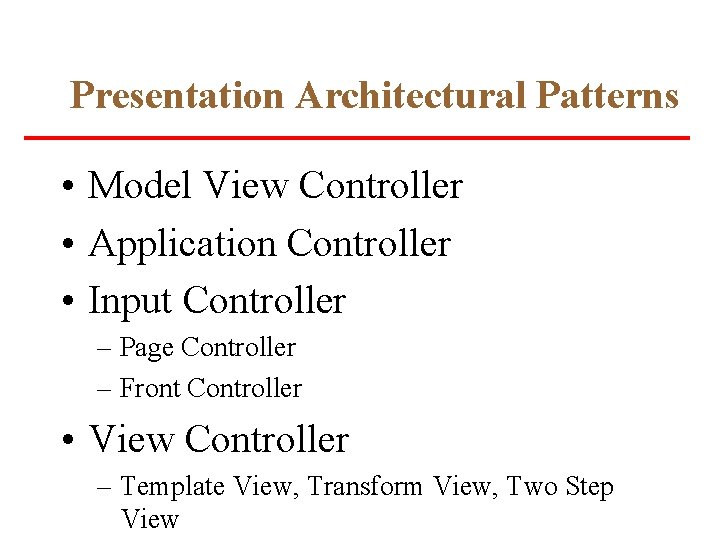

Presentation Architectural Patterns • Model View Controller • Application Controller • Input Controller – Page Controller – Front Controller • View Controller – Template View, Transform View, Two Step View

Analysis Patterns I. WHAT party, responsible, contract, … II. WHEN during analysis & domain prog. III. HOW build domain patterns IV. WHY reuse of similar domain constructs

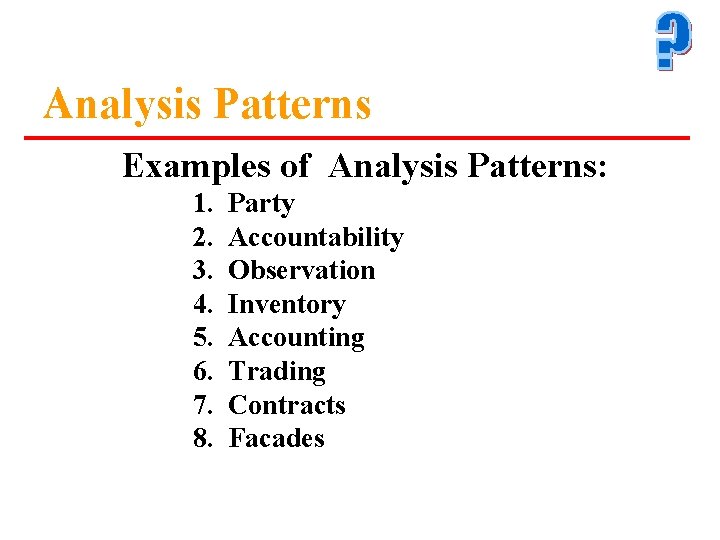

Analysis Patterns Examples of Analysis Patterns: 1. 2. 3. 4. 5. 6. 7. 8. Party Accountability Observation Inventory Accounting Trading Contracts Facades
