INTRODUCTION TO NONLINEAR DYNAMICS AND CHAOS by Bruce A. Mork Michigan Technological University Presented for EE 5320 Course Michigan Technological University March 27, 2001

NONLINEARITIES - EXAMPLES • CHEMISTRY AND PHYSICS – – CHEMICAL REACTIONS (KINETICS) THIN FILM DEPOSITION (LASER DEPOSITION) TURBULENT FLUID FLOWS CRYSTALLINE GROWTH • MEDICAL & BIOLOGICAL – – – HEART DISORDERS (ARRHYTHMIA, FIBRILLATION) BRAIN AND NERVOUS SYSTEM POPULATION DYNAMICS EPIDEMIOLOGY FORECASTING (FLU, DISEASES) FOOD SUPPLY (VS. WEATHER & POPULATION) • ECONOMY – STOCK MARKET – WORLD ECONOMY

NONLINEARITIES - EXAMPLES • ENGINEERING – STRUCTURES: BUILDINGS, BRIDGES – HIGH VOLTAGE TRANSMISSION LINES - WIND-INDUCED VIBRATIONS - GALLOPING – MAGNETIC CIRCUITS – COMMUNICATIONS SCRAMBLING - CHAOS GENERATOR – POWER SYSTEMS LOAD FLOW - VOLTAGE COLLAPSE – NONLINEAR CONTROLS – SIMPLE PENDULUM - LINEAR FOR SMALL SWINGS, BECOMES NONLINEAR FOR LARGE ANGLE OSCILLATIONS • KEY REALIZATIONS – NONLINEARITY IS THE RULE, NOT THE EXCEPTION ! – LINEARIZATION OR REDUCED-ORDER MODELING MAY ONLY BE VALID FOR A SMALL RANGE OF SYSTEM OPERATION (I. E. SMALL-SIGNAL RESPONSE) ……… BE CAREFUL !

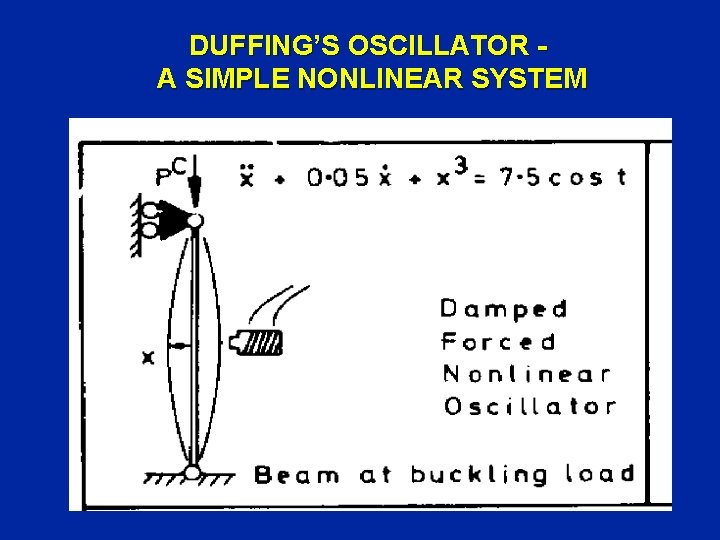

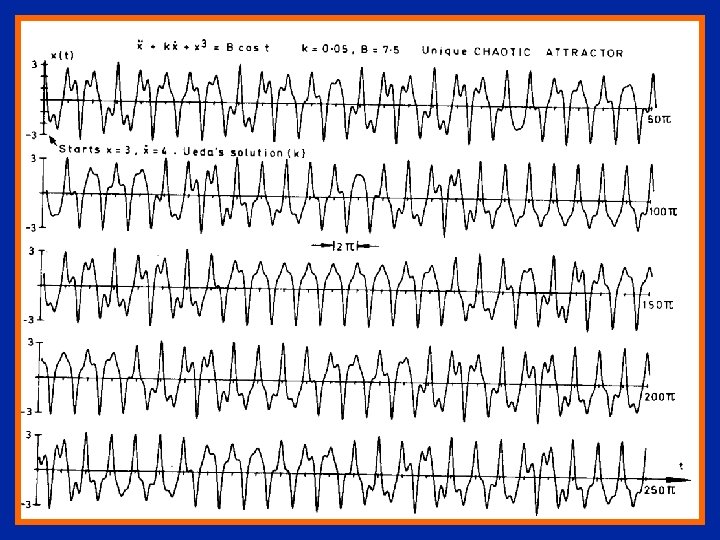

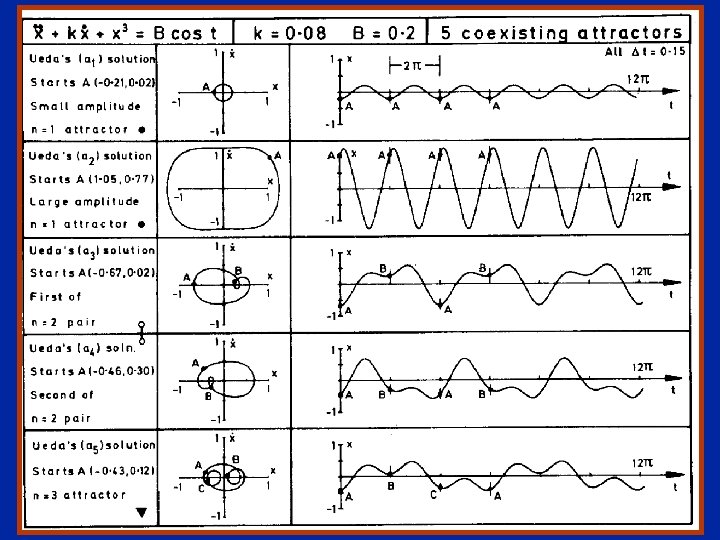

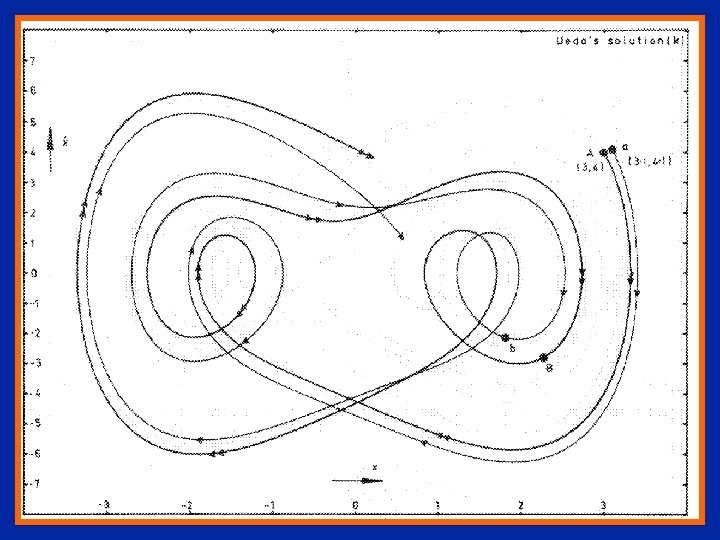

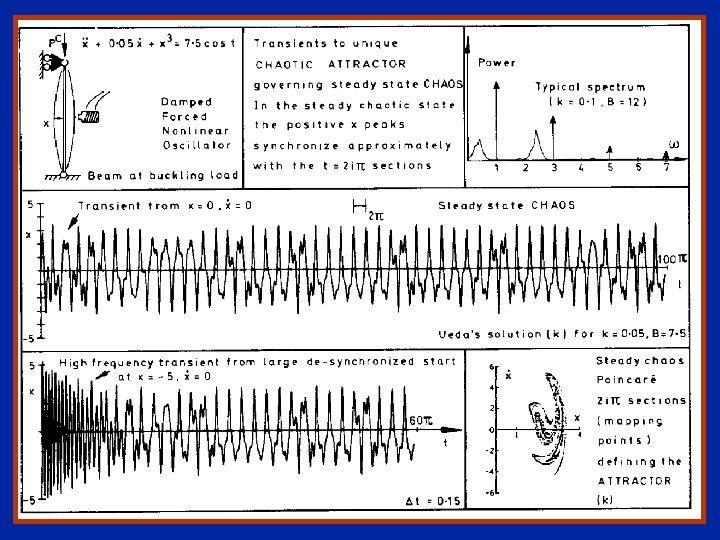

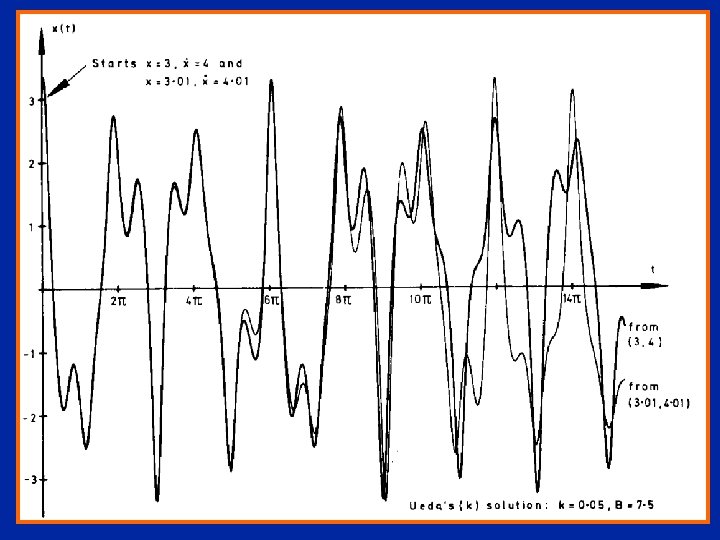

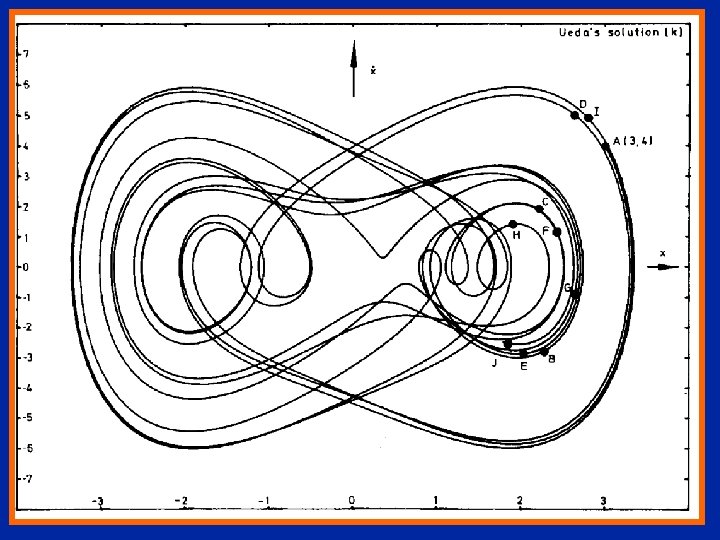

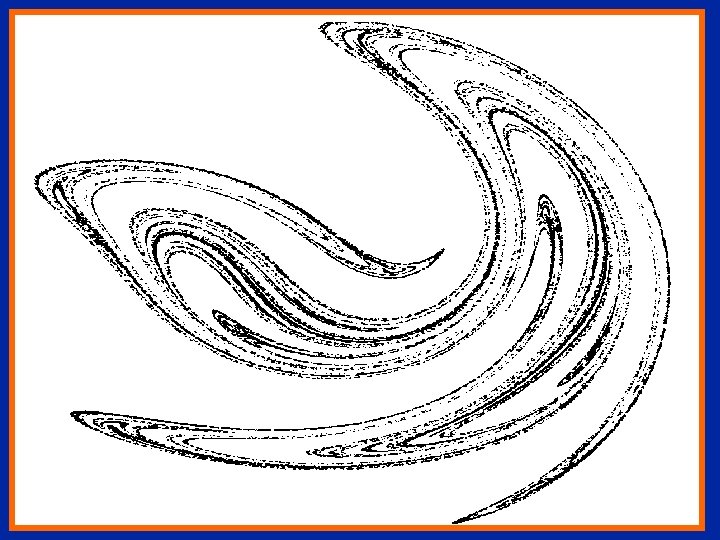

DUFFING’S OSCILLATOR A SIMPLE NONLINEAR SYSTEM

FERRORESONANCE IN WYE-CONNECTED SYSTEMS VC A H 1 B H 2 X 1 VA VB C H 3 X 2 X 3 X 0

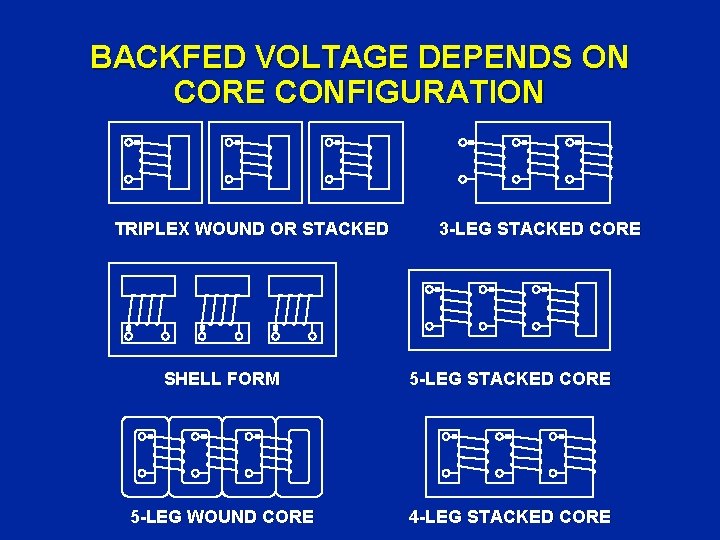

BACKFED VOLTAGE DEPENDS ON CORE CONFIGURATION TRIPLEX WOUND OR STACKED 3 -LEG STACKED CORE SHELL FORM 5 -LEG STACKED CORE 5 -LEG WOUND CORE 4 -LEG STACKED CORE

NONLINEAR DYNAMICAL SYSTEMS: BASIC CHARACTERISTICS • MULTIPLE MODES OF RESPONSE POSSIBLE FOR IDENTICAL SYSTEM PARAMETERS. • STEADY STATE RESPONSES MAY BE OF DIFFERENT PERIOD THAN FORCING FUNCTION, OR NONPERIODIC (CHAOTIC). • STEADY STATE RESPONSE MAY BE EXTREMELY SENSITIVE TO INITIAL CONDITIONS OR PERTURBATIONS. • BEHAVIORS CANNOT PROPERLY BE PREDICTED BY LINEARIZED OR REDUCED ORDER MODELS. • THEORY MATURED IN LATE 70 s, EARLY 80 s. • PRACTICAL APPLICATIONS FROM LATE 80 s.

EXPERIMENTAL PROCEDURE: CATEGORIZATION OF MODES OF FERRORESONANCE BEHAVIOR • FULL SCALE LABORATORY TESTS. • 5 -LEG WOUND CORE, RATED 75 -k. VA, WINDINGS: 12, 470 GY/7200 - 480 GY/277 (TYPICAL IN 80% OF U. S. SYSTEMS). • RATED VOLTAGE APPLIED. • ONE OR TWO PHASES OPEN-CIRCUITED. • CAPACITANCE(S) CONNECTED TO OPEN PHASE(S) TO SIMULATE CABLE. • VOLTAGE WAVEFORMS ON OPEN PHASE(S) RECORDED AS CAPACITANCE IS VARIED.

VOLTAGE X 1 -X 0 C = 9 F X 2, X 3 ENERGIZED X 1 OPEN “ PERIOD ONE ” PHASE PLANE DIAGRAM FOR VX 1

VOLTAGE X 1 -X 0 C = 9 F X 2, X 3 ENERGIZED X 1 OPEN “ PERIOD ONE ” DFT FOR VX 1 ONLY ODD HARMONICS

VOLTAGE X 1 -X 0 C = 10 F X 2, X 3 ENERGIZED X 1 OPEN “ PERIOD TWO ” PHASE PLANE DIAGRAM FOR VX 1

VOLTAGE X 1 -X 0 C = 10 F X 2, X 3 ENERGIZED X 1 OPEN “ PERIOD TWO ” DFT FOR VX 1 HARMONICS AT MULTIPLES OF 30 Hz.

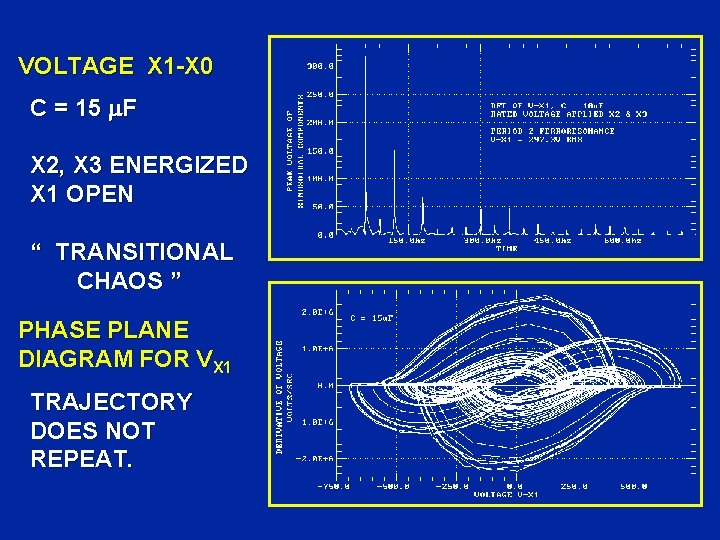

VOLTAGE X 1 -X 0 C = 15 F X 2, X 3 ENERGIZED X 1 OPEN “ TRANSITIONAL CHAOS ” PHASE PLANE DIAGRAM FOR VX 1 TRAJECTORY DOES NOT REPEAT.

VOLTAGE X 1 -X 0 C = 15 F X 2, X 3 ENERGIZED X 1 OPEN “ TRANSITIONAL CHAOS ” DFT FOR VX 1 NOTE: DISTRIBUTED SPECTRUM.

VOLTAGE X 1 -X 0 C = 17 F X 2, X 3 ENERGIZED X 1 OPEN “ PERIOD FIVE ” PHASE PLANE DIAGRAM FOR VX 1

VOLTAGE X 1 -X 0 C = 17 F X 2, X 3 ENERGIZED X 1 OPEN “ PERIOD FIVE ” DFT FOR VX 1 HARMONICS AT “ODD ONE-FIFTH” SPACINGS. i. e. 12, 36, 60, 84. . .

VOLTAGE X 1 -X 0 C = 18 F X 2, X 3 ENERGIZED X 1 OPEN “ TRANSITIONAL CHAOS ” PHASE PLANE DIAGRAM FOR VX 1 NOTE: TRAJECTORY DOES NOT REPEAT.

VOLTAGE X 1 -X 0 C = 18 F X 2, X 3 ENERGIZED X 1 OPEN “ TRANSITIONAL CHAOS ” DFT FOR VX 1 NOTE: DISTRIBUTED SPECTRUM.

VOLTAGE X 1 -X 0 C = 25 F X 2, X 3 ENERGIZED X 1 OPEN “ PERIOD THREE ” PHASE PLANE DIAGRAM FOR VX 1

VOLTAGE X 1 -X 0 C = 25 F X 2, X 3 ENERGIZED X 1 OPEN “ PERIOD THREE ” DFT FOR VX 1 HARMONICS AT “ODD ONE-THIRD” SPACINGS. i. e. 20, 60, 100. . .

VOLTAGE X 1 -X 0 C = 40 F X 2, X 3 ENERGIZED X 1 OPEN “ CHAOS ” POINCARÉ SECTION FOR VX 1 ONE POINT PER CYCLE SAMPLED FROM PHASE PLANE TRAJECTORY.

VOLTAGE X 1 -X 0 C = 40 F X 2, X 3 ENERGIZED X 1 OPEN “ CHAOS ” DFT FOR VX 1 NOTE: DISTRIBUTED FREQUENCY SPECTRUM.

SPONTANEOUS TRANSITION BETWEEN MODES OF PERIOD ONE. C = 20 F X 1, X 3 ENERGIZED X 2 OPEN BLURRED AREAS SHOW MODE TRANSITION.

SPONTANEOUS TRANSITION BETWEEN MODES OF PERIOD ONE. C = 14 F X 1 ENERGIZED X 2 OPEN BLURRED AREAS SHOW MODE TRANSITION.

SPONTANEOUS TRANSITION BETWEEN MODES OF PERIOD ONE. C = 14 F X 1 ENERGIZED X 2 OPEN BLURRED AREAS SHOW MODE TRANSITION.

INTERMITTENCY X 2 & X 3 ENERGIZED, X 1 OPEN, C = 45 F

GLOBAL PREDICTION OF FERRORESONANCE • PREDICTION APPEARS DIFFICULT DUE TO WIDE RANGE OF POSSIBLE BEHAVIORS. • A TYPE OF BIFURCATION DIAGRAM, AS USED TO STUDY NONLINEAR SYSTEMS, IS INTRODUCED FOR THIS PURPOSE. • MAGNITUDES OF VOLTAGES FROM SIMULATED POINCARÉ SECTIONS ARE PLOTTED AS THE CAPACITANCE IS SLOWLY VARIED (BOTH UP AND DOWN). • POINTS ARE SAMPLED ONCE EACH 60 -Hz CYCLE. • AN “ADEQUATE ” MODEL IS REQUIRED.

CAPACITANCE VARIED 0 - 30 F MODES: 1 -2 -C-5 -C-3 -C BIFURCATION DIAGRAMS: ENERGIZE X 2, X 3. X 1 LEFT OPEN. CAPACITANCE VARIED 30 - 0 F

CONCLUSIONS • FERRORESONANT BEHAVIOR IS TYPICAL OF NONLINEAR DYNAMICAL SYSTEMS. • RESPONSES MAY BE PERIODIC OR CHAOTIC. • MULTIPLE MODES OF RESPONSE ARE POSSIBLE FOR THE SAME PARAMETERS. • STEADY STATE RESPONSES CAN BE SENSITIVE TO INITIAL CONDITIONS OR PERTURBATIONS. • SPONTANEOUS TRANSITIONS FROM ONE MODE TO ANOTHER ARE POSSIBLE. • WHEN SIMULATING, THERE MAY NOT BE “ONE CORRECT” RESPONSE.

CONCLUSIONS (CONT’D) • BIFURCATIONS OCCUR AS CAPACITANCE IS VARIED UPWARD OR DOWNWARD. • PLOTTING Vpeak vs. CAPACITANCE OR OTHER VARIABLES GIVES DISCONTINUOUS OR MULTI-VALUED FUNCTIONS. • THEREFORE, SUPPOSITION OF TRENDS BASED ON LINEARIZING A LIMITED SET OF DATA IS PARTICULARLY PRONE TO ERROR. • BIFURCATION DIAGRAMS PROVIDE A ROAD MAP, AVOIDING NEED TO DO SEPARATE SIMULATIONS AT DISCRETE VALUES OF CAPACITANCE AND INITIAL CONDITIONS.

CONCLUSIONS (CONT’D) • DFTs ARE USEFUL FOR CATEGORIZING THE DIFFERENT MODES OF FERRORESONANCE. • PHASE PLANE DIAGRAMS PROVIDE A UNIQUE SIGNATURE OF PERIODIC RESPONSES. • PHASE PLANE TRAJECTORIES PROVIDE THE DATA FOR POINCARÉ SECTIONS, FRACTAL DIMENSION, AND LYAPUNOV EXPONENTS. • CATEGORIZATION OF RESPONSES CAN BE MORE CLEARLY DONE USING THE SYNTAX OF NONLINEAR DYNAMICS.

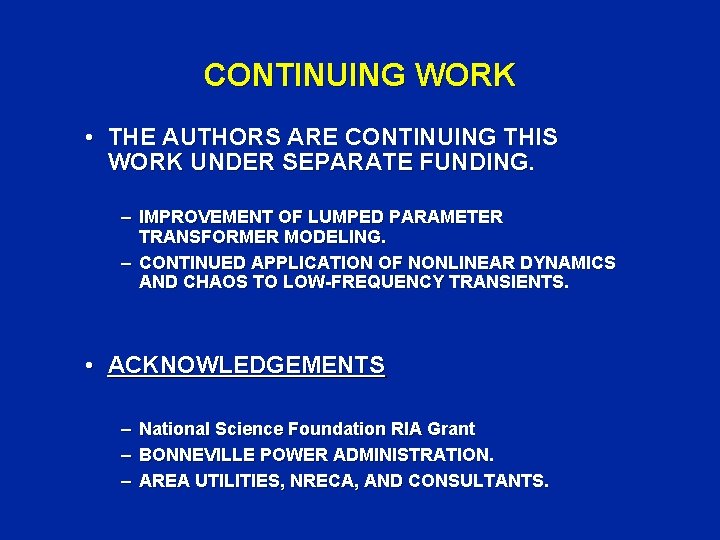

CONTINUING WORK • THE AUTHORS ARE CONTINUING THIS WORK UNDER SEPARATE FUNDING. – IMPROVEMENT OF LUMPED PARAMETER TRANSFORMER MODELING. – CONTINUED APPLICATION OF NONLINEAR DYNAMICS AND CHAOS TO LOW-FREQUENCY TRANSIENTS. • ACKNOWLEDGEMENTS – National Science Foundation RIA Grant – BONNEVILLE POWER ADMINISTRATION. – AREA UTILITIES, NRECA, AND CONSULTANTS.

COMMENTS? QUESTIONS?
