Introduction to MPLAB IDE What is IDE Integrated

Introduction to MPLAB IDE

What is IDE? • Integrated Development Environment (IDE) • Collection of integrated programs (tools) to write assembly programs, assemble, execute, and debug programs. • Microchip IDE is called MPLAB IDE

Writing Assembly Programs / and IDE Structure

File Structure in IDE • • Project_name. mcp Project_name. mcw Project_name. mcs code_listing. asm New project Code listing

Error File (. err) • • Error[113] C: MCC 18CLASS_PROJECTADDCARY. ASM 9 : Symbol not previously defined (START) Error[122] C: MCC 18CLASS_PROJECTADDCARY. ASM 11 : Illegal opcode (MOVi. LW) Warning[207] C: MCC 18CLASS_PROJECTADDCARY. ASM 17 : Found label after column 1. (MOi. VLW) Error[108] C: MCC 18CLASS_PROJECTADDCARY. ASM 17 : Illegal character (0) Line Number which has an error. Read the error and correct it.

List file (*. lst) 000000 EF 10 F 00009 GOTO START 000020 00010 ORG 0020 H 000020 0 EF 2 00011 START: MOVLW BYTE 1 000022 6 E 00 00012 MOVWF REG 0, 0 000024 0 E 32 00013 MOVLW BYTE 2 000026 6 E 01 00014 MOVWF REG 1, 0 000028 2400 00015 ADDWF REG 0, 0, 0 00002 A E 301 00016 BNC SAVE 00002 C 0 E 00 00017 MOVLW 0 x 00 00002 E 6 E 02 00018 SAVE: MOVWF REG 2, 0 000030 0003 00019 SLEEP 00020 END �MPASM 5. 12 ADDCARY. ASM 2 -26 -2008 PAGE 2 SYMBOL TABLE LABEL BYTE 1 BYTE 2 REG 0 REG 1 REG 2 SAVE START __18 F 452 Messages : MEMORY USAGE MAP ('X' = Used, '-' = Unused) 0000 : XXXX-------- XXXXXXXX XX-------All other memory blocks unused. Program Memory Bytes Used: 22 Program Memory Bytes Free: 32746 Errors : 0 Warnings : 0 reported, 0 suppressed 20: 03 VALUE 000000 F 2 00000032 00000001 00000002 E 00000020 00000001 0 reported, 0 suppressed Identifies all memory locations and opcodes in the source code

List file (*. lst) Memory Address 000000 EF 10 F 00009 GOTO START 000020 00010 ORG 0020 H 000020 0 EF 2 00011 START: MOVLW BYTE 1 000022 6 E 00 00012 MOVWF REG 0, 0 000024 0 E 32 00013 MOVLW BYTE 2 000026 6 E 01 00014 MOVWF REG 1, 0 000028 2400 00015 ADDWF REG 0, 0, 0 00002 A E 301 00016 BNC SAVE 00002 C 0 E 00 00017 MOVLW 0 x 00 00002 E 6 E 02 00018 SAVE: MOVWF REG 2, 0 000030 0003 00019 SLEEP 00020 END �MPASM 5. 12 ADDCARY. ASM 2 -26 -2008 PAGE 2 SYMBOL TABLE LABEL BYTE 1 BYTE 2 REG 0 REG 1 REG 2 SAVE START __18 F 452 Messages : VALUE 000000 F 2 00000032 00000001 00000002 E 00000020 00000001 0 reported, 0 suppressed opcode MEMORY USAGE MAP ('X' = Used, '-' = Unused) 0000 : XXXX-------- XXXXXXXX XX-------All other memory blocks unused. Program Memory Bytes Used: 22 Program Memory Bytes Free: 32746 Errors : 0 Warnings : 0 reported, 0 suppressed 20: 03 Sequential Line numbers Identifies all memory locations and opcodes in the source code

Hex Code (*. HEX) : 020000040000 FA : 0400000010 EF 00 D : 10002000 F 20 E 006 E 320 E 016 E 002401 E 3000 E 026 E 2 D : 0200300 CB : 00000001 FF *. COD is an executable file. *. O is the object file

Viewing Your Code PROG STRUCTURE PROG MEMORY CODE EEPROM WATCH

Programming Steps

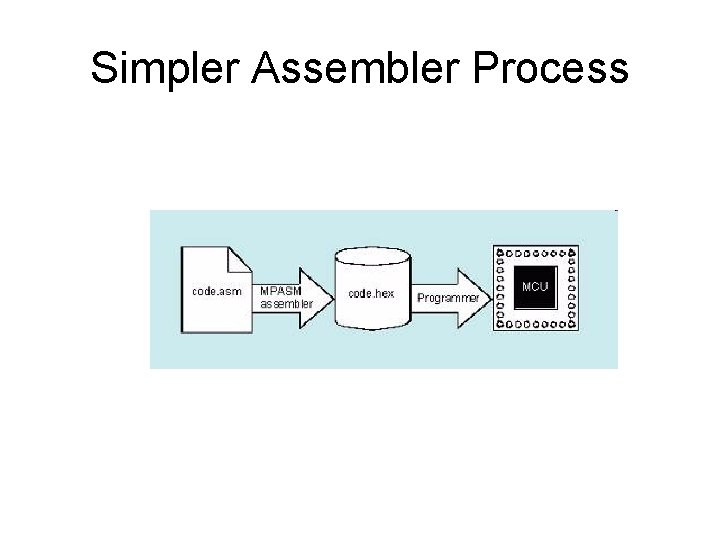

Simpler Assembler Process

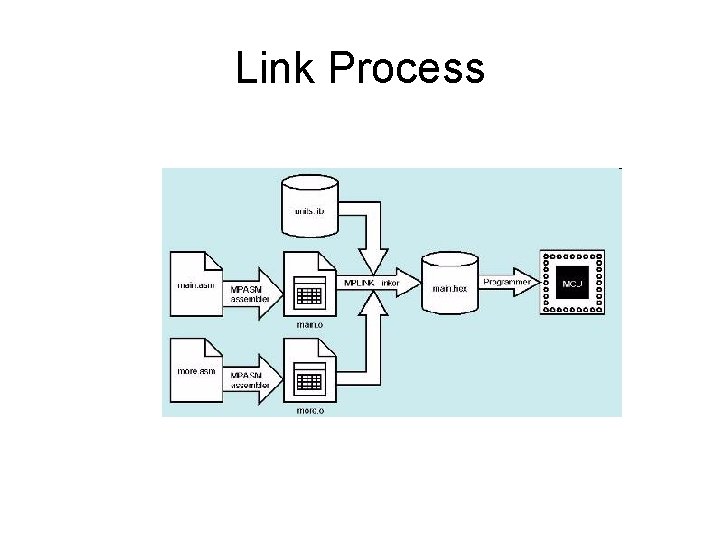

Link Process
