Introduction to Microprocessor

Introduction to Microprocessor

Topics to be discussed Introduction to Micro processor Microprocessor instruction and opcodes Mnemonics

Topics to be discussed Introduction to Micro processor Microprocessor instruction and opcodes Mnemonics

Objectives OBJECTIVES Understand what a microprocessor is, what it does, and how it works.

Objectives OBJECTIVES Understand what a microprocessor is, what it does, and how it works. Understand the concepts of RAM and ROM computer memory and how memory is accessed via the address and data buses. Understand how parallel and serial data interfaces work. Perform relevant calculations pertaining to analog-todigital converters and digital-to-analog converters. Understand the principles of digital controller software. Recognize and describe the characteristics of the various types of available digital controllers, that is, microcontrollers, single-board computers, programmable logic controllers, and personal computers.

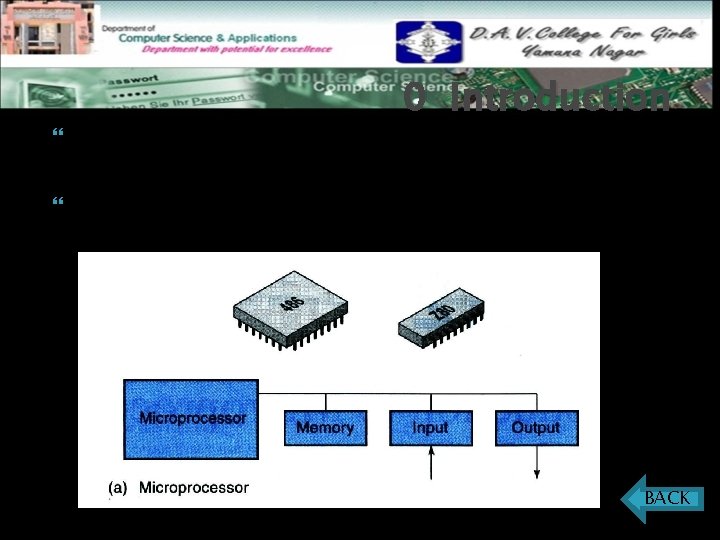

 0 Introduction Microprocessors ushered in a whole new era for control systems electronics.

0 Introduction Microprocessors ushered in a whole new era for control systems electronics. Microprocessors require additional components to be useful – RAM, ROM, etc. BACK

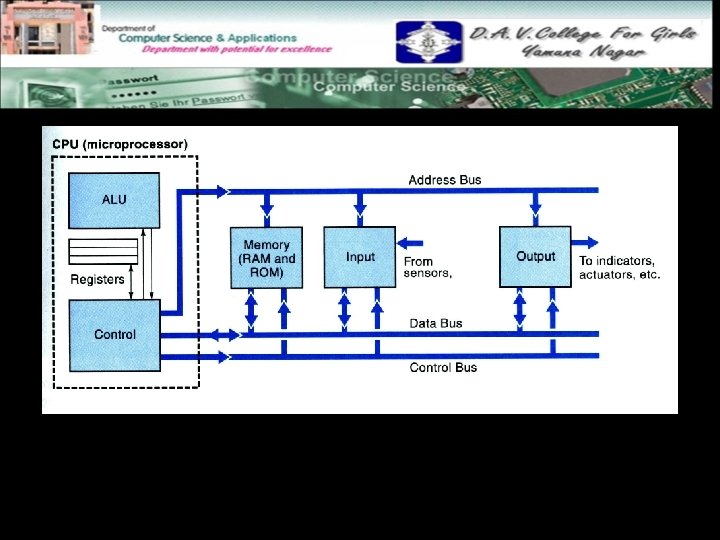

 A computer is made up of four basic blocks: ◦ Central Processing Unit

A computer is made up of four basic blocks: ◦ Central Processing Unit (CPU) Does the actual computing. Arithmetic Unit – performs math and logic Control: Manages flow of data ◦ Memory – Data is contained in memory locations at specified addresses. RAM – volatile, read/write memory ROM – nonvolatile, read only EPROM/EEPROM/Flash – Erasable ROM

 Input/Output ports: Used for connections to devices. Busing: ◦ Devices are multiplexed using

Input/Output ports: Used for connections to devices. Busing: ◦ Devices are multiplexed using 3 major buses: Address Bus – To specify the device or memory location to communicate with. Data Bus – To transfer data between the CPU and device. Control Bus – Timing and event control, such as read and write operations.

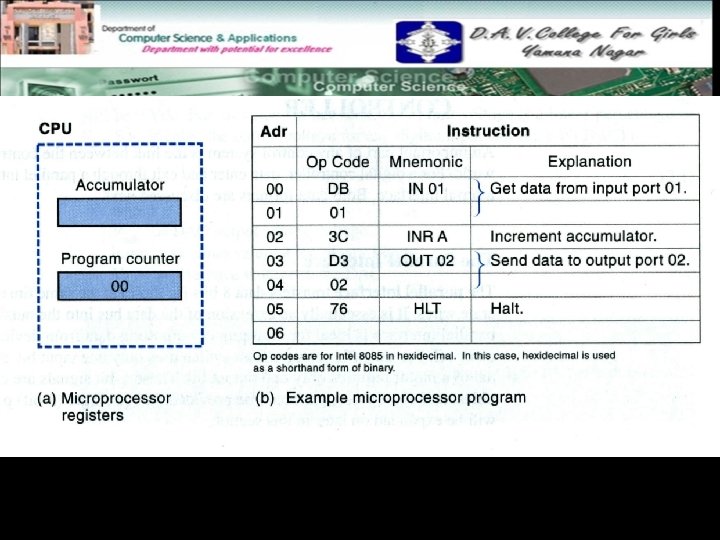

Microprocessor Instructions & Op-Codes Each processor has its own instruction set of commands to

Microprocessor Instructions & Op-Codes Each processor has its own instruction set of commands to control its operation. ◦ Move data ◦ Perform math operations ◦ Perform logical operations Each instruction has a unique Op-code, a binary value associated to it. 01001101 or 4 Dh. An Accumulator is staging area for data – data is moved into it, and operations are performed on that data. BACK

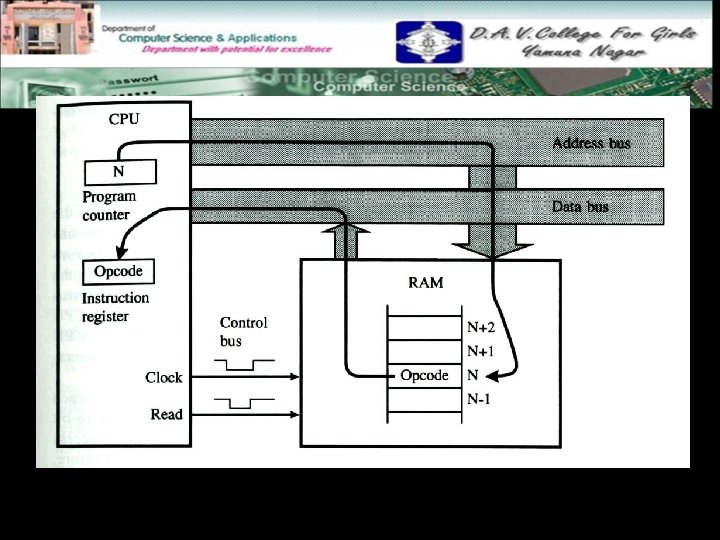

Machine Code/Mnemonics/PC Machine Code ◦ The program the CPU follows represented in binary or

Machine Code/Mnemonics/PC Machine Code ◦ The program the CPU follows represented in binary or hex. Mnemonics ◦ Abbreviations representing an op-code. Programs written in assembly language use mnemonics. Program counter ◦ Used to point to the memory address of the instruction to be performed. Fetch-execute cycles ◦ Performed to bring an instruction into memory and execute it. BACK
