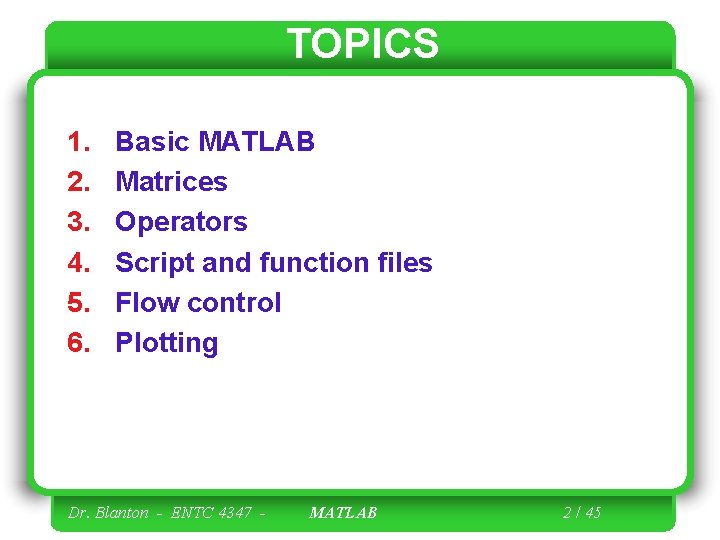

TOPICS 1. 2. 3. 4. 5. 6. Basic MATLAB Matrices Operators Script and function files Flow control Plotting Dr. Blanton - ENTC 4347 - MATLAB 2 / 45

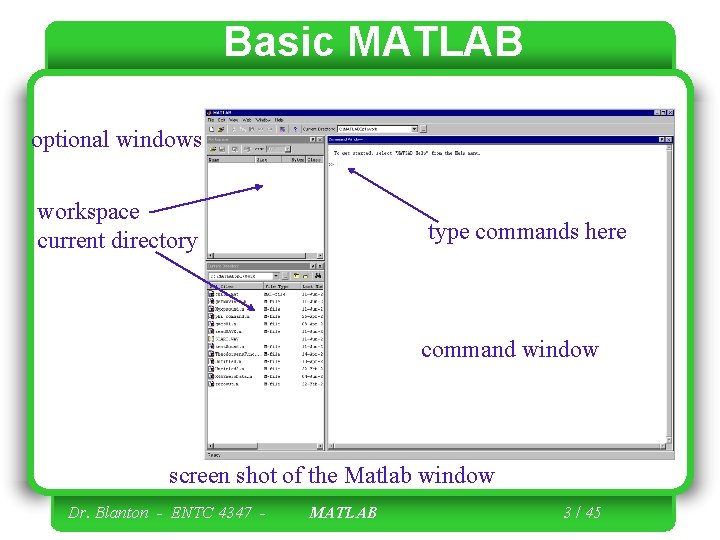

Basic MATLAB optional windows workspace current directory type commands here command window screen shot of the Matlab window Dr. Blanton - ENTC 4347 - MATLAB 3 / 45

Matlab’s help features type “help” at the command prompt and Matlab returns a list of help topics Dr. Blanton - ENTC 4347 - MATLAB 4 / 45

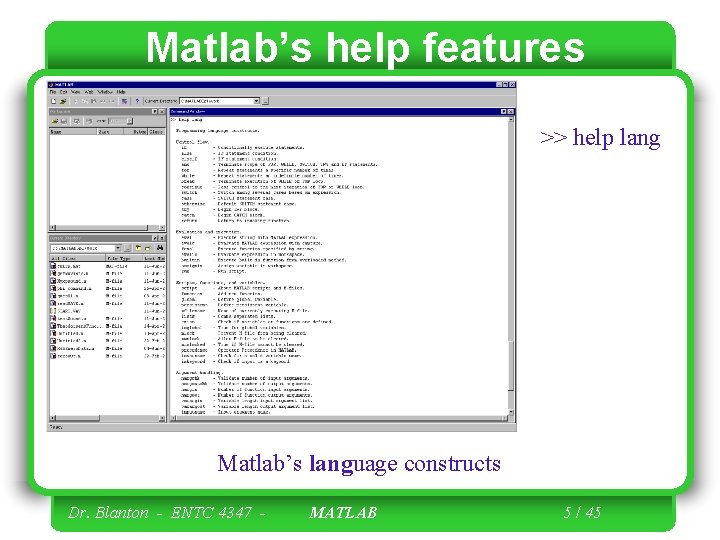

Matlab’s help features >> help lang Matlab’s language constructs Dr. Blanton - ENTC 4347 - MATLAB 5 / 45

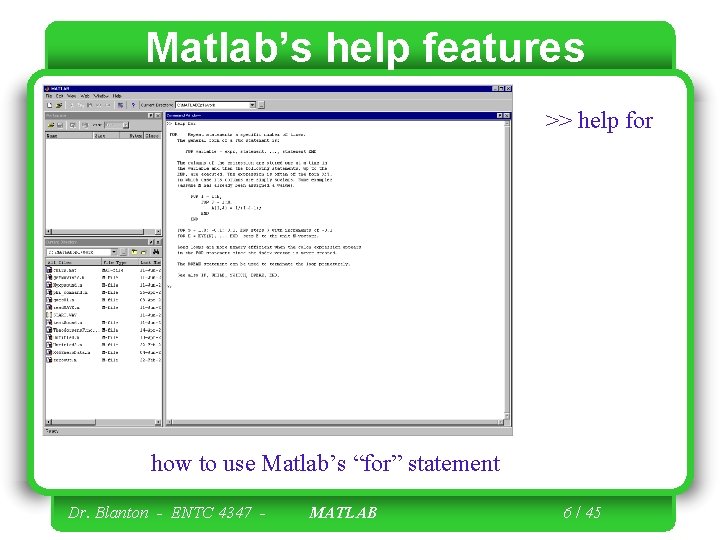

Matlab’s help features >> help for how to use Matlab’s “for” statement Dr. Blanton - ENTC 4347 - MATLAB 6 / 45

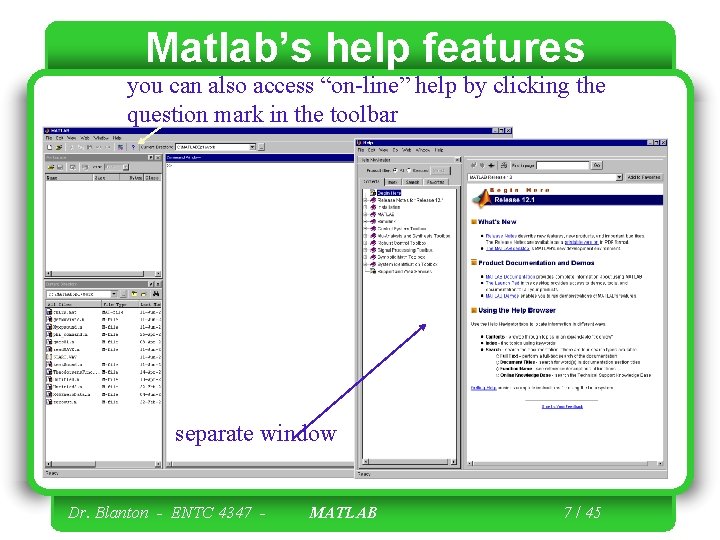

Matlab’s help features you can also access “on-line” help by clicking the question mark in the toolbar separate window Dr. Blanton - ENTC 4347 - MATLAB 7 / 45

MATLAB Variables all variables are stored in 32 bit floating point format no distinction between real and integer >>a = 3; same assignment for “a” >>a = 3. 0; Matlab is case sensitive >>A=3; A a >>a=2; Dr. Blanton - ENTC 4347 - MATLAB 8 / 45

MATLAB Variables can use numbers and underscore in variable names >>case 34=6. 45; OK >>case_34=6. 45; names must start with a letter >>34 case=23. 45; results in a syntax error string (text) variables enclosed in single quotes. The variable is stored as array of characters >>title=‘This is the title’; Dr. Blanton - ENTC 4347 - MATLAB 9 / 45

MATLAB Variables if a variable is defined, typing the variable name returns its value >>a=45. 57; >>a a= 45. 57 Matlab returns the value to clear a variable from memory >>a=4 >>clear a Dr. Blanton - ENTC 4347 - MATLAB 10 / 45

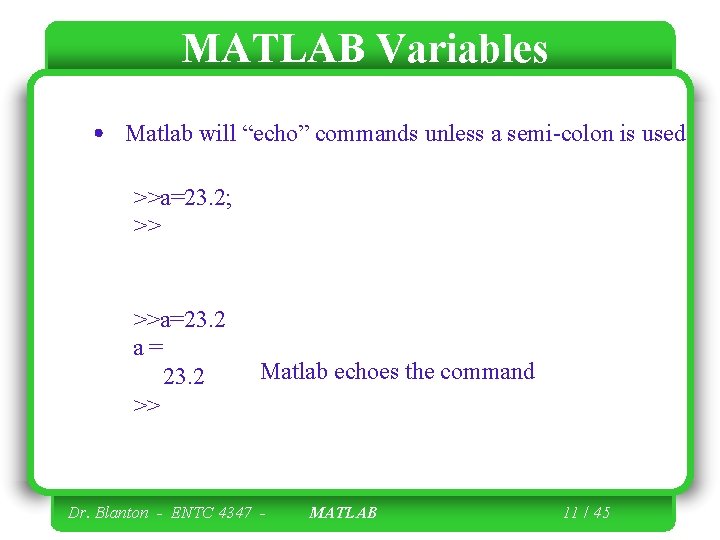

MATLAB Variables Matlab will “echo” commands unless a semi-colon is used >>a=23. 2; >> >>a=23. 2 a= 23. 2 >> Matlab echoes the command Dr. Blanton - ENTC 4347 - MATLAB 11 / 45

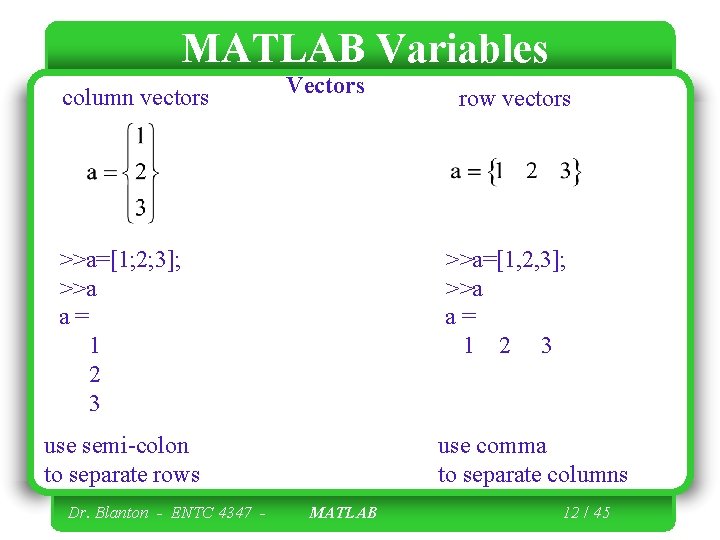

MATLAB Variables column vectors Vectors >>a=[1; 2; 3]; >>a a= 1 2 3 >>a=[1, 2, 3]; >>a a= 1 2 3 use comma to separate columns use semi-colon to separate rows Dr. Blanton - ENTC 4347 - row vectors MATLAB 12 / 45

MATLAB Variables Matrices 2 -dimensional matrices >>a=[1, 2, 3; 4, 5, 6]; >>a a= 1 2 3 4 5 6 again, separate columns with commas and rows with semi-colons Dr. Blanton - ENTC 4347 - MATLAB 13 / 45

MATLAB Variables Indexing Matrix elements A vector is a special type of matrix row vector is a 1 x n matrix, 1 row n columns column vector is a n x 1 matrix, n rows 1 column >>a=[1, 2, 3]; >>a(2) ans = 2 Dr. Blanton - ENTC 4347 - could also reference by a(1, 2) note, a(2, 1) would produce an error because “a” only has one row MATLAB 14 / 45

MATLAB Variables Indexing Matrix elements more examples >>a=[1, 2, 3; 4, 5, 6]; assigning addressing >>a(2, 2)=9; >>a a= 1 2 3 4 9 6 >>a(2, 3) ans = 6 Dr. Blanton - ENTC 4347 - MATLAB 15 / 45

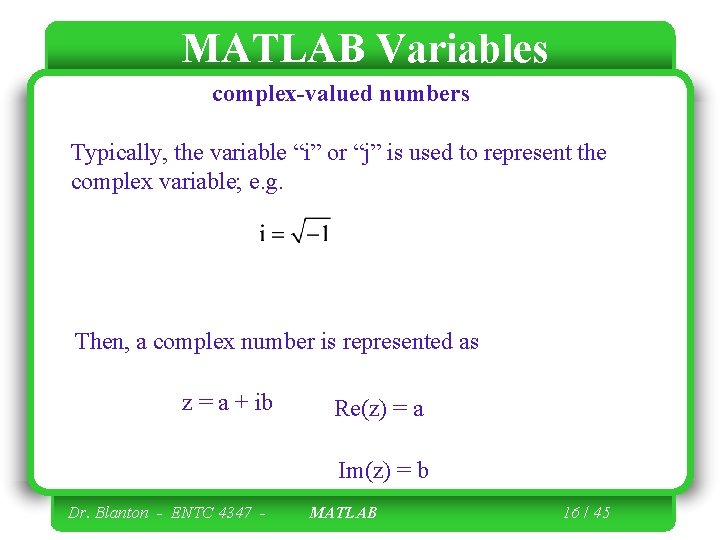

MATLAB Variables complex-valued numbers Typically, the variable “i” or “j” is used to represent the complex variable; e. g. Then, a complex number is represented as z = a + ib Re(z) = a Im(z) = b Dr. Blanton - ENTC 4347 - MATLAB 16 / 45

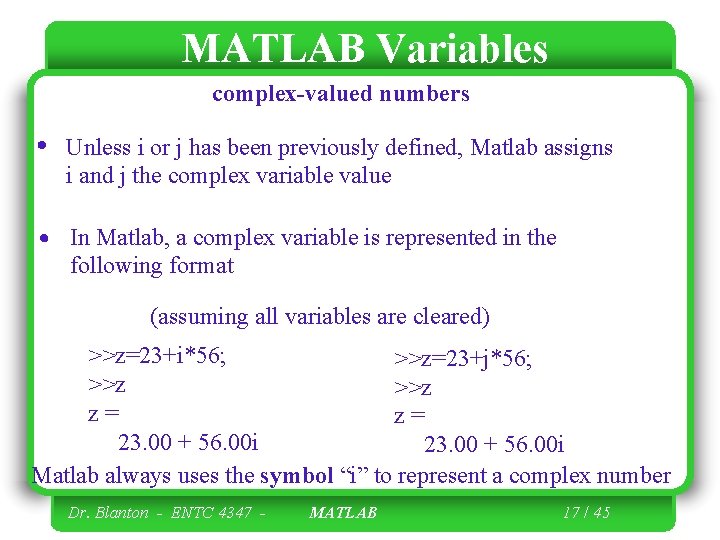

MATLAB Variables complex-valued numbers Unless i or j has been previously defined, Matlab assigns i and j the complex variable value In Matlab, a complex variable is represented in the following format (assuming all variables are cleared) >>z=23+i*56; >>z=23+j*56; >>z z= z= 23. 00 + 56. 00 i Matlab always uses the symbol “i” to represent a complex number Dr. Blanton - ENTC 4347 - MATLAB 17 / 45

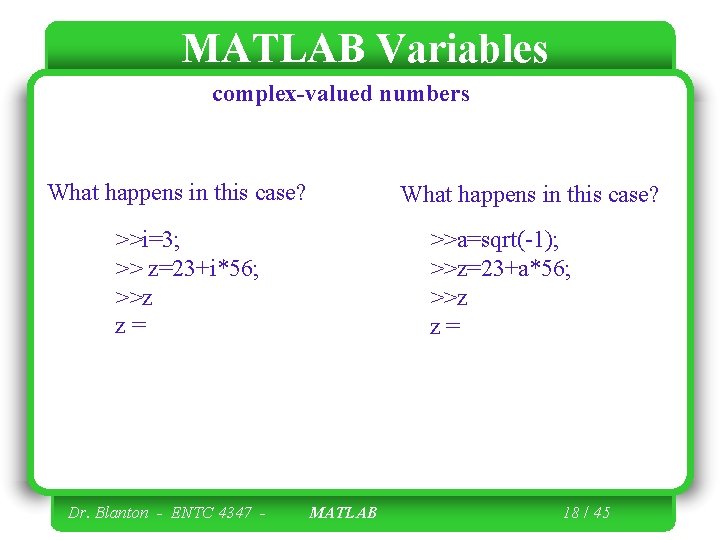

MATLAB Variables complex-valued numbers What happens in this case? >>i=3; >> z=23+i*56; >>z z= Dr. Blanton - ENTC 4347 - >>a=sqrt(-1); >>z=23+a*56; >>z z= MATLAB 18 / 45

MATLAB Variables complex-valued numbers Note, a real-valued number is a special case of a complex-valued number assigning any element of a matrix as complex-valued makes the entire matrix complex-valued >>a=[1, 2]; >>a a= 1 2 Dr. Blanton - ENTC 4347 - >>a(1)=1+i*5; >>a a= 1. 00+5. 00 i MATLAB 2. 00+0. 00 i 19 / 45

MATLAB Variables Advanced data types n-dimensional arrays structures cell arrays Dr. Blanton - ENTC 4347 - MATLAB 20 / 45

MATLAB Variables Basic operations addition subtraction multiplication division right division left division >>a=3; b=4; >>c 1=a/b; >>c 2=ab; Dr. Blanton - ENTC 4347 - + * / c 1=0. 75 c 2=1. 3333…. MATLAB ? so, be careful! 21 / 45

MATLAB Variables Mixed Real and Complex valued Variables if both variables are real-valued, a real-valued result is obtained if one variable is complex-valued, Matlab recasts the real variable as complex and then performs the operation. The result is complex-valued however, the type casting is done internally, the real-valued variable remains real after the operation Dr. Blanton - ENTC 4347 - MATLAB 22 / 45

MATLAB Variables Other (Scalar) Operations Math representation Matlab interpretation >>z=y^x; >>y=exp(x); >>y=log 10(x) Dr. Blanton - ENTC 4347 - >>y=sin(x); >>y=asin(x); >>y=cos(x); >>y=acos(x); >>y=tan(x); >>y=atan(x); MATLAB 23 / 45

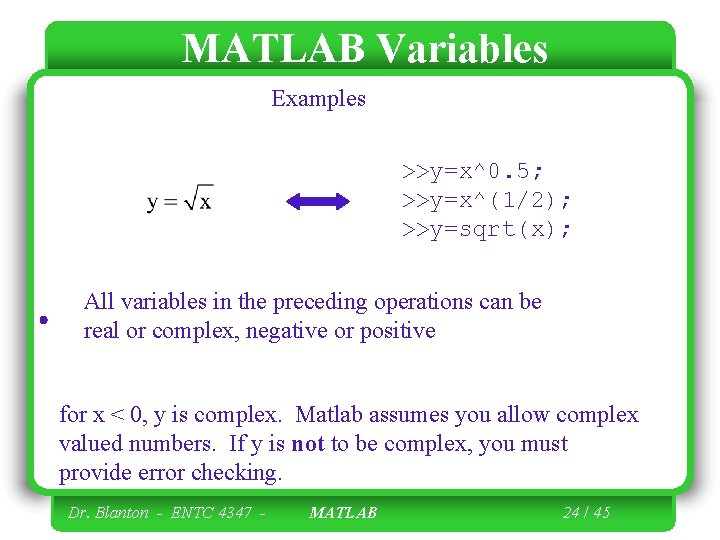

MATLAB Variables Examples >>y=x^0. 5; >>y=x^(1/2); >>y=sqrt(x); All variables in the preceding operations can be real or complex, negative or positive for x < 0, y is complex. Matlab assumes you allow complex valued numbers. If y is not to be complex, you must provide error checking. Dr. Blanton - ENTC 4347 - MATLAB 24 / 45

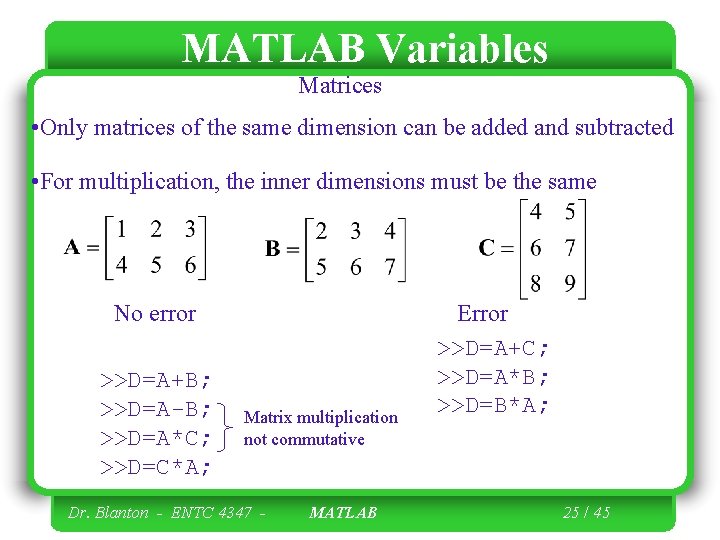

MATLAB Variables Matrices • Only matrices of the same dimension can be added and subtracted • For multiplication, the inner dimensions must be the same No error >>D=A+B; >>D=A-B; >>D=A*C; >>D=C*A; Matrix multiplication not commutative Dr. Blanton - ENTC 4347 - MATLAB Error >>D=A+C; >>D=A*B; >>D=B*A; 25 / 45

MATLAB Variables Left() and Right(/) Matrix “division” Math representation Matlab interpretation >>C=AB; >>C=B/A; Remember, A must be square and full rank (linearly independent rows/columns) Dr. Blanton - ENTC 4347 - MATLAB 26 / 45

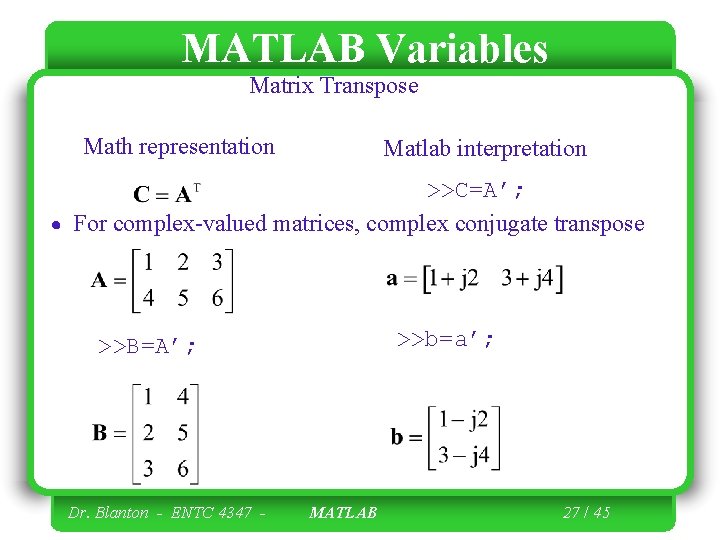

MATLAB Variables Matrix Transpose Math representation Matlab interpretation >>C=A’; For complex-valued matrices, complex conjugate transpose >>b=a’; >>B=A’; Dr. Blanton - ENTC 4347 - MATLAB 27 / 45

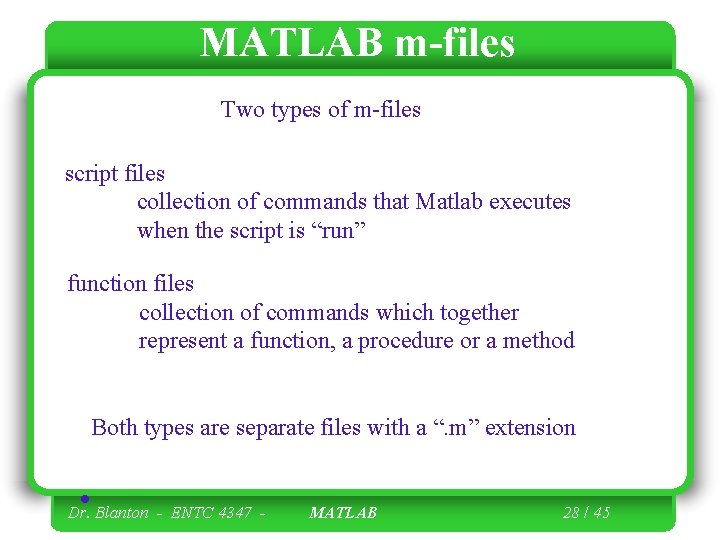

MATLAB m-files Two types of m-files script files collection of commands that Matlab executes when the script is “run” function files collection of commands which together represent a function, a procedure or a method Both types are separate files with a “. m” extension Dr. Blanton - ENTC 4347 - MATLAB 28 / 45

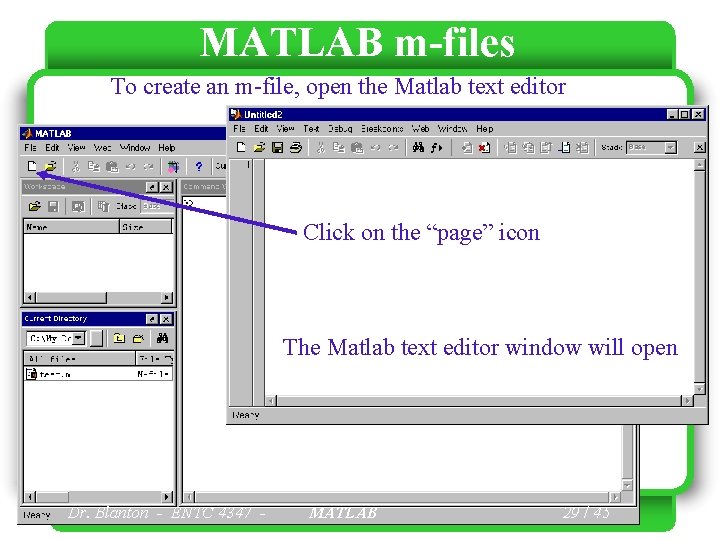

MATLAB m-files To create an m-file, open the Matlab text editor Click on the “page” icon The Matlab text editor window will open Dr. Blanton - ENTC 4347 - MATLAB 29 / 45

MATLAB m-files Script Files On the command line In the script file named test. m >>x=3. 0; >>y=x^2; >>y y = 9. 0 >> On the command line Dr. Blanton - ENTC 4347 - >>test y = 9. 0 >> MATLAB 30 / 45

MATLAB m-files Script Files script files share the workspace memory test. m script >>x=5. 0; >>test >>y y = 25. 0 >> Dr. Blanton - ENTC 4347 - MATLAB 31 / 45

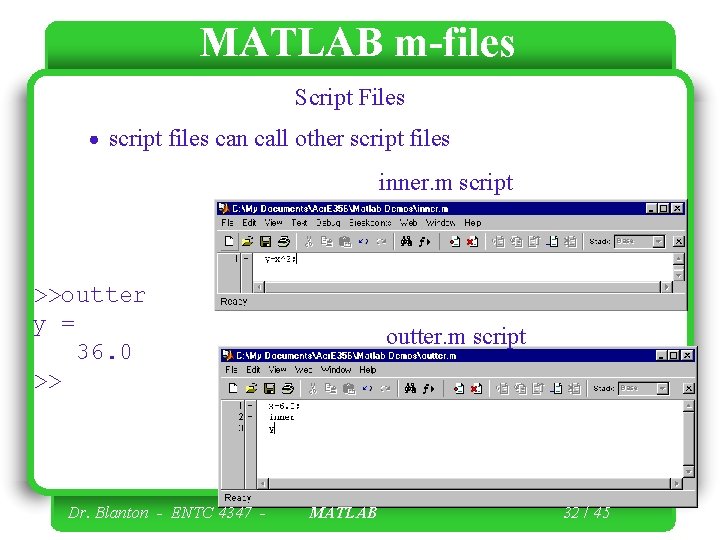

MATLAB m-files Script Files script files can call other script files inner. m script >>outter y = 36. 0 >> Dr. Blanton - ENTC 4347 - outter. m script MATLAB 32 / 45

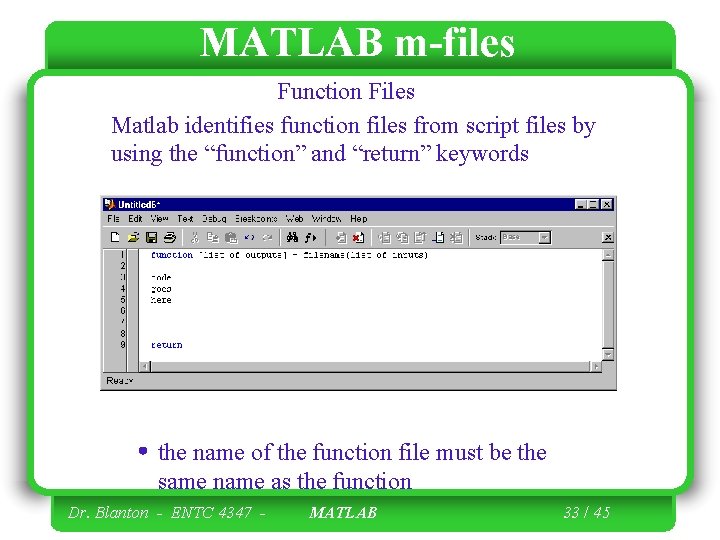

MATLAB m-files Function Files Matlab identifies function files from script files by using the “function” and “return” keywords the name of the function file must be the same name as the function Dr. Blanton - ENTC 4347 - MATLAB 33 / 45

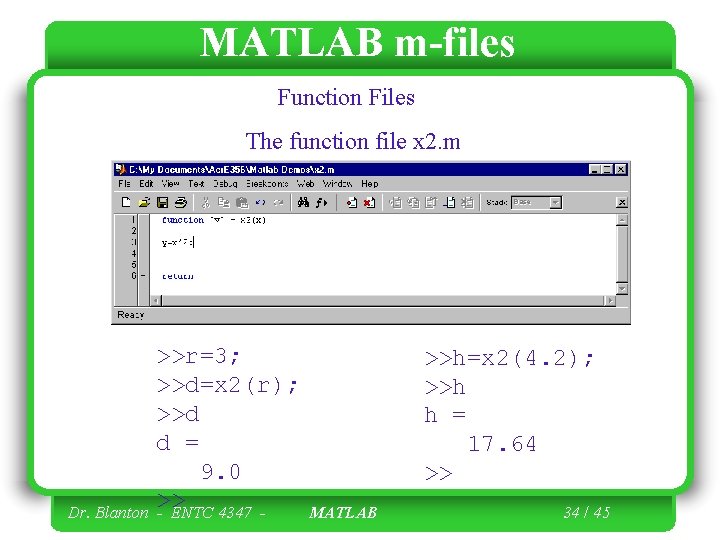

MATLAB m-files Function Files The function file x 2. m Dr. Blanton >>r=3; >>d=x 2(r); >>d d = 9. 0 >> - ENTC 4347 - >>h=x 2(4. 2); >>h h = 17. 64 >> MATLAB 34 / 45

MATLAB m-files Function Files Multiple Inputs and Outputs outputs in square brackets, [ ] Dr. Blanton - ENTC 4347 - MATLAB inputs in parentheses ( ) 35 / 45

MATLAB m-files Function Files variables created in the function are not retained in the workspace, except for the output variables the function does not have access to workspace variables, except for the inputs variables passed to the function are “copies” of the workspace variables. Changing their value inside the function has no effect on their value in the workspace. Dr. Blanton - ENTC 4347 - MATLAB 36 / 45

MATLAB Flow Control The “while” and “if” statements while expression statements end if expression statements 1 else statements 2 end Matlab evaluates expression as logical “true” or “false” equivalent to zero “true” equivalent to any non-zero number statements, any valid Matlab command Dr. Blanton - ENTC 4347 - MATLAB 37 / 45

MATLAB Flow Control evaluating expression conditional operators == equal to < less than > greater than <= less than or equal to >= greater than or equal to ~= not equal to any valid equation a=4; b=5; c=5; if a+b “True” if b-c “False” watch out for round-off and word length error logical operators & and | or if sin(0) “False” if sin(pi) “True” sin(pi) = 1. 22 e-16 Dr. Blanton - ENTC 4347 - while(3<=a)&(a<=5) MATLAB 38 / 45

MATLAB Flow Control The “for” statement for index = start : [increment : ] end statements end index, start, increment, and end do not need to be integer valued increment is optional, if increment is not specified increment defaults to 1 index can be incremented positive (increment > 0) or negative (increment < 0) loop stops when index > end (or index < end) Dr. Blanton - ENTC 4347 - MATLAB 39 / 45

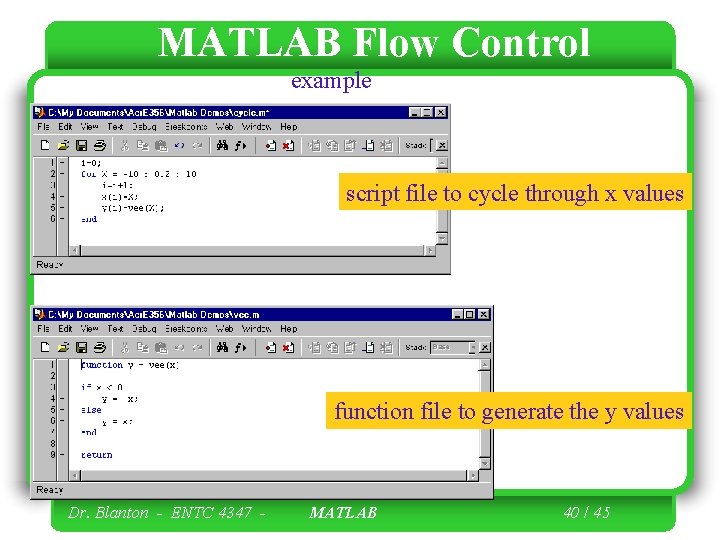

MATLAB Flow Control example script file to cycle through x values function file to generate the y values Dr. Blanton - ENTC 4347 - MATLAB 40 / 45

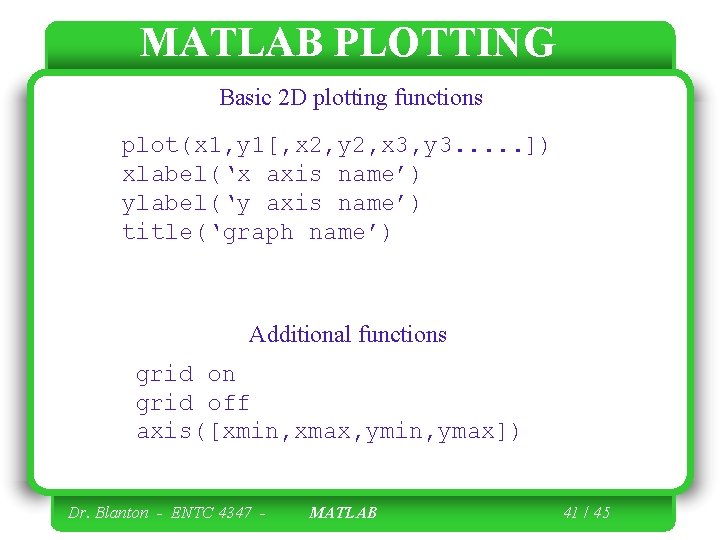

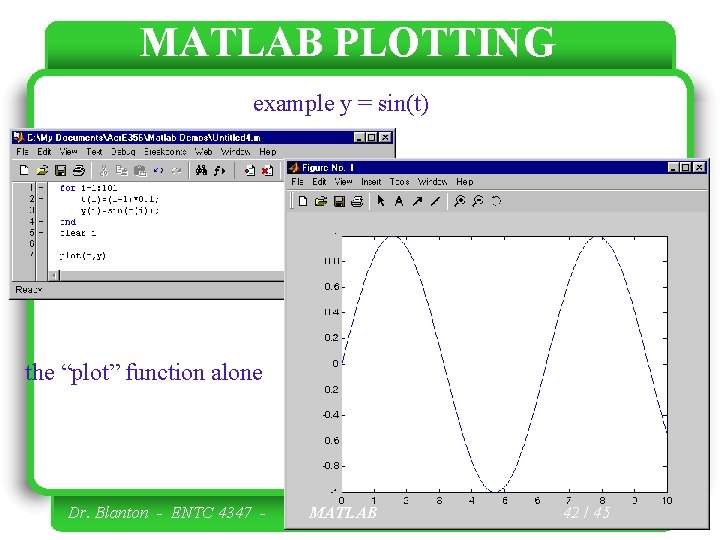

MATLAB PLOTTING Basic 2 D plotting functions plot(x 1, y 1[, x 2, y 2, x 3, y 3. . . ]) xlabel(‘x axis name’) ylabel(‘y axis name’) title(‘graph name’) Additional functions grid on grid off axis([xmin, xmax, ymin, ymax]) Dr. Blanton - ENTC 4347 - MATLAB 41 / 45
