Introduction to Matei Zaharia Outline The big data
Introduction to Matei Zaharia

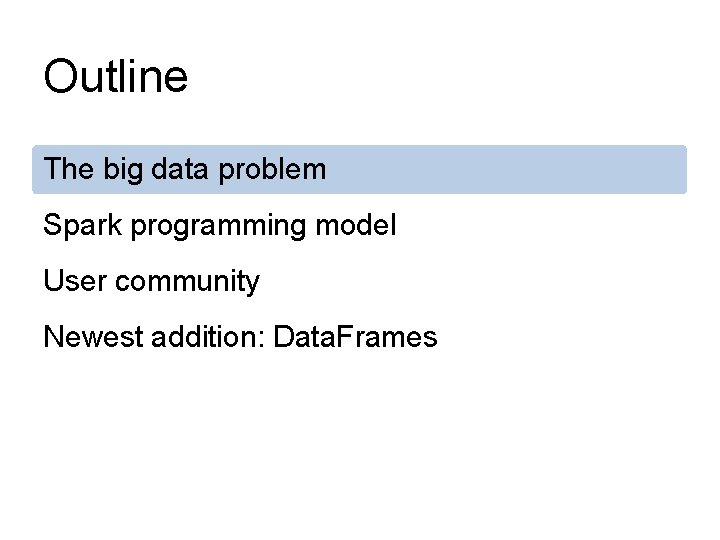

Outline The big data problem Spark programming model User community Newest addition: Data. Frames

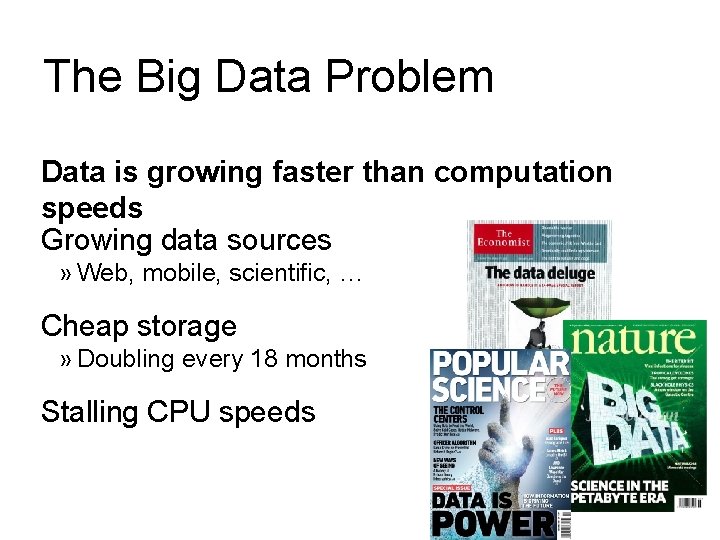

The Big Data Problem Data is growing faster than computation speeds Growing data sources » Web, mobile, scientific, … Cheap storage » Doubling every 18 months Stalling CPU speeds

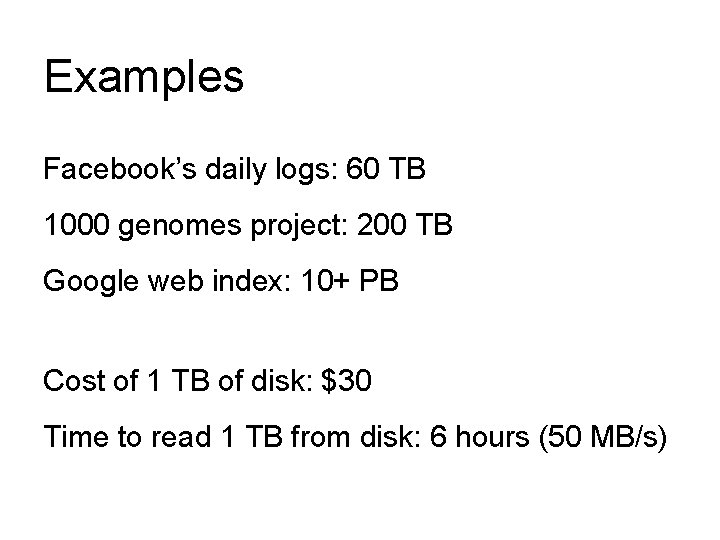

Examples Facebook’s daily logs: 60 TB 1000 genomes project: 200 TB Google web index: 10+ PB Cost of 1 TB of disk: $30 Time to read 1 TB from disk: 6 hours (50 MB/s)

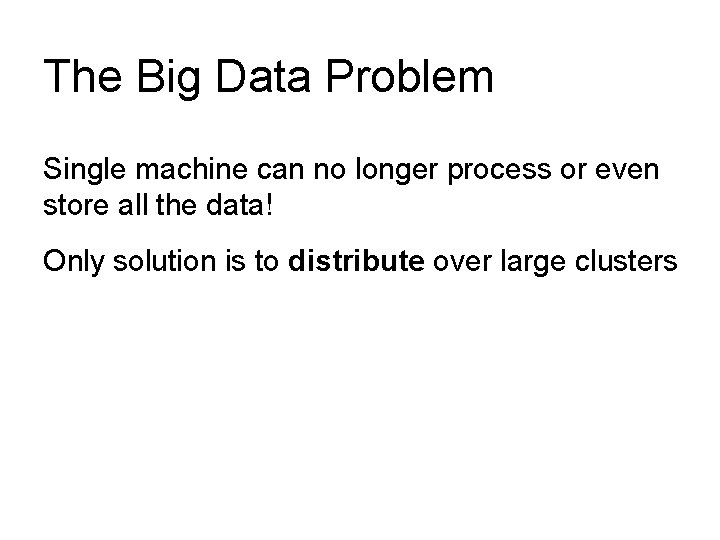

The Big Data Problem Single machine can no longer process or even store all the data! Only solution is to distribute over large clusters

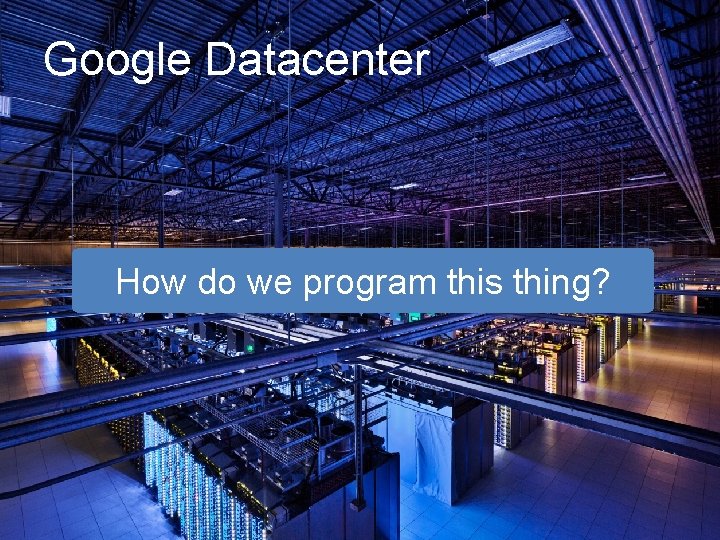

Google Datacenter How do we program this thing?

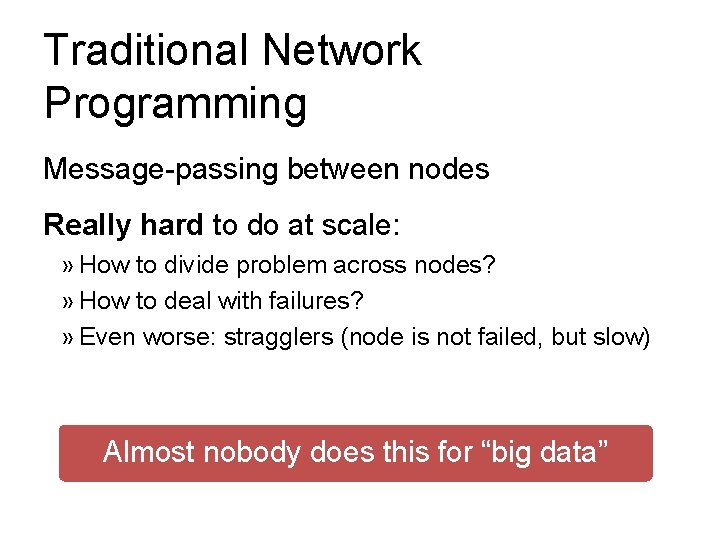

Traditional Network Programming Message-passing between nodes Really hard to do at scale: » How to divide problem across nodes? » How to deal with failures? » Even worse: stragglers (node is not failed, but slow) Almost nobody does this for “big data”

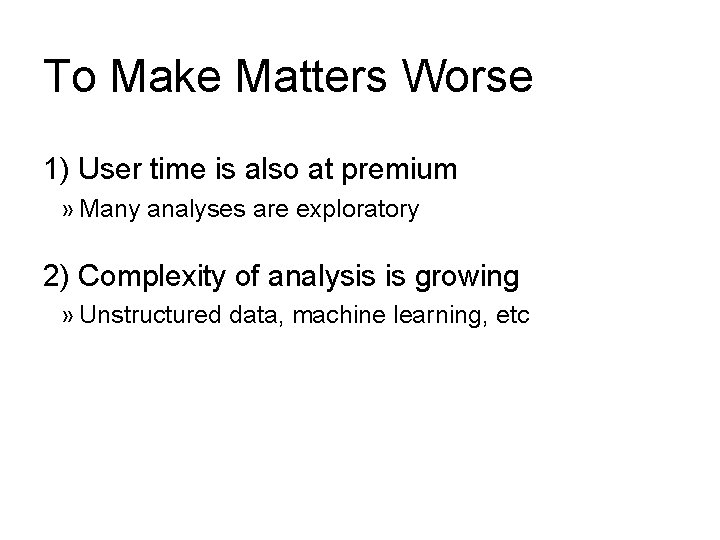

To Make Matters Worse 1) User time is also at premium » Many analyses are exploratory 2) Complexity of analysis is growing » Unstructured data, machine learning, etc
Outline The big data problem Spark programming model User community Newest addition: Data. Frames

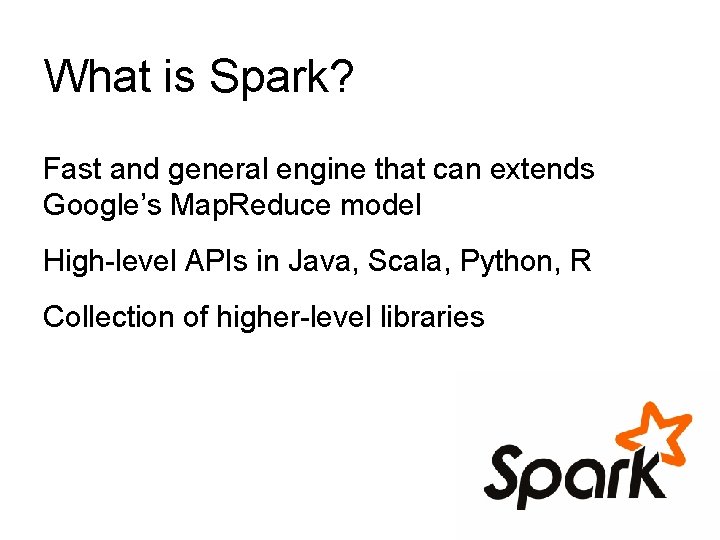

What is Spark? Fast and general engine that can extends Google’s Map. Reduce model High-level APIs in Java, Scala, Python, R Collection of higher-level libraries

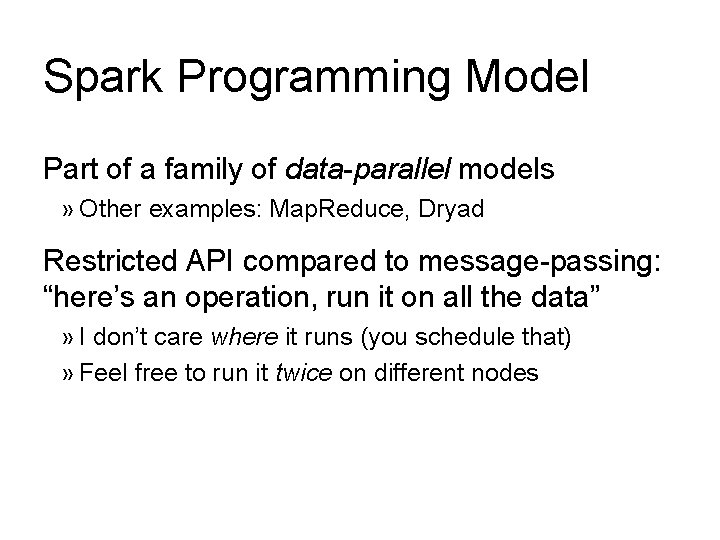

Spark Programming Model Part of a family of data-parallel models » Other examples: Map. Reduce, Dryad Restricted API compared to message-passing: “here’s an operation, run it on all the data” » I don’t care where it runs (you schedule that) » Feel free to run it twice on different nodes

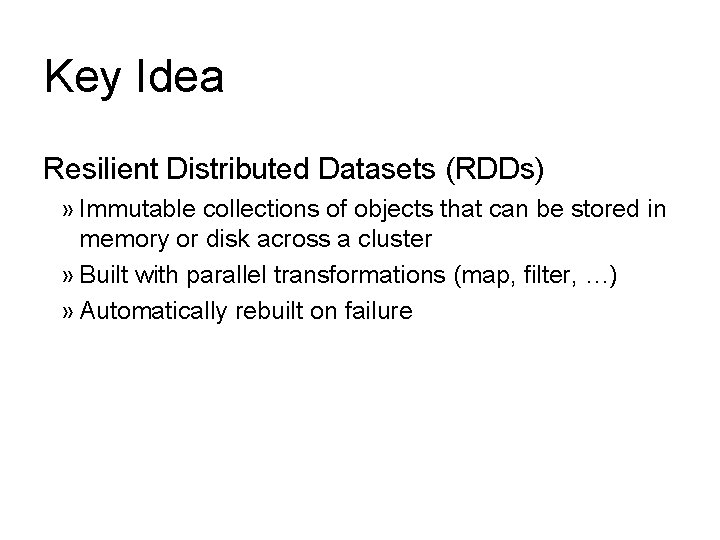

Key Idea Resilient Distributed Datasets (RDDs) » Immutable collections of objects that can be stored in memory or disk across a cluster » Built with parallel transformations (map, filter, …) » Automatically rebuilt on failure

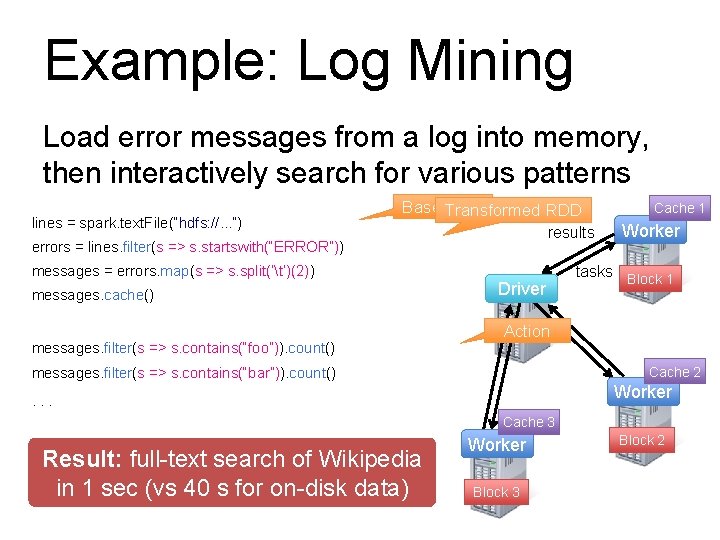

Example: Log Mining Load error messages from a log into memory, then interactively search for various patterns lines = spark. text. File(“hdfs: //. . . ”) Base Transformed RDD results errors = lines. filter(s => s. startswith(“ERROR”)) messages = errors. map(s => s. split(‘t’)(2)) messages. cache() messages. filter(s => s. contains(“foo”)). count() Driver Cache 1 Worker tasks Block 1 Action Cache 2 messages. filter(s => s. contains(“bar”)). count() Worker . . . Cache 3 Result: full-text search of Wikipedia in 1 sec (vs 40 s for on-disk data) Worker Block 3 Block 2

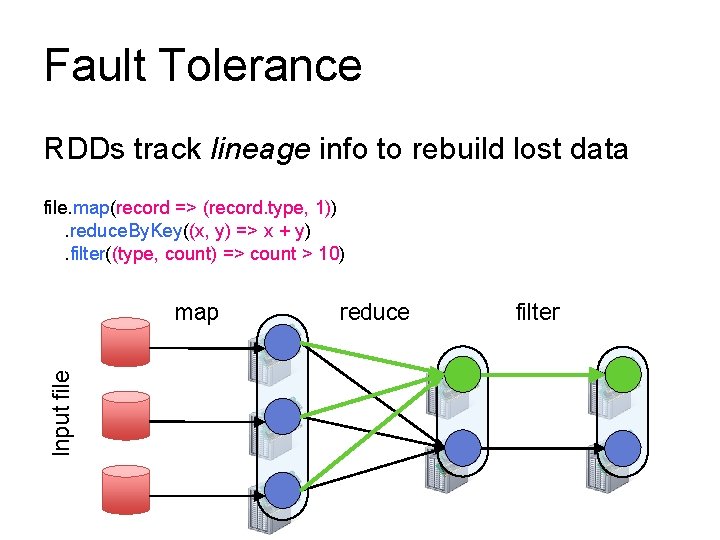

Fault Tolerance RDDs track lineage info to rebuild lost data file. map(record => (record. type, 1)). reduce. By. Key((x, y) => x + y). filter((type, count) => count > 10) Input file map reduce filter
Fault Tolerance RDDs track lineage info to rebuild lost data file. map(record => (record. type, 1)). reduce. By. Key((x, y) => x + y). filter((type, count) => count > 10) Input file map reduce filter

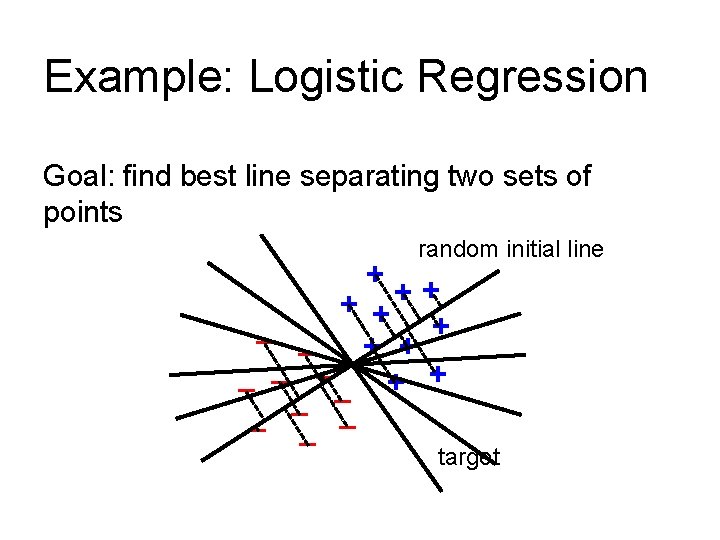

Example: Logistic Regression Goal: find best line separating two sets of points random initial line + + + – – – – target

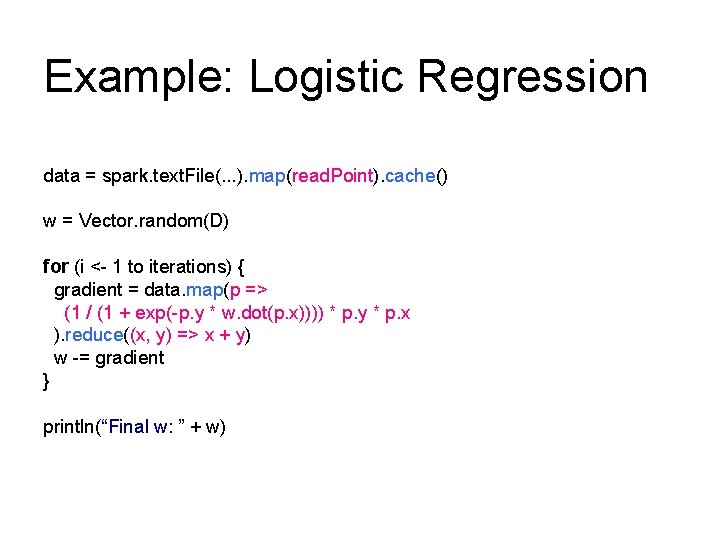

Example: Logistic Regression data = spark. text. File(. . . ). map(read. Point). cache() w = Vector. random(D) for (i <- 1 to iterations) { gradient = data. map(p => (1 / (1 + exp(-p. y * w. dot(p. x)))) * p. y * p. x ). reduce((x, y) => x + y) w -= gradient } println(“Final w: ” + w)

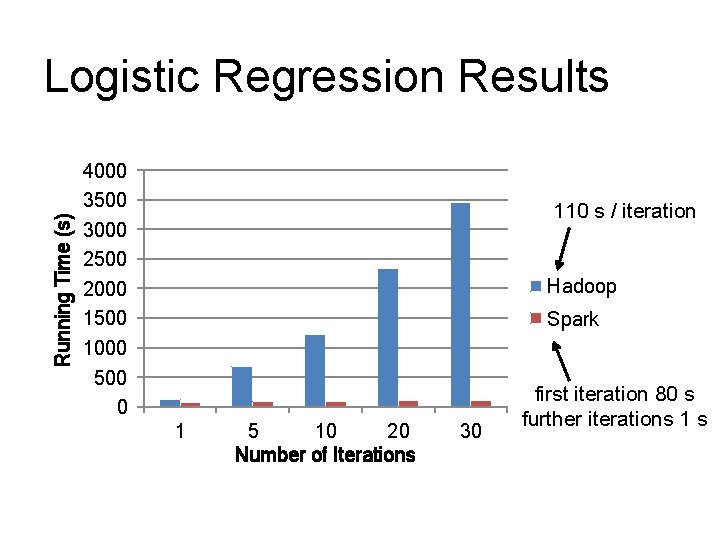

Running Time (s) Logistic Regression Results 4000 3500 3000 2500 2000 1500 1000 500 0 110 s / iteration Hadoop Spark 1 5 10 20 Number of Iterations 30 first iteration 80 s further iterations 1 s

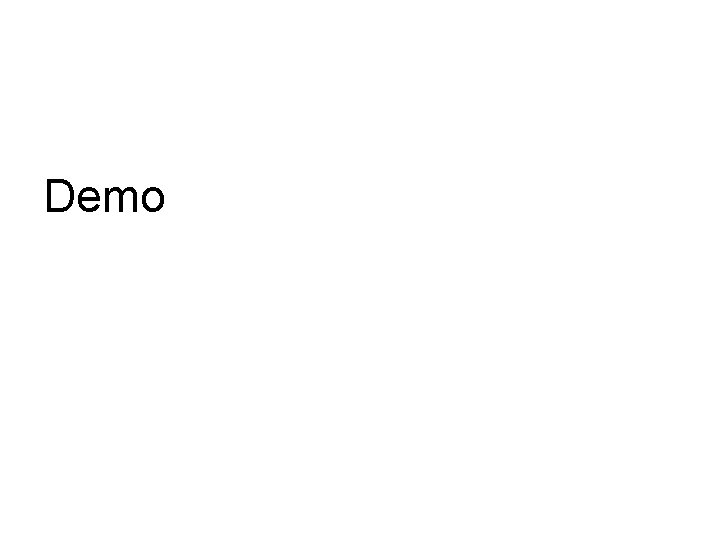

Demo
Higher-Level Libraries Spark SQL structured data Streaming real-time Spark MLlib machine learning Graph. X graph

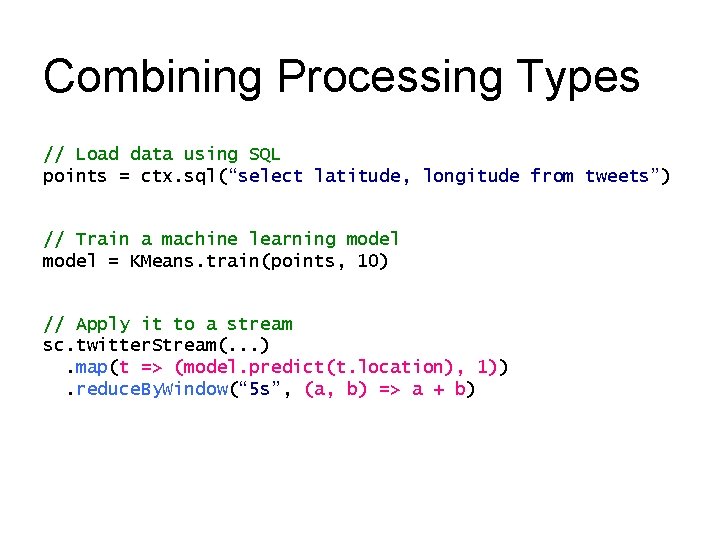

Combining Processing Types // Load data using SQL points = ctx. sql(“select latitude, longitude from tweets”) // Train a machine learning model = KMeans. train(points, 10) // Apply it to a stream sc. twitter. Stream(. . . ). map(t => (model. predict(t. location), 1)). reduce. By. Window(“ 5 s”, (a, b) => a + b)

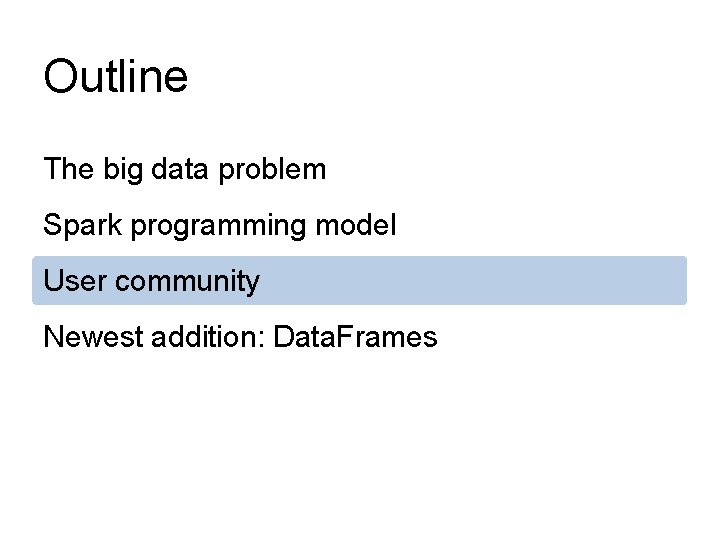

Outline The big data problem Spark programming model User community Newest addition: Data. Frames

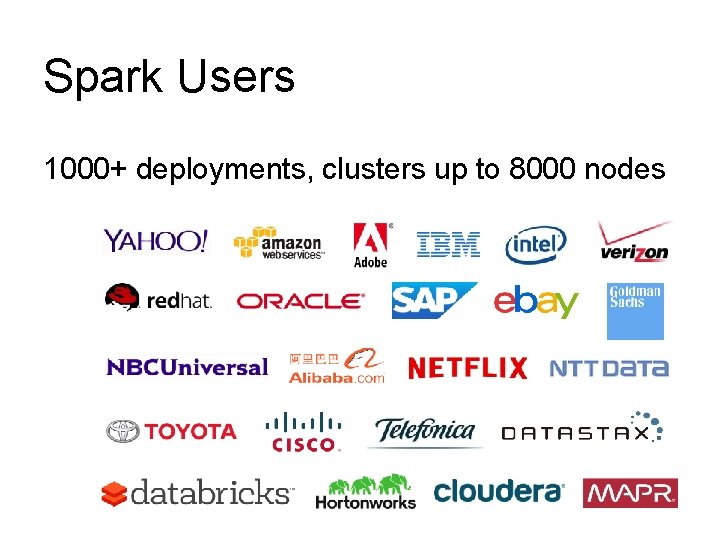

Spark Users 1000+ deployments, clusters up to 8000 nodes

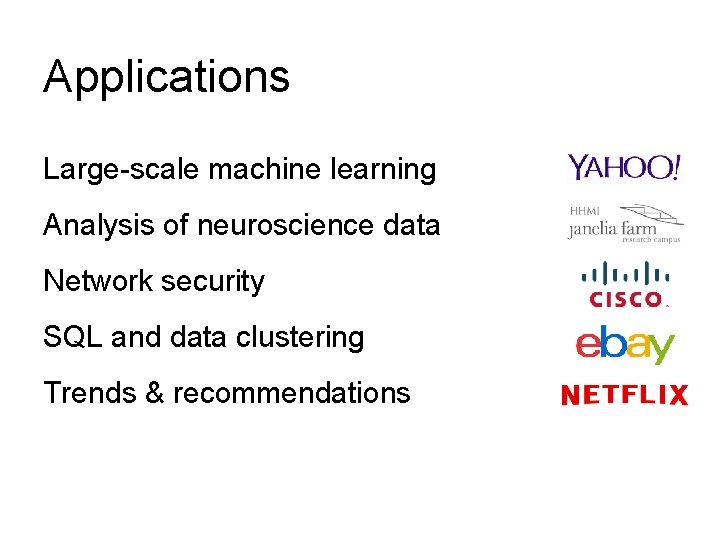

Applications Large-scale machine learning Analysis of neuroscience data Network security SQL and data clustering Trends & recommendations
Which Libraries Do People Use? Spark SQL Data. Frames 69% 62% Spark Streaming 58% MLlib + Graph. X 58% 75% of users use 2 or more components 50% use three or more components

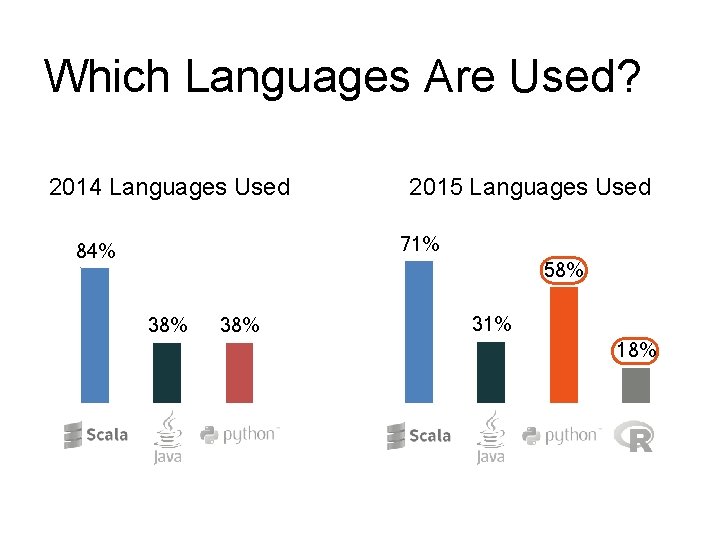

Which Languages Are Used? 2014 Languages Used 2015 Languages Used 71% 84% 58% 38% 31% 18%

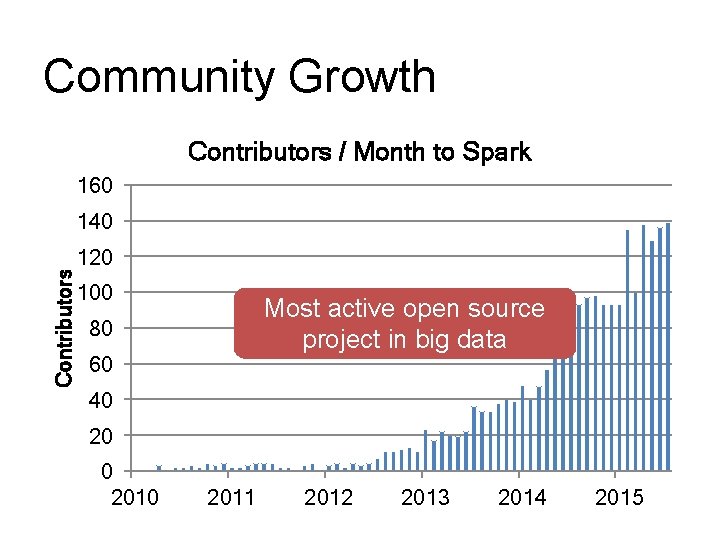

Community Growth Contributors / Month to Spark 160 Contributors 140 120 100 Most active open source project in big data 80 60 40 2011 2012 2013 2014 2015
Outline The big data problem Spark programming model User community Newest addition: Data. Frames

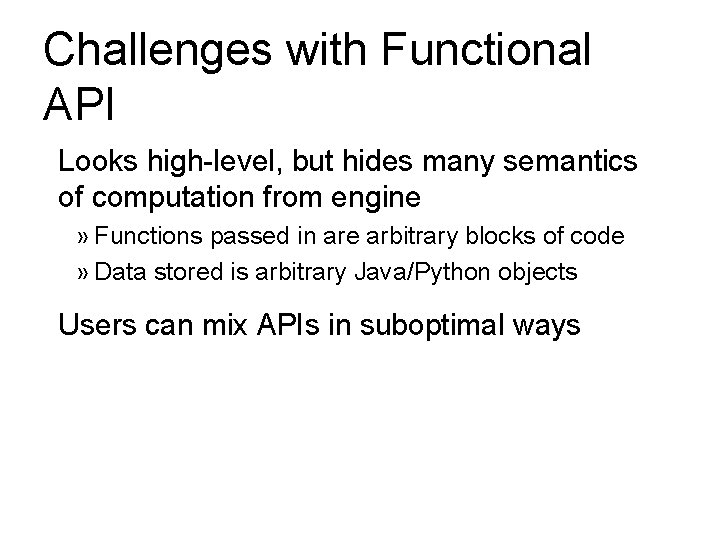

Challenges with Functional API Looks high-level, but hides many semantics of computation from engine » Functions passed in are arbitrary blocks of code » Data stored is arbitrary Java/Python objects Users can mix APIs in suboptimal ways
Example Problem pairs = data. map(word => (word, 1)) groups = pairs. group. By. Key() Materializes all groups as lists of integers groups. map((k, vs) => (k, vs. sum)) Then promptly aggregates them

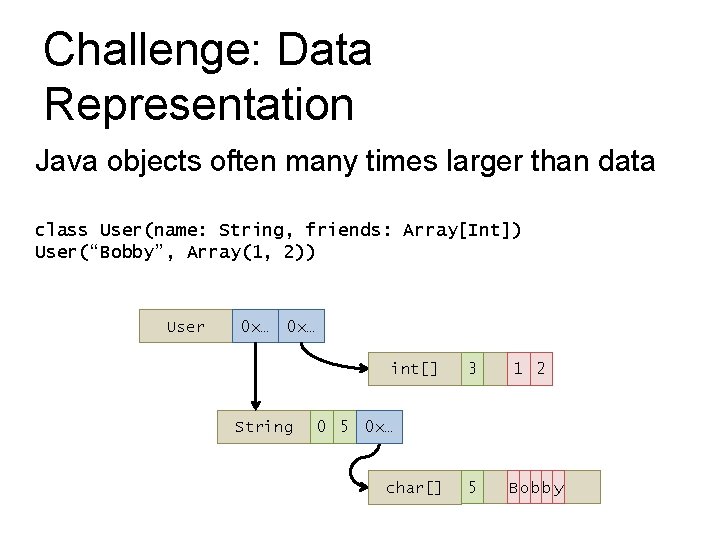

Challenge: Data Representation Java objects often many times larger than data class User(name: String, friends: Array[Int]) User(“Bobby”, Array(1, 2)) User 0 x… int[] String 3 1 2 0 5 0 x… char[] 5 Bo b b y

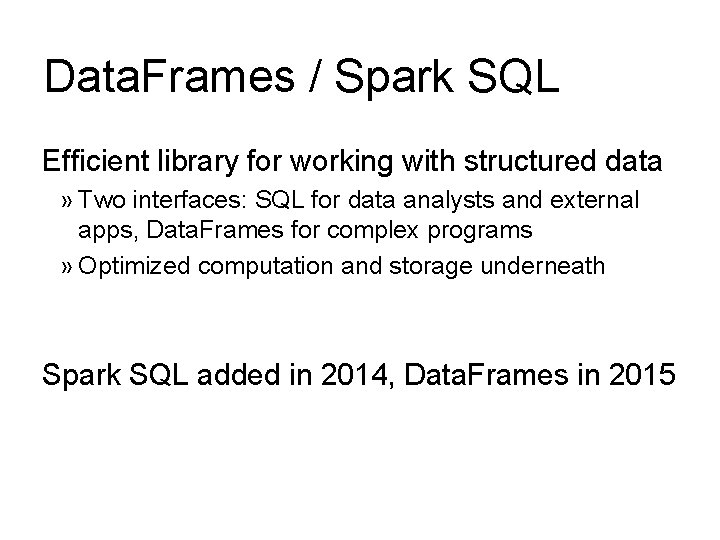

Data. Frames / Spark SQL Efficient library for working with structured data » Two interfaces: SQL for data analysts and external apps, Data. Frames for complex programs » Optimized computation and storage underneath Spark SQL added in 2014, Data. Frames in 2015

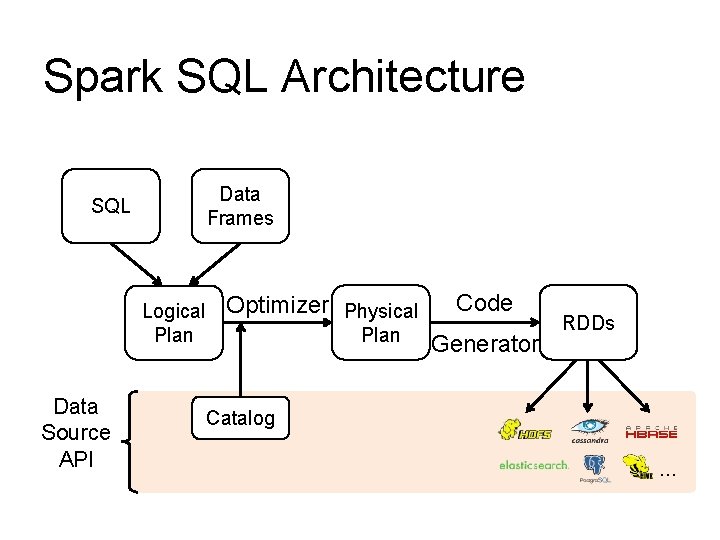

Spark SQL Architecture Data Frames SQL Logical Plan Data Source API Optimizer Physical Plan Code Generator RDDs Catalog …

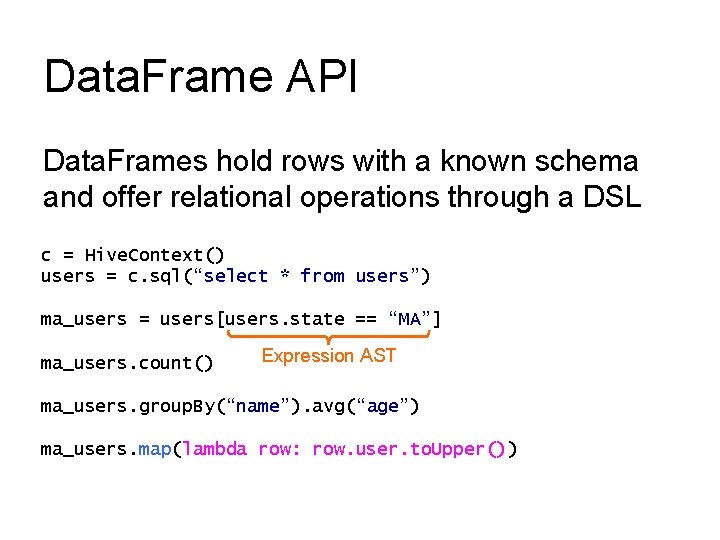

Data. Frame API Data. Frames hold rows with a known schema and offer relational operations through a DSL c = Hive. Context() users = c. sql(“select * from users”) ma_users = users[users. state == “MA”] ma_users. count() Expression AST ma_users. group. By(“name”). avg(“age”) ma_users. map(lambda row: row. user. to. Upper())

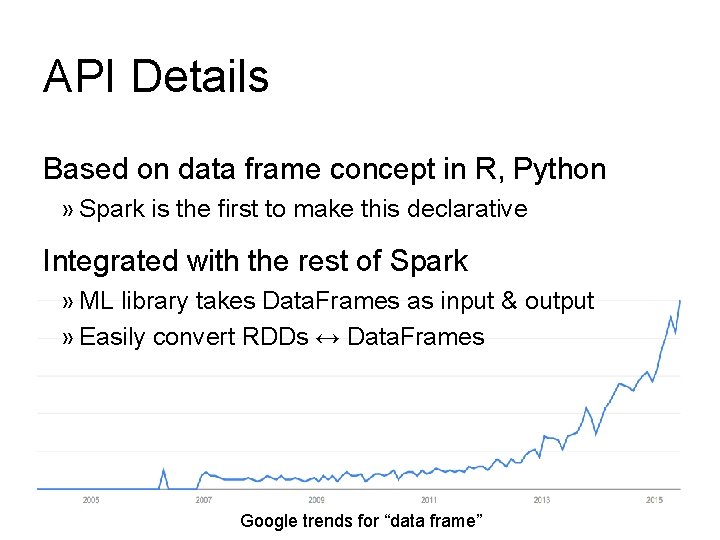

API Details Based on data frame concept in R, Python » Spark is the first to make this declarative Integrated with the rest of Spark » ML library takes Data. Frames as input & output » Easily convert RDDs ↔ Data. Frames Google trends for “data frame”

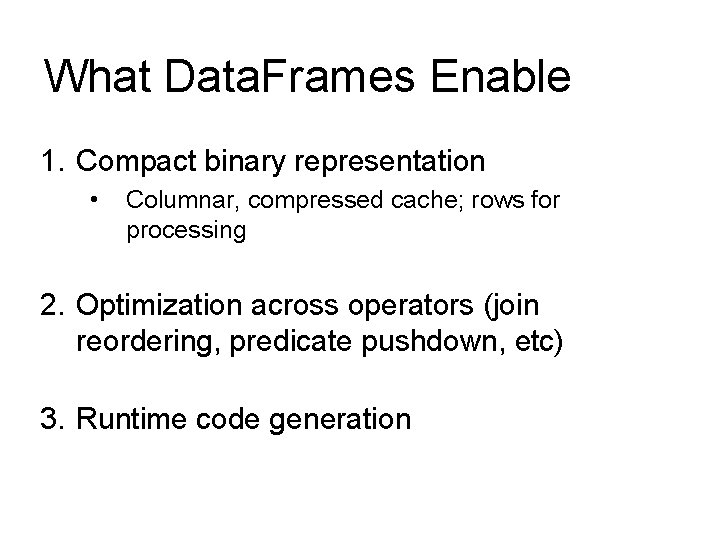

What Data. Frames Enable 1. Compact binary representation • Columnar, compressed cache; rows for processing 2. Optimization across operators (join reordering, predicate pushdown, etc) 3. Runtime code generation

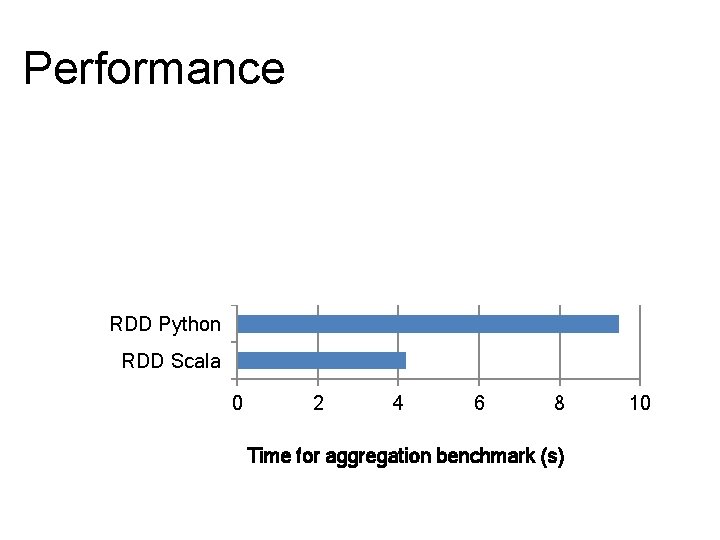

Performance Data. Frame SQL Data. Frame R Data. Frame Python Data. Frame Scala RDD Python RDD Scala 0 2 4 6 8 Time for aggregation benchmark (s) 10

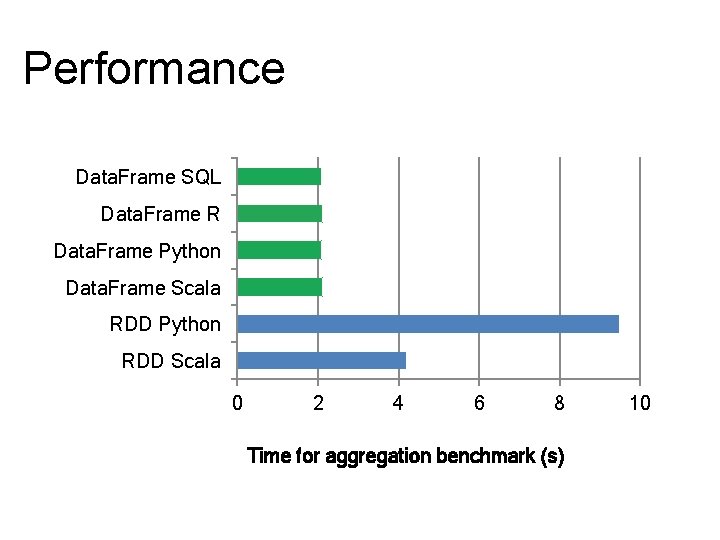

Performance Data. Frame SQL Data. Frame R Data. Frame Python Data. Frame Scala RDD Python RDD Scala 0 2 4 6 8 Time for aggregation benchmark (s) 10
Data Sources Uniform way to access structured data » Apps can migrate across Hive, Cassandra, JSON, … » Rich semantics allows query pushdown into data sources users[users. age > 20] select * from users Spark SQL

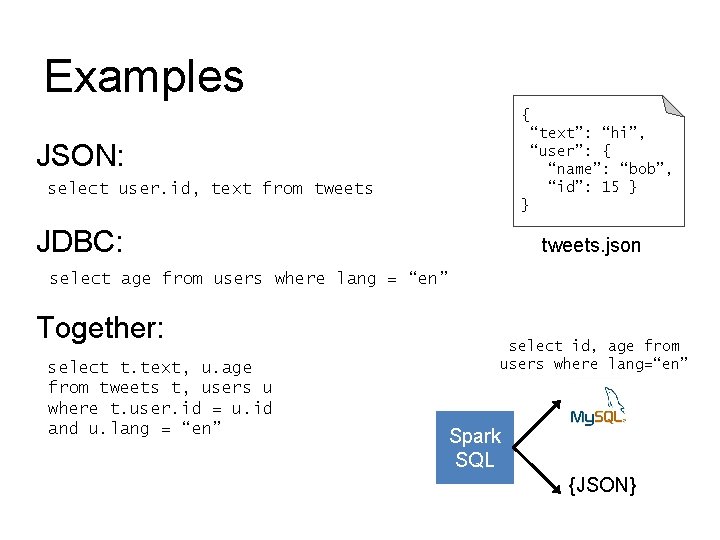

Examples { “text”: “hi”, “user”: { “name”: “bob”, “id”: 15 } JSON: select user. id, text from tweets } JDBC: tweets. json select age from users where lang = “en” Together: select t. text, u. age from tweets t, users u where t. user. id = u. id and u. lang = “en” select id, age from users where lang=“en” Spark SQL {JSON}
To Learn More Get Spark at spark. apache. org » You can run it on your laptop in local mode Tutorials, MOOCs and news: sparkhub. databricks. com Use cases: spark-summit. org
